USER MANUAL MGF23330W BEKO

EN - IT - FR 01M-8817843200-2021-01 01M-8817913200-2021-01 CONTENTS ENGLISH 03-19 ITALIANO 20-37 FRANÇAIS 38-54 2 / EN Microwave Oven / User Manual Please read this manual first! Dear Customer, Thank you for purchasing a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Meanings of the symbols Following symbols are used in the various section of this user manual:

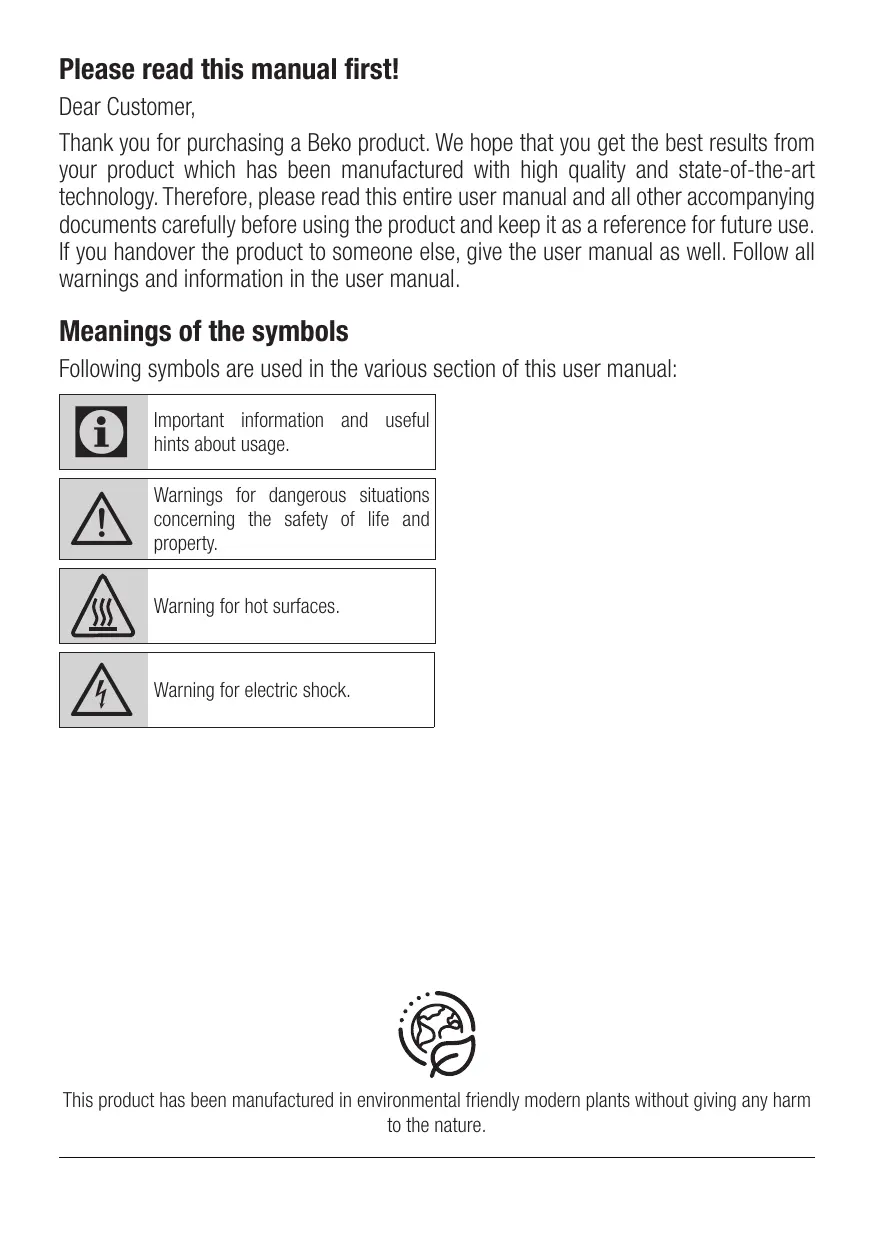

Important information and useful hints about usage. Warnings for dangerous situations concerning the safety of life and property. Warning for hot surfaces.

Warning for electric shock. This product has been manufactured in environmental friendly modern plants without giving any harm to the nature. 1 Important safety and environmental instructions Important Safety Instructions Read Carefully And Keep For Future Reference

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.
• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments; – Farm houses – By clients in hotels, and other residential type environments; 4 / EN – Bed and Breakfast type environments.
• It is not intended for industrial or laboratory use.
• Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces.
• Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is dangerous.
• Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes. Microwave Oven / User Manual 1 Important safety and environmental instructions Your oven is not designed to dry any living being.
• Do not use your appliance to dry clothes or kitchen towels.
• Do not use this appliance outdoors, bathrooms, humid environments or in places where the it can get wet.
• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.
• Only use the original parts or parts recommended by the manufacturer.
• Do not leave this appliance unattended while it is in use.
• Always use the appliance on a stable, flat, clean dry, and non-slip surface.
• The appliance should not be operated with an external clock timer or separate remote control system.
• Before using the appliance for the first time, clean all parts. Please see the details given in the “Cleaning and Maintenance” section.

Microwave Oven / User Manual Operate the appliance for its intended purpose only as described in this manual.

• Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.
• Do not operate the oven empty.
• Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.
• Utensils shall be checked to ensure that they are suitable for use in microwave ovens.
• Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void.
• Steam may come out while opening the covers or the foil after cooking the food.
• The appliance and its accessible surfaces may be very hot when the appliance is in use.
• Door and outer glass may be very hot when the appliance is in use.
• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

5 / EN 1 Important safety and environmental instructions The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.

• Use the appliance with a grounded outlet only.
• Never use the appliance if the power cable or the appliance itself is damaged.
• Do not use this appliance with an extension cord.
• Never touch the appliance or its plug with damp or wet hands.
• Place the appliance in a way so that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before each cleaning and when the appliance is not in use.

6 / EN Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.

• Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• Remove the wire strings and/or metal handles of paper or plastic bags before placing bags to the oven.
• If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.
• Do not use microwave oven for storage. Do not leave paper items, cooking material or food inside the oven when it is not being used.
• The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Microwave Oven / User Manual 1 Important safety and environmental instructions This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

• Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.
• Do not use cooking oil in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns.
• Pierce food with thick crust such as potatoes, courgettes, apples and chestnuts.
• Appliance must be placed so that the rear side is facing the wall.
• Before moving the appliance, please secure the turntable to prevent damage.
• Eggs in their shell and whole hardboiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

WARNING: If the door or door seals

are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person

to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods

must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned regularly and any food deposits removed.
• There should be min 20 cm free space above the top surface of the oven.
• Do not over-cook foods; otherwise, you may cause a fire.
• Do not use chemicals and steam assisted cleaners to clean the appliance.
• Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory or mental abilities. 7 / EN 1 Important safety and environmental instructions This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders.
• Danger of choking! Keep all the packaging materials away from children.
• Due to excessive heat that arises in grill and combination modes, children should only be allowed to use these modes under supervision of an adult.
• Keep the product and its power cable so that they are inaccessible by children under 8 years old.
• Do not cook food directly on the glass tray. Put the food in / on appropriate kitchen utensils before placing them in the oven.

8 / EN Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur.

• This product is not designed to be built-in. Do not place the product in a cabinet or box while it is in use.

1.2 Compliance with the WEEE

Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Microwave Oven / User Manual 1 Important safety and environmental instructions

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. Microwave Oven / User Manual 9 / EN 2 Your microwave oven

Door safety lock system Oven window Roller ring Shaft Glass tray Control panel Door release button Metal rack

Technical and design modification rights are reserved. Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions. Power values are tested at 240V. 10 / EN Microwave Oven / User Manual 2 Your microwave oven Göbek (alt kısım)

2.3 Installing the turntable

ever place the glass tray upside down. The glass tray should never be restricted.

• Both glass tray and turntable support must always be used during cooking.
• All food and containers of food must always place on the glass tray for cooking.
• If glass tray or turntable support crack or break, contact your nearest authorized service center. 3 Installation and connection

1. Make sure that all the packing materials are removed from the inside of the door.

WARNING: Check the oven for any

damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

2. This microwave oven must be placed on a flat,

stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

3. Do not place the oven where heat, moisture, or

high humidity are generated, or near combustible materials.

4. For correct operation, the oven must have sufficient airflow. Allow minimum 20cm of free

space necessary above the top surface of the oven and 5cm at both sides. The microwave oven rear plate must be placed close to the wall. Do not cover or block any openings on the appliance. Do not remove feet. Microwave Oven / User Manual Hub (underside) CamGlass tablatray Turntable Döner tabla shaft mili Turntable support Döner tabla desteği

5. Do not operate the oven without glass tray, roller

support, and shaft in their proper positions.

6. Make sure that the power supply cord is undamaged and does not run under the oven or

over any hot or sharp surface.

7. The socket must be readily accessible so that it

can be easily unplugged in an emergency.

8. Do not use the oven outdoors.

3.2 Radio interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to

4. Move the microwave oven away from the receiver.

5. Plug the microwave oven into a different outlet

so that microwave oven and receiver are on different branch circuits. 11 / EN 3 Installation and connection

3.3 Grounding instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the

grounding plug can result in a risk of electric shock.

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures. The wires in this cable main are colored in accordance with the following code: Green and Yellow = EARTH Blue = NEUTRAL Brown = LIVE

3.4 Before you call for service

If the oven fails to operate:

1. Check to ensure that the oven is plugged in

securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely. 12 / EN

2. Check for a blown circuit fuse or a tripped main

circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

3. Check to ensure that the control panel is programmed correctly and the timer is set.

4. Check to ensure that the door is securely

closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

1. Microwave cannot penetrate metal. Only use

utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

2. Microwave cannot penetrate metal, so metal

utensils or dishes with metallic trim should not be used.

3. Do not use recycled paper products when microwave cooking, as they may contain small

metal fragments which may cause sparks and/ or fires.

4. Round /oval dishes rather than square/oblong

ones are recommend, as food in corners tends to overcook.

5. Narrow strips of aluminum foil may be used to

prevent overcooking of exposed areas. But be careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity. Microwave Oven / User Manual 3 Installation and connection The list below is a general guide to help you select the correct utensils. Cookware Microwave Grill Combination Heat–Resistant Glass Yes Yes Yes Non Heat–Resistant Glass

Heat–Resistant Ceramics Yes Yes Yes Microwave–Safe Plastic Dish Yes

Aluminum Foil & Foil Container

14 / EN Display screen Cooking time, power, indicators and present time are displayed. Number pads (10 minute1, 10 second 1) Press to set clock, cooking time or enter food weight. Power level Press to set microwave cooking power level. Weight defrost Press to program defrost program based on weight. Microwave Press to set microwave cooking program. Jet defrost Press to program defrost program based on time. Clock Press to set the oven clock of time. Memory Press to set multistage cooking program. Combi.1/Combi.2 Press to set combination cooking program. Grill Press to set grill cooking program. Preset Press to set preset function. Express Simply press it a number of times to set cooking time and cook immediately at full power level. Cancel Clears all previous settings before setting another function. Press once to temporarily stop cooking or twice to cancel cooking. Start Press to start cooking program. Microwave Oven / User Manual 4 Operation

4.2 How to set the oven controls

4.5 Microwave cooking

• When the oven first plugged in, beep will sound and the display will show “1:01” and “ ”.
• In the process of setting, broke about 20 seconds the oven will return to standby mode.
• During cooking, if press “Cancel” pad once, the program will be paused, then press “Start” pad to resume, but if press “Cancel” pad twice, the program will be canceled.
• After ending cooking, the screen will display End with sound every two minutes until user press any pad or open the door.

1. In standby mode, press “Power Level” pad repeatedly to set cooking power level.

2. Press “Microwave” pad once, and then use the

number pads to enter cooking time. The longest time is 99 minutes and 99 seconds.

3. Press “Start” pad to confirm.

Press Power Level pad to set a cooking power level:

4.3 Setting the clock

This is a 12 or 24 hour clock. You can choose to set the clock time in 12 or 24 hour cycle by pressing the “Clock” pad.

1. In standby mode, press “Clock” pad once or

twice to choose 12 or 24 hour clock.

2. Use the number pads to set the correct time.

3. Press “Clock” pad to confirm.

During cooking, you can check the current clock time by pressing “Clock” pad.

1. Use this feature to program the oven to start at

100% power conveniently.

2. In standby mode, press “Express” pad in quick

succession to set time (each press for 30 seconds, and up to 10inutes).

3. The oven starts cooking automatically at full

4. During cooking, you can add the cooking time

by pressing “Express” pad. Microwave Oven / User Manual Press Power Level Power Level Once 100% Twice 80% 3 times 60% 4 times 40% 5 times 20% 6 times

During cooking, you can check the current power level by pressing “Power Level” pad. If you want to cook at full power level, omit the first step.

1. In standby mode, press “Grill” pad once.

2. Use number pads to set cooking time. The longest time is 99 minutes and 99 seconds.

3. Press “Start” pad to confirm.

2. Use number pads to set cooking time. The longest time is 99 minutes and 99 seconds.

3. Press “Start” pad to confirm.

1. In standby mode, press “Jet Defrost” pad once.

2. Use the number pads to enter defrosting time.

The longest time is 99 minutes and 99 seconds.

3. Press “Start” pad to confirm.

The defrosting time and power level are automatically set once the food category and weight are programmed

1. In standby mode, press “Weight Defrost” repeatedly to select food code.

2. Use the number pads to select food weight.

3. Press “Start” pad to confirm.

Weight defrost code description: Press Weight Defrost Display Food type Maximum weight Once

During cooking, the system will pause to remind you to turn over the food, and then press “Start” pad to resume. User must enter the correct weight, otherwise the microwave oven will not start.

Preset function allows the oven to start up in a later time.

1. Set a cooking program (except jet defrost, express cooking and weight defrost program).

2. Press “Preset” pad once.

3. Use the number pads to enter preset time.

4. Press “Start” pad to start

You can check the preset time during cooking by pressing “Preset” pad once. Time countdown can be seen in display for 5 seconds, and then press “Cancel” pad within 5 seconds to cancel the program.

4.11 Multi-stage cooking

Your oven can be programmed for up to 2 automatic cooking sequences. Example: Suppose you want to set the following cooking program. Microwave-cooking Microwave-cooking (with lower power level)

1. Input the first stage of microwave cooking program. Do not press “Start” pad.

2. Press “Memory” pad once.

3. Input the second stage microwave cooking program.

4. Press “Start” pad to start.

Express cooking, jet defrost and weight defrost cannot be set in a multistage cooking program.

Use to prevent unsupervised operation of the oven by children. To set the child lock: In standby mode, one minute without any operation the oven will auto enter child lock mode and the lock indicator light will turn on. In the lock state, all pads are disabled. To cancel the child lock: In child lock mode, open or close the oven door to cancel the program. Microwave Oven / User Manual 4 Operation

4.13 Cooking techniques

• Arrange food carefully. Place thickest areas towards outside of dish.
• Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
• Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
• Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside. Microwave Oven / User Manual 17 / EN 5 Cleaning and maintenance

5.1 Cleaning and care

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean

WARNING: Never immerse the appliance or its power cable in water

or in any other liquid.

1. Turn off the oven and remove the power plug

from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food

splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

3. The outside surfaces should be cleaned with a

damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Wipe the both sides of the door and window, the

door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

5. A steam cleaner is not be used.

6. Do not allow the control panel to become wet.

Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.

This may occur when the microwave oven is operated under high humidity condition. And it is normal.

8. It is occasionally necessary to remove the glass

tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher. 18 / EN

9. The roller ring and oven floor should be

cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

10. Remove odors from your oven by combining

a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

11. When it becomes necessary to replace the

oven light, please consult a dealer to have it replaced.

12. The oven should be cleaned regularly and any

food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

13. Please do not dispose this appliance into the

domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

14. When the microwave oven with grill function

is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children Microwave Oven / User Manual 5 Cleaning and maintenance

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage. 6 Troubleshooting Problem Possible Reason Solution Oven cannot be started.

1) Power cable is not plugged in

properly. Unplug. Then plug again after 10 seconds.

2) Fuse is blown or circuit breaker

is activated. Replace fuse or reset circuit breaker (repaired by professional personnel of our company).

3) Trouble with outlet.

Test the outlet with other electrical appliances. Oven does not heat.

4) Door is not closed properly.

Close the door properly. Glass turntable makes noise when microwave oven operates

5) Turntable and bottom of the

“Combi.1 o Combi.2”.
