USER MANUAL BBS71BTRED - BBS71BTREDB BOSCH

Register yo new devic ur e on MyBosch now and get free b enefits: bosch-h ome.com / welcome

Cordless handstick vacuum cleaner

Manuel d'utilisation

Gebruikershandleiding

Betjeningsvejledning

https://digitalguide.bsh-group.com?mat-no=8001222557

Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.

https://digitalguide.bsh-group.com?mat-no=8001222557

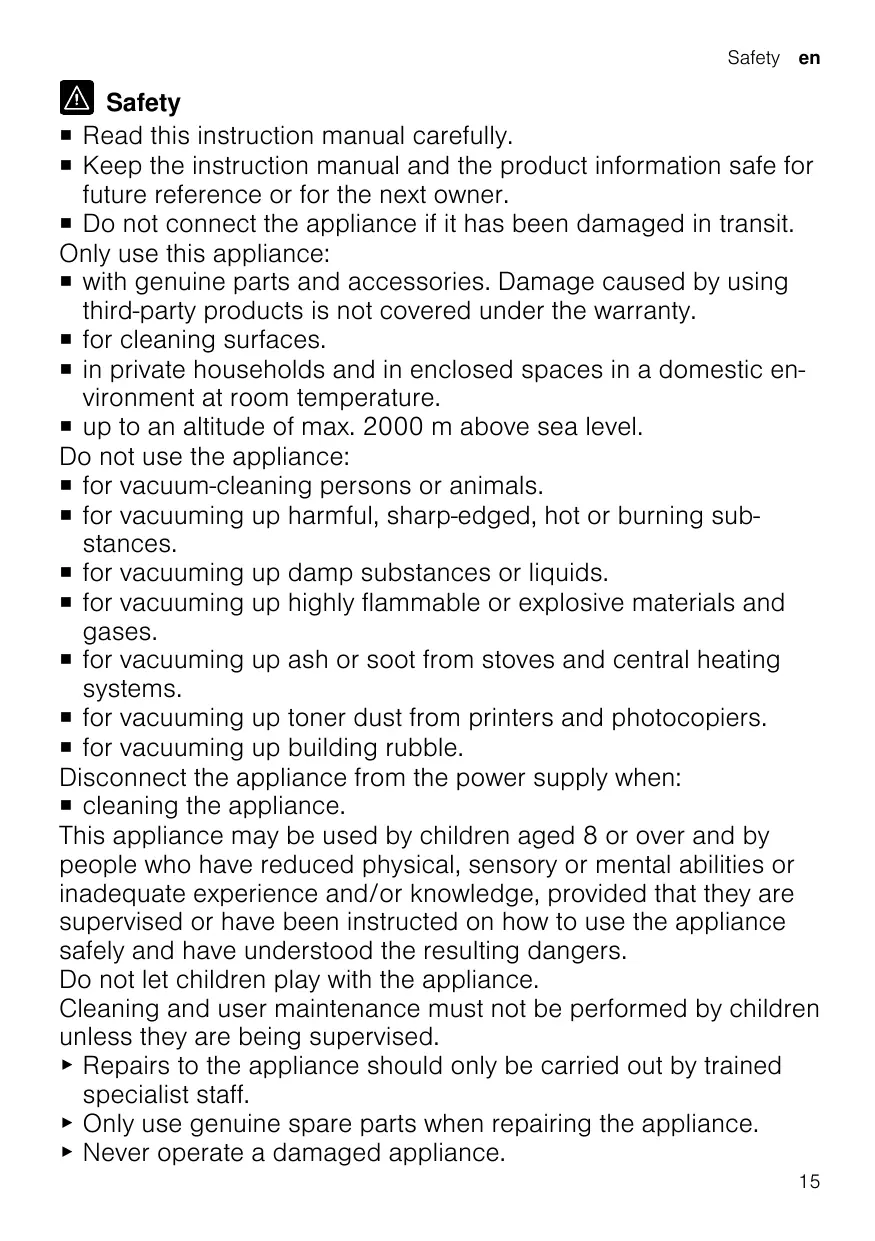

¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. Only use this appliance: ¡ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty. ¡ for cleaning surfaces. ¡ in private households and in enclosed spaces in a domestic environment at room temperature. ¡ up to an altitude of max. 2000 m above sea level. Do not use the appliance: ¡ for vacuum-cleaning persons or animals. ¡ for vacuuming up harmful, sharp-edged, hot or burning substances. ¡ for vacuuming up damp substances or liquids. ¡ for vacuuming up highly flammable or explosive materials and gases. ¡ for vacuuming up ash or soot from stoves and central heating systems. ¡ for vacuuming up toner dust from printers and photocopiers. ¡ for vacuuming up building rubble. Disconnect the appliance from the power supply when: ¡ cleaning the appliance. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children unless they are being supervised. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ Never operate a damaged appliance.

▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ 1

Never operate an appliance with a cracked or fractured surface.

Call customer services. → Page 19 Only use the appliance in enclosed spaces. Never expose the appliance to intense heat or humidity. Do not use steam- or high-pressure cleaners to clean the appliance. Never let the power cord come into contact with hot appliance parts or heat sources. Never let the power cord come into contact with sharp points or edges. Never kink, crush or modify the power cord. Connect and operate the charging cable1 and the quick charger1 only in accordance with the specifications on the rating plate. Connect the charging cable1 and the quick charger1 to a power supply with alternating current only via a properly installed socket with earthing. When cleaning the appliance, do not use flammable substances or substances that contain alcohol. Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts. Never point the pipe or the nozzles towards eyes, hair, ears or mouths. Ensure that children do not play with the appliance, even when it is in the base station1. Persons with electronic implants must stand at least 10 cm away from the appliance. Keep packaging material away from children. Do not let children play with packaging material. Protect the battery against fire, heat and constant sunlight. Protect the battery against water and penetrating moisture. Never open the battery. When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws. Supply fresh air. If there are any problems, seek medical advice from a doctor. Depending on the appliance specifications

▶ If these come into contact with the skin, wash immediately with cold water.

▶ If these come into contact with the eyes, seek medical help. Preventing material damage

▶ Check and clean any wet objects.

▶ Replace damaged objects. ▶ Regularly check the running surfaces of the nozzles for wear. ▶ Replace worn nozzles. ▶ Never use the nozzle without the brush roller in place. ▶ Never operate the appliance without the filter unit.

You can find an overview of the parts of your appliance here.

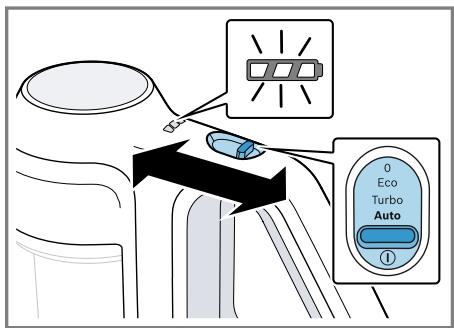

Power control and on/off switch

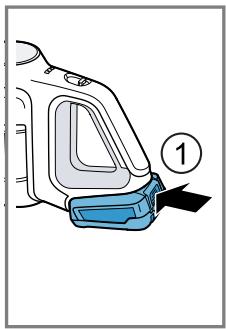

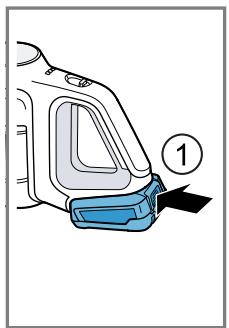

Dust container release button

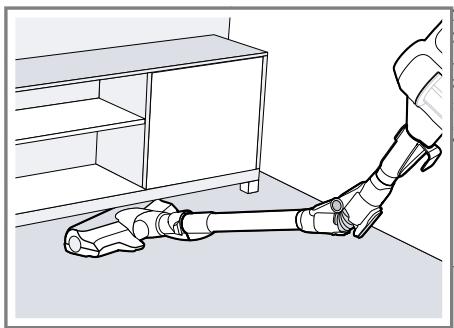

Flexible suction pipe

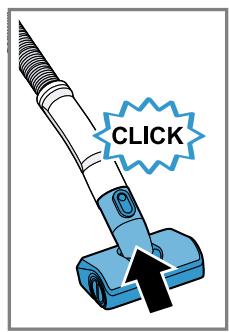

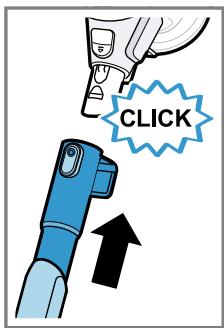

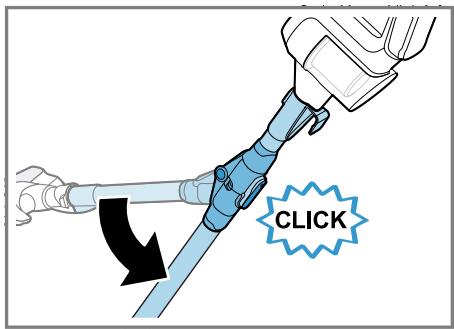

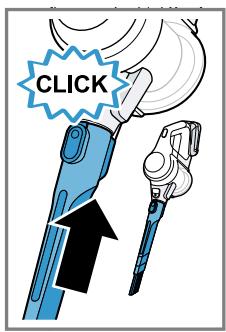

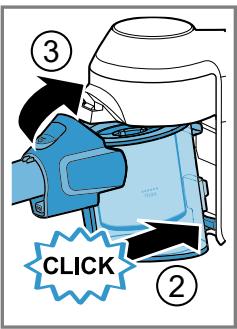

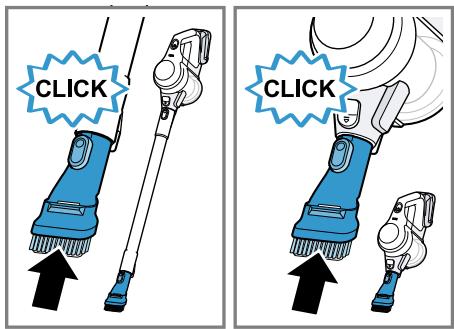

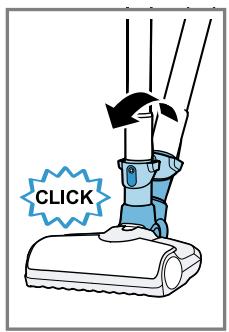

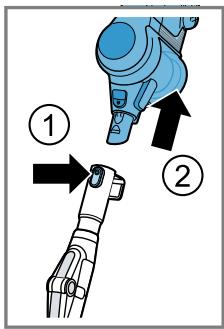

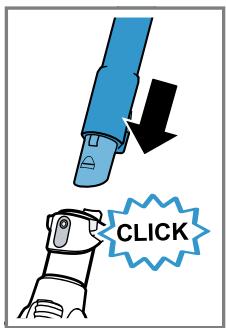

Installing the appliance → Fig. 4 - 5

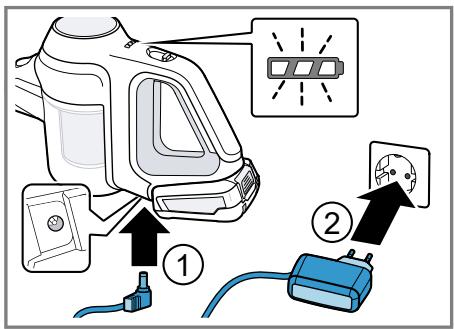

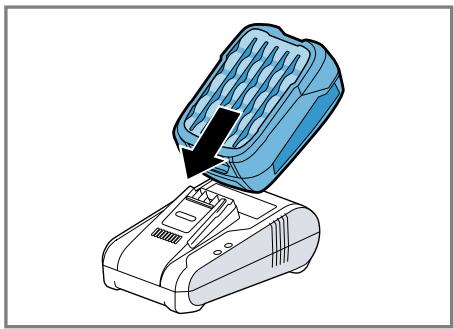

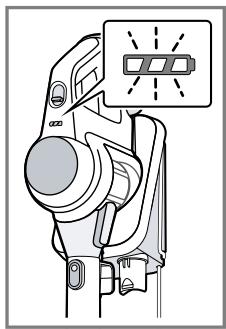

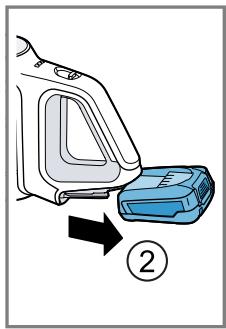

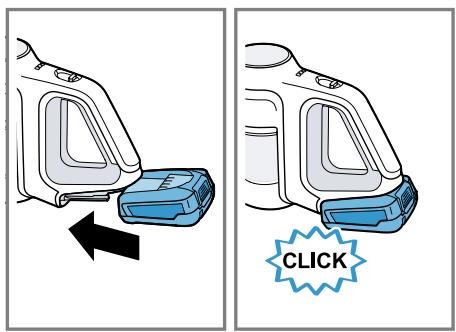

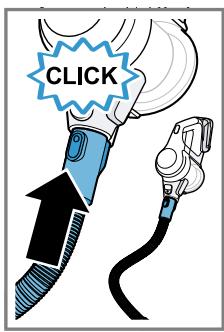

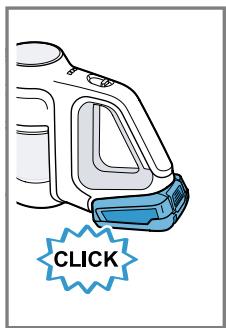

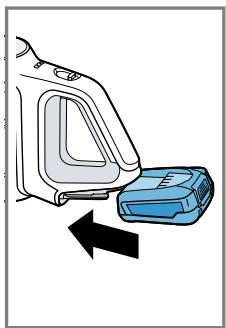

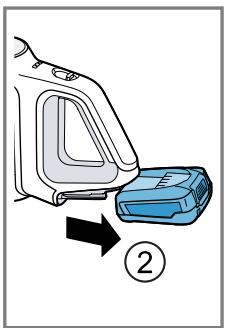

Charging the appliance

▶ Only charge the battery in chargers that are recommended by the manufacturer. ▶ Only use the battery in connection with the Bosch appliance. ▶ Charge the battery using the original charging cable 1 or the original quick charger 1. ▶ Only use batteries from the Power for ALL 18 V series. ▶ Ensure that children do not play with the appliance, even when it is in the base station1. → Fig. 6 - 10

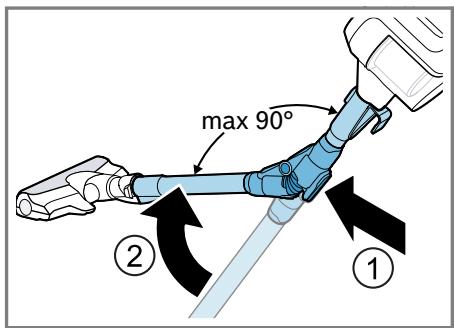

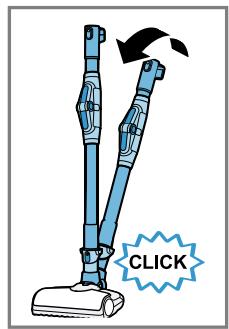

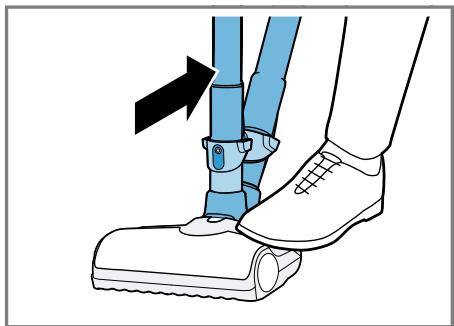

Universal floor nozzle with freestanding function

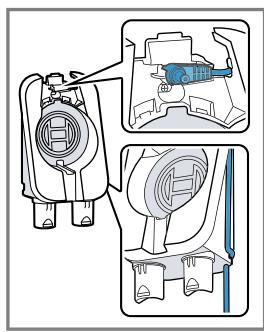

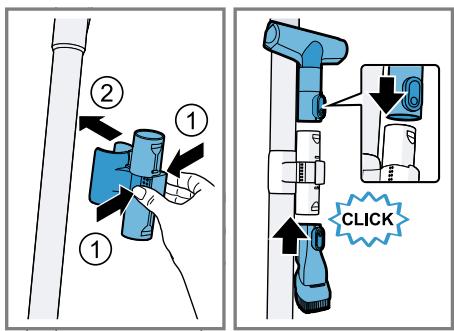

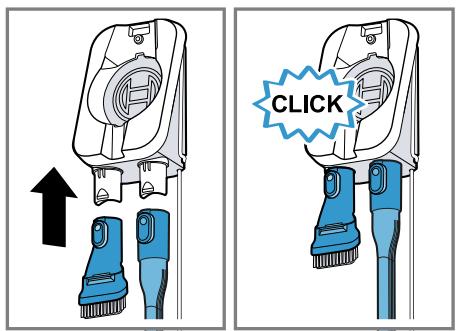

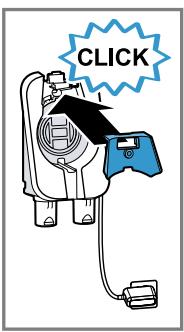

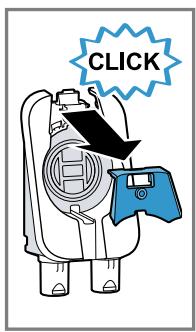

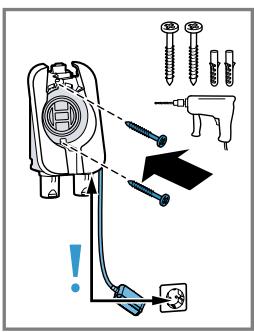

Installing the base station

▶ Check whether any household wiring could be damaged in the installation area.

▶ Do not install the base station horizontally or vertically above, below or next to a socket. → Fig. 2 - 3

Depending on the appliance specifications

Cleaning and servicing

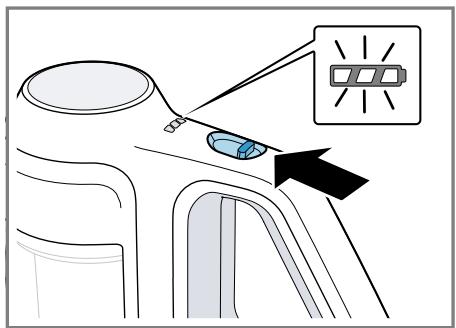

You can find an overview of the battery runtimes, depending on the battery that is used, here. Notes ¡ The appliance features intelligent battery detection. With 2.50 Ah and 3.0 Ah batteries from the Power for ALL 18 V series, the appliance is designed for everyday cleaning tasks. The 4.0 Ah Power + battery from the Power for ALL 18 V series optimises the appliance for the runtime. With the 5.0 Ah battery in the Power for ALL 18 V series, the appliance is designed for particularly difficult cleaning tasks. ¡ The following modes affect the battery runtime: – Mode 1: Eco mode with non-electrical accessory – Mode 2: Eco mode with electrical floor nozzle – Mode 3: Auto mode with electrical floor nozzle – Mode 4: Turbo mode with electrical floor nozzle Runtime

¡ Like every Li-ion battery, the batteries from the Power for ALL 18 V series wear out over time, meaning that the battery capacity and the runtime decrease. This is a natural aging process and not the result of a material error, manufacturing error or material defect. ¡ You can delay the natural wear by using the following measures: – Only charge the battery in the temperature range between 0 °C and 45 °C. – Only store the battery in the temperature range between -20 °C and 50 °C. – Do not store the battery for an extended period of time if it is fully charged or fully discharged.

Operating the appliance

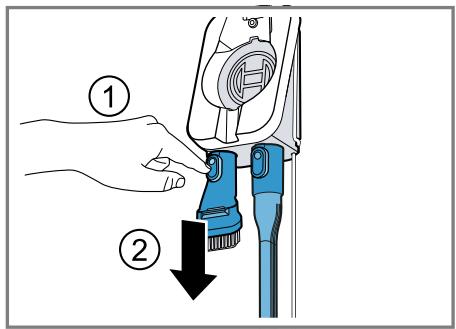

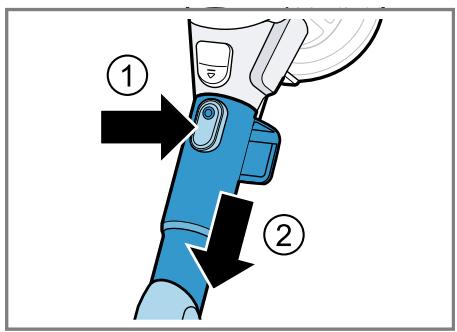

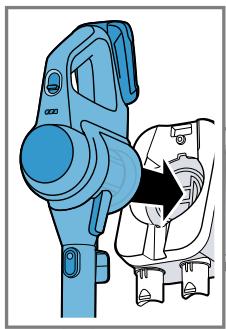

Removing the appliance

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

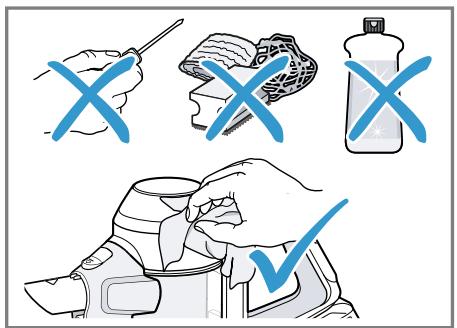

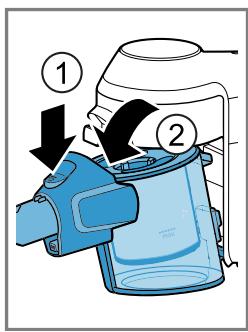

Cleaning the appliance

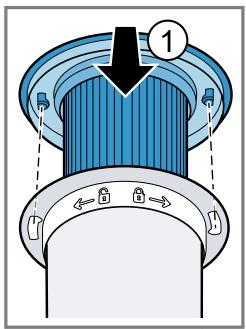

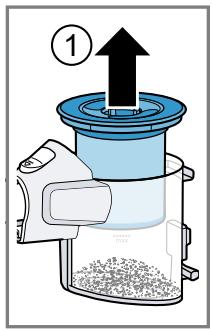

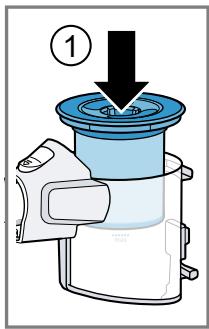

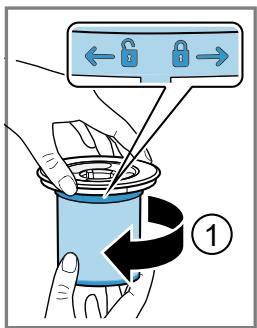

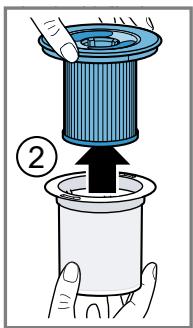

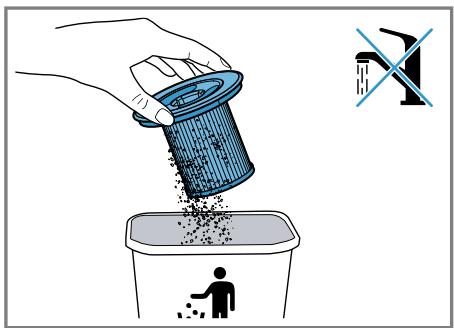

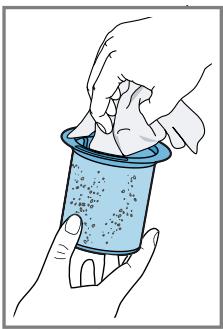

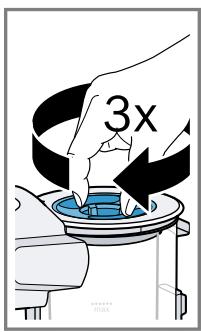

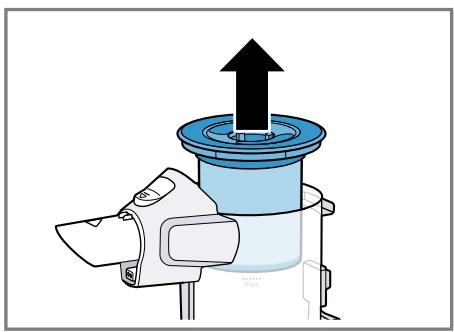

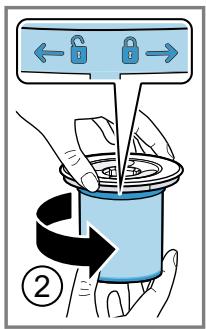

Cleaning the filter unit

▶ Never allow the filters to come into contact with liquids. → Fig. 34 - 40

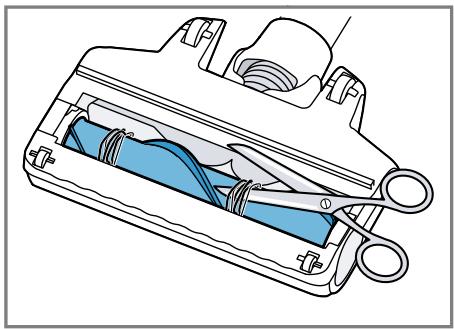

Cleaning the floor nozzle

▶ Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

Disposing of old appliance en

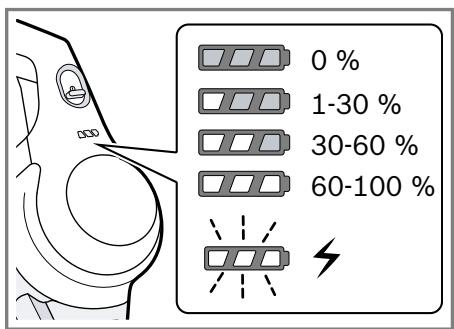

The appliance is not working. The battery status display does not show any status. The battery has not been inserted correctly. ▶ Insert the battery correctly. The battery has not been charged. ▶ Charge the battery. The red fault indicator lights up for 10 seconds. The battery has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until battery has reached room temperature. The appliance has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until the appliance has reached room temperature. No charging function. Incorrect charger was used. ▶ Only use the charger that is included. The dust container cannot be inserted. The filter unit is not complete. ▶ Check whether the filter unit is complete. The filter unit or dust container is not positioned correctly. ▶ Check whether the filter unit and dust container are inserted correctly. Suction is reduced. The filter is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Clean the filter unit. The nozzle is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Check whether the air channel from the nozzle to the appliance is blocked.

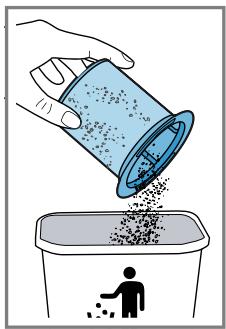

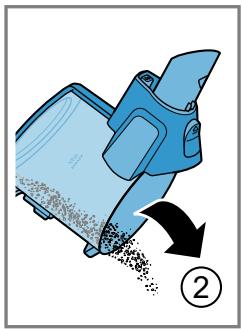

3. Empty the dust container.

4. Clean the filter unit. 5. Once the appliance has cooled down,

switch the appliance back on.

Disposing of old appliance

▶ Dispose of the appliance in an environ-

mentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

▶ Dispose of batteries in an environment-

ally friendly manner.

According to the European

Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website. 19
