USER MANUAL XR1450 - XR1470 REMINGTON

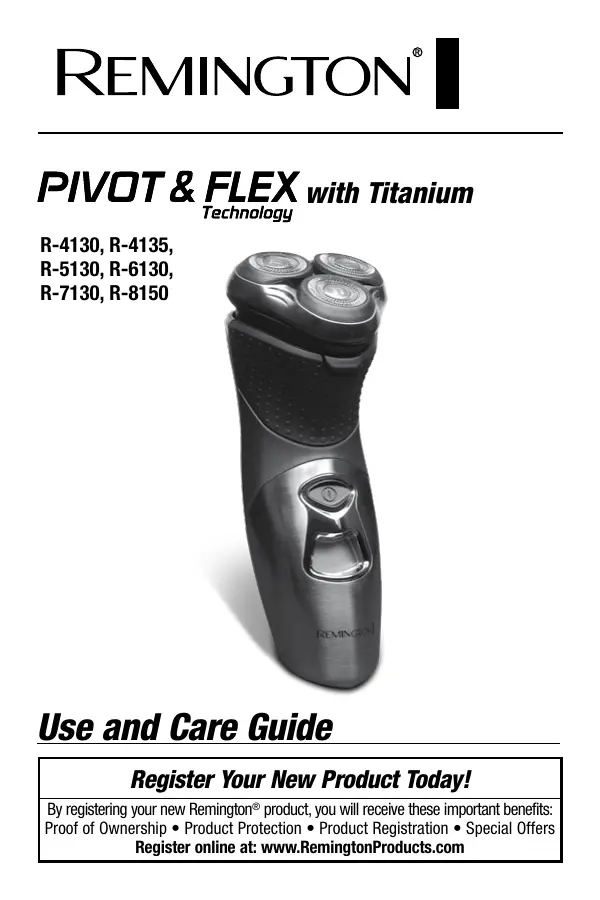

with Titanium R-4130, R-4135, R-5130, R-6130, R-7130, R-8150

Use and Care Guide Register Your New Product Today! By registering your new Remington® product, you will receive these important benefits: Proof of Ownership • Product Protection • Product Registration • Special Offers Register online at: www.RemingtonProducts.com

IMPORTANT SAFETY INSTRUCTIONS Save these Instructions When using an electrical appliance, basic precautions should always be observed, including the following. Read all instructions before using this shaver.

DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS: ■ For connection of the power supply unit to a power source not in the U.S.A. and Canada, use an attachment plug adaptor of the proper configuration for the power outlet. ■ Do not reach for an appliance that has fallen into water. Unplug it immediately. ■ Do not use while bathing or in the shower. ■ Use only when the shaver is in dry condition. ■ Detach the appliance from the power supply cord before cleaning. ■ Do not submerge in water. ■ Do not place or store this appliance where it can fall or be pulled into a tub or sink. Do not place or drop into water or other liquid. ■ Except when charging, always unplug this appliance from the electrical outlet immediately after using. ■ Unplug this appliance before cleaning.

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons: ■ An appliance should never be left unattended when it’s plugged in, except when charging a rechargeable appliance. ■ Close supervision is necessary when this appliance is used by, on, or near children, or individuals with certain disabilities or special needs. 2

■U se this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer. ■ Never operate this appliance if it has a damaged cord or plug or if it is not working properly, if it has been dropped or damaged, or if it has been dropped into water. ■ Keep the cord away from heated surfaces. ■ Never drop or insert any object into any of the appliance’s openings. ■ Household use only. ■ Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered. ■ Always attach the plug to the appliance, then to outlet. To disconnect, turn all controls to OFF, then remove plug from outlet. ■ Always pull on cord plug to unplug from wall socket. Never pull on electric cord. ■ Do not plug or unplug this appliance when your hands are wet. ■ Do not use an extension cord or a voltage converter with this appliance. ■ Do not wrap the cord around the appliance. ■ Always store this appliance and cord in a moisture-free area. Do not store it in temperatures exceeding 140°F (60°C). ■ Detach removable power cords from appliance for storage. ■ Do not use this appliance with a damaged or broken head or cutters, as facial injury may occur. ■ The power unit is intended to be correctly oriented in a vertical or floor mount position. ■ Shavers, including the trimmer, are for use on facial hair only. They should not be used for shaving the hair on your head or any other part of your body.

CONTENTS English 1 French 13 3

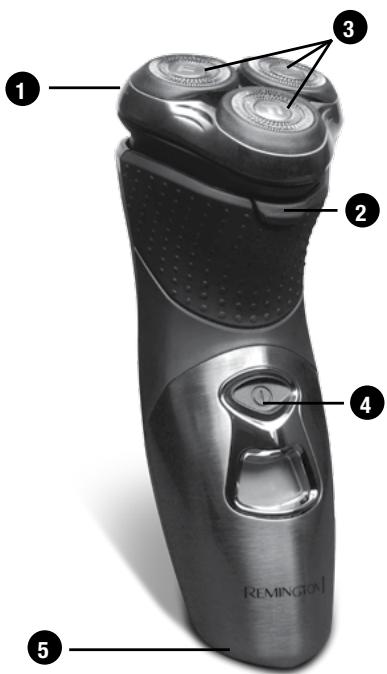

8. Power cord 9. Cleaning brush

Which Model Is Yours?

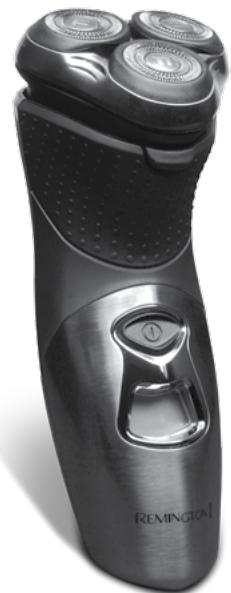

Pivot & Flex Technology with Titanium

FEATURE R-4130 R-4135

REPLACEMENT PART NO.

worldwide worldwide worldwide worldwide

SPR SPR SPR SPR Power System Cordless – shaver can only be used without the power cord. Cord/Cordless – shaver can be used with or without the power cord. Quick Charge Shaver will charge long enough for one shave in 5 minutes. Indicators Charging Indicator – green light that glows when the shaver is being charged. Fuel Gauge – displays the amount of battery remaining, including low battery. LCD Panel – displays the number of minutes of remaining battery power.

Voltage Type Single Voltage – shaver can only be used with an outlet voltage of 120V. Worldwide Voltage – shaver automatically adapts to an outlet voltage between 100V and 240V.

A B C Before using, read the important safety instructions in front of the manual. 1. Plug power adaptor into shaver. (Diagram A) 2. Plug power adaptor into wall outlet. (Diagram B) 3. Charge shaver for 24 hours. Note: During initial charge ignore the electronic indicators as they are in "start up cycle". (Diagram C) 4. Use shaver until recharge is required.

CAUTION! ■ Make sure the shaver and your hands are dry when charging the shaver. ■ Always charge the shaver in a cool, dry place.

1. Press power button to turn on. (Diagram D) 2. Shave face and neck using short, circular strokes. (Diagram E)

Shaving Tips ■ Ensure your skin is dry and free of oils. ■ Wait at least 15 minutes after getting up before shaving, to ensure your face is free of puffiness that may be present from sleeping. ■ Always hold the shaver at a right angle to the skin so that all three heads are touching the skin with equal pressure. ■ Stretch skin with the free hand so hairs stand upright, making it easier for them to enter the cutting chamber. ■ Use moderate to slow, circular stroking movement. ■ The use of short, circular motions in stubborn areas may obtain a closer shave, especially along the neck and chin line. ■ Do not press hard against the skin to avoid skin irritation and/or damage to the rotary heads. **Remington recommends that you use your new shaver daily for up to four weeks to allow time for your hair and skin to become accustomed to the new shaving system**

1. Pull trimmer release button to engage trimmer. (Diagram F) 2. Trim long, difficult hairs and side burns. (Diagram G) 3. Close trimmer by pressing down. (Diagram H)

Cleaning & Care The shaver is a washable appliance. The head assembly part may be cleaned under warm water. NOTE: **When cleaning your shaver, make sure the shaver is turned off and disconnected from the power cord.** CAUTION! ■ To clean the external surfaces of the shaver, use a damp cloth. Do not use strong detergents or other chemicals. ■ To dry, wipe the surface of the shaver with a dry towel. Do not use a hair dryer or heater to dry the shaver. ■ The shaver should not be used until it has dried.

I J K L M N O P Q Daily:

1. Press the release button on front of shaver and open head assembly. (Diagram I) 2. Tap out excess hair shavings. (Diagram J) 3. Rinse the head of the shaver in running water. NEVER submerge the shaver in water! 4. Close head assembly. (Diagram K) 8

U Monthly: 1. Perform the daily cleaning steps 1 and 2. 2. Remove the cover from the hair pocket assembly. (Diagram L) Place the body of the shaver aside to ensure that it will not get wet. 3. Place a drop of liquid soap on each cutter. (Diagram M) 4. Brush the soap around vigorously using the supplied cleaning brush. (Diagram N) 5. Release the inner cutter carrier by rotating the locking arms counter-clockwise. (Diagram O) 6. Remove the inner cutter carrier away from the cutters. (Diagram P) 7. Remove the cutters. (Diagram Q) 8. Thoroughly brush any hair off of the inner and outer cutters (Diagram R) and rinse away any soap and debris from inner and outer cutters. (Diagram S) 9. Replace the inner cutters. (Diagram T) 10. Place the inner cutter carrier back into position and lock into place by rotating the locking arms clockwise until they snap into place. (Diagram U) 11. Lubricate each cutter with household oil. 12. Close the head assembly. (Diagram K) ** Trimmer: Lubricate teeth with oil every six months

Battery Removal When your rechargeable shaver reaches the end of its useful life, the Ni-MH batteries must be removed from the shaver and be recycled or disposed of properly in accordance with your state and local requirements. If this is not required by law, you may elect to dispose of the shaver with the batteries. CAUTION! Do not put in fire or mutilate your batteries when disposing as they may burst and release toxic materials. Do not short circuit as it may cause burns. Dispose of properly in accordance with your local and state requirements. To Remove the Rechargeable Battery: 1. Unplug the shaver. 2. Run shaver until motor stops. 3. Remove head from shaver (Press release button and pull head straight away from shaver body) 4. Using a small screwdriver pry front cover from shaver body. 5. Remove four screws located on front of shaver. 6. Remove rear cover from inner housing to expose batteries. 7. Pry batteries free from circuit board and cut wires. 8. Dispose of batteries.

Product Registration By registering your new Remington product you will receive these important benefits: ■ Proof of ownership ■ Product protection ■ Product registration ■ Special offer

Register online at: www.RemingtonProducts.com

How To Order Shaver Accessories Please refer to the shaver comparison and features chart near the front of this manual that lists the correct replacement part number for your shaver. It is very important to replace your head and cutters when necessary to ensure a close, comfortable shave without irritation. We recommend they be replaced every 12 months. Here are some signs of head and cutter wear, indicating that replacement is needed: ■ Irritation: As the heads get excessively worn you may experience some skin irritation. This would be especially noticeable when you apply moisturizing lotion. ■ Pulling: When the cutters wear you may feel a sense of pulling and a loss of closeness when you shave. This is an indication that it is time to replace your heads and cutters. Maintain your shaver’s peak performance! Keep Your Shaver Performing Like New! ■ Because your satisfaction is important to us, we want to make it simple for you to keep your new shaver performing at its peak. ■ Did you know that for the best possible shave, it is necessary to replace the heads and cutters on your shaver every 12 months? ■ Remington makes this easy! Two Easy Ways to Order! 1. Call! U.S. Residents call 1-800-392-6544 Canadian Residents call 1-800-268-0425 2. Order Online at www.RemingtonProducts.com 10

Warranty Limited Two-Year Warranty

Spectrum Brands, Inc. warrants this product against any defects that are due to faulty material or workmanship for a two-year period from the original date of consumer purchase. This warranty does not include damage to the product resulting from accident or misuse. If the product should become defective within the warranty period, we will replace it free of charge. Return your product and sales receipt with your name, address and day time phone number to: Remington Returns Center, 507 Stokely Dr., P.O. Box 1, Deforest, WI 53532. For more information call 800-736-4648 in the US or 800-268-0425 in Canada. Warranty excludes: ■ Heads and cutters KEEP ORIGINAL SALES RECEIPT AS PROOF OF PURCHASE FOR WARRANTY PURPOSES. This warranty does not cover products damaged by the following: ■ Accident, misuse, abuse or alteration of the product ■ Servicing by unauthorized persons ■ Use with unauthorized accessories ■ Connecting it to incorrect current and voltage ■ Wrapping cord around appliance causing premature wear & breakage ■ Any other conditions beyond our control Spectrum Brands, Inc. SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO IM­PLIED WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE LIMITED IN DURATION TO TWO YEARS FROM DATE OF ORIGINAL PURCHASE. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. Some states do not allow the exclusion or limitation of incidental, special or consequential damages.

Performance Guarantee Spectrum Brands, Inc. Money-back Offer

If within 30 days after you have purchased your Remington® branded product, you are not satisfied and would like a refund, return it with the sales slip indicating purchase price and date of purchase to the retailer from whom it was purchased. Spectrum Brands, Inc. will reimburse all retailers who accept the product within 30 days from the date of purchase. If you have any questions concerning the moneyback guarantee, please call 800-736-4648 in the US or 800-268-0425 in Canada.

Models 4130 and 4135 120 VAC, 60 Hz Use adaptor model A28UD038008E or KU1B-038-0080D Models 5130, 6130, 7130 and 8150 100-240 VAC, 50/60 Hz Use adaptor model PA-400 or PA-650 Questions or comments: Call 800-736-4648 in the US or 800-268-0425 in Canada. Or visit www.RemingtonProducts.com Dist. by: Spectrum Brands, Inc., Madison, WI 53711 Dist. by: Spectrum Brands Canada, Inc., Mississauga, ON L5L 0A1 Remington is a Registered Trademark of ROVCAL, Inc.

© 2010 ROVCAL, Inc. 03/10 Job #CS39638 Manufactured to Remington’s specifications in the PRC. Contains
