Product type	Universal infrared remote control
Brand	Logitech
Model	ELITE (Harmony 350)
Power source	2 AA batteries (included)
Connectivity	Infrared (IR), USB (for synchronization)
Number of controllable devices	Up to 8
Device buttons	4 buttons, short or long press
Favorite channels buttons	5 programmable buttons
Color buttons	Yes (menu navigation)
Activities	Watch TV (automatic device setup)
Configuration	Via MyHarmony software on PC (setup.myharmony.com)
Compatibility	IR devices: TV, audio/video receivers, cable/satellite receivers, Blu-ray players
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products. Protect from moisture and extreme temperatures.
Safety	Do not expose to water. Replace batteries with identical ones. Remove batteries if not used for an extended period.
Spare parts and repairability	Standard AA batteries. For any other repairs, contact Logitech support.
General information	Remote designed to simplify control of your multimedia system. Use only the included USB cable.

Frequently Asked Questions - ELITE LOGITECH

How to set up the ELITE remote?

Go to setup.myharmony.com on your computer, download and install the MyHarmony software, then follow on-screen instructions to create an account and set up your remote.

What to do if the remote does not work with my device?

Check that the batteries are properly inserted and the Device buttons flash. Visit support.myharmony.com/350 for more help.

How to customize buttons or change favorite channels?

Open the MyHarmony software on your computer, log into your account, then click the Buttons or Favorites tab and follow the instructions. Then sync the remote via USB cable.

Why is the Watch TV activity not working properly?

Make sure all devices are either all on or all off before using the activity. Use the Device buttons and power button to put them in the same state.

How many devices can I control with the ELITE remote?

You can control up to 8 individual devices using the four Device buttons (short or long press).

What type of batteries to use?

Use two AA batteries (included with the remote). Replace with identical batteries.

Does the remote work with all TVs?

The remote uses infrared (IR) and is compatible with most TVs, audio/video receivers, cable/satellite receivers, and Blu-ray players equipped with an IR port. Check that your device is in the MyHarmony database.

How to sync the remote after changes?

Connect the remote to your computer using the included USB cable, open the MyHarmony software, then click Sync to apply the changes.

Where to find additional help?

Check the knowledge base at support.myharmony.com/350 or the Logitech user forums at forums.logitech.com.

What to do if the remote stops responding?

Remove and replace the batteries, wait a few seconds, then try again. If the problem persists, contact Logitech support.

USER MANUAL ELITE LOGITECH

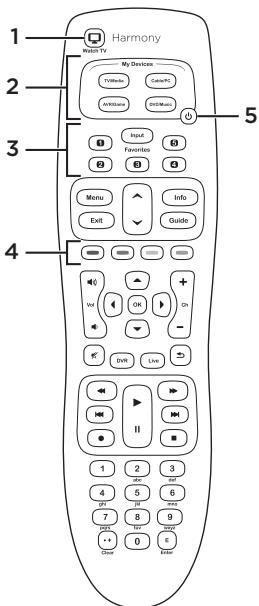

1. Watch TV button: Powers devices on/off for your Watch TV Activity
2. Device buttons: Set the remote to control specific devices
3. Favorite Channel buttons: Configure these buttons for quick access to favorite TV channels.
4. Color buttons: Navigate menus and select options on some TVs, cable/satellite receivers, DVRs, and Blu-ray players
5. Power button: Select one of the Device buttons, then use the Power button to turn that device on or off.

How the remote works

Harmony 350 is an infrared (IR) remote that controls other IR devices such as TVs, audio/video receivers, and cable/satellite receivers. Here are a few of the key features:

Watch TV

Watch TV button

Set up a Watch TV Activity to automatically power on/off devices you use to watch TV, such as your TV, audio/video receiver, and cable/satellite receiver. After pressing the Watch TV button, be sure to keep the remote pointed at your devices until the Device buttons turn off. Press the Watch TV button again to turn off all the devices.

Device buttons

Control up to eight devices individually using these four Device buttons, each with a short press or a longer two second press. Each Device button will light up when an IR command is being sent.

Favorite Channel buttons

Program up to five Favorite Channels for your TV or cable/ satellite receiver.

To set up your new Harmony remote, visit setup.myharmony.com to download and install MyHarmony software on your computer.

Setting up your Harmony 350

1. Install the batteries

Insert the two AA batteries (included) into the battery compartment.

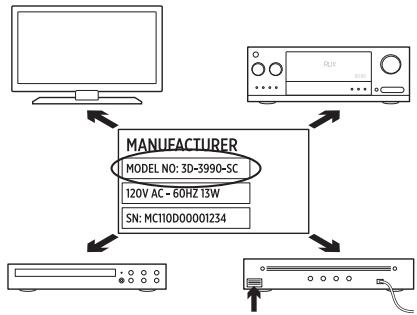

2. Gather your device information

In order for Harmony 350 to control your entertainment system, we'll need to know the manufacturer and model number of each of the devices you own.

The manufacturer and model number of your devices are typically printed on the front bezel, or on a label located on the bottom or the back of your entertainment devices. Write them down in the table provided on the back page of this Setup Guide for quick reference during setup.

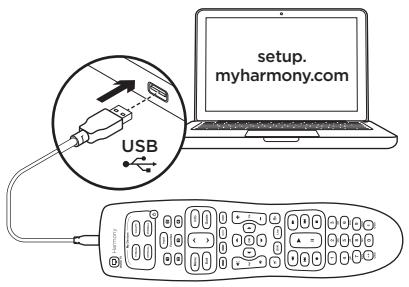

3. Complete setup online.

Complete the setup online via setup.myharmony.com

a. Open a browser on your computer and go to setup.myharmony.com b. Download and install the MyHarmony computer software c. Follow the on-screen instructions to create a Harmony account and set up your remote.

Test your remote

Once you've completed the online setup and synchronized your Harmony 350, please test it.

1. Unplug your Harmony 350 from your computer and take it to your entertainment system.
2. To test your remote, press the Watch TV button. Make sure to keep the remote pointed at your devices until the Device buttons are no longer lit. If you did not set up a Watch TV Activity, test by pressing the Power button to power a device on and off.
3. To make changes, launch the MyHarmony software on your computer, and sign in to your account.

Note: Once setup is complete, use Harmony 350 as your only remote; using other remotes could cause the devices in Watch TV Activity to become out of sync.

Frequently asked questions

• How do I customize buttons or change my Favorite Channels?

Launch the MyHarmony software on your computer and sign in to your account.

Click on the Buttons or Favorites tab and follow the on-screen instructions. After changes are made, make sure to connect your remote using the included USB cable and click Sync to update it.

Troubleshooting

• The remote does not seem to work with my device.

First ensure that fresh batteries are inserted properly into the remote.

Then check that one of the four Device buttons flashes when a button is pressed.

Refer to support.myharmony.com/350 for more information.

• Pressing the Watch TV button does not properly power on all my devices and set them to the correct inputs.

The devices must be in the same power state, on or off, at all times in order for the Watch TV button to function properly. Use the Device buttons in combination with the Power button to keep the devices in the same power state. Refer to support.myharmony.com/350 for more information.

Get support

For more detailed information, please visit support.myharmony.com/350

• Finding answers to questions

Visit our knowledgebase at support.myharmony.com/350

• Getting help with online setup

Many screens and pages presented to you during the online setup contain 'Learn more' or 'Help' links designed to provide additional information or assistance with various features.

• Logitech's Harmony Remote user forums

Visit the Harmony Remote User Forums located at forums.logitech.com

support.myharmony.com/350

Manufacturer (e.g., Sony®, Pioneer®) Hersteller (z. B. Sony®, Pioneer®) Fabricant (par exemple: Sony®, Pioneer®) Fabrikant (bijv. Sony®, Pioneer®) Tilverkare (t.ex. Sony®, Pioneer®) Producent (f.eks. Sony®, Pioneer®) Producent (f.eks. Sony®, Pioneer®) Valmistaja (esimerkiki si Sony®, Pioneer®)	Model Number (e.g., DV-414, Explorer 3100) Modellnummer (z. B. DV-414, Explorer 3100) Numero de modulo (par exemple: DV-414, Explorer 3100) Modelnummer (bijv. DV-414, Explorer 3100) Modellnummer (t.ex. DV-414, Explorer 3100) Modelnummer (f.eks. DV-414, Explorer 3100) Modellnummer (f.eks. DV-414, Explorer 3100) Mallinumo (esimerkiki si DV-414, Explorer 3100)
