USER MANUAL BT7201/16 PHILIPS

PHILIPS electric shaver with three rotary dials and power button (no text or symbols visible)

Diagram showing a grid of squares with arrows pointing to each square, and an open book with open pages (no text or symbols)

Exploded diagram of a Philips electric shaver with numbered parts and labeled accessories

S91XX S90XX

Diagram showing two blue electric shakers with internal symbols and a connecting line indicating connection or relationship.

Basic Plus

Basic

Plus

Illustration of a handheld electronic device with battery icon and function buttons (no text or symbols)

1 =

2

3

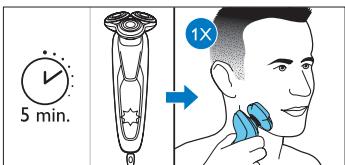

5 min. 1X

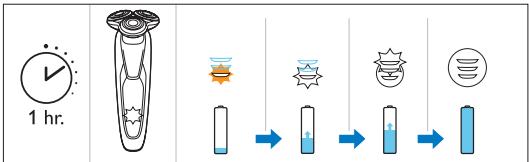

1 hr. → → →

Illustration of a person applying a product to their face, showing the product being applied (no text or symbols present)

1

2

Illustration of a hand holding a medical or laboratory device with tubing and a pipette inserted (no text or symbols)

Illustration of a person applying makeup to their face, showing the mask and lip (no text or symbols)

1

Illustration of a hand washing a blue object with water spray, no text or symbols present

3

Illustration of a person applying a face-to-face product to their mouth, no text or symbols present

Illustration of a hand washing a blue object with water spray, no text or symbols present

Illustration of two hairless electric shivers with cutouts, shown against a solid blue background (no text or symbols)

1

2

Illustration of a person applying a hair product to their ear (no text or symbols present)

Illustration of a blue mechanical component with an upward arrow, labeled with number 4 (no text or symbols on the object itself)

2

3 ① ②

Illustration of a blue spray gun with an upward arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a cylindrical body and internal components (no text or symbols)

Warning symbol with red X and paintbrush icon, indicating no need for inspection or damage

Diagram showing a spray bottle with two labeled steps: step 1 indicates the first procedure, and step 2 shows the second, with a blue arrow indicating the process.

2 ① ②

3 SABILE

Illustration of a blender with blue liquid being inserted into a container (no text or symbols)

Illustration of a blue mechanical device with a downward arrow indicating motion (no text or symbols)

Line drawing of a steaming cup with two circular icons labeled 'Spiral' and 'Hot Water' nearby (no text or symbols on the cup itself)

Diagram showing a blue water droplet on a Bunsen burner with a red prohibition symbol indicating no droplet.

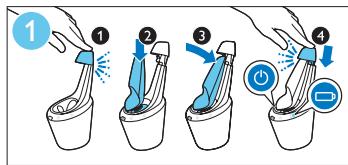

Illustration showing four steps of a hand holding a blue object, labeled 1 to 4 with directional arrows and icons.

2 10 min.

Basic 3

Plus 3 ±4 hrs.

4

3MO

1

2 1 2

Illustration of a blender with a blue plastic container and a blue arrow indicating action (no text or symbols)

4 110

Illustration of a blue printer inside a paper box with a downward arrow indicating compression (no text or symbols)

6 SALAD

Illustration of a blue plastic bag being inserted into a white cylindrical container, with a numbered label '7' in the top-left corner (no text or symbols on the diagram itself)

Illustration of a blue handheld device with a downward arrow indicating motion (no text or symbols)

Illustration of a three-tiered mechanical component with a 1M calendar icon (no text or symbols on the diagram itself)

Diagram illustrating a hand holding a circular object with an upward arrow, alongside a magnified view of the object's internal structure.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

3

4

Illustration of a robotic arm with blue mesh and mechanical components, no text or symbols present

6

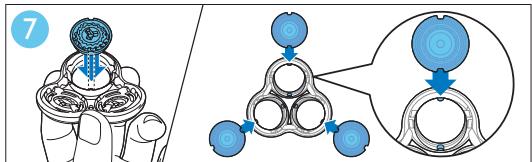

7

8

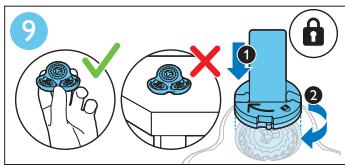

9 ① ②

10

ENGLISH 12
ESPAÑOL 40
FRANÇAIS 69
ITALIANO 98
PORTUGUÊS 127
TÜRKÇE 156

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

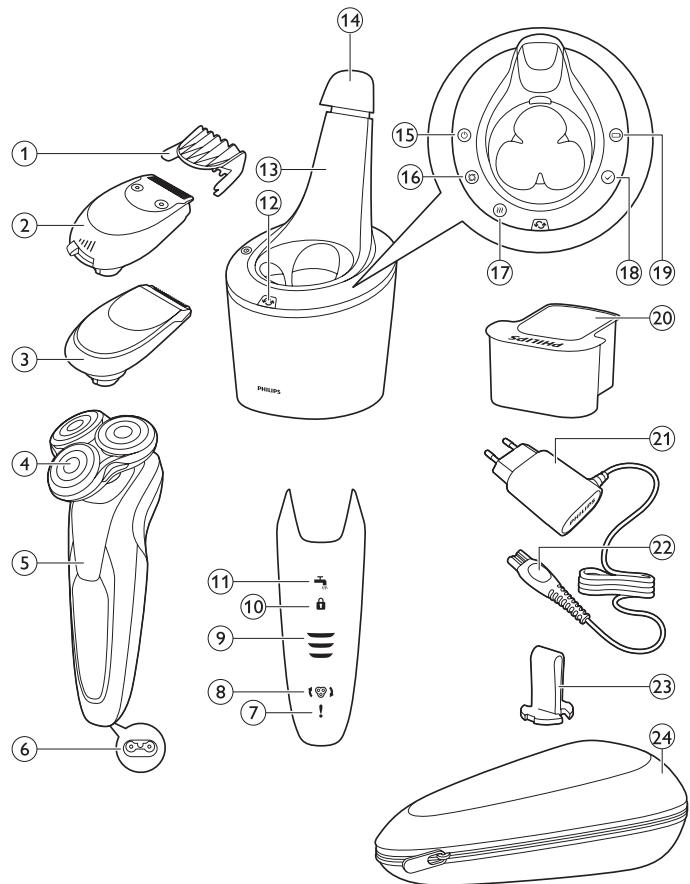

General description (Fig. 1)

1 Comb for beard styler attachment
2 Click-on beard styler attachment
3 Click-on trimmer attachment
4 Click-on shaving unit
5 On/off button
6 Socket for small plug
7 Exclamation mark
8 Replacement reminder
9 Battery charge indicator
10 Travel lock symbol
11 Cleaning reminder
12 Replacement symbol
13 SmartClean system
14 Cap of SmartClean system
15 On/off button
16 Cleaning symbol
17 Drying symbol
18 Ready symbol
19 Charge symbol
20 Cleaning cartridge for SmartClean system
21 Adapter
22 Small plug
23 Retaining ring holder
24 Pouch

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important

Read this user manual carefully before you use the shaver and the SmartClean system. Save this user manual for future reference.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always unplug the shaver before you clean it under the tap.

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Caution

• Never immerse the SmartClean system in water nor rinse it under the tap.
• Never use water hotter than 80^ C to rinse the shaver.
• Do not use the shaver, SmartClean system, adapter or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter or part with one of the original type.

• Only use the SmartClean system with the original cleaning cartridge.
• Always place the SmartClean system on a stable, level and horizontal surface to prevent leakage.
• Always make sure that the cartridge compartment is closed before you use the SmartClean system to clean or charge the shaver.
• When the SmartClean system is ready for use, do not move it to prevent leakage of cleaning fluid.
• The SmartClean system thoroughly cleans but does not disinfect your shaver; therefore do not share the shaver with others.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Compliance with standards

• This shaver is waterproof and complies with the internationally approved safety regulations. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used cordlessly.
• The shaver and the SmartClean system comply with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
• Maximum noise level: Lc = 69dB(A)

The display

Note: Before you use the shaver for the first time, remove the protective foil from the display.

- S91XX/S90XX

Charging

- Charging takes approx. 1 hour.

Note: This appliance can only be used cordlessly.

• Quick charge: When you connect the appliance to the mains, it produces a sound. Then the lights of the battery charge indicator light up one after the other continuously. When the shaver contains enough energy for one shave, the bottom light of the battery charge indicator starts to flash slowly.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes white and then lights up white continuously. Then the second light flashes and then lights up continuously, and so on until the shaver is fully charged.

Simple line drawing of a device with a button and a star-shaped symbol inside (no text or labels)

Battery fully charged

Note: This appliance can only be used cordlessly.

Note: When the battery is full, the display switches off automatically after 30 minutes. When you press the on/off button during or after charging, you hear a sound to indicate that the shaver is still connected to the mains.

	- When the battery is fully charged, all lights of the battery charge indicator light up white continuously.
	Battery low
	- When the battery is almost empty, the bottom light flashes orange and you hear a sound.
	Remaining battery capacity
	- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.
	Cleaning reminder
	For optimal shaving performance, we advise you to clean the shaver after every use.- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.
	Travel lock
	You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

3 sec.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode.

Diagram of a human leg with a power button and lock icon, no text or symbols present

While you activate the travel lock, the travel lock symbol lights up white continuously. When the travel lock is activated, the shaver produces a sound and the travel lock symbol flashes.

Diagram of a human leg with a power button and water droplet, accompanied by a blue lock icon (no text or symbols)

Deactivating the travel lock

1 Press the on/off button for 3 seconds.
The travel lock symbol flashes and then lights up continuously.

The shaver is now ready for use again.

Note: You can also deactivate the travel lock by connecting the appliance to the mains.

Replacing shaving heads

(101)

For maximum shaving performance, we advise you to replace the shaving heads every two years.

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up white continuously and the arrows flash white. You hear a beep to indicate you have to replace the shaving heads.

Note: After replacing the shaving heads, you need to reset the shaver by pressing the on/off button for 7 seconds.

Exclamation mark

Diagram showing a remote control with icons for music, hands-on, phone, and warning symbols

Blocked shaving heads

• If the shaving heads are blocked, the exclamation mark lights up orange continuously. The replacement reminder and the cleaning reminder flash white alternately and you hear a sound. In this case, the motor cannot run because the shaving heads are soiled or damaged.
• When this happens, you have to clean the shaving heads or replace them.

Simple line drawing of a symmetrical object with a central star-like shape and two circular indicators (no text or symbols)

Overheating

• If the appliance overheats during charging, the exclamation mark flashes orange.
• When this happens, the shaver automatically switches off. Charging continues once the appliance is back to the normal temperature.

Charging

Charging takes approx. 1 hour.

A fully charged shaver has a shaving time of up to 50 minutes.

Note: You cannot use the appliance while charging.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

Diagram showing a hairpin plug connecting two outlets with blue arrows indicating direction of movement or force.

1 Make sure the appliance is switched off.
2 Insert the small plug into the appliance (1) and put the adapter in the wall socket (2).

Charging in the SmartClean system (specific types only)

Illustration of a hand holding a tool with blue spray effect (no text or symbols)

1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.
3 Press the top cap to be able to place the shaver in the holder ('click').

Illustration of a blue pen tip inserted into a cylindrical container with a downward arrow indicating force (no text or symbols)

4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Diagram illustrating foot massage technique with numbered steps and directional arrows indicating motion

5 Place the shaver in the holder (1), tilt the shaver backwards (2) and press down the top cap to connect the shaver ('click') (3).

Note: The battery symbol flashes slowly to indicate the appliance is charging.

Using the shaver

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Tip: To ensure the best result, we advise you to pre-trim your beard if you have not shaved for 3 days or longer.

Note: This appliance can only be used cordlessly.

Illustration of a person applying a blue brush to their ear with motion arrows (no text or symbols)

1 Press the on/off button once to switch on the shaver.
The display lights up for a few seconds.

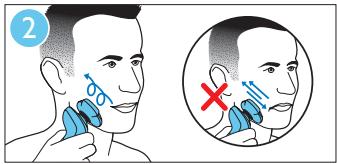

2 Move the shaving heads over your skin in circular movements.
- Do not make straight movements.
3 Press the on/off button once to switch off the shaver.
The display lights up for a few seconds and then shows the remaining battery charge.

Wet shaving

You can also use this shaver on a wet face with shaving foam or shaving gel.

To shave with shaving foam or shaving gel, follow the steps below:

Line drawing of a person applying a medical or therapeutic device to their neck (no text or symbols)

1 Apply some water to your skin.

Illustration of a person applying facial massage to the ear (no text or symbols)

2 Apply shaving foam or shaving gel to your skin.

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.
4 Press the on/off button once to switch on the shaver.
5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Using the trimmer attachment

You can use the trimmer attachment to groom your sideburns and moustache.

Illustration of a blue robotic arm with directional arrows and a red X mark, no text or symbols present

Illustration of a robotic arm with motion arrows and a magnified inset showing a hand holding a cap (no text or symbols)

1 Pull the shaving unit straight off the appliance.
Note: Do not twist the shaving unit while you pull it off the appliance.
2 Insert the lug of the trimmer attachment into the slot in the top of the shaver. Then press down the trimmer attachment to attach it to the appliance ('click').
3 Press the on/off button once to switch on the appliance.
The display lights up for a few seconds.
4 You can now start trimming.
5 Press the on/off button once to switch off the appliance.
The display lights up for a few seconds to show the remaining battery charge.
6 Pull the trimmer attachment straight off the appliance.

Note: Do not twist the trimmer attachment while you pull it off the appliance.

7 Insert the lug of the shaving unit into the slot in the top of the appliance. Then press down the shaving unit to attach it to the appliance ('click').

Illustration of a person using a hairdryer (no text or symbols present)

Diagram of a blue tool pressing a curved surface with an upward arrow (no text or symbols)

Illustration of a blue medical device with red X marks and upward arrows, no text or symbols present

Illustration of a robotic arm with motion arrows and a close-up inset showing a mechanical component (no text or symbols)

Line drawing of a hairbrush with a blue brush applying powder to the blade (no text or symbols)

Diagram showing a hand holding a tool with labeled parts and directional arrows indicating motion or movement.

Illustration of a person using a handheld device to apply a product (no text or symbols visible)

Using the beard styler attachment

1 Make sure the appliance is switched off.
2 Pull the shaving unit straight off the appliance.

Note: Do not twist the shaving unit while you pull it off the appliance.

3 Insert the lug of the beard styler attachment into the slot in the top of the appliance. Then press down the beard styler attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

1 Slide the comb straight into the guiding grooves on both sides of the beard styler attachment ('click').

2 Press the length selector and then push it to the left or right to select the desired hair length setting.

3 Press the on/off button once to switch on the appliance.

4 You can now start styling your beard.

Diagram illustrating robot hand positioning with checkmark and cross symbols indicating correct and incorrect states

Illustration of a person applying a hair accessory to their neck (no text or symbols)

Using the beard styler attachment without comb

You can use the beard stylisty attachment without the comb to contour your beard, moustache, sideburns or neckline.

1 Pull the comb off the beard styler attachment.

Note: Grab the comb in the centre to pull it off the beard stylisty attachment. Do not pull at the sides of the comb.

2 Press the on/off button once to switch on the appliance.
3 You can now start contouring your beard, moustache, sideburns or neckline.

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Cleaning the shaver in the SmartClean system

Cross-sectional diagram of a mechanical or anatomical structure with labeled points (no text or symbols present)

Diagram of a symmetrical mechanical or biological structure with labeled points (O, D, V, I, II) and no readable text or symbols.

The SmartClean system comes in two types.

The features available on your SmartClean system may differ per type:

• SmartClean system Basic has one phase: the rinsing phase.
• SmartClean system Plus has two phases: the rinsing phase and the drying phase.

Simple line drawing of a paintbrush with a red X mark and water droplets, no text or symbols present.

Preparing the SmartClean system for use

Do not tilt the SmartClean to prevent leakage.

Note: Hold the SmartClean while you prepare it for use.

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

1 Put the small plug in the back of the SmartClean system.
2 Put the adapter in the wall socket.
3 Press the button on the side of the SmartClean system (1) and lift the top part of the SmartClean system (2).
4 Pull the seal off the cleaning cartridge.

Simple line drawing of a container with an upward arrow and label 'SWEET' (no text or symbols on the diagram itself)

Illustration of a blender with a blue arrow pointing to its water level, no text or symbols present

5 Place the cleaning cartridge in the SmartClean system.

Illustration of a blue mechanical device with a downward arrow indicating motion (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Diagram showing a blue water droplet on a stand with a red prohibition symbol indicating no water droplets.

Illustration of a hand holding a tool with blue spray effect (no text or symbols)

Illustration of a blue pen tip inserted into a cylindrical container with a downward arrow indicating pressure or insertion (no text or symbols)

Diagram illustrating three-step procedure of a tool or device with labeled steps 1, 2, and 3.

Illustration of a hand holding two blue circular icons labeled 'Power' and 'Spiral', connected to a device (no text or symbols present)

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean.

1 Press the top cap to be able to place the shaver in the holder ('click').

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

3 Place the shaver in the holder (1), tilt the shaver backwards (2) and press down the top cap to connect the shaver ('click') (3).

The battery symbol starts to flash, which indicates that the shaver is charging.

4 Press the on/off button on the SmartClean system to start the cleaning program.

During the rinsing phase, the rinsing symbol will flash.

Note: The rinsing phase takes approx. 10 minutes.

Diagram of a device with two blue icons labeled 'Power' and 'Stimulus', no text or symbols present.

Diagram showing a device with battery and checkmark indicators, likely illustrating battery status or status.

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

▶ SmartClean systems Plus only:

During the drying phase, the drying symbol will flash.

Note: The drying phase takes approx. 4 hours.

When the cleaning program has been completed, the ready symbol lights up continuously.

The battery symbol lights up continuously to indicate that the shaver is fully charged.

Note: Charging takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the rinsing or drying symbol stops flashing.

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the cleaning program and charging have been completed, the SmartClean switches off automatically.

Replacing the cartridge of the SmartClean System

- Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the result.

1 Press the button on the side of the SmartClean system (1) and lift the top part of the SmartClean system (2).

Medical diagram showing a catheter placement with an arrow indicating placement of the catheter and a magnified view of the catheter.

Illustration of a blender with a blue arrow pointing to its lid (no text or symbols)

Illustration of a blue mechanical device with a downward arrow indicating motion (no text or symbols)

2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge. You can simply pour the cleaning fluid down the sink.
3 Throw away the empty cleaning cartridge.
4 Unpack the new cleaning cartridge and pull the seal off the cartridge.
5 Place the new cleaning cartridge in the SmartClean system.
6 Push the top part of the SmartClean system back down ('click').

Cleaning the shaver under the tap

Illustration of a hand washing a bowl with a dropper above it (no text or symbols)

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

1 Rinse the shaving unit under a warm tap for some time.

Illustration of a human leg with concentric contour lines and an upward arrow indicating motion or pressure (no text or symbols)

2 Pull the shaving head holder off the bottom part of the shaving unit.

Illustration of a hand using a pipette to lift a blue liquid in a container (no text or symbols)

3 Rinse the shaving head holder under a warm tap.
4 Carefully shake off excess water and let the shaving head holder dry.
5 Reattach the shaving head holder to the bottom part of the shaving unit ('click').

Thorough cleaning method

Illustration of a human wrist with concentric blue contour lines indicating muscle density or movement, no text or symbols present.

Make sure the appliance is switched off.

1 Pull the shaving head holder off the bottom part of the shaving unit.

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

2 Place the retaining ring holder on the retaining ring (1), turn it anticlockwise (2) and lift it off the shaving head (3).

Remove the retaining ring from the retaining ring holder and repeat this process for the other retaining rings.

Mechanical assembly diagram showing two gears with blue arrows indicating motion direction (no text or symbols)

3 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

Illustration of two mechanical components with blue and black parts, no text or symbols present

Mechanical gear assembly diagram showing a blue worm-like component inserted into a circular base (no text or symbols)

Diagram of a mechanical component with a blue circular top and a blue arrow pointing to a ring (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating motion or rotation.

4 Clean the cutter and guard under the tap.

5 After cleaning, place the cutter back into the guard.

6 Put the shaving heads back into the shaving head holder.

Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving-head holder.

7 Place the retaining ring holder on the retaining ring (1), place it on the shaving head (2) and turn it clockwise (3) to reattach the retaining ring.

Repeat this process for the other retaining rings.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

8 Reattach the shaving head holder to the bottom part of the shaving unit.

Cleaning the click-on attachments

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

Illustration of a blue soap dispenser attached to a vertical rod with coiled wires (no text or symbols)

1 Switch on the appliance with the trimmer attachment attached.
2 Rinse the trimmer attachment under a hot tap for some time.
3 Carefully shake off excess water and let the trimmer attachment dry.
4 After cleaning, switch off the appliance.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

Illustration of two blue spray bottles on a diagonal line, one with spray and the other with spray (no text or symbols)

1 Pull the comb off the beard styler attachment.
2 Rinse the beard styler attachment and the comb separately under a hot tap for some time.
3 Carefully shake off excess water and let the beard styler attachment and comb dry.
4 Lubricate the teeth with a drop of sewing machine oil every six months.

Storage

Illustration of a blue electric shaver with a downward arrow indicating compression (no text or symbols)

1 Store the shaver in the pouch supplied.

Note: We advise you to let the shaver dry before you store it in the pouch.

Replacement

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol lights up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away.

Only replace the shaving heads with original SH90 Philips shaving heads.

(10) (10)

1 The shaving unit symbol lights up continuously, the arrows flash white and you hear a beep when you switch off the shaver.

Illustration of a human leg with concentric circular patterns and an upward arrow indicating motion (no text or symbols)

2 Pull the shaving head holder off the bottom part of the shaving unit.

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

3 Place the retaining ring holder on the retaining ring (1), turn it anticlockwise (2) and lift it off the shaving head (3).

Remove the retaining ring from the retaining ring holder and repeat this process for the other retaining rings.

Diagram showing a hand holding a mechanical component with an arrow indicating direction, alongside a close-up of a circular component (no text or symbols present)

4 Remove the shavings heads from the shaving head holder and throw them away.

Diagram showing a blue circular component being lifted by a blue arrow, mounted on a metallic ring (no text or symbols)

5 Place new shaving heads in the holder.

Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving-head holder.

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

6 Place the retaining ring holder on the retaining ring (1), place it on the shaving head (2) and turn it clockwise (3) to reattach the retaining ring.

Repeat this process for the other retaining rings.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

7 sec. (1) (2)

7 Reattach the shaving head holder to the bottom part of the shaving unit.

8 To reset the shaver, press and hold the on/off button for approx. 7 seconds. Wait until you hear two beeps.

Ordering accessories

To buy accessories or spare parts, visit

www.shop.philips.com/service. or go to your

Philips dealer. You can also contact the Philips

Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

The following parts are available:

• HQ8505 adapter
• SH90 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard styler attachment
• RQ585 Philips cleansing brush attachment
• RQ560/RQ563 Philips cleansing brush heads
• JC301/JC302/JC303/JC304/JC305 cleaning cartridge

2yrs

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace the shaving heads with original SH90 Philips shaving heads.

Recycling

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

- This symbol on a product means that the product is covered by European Directive 2012/19/EU.

- This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2006/66/EC which cannot be disposed of with normal household waste. We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery.

- Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.

Removing the rechargeable shaver battery

Note: We strongly advise you to have a professional remove the rechargeable battery.

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

1 Insert the screwdriver into the slot between the front and back panel in the bottom of the appliance. Remove the back panel.
2 Remove the front panel.
3 Unscrew the two screws at the top of the inner panel and remove the inner panel.
4 Remove the rechargeable battery with a screwdriver.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem	Possible cause	Solution
The shaver does not work when I press the on/off button.	The shaver it still attached to the mains. For safety reasons, the shaver can only be used cordlessly.	Unplug the shaver and press the on/off button to switch on the shaver.
	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads (see chapter ‘Cleaning and maintenance’).
		Clean the shaver thoroughly before you continue shaving (see chapter ‘Cleaning and maintenance’).
I replaced the shaving heads, but the replacement reminder is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol has suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).
An exclamation mark has suddenly appeared on the display while charging.	The shaver is overheated.	Disconnect the shaver from the mains for approx. 10 minutes.
An exclamation mark, replacement reminder and the cleaning reminder have suddenly appeared on the display.	The shaving heads are soiled or damaged.	Replace (see chapter ‘Replacement’) or clean the shaving heads (see chapter ‘Cleaning and maintenance’).
Water is leaking from the bottom of the shaver.	During cleaning, water may collect between the inner body and the outer shell of the shaver.	This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.
The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge needs replacement.	Replace the cleaning cartridge (see chapter ‘Cleaning and maintenance’).
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter 'Cleaning and maintenance').
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the Philips cleaning cartridge.
	The drain of the cleaning cartridge might be blocked.	Push the hairs down the drain with a toothpick.
The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.

Introducción

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Precaución

Simple line drawing of a symmetrical mechanical or electrical component with a central star-like symbol (no text or labels)

Simple line drawing of a vertical object with a circular button and power symbol (no text or labels)

Simple line drawing of a symmetrical object with a small orange sphere inside, no text or symbols present.

Diagram showing a valve with a water level indicator and a blue circular icon labeled '小' (small) in the corner.

Diagram of a human leg with a highlighted circular button and a blue lock icon (no text or symbols)

Diagram of a human leg with a power button and water droplet, accompanied by a blue lock icon (no text or symbols)

Diagram showing a remote control with icons for music, car, phone, and warning symbols

Simple line drawing of a symmetrical object with a star-shaped base and an exclamation mark in the bottom right corner (no text or symbols)

Sobrecalentamiento

Diagram showing a hairdryer with labeled parts and blue arrows indicating connection points

Illustration of a hand holding a tool with a blue tip and emitting blue light (no text or symbols)

Illustration of a blue pen tip inserted into a cylindrical container with a downward arrow (no text or symbols)

Diagram illustrating three-step robotic arm motion with labeled arrows and motion indicators

Illustration of a person applying a blue brush to their face, showing motion arrows (no text or symbols)

Illustration of a person applying facial massage to the ear (no text or symbols)

Afeitado húmedo

Illustration of a person applying facial massage to the ear (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial massage to the ear with blue motion arrows (no text or symbols)

Diagram of a robotic arm with a blue head and red directional arrows indicating movement or force (no text or symbols)

Illustration of a person using a blue tool to apply makeup application (no text or symbols present)

Diagram of a blue tool pressing a curved surface with an upward arrow (no text or symbols)

Illustration of a robotic arm with a blue head and directional arrows indicating motion (no text or symbols)

Illustration of a robotic arm with motion lines and a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a hairbrush with a blue brush applying powder to the jaw (no text or symbols)

Diagram showing a hand holding a tool with labeled parts and directional arrows indicating motion or movement.

Illustration of a person holding a blue object, no text or symbols present

Diagram illustrating hand gesture with checkmark and cross symbols indicating correct and incorrect actions

Illustration of a person applying a blue hair accessory to their neck (no text or symbols)

Pure diagram of a symmetrical mechanical or electrical component with no text, numbers, or symbols

Diagram of a circular anatomical structure with labeled points (O, D, W) and a small symbol at the bottom right (no readable text or labels)

Simple line drawing of a paintbrush with a red 'X' symbol and blue water droplets, no text or symbols present.

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and label 'SINEMA' (no text or symbols on the diagram itself)

Illustration of a hand washing a small blue container with a blue arrow indicating the process (no text or symbols present)

Illustration of a blue mechanical device with a downward arrow indicating rotation (no text or symbols)

Safety warning illustration showing a blue water droplet on a stand with a 'no droplet' symbol, indicating no need for cleaning or disinfection.

Illustration of a hand holding a tool with a blue trigger and sparkles (no text or symbols)

Illustration of a blue pen tip with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram illustrating three-step instructions for a robotic arm joint, labeled with arrows and motion indicators.

Diagram showing a hand inserting a power button to a device with a circular icon labeled 'Spiral' and an 'Power' button.

Diagram of a device with two blue icons labeled 'Power' and 'Stimulus', connected by lines to a central port (no text or symbols beyond icons)

Diagram showing battery charging setup with battery icon and checkmark indicating status

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a blue container labeled 'PAPAYA' being inserted into a circular component with three bars, indicating fluid or material flow.

Illustration of a blender with a blue arrow pointing to its lid (no text or symbols)

Illustration of a blue mechanical device with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to lift a blue object with motion lines (no text or symbols)

Illustration of a human leg with concentric blue contour lines and an upward arrow indicating motion or pressure (no text or symbols)

Illustration of a hand pouring liquid into a blue container with bubbles (no text or symbols)

Illustration of a human leg with concentric blue contour lines and an upward arrow indicating motion or pressure (no text or symbols)

Diagram illustrating a mechanical or electrical system with numbered components and directional arrows indicating motion or flow.

Mechanical gear assembly diagram showing two components with blue arrows indicating motion direction (no text or labels)

Illustration of a hand holding two blue objects with motion lines, no text or symbols present

Mechanical gear assembly diagram showing a blue cutting tool pressing into a circular base (no text or symbols)

Diagram of a mechanical component with a blue circular top and arrow indicating direction (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or force directions.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating rotation or movement.

Illustration of a blue plastic object hanging from a vertical rod (no text or symbols)

Illustration of two blue water jets performing a lift operation, no text or symbols present

Illustration of a blue electric shaver with a downward arrow indicating compression (no text or symbols)

Illustration of a human hand holding a circular object with concentric rings, marked with a blue upward arrow (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding a mechanical component with an arrow indicating direction, and a close-up of a circular component (no text or symbols present)

Diagram of a mechanical component with a blue circular top and arrow indicating force or motion (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating rotation or movement.

7 sec. (19) (a)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Attention

Simple line drawing of a symmetrical object with a central star-like symbol (no text or labels)

Simple line drawing of a vertical object with a circular button and power symbol (no text or labels)

Piles faibles

Simple line drawing of a symmetrical object with a small orange sphere inside, no text or symbols present.

Diagram showing a faucet with water level indicator and a blue circular icon labeled '小' (small) in the corner.

Diagram of a human leg with a power button and lock icon, no text or symbols present

Diagram of a human leg with a power button and water droplet, accompanied by a blue lock icon (no text or symbols)

Diagram showing a handheld device with control buttons and warning icons for music, home, phone, and alarm.

Simple line drawing of a symmetrical object with a star-shaped base and two warning symbols (no text or labels)

Surchauffe

Diagram showing a hairpin with two blue arrows labeled ① and ②, indicating direction of movement or connection.

Illustration of a hand holding a tool with blue spray effect (no text or symbols)

Illustration of a blue pen tip inserted into a cylindrical container with a downward arrow indicating force or pressure (no text or symbols)

Diagram illustrating foot massage technique with numbered steps and directional arrows indicating motion

Illustration of a person applying a blue brush to their face, showing motion arrows (no text or symbols)

Illustration of a person applying a blue surgical or CT scan to the ear area (no text or symbols present)

Illustration of a person applying a blue-tinted product to their face (no text or symbols)

Illustration of a hand holding a tool with motion lines indicating movement (no text or symbols)

Illustration of a person applying a blue brush to their ear with motion arrows (no text or symbols)

Diagram of a robotic arm with a blue head and directional arrows indicating movement or force (no text or symbols)

Illustration of a robotic arm with motion lines and a magnified inset showing a mechanical component (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Diagram of a blue mechanical component pressing into a curved surface with an upward arrow (no text or symbols)

Diagram of a robotic arm with a blue head and directional arrows indicating motion (no text or symbols)

Illustration of a robotic arm with motion arrows and a close-up inset showing a hand holding a cap (no text or symbols)

Line drawing of a hairbrush with blue brushstroke effect (no text or symbols)

Diagram showing a hand holding a tool with labeled parts and directional arrows indicating motion or movement.

Illustration of a person using a handheld device to apply or prepare (no text or symbols present)

Diagram illustrating hand gesture with checkmark and cross symbols indicating correct and incorrect actions

Illustration of a person applying a blue hair accessory to their neck (no text or symbols)

Cross-sectional diagram of a mechanical or anatomical component with labeled parts (no text or symbols present)

Diagram of a symmetrical mechanical or biological structure with labeled points (O, S, D, Z, I, II, K) and no readable text or symbols.

Simple line drawing of a paintbrush with a red X mark and water droplets, no text or symbols present.

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a hand washing machine with a blue plastic container (no text or symbols)

Illustration of a blue mechanical device with a downward arrow indicating motion (no text or symbols)

Diagram showing a droplet on a stand with a prohibition symbol indicating water droplets, likely used in a safety or disinfection control system.

Illustration of a hand holding a tool with blue spray effect (no text or symbols)

Illustration of a blue pen tip inserted into a glass container (no text or symbols)

Diagram illustrating three-step procedure of a tool or device with labeled steps 1, 2, and 3.

Illustration of a hand holding two blue circular buttons labeled 'Power' and 'Spiral', connected to a mechanical device (no text or symbols present)

Diagram showing power and heating icons with labels, likely illustrating a system or control mechanism.

Diagram of a car interior with a battery icon and checkmark indicating status (no text or symbols present)

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

Illustration of a human wrist with concentric contour lines and an arrow indicating upward motion (no text or symbols)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols)

Illustration of a human hand with concentric circles and an upward arrow indicating motion or pressure (no text or symbols)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Mechanical gear assembly diagram showing two components with blue arrows indicating motion direction (no text or labels)

Illustration of two mechanical components with blue and teal parts, no text or symbols present

Mechanical gear assembly diagram showing a blue worm-like component inserted into a circular base (no text or symbols)

Diagram of a mechanical component with a blue circular component and a blue arrow pointing to a ring (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Illustration of a blue soap can securing a rope with a white cylindrical object attached (no text or symbols)

Illustration of a person using a water spray device to lift or lift another (no text or symbols)

Illustration of a blue electric shaver with a downward arrow indicating compression (no text or symbols)

Illustration of a human hand holding a circular object with concentric rings, marked with a blue upward arrow (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or sequence.

Diagram showing a hand holding a mechanical component with an arrow indicating direction, alongside a close-up of a circular component (no text or symbols present)

Diagram of a mechanical component with a blue circular component and a blue arrow pointing to a circular feature (no text or symbols)

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating motion or rotation.

7 sec. (1) (2)

Symbol of a trash bin crossed with no visible text or labels

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet with a diagonal line and raindrops, no text present

Attenzione

Simple line drawing of a showerhead spraying water into a container (no text or symbols)

Simple line drawing of a symmetrical mechanical or electrical component with a central base (no text or symbols)

Pure diagram of a vertical device with internal components and a power button, no text or symbols present

Simple line drawing of a device interior with a power button and a small orange icon (no text or symbols)

Diagram of a faucet with water level indicator and a blue circular icon showing a faucet (no text or symbols)

Diagram of a human leg with power button and lock icon (no text or symbols)

Diagram of a human leg with a power button and water droplet, accompanied by a blue lock icon (no text or symbols)

(●) (○) (○)

Diagram showing a device with control buttons and corresponding icons for music, home, phone, and warning symbols.

Simple line drawing of a symmetrical object with a star-shaped base and two circular indicators (no text or symbols)

Surriscaldamento

Diagram showing a hairpin plug connecting two outlets with blue arrows indicating direction of movement or insertion.

Illustration of a hand holding a tool with blue spray effect (no text or symbols)

Illustration of a blue pen tip inserted into a cylindrical container with a downward arrow indicating force (no text or symbols)

Diagram illustrating foot massage technique with numbered steps and directional arrows indicating motion

Illustration of a person applying facial massage to the ear with a blue brush (no text or symbols)

Illustration of a person applying a blue surgical tool to the ear area (no text or symbols)

Rasatura su pelle bagnata

Illustration of a person applying a blue cotton product to their ear (no text or symbols)

Illustration of a hand holding a tool with motion lines indicating movement (no text or symbols)

Illustration of a person applying a blue brush to their ear with motion arrows (no text or symbols)

Illustration of a blue robotic arm with directional arrows indicating movement or force (no text or symbols)

Illustration of a robotic arm interacting with a surface, showing motion and component detail (no text or symbols)

Illustration of a person using a handheld tool to apply facial hair (no text or symbols present)

Diagram of a blue mechanical component pressing a curved surface with an upward arrow (no text or symbols)

Diagram of a robotic arm with a blue head and directional arrows indicating motion or force (no text or symbols)

Illustration of a robotic arm with motion arrows and a graduation cap inset showing a graduation cap (no text or symbols)

Line drawing of a hairbrush with motion lines indicating brush direction (no text or symbols)

Diagram illustrating hair follicle anatomy with numbered labels and directional arrows indicating movement or force

Illustration of a man holding a blue object, no text or symbols present

Diagram illustrating hand positioning with checkmark and cross symbols indicating correct and incorrect positions

Illustration of a person applying a blue-tipped hair accessory to their neck (no text or symbols)

Cross-sectional diagram of a mechanical or biological structure with labeled components (no text or symbols)

Diagram of a symmetrical biological structure with labeled points (O, I, II, III, IV, V) and a small symbol at the bottom right (no text or symbols beyond labels)

Simple line drawing of a paintbrush with a red X mark and blue liquid, no text or symbols present.

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and label 'TOMATO' (no text or symbols on the diagram itself)

Illustration of a hand washing machine with a blue arrow pointing to the outlet (no text or symbols)

Illustration of a blue mechanical device with a downward arrow indicating motion (no text or symbols)

Safety warning illustration showing a blue flame with water droplets and a red prohibition symbol

Illustration of a hand holding a tool with a blue tip and emitting light (no text or symbols)

Illustration of a blue pen tip inserted into a container with a downward arrow (no text or symbols)

Diagram illustrating three-step procedure of a foot with motion arrows and labeled steps 1, 2, and 3.

Illustration of a hand holding two blue circular icons with power and spiral symbols, next to a mechanical component (no text or labels)

Diagram showing power and heating icons with labels, likely illustrating a system or control mechanism.

▶ Solo sistemi SmartClean Plus:

Diagram of a vehicle battery with two circular indicators (one checked, one not checked) and a battery symbol, no text or labels present.

Illustration of a hand using a tool to lift a blue object with motion lines (no text or symbols)

Illustration of a human leg with concentric blue contour lines and an upward arrow indicating movement or pressure (no text or symbols)

Illustration of a hand using a pipette to lift a blue liquid in a container (no text or symbols)

Illustration of a human torso with a blue circular pattern and an upward arrow indicating motion or pressure (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Mechanical gear assembly diagram showing two components with blue arrows indicating motion direction (no text or labels)

Illustration of two mechanical components with blue internal structures and force arrows, no text or symbols present

Mechanical gear assembly diagram showing a blue worm-like component inserted into a circular base (no text or symbols)

Diagram of a mechanical component with a blue circular component and a blue arrow pointing to a ring (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Illustration of a blue soap dispenser attached to a vertical pipe with coiled wire (no text or symbols)

Illustration of a person using a water spray device to lift or lift another (no text or symbols)

Illustration of a blue electric shaver with a downward arrow indicating compression (no text or symbols)

Illustration of a human hand holding a circular object with concentric rings, marked with a blue upward arrow (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding a mechanical component with an arrow indicating direction, alongside a close-up of a circular component (no text or symbols present)

Diagram of a mechanical component with a blue circular component and a blue arrow pointing to a circular feature (no text or symbols)

Diagram of a mechanical valve or pump assembly with numbered components and directional arrows indicating flow or movement.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating motion or rotation.

7 sec. (1) (2)

Symbol of a waste bin with no text or labels

Simple line drawing of a trash bin with no text or symbols

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Cuidado

Simple line drawing of a symmetrical object with a central star-like symbol (no text or labels)

Simple line drawing of a device with a circular button and power symbol (no text or labels)

Simple line drawing of a device with a central sensor or component (no text or symbols)

Diagram of a showerhead with water flow indicators and a blue water tap symbol (no text or labels)

Diagram of a human leg with a power button and a lock icon, no text or symbols present

Diagram of a human leg with a power button and lock icon, no text or symbols present

Diagram showing a device with control buttons and icons for music, home, phone, and warning symbols

Simple line drawing of a U-shaped object with a star-shaped base and two warning symbols (no text or labels)

Sobreaquecimento

Diagram showing a cable being inserted into a power socket, labeled with arrows indicating direction of insertion.

1 Certifique-se de que o aparelho está desligado.
2 Introduza a ficha pequena no aparelho (1) e ligue o adaptador à tomada eléctrica (2).

Carregamento no sistema SmartClean (apenas modelos específicos)

Illustration of a hand holding a cleaning tool with blue spray effect (no text or symbols)

Illustration of a blue pen-like object with a pointed tip, mounted on a cylindrical base (no text or symbols)

Diagram illustrating three-step procedure of a tool or device with labeled steps 1, 2, and 3.

Illustration of a person applying a blue brush to their face, showing motion lines (no text or symbols)

Illustration of a person applying facial massage to the ear (no text or symbols present)

Illustration of a person applying facial massage to the ear (no text or symbols)

Illustration of a hand using a pipette to lift a ball (no text or symbols)

Illustration of a person applying a blue brush to their ear with motion arrows indicating direction (no text or symbols)

Illustration of a robotic arm with a blue head and red cross symbol indicating motion or force (no text or labels)

Illustration of a robotic arm with motion lines and a close-up inset showing a mechanical component (no text or symbols)

Illustration of a person using a blue tool to apply facial hair (no text or symbols present)

Diagram of a blue mechanical component pressing into a curved surface with an upward arrow (no text or symbols)

Illustration of a blue spacecraft with directional arrows indicating flight or movement (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a circular object (no text or symbols)

Line drawing of a hairbrush with blue motion lines indicating hair direction (no text or symbols)

Diagram illustrating hairpin positioning with numbered steps and a magnified view of the head area

Illustration of a person holding a small blue object, no text or symbols present

Diagram illustrating hand gesture with checkmark and cross symbols indicating correct and incorrect actions

Illustration of a person applying a blue hair accessory to their neck (no text or symbols)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Diagram of a biological structure with labeled parts (O, O, C, C, III, V) and circular boundary lines, no readable text or symbols.

Simple line drawing of a paintbrush with a red X mark and water droplets, no text or symbols present.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and label 'SINEMA' (no text or symbols on the diagram itself)

Illustration of a hand washing a small blue container with a blue arrow indicating the process (no text or symbols present)

Illustration of a blue mechanical device with a downward arrow indicating rotation (no text or symbols)

Safety warning illustration showing a blue water droplet on a stand with a 'no droplet' symbol, indicating no need for cleaning or disinfection.

Illustration of a hand holding a tool with a blue trigger and sparkles (no text or symbols)

4 Retire o selo da recarga de limpeza.

Illustration of a blue pen tip inserted into a cylindrical container with a downward arrow indicating force (no text or symbols)

Diagram illustrating three-step cleaning or cleaning process with labeled arrows and motion indicators

Diagram showing a hand holding two blue circular buttons labeled 'Power' and 'Spiral', connected to a device with a handle.

Diagram showing power and heating icons with labels, likely illustrating a system or control mechanism.

Diagram of a vehicle battery with two blue circular indicators (one checked, one not checked) and a battery symbol, no text or labels present.

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

Illustration of a human knee joint with a blue arrow indicating upward motion (no text or symbols)

Illustration of a hand using a pipette to lift a blue liquid in a container (no text or symbols)

Limpeza da máquina de barbear à torneira

Illustration of a human leg with concentric circular patterns and a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Mechanical gear assembly diagram showing two components with directional arrows (no text or labels)

Illustration of two mechanical components with blue and black parts, no text or symbols present

Mechanical gear assembly diagram showing a blue worm-like component inserted into a circular base (no text or symbols)

Diagram of a mechanical component with a blue circular top and a blue arrow pointing to a ring (no text or symbols)

Diagram showing three labeled mechanical or fluidic components with directional arrows indicating flow or movement.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Illustration of a blue plastic soap dispenser attached to a vertical pipe with coiled wire (no text or symbols)

Illustration of a person cleaning a shoe with water spray, showing two different steps (no text or symbols)

Illustration of a blue electric shaver with a downward arrow indicating compression (no text or symbols)

1 Guarde a máquina de barbear na bolsa fornecida.

Illustration of a human leg with concentric circular patterns and a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with numbered arrows indicating rotational or directional changes, likely illustrating a cycle or motion process.

Diagram showing mechanical assembly with a gear and a circular component, no text or symbols present

Diagram of a mechanical component with a blue circular component and a blue arrow pointing to a ring (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram showing a mechanical device with labeled parts and directional arrows indicating rotation or movement.

7 sec. (19)

Encomendar acessórios

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet with raindrops, no text or symbols present

Dikkat

Simple line drawing of a device with a button and a stylized symbol inside (no text or labels)

Simple line drawing of a device with a circular button and power symbol (no text or labels)

Simple line drawing of a device with a central sensor or component (no text or symbols)

Diagram showing a device with power and current indicators, alongside a blue water tap symbol with Chinese character '水' (water).

Diagram of a human leg with a power button and lock icon, no text or symbols present

Diagram of a human leg with a power button and lock icon, no text or symbols present

(●) (●) (●)

Diagram showing a remote control with icons for music, hands-on, phone, and warning symbols

Simple line drawing of a U-shaped object with a star-shaped base and two circular indicators (no text or symbols)

Aşırı isinma,

Diagram showing a hairpin with two blue arrows labeled ① and ②, connected to a power outlet.

Illustration of a hand holding a cleaning tool with blue spray effect (no text or symbols)

Illustration of a blue pen tip inserted into a cylindrical container with a downward arrow indicating fluid direction (no text or symbols)

Diagram illustrating three-step cleaning or cleaning process with labeled steps 1, 2, and 3

Illustration of a person applying a blue brush to their ear with motion arrows indicating direction (no text or symbols)

Illustration of a person's head and neck with a blue anatomical marking on the cheek area (no text or symbols)

Illustration of a person applying facial massage to the ear (no text or symbols)

Illustration of a hand holding a medical or laboratory device with fluid flow indicators (no text or symbols)

Illustration of a person applying a blue brush to their ear with motion arrows (no text or symbols)

Illustration of a blue robotic device with a red X and blue downward arrow indicating force or motion (no text or symbols)

Illustration of a person applying a blue tool to their hair (no text or symbols present)

Diagram of a blue tool pressing a curved surface with an upward arrow (no text or symbols)

Illustration of a blue spacecraft with directional arrows indicating flight or movement (no text or symbols)

Illustration of a robotic arm with motion lines and a close-up inset showing a sensor or probe (no text or symbols)

Line drawing of a hairbrush with blue motion lines indicating hair direction (no text or symbols)

Diagram illustrating hair follicle behavior with numbered instructions and a circular label showing 'all'

Illustration of a person holding a small blue object, no text or symbols present

Diagram illustrating hand gesture with checkmark and cross symbols indicating correct and incorrect actions

Illustration of a person applying a blue hair accessory to their neck (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component with labeled points (no text or symbols present)

Diagram of a circular mechanical or anatomical structure with labeled points (D, E, F, W) and no readable text or symbols.

Simple line drawing of a paintbrush with a red 'X' indicating no text or symbols

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and label 'SINEMA' (no text or symbols on the diagram itself)

Diagram of a handwashing device with blue liquid level applied to a container (no text or symbols)

Illustration of a blue mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram showing a droplet on a stand with a prohibition symbol indicating water droplets.

Illustration of a hand holding a tool with blue spray effect (no text or symbols)

Illustration of a blue pen tip inserted into a cylindrical container with a downward arrow indicating direction (no text or symbols)

Diagram illustrating three-step procedure of a tool or device with labeled steps 1, 2, and 3.

Diagram showing a hand holding two blue circular icons labeled 'Power' and 'Spiral', with a tool interacting with them.

Diagram of a device with two blue icons labeled 'Power' and 'Stimulus' connected to a handle (no text or symbols beyond icons)

Diagram of a vehicle battery with two circular indicators (one checked, one not checked) and a battery symbol, no text or labels present.

Illustration of a hand holding a medical or laboratory device with fluid flow lines (no text or symbols)

Illustration of a human hand holding a wrist with a blue arrow indicating upward motion (no text or symbols)

Illustration of a hand using a pipette to lift a blue water fountain (no text or symbols present)

Illustration of a human hand holding a wrist with concentric blue contour lines indicating pressure or stress zones (no text or symbols)

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing two mechanical components with blue arrows indicating direction, no text or symbols present

Illustration of two mechanical components with blue and white parts, no text or symbols present

Mechanical gear assembly diagram showing a blue worm-like component inserted into a circular base (no text or symbols)

Diagram of a mechanical component with a blue circular top and a blue arrow pointing to a ring (no text or symbols)

Diagram showing three labeled mechanical or fluid dynamics steps with directional arrows indicating flow or movement.

Diagram showing a hand holding a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Illustration of a blue soap roller securing a rope with a white cylindrical rod (no text or symbols)

Illustration of a blue water droplet being lifted by a tool, showing surface water spray (no text or symbols)

Illustration of a blue electric shaver with a downward arrow indicating compression (no text or symbols)

(10) (10)

Illustration of a human leg with concentric circular patterns and an upward arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a mechanical assembly with a gear and a circular component, no text or symbols present

Diagram of a mechanical component with a blue circular top and arrow indicating direction (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating rotation or movement.

7 sec. (19)

Symbol of a trash bin crossed with no visible text or labels
