Product type	Mobile phone
Brand	OLYMPIA
Model	TOUCH (Style Plus)
Frequency bands	GSM 850 / 900 / 1800 / 1900 MHz (Quadband)
Display	2.4 inch LCD screen with backlight
Dual SIM	Yes, up to 2 SIM cards (Mini-SIM format)
Expandable memory	microSD card up to 8 GB
Camera	Built-in (requires microSD card)
FM radio	Yes (requires headphones)
Bluetooth	Yes, for wireless connection of accessories
Flashlight	Built-in LED with switch
SOS button	Emergency call function with alarm and SMS sending
Battery	Lithium-ion 3.7 V, 800 mAh
Standby time	Up to 120 hours
Talk time	Up to 4 hours
Charging time	Approximately 2 hours
Power supply	Mains adapter (input 100-240 V, 50/60 Hz, 0.3 A; output 5 V, 500 mA) or microUSB cable to PC
Dimensions	Approximately 97 x 50 x 17 mm
Weight	Approximately 90 g (with battery)
Connectors	microUSB (charging/data), 3.5 mm headphone jack
Operating temperature	-10 °C to 40 °C, humidity 30% to 75%
Cleaning	Soft, lint-free cloth; no solvents or detergents
Warranty	24 months (keep the receipt)
Maintenance	Protect from moisture, dust, liquids, chemicals, heat, and direct sunlight.
Repairability	Do not open or repair yourself; contact customer service

Frequently Asked Questions - TOUCH OLYMPIA

How to insert the SIM card into the phone?

Remove the battery compartment cover using the notch at the bottom. Insert the SIM card (mini-SIM) into the SIM 1 slot following the orientation. Use an adapter if you have a micro or nano-SIM.

How to charge the phone battery?

Plug the mains adapter into a socket, then connect the microUSB cable to the phone. You can also use the provided charging cradle. Do not remove the battery during charging. Charging time is approximately 2 hours.

How to use the SOS button?

The SOS button is located on the back of the phone. First activate the function in the menu: Settings > SOS > Activate. Save up to 5 numbers. In case of need, press and hold the SOS button: an alarm sounds, an SMS is sent, then the numbers are called in hands-free mode.

Can I use two SIM cards at the same time?

Yes, this phone is Dual SIM. You can insert two mini-SIM cards. Both are active but only one can be used for calls/data at a time.

How to activate Bluetooth and connect a headset?

Go to Settings > Bluetooth and turn it on. Put your headset in pairing mode. Select the headset from the list of detected devices. Confirm the code if prompted.

How to take photos or record videos?

Insert a microSD card (max 8 GB) before using the camera. From the home screen, press the navigation key up to launch the camera. Use the center key to take a photo. Photos are stored on the SD card.

How to listen to FM radio?

Plug in a headset (it acts as an antenna). Open the Radio application from the menu. Automatic station search is performed. Use the navigation keys to change stations.

What to do if the screen no longer responds?

Try restarting the phone by pressing and holding the End call key for 3 seconds. If that does not work, remove and reinsert the battery (after unplugging the charger). If the problem persists, contact customer service.

How to clean the phone?

Use a soft, lint-free cloth to clean the surfaces. Never use solvents, detergents, or abrasive products. Protect the device from moisture and dust.

Where can I find spare parts or have my phone repaired?

Do not attempt to repair it yourself. Contact OLYMPIA after-sales service via the website www.olympia-vertrieb.de or by phone [phone]). The warranty is 24 months from the date of purchase.

USER MANUAL TOUCH OLYMPIA

Front view of a smartphone with a small display and a black arrow pointing to it (no text or symbols visible)

Illustration of a handheld electronic device with a cable and connector (no text or symbols)

Illustration of a device with a cable and connector (no text or symbols visible)

Icon showing a phone with 'OK' signal and a power button symbol, likely indicating status or notification.

Icon showing a phone with 'OK' signal and a power button symbol, likely indicating an OK function or notification.

Control panel icon with directional arrow and function labels including OK, OFF, and power symbols

Icon showing a green 'OK' button next to a gray interface with a black horizontal line and a magnified circle highlighting the zero.

Icon showing a minus sign over a phone with a red 'OK' button (no text or symbols)

Icon showing a phone with 'OK' signal and a circular button labeled 'Power' symbol

Icon showing a phone with 'OK' signal and a power button, likely indicating status or notification.

Icon showing a green 'OK' signal next to a gray device with white lines and a black horizontal bar, alongside a magnified circle.

Simple line drawing of a flashlight inside a circle (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Simple circular diagram with two concentric circles and a central vertical line, no text or symbols present.

Symbol of a trash bin with crossed lines and a blank bottom bar (no text or labels)

Safety Instructions ....32

General View 36

First Steps 38

Package Contents....38

Operating the Mobile Phone....45

SOS Key (Emergency Call Function).....52

Technical Properties 55

Disposal ....56

Guarantee....57

Care Instructions....57

Declaration of Conformity .....58

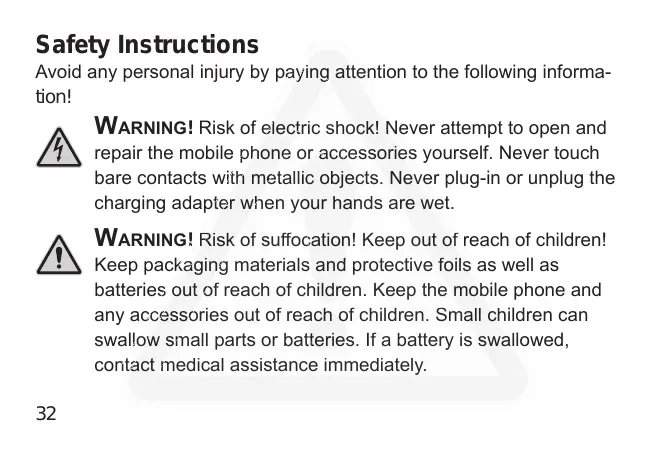

Safety Instructions

Avoid any personal injury by paying attention to the following information!

WARNING! Risk of electric shock! Never attempt to open and repair the mobile phone or accessories yourself. Never touch bare contacts with metallic objects. Never plug-in or unplug the charging adapter when your hands are wet.

WARNING! Risk of suffocation! Keep out of reach of children! Keep packaging materials and protective foils as well as batteries out of reach of children. Keep the mobile phone and any accessories out of reach of children. Small children can swallow small parts or batteries. If a battery is swallowed, contact medical assistance immediately.

CAUTION! Risk of explosion through improper replacement or removal of the battery! Only replace the battery by a type approved by the manufacturer and dispose of the battery according to the applicable laws.

CAUTION! Do not remove the battery while the mobile phone is being charged. This could damage the phone. Disconnect the charging cable from the mobile phone before changing or removing the battery.

CAUTION! Risk of injury to the retina. The LED for the torch is very bright and could cause damage to eyes. Never look directly into the LED torch beam when the torch is switched on.

CAUTION! Reduce exposure to radio waves! Use an appropriate headset in the case of longer calls. Do not keep the mobile phone near your head.

CAUTION! The ringing tone is issued via the loudspeaker.

Take an incoming call first and then hold the mobile phone to your ear. This prevents any possible hearing damage.

IMPORTANT! Do not use the phone in prohibited areas! Prohibited areas could include hospitals, petrol stations, aeroplanes, etc. Please observe local regulations!

IMPORTANT! With regard to emergencies, do not rely on the mobile phone alone! For technical reasons, it is not possible to guarantee a reliable connection in every situation.

IMPORTANT! Protect the device from moisture, dust, liquids, chemicals, vapours, heat and direct sunlight. The phone is not waterproof; therefore, keep it dry.

IMPORTANT! Only use original accessories. Only connect accessories approved by the manufacturer. Telephoning while driving is only permitted when the applicable legal regulations are observed.

Intended Use

This mobile phone is designed for use within a mobile phone network. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

General View

The following illustration shows details of the mobile phone. Familiarise yourself with all the operating elements before starting to use the mobile phone.

1 Loudspeaker 9 SOS key (emergency call function)
2 Display 10 Camera
3 Softkey, left 11 Battery compartment cover
4 Navigation key 12 Torch lamp (LED)
5 Call key 13 MicroUSB connection port
6 Keypad 14 Headphone connection port
7 Softkey, right 15 Torch switch
8 On-hook key 16 Volume buttons

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

First Steps

Read the instruction manual carefully and proceed as described. This will enable you to use all the functions to your full satisfaction.

Package Contents

Before starting up the mobile phone, check the package contents. If anything is missing or damaged, please contact our Service department.

Style Plus mobile phone	Charging cradle
Battery	USB connection cable
Charging adapter	Quick reference manual

Inserting the SIM Card

Before you can start to use the mobile phone, you must insert your SIM card (not included in the equipment supplied) in the phone. Only use SIM cards of the size illustrated (mini SIM). Micro or nano cards which have already been broken out can cause contact problems or malfunctions. If you want to use a micro or nano SIM card, you will need an appropriate adapter.

Close-up of a smartphone's front panel showing a battery with a black arrow pointing to its side panel (no text or symbols visible)

1 Remove the battery compartment cover.
Use the recess at the bottom of the battery compartment cover.
2 Insert the SIM card in the slot labelled SIM 1.
Ensure the SIM card is aligned correctly.

Inserting the MicroSD Memory Card

If you want to increase the memory capacity of the mobile phone, you can insert a microSD memory card (not included in the equipment supplied) with a memory of up to 8 GB in the mobile phone. A microSD memory card is necessary, for instance, when you want to use the camera.

1 Lay the microSD memory card with the contacts facing down in the compartment, as illustrated. Ensure the microSD memory card is aligned correctly.

SD

Inserting the Battery

Before you can use the mobile phone, you must insert the battery supplied in the mobile phone.

1 Insert the battery as illustrated. Pay attention the battery is aligned correctly.
2 Replace the battery compartment cover. The battery compartment cover latches audibly into place.

Front view of a smartphone with a small display and a black arrow pointing to it (no text or symbols visible)

CAUTION! Do not remove the battery

while the mobile phone is being charged. Disconnect the charging cable from the mobile phone before changing or removing the battery.

Charging the Battery

1 Connect the power adapter plug on the charging adapter to a properly installed power socket.
2 Connect the microUSB plug to the microUSB connection port on the mobile phone. The microUSB plug is protected against reverse polarity.

CAUTION! Do not remove the battery while the mobile phone is being charged. Disconnect the charging cable from the mobile phone before changing or removing the battery.

3 When the phone battery is fully charged, disconnect the connection to the power supply. This reduces power consumption.

Illustration of a handheld electronic device with a cable and connector (no text or symbols)

Charging the Battery, Charging Cradle

1 Connect the power adapter plug on the charging adapter to a properly installed power socket.
2 Connect the microUSB plug to the microUSB connection port on the charging cradle. The microUSB plug is protected against reverse polarity.
3 Place the mobile phone in the charging cradle.

CAUTION! Do not remove the battery while the mobile phone is being charged. Disconnect the charging cable from the mobile phone before changing or removing the battery.

4 When the phone battery is fully charged, disconnect the connection to the power supply. This reduces power consumption.

Illustration of a device with a plug inserted into a housing (no text or symbols visible)

Switching On the Mobile Phone

Press the On-hook key for 3 seconds. The mobile phone is switched on. The start screen appears in the display after a short time.

Icon showing a phone with 'OK' and a power button symbol, likely indicating status or notification.

Switching Off the Mobile Phone

Press the On-hook key for 3 seconds. The mobile phone is switched off. The display goes out.

Icon showing a phone with 'OK' signal and a power button symbol, likely indicating status or notification.

When the mobile phone is switched off, you cannot use the emergency call function (via the SOS key on the mobile phone).

Operating the Mobile Phone

Use the following keys to navigate through the menus provided by the mobile phone. Some keys are assigned two functions depending on the menu. Further information is available online in the detailed operating manual at www.olympia-vertrieb.de

Control panel interface with bidirectional arrow icon and OK/OK/OK buttons

Navigate up or down in the menu. When the start screen is displayed: Open the phone book or start the camera.

Icon showing a green 'OK' button next to a gray device with white lines and a black horizontal line, alongside a magnified circle.

Discard the settings or navigate one menu level back. On the start screen: Open the Caller Picture menu.

Gray rectangular object with a white circular overlay and a black horizontal line, next to a stylized road or vehicle (no text or symbols visible)

Open a submenu or confirm your entries.

When you want to take, end or reject calls, use the following keys:

OK

Take an incoming call or begin a conversation.

Icon showing a phone with 'OK' and a circular button labeled 'Power' indicating function or operation.

End a call in progress.

Icon showing a phone with 'OK' signal and a circular button labeled 'Power' symbol

Reject an incoming call.

When you want to enter phone numbers and digits or delete entries, use the following keys:

OK

Delete entries.

2ABC GHI 5JKL 6 RQ 8TUV

Enter digits and letters.

The operating elements on the sides or rear of the phone are assigned the following functions:

SOS

Trigger an emergency call to the stored phone numbers.

Pure electrical circuit lines without any symbols

Switch the torch integrated in the phone on and off.

Pure mechanical component diagram without any text, numbers, or symbols

Charge the mobile phone battery or establish a connection to a computer.

Simple circular diagram with a central vertical line and two concentric circles, no text or symbols present.

Connect the head- phones, e.g. to listen to the radio or use the phone while driving a car.

Overview of the Most Important Functions

Framed texts are provided in the following operating steps. These frames indicate texts which can appear in the display of the mobile phone.

Setting the Language

1 Press the left-hand softkey to open the main menu.
2 Navigate to the Settings Phone settings Language menu option.
3 Select the required language.

Setting the Time and Date

1 Press the left-hand softkey to open the main menu.
2 Navigate to the Settings Phone settings Time and date Set time/date menu option.
3 Enter the current time and date.
4 Select Save to activate the setting.

Adding a Contact to the Phone Book

You can store up to 300 contacts in the phone book.

1 Press the left-hand softkey to open the main menu.
2 Navigate to the Phonebook Add new contact Select menu option.
3 Select a storage location (To SIM or To phone).
4 Enter the name and phone number.
5 Press the left-hand softkey and select Save.

Dialling Contacts from the Phone Book

1 Press the left-hand softkey to open the main menu.
2 Navigate to the Phonebook menu option.
3 Select the required contact.
4 Press the Call key. The number is dialled.

Dialling Caller Picture Contacts

You can assign a picture to each of your eight favourite contacts.

These pictures are displayed in the Caller Picture menu. On selecting a picture, the phone number of the contact assigned to the picture is dialled. Further information is available online in the detailed operating manual at www.olympia-vertrieb.de.

Adding Contacts to the Caller Picture Menu

1 Press the right-hand softkey to open the Caller Picture menu.
2 Select the entry you require and confirm it by answering the prompt with Yes.
3 Select a contact from the phone book and confirm your settings by selecting OK.

Dialling Via the Caller Picture Menu

1 Press the right-hand softkey to open the Caller Picture menu.
2 Select the required picture contact.
3 Press the left-hand softkey and select Call.

Adding a Picture to the Caller Picture Contacts

When you want to assign a picture to a contact, you can either use the camera integrated in the mobile phone or transfer a picture stored on your computer to the mobile phone. In this case, you need a microSD memory card.

1 Press the right-hand softkey to open the Caller Picture menu.
2 Select the required picture contact.
3 Press the left-hand softkey and select Set picture.

4 Use the File Manager to assign a picture or take a photo with the camera integrated in the mobile phone.
5 Press the left-hand softkey and confirm your settings by selecting OK.

SOS Key (Emergency Call Function)

You can initiate an emergency call by using the SOS key on the rear of the mobile phone. An alarm signal is issued first of all. Then the SOS text message is sent to the phone numbers saved for this purpose. After that, the respective phone numbers stored are dialled in succession in Handsfree mode. You can store up to 5 phone numbers which can be assigned to the emergency call function. Further information on the SOS function is available online in the detailed operating manual at www.olympia-vertrieb.de.

Activating the Emergency Call Function

1 Press the left-hand softkey to open the main menu.
2 Navigate to the Settings SOS settings Switch menu option.
3 Press the left-hand softkey and select Activate.

Adding a Phone Number to the SOS Function

1 Press the left-hand softkey to open the main menu.
2 Navigate to the Settings SOS settings Switch menu option.

Do not assign any official emergency call service numbers. A false alarm can lead to considerable costs which could be charged to you.

3 Select a free storage location and enter the required phone number or select a contact from the phone book.
4 Press the left-hand softkey and confirm your settings by selecting OK.

Bluetooth

The Bluetooth function, a standard for data transfer via wireless communication systems, can be used to connect a compatible headphone to the mobile phone without the need for any cables.

Activating Bluetooth

Switch the Bluetooth function on when you want to connect compatible devices to your mobile phone.

1 Press the left-hand softkey to open the main menu.
2 Navigate to the Settings Bluetooth Power menu option.
3 Press the left-hand softkey and switch the Bluetooth function On.

Further information on the Bluetooth function is available online in the detailed operating manual at www.olympia-vertrieb.de

Technical Properties

Frequency band	GSM 850 / 900 / 1800 / 1900 MHz quad band
Power supply	Input: 100 - 240 V, 50 - 60 Hz, 0.3 A,Output: 5 V, 500 mA
Battery	3.7 V, 800 mAh, up to 120 h standby, up to 4 h talk time, max. charging time approx. 2 h
Display	2.4" LCD with back-lighting
Dimensions	Approx. 97 x 50 x 17 mm
Weight	Approx. 90 g incl. battery
Ambient conditions	-10 °C to 40 °C at 30% to 75% humidity
Connections	MicroUSB, 3.5 mm jack socket
Dual SIM	Yes, max. 2 SIM cards
Extras	Radio, camera, Bluetooth

Disposal

Symbol of a trash bin with crossed lines and a blank bottom bar (no text or labels)

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The symbol indicates that the device must not be disposed of in normal domestic waste! Risk to health and the environment through batteries! Never open, damage or swallow batteries or allow them to pollute the environment. Batteries may contain toxic, ecologically hazardous heavy metals. You are legally obliged to dispose of batteries and power packs at a battery retailer or in the corresponding containers provided at collection points by local public waste authorities. Disposal is free of charge.

Packaging materials must be disposed of according to local regulations.

Guarantee

Dear Customer,

we are pleased that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.

Care Instructions

Clean the housing surfaces with a soft, fluff-free cloth. Do not use any solvents or cleaning agents.

Declaration of Conformity

Olympia Business Systems Vertriebs GmbH, Zum Kraftwerk 1, 45527 Hattingen hereby declares that this device in fulfils the basic requirements and other relevant provisions stipulated in the Directive 1999/5/EC.

CE The CE mark on the devices confirm their conformity. The Declaration of Conformity for this product is available at www.olympia-vertrieb.de
