NEFFOS C7 - Smartphone TP-LINK - Free user manual and instructions

Product type	Smartphone
Brand	TP-LINK
Model	NEFFOS C7
Dimensions (estimated)	150 x 70 x 8 mm
Weight (estimated)	150 g
Battery (estimated)	3000 mAh lithium-ion
Operating system	Android (version not specified)
Screen (estimated)	5.5 inches HD
Processor (estimated)	Quad-core 1.3 GHz
RAM memory (estimated)	2 GB
Internal storage (estimated)	16 GB
Rear camera	1 sensor with LED flash
Front camera	1 sensor
Fingerprint sensor	Yes, at the back
SIM cards	Dual Nano-SIM or 1 Nano-SIM + 1 Micro-SD
Connectivity	Wi-Fi, Bluetooth, GPS, 4G (estimated)
Connectors	USB (charge/data), 3.5 mm headphone jack
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Keep the ejection tool out of reach of children. Do not scratch the phone.
Spare parts and repairability	Contact TP-LINK support for repairs. Parts not specified.

Frequently Asked Questions - NEFFOS C7 TP-LINK

How to insert SIM and SD cards?

Use the provided ejection tool to open the card tray. Place the Nano-SIM or Micro-SD cards with connectors facing down, then close the tray.

How to set up dual SIM cards?

Go to Settings > Dual SIM & network. Enable or disable each SIM card as needed. Note that only one mobile data access is possible, but calls can use either.

How to register a fingerprint?

Go to Settings > Lock screen, fingerprints & security > Fingerprint and security management. Follow the on-screen instructions, ensuring the sensor and your fingers are clean and dry.

How to turn the phone on or off?

Press and hold the power button located on the side until the screen turns on or off.

How to restart the phone?

Press and hold the power button until the phone vibrates, then release. It will restart automatically.

How to take a photo?

Open the Camera app. Tap the shutter button on the screen or use the volume buttons to capture.

What to do if you forget the password?

You may need to factory reset the phone. Contact TP-LINK support for assistance. Note that this will erase all your data.

Does the phone support 4G?

Yes, the NEFFOS C7 is compatible with 4G networks. Check the supported bands in network settings.

How to clean the phone?

Use a soft, dry cloth. Avoid chemicals and water. Keep the fingerprint sensor clean for better recognition.

Where to find replacement parts?

Contact the TP-LINK customer service or check their official website. Parts like the battery or screen may be available upon request.

USER MANUAL NEFFOS C7 TP-LINK

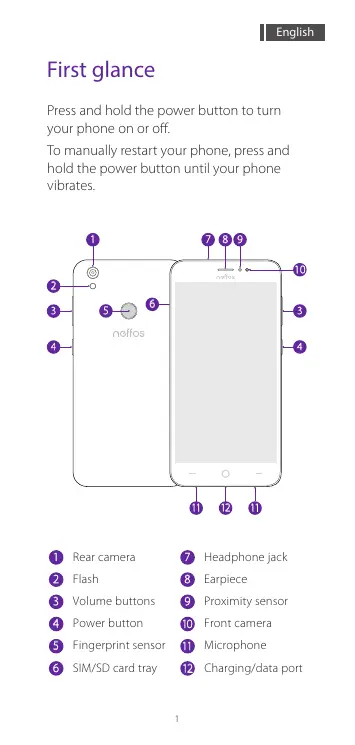

Press and hold the power button to turn your phone on or off.

To manually restart your phone, press and hold the power button until your phone vibrates.

1 Rear camera 2 Flash 3 Volume buttons 4 Power button 5 Fingerprint sensor 6 SIM/SD card tray

7 Headphone jack 8 Earpiece 9 Proximity sensor 10 Front camera 11 Microphone 12 Charging/data port

Put in the cards

Eject the SIM card tray by inserting the SIM ejector pin provided into the hole on the tray. Place the card(s) into the tray with the gold contacts face down and then insert the tray back into the phone.

The card tray can support two Nano-SIM cards or a Nano-SIM card and a microSD card.

Take care not to scratch your device or harm yourself when using the SIM ejector pin. Store the SIM ejector pin out of the reach of children to prevent accidental swallowing or injury.

Dual SIM settings

If there's only one SIM card in the phone, it's ready to use.

With two SIM cards inserted, you can choose to use one or both of them:

Go to Settings > Dual-SIM & network, choose a SIM card and then tap the on/off button to enable or disable SIM1 or SIM2.

• Your phone supports only dual card dual standby single pass, which means you cannot use both SIM cards for calls or data services simultaneously.

Fingerprint identification

Go to Settings > Screen lock, fingerprint & security > Fingerprint management and follow the onscreen instructions to register your fingerprint.

When recording your fingerprint, make sure the fingerprint sensor and your fingers are dry and clean.

Lock apps

Unlock phone

Take pictures

• You will be asked to enter your backup pattern or password when you restart your device or if fingerprint recognition fails.

At a glance
