USER MANUAL CLASSIC BAMIX

Safety regulations for bamix 28

Description of appliance 29

Working parts 30

Applications/handling 31

Switch positions 31

Putting on and exchanging the attachments 32

Receptacles 32

Cleaning and care 32

Storage 33

Technical details 34

Dear Customer,

We congratulate you on buying the bamix® all-purpose wand mixer. bamix® has proved its worth a thousand times over and has satisfied users in all 5 continents. It is ideal for the daily chores, small and not-so-small, which occur in the kitchen. bamix® is handy, because its grip is specially designed to fit the hand and is easy to switch on. It is no trouble even for small hands to use and is also suitable for left-handers. bamix® is a high quality precision product, of which we have been proud since 1954.

For your safety.

Please read these instructions before switching on your appliance.

Before using

Please read all the information given in these instructions for use very carefully. It gives you important tips about the use, the safety and the care of the appliance. Keep these instructions carefully and pass them on to the next user. The appliance may only be used for the intended purpose according to these instructions for use.

Pay attention to the safety instructions

Safety regulations for bamix

• This appliance is not intended for use by persons (including children) with limited physical, sensory or mental faculties or with a lack of experience and/or knowledge, unless they are continually supervised by a person responsible for their safety or have been carefully instructed in the use of the appliance.
  Children should always be supervised to ensure that they do not play with the appliance.
• Children must not be allowed to use the mixer without supervision.
• If the mains connection of this appliance becomes damaged, it must be replaced by the manufacturer or his After-Sales Service or by a similarly qualified person in order to avoid risks.
• The mixer must always be disconnected from the mains supply when not supervised or before assembling, dismantling or cleaning.
• The appliance should only be plugged in to AC connections with a voltage corresponding to the identification plate on the appliance.
• An electrical appliance is not a child's toy. Children do not recognise the dangers which can arise when handling electrical appliances. So keep it out of reach of children both when using and storing.
• Do not put the appliance down on hot surfaces or near open gas flames, to be sure that the housing does not start to melt.
• The appliance may only be immersed in liquids as far up as the handle.
• Do not clean the appliance in the dishwasher.
• Switch off the appliance or - even better - unplug it when you handle the cutter guard on the working parts, as for example when cleaning the appliance under running water and when exchanging the attachments.
• Only switch on the appliance when the mixer is in the receptacle.
• bamix® is fitted with a safety switch, which prevents it being put into operation by mistake and which switches off straight away when pressure on the switch is released.
• Pull out the plug when something goes wrong during use and also after use.
• Never pull out the plug with wet hands.
• Never carry or pull the appliance by the cable.
• Do not pull or wedge in the cable over sharp edges.
• Do not lay or hang the cable over hot objects or open flames and protect it from heat or oil.
• The appliance should not be started up when:
• the appliance, the housing or the cable is damaged,
• a fault is suspected after it has been dropped, or a similar mishap has occurred. In such cases the appliance should be sent back to our repair service.
• Repairs may only be carried out by our qualified service facilities. Considerable danger may arise for the user through repairs by unauthorized persons.
• If the appliance is used for other purposes than those for which it is intended, if it is incorrectly operated or repaired by unqualified persons, no responsibility can be accepted for any damages which occur. In such a case the guarantee becomes invalid.
• An eventual disposal of the appliance should be done according to the regulations of your place of residence. We reserve the right to make technical changes or country-specific modifications.

Description of appliance

bamix® model «Classic E/EO»

Accessories
Mincer

Accessories

Beater

Stand

Whisk

Meat mincer

Beaker 600 ml with lid

Wall bracket

Beaker 400 ml with lid

Please check the contents of the packing.

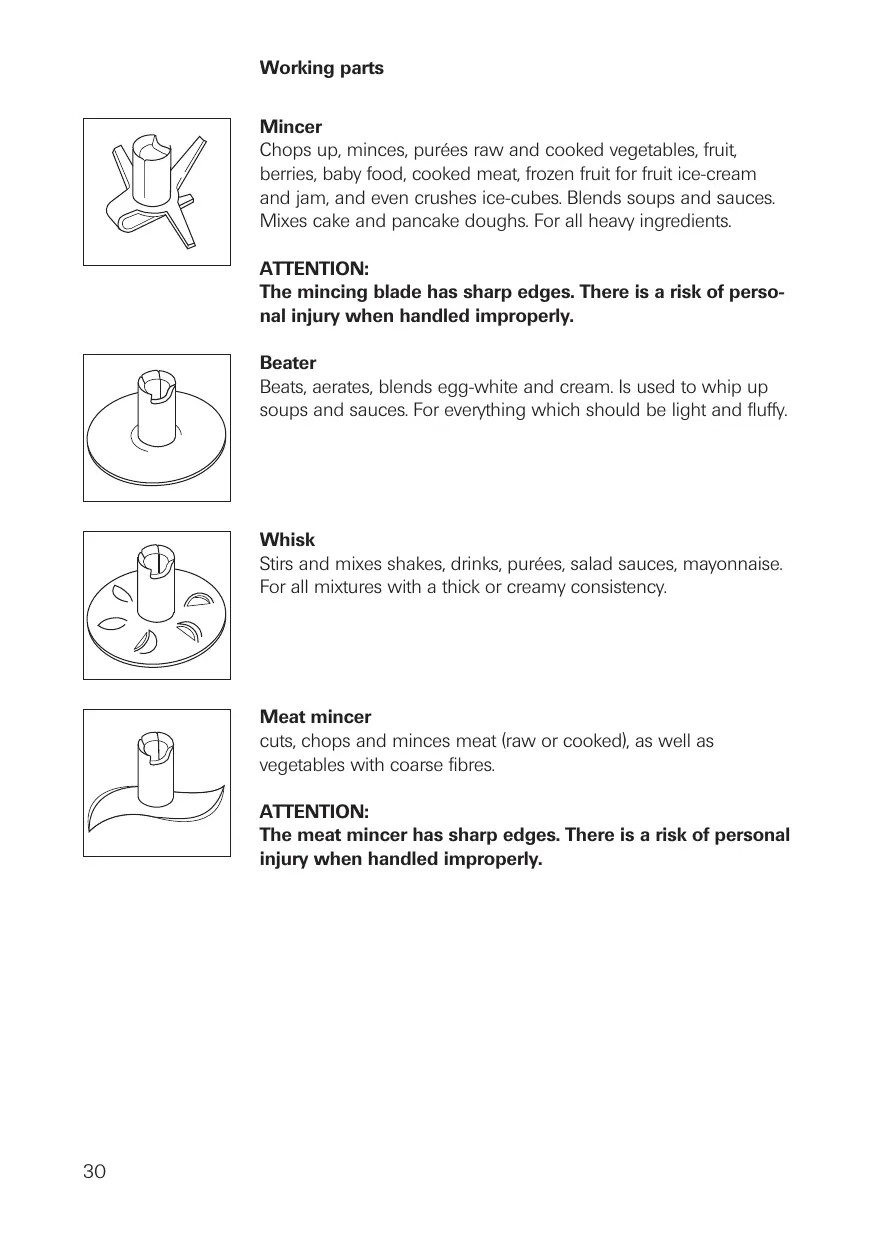

Working parts

Mincer

Chops up, minces, purées raw and cooked vegetables, fruit, berries, baby food, cooked meat, frozen fruit for fruit ice-cream and jam, and even crushes ice-cubes. Blends soups and sauces. Mixes cake and pancake doughs. For all heavy ingredients.

ATTENTION:

The mincing blade has sharp edges. There is a risk of personal injury when handled improperly.

Beater

Beats, aerates, blends egg-white and cream. Is used to whip up soups and sauces. For everything which should be light and fluffy.

Whisk

Stirs and mixes shakes, drinks, purées, salad sauces, mayonnaise. For all mixtures with a thick or creamy consistency.

Meat mincer

cuts, chops and minces meat (raw or cooked), as well as vegetables with coarse fibres.

ATTENTION:

The meat mincer has sharp edges. There is a risk of personal injury when handled improperly.

Applications/handling

Wrist movement

Whilst processing, use a light swivelling motion from the wrist, draw bamix up a little and let it fall again on the ingredients (do not press or pound). The fineness of the result depends on the length of processing.

Drawing up

Rest the bamix® for a few seconds on the bottom of the jug. Then hold it at an angle and draw it up slowly against the side of the jug. When the ingredients no longer are drawn with it, put it back on the bottom and repeat the process until the ingredients are whipped to the required stiffness.

Blending

Dip bamix at an angle in the ingredients, switch it on and blend. Before removing the appliance from the ingredients, switch it off to prevent splashing.

Tip: Whilst working, hold your free hand over the top of the jug to prevent ingredients spraying out.

Switch positions

Step I for all light, airy dishes and small amounts. Step II for all viscous, firm ingredients and large amounts.

This appliance is only to be used for the preparation of food. Any other application of the unit can be dangerous and can lead to personal injuries.

When the appliance is operated incorrectly, the liability and the guarantee become invalid.

Putting on and exchanging the attachments

Push the attachment as straight as possible on to the stub in such a way that the drive pin on the stub fits exactly into the small recess in the socket of the attachment. The attachment is designed to make this process easy. The attachment is removed by simply pulling it off from the stub. For protection please use a cloth.

Careful: For safety's sake, when you exchange the attachments always pull out the plug.

Receptacles

You can work in any receptacle, even directly in a pan on the stove. Use small receptacles for small amounts and large receptacles for larger amounts. Narrow, high receptacles are more suitable for working in than wide, shallow ones.

Cleaning and care

Cleaning is very easy. Remove the attachment and clean it. It is enough to clean the chromium-plated part of the appliance after every use under running water (do not switch on). The easiest way to clean off bits of food which have stuck to bamix® is to hold it in a jug with hot water and switch it on. Take care that the switch does not come in contact with water.

Important: Clean the appliance as soon as you have finished working, to prevent the drive shaft getting clogged.

The bamix® will stay longer "fit" if you oil it every few months. For this use an acid-free oil (e.g. vaseline oil, obtainable at a chemist's). Hold the bamix® upside down with the cutter guard facing you, put 2 or 3 drops of oil on the drive shaft, and switch on the appliance for 2 to 3 minutes. Afterwards rinse the appliance in hot water.

What can be done...

if the drive shaft of your appliance no longer rotates?

When you have not used your appliance for some time, the drive shaft may get stuck due to minute foodstuff residues which have hardened and are now gumming up the lower shaft bearing.

Place the operative part of the appliance for 5 to 10 minutes in a jug with hot water, then switch it on. In general the appliance will then work again; if not, just try to free the shaft carefully with pliers.

Storage

Stand

Wall bracket

The bamix should always be placed ready to hand where you work (preferably between the stove and the sink).

The more handily bamix* is placed, the more often it gets used.

Technical details

Motor	230/240 V AC/50 cycles
Power input	Model E / EO 120 = 120 W Model E / EO 140 = 140 W Model E / EO 160 = 160 W Model E / EO 180 = 180 W Model E / EO 200 = 200 W
r.p.m.	Model E / EO 120 = 7'000/12'000 rev./min Model E / EO 140 = 10'000/15'000 rev./min Model E / EO 160 = 10'000/16'000 rev./min Model E / EO 180 = 11'500/16'500 rev./min Model E / EO 200 = 12'000/17'000 rev./min
Mechanical and electrical safety	EN 60335-2-14/A1:2008/A2:2012 EN 60335-1:2010 (Fifth Edition) EN 61000-3-2/A2:2009 EN 61000-3-3:2008 EN 55014-1/A1:09+A2:11 EN 55014-2/A2:08 EN 62233:2008
Insulation	double sleeving
Switch	safety switch with impulse contact
Total length	35 cm
Weight	930 g
Cable	1,9 m
Intermittent operation	5 minutes at a time
Material and housing	All material parts are rust-proof, tasteless and resistant to corrosive foodstuffs

Official test marks

Manufacturer

We reserve the right to make technical alterations.

Above specifications are country-specific.
