USER MANUAL KVL4115S KENWOOD

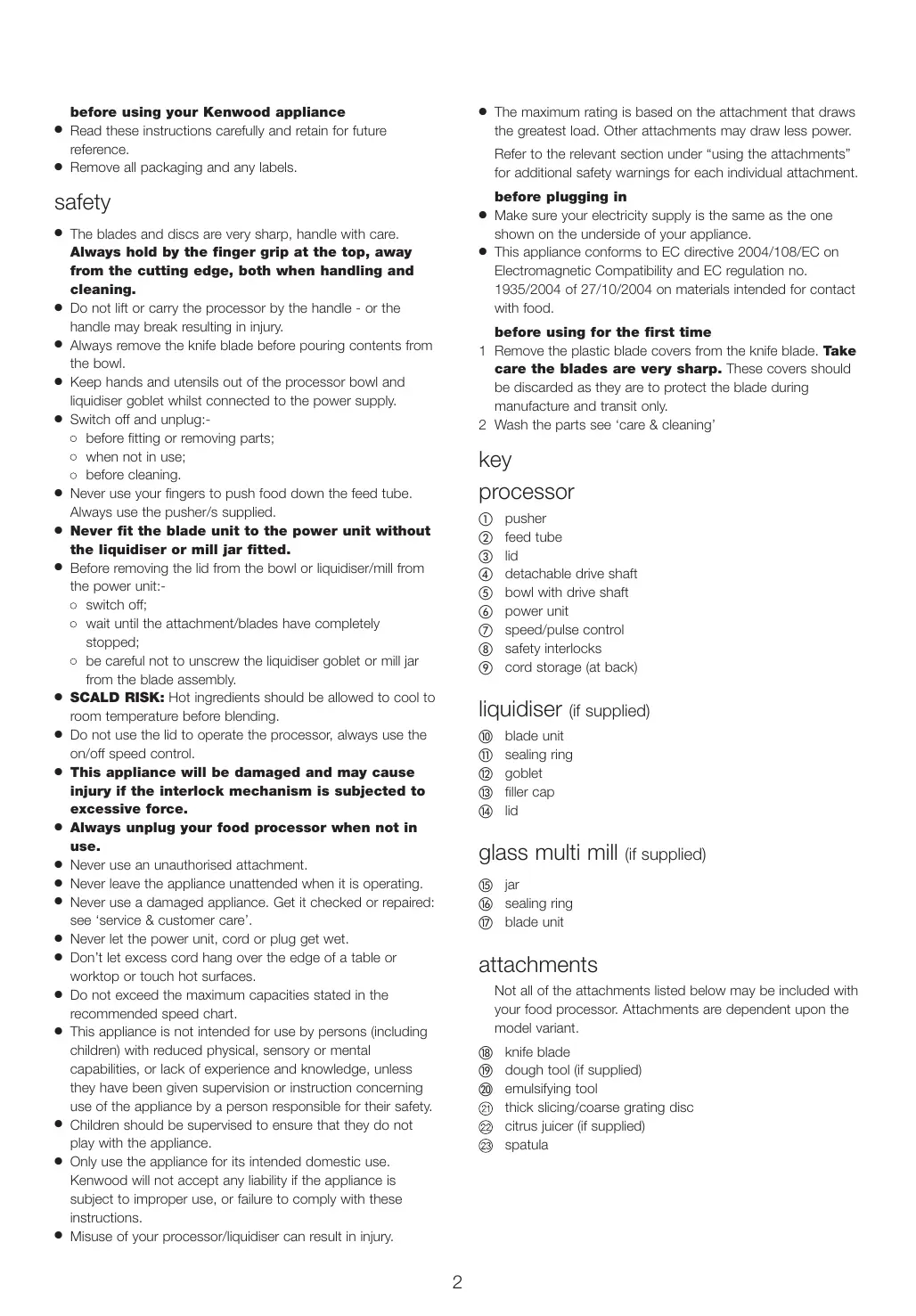

before using your Kenwood appliance Read these instructions carefully and retain for future reference. Remove all packaging and any labels.

Refer to the relevant section under “using the attachments” for additional safety warnings for each individual attachment. safety

The maximum rating is based on the attachment that draws the greatest load. Other attachments may draw less power.

The blades and discs are very sharp, handle with care. Always hold by the finger grip at the top, away from the cutting edge, both when handling and cleaning. Do not lift or carry the processor by the handle - or the handle may break resulting in injury. Always remove the knife blade before pouring contents from the bowl. Keep hands and utensils out of the processor bowl and liquidiser goblet whilst connected to the power supply. Switch off and unplug:● before fitting or removing parts; ● when not in use; ● before cleaning. Never use your fingers to push food down the feed tube. Always use the pusher/s supplied. Never fit the blade unit to the power unit without the liquidiser or mill jar fitted. Before removing the lid from the bowl or liquidiser/mill from the power unit:● switch off; ● wait until the attachment/blades have completely stopped; ● be careful not to unscrew the liquidiser goblet or mill jar from the blade assembly. SCALD RISK: Hot ingredients should be allowed to cool to room temperature before blending. Do not use the lid to operate the processor, always use the on/off speed control. This appliance will be damaged and may cause injury if the interlock mechanism is subjected to excessive force. Always unplug your food processor when not in use. Never use an unauthorised attachment. Never leave the appliance unattended when it is operating. Never use a damaged appliance. Get it checked or repaired: see ‘service & customer care’. Never let the power unit, cord or plug get wet. Don’t let excess cord hang over the edge of a table or worktop or touch hot surfaces. Do not exceed the maximum capacities stated in the recommended speed chart. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions. Misuse of your processor/liquidiser can result in injury.

before plugging in Make sure your electricity supply is the same as the one shown on the underside of your appliance. This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food. before using for the first time 1 Remove the plastic blade covers from the knife blade. Take care the blades are very sharp. These covers should be discarded as they are to protect the blade during manufacture and transit only. 2 Wash the parts see ‘care & cleaning’ key processor

pusher feed tube lid detachable drive shaft bowl with drive shaft power unit speed/pulse control safety interlocks cord storage (at back) glass multi mill (if supplied) attachments Not all of the attachments listed below may be included with your food processor. Attachments are dependent upon the model variant. knife blade dough tool (if supplied) emulsifying tool thick slicing/coarse grating disc citrus juicer (if supplied) spatula

to use your liquidiser to use your food processor 1 Fit the bowl by aligning the on the bowl with the power unit, turn clockwise until it locks

(if supplied) 1 Fit the sealing ring into the blade unit - ensuring the seal is located correctly in the grooved area. ● Leaking will occur if the seal is damaged or incorrectly fitted. 2 Hold the underside of the blade unit and insert the blades into the goblet - turn anti-clockwise until it clicks . Refer to the graphics on the underside of the blade unit as follows: on the 2 Fit an attachment over the bowl drive shaft. Note: Detachable drive shaft should only be fitted when using the disc or citrus juicer. ● Always fit the bowl and attachment onto the processor before adding ingredients. 3 Fit the lid - ensuring the top of the drive shaft/tool locates into the centre of the lid. ● Do not use the lid to operate the processor, always use the on/off speed control. 4 Plug in, switch on and select a speed. (Refer to the recommended speed chart). ● The processor will not operate if the bowl or lid are not fitted correctly into the interlock. Check that the feed tube and bowl handle are situated to the right hand side. ● Use the pulse (P) for short bursts. The pulse will operate for as long as the control is held in position. 5 Reverse the above procedure to remove the lid, attachments and bowl. ● Always switch off and unplug before removing the lid. important ● Your processor is not suitable for crushing or grinding coffee beans, or converting granulated sugar to caster sugar. ● When adding almond essence or flavouring to mixtures avoid contact with the plastic as this may result in permanent marking. - unlocked position - locked position The liquidiser will not operate if incorrectly assembled. 3 Put your ingredients into the goblet. 4 Fit the lid onto the goblet and turn clockwise until it clicks. Fit the filler cap. 5 Place the liquidiser onto the power unit, align the on the liquidiser with the on the power unit and turn clockwise to lock . The appliance will not operate if the liquidiser is incorrectly fitted to the interlock. 6 Select a speed (refer to the recommended speed chart) or use the pulse control.

safety SCALD RISK: Hot ingredients should be allowed to cool to room temperature before blending. Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning. Only operate the liquidiser with the lid in place. Only use the goblet with the blade assembly supplied. Never run the liquidiser empty. To ensure the long life of your liquidiser, do not run it for longer than 60 seconds. Smoothie recipes - never blend frozen ingredients that have formed a solid mass during freezing, break it up before adding to the goblet. hints When making mayonnaise, put all the ingredients, except the oil, into the liquidiser. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid. Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid. Ice crushing - operate the pulse in short bursts until crushed to the desired consistency. The processing of spices is not recommended as they may damage the plastic parts. The appliance will not work if the liquidiser is incorrectly fitted. To blend dry ingredients - cut into pieces, remove the filler cap, then with the appliance running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly. Don’t use the liquidiser as a storage container. Keep it empty before and after use. Never blend more than 1.2 litres - less for frothy liquids like milkshakes. to use your mill (if supplied)

Use the mill for milling herbs, nuts and coffee beans. 1 Put the ingredients into the jar . 2 Fit the sealing ring into the blade unit . 3 Turn the blade unit upside down. Lower it into the jar, blades down. 4 Screw the blade unit onto the jar until finger tight . Refer to the graphics on the underside of the blade unit as follows: - unlocked position

- locked position 5 Place the mill onto the power unit, align the on the mill with the on the power unit and turn clockwise to lock

6 Switch onto maximum speed or use the pulse control.

safety Never fit the blade unit to your food processor without the jar fitted. Never unscrew the jar while the mill is fitted to your appliance. Do not touch the sharp blades – Keep the blade unit away from children. Never remove the mill until the blades have completely stopped. To ensure the long life of your mill, never run for longer than 30 seconds. Switch off as soon as you have got the right consistency. The processing of spices is not recommended as they may damage the plastic parts. The appliance will not work if the mill is incorrectly fitted. Use for dry ingredients only. hints Herbs are best milled when clean and dry. recommended speed chart tool/attachment function speed knife blade Cake making Rubbing fat into flour Adding water to combine pastry ingredients Chopping & pureeing 1–2 1–2

dough tool (if supplied) emulsifying tool disc - slicing/grating citrus juicer (if supplied) liquidiser (if supplied) glass mill (if supplied) Thick soup mixes (600ml liquid to 600g dry ingredients). Process vegetables with 300ml water until finely chopped, add the remaining water until incorporated. Thinner soup mixes/milk Yeasted mixes Cream Mayonnaise Firm food items such as carrots, hard cheeses Softer items such as cucumbers, tomatoes Citrus fruits All processing Herbs Nuts, coffee beans Uncooked meat - beef steak - cut into 21⁄2 cm cubes

maximum capacities 1.2Kg/2lb 6oz total weight 300g/11oz flour weight 400g/14oz lean meat total weight

1.2 litres/1 pt 16 fl oz

start on 1 and increase to 2

2 (5 secs) using the attachments slicing/grating disc Refer to recommended speed chart for each attachment. reversible slicing/grating disc Use the grating side for cheese, carrots, potatoes and foods of a similar texture. Use the slicing side for cheese, carrots, potatoes, cabbage, cucumber, courgette, beetroot and onions. The knife blade is the most versatile of all the attachments. The length of the processing time will determine the texture achieved. For coarser textures use the pulse control. Use the knife blade for cake and pastry making, chopping raw and cooked meat, vegetables, nuts, pate, dips, pureeing soups and to also make crumbs from biscuits and bread. safety

It can also be used for yeasted dough mixes if the dough tool is not supplied.

hints Cut food such as meat, bread, vegetables into cubes approximately 2cm/3/4in before processing. Biscuits should be broken into pieces and added down the feed tube whilst the machine is running. When making pastry use fat straight from the fridge cut into 2cm/3/4in.cubes. Take care not to over-process. to use the cutting discs 1 Fit the bowl onto the power unit, add the detachable drive shaft . 2 Holding by the centre grip, place the disc onto the drive shaft with the appropriate side uppermost. 3 Fit the lid. 4 Put the food in the feed tube. 5 Switch on and push down evenly with the pusher - never put your fingers in the feed tube. dough tool (if supplied) Use for yeasted dough mixes.

Place the dry ingredients in the bowl and add the liquid down the feed tube whilst the machine is running. Process until a smooth elastic ball of dough is formed this will take 60 secs. Re-knead by hand only. Re-kneading in the bowl is not recommended as it may cause the processor to become unstable.

emulsifying tool hints Use fresh ingredients Don’t cut food too small. Fill the width of the feed tube fairly full. This prevents the food from slipping sideways during processing. Food placed upright comes out shorter than food placed horizontal. There will always be a small amount of waste on the disc or in the bowl after processing. citrus juicer Use for light mixtures only eg cream, mayonnaise.

Never remove the lid until the cutting disc has completely stopped. Handle the cutting discs with care - they are extremely sharp hints Ensure the bowl and tool are clean and free from grease before use. (if supplied) Use the citrus juicer to squeeze the juice from citrus fruits (eg oranges, lemons, limes and grapefruits). cone sieve to use the citrus juicer 1 Fit the bowl onto the power unit, add the detachable drive shaft. 2 Fit the sieve into the bowl - ensuring the sieve handle is locked into position directly over the bowl handle. 3 Place the cone over the drive shaft turning until it drops all the way down. 4 Cut the fruit in half. Then switch on and press the fruit onto the cone. ● The citrus juicer will not operate if the sieve is not locked correctly. ● For best results store and juice the fruit at room temperature and hand roll on a worktop before juicing. ● To help with juice extraction move the fruit from side to side when juicing. ● When juicing large quantities, empty the strainer regularly to prevent the build up of pulp and seeds.

service & customer care Always switch off and unplug before cleaning. Handle the blades and cutting disc with care they are extremely sharp. Some foods may discolour the plastic. This is perfectly normal and won’t harm the plastic or affect the flavour of your food. Rub with a cloth dipped in vegetable oil to remove the discolouration. power unit Wipe with a damp cloth, then dry. Ensure that the interlock area is clear of food debris. Don’t immerse the power unit in water. Store excess cord in the storage area at the back of the power unit .

main bowl, lid, pusher knife blade, dough tool emulsifying tool detachable drive shaft disc citrus juicer liquidiser goblet, lid, filler cap glass mill jar blade unit and seal for liquidiser and mill spatula

If you experience any problems with the operation of the processor, before calling for assistance refer to the troubleshooting guide.

If you need help with: using your appliance or servicing or repairs Contact the shop where you purchased your appliance. Designed and engineered by Kenwood in the UK. Made in China.

IMPORTANT INFORMATION FOR CORRECT

DISPOSAL OF THE PRODUCT IN ACCORDANCE

WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin. all other parts Wash by hand, then dry. Alternatively they are dishwasher safe and can be washed on the top rack of your dishwasher. Avoid placing items on the bottom rack directly over the heating element. A short low temperature (Maximum 50°C) programme is recommended. item If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

liquidiser/mill 1 Empty the goblet/jar, unscrew the liquidiser blade unit by turning to the unlock position to release. 2 Wash the goblet/jar by hand. 3 Remove and wash the sealing ring. 4 Don’t touch the sharp blades – brush them clean using hot soapy water, then rinse thoroughly under the tap. Don’t immerse the blade unit in water. 5 Leave to dry upside down.

The processor will not operate. No Power. Check processor is plugged in. Solution Bowl not fitted to power unit correctly. Check bowl is located correctly and the handle is situated towards the right hand side. Bowl lid not locked on correctly. Check that the lid interlock is located correctly into the handle area. The processor will not work if the bowl and lid are fitted incorrectly. If none of the above check the fuse/circuit breaker in your home. Liquidiser/mill will not operate Liquidiser/mill not locked on correctly. The liquidiser/mill will not operate if fitted incorrectly to the interlock. Liquidiser/mill not assembled correctly. Check blade unit is fully tightened into the goblet/jar. Processor stops during processing Processor overloaded/maximum capacities Check maximum capacities stated exceeded. in the recommended speed chart. Lid unlocked. Check lid is locked correctly. Liquidiser/mill leaking from blade assembly base. Seal missing Seal incorrectly fitted Seal damaged. Check seal is fitted correctly and not damaged. To obtain a replacement seal see “service & customer care” Poor performance of tools/attachments Refer to hints in relevant “using the attachment” section. Check attachments are assembled correctly.

citruspress kon sil 600 ml Jauhojen paino 340 g πριν =7-9/2565/%9+:+ :- 9;90+;% )/' 67A:- <57# 1 3]HPXEZ[L [H WRHZ[PQD QHRcSSH[H HWb [PY RLWGKLY.

7595=%: 5/ 1+6&*+8 +&3'/ 651@ 05<:+7$8. ?XEWLP TH

HWVXXG_L[L [H QHRcSSH[H, QHOdY WXVVXGMVT[HP JPH TH WXVZ[H[LcV\T [PY RLWGKLY SbTV QH[D [NT QH[HZQL\F QHP [N SL[H]VXD. 2 ?RcTL[L [H SEXN [NY Z\ZQL\FY, IR. «]XVT[GKH QHP QHOHXPZSbY». SWRET[LX

(εάν παρέχεται) J\DRPTVY ScRVY WVRRHWRdT ^XFZL`T 9X\SSH[PZSbY WDJV\ – ^XNZPSVWVPFZ[L [N RLP[V\XJGH WHRSVc JPH ZcT[VSN HTDSLPUN \RPQdT Z[N SEJPZ[N [H^c[N[H SE^XPY b[V\ V WDJVY OX\SSH[PZ[LG Z[V IHOSb WV\ OERL[L. 6LT Z\TPZ[D[HP N LWLULXJHZGH SWH^HXPQdT, QHOdY SWVXLG TH ]OLGXV\T [H WRHZ[PQD SEXN. 8 Z\ZQL\F KLT RLP[V\XJLG LDT [V SWRET[LX KLT [VWVOL[NOLG Z`Z[D. 5PH TH HTHSLGUL[L Z[LJTD \RPQD, Qb_[L [H ZL QVSSD[PH, H]HPXEZ[L [V WdSH-SLMVcXH QHP LTd N Z\ZQL\F RLP[V\XJLG, XGU[L [H QVSSD[PH ETH-ETH. :XH[FZ[L [H ^EXPH ZHY LWDT` HWb [V DTVPJSH. 5PH QHRc[LXH HWV[LREZSH[H, HKLPDML[L [HQ[PQD [V WLXPL^bSLTV. <N ^XNZPSVWVPLG[L [V SWRET[LX `Y Z\ZQL\F ]cRHUNY. 9H WXEWLP TH [V QXH[D[L DKLPV WXPT QHP SL[D [N ^XFZN. <NT HTHQH[LcL[L WV[E WHXHWDT` HWb 1,2 RG[XH - RPJb[LXV JPH H]XD[H \JXD bW`Y SPRQZEPQ. +/:5;7)&'

?HXHZQL\F QEPQ

AXG_PSV IV\[cXV\ Z[V HRLcXP ?XVZOFQN TLXVc JPH TH HTHQH[L\[VcT [H \RPQD [NY McSNY ALSH^PZSbY QHP WHXHZQL\F WV\XE <WVXLG LWGZNY TH ^XNZPSVWVPNOLG JPH SGJSH[H McSNY SL SHJPD HT KLT WHXE^L[HP [V LXJHRLGV M\SdSH[VY.

ZEXIPY QHP LU\WNXE[NZN WLRH[dT 7DT ^XLPDMLZ[L IVFOLPa Z^L[PQD SL: [N ^XFZN [NY Z\ZQL\FY F

[V ZEXIPY F [PY LWPZQL\EY

LWPQVPT`TFZ[L SL [V Qa[DZ[NSa aWb [V VWVGV aJVXDZa[L [N Z\ZQL\F ZaY. @^LKPDZ[NQL QHP HTHW[c^ONQL HWb [NT Kenwood Z[V 8T`SETV 4HZGRLPV. :H[HZQL\DZ[NQL Z[NT :GTH. 7DT [V QaRdKPV E^LP \WVZ[LG MNSPD, WXEWLP, JPa RbJV\Y aZ]aRLGaY, Ta aT[PQa[aZ[aOLG aWb [NT KENWOOD F aWb LUV\ZPVKV[NSETV QET[XV LWPZQL\dT [NY KENWOOD.

7REJU[L LDT [V μπωλ [VWVOL[FONQL Z`Z[D QHP LDT N RHIF LGTHP WXVY [H KLUPD. CHSNRF HWbKVZN LXJHRLG`T/LUHX[NSD[`T AV SGULX WHcLP TH RLP[V\XJLG QH[D [N KPDXQLPH [NY LWLULXJHZGHY.

HEAD OFFICE: Kenwood Limited, 1-3 Kenwood Business Park, New Lane, Havant, Hampshire PO9 2NH 40975/4
