USER MANUAL SERIES 9 9370CC BRAUN

Stapled booklet, 105 x 148 mm, 96 pages (incl. 8 pages cover), 2/2c = cyan + black

0860 112 188 (Sharecall charged at local rates)

97335300_MG_5050-5010_CEEMEA_S5.indd 1 30.04.15 10:05 OVED Effective Date 25May2015 GMT - Printed 01Oct2015

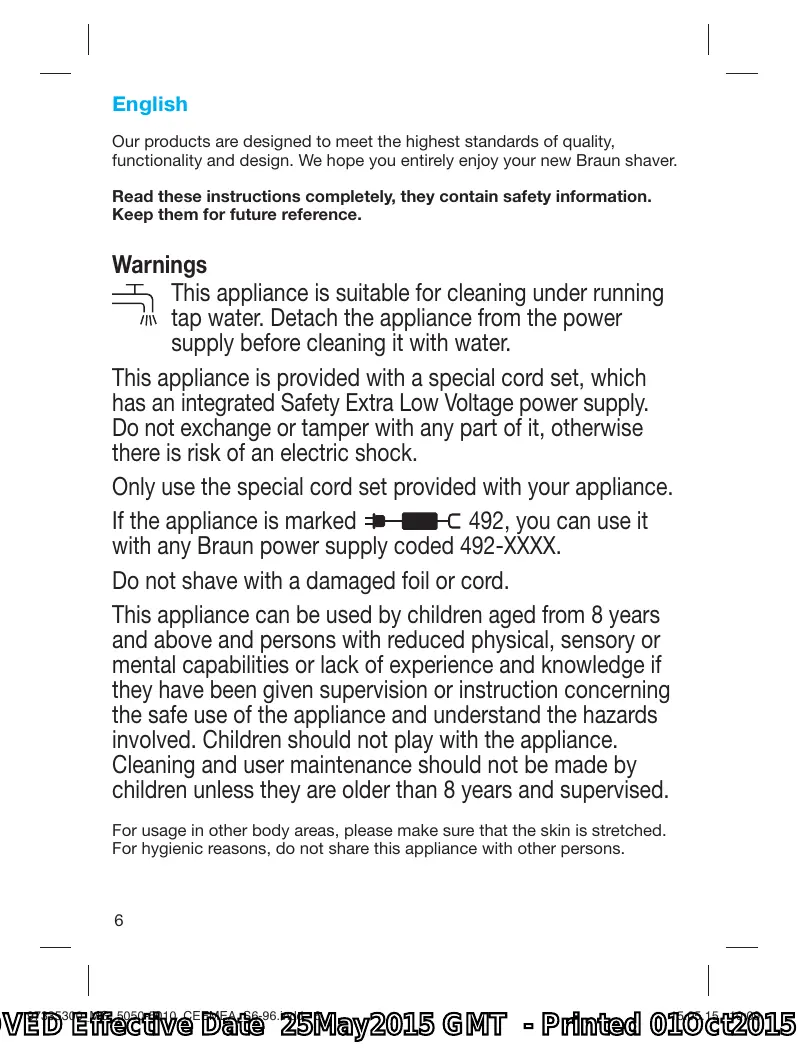

English Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun shaver. Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings This appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water. This appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance. 492, you can use it If the appliance is marked with any Braun power supply coded 492-XXXX. Do not shave with a damaged foil or cord. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised. For usage in other body areas, please make sure that the skin is stretched. For hygienic reasons, do not share this appliance with other persons.

97335300_MG_5050-5010_CEEMEA_S6-96.indd 6 15.05.15 10:09 OVED Effective Date 25May2015 GMT - Printed 01Oct2015

Description 1a 1b 2 3 4 4a 4b 5 6 7 8 9

Protective cap* 3-day beard comb & protective cap* Shaver foil Cutter block Twistable trimmer Wide trimmer (28 mm) Narrow trimmer (14 mm) Charging light On/off switch Beard length selector Adjustable comb Special cord set (design can differ)

* not with all models

Charging Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time. • Using the special cord set, connect the shaver to an electrical outlet with the motor switched off. • When charging for the first time or when the shaver is not used for a few months, leave the shaver to charge continuously for 4 hours. • The charging light (5) shows that the appliance is being charged. When the battery is fully charged, the charging light turns off. Intermittent blinking after a while indicates that the battery maintains its full capacity. This can also happen short term when charging after the battery was completely discharged. • A full charge provides 30 minutes of cordless shaving time depending on your beard growth. • Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour. • Maximum battery capacity will only be reached after several charging/ discharging cycles. • 5-minute quick charge is sufficient for a shave. 7

97335300_MG_5050-5010_CEEMEA_S6-96.indd 7 15.05.15 10:09 OVED Effective Date 25May2015 GMT - Printed 01Oct2015

Shaving First, remove the protective cap (1a) / adjustable comb (8): Using your thumbs, press against the side clips of the attachment so that they swing off in the direction of the arrows (a). Activate the on/off switch (6). The floating foil frame automatically adapts to your skin surface for a close, smooth shave. For best results: • Always shave before washing your face. • At all times, hold the shaver at right angles (90°) to the skin (b). • Stretch the skin and shave against the direction of beard growth. • For pre-shaving after a few days of not having shaved, use the wide trimmer (4a) to pre-cut long hairs. For a close, smooth shave, finish with the foil. • To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn.

Style Using the twistable trimmer The wide trimmer (4a) evenly cuts and trims large areas (c). It is ideal for shaping sideburns, moustaches and partial short beards. The wide trimmer is provided with safety rips and a gliding strip for less irritation and easy gliding. Press the blue stripes to push up the twistable trimmer (4). While stretching the skin, guide the wide trimmer against the direction of hair growth. The narrow trimmer (4b) precisely defines lines and edges (d), being ideal for precise contouring. To use the narrow trimmer, push up the twistable trimmer and turn it 180°. Frequent use of the twistable trimmer will reduce the battery capacity.

Trim Using the trimming attachments (1b) and (8) Place the respective trimming attachment onto the shaver foil (2) and press it against the shaver housing until it snaps into place with a click (e). 3-day beard comb & protective cap (1b): This attachment is perfectly suited for creating a stubble look and maintaining it. • Place the attachment onto the foil (2) and push up the twistable trimmer (4). Turn on the shaver and use the appliance as shown in the illustration (e). The attachment ensures an optimum usage angle. 8

97335300_MG_5050-5010_CEEMEA_S6-96.indd 8 15.05.15 10:09 OVED Effective Date 25May2015 GMT - Printed 01Oct2015

Adjustable comb (8): This attachment is ideal for beard trimming and keeping it at a constant length. • Place the attachment onto the shaver foil (2) and set desired beard length. Press beard length selector (7) and slide it up (f) (possible length settings from top to bottom: 1.2 mm / 2.8 mm / 4.4 mm / 6 mm). Push up the twistable trimmer (4). • Press the on/off switch and trim against hair growth by guiding the flat comb part over the skin (f).

Cleaning Regular cleaning ensures better shaving performance. Rinsing the shaver head after each shave under running water is an easy and fast way to keep it clean: • Switch on the shaver (cordless) and rinse the shaver head under hot running water until all residues have been removed (g). You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds. • Next, switch off the shaver, remove the shaver foil and the cutter block. Then leave the disassembled shaving parts to dry. • If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the trimmers (4a, 4b) and shaver foil (h). Alternatively, you may clean the shaver using the brush provided (i): • Switch off the shaver. Remove the shaver foil. • Using the brush, clean the cutter block and the inner area of the shaver head. However, do not clean the shaver foil with the brush as this may damage the foil.

Keeping your shaver in top shape Replacing the shaving parts To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation. (Shaver foil and cutter block: 10B) Preserving the batteries In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months approximately. Then recharge the shaver to full capacity. 9

97335300_MG_5050-5010_CEEMEA_S6-96.indd 9 15.05.15 10:09 OVED Effective Date 25May2015 GMT - Printed 01Oct2015

Environmental notice Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country. Subject to change without notice. For electric specifications, see printing on the special cord set.

Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com). For UK only: This guarantee in no way affects your rights under statutory law.
