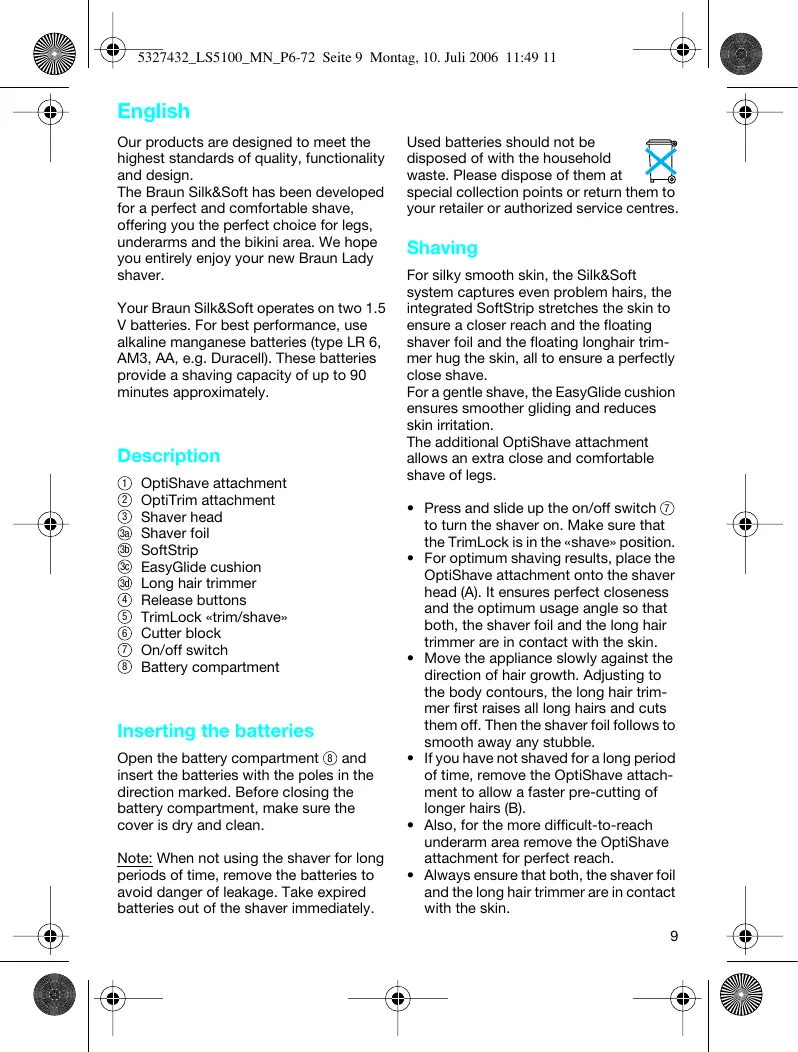

Si & 7/ 5327432 LS5100_MN_P6-72 Seite 9 Montag, 10. Juli 2006 11:49 11 KE English Our products are designed to meet the highest standards of quality, functionality and design. The Braun Silk&Soft has been developed for a perfect and comfortable shave, offering you the perfect choice for legs, underarms and the bikini area. We hope you entirely enjoy your new Braun Lady Shaver. Your Braun Silk&Soft operates on two 1.5 V batteries. For best performance, use alkaline manganese batteries (type LR 6, AM3, AA, e.g. Duracell. These batteries provide a shaving capacity of up to 90 minutes approximately. Description

Inserting the batteries Open the battery compartment ®) and insert the batteries with the poles in the direction marked. Before closing the battery compartment, make sure the cover is dry and clean. Note: When not using the shaver for long periods of time, remove the batteries to avoid danger of leakage. Take expired batteries out of the shaver immediately. PS Fr" NA LS: Used batteries should not be disposed of with the household waste. Please dispose of them at special collection points or return them to your retailer or authorized service centres. Shaving For silky smooth skin, the Sik&Soft system captures even problem hairs, the integrated SoftStrip stretches the skin to ensure a closer reach and the floating Shaver foil and the floating longhair trim mer hug the skin, all to ensure a perfectly close shave. For a gentle shave, the EasyGlide cushion ensures smoother gliding and reduces Skin irritation. The additional OptiShave attachment allows an extra close and comfortable Shave of legs. Press and slide up the on’off switch to turn the shaver on. Make sure that the TrimLock is in the «shave» position. For optimum shaving results, place the OptiShave attachment onto the shaver head (A). It ensures perfect closeness and the optimum usage angle so that both, the shaver foil and the long hair trimmer are in contact with the skin. Move the appliance slowly against the direction of hair growth. Adjusting to the body contours, the long hair trim- mer first raises all long hairs and cuts them off. Then the shaver foi follows to smooth away any stubble. If you have not shaved for a long period of time, remove the OptiShave attach- ment to allow a faster pre-cutting of longer hairs (E). Also, for the more difficult-to-reach underarm area remove the OptiShave attachment for perfect reach. Always ensure that both, the shaver fol and the long hair trimmer are in contact with the Skin. oO)

Trimming & Styling For precise lines and contours like the bikini line, lock the long hair trimmer 6 by Sliding the TrimLock ®) to the position «trim» (C1). To trim hair to a uniform length (about 4 mm), e.g.in the bikini area, lock the long hair trimmer @ and place the OptiTrim attachment @) onto the shaver head (C2). When you are finished After shaving, you may want to smooth on a little body cream or lotion. However, avoid using irritating substances like deodorants with alcohol right away. Cleaning This appliance is suitable for ——) cleaning under an open water JA tap. Regular cleaning ensures better shaving performance. After each shave, proceed as follows (D1): Press the release buttons (®) to remove the shaver head. Rinse the shaver head and the cutter block separately under warm running water. À natural based soap may also be used provided it contains no particles or abrasive substances. Rinse off all foam. Leave the cutter block and shaver head to dry separately. Altematively, you may clean the shaver using the brush provided (D2): +_ Press the release buttons (© to remove the shaver head. Tap the bottom of the shaver head gentlÿ on a flat surface (not on the foi). Brush out the cutter block and the inside of the shaver head. However, do not clean the shaver foil with the brush as this may damage the foil.

5327432_LS5100_MN_P6-72 Seite 10 Montag, 10. Juli 2006 11:49 11 @7 Keeping your Braun Silk&Soft in top shape +_ The shaving parts need to be lubricated regularly every 3 months (E). If you clean the shaver head under running water, lubricate it after each cleaning, Apply some light machine oil or vase- line to the shaver foil and the metal parts of the long hair trimmer. Then remove the shaver head and also apply a tiny amount of vaseline as shown in picture section (E). The shaver foil and the cutter block are precision parts that wear out with time. To maintain optimum shaving performance, replace your foil and cutter block when you notice a reduced shaving performance. Do not shave with a damaged foil. + _ How to replace the shaving parts Shaver foil: Press the release buttons @ to remove the shaver head. To PS remove the shaver foil, press the blue Ke) plastic frame (F). To mount a new one, Î insert it from inside the shaver head. Cutter block: To remove the cutter block, press and tum it 90° (G1), then take it off. To put on a new cutter block, press it onto the cutter block holder and turn 90° (G2). Subject to change without notice. This product conforms to the EMC-Directive 89/336/EEC.

Please do not dispose of the product in the household waste at the end of its useful lie. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. 10 (CO) K A & © SA 6

Guarantee Î We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we Will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. l

To obtain service within the guarantee period, hand in or send the complete Ÿ

appliance with your sales receipt to an authorised Braun Customer Service Centre. For UK only: This guarantee in no way affects your rights under statutory law. 11 (CO) > — —&— 4
