Product type	Decorative kitchen hood, extraction or recirculation version
Brand / Model	FRANKE / FLI925
Body dimensions (W × D × H)	598 – 898 mm (width) × 540 mm (depth) × 670 – 1000 mm (height)
Telescopic chimney	Yes, in two parts (upper and lower)
Minimum distance from cooking surface	650 mm (mandatory)
Air outlet diameter	150 mm (reducible to 120 mm with supplied reducer)
Power supply	220-240 V / 50 Hz (according to voltage on nameplate)
Electrical connection	Bipolar switch with contact opening ≥ 3 mm
Electrical class	Class I (earthing mandatory)
Controls	Electronic keys: 3 motor speeds + light
Lighting	2 incandescent lamps 40 W (max.)
Airflow (speeds)	Not specified, 3 speeds
Noise level	Not specified
Grease filters	Metallic, dishwasher safe (every 2 months)
Activated carbon filter	Not washable, to be replaced every 4 months (recirculation version)
Recommended maintenance	Clean surfaces with damp cloth and neutral detergent
Safety instructions	Do not flambé under the hood, do not leave open flames, control deep fryers
Included accessories	Telescopic chimney, reduction flange ø150-120, duct extensions, brackets, screws, plugs
Weight	Not specified, approx. 15 kg (estimate)
Use	Domestic only

Frequently Asked Questions - FLI925 FRANKE

How to install the FLI925 hood?

Follow the drilling template provided. Fix the brackets to the wall, hang the hood body, then mount the telescopic chimney. Connect the air outlet (ø 150 mm) and connect the power supply with a bipolar switch. Refer to the Installation section of the manual for details.

What is the minimum height between the cooking surface and the hood?

The minimum safety distance is 650 mm. Some models may be installed lower, but check the specific instructions.

How to clean the grease filters?

The metallic grease filters are dishwasher safe or can be hand washed. Clean them approximately every 2 months (more often with heavy use). Let dry before reinstalling.

When to replace the activated carbon filter?

The activated carbon filter is not washable. Replace it at least every 4 months (or more frequently with heavy use). Remove the grease filters, then unclip the old carbon filter before installing a new one.

How to change the hood bulbs?

Remove the grease filters. The incandescent bulbs of 40 W max are accessible. Unscrew the old ones and replace with identical bulbs. Reinstall the filters.

Can I use the hood in recirculation mode without an external duct?

Yes, the hood can operate in recirculation mode. You must install the air outlet fitting with the provided extensions and ensure the activated carbon filters are in place. The air is filtered then recirculated into the room.

What duct diameter to use for extraction?

Use a rigid or flexible duct of ø 150 mm preferably. If necessary, a ø 150-120 mm reducer is provided for a 120 mm duct.

The hood does not turn on, what to do?

Check the power supply: ensure the bipolar switch is on, that the mains socket is live, and that the power cord connector is correctly plugged into the diffuser socket (after removing the filters). If nothing works, contact after-sales service.

Can I install the hood myself?

Installation must be carried out by a qualified professional. Incorrect installation may cause damage and void the warranty. Respect the grounding and electrical standards in force.

How to adjust the motor speeds?

Use the control panel keys: T1 for 1st speed (start/stop motor), T2 for 2nd, T3 for 3rd. The L key controls the lighting. Note that the T1 key always stops the motor by passing through 1st speed.

USER MANUAL FLI925 FRANKE

RECOMMENDATIONS AND SUGGESTIONS....3

CHARACTERISTICS......4

INSTALLATION 5

USE 8

MAINTENANCE....9

INDICE

IT

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
  Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol ✗ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Illustration of a cooking setup with a pot, steam rising, and a crossed green line (no text or symbols)

Dimensions

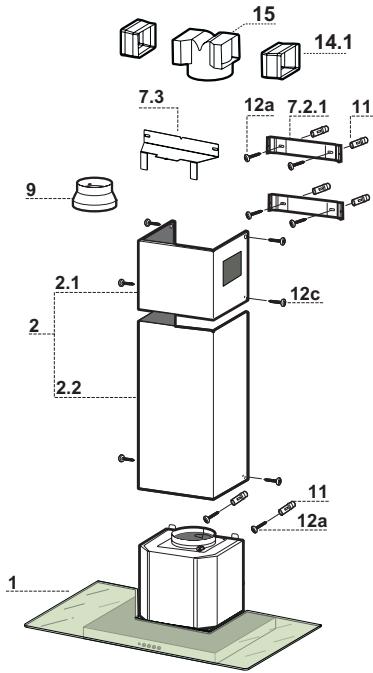

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper Section
2.2	1	Lower Section
9	1	Reducer Flange ø 150-120 mm
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection
Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
7.3	1	Air Outlet Connection Support
11	6	Wall Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5
	Q.ty	Documentation
	1	Instruction Manual

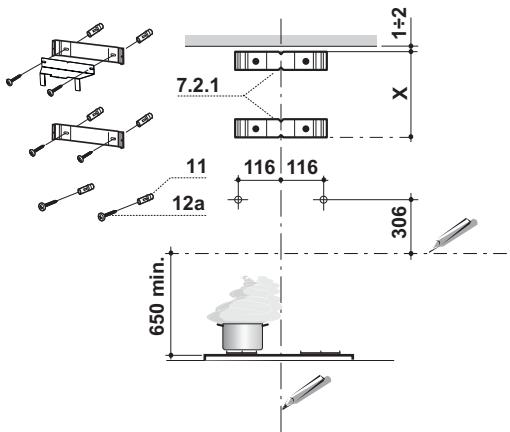

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 ~mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1 - 2mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116mm from the vertical reference line and 306mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4,2 x 44,4) supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.

• Hook the hood body onto the screws 12a.
  • Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

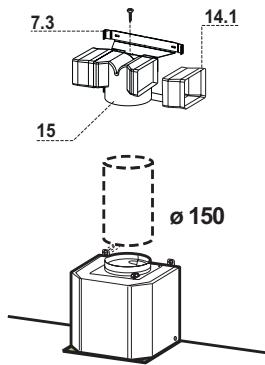

RECIRCULATION VERSION AIR OUTLET

• Insert the connection extension pieces laterally 14.1 in connection 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with a screw.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe 150 mm, the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Mechanical assembly diagram showing a component being inserted into a housing, with a magnified inset highlighting a green arrow (no text or symbols present)

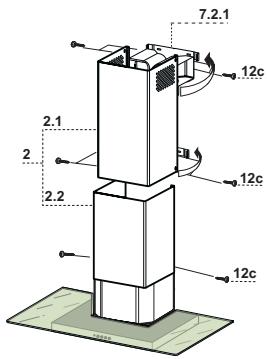

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets by using the 4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body by using the 2 screws 12c (2,9 x 9,5) supplied.

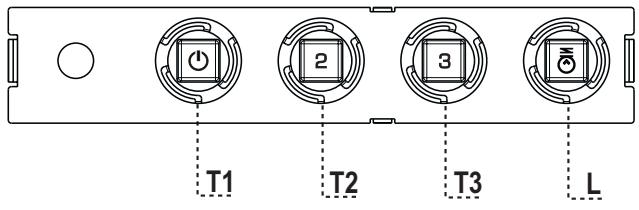

Control panel

BUTTON	LED	FUNCTIONS
T1 Speed	On	Turns the Motor on at Speed one.
		Turns the Motor off.
T2 Speed	On	Turns the Motor on at Speed two.
T3 Speed	Fixed	When pressed briefly, turns the Motor on at Speed three.
L Light		Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the scroll (no text or symbols present)

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
• Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a cooking setup with a pot and steam rising, no text or symbols present

Ingombro

Componenti

Mechanical assembly diagram showing a component being inserted into a housing, with a magnified inset highlighting a green arrow (no text or symbols present)

Montaggio Camino

Camino superiore

Quadro comandi

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the scroll (no text or symbols present)

Filtro antiodore (Versione Filtrante)

SOSTITUZIONE FILTRO ANTIODORE AL CARBONE ATTIVO

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Illuminazione

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a cooking setup with a pot and steam rising, no text or symbols present

Mechanical assembly diagram showing a component being inserted into a housing, with a magnified inset highlighting a green directional arrow (no text or symbols present)

Montage Cheminée

Cheminée supérieure

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the touch point (no text or symbols present)

Filtre anti-odeur (Version filtrante)

REPLACEMENT FILTRE AU CHARBON ACTIF

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Eclairage

REPLACEMENT LAMPES

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a cooking setup with a pot and steam rising, crossed by a green diagonal line (no text or symbols)

Platzbedarf

Komponenten

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Kaminmontage

Oberer Kaminteil

Schalttafel

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the scroll (no text or symbols present)

Geruchsfilter (Umluftversion)

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Beleuchtung

AUSWECHSELN DER LAMPEN

Glühlampen 40W

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a cooking setup with a pot and stove, crossed by a green X-shaped line (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing, with a magnified inset highlighting a green arrow (no text or symbols present)

Bacanın montajı

Üst baca

Kumanda Tablosu

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the scroll (no text or symbols present)

Koku Filtresi (Filtreli Model)

AKTİF KARBONLU KOKU FİLTRESİNİN DEĞİŞTİRİLMESİ

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Aydınlatma

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)
