Product type	Air cooler (evaporative humidifier)
Brand	QLIMA
Model	LK2035
Dimensions (L × W × H)	320 × 290 × 690 mm
Net weight	5.3 kg
Power supply	AC 220-240 V, 50 Hz
Rated power	50 W
Noise level	58 dB(A)
Water tank capacity	7.0 L
Max air flow	700 m³/h
Number of speeds	3 (low, medium, high)
Oscillation function	Yes
Cooling function (water)	Yes
Timer	1 to 7 hours
Filter type	Humid curtain (pad) + external filter
Filter cleaning	Monthly with mild detergent and soft brush
Tank cleaning	Wipe with mild detergent after emptying
Water replacement	Every 3-4 days, even if unused
Off-season storage	Empty water, dry filter, store in a dry place
Warranty	2 years (24 months) from date of purchase
Remote control batteries	1 button cell battery (type not specified)

Frequently Asked Questions - LK2035 QLIMA

How to fill the water tank of the QLIMA LK2035?

First unplug the device. Open the tank lock, remove it, then fill with clean water without exceeding the maximum level. Close the lock properly before plugging back in.

How often should the filter and humid curtain be cleaned?

It is recommended to clean the entire humid curtain and external filter at least once a month. Use a mild detergent and a soft brush, then rinse and dry thoroughly before reassembling.

Can I use an extension cord or power strip with this device?

No, it is strictly forbidden to use an extension cord or power strip. Plug the device directly into a compatible 220-240 V wall outlet.

How to set the timer on the QLIMA LK2035?

Press the TIMER button to program automatic shutdown from 1 to 7 hours. The corresponding indicator lights up. To deactivate the timer, press until all indicators are off.

What to do if the device emits a bad odor?

This usually indicates stagnant water in the tank. Change the water every 3-4 days, even if the device has not been used. Also clean the tank and humid curtain with a mild detergent.

Can I use the device in winter or at temperatures below 0 °C?

In winter, if the ambient temperature drops below 0 °C, completely empty the water and clean the device to prevent frosting. Do not use the device under these conditions.

How to change the remote control battery?

Slide the battery compartment outward, insert a new button cell battery with the + pole facing up, then replace the cover.

Can the device be used as a fan only without water?

Yes, simply do not activate the WATER (cooling) function. The device will then operate in simple fan mode.

What to do in case of water overflow?

Immediately unplug the device, check that the electrical parts are not wet. If they are, dry them thoroughly. If in doubt, consult a professional.

How to store the device at the end of the season?

Empty the tank, run the device in fan-only mode to dry the filter, then pack it in a plastic bag and place it in a cardboard box. Store in a dry and ventilated place.

USER MANUAL LK2035 QLIMA

WARRANTY CONDITIONS

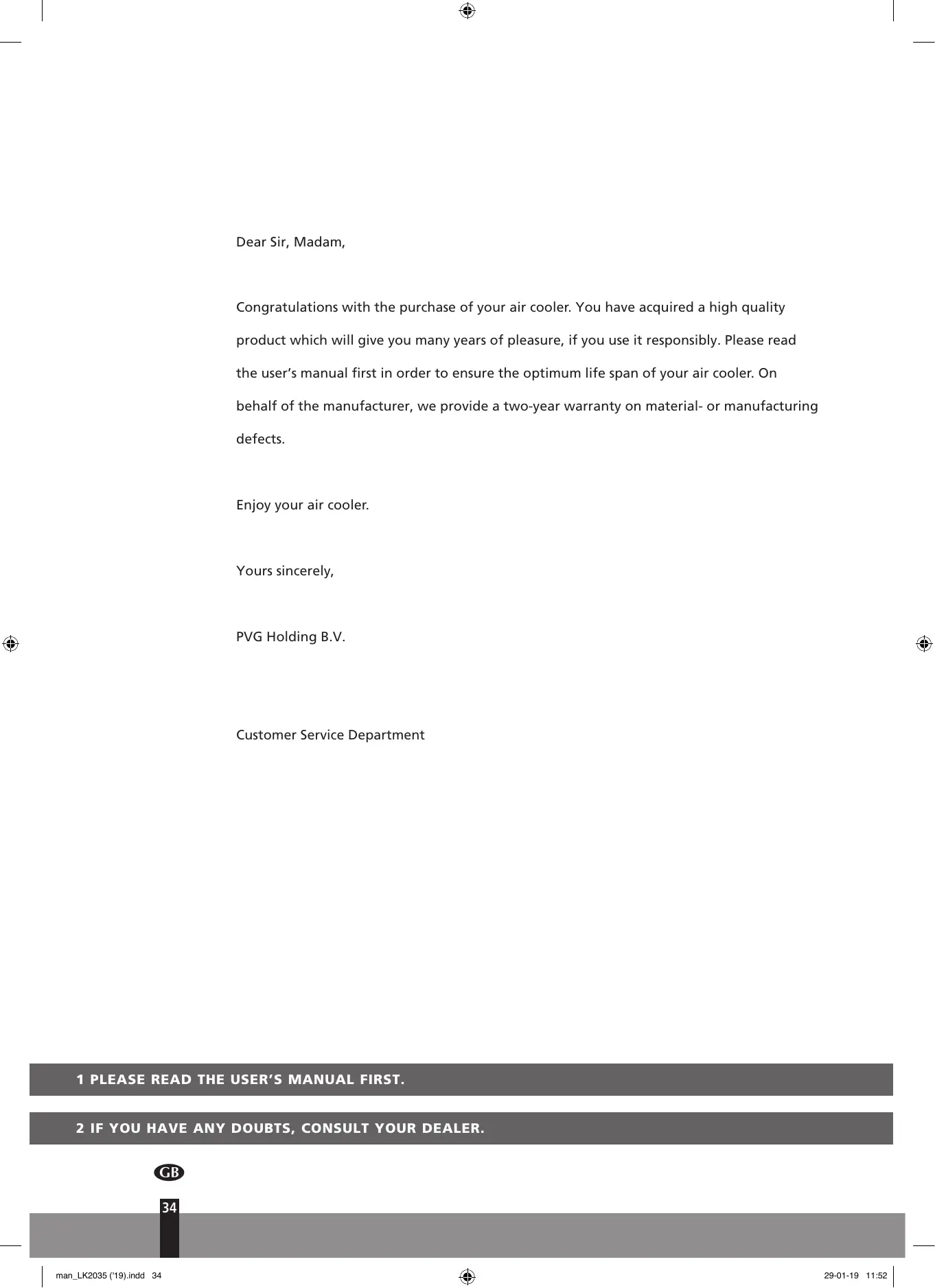

Congratulations on the purchase of your air cooler. You have acquired a high-quality product that will give you many years of pleasure if you use it responsibly. Please read the user's manual first to ensure the optimum lifespan of your air cooler. On behalf of the manufacturer, we provide a two-year warranty on material or manufacturing defects.

Enjoy your air cooler.

Yours sincerely,

PVG Holding B.V.

Customer Service Department

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

GB

34

DIRECTIONS FOR USE (GB)

• Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances, and standards.
• The air cooler is designed for indoor use.
• After unpacking, check the appliance for any damage. When in doubt, do not use the appliance, but contact customer service at your local dealer. Keep the packaging materials (plastic bags, etc.) away from children, as they may cause hazardous situations for children.
• No modifications to the safety system are allowed.
• This product is constructed in conformity with relevant texts in the EN 60335 standard

Warnings

• Read the Directions for Use before using the air cooler. The safety of this product is guaranteed only by its correct usage in accordance with these instructions, therefore it is recommended that they are retained for future reference.
• Only use the device for its intended purpose. Other usage may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc.
• Install the product only if it complies with local regulations, laws and standards;
• Make sure that the available voltage does not exceed the voltage stated in the

GB

specifications of this manual.

• Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.
• The appliance is suitable for mains voltages ranging from 220-240V. Always make sure that you actually see the appliance when you want to switch it on. Never use things like a timer, programmer or any other device (including Internet apps) that switches on the appliance automatically as this may cause fire!
• Install the product according to the instructions as described in the installation section of the directions for use;
• This product is manufactured according to CE safety standards. Nevertheless, as with any other device, care must be taken;
• RISK OF FIRE Never use the product in places where inflammable and/or harmful Gases, products or fumes may be present (e.g. exhaust Gases, paint fumes, curtains, paper, clothes);
• Do not use any extension cords or multi-socket adapters.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• If the supply cord is damaged, it shall be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Children should be supervised to ensure

that they do not play with the appliance.

• The device must not be located immediately below a socket outlet.
• Do not use this product in the immediate surroundings of a bath, a shower or a swimming pool.
• The guard of this unit is intended to prevent direct access to moving parts and must be in place when the unit is in use.
• Disconnect the power plug before dismantling, assembling or before cleaning.
• Make sure the air cooler is on a dry and even surface.
• Do not insert objects into the openings of the device.
• The guard does not give full protection for young children and infirm persons.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved.

• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• Switch off the appliance when it is unattended.
• Do not cover or obstruct the product when in use.
• Disconnect from mains during installation and cleaning.
• Do not use the unit if the ambient temperature is above 40°C.
• When using electrical appliances, always adhere to basic safety precautions to prevent the risk of fire, electric shocks and physical injury. Even more attention and care is required when using electrical appliances incorporating a container of water: should the water overflow, immediately unplug the adaptor from the outlet, check that the electrical parts of the unit are not wet, and if they are, dry them thoroughly and carefully. If in doubt consult a qualified professional.
• Do not leave the appliance exposed to the weather (sun, rain, etc).
• Please read the details of water filling, cleaning and maintenance at the back.
• The water should be replaced every 3-4 days, even if it has not been used. If the fan has not been used for long periods, remove the water from the tank and the base of the humidifier.
• Care should be taken when using the appliance due to the emission of hot water vapour.
• Unplug the appliance during filling and cleaning.

If you fail to consult and/or follow up the rules, instructions and explanation, the warranty will no longer be valid, and the manufacturer will no longer deal with any damage to the appliance and/or your environment under the warranty.

OPERATION GUIDE

1. Open the package and take the machine out. Check the content with on Instruction Manual.
2. The unit should be placed on a level surface and must always stand in a vertical position. Check the power supply of the correct rating. (Refer to the nameplate located at the back side of the unit).
3. Filling water: When the machine is new or has not been used for a long period, it is necessary to fill it with clean water before using. Be sure to unplug the unit before filling water to prevent damage to electrical parts. Open the water tank lock and pull out the water tank, then fill the water into the tank. Note that the water does not exceed the maximum set level.
4. Storage: If the unit is not used for a long time, the water tank should be drained and the unit should be run with fan only for a period. Especially the strainer should be completely dry. Pack it with a plastic bag and put it in a box.

FUNCTIONS OF ALL BUTTONS

Connect the power, the initial power-on buzzer issues a "Pi" sound, the power indicator light turns red and enters standby state.

SWITCH: Press the power button with sound “PI-”, the unit starts from medium speed. After 3 seconds, the unit automatically shifts to low speed, and the low speed indicator lights. Press the power button again, the unit shuts off. The working state before shut off will maintain to next operation. Timer mode without memory function.

SPEED: Continuously press the button, the wind speed shifts from low, medium, and high, and indicator lights accordingly.

SWING: Press swing button to turn on or off the swing function and the indicator lights on or off.

COOL: Press the cool button to achieve cool function and the indicator lights on or off.

TIMER:Press the timer button to set timing of 1-2-3-4...7 hours, corresponding indicator lights. Timing function is off when the timing indicator is off.

CLEANING AND MAINTENANCE

1. Warning: Please shut off the unit and unplug before cleaning.
2. Outer filter, wet curtain assembly cleaning: If foreign matter is attached to the filter, the wind will be influenced. Clean the filter wet curtain assembly at least once a month. Remove the wet curtain in order, use detergent and a soft brush, soak with detergent for a few minutes, wash and dry the wet curtain.
3. Tank cleaning: Unplug the power cord, turn the water tank knob to the horizontal direction, pull out the water tank and wipe the water tank with proper detergent.
4. Please use a wet cloth to clean the product housing. Do not use water to rinse the unit. Do not use abrasive cleaning liquids or chemical agents to clean the product.
5. Installation after cleaning: Install the filter, wet curtain assembly, water tank and other components in sequence, make sure the installation is correct, plug in the power, and confirm that the product is working properly.
6. Maintenance: When the product is not used for a long time, unplug the power plug, package the product and prevent dust from entering the body; ensure that the wet curtain and the filter are dry before installation, and there is no water in the water tank; after packaging, store in a dry and ventilated place.

Filling notice

1. Fill the water in line with the water level. Unplug the unit during refilling.

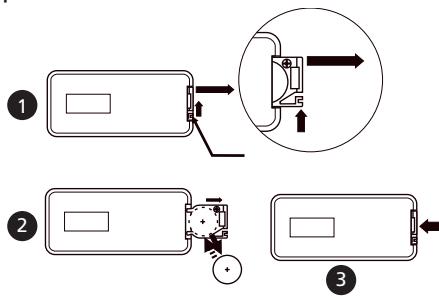

HOW TO CHANGE BATTERY FOR THE CONTROLLER

1: Pull the battery outward. 2: Put in the new battery with the "+" on the top. 3: Put the battery box in the controller.

CAUTION

1. Use normal power supply.
2. Do not place objects on top of the unit. Do not cover the air outlet when in use, and keep the front and back clear within one meter.
3. After filling with water, do not tilt or collide with the unit. When moving it, push the side surface slowly to avoid water splashing out. Do not overturn the unit during use to prevent accidents.
4. Do not place the unit in areas with extremely high or low temperatures. In hot summer, the water in the tank may deteriorate and develop odors, so change it frequently. In winter, if the room temperature drops below 0°C, drain the water and clean the tank with a dry towel to prevent frost.
5. When cleaning the outer surface, use a damp cloth (or with a mild detergent). Do not use corrosive cleaners or solvents. Do not rinse with water.
6. If packing for storage or transportation, drain the water and run the unit for a few minutes. After it is completely dry, pack it to avoid unpleasant odors.
7. Do not leave the plug connected when the unit is not used for a long time, as it may be damaged.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard.
9. The unit has a strong humidifying effect; please turn off this function in airtight environments.
10. Fill water when the water level is low.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.

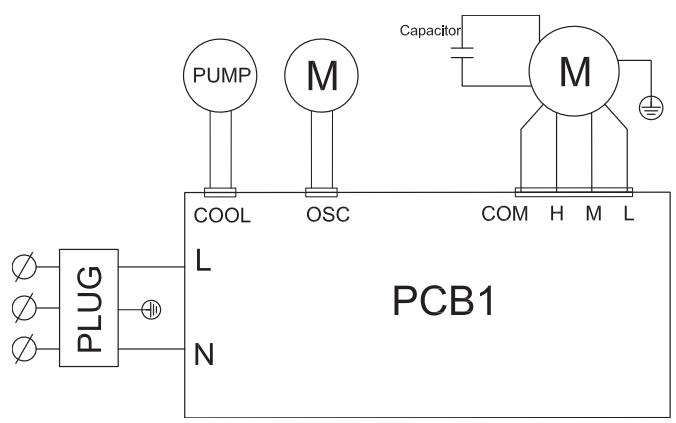

ELECTRICAL SCHEMATIC DIAGRAM

TECHNICAL SPECIFICATIONS

Model	Voltage	Input Power	Noise Power Level	Water Tank Capacity	Air Flow Rate	N.W.	Dimension(mm) L X W X H
LK2035	AC220-240V,50Hz	50W	58dB(A)	7.0 l	700m³/h	5.3 kg	320x290x690

Remark: 1. The above data are for reference only. Users should refer to the parameters on the rating label.

GUARANTEE CONDITIONS

The appliance is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral and/or consequential damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted, or repairs are carried out by third parties.
4. Components subject to normal wear, such as filters, batteries, lamps, and heating elements, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made to it.
6. The guarantee is invalid for damage caused by neglect and/or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the appliance or components of the appliance shall always be for the account of the purchaser.
8. Damage caused by not using suitable spare parts is not covered by the guarantee.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the appliance to your dealer for repairs if these instructions do not provide a solution.

www.qlima.com

ENVIRONMENTAL PROTECTION

Never dispose of non-biodegradable products in the environment, but dispose of them in accordance with current national legislation.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

GB

43

Dear Sir, Dear Madam,

CLEANING AND MAINTENANCE

Distributed in Europe by PVG Holding B.V.

If you need more information or if problems occur, please visit our website www.qlima.com, or contact our customer service (phone number on www.qlima.com). For any further information or in case of problems with the appliance, please refer to www.qlima.com or the local customer center (phone numbers can be found at www.qlima.com). If you need information or if you have a problem, please visit our website www.qlima.com, or contact our customer service (you will find the phone number on www.qlima.com). If you wish to obtain additional information or if you encounter a problem, please visit our website (www.qlima.com) or contact our customer service (you will find the address and phone number on www.qlima.com). If you need service, more information, or if problems arise with the device, please visit our website at www.qlima.com or contact our consumer service center (www.qlima.com). If you need information or if you have a problem, please visit our website (www.qlima.com) or contact our sales support (you will find its phone number on www.qlima.com). For information and in case of problems, please visit the website www.qlima.com or contact the Customer Service Center (to find out the phone number, consult www.qlima.com). If you need information, or if you have a problem with the product, you can visit the website www.qlima.com. Alternatively, you can contact the consumer service (phone number at www.qlima.com). If you need information or if you have a problem, please visit our website (www.qlima.com) or contact the sales support department (address and phone on www.qlima.com). If you need information or if you have problems, please visit the website www.qlima.com or contact the Assistance Center (phone number at www.qlima.com). In case of problems and to obtain detailed information, please visit the Qlima website available at www.qlima.com or contact the Qlima contact center (www.qlima.com). If you need service, information, or have a problem with the appliance, you can visit www.qlima.com or contact Qlima customer service (you will find the phone number at www.qlima.com). If you wish to receive additional information, please visit the company's website at www.qlima.com or call the phone number (www.qlima.com). If you need more information or if you encounter a problem, please visit the Qlima website at www.qlima.com or contact the Qlima customer service center in your country (phone number: www.qlima.com).
