USER MANUAL WBO3T332PX WHIRLPOOL

Operating instructions DISHWASHER - Contents

Operating instructions, 1 Important Safety Instructions, 2-3 Assistance, 13 Product Data, 14 Installation, 17-18 Description of the appliance, 19 Refined salt and rinse aid, 20 Loading the racks, 21-22 Detergent and dishwasher use, 23 Wash cycles, 24 Special wash cycles and options, 25 Care and maintenance, 26 Troubleshooting, 27

EN IMPORTANTSAFETYINSTRUCTIONS Read the instructions carefully before using, as they include important information on safe installation, use and maintenance. Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, make sure the manual is kept with the machine. Remove the appliance from all packaging and make sure it was not damaged during transportation, if it was damaged contact the retailer and do not proceed any further with the installation process. When using your dishwasher, follow the precautions listed below: • The appliance must be used to wash domestic crockery in accordance with the instructions in this manual. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. • Cleaning and user maintenance shall not be made by children without supervision. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms. • Do not store flammable materials in close proximity to the appliance. • The water in the appliance is not potable. • Do not use solvents inside the appliance: risk of explosion! • The door should not be left in the open 2

position since this could present a tripping hazard. Do not rest objects on the open door or sit or stand on it since the appliance could trip forward. The open appliance door can only support the weight of the loaded rack when pulled out. The water supply tap must be shut off and the plug should be removed from the electrical socket at the end of every cycle and before cleaning the appliance for carrying out any maintenance work also disconnect in the event of any malfunction. Repairs and technical modifications must be carried out exclusively by a qualified technician. When unplugging the appliance always pull the plug from the mains socket. Do not pull on the cable. • In order to avoid laceration hazard, usage of special gloves is needed during the assembling of the appliance. During use, the access to the rear wall should be limited in a sustainable manner such as approaching the device to the wall or furniture board. Keep packaging materials out of the reach of Children, packaging materials should not be used as a toy. Children must not be allowed to play with the appliance. Store the detergent, rinse aid and salt out of the reach of children. Appliance is dedicated only for household use. Appliance can not be operated until installation process is complete. GROUNDING INSTRUCTIONS

• This appliance must be grounded. In the

event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment- grounding conductor and a grounding plug. • The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. • Extension cord, adapters and conversion plugs must not be used to connect the appliance to the outlet. • Improper connection of the equipmentgrounding conductor can result in the risk of an electric shock. • Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. PROPER USE • Access to disconnection of the appliance (main plug) shall be ensured after installation. • When loading items to be washed: 1 - Locate sharp items so that they are not likely to damage the door seal; 2 - WARNING: Knives and other utensils with sharp points must be loaded in the cutlery basket with their points/blades down or placed in a horizontal position with the sharp end facing away from the front of the appliance. • Use only detergent and rinse additives designed for an automatic dishwasher. • WARNING: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle. • If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. • During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls. • To dispose of any packaging materials,

follow local legislation so that the packagings may be reused. • Use the dishwasher only for its intended function. • The appliance is to be connected to the water mains using new hose sets. The old hose-sets should not be reused. • The maximum number of place settings is shown in the product sheet. SAFEGUARDING THE ENVIRONMENT • This appliance has been made of recyclable or re-usable material. Scrapping must be carried out in compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that the appliance cannot be re-used. • For more detailed information on handling and recycling of this product, contact your local authorities who deal with the separate collection of rubbish or the shop where you bought the appliance. SCRAPPING OF PACKAGING •The packaging can be 100% recycled as confirmed by the recycling symbol . The various parts of the packaging must not be dispersed in the environment, but must be scrapped in line with local authority regulations. • The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of reusing and recycling the materials inside the machine, while preventing potential damage to the atmosphere and public health. The crossed-out dustbin symbol shown on all products reminds the owners of their obligations regarding separated waste collection. For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer.

FR INFORMATIONS DE SÉCURITÉ

EN Assistance Before contacting Assistance: • Check whether the problem can be resolved using the Troubleshooting guide (see Troubleshooting). • Restart the programme to check whether the problem has ceased to exist. • If the problem persists, contact the Authorised Technical Assistance Service. Never use the services of unauthorised technicians. Please have the following information to hand: • The type of malfunction. • The appliance model (Mod.). • The serial number (S/N). This information can be found on the appliance data plate (see Description of the appliance).

EN Product Data (product fiche) Product Fiche Brand Model Rated capacity in standard place settings (1) Energy efficiency class on a scale from A+++ (low consumption) to D (high consumption) Energy consumption per year in kWh (2) Energy consumption of the standard cleaning cycle in kWh Power consumption of the off-mode in W Power consumption of the left-on mode in W Water consumption per year in litres (3) Drying efficacy class on a scale from G (low efficacy) to A (high efficacy) Programme time for standard cleaning cycle in minutes The duration of the left-on mode in minutes Noise in dB(A) Re 1pW Built-in model

WHIRLPOOL ADP 522 10 A++ 211 0.74 0.5 5.0 2520 A 180 12 43 No

NOTES 1) The information on the label and fiche relates to the standard cleaning cycle, this programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption. The standard cleaning cycle corresponds to the Eco cycle. 2) Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption depends on how the appliance is used. 3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

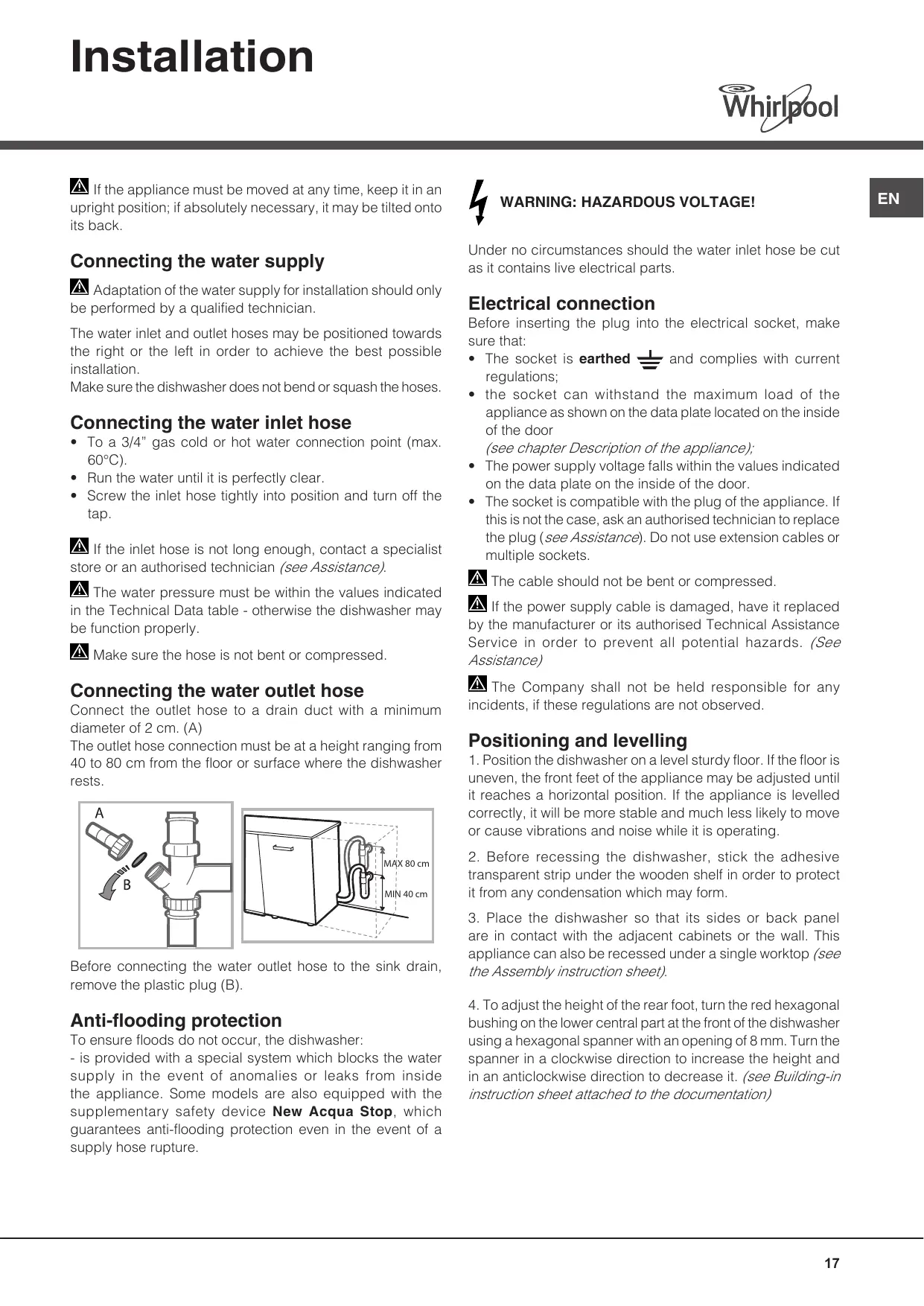

Installation If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

EN WARNING: HAZARDOUS VOLTAGE!

Connecting the water supply

Under no circumstances should the water inlet hose be cut as it contains live electrical parts.

Adaptation of the water supply for installation should only be performed by a qualified technician.

Electrical connection

The water inlet and outlet hoses may be positioned towards the right or the left in order to achieve the best possible installation. Make sure the dishwasher does not bend or squash the hoses.

Connecting the water inlet hose

• To a 3/4” gas cold or hot water connection point (max. 60°C). • Run the water until it is perfectly clear. • Screw the inlet hose tightly into position and turn off the tap. If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance). The water pressure must be within the values indicated in the Technical Data table - otherwise the dishwasher may be function properly. Make sure the hose is not bent or compressed.

Connecting the water outlet hose

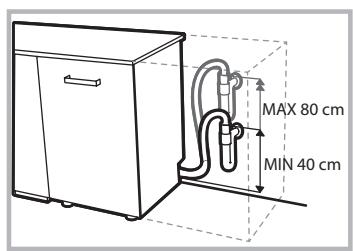

Connect the outlet hose to a drain duct with a minimum diameter of 2 cm. (A) The outlet hose connection must be at a height ranging from 40 to 80 cm from the floor or surface where the dishwasher rests.

Before connecting the water outlet hose to the sink drain, remove the plastic plug (B).

Anti-flooding protection

To ensure floods do not occur, the dishwasher: - is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance. Some models are also equipped with the supplementary safety device New Acqua Stop, which guarantees anti-flooding protection even in the event of a supply hose rupture.

Before inserting the plug into the electrical socket, make sure that: • The socket is earthed and complies with current regulations; • the socket can withstand the maximum load of the appliance as shown on the data plate located on the inside of the door

(see chapter Description of the appliance); • The power supply voltage falls within the values indicated on the data plate on the inside of the door. • The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance). Do not use extension cables or multiple sockets. The cable should not be bent or compressed. If the power supply cable is damaged, have it replaced by the manufacturer or its authorised Technical Assistance Service in order to prevent all potential hazards. (See

Assistance) The Company shall not be held responsible for any incidents, if these regulations are not observed.

Positioning and levelling

1. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating. 2. Before recessing the dishwasher, stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form. 3. Place the dishwasher so that its sides or back panel are in contact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop (see the Assembly instruction sheet). 4. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it. (see Building-in

instruction sheet attached to the documentation)

EN Advice regarding the first wash cycle After the installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack (if any).

Water softener settings Before starting the first wash cycle, set the hardness level of the water from the mains supply. (see chapter Rinse aid and refined salt). First load the softener tank with water, then introduce about 1 kg of salt. It is perfectly normal for water to flow out. As soon as this procedure is complete, run a wash cycle. Only use salt that has been specifically designed for dishwashers. After the salt has been poured into the machine, the LOW SALT indicator light switches off. If the salt container is not filled, the water softener and the heating element may be damaged as a result. Technical data Dimensions Capacity

width 45 cm height 85 cm depth 60 cm 10 standard place-settings

Water supply pressure

0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 psi – 145 psi

Power supply voltage

See appliance data plate

Total absorbed power

See appliance data plate

See appliance data plate This dishwasher conforms to the following European Community Directives: -93/68/EEC (CE Marking) -2006/95/EC (Low Voltage) -2004/108/EC (Electromagnetic Compatibility) -2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign) -2010/30/EC (Energy Labelling) -2011/65/EC (RoHS) -2012/19/CE Waste Electrical and Electronic Equipment (WEEE)

The machine has a buzzer/set of tones to inform the user that a command has been implemented: power on, cycle end etc. The symbols/indicator lights/LEDs on the control panel/ display may vary in colour and may have a flashing or fixed light. The display provides useful information concerning the type of wash cycle, drying/wash-cycle phase, remaining time, temperature etc.

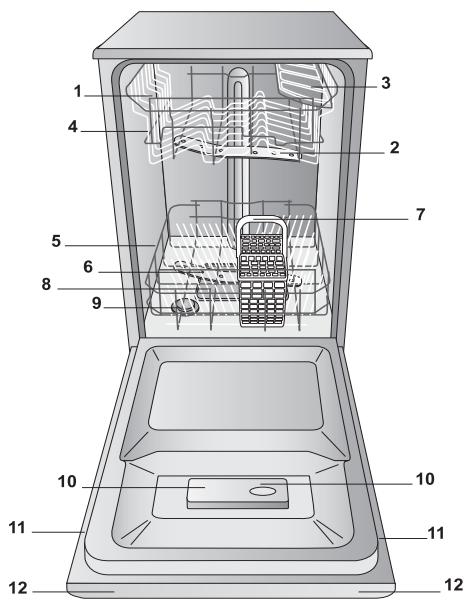

Description of the appliance Overall view

EN 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12.

Upper rack Upper spray arm Tip-up compartments Rack height adjuster Lower rack Lower spray arm Cutlery basket Washing filter Salt dispenser Detergent and rinse aid dispensers Data plate Control Panel

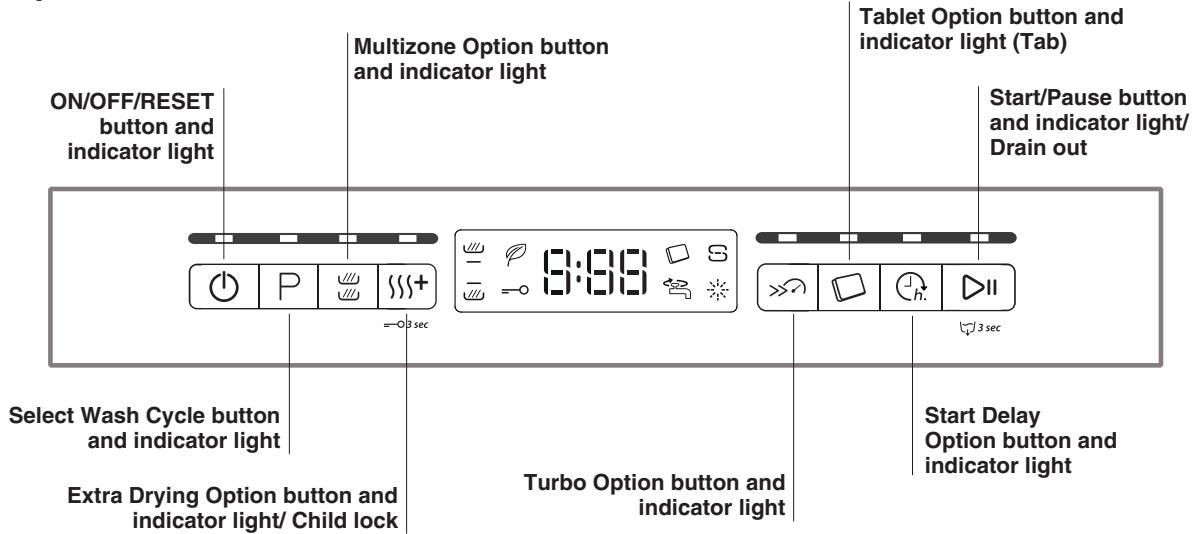

Control panel Tablet Option button and indicator light (Tab)

Multizone Option button and indicator light

Start/Pause button and indicator light/ Drain out

ON/OFF/RESET button and indicator light

Start Delay Option button and indicator light

Select Wash Cycle button and indicator light Extra Drying Option button and indicator light/ Child lock

Turbo Option button and indicator light

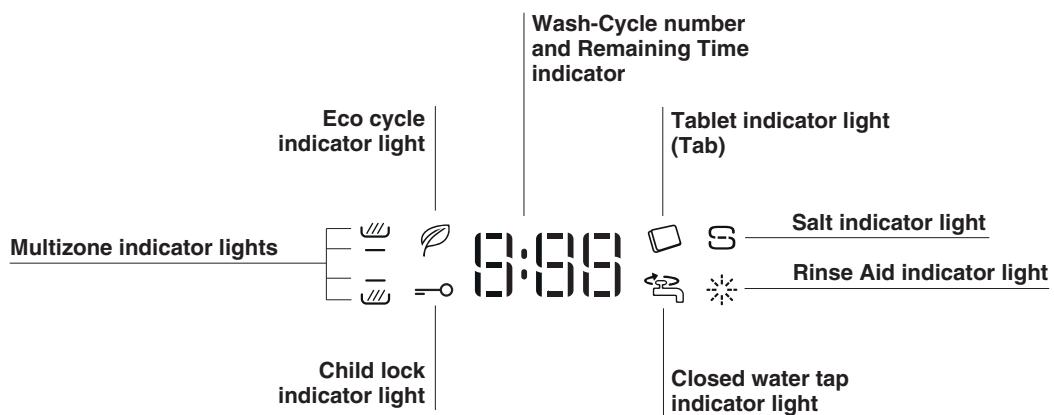

Wash-Cycle number and Remaining Time indicator Eco cycle indicator light

Closed water tap indicator light

Refined Salt and Rinse Aid

EN Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt. (Follow the instructions given on the packaging.) If you are using a multi-function product, we recommend that you add salt in any case, especially if the water is hard or very hard. (Follow the instructions given on the packaging.) If you do not add salt or rinse aid, the LOW SALT and LOW RINSE AID indicator lights will remain lit.

Measuring out the refined salt

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components. • It is important that the salt dispenser be never empty. • It is important to set the water hardness. The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled: • When the LOW SALT indicator light in the control panel is lit ; • See autonomy in the water hardness table. 1. Remove the lower rack and unscrew the container cap (anticlockwise). 2. Only the first time you do this: fill the water dispenser up to the edge. 3. Position the funnel (see figure) and fill the salt container right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out. 4. Remove the funnel and wipe any salt residue away from the opening; rinse the cap under running water and then screw it on. It is advisable to perform this procedure every time you add salt to the container. Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair). Whenever you need to add salt, we recommend carrying out the procedure before the washing cycle is started.

Setting the water hardness For perfect water softener operation, it is essential that the adjustment be based on the water hardness in your house. Ask your local water supplier for this information. The factory setting is for medium water hardness. • Switch the dishwasher on using the On/Off button. • Switch it off using the On/Off button • Hold down the START/PAUSE you hear a beep.

button for 5 seconds until

• Switch it on using the On/Off button • The display shows the current selection level number and the salt indicator light. • Press button P to select the desired hardness level (see Hardness Table). • Switch it off using the On/Off button • Setting is complete!

mmol/l 0-1 1.1 - 2 2.1 - 3 3.1 - 6 6.1 - 9

Average autonomy salt dispenser with 1 wash cycle per day months 7 months 5 months 3 months 2 months 2/3 weeks

For values between 0°f and 10°f, we do not recommend the use of salt. A setting of 5 may increase cycle duration.

(°dH = hardness measured in German degrees - °f = hardness measured in French degrees – mmol/l = millimoles per litre)

Measuring out the rinse aid

Rinse aid makes dish DRYING easier. The rinse aid dispenser should be filled: • When the LOW RINSE AID indicator light on the panel/display is lit; • When the dark optical indicator on the dispenser door “E” becomes transparent. 1. Open the dispenser by turning the cap "G" in an anticlockwise direction. 2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth. 3. Screw the cap back on. NEVER pour the rinse aid directly into the tub.

Adjusting the amount of rinse aid

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used. Turn the adjuster “F”. A maximum of 4 levels can be set according to the dishwasher model. The factory setting is for a medium level. • If you see bluish streaks on the dishes, set a low number (1-2). • If there are drops of water or limescale marks on the dishes, set a high number (3-4).

Loading the racks Tips Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and containers. No preventive rinsing is needed under running water. Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely. Make sure that the lids, handles, trays and frying pans do not prevent the spray arms from rotating. Place any small items in the cutlery basket. Since plastic dishes and non-stick frying pans usually retain more water drops, their drying will be not so good as that of ceramic or stainless-steel dishes. Lightweight items such as plastic containers should be placed in the upper rack and arranged so that they cannot move. After loading the appliance, make sure that the spray arms can rotate freely.

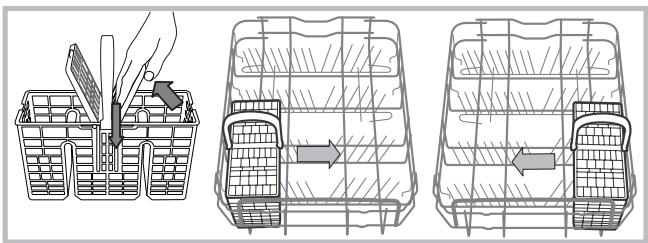

Cutlery basket The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

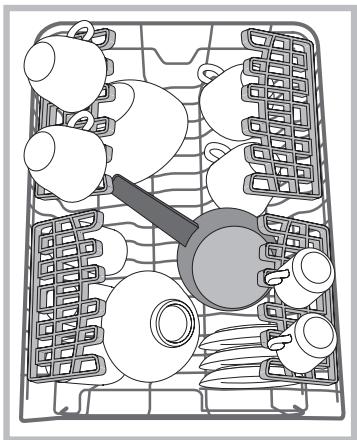

Upper rack Load this rack with delicate and lightweight crockery such as glasses, cups, saucers and shallow salad bowls.

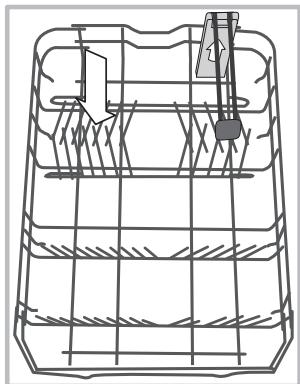

Lower rack The lower rack can hold pans, lids, dishes, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides.

Adjustable position tip-up compartments Very soiled dishes and pans should be placed in the lower rack because in this sector the water sprays are stronger and allow a higher washing performance. The lower rack has tip-up sectors which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily. The lower rack is equipped with Space Zone, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in a more vertical position, thus taking up less space. In order to use it, just get hold of the coloured grip and pull it upwards while rotating it forward.

The side tip-up compartments can be positioned at three different heights to optimize the arrangement of the crockery inside the rack. Wine glasses can be placed safely in the tip-up compartments by inserting the stem of each glass into the corresponding slot. For optimum drying results incline the tip-up compartments more. To change the inclination, pull up the tip-up compartment, slide it slightly and position it as you wish.

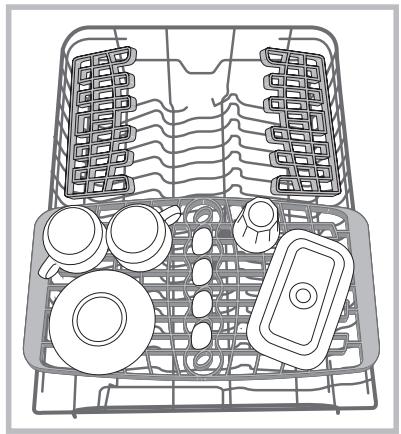

EN EN Sliding third rack

The upper rack is fitted with a sliding third rack which can be used to hold small crockery and cutlery. For optimum washing performance, avoid positioning bulky crockery directly below the rack. The sliding third rack can be removed. (see Figure.)

Unsuitable crockery • Wooden crockery and cutlery. • Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant. • Parts in synthetic material which do not withstand high temperatures. • Copper and tin crockery. • Crockery soiled with ash, wax, lubrificating grease or ink. The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

Damage to glass and crockery Caused by: • Type of glass and glass production process. • Chemical composition of detergent. • Water temperature of rinse cycle.

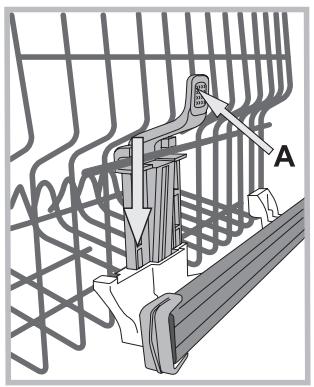

Adjusting the height of the upper rack The height of the upper rack can be adjusted: high position to place bulky crockery in the lower rack and low position to make the most of the tip-up compartments by creating more space upwards. It is strongly recommended to never adjust height position when the rack is loaded. NEVER raise or lower the rack on one side only.

If the rack is equipped with a Lift-Up device (see figure), lift it up by holding its sides. To restore the lower position, press the levers (A) at the sides of the rack and follow the rack down.

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe. • Use a delicate detergent suitable for crockery. • Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

Detergent and dishwasher use Measuring out the detergent Good washing results also depend on the correct amount of detergent being used. Exceeding the stated amount does not result in a more effective wash and increases environmental pollution. The amount can be adjusted to the soil level. In the case of normally soiled items, use approximately either 25g (powder detergent) or 25ml (liquid detergent). If tablets are used, one tablet will be enough. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly. For good washing results also follow the instructions shown on the detergent box. For further questions please ask the detergent producers.

Starting the dishwasher

1. Press the ON-OFF button. 2. Open the door and measure out the detergent. (see detergent information). 3. Load the racks (see Loading the racks) and shut the door. 4. Select the wash cycle in accordance with the type of crockery and its soil level (see table of wash cycles) by pressing the P button. 5. Select the wash options (see Special wash cycles and options). 6. Start the wash cycle by pressing the START/PAUSE button. 7. The end of the wash cycle is indicated by beeps and the display shows END. Switch off the appliance by pressing the ON/OFF button. 8. Wait for a few minutes before removing the crockery, in order to avoid burns. Unload the racks, beginning with the lower level.

Open the detergent dispenser using button D and measure out the detergent according to the Table of wash cycles: • powder or liquid: compartments A (wash detergent) and B (pre-wash detergent) • tablets: when the cycle requires 1 tablet, place it in compartment A and close cover C; when it requires 2 tablets, place the second tablet on the bottom of the appliance. Remove detergent residues from the edges of the compartment and close cover C until it clicks. The detergent dispenser automatically opens up at the right time according to the wash cycle.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption.

If all-in-one detergents are used, we recommend using the TABS option, because it adjusts the cycle so that the best washing and drying results are always achieved.

Adding extra crockery

Only use detergent which has been specifically designed for dishwashers.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

Modifying a wash cycle in progress If a mistake was made during the wash cycle selection process, it is possible to change the cycle, provided that it has only just begun: by pressing and holding the ON/OFF button, the machine will switch off. Switch the machine back on using the ON/OFF button and select the new wash cycle and any options desired; start the cycle by pressing the START/PAUSE button.

Without switching off the machine, open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher. Shut the door and press the START/PAUSE button the cycle will begin from the point at which it was interrupted.

DO NOT USE washing up liquid.

Accidental interruptions

Using excessive detergent may result in foam residues remaining in the machine after the cycle has ended.

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Once the door has been shut or the electricity supply is restored, to start again the cycle from where it was interrupted, press the START/PAUSE button.

To achieve the best washing and drying results, the combined use of detergent, rinse aid liquid and refined salt is required. We recommend using detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.

EN Wash-cycle data is measured under laboratory conditions according to European Standard EN 50242. Based on the different conditions of use, the wash-cycle duration and data can change.

Wash cycle which include drying

Approximate duration of wash cycles h:min.

Water consumption (l/cycle)

Energy consumption (kWh/cycle)

Start Delay - Multizone

Instructions on wash cycle selection and detergent dosage 1. Normally soiled crockery. Standard program, the most efficient in terms of its combined energy and water consumption. 4 gr/ml**+ 21 gr/ml – 1 Tab (**Quantity of pre-washing detergent) 2. Use for normal soiled dishes with dried-on food. A special sensor assesses the level of soiling and automatically adjust to the most efficient and economic wash cycle accordingly. 4 gr/ml**+ 21 gr/ml – 1 Tab 3. For lightly soiled loads that need a quick basic drying. (Ideal for 4 place settings) 25 gr/ml – 1 Tab 4. Cycle for delicate items, which are more sensitive to high temperatures, for example glasses and cups. 25 gr/ml – 1 Tab 5. Fast cycle to be used for slightly dirty dishes, with no dried-on food. (Ideal for 2 place settings) 21 gr/ml – 1 Tab 6. Optimum performance ensured. Ideal for night-time operation. 25 gr/ml – 1 Tab 7. Crockery to be washed later. No detergent 8. Recommended program for heavily soiled crockery, specially suitable for pans and saucepans (not to be used for delicate items). 25 gr/ml – 1+1 Tab Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W

Special wash cycles and Options Notes: Optimum performance levels when using the “1 Hour” and “Rapid” cycles can be achieved by respecting the specified number of place settings. To reduce consumption even further, only run the dishwasher when it is full. Note for Test Laboratories: for information on comparative EN testing conditions, please send an email to the following address: contact@whirlpool.com

Multizone Option If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and then press the MULTIZONE button: the indicator corresponding to the chosen rack lights up and the wash cycle starts only in the upper or lower rack. Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly.

Wash options The OPTIONS may only be set, changed or reset after the wash cycle has been selected and before the Start/Pause button has been pressed. Only the options which are compatible with the type of wash cycle set may be selected. If an option is not compatible with the selected wash cycle (see Table of wash cycles), the corresponding led/ symbol flashes rapidly 3 times. If an option is selected which is not compatible with another (previously selected) option, it will flash 3 times and switch off, while the most recently selected option will remain active. To deselect an option which has been set by mistake, press the corresponding button again.

Extra Dry Option/Child lock To improve the dryness level of the crockery, press the Extra Dry button and the indicator light will light up. If it is pressed again, the option will be deselected. A higher temperature during the final rinsing and a longer drying phase improve the dryness level. The Extra Dry option increases the duration of the wash cycle.

Child safety lock A long press of EXTRA DRY button, will activate the SAFETY LOCK function. The SAFETY LOCK function will block the control panel. To deactivate the SAFETY LOCK, long press again.

Delayed start The start of the program may be delayed for a period of time between 0:30 and 24 hours. 1. Select the program and any desired options. Press the DELAY button (repeatedly) to delay the start of the program. Adjustable from 0:30 to 24 hours. With each press of the button, the delay start increases by: 0:30 if selection below 4 hours, 1:00 if selection is below 12 hours, 4 hours if selection is above 12 hours. If 24 hours reached, and the button is pressed, the delayed start is deactivated. 2. Press the START/PAUSE button: the timer will begin counting down; 3. Once this time has elapsed, the indicator light switches off and the program begins automatically. If at the time of the countdown the START/PAUSE button is pressed again the DELAY option is cancelled and the selected program starts automatically. The Start Delay function cannot be set once a wash cycle has started.

Turbo Option This option can be used to reduce the duration of the main wash cycles while, maintaining the same washing and drying performance levels. After selecting the wash cycle, press the Turbo option button; the illumination of the indicator light indicates its selection. Press it again to deselect it.

Tablet option (Tab) This option optimises washing and drying results. When using Tablet, press the TABLET button; the indicator light will light up. If the button is pressed again, the option will be deselected. The “Tablet” option results in a longer wash cycle.

Drain out To stop and cancel the active cycle, the Drain Out function can be used. A long press of START/PAUSE button, will activate the DRAIN OUT function. The active cycle will be stopped and the water in the dishwasher will be drained out.

EN Care and maintenance

EN Shutting off the water and electricity supplies • Turn off the water tap after every wash cycle to avoid leaks. • Always unplug the appliance when cleaning it and when performing maintenance work.

Cleaning the dishwasher

• The external surfaces of the machine and the control panel can be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products. • Any marks on the inside of the appliance may be removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

• Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine. • Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

Cleaning the filters

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They must be cleaned if you wish to achieve the best results in every wash. Clean the filters regularly. The dishwasher must not be used without filters or if the filter is loose. • After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below: 1. Turn the cylindrical filter C in an anti-clockwise direction and pull it out (fig. 1). 2. Remove the cup filter B by exerting a slight pressure on the side flaps (fig. 2); 3. Slide out the stainless-steel plate filter A. (fig. 3). 4. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (fig.4).

Cleaning the spray arms

Food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush. The two spray arms may both be removed. To remove the upper spray arm, turn the plastic locking ring in an anti-clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

The lower spray arm can be removed by pressing on the side tabs and pulling it upwards. After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

Cleaning the water inlet hose

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher. Clean the water inlet filter at the tap outlet regularly. - Turn off the water tap. - Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water. - Re-place the filter and screw the water hose back into position.

Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply and shut off the water tap. • Leave the door of the appliance ajar. • When you return, run a wash cycle when the dishwasher is empty.

Troubleshooting Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance. Problem:

EN Possible causes / Solutions:

The dishwasher does not start • The water supply tap is not turned on. or cannot be controlled. • Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the wash cycle. • The appliance has not been plugged in properly or another electricity socket should be used. • The dishwasher door has not been closed properly. The door won’t close.

• Make sure that the racks were inserted all the way. • The lock was released. Strongly push the door until a “clacking” noise is heard.

No water drain out of the dishwasher.

• The wash cycle has not finished yet. • The water drain hose is bent (see Installation). • The drain duct is clogged up. • The filter is clogged up with food residues. • Check the height of the drain hose.

The dishwasher makes excessive noise.

• The dishes are rattling against each other or against the spray arms. Place the dishes properly and make sure the spray arms can rotate freely. • Too much foam: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (See Detergent and dishwasher use.) Do not prewash the dishes by hand.

The dishes and glasses are covered in a white film or limescale deposits.

• No refined salt. • Water hardness adjustment is not suitable: increase the relevant values. (See Refined Salt and Rinse Aid.) • The salt and rinse-aid dispenser cap has not been closed properly. • The rinse aid has been used up or the dosage is too low.

The dishes and glasses are streaked or have a bluish tinge.

• The rinse aid dosage is too high.

The crockery has not been dried properly.

• A wash cycle without a drying programme has been selected. • The rinse aid has been used up. (See Refined Salt and Rinse Aid.) • The rinse aid dispenser setting is not suitable. • The crockery is made from non-stick material or plastic; the presence of water drops is normal.

The dishes are not clean.

• The crockery has not been arranged properly. • The spray arms cannot rotate freely, being hindered by the dishes. • The wash cycle is too gentle (see Wash Cycles). • Too much foam: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (See Detergent and dishwasher use.) • The lid on the rinse aid compartment has not been closed correctly. • The filter is dirty or clogged up (see Care and maintenance.) • The refined salt level is low (See Refined Salt and Rinse Aid.) • Make sure that the height of the dishes is compatible with the rack adjustment. • The holes in the spray arms are clogged up. (See Care and maintenance.)

The dishwasher won’t load any water.

• There is no water in the mains supply or the tap is shut off. • The water inlet hose is bent (see Installation). • The filters are clogged up: they need cleaning. (See Care and maintenance.) • The drain duct is clogged up: it needs cleaning. • After checking and cleaning, switch the dishwasher on and off and start a new wash cycle. • If the problem persists, turn off the water tap, remove the plug and call the Service Centre.

It is blocked with flashing lights.
