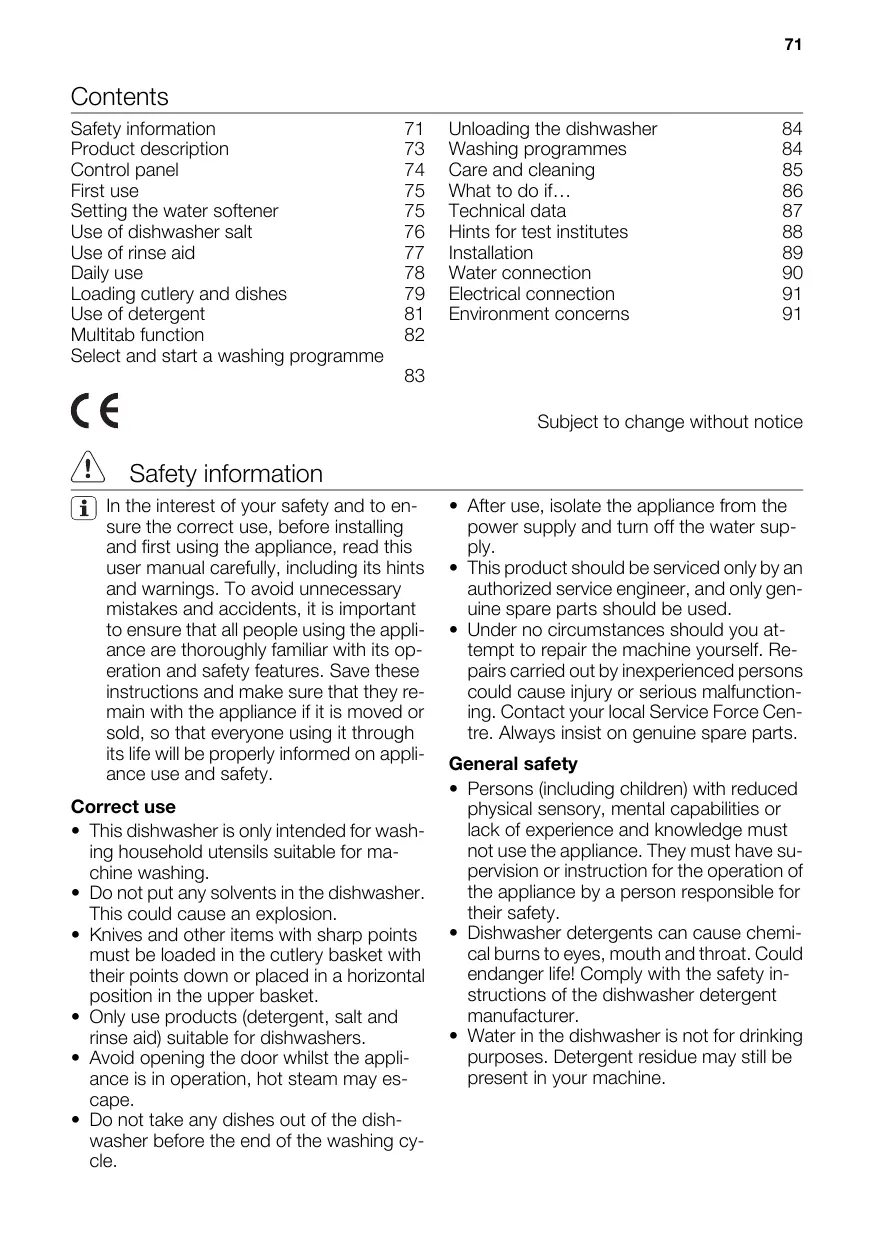

Subject to change without notice Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. Correct use

• This dishwasher is only intended for washing household utensils suitable for machine washing.
• Do not put any solvents in the dishwasher. This could cause an explosion.

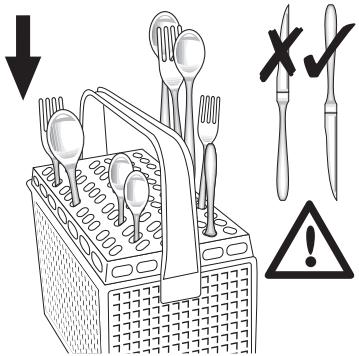

• Knives and other items with sharp points must be loaded in the cutlery basket with their points down or placed in a horizontal position in the upper basket.
• Only use products (detergent, salt and rinse aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance is in operation, hot steam may escape.
• Do not take any dishes out of the dishwasher before the end of the washing cycle.

• After use, isolate the appliance from the power supply and turn off the water supply.
• This product should be serviced only by an authorized service engineer, and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons could cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts. General safety
• Persons (including children) with reduced physical sensory, mental capabilities or lack of experience and knowledge must not use the appliance. They must have supervision or instruction for the operation of the appliance by a person responsible for their safety.
• Dishwasher detergents can cause chemical burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.
• Water in the dishwasher is not for drinking purposes. Detergent residue may still be present in your machine.

• Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.
• Do not sit or stand on the open door. Child safety
• This appliance is designed to be operated by adults. Children must be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is a risk of suffocation.
• Keep all detergents in a safe place out of children’s reach.
• Keep children well away from the dishwasher when the door is open. Installation
• Check your dishwasher for any transport damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.

• All packaging must be removed before use.
• Any electrical and plumbing work required to install this appliance must be carried out by a qualified and competent person.
• For safety reasons it is dangerous to alter the specifications or attempt to modify this product in any way.
• Never use the dishwasher if the electrical supply cable and water hoses are damaged; or if the control panel, work top or plinth area are damaged such that the inside of the appliance is freely accessible. Contact your local Service Force centre, in order to avoid hazard.
• All sides of the dishwasher must never be drilled to prevent damage to hydraulic and electric components. Warning! For electrical and water connection carefully follow the instructions given in the specific paragraphs.

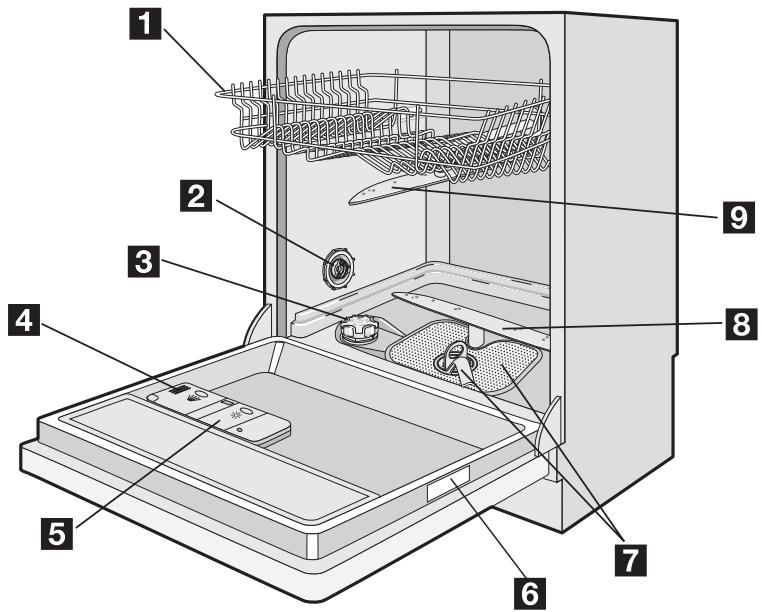

Upper basket Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Rating plate Filters Lower spray arm Upper spray arm Optical signal Once the washing programme starts, a point-shaped optical signal shows on the floor beneath the appliance door. If you install the appliance higher up with a furniture door mounted flush, the optical signal can no longer be seen. Optical signal Red light fixed Indicates the running of a washing programme. Comes on when the programme starts. Goes off once the programme has ended. Red light flashing Indicates a malfunction of the appliance.

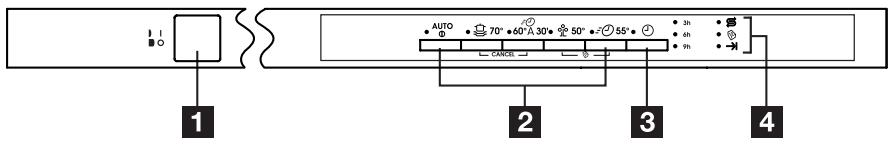

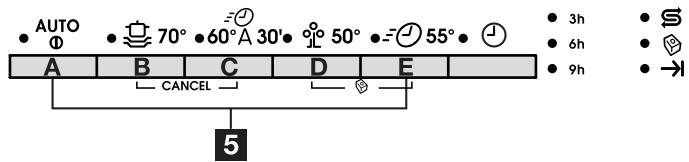

On/off button Programme selection buttons Delay start button Indicator lights Function buttons Indicator lights Salt Comes on when the special salt has run out. Multitab Indicates the activation/deactivation of the multitab function. (Refer to 'Multitab function'). End of programme Comes on when a washing programme has ended. It also has added functions of visual signalling as: – the setting of the water softener, – activation/deactivation of the rinse aid dispenser, – activation/deactivation of the audible signals, – intervention of an alarm due to the malfunction of the appliance. Delay start button You can delay the start of the programme for 3, 6 or 9 hours. Refer to 'Select and start a washing programme' chapter for the set of this function.

• activate/deactivate the audible signals. Function buttons The following functions can be set using these buttons:
• adjustment of the water softener level,
• cancel a washing programme or a delay start in progress,
• activate/deactivate the multitab function,
• activate/deactivate the rinse aid dispenser when multitab function is active, The appliance must be in setting mode, when performing the following operations:
• selecting a washing programme,
• setting the water softener level,
• activating/deactivating the rinse aid,
• activating/deactivating the audible signals, Press the on/off button. If a programme button light comes on, the last performed or selected programme is still set. In this case, to Setting mode Press the on/off button. If all the programme button lights come on, the appliance is in setting mode.

return to setting mode, the programme has to be cancelled. To cancel a programme in progress

• Simultaneously press and hold the two function buttons B and C until all the programme button lights come on. The programme has been cancelled and the appliance is now in setting mode. Audible signals Audible signals help to indicate which operations the appliance is performing: – adjustment of the water softener, – end of the washing programme, – intervention of an alarm due to malfunction of the machine. Factory setting: audible signals active It is possible to deactivate the audible signals. Deactivation/activation of the audible signals

1. Press the on/off button. The appliance

must be in setting mode.

2. Simultaneously press and hold function

buttons B and C until the lights of function buttons A, B and C start flashing.

3. Press function button C,

– The lights of function buttons A and B go off, – the light of function button C goes on flashing, – at the same time the end of programme indicator light comes on. The audible signals are active.

4. To deactivate the audible signals:

– press function button C, – the end of programme indicator light goes off. The audible signals are deactivated.

5. To memorize the operation, switch off the

appliance. To activate again the audible signals follow the above operations until the end of programme indicator light comes on. First use Before using your dishwasher for the first time:

• Ensure that the electrical and water connections comply with the installation instructions
• Remove all packaging from inside the appliance
• Set the water softener level

• Pour 1 litre of water into the salt container and then fill with dishwasher salt
• Fill the rinse aid dispenser If you want to use combi detergent tablets such as: '3 in 1', '4 in 1', '5 in 1' etc. set the multitab function. (Refer to 'Multitab function'). Setting the water softener The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. Water hardness is measured in equivalent scales, German degrees (dH°), French degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness of water). Water hardness The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. The water softener must be set in two ways: manually, using the water hardness dial and electronically. Adjusting the water hardness setting Use of salt °dH °TH mmol/l manually electronically

Water hardness Adjusting the water hardness setting Use of salt °dH °TH mmol/l manually electronically

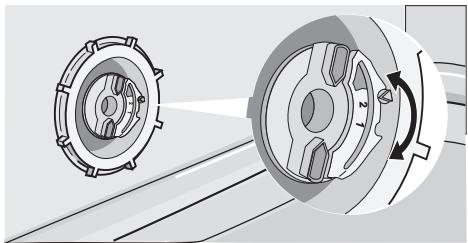

Setting manually The dishwasher is factory set at position

1. Open the dishwasher door.

2. Remove the lower basket from the dishwasher.

3. Turn the water hardness dial to position

4. Replace the lower basket.

Setting electronically The appliance is factory set at level 5.

1. Press the on/off button. The appliance

must be in setting mode.

2. Simultaneously press and hold function

buttons B and C, until the lights of function buttons A, B and C start flashing.

3. Press function button A

– the lights of function buttons B and C go off, – the light of function button A continues to flash, – at the same time the end of programme indicator light starts to flash, – a sequence of intermittent audible signals are heard. The current level is indicated by the number of flashes of the end of programme indicator light and of the intermittent audible signals. Examples: – 5 flashes / 5 intermittent audible signals - pause - 5 flashes / 5 intermittent audible signals - pause, etc. = level 5 – 6 flashes / 6 intermittent audible signals - pause - 6 flashes / 6 intermittent audible signals - pause, etc. = level 6

4. To change the level, press function button A. Each time the button is pressed the

level changes. (For the selection of the new level refer to the chart). Examples: – If the current level is 5, by pressing function button A once, level 6 is selected, – if the current level is 10, by pressing function button A once, level 1 is selected.

5. To memorize the operation, switch off the

appliance. Use of dishwasher salt Warning! Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water soft- ener. Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1. Open the door, remove the lower basket

and unscrew the cap of the salt container by turning it anticlockwise.

2. Pour 1 litre of water into the container

(this is necessary only before filling with salt for the first time) .

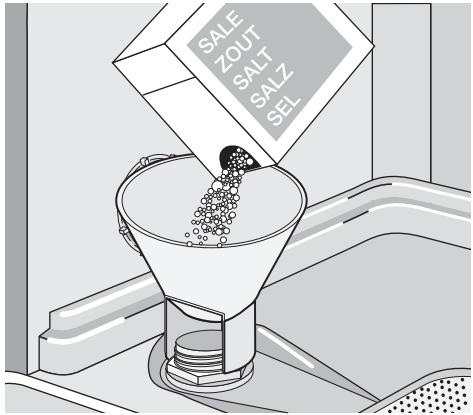

3. Using the funnel provided, pour in the salt

until the container is full.

4. Replace the cap making sure that there

is no trace of salt on the screw thread or on the gasket.

5. Replace the cap tightly turning it clockwise until it stops with a click.

Do not worry if water overflows from the unit when filling with salt, this is quite normal. The salt indicator light can remain on for a few hours after the salt has been replenished. If you are using salt that takes longer to dissolve then this can take longer. The operation of the appliance is not affected. Use of rinse aid Warning! Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance. Rinse aid ensures thorough rinsing, and spot and streak free drying. Rinse aid is automatically added during the last rinse.

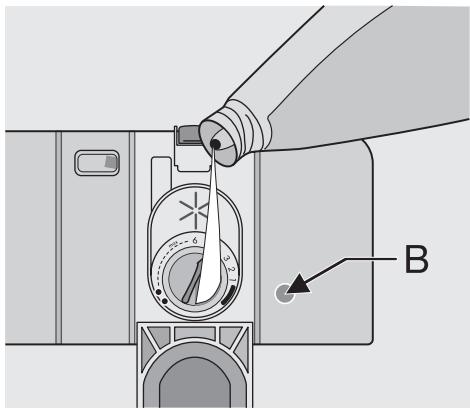

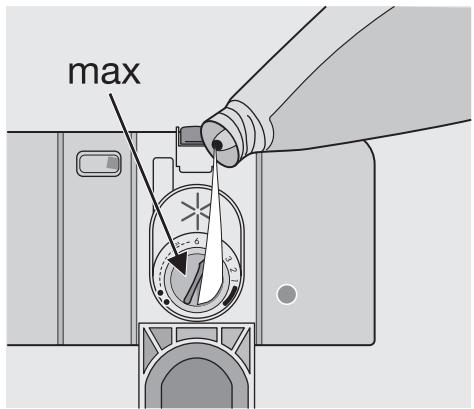

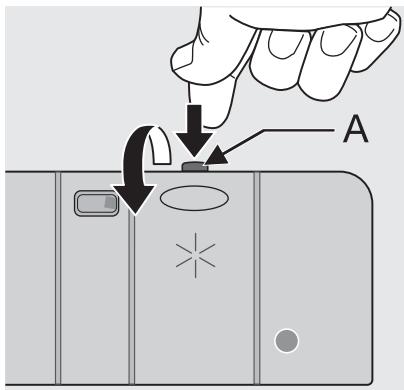

1. Open the container by pressing the release button (A).

2. Add the rinse aid in the container. The

maximum level for filling is indicated by "max".

The dispenser holds about 110 ml of rinse aid, which is sufficient for between 16 and 40 washing cycles, depending upon the dosage setting.

3. Ensure that the lid is closed after every

refill. Top up the rinse aid when the indicator (B) becomes clear. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash. According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage). The dose is factory set in position 4. Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades. Daily use

• Check if it’s necessary to refill with dishwasher salt or rinse aid.
• Load cutlery and dishes into the dishwasher.
• Fill with dishwasher detergent.
• Select a wash programme suitable for the cutlery and dishes.
• Start the wash programme. Helpful hints and tips Sponges, household cloths and any object that can absorb water may not be washed in the dishwasher.
• Before loading the dishes, you should: – Remove all left over food and debris. – Soften remnants of burnt food in pans

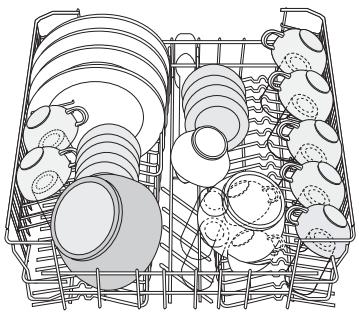

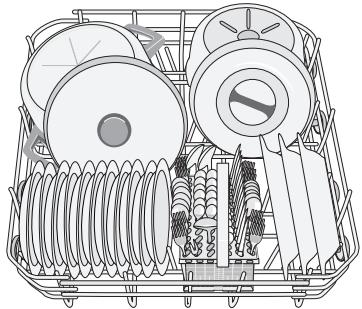

• When loading the dishes and cutlery, please note: – Dishes and cutlery must not impede the rotation of the spray arms. – Load hollow items such as cups, glasses, pans, etc. with the opening downwards so that water cannot collect in the container or a deep base. – Dishes and items of cutlery must not lie inside one another, or cover each other. – To avoid damage to glasses, they must not touch. – Lay small objects in the cutlery basket.

• Plastic items and pans with non stick coatings have a tendency to retain water drops; these items will not dry as well as porcelain and steel items.

• Light items (plastic bowls etc.) must be loaded in the upper basket and arranged so they do not move. For washing in the dishwasher the following cutlery and dishes are not suitable: are of limited suitability:

• Cutlery with wooden, horn, china or mother-of- • Only wash stoneware in the dishwasher if it is pearls handles. specially marked as being dishwasher-safe by
• Plastic items that are not heat resistant. the manufacturer.
• Older cutlery with glued parts that are not tem- • Glazed patterns may fade if machine washed perature resistant. frequently.
• Bonded cutlery items or dishes.
• Silver and aluminium parts have a tendency to
• Pewter or copper items. discolour during washing: Residues, e.g. egg
• Lead crystal glass. white, egg yolk and mustard often cause dis• Steel items prone to rusting. colouring and staining on silver. Therefore al• Wooden platters. ways clean left-overs from silver immediately, if
• Items made from synthetics fibres. it is not to be washed straight after use. Loading cutlery and dishes The lower basket The lower basket is designed to take saucepan, lids, plates, salad bowls, cutlery etc. Service dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely. The rows of prongs in the lower basket can lie flat to allow you to load pots, pans and bowls. The cutlery basket Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives. Forks and spoons should be placed in the removable cutlery basket with the handles facing downwards and the knives with their handles facing upwards.

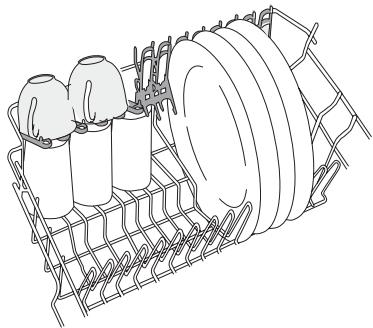

Glasses with long stems can be placed upside down in the cup racks. For taller items, the cup racks can be folded upwards. If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards. Mix spoons with other cutlery to prevent them from sticking together. For best results we recommend that you use the cutlery grid (if the size and dimensions of the cutlery allow it). Before closing the door, ensured that the spray arms can rotate freely. Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. The upper basket The upper basket is designed for plates (up to 26 cm in diameter), salad bowls, cups, glasses, pots and lids. Arrange items on and underneath the cup racks so that water can reach all surfaces. Prevent to put plates in the first three sectors in the front part of the basket. Make sure the plates tilt forward. Maximum height of the dishes in the lower basket upper basket lower basket With upper basket raised 22 cm 33 cm With upper basket lowered 26 cm 29 cm To move to the higher position proceed as follows:

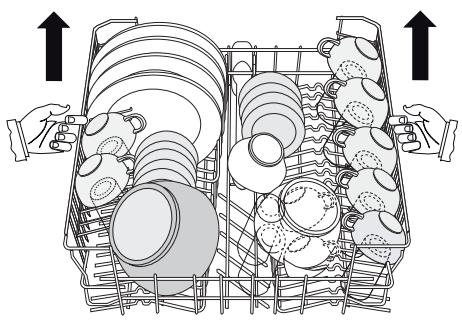

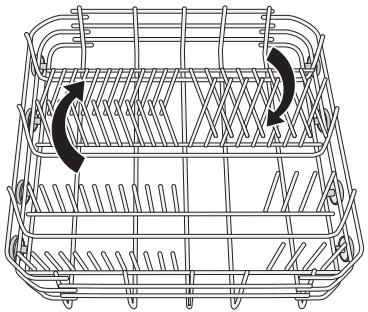

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards until the

mechanism is engaged and the basket is stable.

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards and then

allow the mechanism to drop back down slowly, keeping hold of it. Never lift or lower the basket on one side only With the upper basket raised adjust the cup racks in the lowest position. After loading your machine always close the door, as an open door can be a hazard. To lower the basket to the original position proceed as follows: Use of detergent Only use detergents specifically designed for use in dishwashers. Please observe the manufacturer’s dosing and storage recommendations as stated on the detergent packaging. Using no more than the correct amount of detergent contributes to reducing pollution.

3. All programmes with prewash need an

additional detergent dose (5/10 g) that must be placed in the prewash detergent chamber (2). This detergent will be used during the prewash phase. When using detergent tablets; place the tablet in compartment (1)

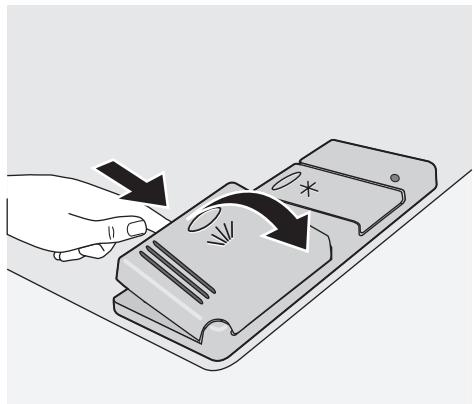

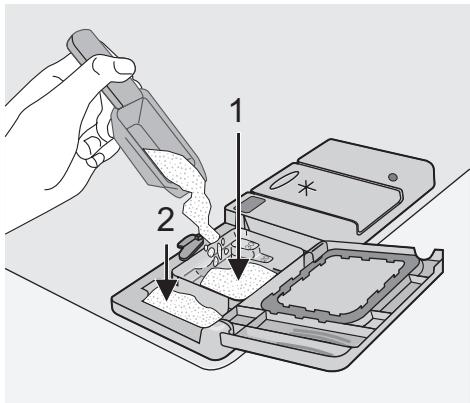

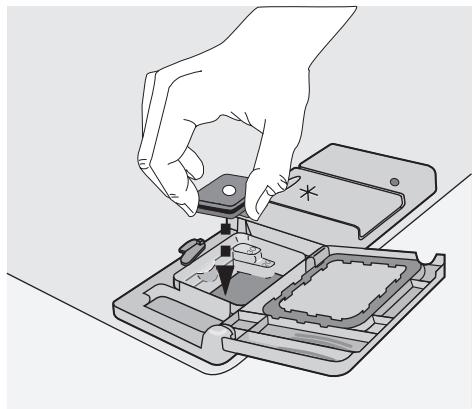

2. Fill the detergent dispenser (1) with detergent. The marking indicates the dosing

levels: 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent.

4. Close the lid and press until it locks in

place. Detergent tablets from different manufacturers dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore, please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals. Multitab function This appliance is equipped with the multitab function, that allows the use of the multitab combi detergent tablets. These products are detergents with a combined cleaning, rinsing and salt functions. They can also contain other different agents depending on which kind of tablets you choose ('3 in 1', '4 in 1', '5 in 1' etc.). Check whether these detergents are suitable for your water hardness. See the manufacturers instructions. Once this function is selected it will remain active for all following wash programmes. With the selection of this function the inflow of rinse aid and salt from each respective supply container is automatically deactivated and also the indicator light for salt is deactivated. When using the multitab function, the cycle duration may change. Activate/deactivate the multitab function before the start of a washing programme. Once the programme is running, the multitab function can no longer be changed. If you want to cancel the multitab function you have to cancel the programme setting and then deactivate the multitab function. In this case you have to set a washing programme (and desired options) again. Activation/deactivation of the multitab function Simultaneously press and hold the two multitab buttons (function buttons D and E) until the multitab indicator light comes on. This means that the function is active. To deactivate the function press the same buttons again until the indicator light corresponding to the multitab function symbol goes off. If the drying results are not satisfactory we suggest that you:

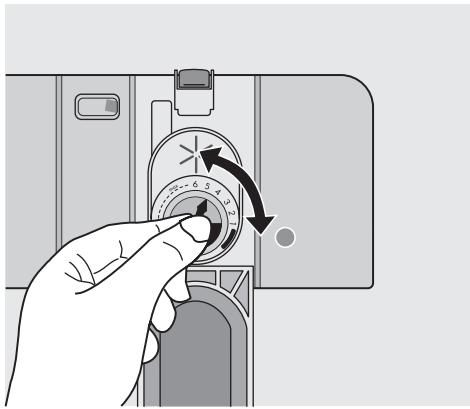

1. Fill up the rinse aid dispenser with

• The activation/deactivation of the rinse aid is only possible with the multitab function active. Activation/deactivation of the rinse aid dispenser

1. Press the On/Off button. The dishwasher

must be in setting mode.

2. Simultaneously press and hold function

buttons B and C , until the lights of function buttons A , B , and C start flashing.

3. Press function button B , the lights of

function buttons A and C go off while the light of function button B continues to flash.

4. To activate the rinse aid dispenser, press

button B again, the End indicator light comes on, indicating that the rinse aid dispenser has been activated.

5. To memorize the operation, switch off the

dishwasher by pressing the On/Off button.

again, follow the above instructions until the End indicator light goes off. If you decide to revert back to the use of individual detergents we advise that you:

1. Deactivate the Multitab function.

2. Fill up the salt container and the rinse

aid dispenser again.

3. Adjust the water hardness setting to

the highest setting and perform 1 normal washing programme without loading any dishes.

4. Adjust the water hardness setting

according to the hardness of the water in your area.

5. Adjust the rinse aid dosage.

Select and start a washing programme Select the washing programme and delay start with the door slightly opened. The start of the programme or the countdown of the delay start will occur only after the closure of the door. Until then it is possible to modify the settings

1. Check that the baskets have been loaded

correctly and that the spray arms are free to rotate.

2. Check that the water tap is opened.

3. Press the on/off button. The dishwasher

must be in setting mode.

4. Press the button corresponding to the required programme. The indicator light of

the selected programme comes on. Refer to 'Washing programmes' for more details. Close the appliance door, the programme starts automatically. Setting and starting the programme with delay start

1. After having selected the washing programme, press the delay start button until

the indicator light corresponding to the chosen hours flashes (3h, 6h or 9h). – The delay start indicator light comes on.

2. Close the appliance door, the countdown

starts automatically.

3. The countdown will decrease with steps

4. Once the delay start has elapsed the programme will start automatically.

– The delay start indicator light goes off. The opening of the door will interrupt the countdown. Close the door; the countdown will continue from the point at which it was interrupted. Warning! Interrupt or cancel a washing programme in progress ONLY if it's absolutely necessary. Attention! Hot steam may escape when the door is opened. Open the door carefully. Interrupt a washing programme in progress

• Open the dishwasher door; the programme will stop. Close the door; the programme will start from the point at which it was interrupted. Cancel a delay start or a washing programme in progress
• Simultaneously press and hold the two function buttons B and C until all the programme lights come on.
• Cancelling a delay start will also cancel the washing programme. You have to select the washing programme again.
• If a new washing programme is to be selected, check that there is detergent in the detergent dispenser. End of the washing programme The appliance will automatically stop and an audible signal informs you of the end of the washing programme.

1. Open the appliance door.

– The end of programme indicator light is on. – The indicator light of the programme just ended remains on.

2. Switch of the appliance.

3. Leave the appliance door ajar for a few

minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

Unloading the dishwasher steel will eventually become cooler than the dishes.

• Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down before removing from the appliance.
• Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.
• Water may appear on the sides and the door of the dishwasher as the stainless When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off. Washing programmes Washing programmes Programme

70° 60° A 30'2) 50°3) 55° Degree of soil Type of load Programme description Any Crockery, cutlery, pots and pans Prewash Main wash up to 45°C or 70°C 1 or 2 intermediate rinses Final rinse Drying Heavy soil Crockery, cutlery, pots and pans Prewash Main wash up to 70°C 2 intermediate rinses Final rinse Drying Normal or light soil Crockery and cutlery Main wash up to 60°C Final rinse Normal soil Crockery and cutlery Prewash Main wash up to 50°C 1 intermediate rinse Final rinse Drying Light soil Crockery and cutlery Main wash up to 55°C 1 intermediate rinse Final rinse

1) During the AUTO washing programme the level of soiling on the dishes is determined by how cloudy

the water is. The programme duration, water and energy consumption levels can vary. This depends upon whether the appliance is fully or partially loaded and if the dishes are lightly or heavily soiled. The temperature of the water is automatically adjusted between 45°C and 70°C.

2) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet

the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.

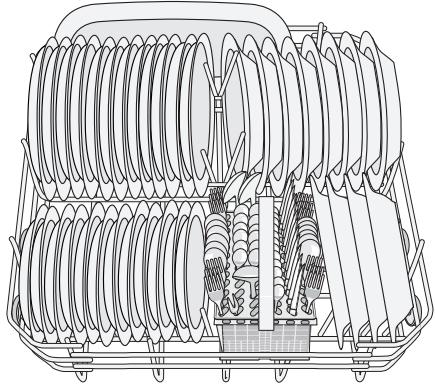

3) Test programme for test institutes.

Consumption values Programme 70° 60° A 30' 50° 55° Duration (in minutes) Energy (in kWh) Water (in litres)

The consumption values are intended as a guide and depend on the pressure and the temperature of the water and also by the variations of the power supply and the amount of dishes. Care and cleaning Cleaning the filters The filters must be checked and cleaned from time to time. Dirty filters will degrade the washing result. Warning! Before cleaning the filters ensure that the machine is switched off.

5. Clean all filters thoroughly under running

6. Remove the flat filter (C) from the base of

the washing compartment and clean both faces thoroughly.

1. Open the door, remove the lower basket.

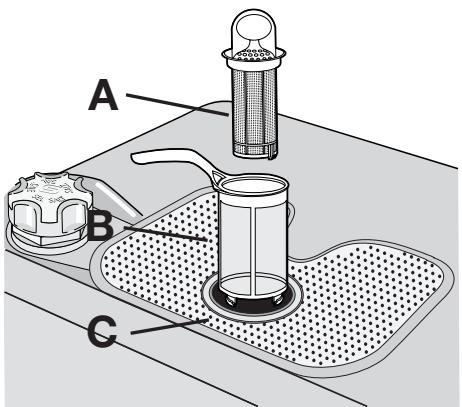

2. The dishwasher filter system comprises a

coarse filter (A), a microfilter (B) and a flat filter (C).

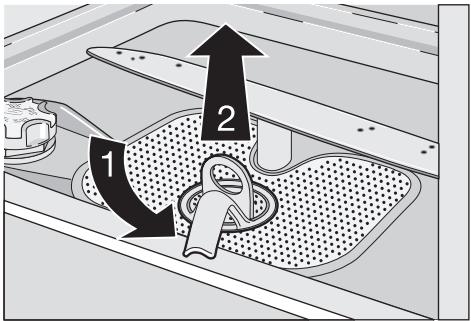

3. Unlock the filter system using the handle

on the microfilter. Turn the handle about 1/4 a turn anticlockwise and remove the filter system

7. Put the flat filter (C) back in the base of

the washing compartment and ensure that it fits perfectly.

8. Place the coarse filter (A) in the microfilter

(B) and press together.

9. Put the filter combination in place and

lock by turning the handle clockwise to the stop. During this process ensure that the flat filter (C) does not protrude above the base of the washing compartment. NEVER use the appliance without filters. Incorrect repositioning and fitting of the filters will produce poor washing results and will result in damage to the appliance. NEVER try to remove the spray arms. If residues of soil have clogged the holes in the spray arms, remove the debris with a cocktail stick.

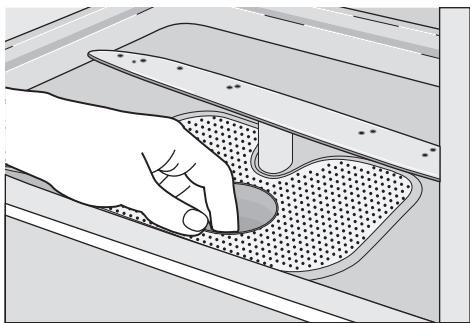

4. Take hold of the coarse filter (A) by the

handle with the hole and remove from the microfilter (B). External cleaning Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc...).

Internal cleaning Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend every 3 months you run the wash programme for heavy soiled dishes using detergent but without dishes. Prolonged periods of non-operation If you are not using the machine for a prolonged period of time you are advised to:

1. Unplug the appliance and then turn off

2. Leave the door ajar to prevent the formation of any unpleasant smells.

3. Leave the inside of the machine clean.

unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it. Moving the machine If you have to move the machine (moving house etc...):

2. Turn the water tap off.

3. Remove the water inlet and discharge

4. Pull the machine out together with the

hoses. Avoid over tilting the machine during transportation. Frost precautions Avoid placing the machine in a location where the temperature is below 0°C. If this is What to do if… The appliance will not start or stops during operation. Certain problems can be due to the lack of simple maintenance or oversights, which can be solved with the help of the hints described in the chart, without calling out an engineer. Open the door, switch off the appliance and carry out the following suggested corrective actions. Fault codes and malfunction Possible cause and solution

• continuous flashing of the light of the running programme
• end of programme indicator light flashes once
• intermittent audible signal The appliance does not fill with water

• The water tap is blocked or furred with limescale. Clean the water tap.
• The water tap is turned off. Turn the water tap on.
• The filter (where present) in the water inlet hose is blocked. Clean the filter.
• The water inlet hose has not been correctly laid or it is kinked or squashed. Check the water inlet hose connection.

• continuous flashing of the light of the running programme
• end of programme indicator light flashes twice
• intermittent audible signal The appliance does not drain

• The sink spigot is blocked. Clean out the sink spigot.
• The water drain hose has not been correctly laid or it is kinked or squashed. Check the water drain hose connection.

• continuous flashing of the light of the running programme
• end of programme indicator light flashes three times
• intermittent audible signal Anti-flood device is activated

• Close the water tap and contact your local Service Force Centre.

Fault codes and malfunction The programme does not start Possible cause and solution

• The appliance door has not been properly closed. Close the door.
• The main plug is not plugged in. Insert the main plug
• The fuse has blown out in the household fuse box. Replace the fuse.
• Delay start has been set. If dishes are to be washed immediately, cancel the delay start. Once these checks have been carried out switch on the appliance and close the door. The programme will continue from the point at which it was interrupted. If the malfunction or fault code reappears contact your local Service Force Centre. For other fault codes not described in the above chart, please contact your local Service Force Centre. Contact your local Service Force Centre, quoting the model (Mod.), product number (PNC) and serial number (S.N.). This information can be found on the rating plate located on the side of the dishwasher door. So that you always have these numbers at hand, we recommend you to make a note of them here: Mod. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PNC : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S.N. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . The wash results are not satisfactory The dishes are not clean

• The wrong programme has been selected.
• The dishes are arranged in such a way as to stop water reaching all parts of a surface. The baskets must not be overloaded.
• The spray arms do not rotate freely due to incorrect arrangement of the load.
• The filters in the base of the washing compartment are dirty or incorrectly positioned.
• Too little or no detergent has been used.
• Where there are limescale deposits on the dishes; the salt container is empty or incorrect level of the water softener has been set.
• The drain hose connection is not correct.
• The salt container cap is not properly closed. The dishes are wet and dull

• Rinse aid was not used.
• The rinse aid dispenser is empty. There are streaks, mil- • Decrease rinse aid dosage. ky spots or a bluish coating on glasses and dishes Water drops have dried onto glasses and dishes

• Increase rinse aid dosage.
• The detergent may be the cause. Contact the detergent manufacturer consumer care line. If after all these checks, the problem persists, contact your local Service Force Centre. Technical data Dimensions Width cm 59,6

Electrical connection - Voltage Overall power - Fuse Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher door. Water supply pressure Minimum 0,05 MPa (0,5 bar) Maximum 0,8 MPa (8 bar) Capacity Place settings

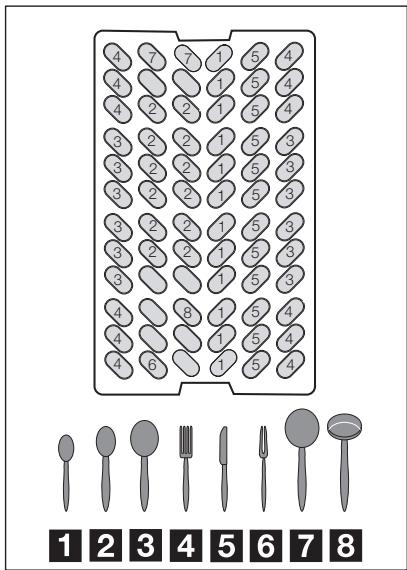

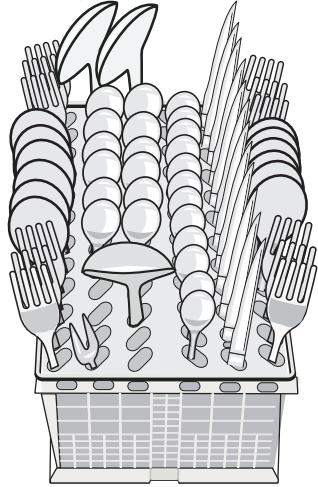

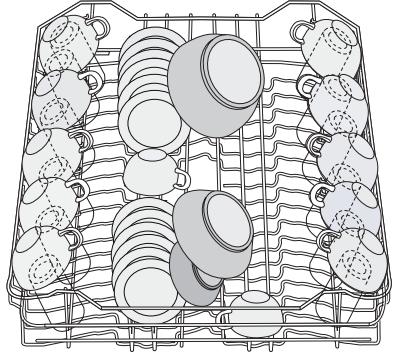

Hints for test institutes Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Consumption values"). Test in accordance with EN 50242 must be carried out when the salt container and rinse aid dispenser have been filled with salt and rinse aid respectively and using the test programme (see "Consumption values"). Full load: 12 standard place settings Amount of detergent required: 5 g + 25 g (Type B) Rinse aid setting position 4 (Type III) Arrangement upper basket Arrangement lower basket Arrangement cutlery basket

Installation Warning! Any electrical and/or plumbing work required to install this appliance should be carried out by a qualified electrician and/or plumber or competent person. Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a drain. This dishwasher is designed to be fitted under a kitchen counter or work surface. Attention! Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel. No further openings for the venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through. The dishwasher incorporates adjustable feet to allow the adjustment of the height. During all operations that involve accessibility to internal components the dishwasher has to be unplugged. When inserting the machine, ensure that the water inlet hose, the drain hose and the supply cable are not kinked or squashed. Fixing to the adjacent units The dishwasher must be secured against tilting. Therefore make sure that the counter it is fixed under, is suitably secured to a fixed structure (adjacent kitchen unit cabinets, wall). Levelling Good levelling is essential for correct closure and sealing of the door. When the appliance is correctly levelled, the door will not catch on either side of the cabinet . If the door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.

Water connection Do not use connection hoses which have previously been used on an old appliance. This appliance has been fitted with safety features which will prevent the water used in the appliance from returning back into the drinking water system. This appliance complies with the applicable plumbing regulations. Water inlet hose with safety valve After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water inlet hose starts to leak during this operation, the safety valve cuts off the running water. Please take care when installing the water inlet hose:

• The electrical cable for the safety valve is in the double-walled water inlet hose. Do not immerse the water inlet hose or the safety valve in water.
• If water inlet hose or the safety valve is damaged, remove the mains plug immediately.
• A water inlet hose with safety valve must only be replaced by the Service Force Centre. Warning! Dangerous voltage Water drain connection The end of the drain hose can be connected in the following ways:

1. To the sink outlet spigot, securing it to the

underside of the work surface. This will prevent waste water from the sink running into the machine.

2. To a stand pipe provided with venthole,

minimum internal diameter 4 cm. max 85 cm max 400 cm Water inlet connection This appliance can be connected to either a hot (max. 60°) or cold water supply. With a hot water supply you can have a significant reduction of energy consumption. This however, depends on how the hot water is produced. (We suggest alternative sources of energy that are more environmentally friendly as e.g. solar or photovoltaic panels and aeolian). For making the connection itself, the coupling nut fitted to the appliance water inlet hose is designed to screw onto a 3/4" thread spout or to a purpose made quick-coupling tap such as the Press-block. The water pressure must be within the limits given in the 'Technical data'. Your local Water Authority will advise you on the average mains pressure in your area. The water inlet hose must not be kinked, crushed, or entangled when it is being connected. The locknut must be correctly fitted to avoid water leaks. If the appliance is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose. min 40 cm The drain hose can face either to the right or left of the dishwasher Ensure the drain hose is not bent or squashed as this could prevent or slow down the discharge of water. The sink plug must not be in place when the machine is draining as this could cause the water to syphon back into the machine. If you use a drain hose extension, its internal diameter must be no smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided. When connecting the drain hose to an under sink trap spigot, the entire plastic membrane (A) must be removed. Failure to remove all the membrane will result in food particles building up over time eventually blocking the dishwasher drain hose spigot Our appliances are supplied with a security device to protect against the return of dirty water back into the machine. If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We therefore advise you to remove it. To avoid water leakage after installation make sure that the water couplings are tight. Electrical connection Warning! Safety standards require the appliance to be earthed. Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be found on the rating plate. Always plug the mains plug into a correctly installed shockproof socket. Multi-way plugs, connectors and extension cables must not be used. This could constitute a fire hazard through overheating. If necessary, have the domestic wiring system socket replaced. In case that the electrical cable has to be replaced, contact your local Service Force centre. The plug must be accessible after the appliance has been installed. Never unplug the appliance by pulling on the cable. Always pull the plug. The manufacturer accepts no liability for failure to observe the above safety precautions. Environment concerns The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Warning! When a unit is no longer being used:

• Pull the plug out of the socket.
• Cut off the cable and plug and dispose of them.
• Dispose of the door catch. This prevents children from trapping themselves inside and endangering their lives.
