USER MANUAL BVW682 BORETTI

Warning: Short programs do not include a drying step.

Summary Safety information and Recommendation Recycling 38 Safety information 38 The points to pay attention during machine installation 38 In daily use 38 For your children’s safety 39 In case of malfunctioning 39 Recommendations 39 Items not suitable for dishwashing 39 Installing the machine Technical specifications 40 Positioning the machine 41 Water connections 41 Water inlet hose 41 Water outlet hose 42 Electrical connection 42 Prior to using the machine 42 Getting familiar with your machine 44 Preparing the machine for use The importance of water decalcification 46 Filling with salt 46 Testing strip 47 Adjusting salt consumption 48 Detergent usage 49 Filling the detergent compartment 49 Combined detergent 49 Filling with rinse aid and making the setting 50 Loading your dishwasher Top basket 51 Lower Basket 54 Alternative basket loads 57 Standard loading and Test data 58 Programme descriptions Programme items 60 Switching on the machine and selecting a programme Switching on the machine 62 Programme follow-up 62 Changing a programme 62 Changing a programme with resetting 63 Switching the machine off 63 Maintenance and Cleaning Filters 64 Spray arms 65 Hose filter 65 Failure codes and what to do in case of failure 66 Practical and useful information 68 Environment protection 6938 Safety information and recommendations Recycling

• Certain components and the packaging of your machine have been produced from recy- clable materials.

• Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ….)

• Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.

• Such materials are not suitable for being dis- posed of into garbage bins. They should be delivered to recycling centres instead.

• Contact relevant centres in order to obtain information on methods and points of dis- posal. Safety Information When you take delivery of your machine

• Check for any damage to your machine or to its packaging. Never start a machine dam- aged in any way, make sure to contact an authorised service.

• Unwrap the packaging materials as indicated and dispose of them in accordance with the rules. The points to pay attention during machine in- stallation

• Choose a suitable, safe and level place to in- stall your machine.

• Carry out the installation and connection of your machine by following the instructions.

• This machine should be installed and repaired by an authorised service only.

• Only original spare parts should be used with the machine.

• Before installing, be sure that the machine is unplugged.

• Check whether the indoor electrical fuse system is connected according to the regula- tions.

• All electrical connections must match the val- ues indicated on the rating plate.

• Pay special attention and be sure that the machine does not stand on the electricity supply cable.

• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after the machine has been installed.

• Please assemble the dishwasher, which is inserted under or in the kitchen platform, ac- cording to the instruction. Be sure that the product is fixed properly.

• After installing the machine to a suitable place , run it unloaded for the first time. In daily use

• This machine is for household use, do not use it for any other purpose. Commercial usage of the dishwasher will void the guarantee.

• Do not get up, sit or place a load on the open door of the dishwasher, it may fall over.

• Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.

• The water in the machine’s washing section is no drinking water, do not drink it.

• Due to danger of explosion, do not put into the machine’s washing section any chemical dissolving agents such as solvents.

• Check whether plastic items are heat-resist- ant before washing them in the machine.

• Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.DE

• Especially because hot water may ow out, the machine door should not be opened un- der any circumstances while the machine is in operation. In any case, a safety devices ensures that the machine stops if the door is opened.

• Do not leave your dishwasher’s door open. Failure to do so may lead to accidents.

• Place knives and other sharp-ended objects in the cutlery basket in blade-down position.

• This appliance is not intended for use by per- sons (including children) with reduced physi- cal, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. For your children’s safety

• After removing the machine’s packaging, make sure that the packaging material is out of reach of children.

• Do not allow children to play with or start the machine.

• Keep your children away from detergents and rinse aids.

• Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine.

• Be sure that your old machine does not pose any threat to your children. Children are known to have gotten themselves locked in old machines. To forestall such a situation, break your machine’s door lock and tear off the electrical cables. In case of malfunctioning

• Any malfunction in the machine should be repaired denitely by qualied persons. Any repair work performed by anyone other than the authorised service personnel will cause your machine to be left outside the scope of warranty.

• Prior to any repair work on the machine, be sure that the machine is cut off from the mains. Switch off the fuse or unplug the ma- chine. Do not pull by the cable when unplug- ging. Make sure to turn off the water tap. Recommendations

• For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it

• Use the pre-wash programme only whenever necessary.

• Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.

• You are recommended not to load into your machine any dishes different or more than indicated. Items not suitable for dishwashing:

• Cigarette ashes, candle leftovers, pol- ish, paint, chemical substances, iron-alloy materials;

• Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals

• Plastic items that are not heat-resistant, copper or tin-coated containers;

• Aluminium and silver objects (they may discolour, become dull)

• Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-re- sistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;

• Absorbent items as sponges or kitchen rags are not suitable for dishwashing.

Warning: Take care to buy dishwasher-proof

• Producer company has its right to amend design and technical specications reserved.

• The machine’s service life is 10 years (the duration required to keep spare parts for the machine to fulfil its usage functions). Conformity with the standards and Test data / EC Declaration of Conformity All stages related to the machine are executed in accordance with the safety rules provided in all relevant directives of the European Community.

Installing the machine Positioning the machine When determining the place to put your ma- chine on, take care to choose a place where you can easily load and unload your dishes. Do not put your machine in any location where there is the probability for the room tempera- ture to fall below 0°C. Before positioning, take the machine out of its packaging by following the warnings located on the package. Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made. Do not grip the machine by its door or panel in order to move it. Make sure that the water inlet and outlet hos- es do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable. Adjust the machine’s adjustable feet so that it can stand level and balanced. Proper position- ing of the machine ensures problem-free open- ing and closing of its door. If the door of you machine does not close prop- erly, check if the machine is stable on the fl oor it stands; if not, adjust the adjustable feet and ensure its stable position. Water connection Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fi t a fi lter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasion- ally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of de- posits after washing. Water inlet hose Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long-unused wa- ter inlet hose to your machine, run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fi tted inbetween. After the connections are made, the tap should be turned on fully and checked for water tightness. For the safety of your machine, make sure to always turn off the water inlet tap after each wash programme is fi n i s h e d . NOTE: Aquastop water spout is used in some models. In case of using Aquastop, a danger- ous tension exists. Do not cut Aquastop water spout. Do not let it get folded or twisted.42 Water outlet hose The water drain hose can be connected ei- ther directly to the water drain hole or to the sink outlet spig- ot. Using a spe- cial bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. This connection should be at a minimum of 50 cm and and at a maximum of 110 cm from the fl oor plane.

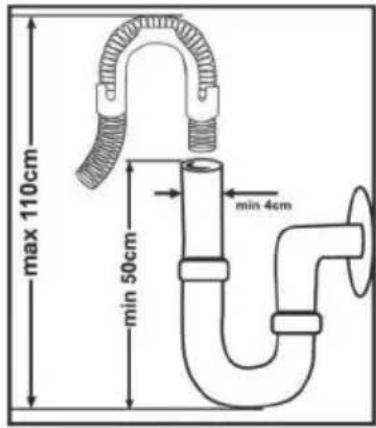

Warning: When a drain hose longer than 4 m

is used, the dishes might remain dirty. In that case, our company will not accept responsibil- ity. Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electri- cian carry out an earthing installation. In case of usage without earthing installed, our compa- ny will not be responsible for any loss of usage that might occur. The indoor fuse current value should be 10-16 A. Your machine is set according to 220- 240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W inbetween. The machine should not be plugged in during positioning. Always use the coated plug supplied with your machine. The machine’s electrical cable should be re- placed by an authorised service or an author- ised electrician only. Failure to do so may lead to accidents. In order not to cause an electric shock, do not unplug when your hands are wet. For safety purposes, always make sure to dis- connect the plug when a wash programme is fi n i s h e d . Running in low voltage will cause a decline in washing quality. When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself. Prior to using the machine for the fi rst time

• Check whether the electricity and supply water specifi cations match the values indi- cated by the installation instructions for the machine.

• Remove all packaging materials inside the machine.

• Set the water softener.

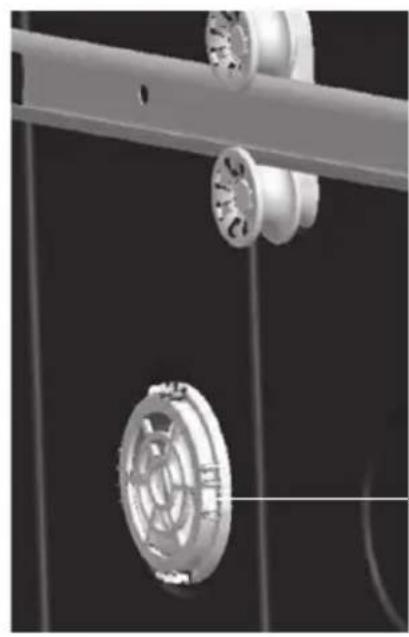

• Add 2 kg salt into the salt compartment and fi ll with water up to a level at which it will almost overfl ow.

• Fill the rinse aid compartment.DE

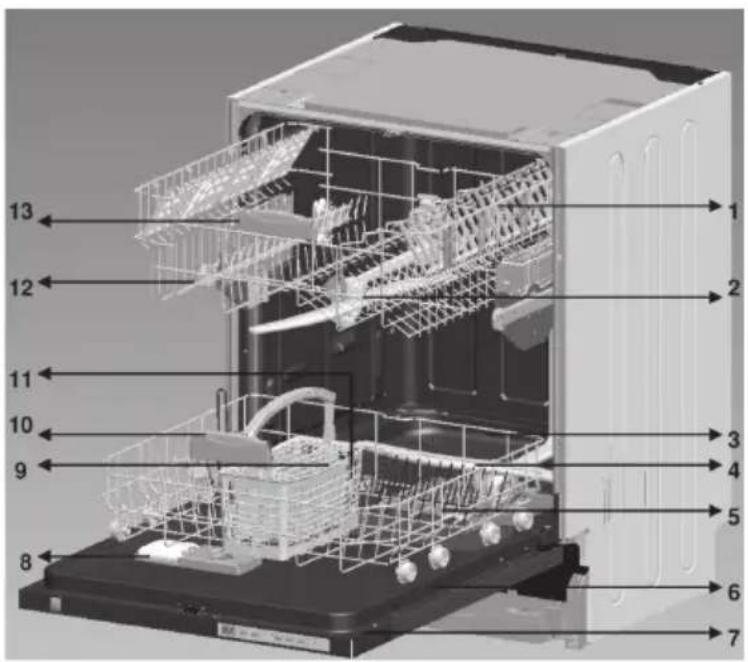

1. Upper basket with racks

12. Upper basket track latch

13. Top basket handle

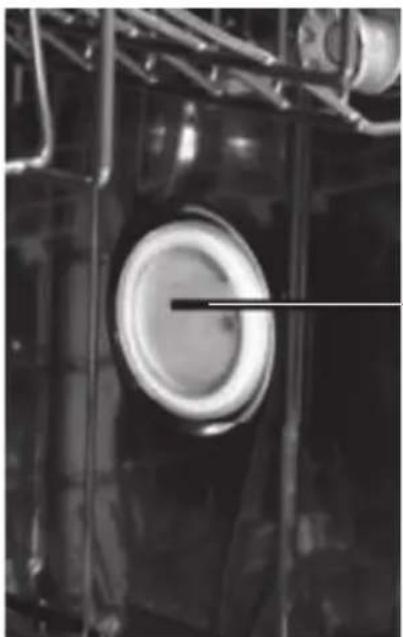

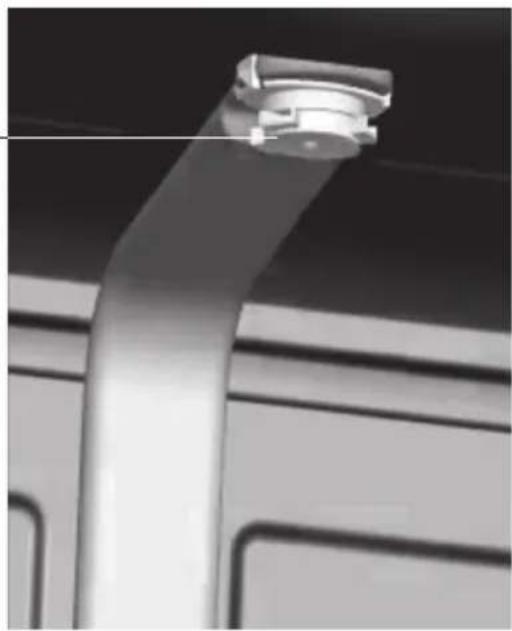

Active Drying Unit: This system provides better drying performance for your dishes. Ceiling Spray Arm: It provides better washing for the dishes at upper basket.

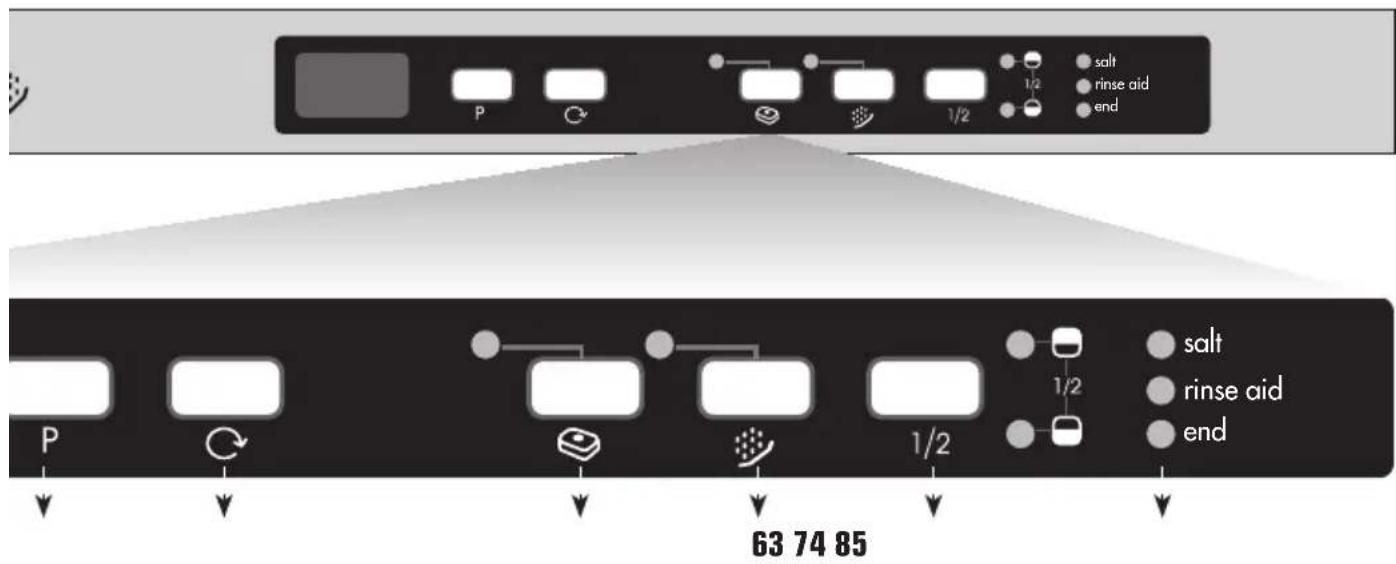

Getting familiar with your machine 6.) Prewash Buton If you select an extra pre-washing program, you improve washing performance. When you select pre-washing, since it improves washing performance, it changes the tem- perature and washing time of some pro- grams. Note: When a program which is not compatible with the pre-wash program is selected, a buzz- er sound is heard indicating that the selected program is not compatible with the pre-wash option. Note: If you will only make pre-washing, select prewash program with program selection but- ton. 7.) ½ Half Load Button Using the function ½ , three sorts of wash- ing up can be done those being lower bas- ket, upper basket and both baskets. If you have little amount of dishes in your machine and if you have to wash them, you can also activate the semi- fi lling function in some of the pro- grams additionally. If you have dishes in both baskets, press the key ½ and select the position in which both lamps are highlighted. salt rinse aid end salt rinse aid end

1.) Power On/Off Button When the Power On/Off button is pressed, end of program indicator starts lighting. 2.) Program Display Program display indicates the times of the programs and the remaining time during the program ow. You can also follow-up the selected programs by this display. 3.) Program selection button With the program selector button, you can select a suitable program for your dishes. 4.) Delay Timer Button You can delay the start time of a selected program for 1-2 ….19 hours by pressing the delay timer button of your machine. When you press the delay timer button, delay “1h” appears on the program display. If you continue pressing the delay timer button, 1-2… 19 will be displayed respec- tively. You can activate the delayed start by selecting the delay time and the desired washing program with the program selec- tion button. It is also possible to select the program fi rst and the delayed start after- wards. If you want to change or cancel the delayed start time, you can adjust it with the delay timer button; it will be activated according to the last value entered. 5.) Tablet Detergent Button ( 3 in 1 button ) Press tablet detergent button when you use combined detergents that include salt and rinse aid. ket, upper basket and both baskets. If you have little amount of dishes inDE

If you have dishes only in the upper basket, pres the key ½ and select the position in which the upper lamp is il- luminated. Thus, washing up shall be done only on the upper basket of your machine. No dishes should certainly be availa- ble in the lower basket while using this feature. If you have dishes only in the lower basket, press the key ½ and select the position in which the lower lamp is illuminated. Thus, washing up shall be done only on the lower basket of your machine. In using this feature, make sure that there are no dishes in the upper basket. Note : If you have used an extra feature on the latest washing program, this feature will re- main active also on the next washing program. If you do not want to use this feature on the newly selected washing program, press the se- lected feature button again, and check that the lamp on the button goes off. Note: When you select an incompatible pro- gram with the half load button, a buzzer sound is heard which indicates that the selected op- tion is not compatible. 8.) Salt Lack Warning indicator In order to see whether softening salt in your machine is suffi cient or not, check salt lack warning light on the display.When salt light warning light starts coming on, you need to fi ll in the salt chamber. Rinse aid Lack Warning indicator In order to check that there is suffi cient rinse aid in your machine check rinse aid lack warning light on the display.When rinse aid warning light starts coming on, fi ll in rinse aid chamber. End of Program Indicator End of program indicator on the control panel turns on when the selected washing program is completed. Your machine also gives a buzzer sound for “5 times” when the program is com- pleted. salt rinse aid end salt rinse aid end

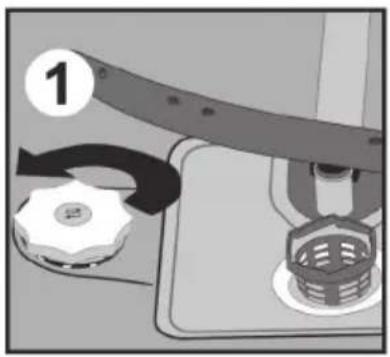

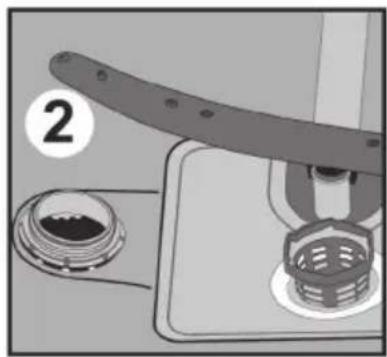

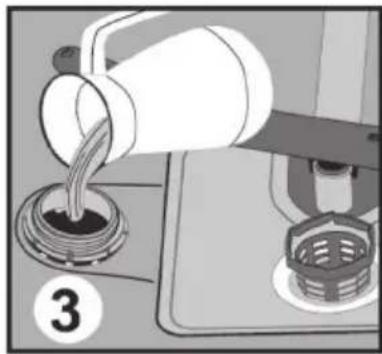

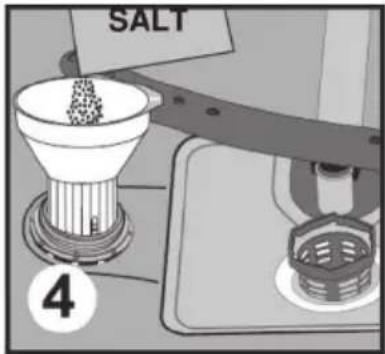

The importance of water decalcifi cation For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Other- wise, white lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine’s washing, dry- ing and shining performance. When water fl ows through the softener system, the ions form- ing the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the infl owing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used. Preparing the machine for use Filling with salt Use softener salt specifi cally produced for use in dishwashers. To put softener salt, fi rst remove the lower basket and then open the salt compartment cap by turning it counter clockwi- se.1 2 At fi rst fi ll the compartment with 2kg salt and water 3 at overfl owing level If available, using the funnel 4 provided will make fi lling easier, refi t the cap and close it.If the salt warning lamp on the control panel becomes on fi ll the salt compartment with salt again. Fill the salt compartment with water at fi rst use only. If you put a tablet into the salt compartment, do not fi ll the compartment completely. We recom- mend that you use smallgrained or powder softener salt. Do not put table salt into your machine. Otherwise, the function of the softener compartment may decrease over time. When you start your dishwasher, the salt compartment gets fi lled with water. Therefore, put the softener salt prior to starting your machine. This way, overfl owing salt gets immediately cleaned up through the wash operation. If you are not going to wash any dishes immediately after putting salt, then run a short washing program with an empty machine in order to avoid any damage ( to prevent corrosion )to your machine due to the salt overfl ow while fi lling in the salt container.DE

Testing strip The washing effectiveness of your machine de- pends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To fi nd out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available). Level 1 No lime Level 2 Very low lime content Level 3 Low lime content Level 4 Medium lime content Level 5 Lime content Level 6 High lime content Adjusting salt consumption Table of Water Hardness Level Settings Water German French Britisch Hardness Level Indicator hardness hardness hardness hardness level dH dF dE 1 0-5 0-9 0-6 L1 is seen on display 2 6-11 10-20 7-14 L2 is seen on display 3 12-17 21-30 15-21 L3 is seen on display 4 18-22 31-40 22-28 L4 is seen on display 5 23-31 41-55 29-39 L5 is seen on display 6 32-50 56-90 40-63 L6 is seen on display If the hardness of the water you use is above 90 dF (French hardness) or if you are using well water; you are recommended to use fi lter and water refi nement devices. NOTE: Hardness level is adjusted to level 3 as a factory setting. Adjust the water softener according to how hard your tap water is. Open the testing strip. Run water through your tap for 1 min. Keep the testing strip in water for

sec. Shake the testing strip after taking it out of water. Wait for 1 min. Make your machine’s water hardness setting according to the result obtained through the testing strip.48 Adjusting salt consumption After resetting your machine, press the program selection button and keep it pressed down. 3 Meanwhile, energise the machine by pressing the Power On/Off button. 1 Keep the program selection button pressed until “SL” disappears from the display. 3 Release the program selection button after “SL” disappears from the display. 3 Your machine displays the latest entered water hardness setting. Water hardness can be adjusted by the programme selection button 3 according to Table of Water Hardness Level Settings. After adjusting the water hardness level , press on/off button to save settings in memory. 1 program program program program program program program program salt rinse aid end

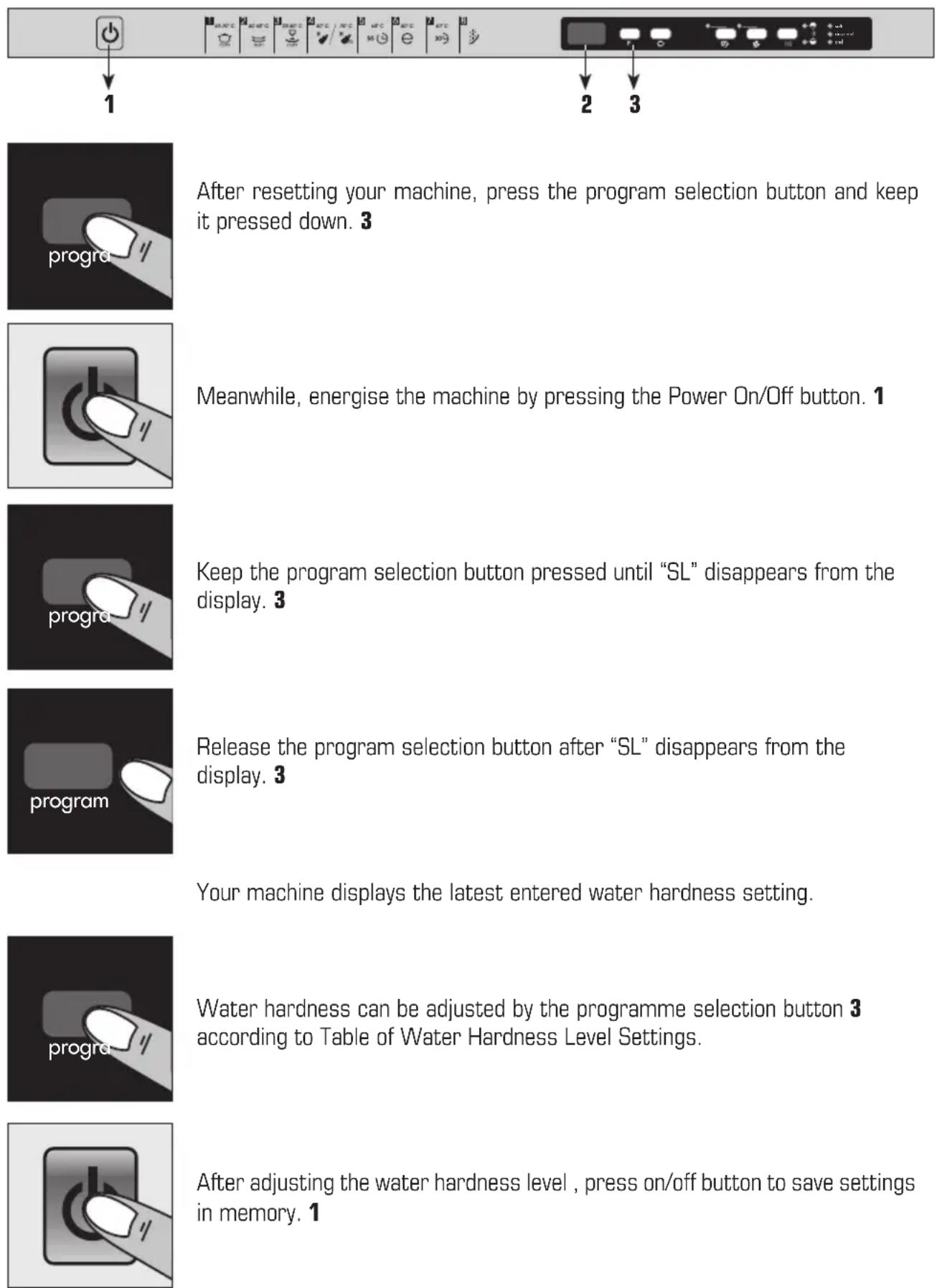

Adjust the water softener according to how hard your tap waterDE

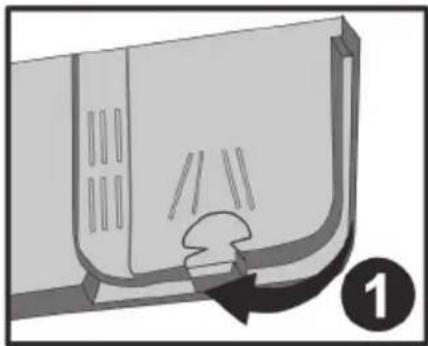

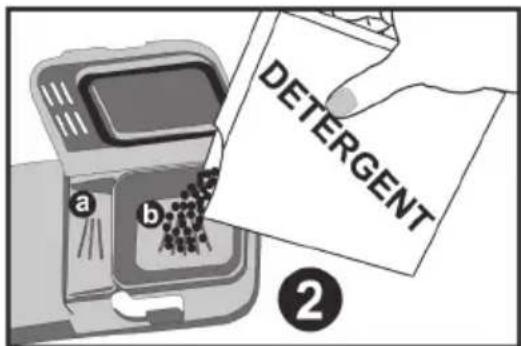

Detergent usage Use a detergent specifi cally designed for use in domestic dishwashers. You can nd powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your deter- gents in cool, dry places out of reach of your children. Do not fi ll detergent into the detergent com- partment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent. Should you need more information concerning the detergent you will use, contact detergent manufacturers directly. Filling the detergent compartment Push the latch to open the detergent container as shown in the image. 1 Detergent pod has level lines inside. It is possible to measure the right detergent amount using these lines. Detergent pod can take totally 40 cm

deter- gent. Open the dishwasher detergent and pour into the larger compartment b 25 cm

if your dish- es are heavily soiled or 15 cm

if they are less soiled 2 If your dishes have been kept dirty for a very long time, if there are dried food wastes on them, and if you have overly loaded the dish- washer, pour a 5 cm

detergent into the pre- wash compartment and start your machine. You may have to add more detergent into your machine, depending on the degree of soil and on the water hardness level in your area. Combined detergents Detergent manufacturers also produce com- bined detergents called “2 in 1”, “3 in 1” or “5 in 1” etc. “2 in 1” detergents contain detergent + salt or rinse aid. When using “2 in 1” detergents make sure to check the specifi cations of the tablet. Other tablet detergents contain detergent + rinse aid + salt + varlous extra functions. Generally, combined detergents produce suf- fi cient results under certain usage conditions only. Such detergents contain rinse aid and/or salt in preset amounts. Points to consider when using this type of prod- ucts:

• Always make sure to check the speci cations of the product you will use or whether or not it is a combined product.

• Check if the detergent used is appropriate for the hardness of mains water that ma- chine is appertaining to.

• Observe the instructions on packagings when using such products.

• If such detergents are in the form of tablets, never put them into the interior section or the cutlery basket of the dishwasher. Always put the tablets into the detergent compart- ment in the detergent dispenser.50

• They produce good results for certain types of usage only. If you are using this type of detergents, you need to contact the manu- facturers and fi nd out about the suitable con- ditions of use.

• When the conditions of use of such products and the machine settings are appropriate, they ensure savings in salt and/or rinse aid consumption.

• Contact the detergent manufacturers if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents. The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents. Recommended usage: If you are using a com- bined detergent, then add rinse agent into your machine ,switch the rinse agent settings into its lowest (1) position and active the tablet detergent button in order to obtain better re- sults.If the water hardness level is above level 4, then it is necessary to fi ll in the salt con- tainer with salt.t is not recommended to use combined detergents in fast programs.

Warning: Should any problem, which you have

not encountered before, arise with the use of this type of detergents, contact the detergent manufacturers directly. When you give up using combined detergents

• Fill the salt and rinse aid compartments.

• Adjust the water hardness setting to the highest position and run an empty-wash.

• Adjust the water hardness level.

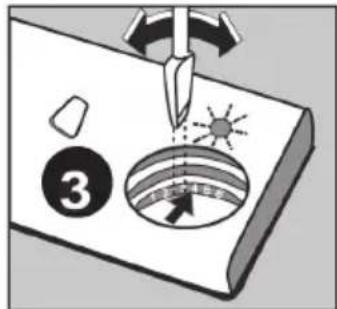

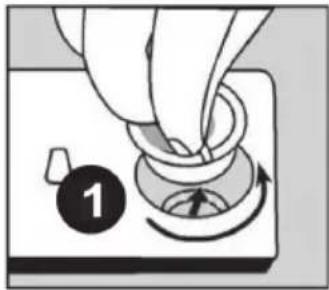

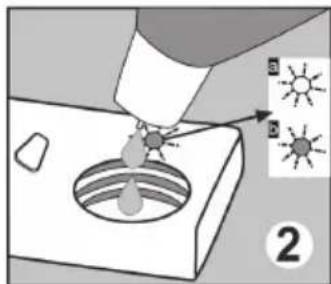

• Make the suitable rinse aid setting. Filling with rinse aid and making the setting Rinse aid is used to prevent the stay of white water drops, lime stains, white fi lm strip- shaped stains that may form on the dishes, as well as to increase the drying performance. Contrary to the popular beliefs, it is used not only for obtaining shinier dishes but also for obtaining suffi ciently dried dishes. For this reason, care should be taken that there is ad- equate amount of rinse aid in the rinse aid com- partment and only polishing material produced for use at dishwashers should be used. If the rinse aid lamp on the control panel becomes on fi ll the rinse aid compart- ment with rinse. To put rinse aid, re- move the rinse aid compartment cap by turning it. 1 Fill the rinse aid compartment with rinse aid until the rinse aid level indicator becomes dark; 2 refi t the cap and close it by turn- ing it in a way that the nails will corre- spond to one anoth- er. By checking the rinse aid level indica- tor on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator b means that there is rinse aid in the compartment, while a light indicator a shows that you need to fi ll the compartment with rinse aid. The rinse aid level adjuster can be set to a posi- tion between 1 and 6. Factory setting for rinse aid is the position 3. You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain is left when wiped by hand. 3DE

Warning: Use only those rinse aid materials

which are allowed for use in the machine. As rinse aid residues left as a result of overfl owing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. If you properly place your dishes into the ma- chine, you will be using it in the best way in terms of energy consumption, washing and drying performance. There are two separate baskets for you to load your dishes into your machine. You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets. The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they cannot remain steady and may receive damage. It is more appropriate to locate the thin narrow parts into the middle sections of baskets. You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result. To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the bas- kets. Loading your dishwasher Top basket Height Adjustable Rack These racks are designed to increase the ca- pacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this fea- ture, you can place different sizes of glasses under these racks. Thanks to height adjust- ment plastics mounted on the basket, you can use your racks in 3 different heights. In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the revolution of propeller.

Warning: Place your dishes into your machine

in a way that they will not prevent the upper and lower spray arms from spinning.52 Top basket height adjustment while it is full Basket height adjustment mechanism on the top basket of your machine is designed to let you ad- just the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to upper position in factory settings. In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it. In loaded basket adjustment mechanism, make sure that both sides are in the same position (up or down).DE

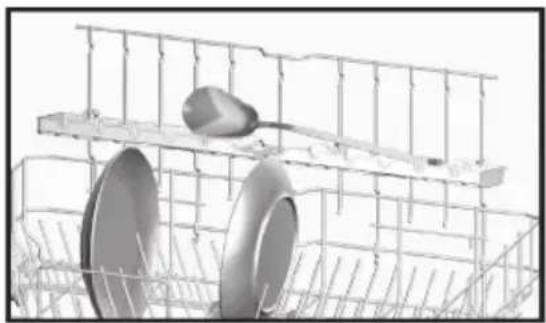

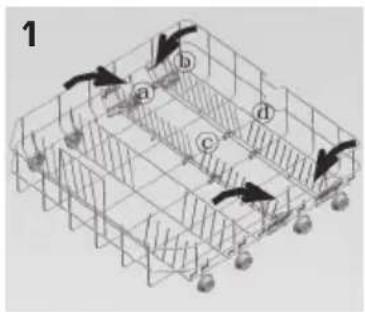

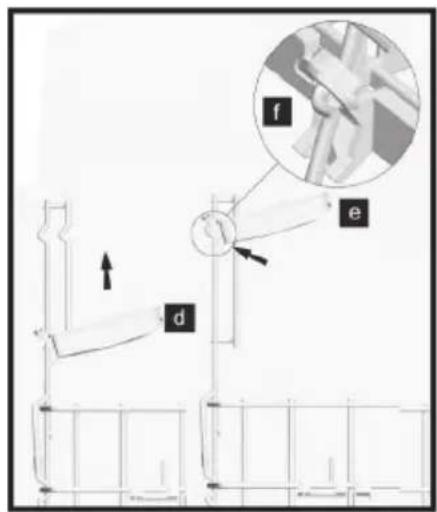

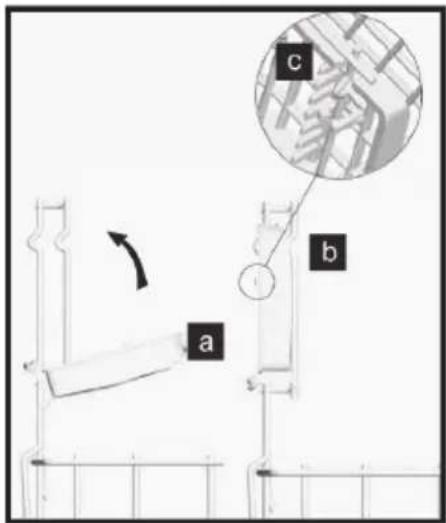

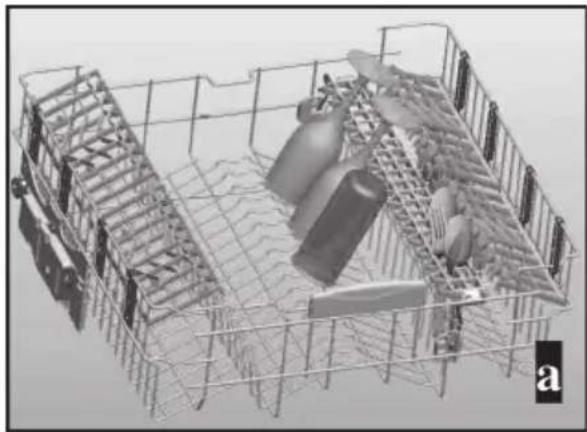

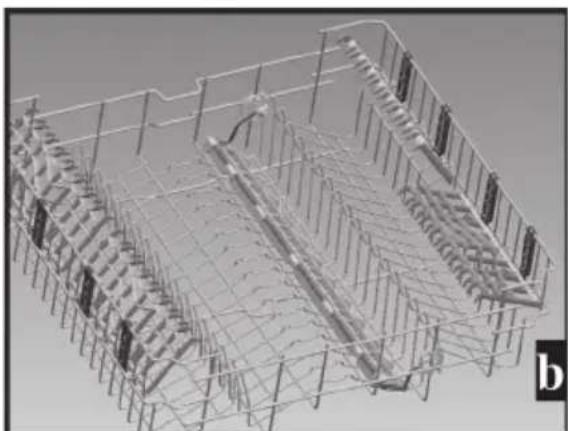

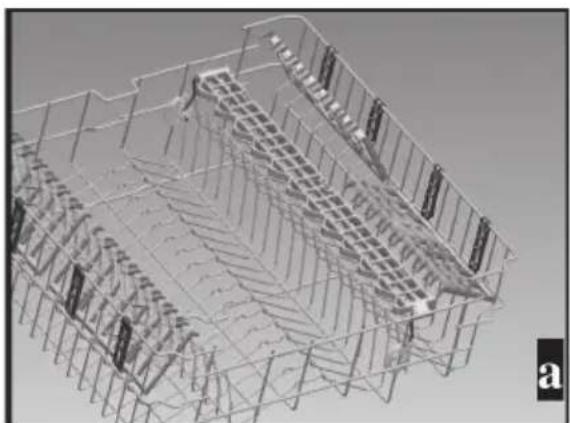

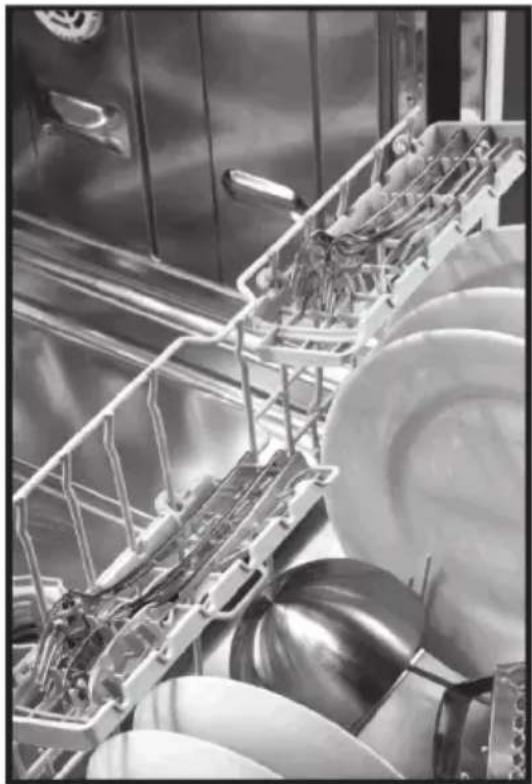

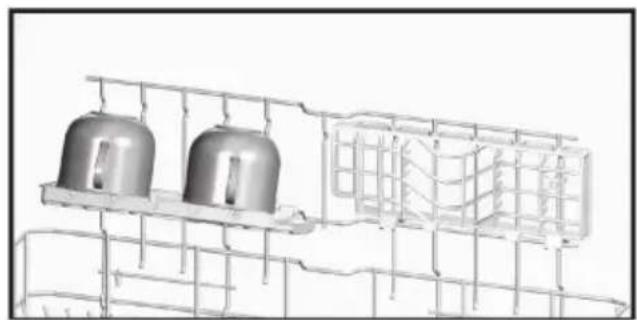

Spoon rack It allows your long-stemmed goblets to be washed safely as well as it is a part to provide your spoons and forks put easily to spoon rack. Do not lean your long-stemmed goblets and glasses against each other but spoon rack, thus during the washing it is ensured your glasses and goblets stay in place and a safe washing by preventing contact each other. There are 4 different positions for your spoon rack. According to the status of your goblets and glass- es, you can set your spoon rack to the positions number 1 and 2. Use it for your spoons and forks while it was in position 1. If you do not want to use spoon rack, you can bring it to the positions 3 or 4, so that you can form larger-volume areas in the upper basket b.54 Lower Basket Folding Racks Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

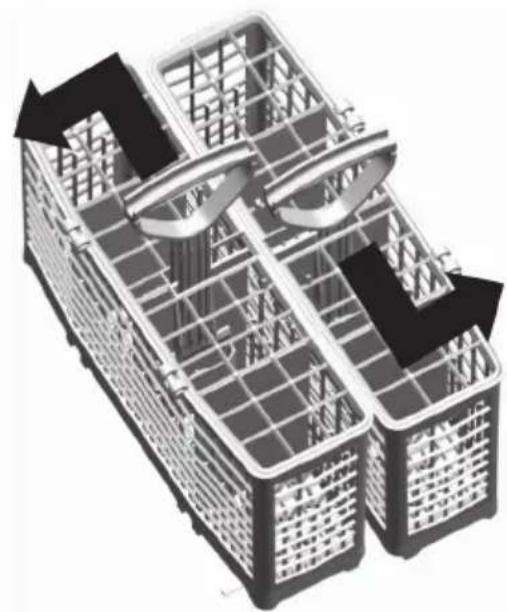

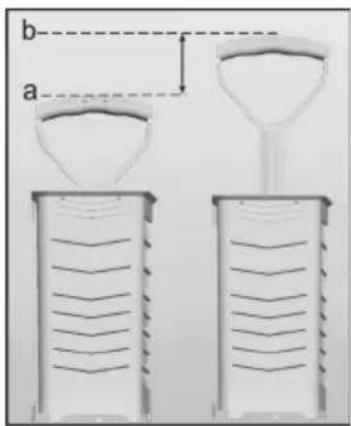

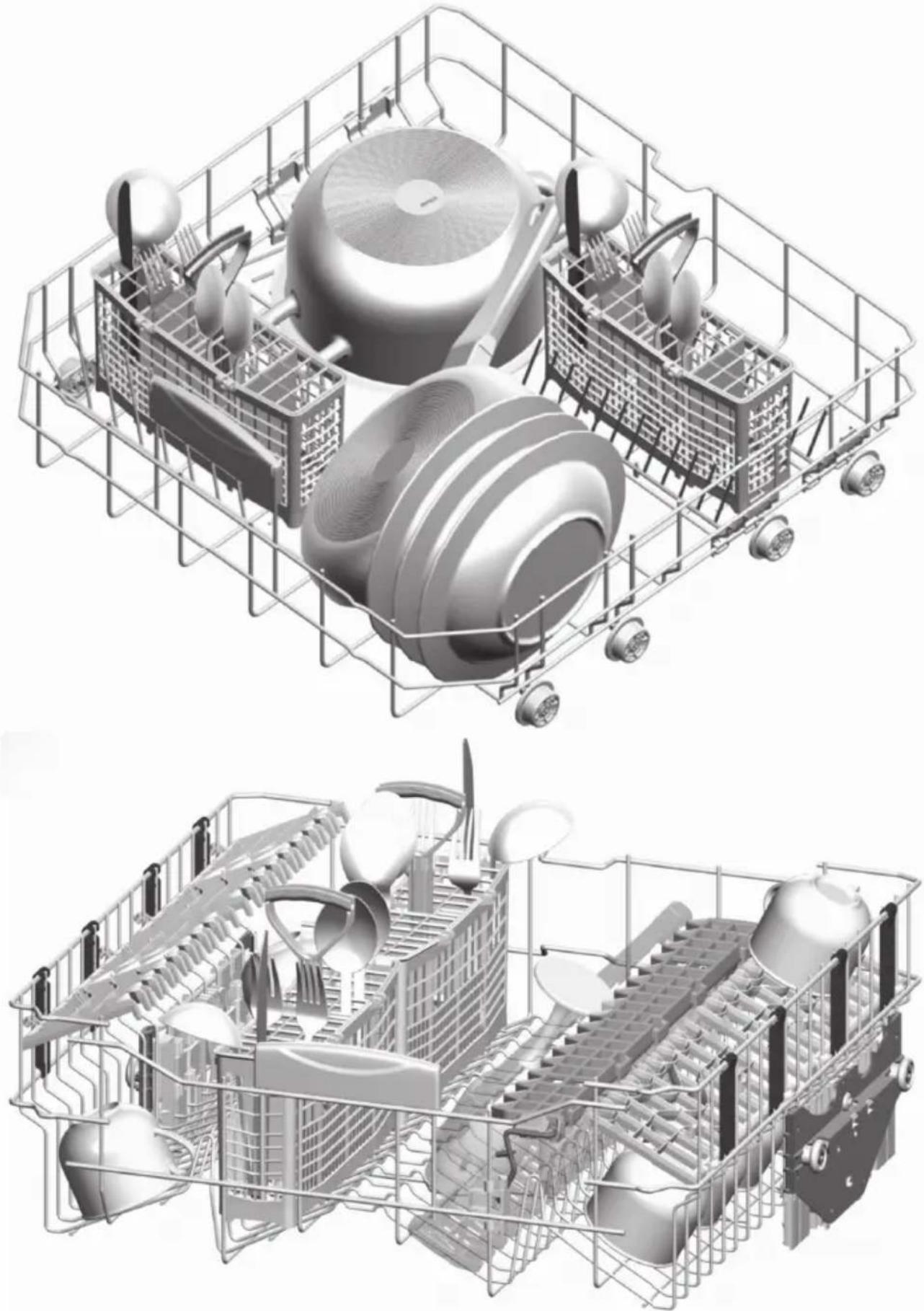

Modular fork spoon According to the number of your dirty forks, spoons and knives, you can separate your basket of modular fork and spoon into two separate parts. Hold your basket from both sides to separate it and you can separate your basket into two separate parts by moving the one side forward while moving the other side back. To combine your basket back to the same, make the inverse of the same movement. M odular basket handle has a feature of adjustable height. Once you have separated your modular basket into two parts, you can place your upper basket. Depending on the sub-top position of your upper basket, you can use handle level of the modular basket by bringing to the positions a or b.DE

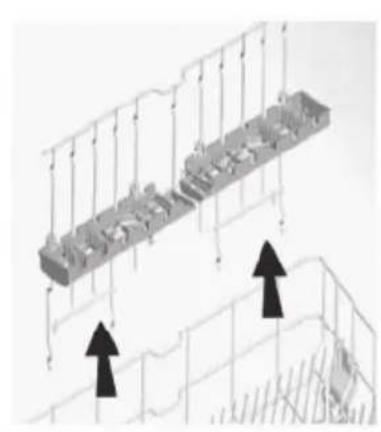

By placing your modular fork spoon basket in different places at upper or lower basket, you can form appropriate fi elds for your other dishes. Below you can see several recommended settlements.56 Multi-functional Rack System Multi-functional rack system is located in the bottom basket of your machine. You can easily wash spare glasses or dishes like long ladles, bread knife with the help of this accesory. Please fold the racks by putting them from a position to b position, in order to put the racks in the multi- functional rack system into the closed position. Please make sure that claws on the rack are fi t on the cord c. You can put the rack into the open position by following the steps in a reverse manner. Your racks in the multi-purpose rack system has two positions: low position d and upper position e. This way you can attain larger space at the bottom part of your machine. Please put your racks into e position from d position to e, in order to put your racks to the upper position. Please fi x the racks to their places f on the cord. Please make sure that the prop does not contact the dishes you put on the racks.DE

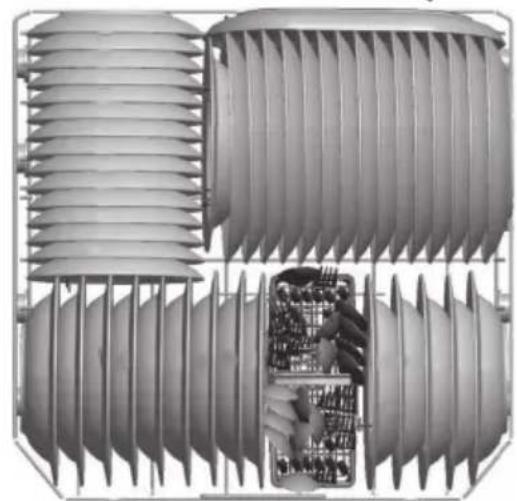

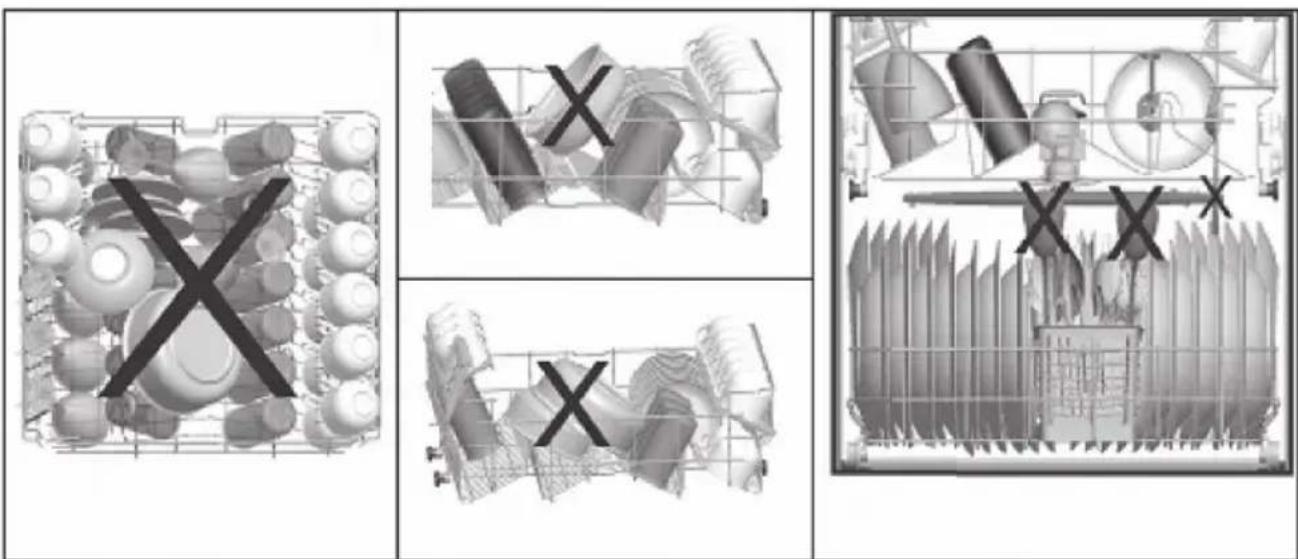

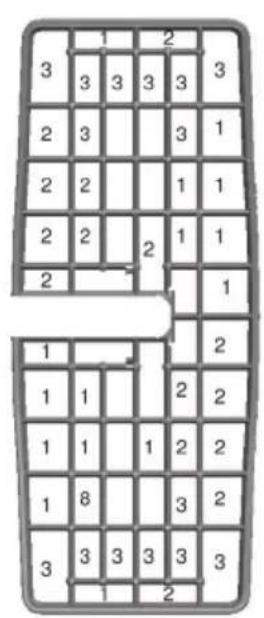

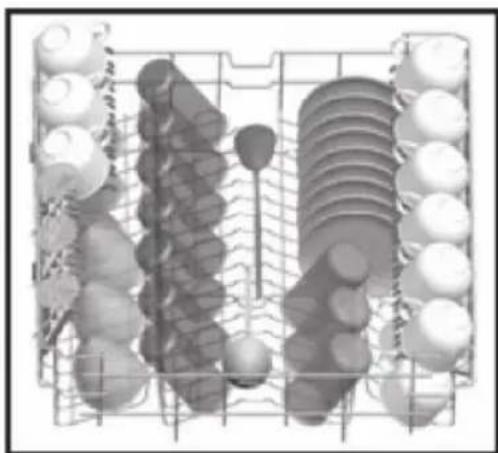

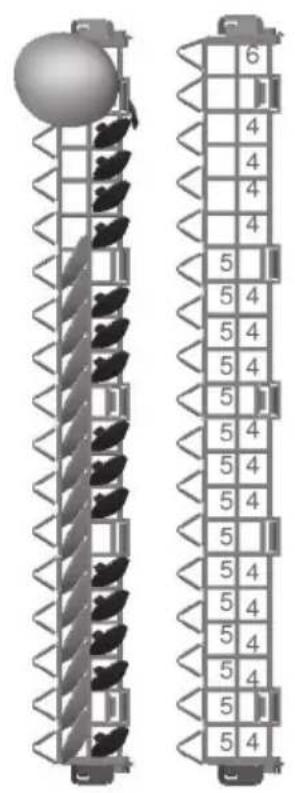

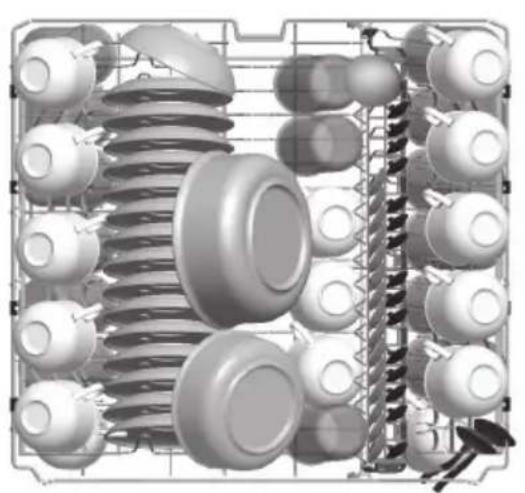

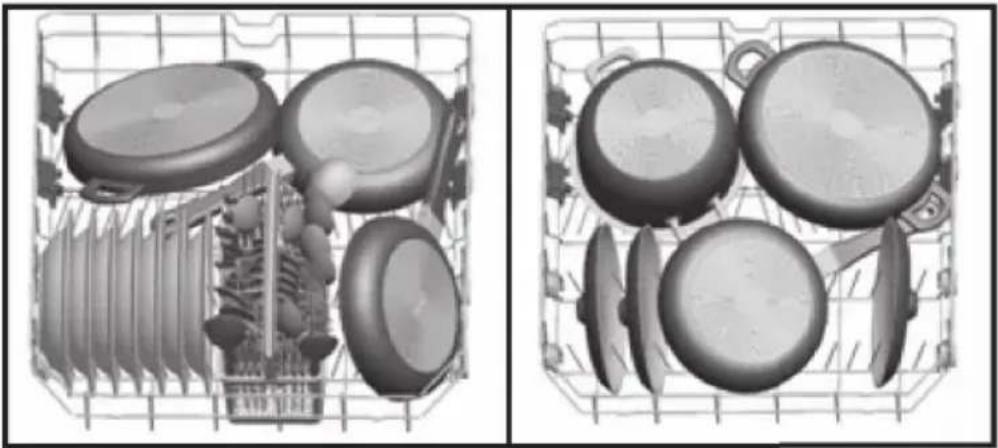

Lower Basket Alternative basket loads Top basket Faulty loads58 Standard loading and test data Capacity: Upper and lower baskets: 15 place settings. The upper basket should be adjusted to lower position. Cups should be placed on to the dish rack pins. Detergent / Rinse aid 7 + 28 cm

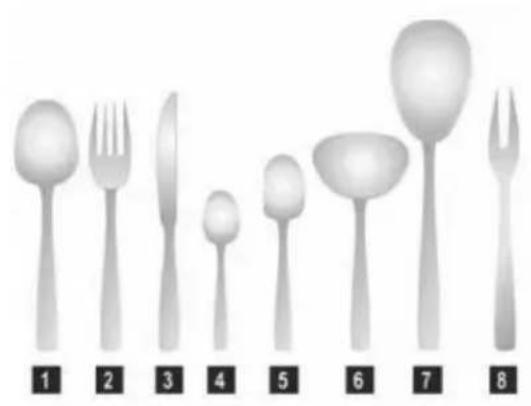

, in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 4 Programme test Economic 50°C, in accordance with EN 50242 (international norms)DE

Warning: Short programs do not include a drying step.

The values declared above are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product’s use and environment (network tension, water pressure, water input temperature and environment temperature). Programme No Auto Delicate Auto Normal Auto Intensive Hygiene 55’60°C Economic (reference) Quick Rinse Extra Hygiene (Prewash+Hygiene 60°C) Programme names and temperatures 60-70°C (P1) 50-60°C (P2) 30-50°C(P3) 60°C (P4) 60°C (P5) 50°C (P6) 40°C (P7) - (P8 ) 70°C Type of food waste Automatically adjust the washing time with temperature and amount of water by determining the soil level of dishes Dishes with dense dirt waiting for a long time or requiring hygienic washing soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods coffee,milk, tea, cold meats, vegetables, not kept for long coffee, milk, tea, cold meats, vegetables, not kept for long Pre-wash tor ise and loosen residue awating full load then select a programme Dishes with dense dirt waiting for a long time or requiring hygienic washing. Level of soil high high small high medium medium small high Detergent amount A: 25 cm

Prewash Prewash Prewash Prewash 65°C wash 50°C wash 40°C wash End Cold rinse Cold rinse Cold rinse Hot rinse Hot rinse Hot rinse Dry Dry Dry End End End Programme No Auto Delicate Auto Normal Auto Intensive Hygiene 55’60°C Economic (reference) Quick Rinse Extra Hygiene (Prewash+Hygiene 60°C) Programme names and temperatures 60-70°C (P1) 50-60°C (P2) 30-50°C(P3) 60°C (P4) 60°C (P5) 50°C (P6) 40°C (P7) - (P8 ) 70°C Type of food waste Automatically adjust the washing time with temperature and amount of water by determining the soil level of dishes Dishes with dense dirt waiting for a long time or requiring hygienic washing soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods coffee,milk, tea, cold meats, vegetables, not kept for long coffee, milk, tea, cold meats, vegetables, not kept for long Pre-wash tor ise and loosen residue awating full load then select a programme Dishes with dense dirt waiting for a long time or requiring hygienic washing. Level of soil high high small high medium medium small high Detergent amount A: 25 cm

When you select a program with the program selection button,the program you select ( P1, P2, etc) appears on the program display and the end of program indicator turns off. Machine is energized when the On/Off button is pressed, two dashes appear in the program display and the end of program indicator turns on.

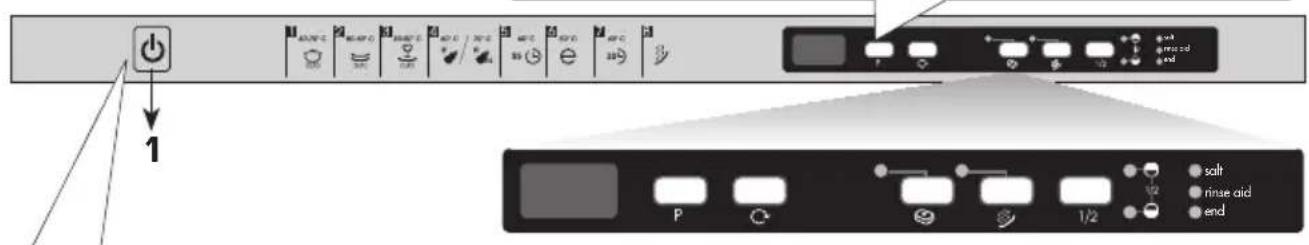

1. Press the Power On/Off key.

2. Select the program suiting your dishes via the Program Selection button.

3. If you prefer or wish to prefer, you can choose additional function.

4. Close door. The program starts automatically.

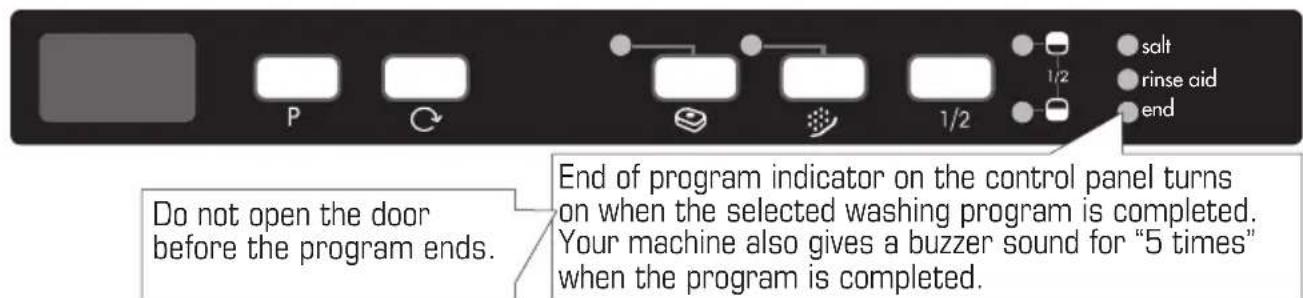

salt rinse aid end salt rinse aid end End of program indicator on the control panel turns on when the selected washing program is completed. Your machine also gives a buzzer sound for “5 times” when the program is completed. Open the door and select a new program by pressing the program selection button. Do not open the door before the program ends. After closing the door, the new program started will resume the course of the old program. If you would like to change programs while a washing program is continuing. Note: When the door of the machine is opened in order to stop the washing program before it is completed first open the door slightly in order to avoid water spillage. Note: If you decide not to start to machine after selecting the program, just press the on/off button. Your machine will become ready for the new program selection when you press on/off button again. You can select the new program by pressing the program selection button.DE

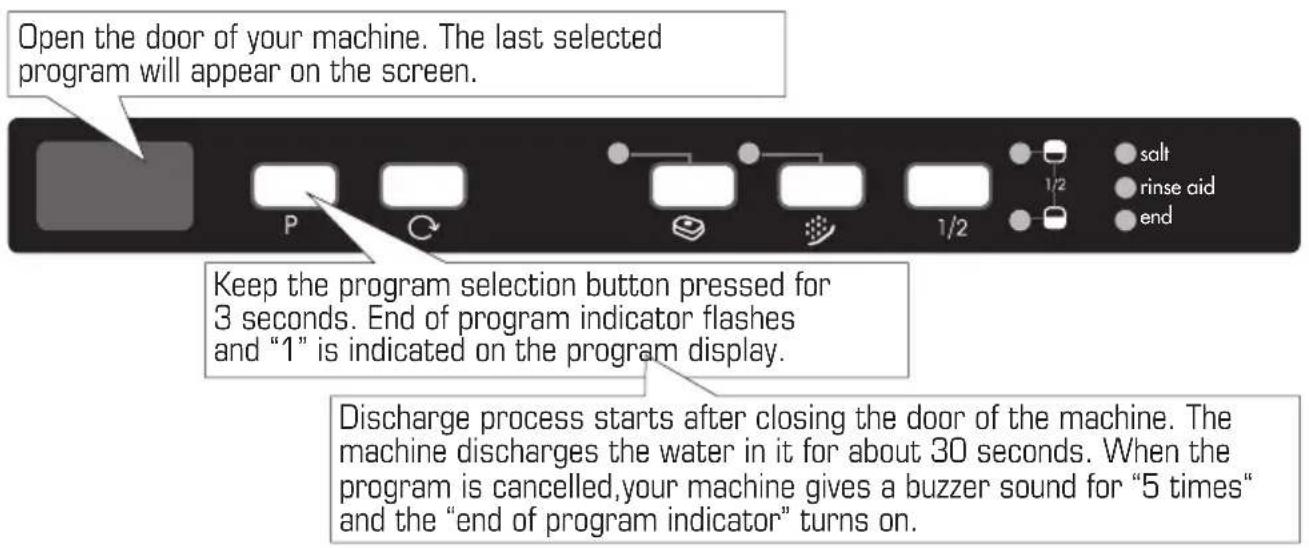

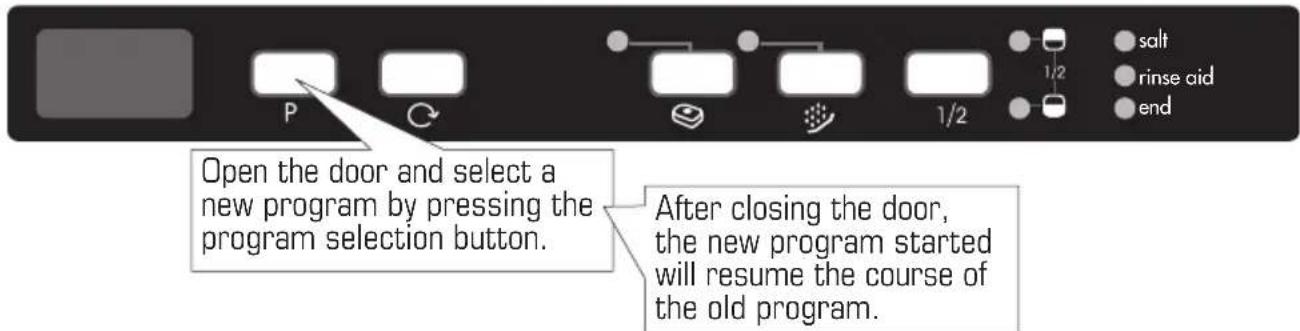

Changing a programme with resetting salt rinse aid end If you would like to cancel a program while a washing program is resumed. Keep the program selection button pressed for 3 seconds. End of program indicator flashes and “1” is indicated on the program display. Discharge process starts after closing the door of the machine. The machine discharges the water in it for about 30 seconds. When the program is cancelled,your machine gives a buzzer sound for “5 times“ and the “end of program indicator” turns on. Note: When the door of the machine is opened in order to stop the washing program before it is completed first open the door slightly in order to avoid water spillage. Switching the machine off Note: After the buzzer sound which indicates the end of the program when the washing program comes to an end (end indicator light is on), you can leave the door of your machine ajar in order to hasten the drying. Note: If the machine door opens during washing or the power is cut off, the machine will go on to the program in case the door is shut or the power is back. P1 P2 P3 P4 P5

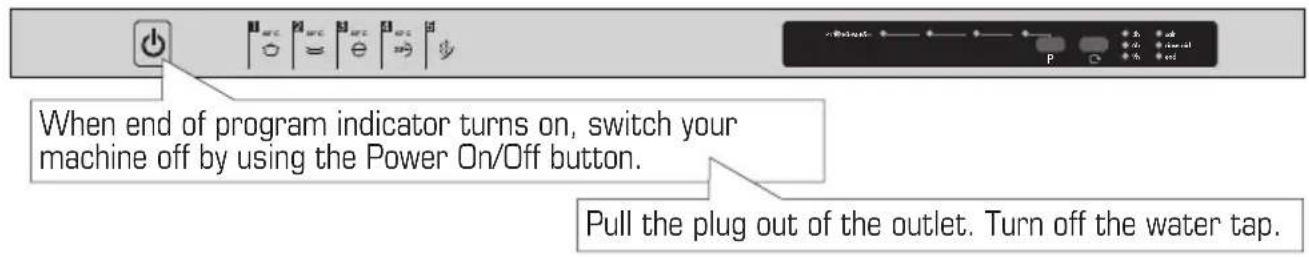

When end of program indicator turns on, switch your machine off by using the Power On/Off button. Pull the plug out of the outlet. Turn off the water tap. Open the door of your machine. The last selected program will appear on the screen.64 Maintenance and cleaning Cleaning the machine in regular intervals pro- longs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; - Fill the detergent compartment without load- ing any dishes into the machine, select a pro- gramme that runs at high temperature, and start the machine. In case of insuffi ciency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.) Cleaning the seals in the machine door, -To clean any accumulated residues in the door seals, wipe the seals regularly by using a damp- ened cloth. Cleaning the machine, Clean the fi lters and spray arms at least once a month. Unplug your machine and turn off its tap before starting the cleaning. Do not use hard materials when cleaning your machine. Wipe with a fi ne cleaning material and a damp- ened cloth. Filters Check if any food wastes have remained on the coarse and fi ne fi lters. If any food wastes are left, remove the fi lters and clean them thoroughly under the water tap. a Micro Filter b Coarse Filter c Metal/Plastic Filter To remove and clean the fi lter combination, turn it counter clockwise and take it out by lifting upwards. 1 Pull and remove the metal/plastic fi lter. 3 Then pull the coarse fi lter out of the micro fi l t e r . 2 Rinse it with lots of water under the tap. Refi t the metal/plastic fi lter. Insert the coarse fi lter into the micro fi lter in a way that the marks will correspond to one another. Attach micro fi lter into the metal/plastic fi lter and turn to the direction of arrow and it is locked when the arrow on micro fi lter can be seen from across. 4

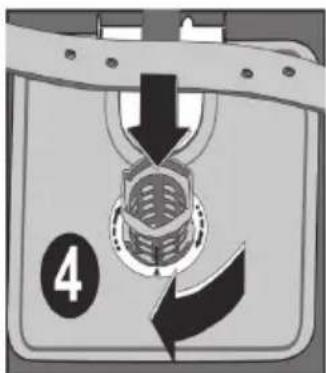

• Never use your dishwasher without any lter.

• Incorrect tting of the lter will reduce the washing effectiveness.

• Clean lters are very important in terms of the proper running of the machine.DE

Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. Be sure that the nut is perfectly tightened when refi tting the upper spray arm. Hose fi lter Water is prevented by the inlet hose fi lter so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. Check the fi lter and the hose from time to time and clean them if necessary. To clean the fi lter, fi rst turn off your tap and then remove the hose. After removing the fi lter from the hose, clean it under the tap. Insert the cleaned fi lter back into its place inside the hose. Refi t the hose.66 Failure codes and what to do in case of failure If the programme won’t start

• Check if the plug is connected.

• Check your indoor fuses.

• Be sure that the water inlet tap is turned on.

• Be sure that you have closed the machine door.

• Be sure that you switched off the machine by pressing the Power On / Off button.

• Be sure that the water inlet lter and the machine filters are not clogged. If detergent residues are left in the detergent compartment Detergent has been added when the detergent compartment was wet. If water is left inside the machine at the end of the programme

• The water drain hose is clogged or twisted.

• The lters are clogged.

• The programme is not nished yet. If the machine stops during a wash operation

• Water inlet failure.

• Program can be on standby mode. If shaking and hitting noises are heard during a wash operation

• Dishes placed incorrectly.

• Spray arm hitting the dishes.

ERROR CODE ERROR DESCRIPTION CONTROL

F5 Inadequate water supply • Make sure the water input tap is totally open and that there is no water cut.

• Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.

• Restart your machine, contact the service if the error resumes. F3 Error of continuous water input • Close the tap.

• Contact the service. F2 The waste water in the machine cannot be discharged.

• Water discharge hose is clogged.

• The lters of your machine might be clogged.

• Power off-on your machine and activate the program cancellation command.

• If the error continues, contact the service. F8 Heater error Contact the service. F1 Alarm is active against water overflow

• Power off your machine and close the tap.

• Contact the service. FE Faulty electronic card • Contact the service. F7 Overheating error (tempera- ture in the machine is too high)

• Contact the service. F9 Divisor position error • Contact the service. F6 Faulty heater sensor • Contact the service.DE

If there are partial food wastes left on the dishes

• Dishes placed incorrectly into the machine, sprayed water did not reach related places.

• Basket overly loaded.

• Dishes leaning against one another.

• Very small amount of detergent added.

• An unsuitable, rather weak wash programme selected.

• Spray arm clogged with food wastes.

• Water drain pump clogged. If there are whitish stains on the dishes

• A very small amount of detergent is being used.

• Rinse aid dosage setting at a very low level.

• No special salt is being used despite the high degree of water hardness.

• Water softener system setting is at a very low level.

• Salt compartment cap not closed well.

• A detergent without phospate used; try one that contains phosphate. If the dishes won’t dry up

• A programme without a dry operation selected.

• Rinse aid dosage set too low

• Dishes unloaded too fast. If there are rust stains on the dishes

• Stainless-steel quality of the dishes washed is insufficient.

• High rate of salt in the wash water.

• Salt compartment cap not closed well.

• Too much salt spilt into the sides and into the machine while filling it with salt.

• Unhealthy mains grounding. Door is not opened / closed properly;

• Not proper weight wooden part inserted on the door. (Follow the weight given in the Assembly manuel)

• The tensile of the door spring not adjusted properly. Adjust it according to the Assembly manuel. Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above.68 Practical and useful information

1. Whenever you will not be operating your ma-

• Unplug the machine and then turn the water off.

• Leave the door slightly ajar in order to pre- vent the formation of unpleasant smells.

• Keep the machine interior clean.

2. Eliminating water droplets

• Wash the dishes with the intensive pro- gramme.

• Take all of the metal containers in the ma- chine out.

• Do not add detergent

3. If you properly place your dishes into the

machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

4. Clean all rough waste before you place dirty

dishes to the machine.

5. Operate the machine after it is completely

7. Observe program information and average

consumption values table when selecting a program.

8. Since the machine will reach high tempera-

tures, it should not be mounted near refrig- erator.

9. If the appliance is located in a place where

the risk of freezing exists, you must com- pletely drain the water that has remained in the machine. Turn off the water tap, discon- nect the water inlet hose from the tap and allow the interior water to drain.• The materials of packing are ecological and recyclable.

• The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.

• Don’t throw your appliance with the house- hold refuses

• Get in touch with the waste collection centre of your commune that is adapted to the recy- cling of the household appliances. Should you wish to discard the machine for any reason, please comply with the following: Take the machine to the local authorized com- pany that collects discarded household appli- ances. Correct processing enable valuable ma- terials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and re- move it together with the plug. This machine has been accorded the appropriate mark in ac- cordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union. Environmental RegulationsB O R E T T I B.V. De Dollard 17 1454 AT Watergang T +31(0)20-4363439 F +31(0)20-4361326 S 0900-2352673 (service) E info@boretti.com The Netherlands N.V. BORETTI S.A. Rupelweg 16 2850 Boom T +32(0)3-4508180 F +32(0)3-4586847 E info@boretti.be Belgium
