USER MANUAL WSLS1500 GE APPLIANCES

• Owner’s Manual & Installation Instructions Operating Instructions Control and Indicator Settings p. 5
• , 6 Loading and Using the Washer p. 7
• , 8 Special Washer Features WSLP1500 WSLS1500 Consumer Support p. 4
• Back Cover Ownership Registration for Customers in Canada Only p. 21
• , 22 Warranty for Customers in Canada p. 24
• Warranty for Customers in the U.S.A Write the model and serial numbers here: p. 23

You can find them on a label on the back of the washer. 175D1807P628 49-90361-1 12-08 JR WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. The instructions in this manual and all other literature included with this washer are not meant to cover every possible condition and situation that may occur. Good, safe practices and caution MUST be applied when installing, operating and maintaining any appliance. Operating Instructions Safety Instructions IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances. If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process. PROPER INSTALLATION This washer must be properly installed and located in accordance with the Installation Instructions before it is used. Installation Instructions ■ Install or store where it will not be exposed to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty. ■ Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

YOUR LAUNDRY AREA

■ Keep the area underneath and around your Consumer Support Troubleshooting Tips appliances free of combustible materials such as lint, paper, rags and chemicals. ■ Do not leave the washer door open. An open door could entice children to hang on the door or crawl inside the washer.

■ Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.

WHEN USING THE WASHER

■ Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the door. ■ To minimize the possibility of electric shock, Use this ■ Do not mix chlorine bleach with ammonia appliance or acids such as vinegar and/or rust remover. only for its Mixing different chemicals can produce a toxic intended gas which may cause death. purpose as described in ■ Do not wash or dry articles that have been ■ Never attempt to operate this appliance cleaned in, washed in, soaked in or spotted this Owner’s if it is damaged, malfunctioning, partially with combustible or explosive substances (such as Manual. disassembled, or has missing or broken parts, wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation. including a damaged cord or plug. ■ The laundry process can reduce the flame Operating Instructions unplug this appliance from the power supply or disconnect the washer at the building’s distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning. NOTE: Pressing the power button does NOT disconnect the appliance from the power supply. Safety Instructions ge.com retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer’s wash and care instructions. ■ Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; GE recommends changing the hoses every 5 years. this appliance unless specifically recommended in this Owner’s Manual, or in published user-repair instructions that you understand and have the skills to carry out. ■ Do not tamper with controls. Troubleshooting Tips ■ Before discarding a washer, or removing it ■ Do not attempt to repair or replace any part of Installation Instructions

WHEN NOT IN USE

from service, remove the washer door to prevent children from hiding inside. READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Before starting the washer:

• Load the laundry in the washer.

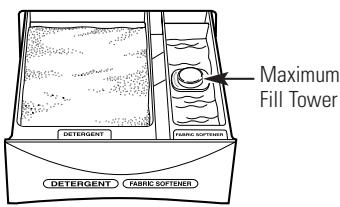

• Add the detergent and fabric softener to the dispenser drawer. Detergent and Fabric Softener Dispenser Drawer Maximum Fill Tower Operating Instructions Safety Instructions Special washer features. The detergent and fabric softener dispensers will automatically release their contents at the proper time during the cycle. To Use the Detergent Dispenser: Add measured detergent to the dispenser. Make sure detergent is spread evenly and is level. To Use the Fabric Softener Dispenser: Use only liquid fabric softener. Pour into dispenser, using amount recommended on package. ■ Do not fill any higher than the top of the clothes. It may stain them. Cleaning the Detergent and Fabric Softener Dispenser Drawer Installation Instructions

1. Remove the drawer by opening it fully

then tilting the front of the door down. Pull out.

2. Rinse the drawer with water. If necessary

use a soft cloth to wipe off any debris.

3. Line up the drawer with the opening and

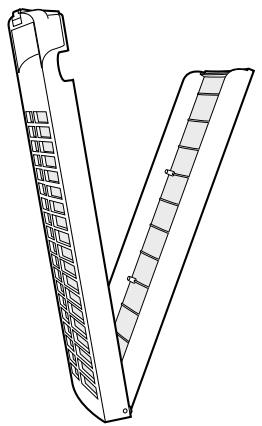

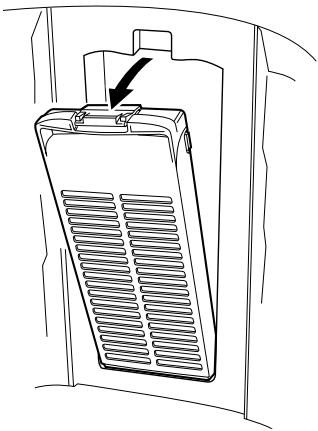

push the dispenser drawer straight in. Lint Filter Troubleshooting Tips Clean the lint filter inside the wall of the wash basket once a week for best filtering results. To remove: Press the tab at the top of the filter and pull out. Consumer Support To clean: Open the filter. Clean the filter with a toothbrush.

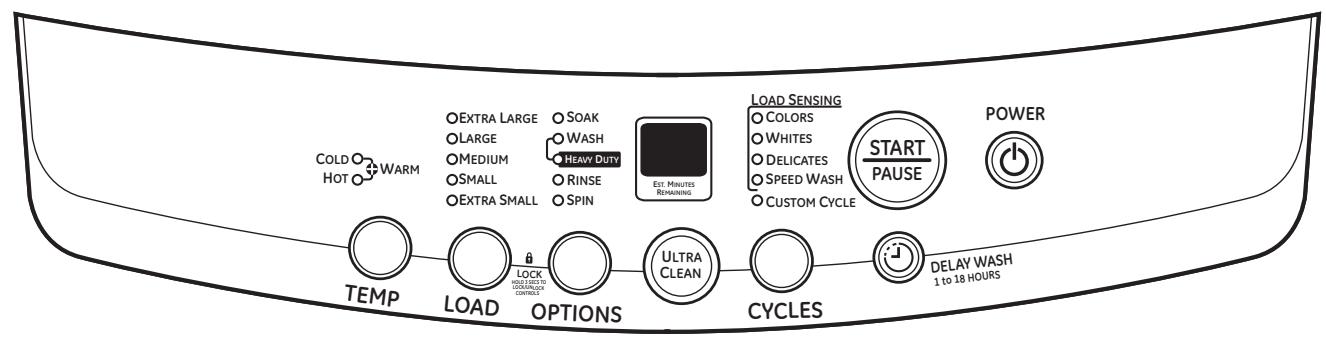

COLD HOT WARM LOAD SENSING COLORS WHITES DELICATES SPEED WASH CUSTOM CYCLE

HOLD 3 SECS TO

LOCK/UNLOCK CONTROLS OPTIONS POWER START PAUSE DELAY WURAS

1 to 18 HO Operating Instructions TEMP Before starting the washer:

• Load the laundry in the washer.
• Add the detergent and fabric softener to the dispenser drawer. START PAUSE Safety Instructions About the control and indicator settings. To Use Automatic One-Touch Washing The LOAD SENSING feature automatically senses the size of your load, fills with the appropriate amount of water, and calculates the amount of wash time required to complete the cycle. Installation Instructions NOTE: When using the LOAD SENSING feature, it is normal for the pulsator to rotate before water fills in the tub. To choose the automatic LOAD SENSING feature, press POWER ON/OFF. The COLORS indicator light will light up automatically unless you have selected one of the other LOAD SENSING cycles such as WHITES, DELICATES, SPEED WASH, CUSTOM CYCLE or ULTRA CLEAN. Then simply press START/PAUSE. To Choose Your Own Cycle Selections

POWER ON/OFF

Press the POWER ON/OFF button to turn on the control panel.

WASH OPTIONS Choose the wash options you would like to include in the cycle. Press the WASH OPTIONS button until all the options you want to include are lit. More than one option can be selected. Soak+Wash+Heavy Duty+Rinse+Spin COLORS

CUSTOM CYCLE ULTRA CLEAN LOAD SIZE The water level should just cover the clothes. Adjust the load size accordingly. Loosely load clothes no higher than the top row of holes in the washer basket.

WASH CYCLE These wash cycles control the length of the washing process. The chart below will help match the WASH CYCLE setting to your specific laundry needs. When a cycle is selected, the automatic temperature that the machine defaults to can be changed to whatever temperature you desire. Operating Instructions Safety Instructions About the control and indicator settings. Default Wash/Rinse Temperatures COLORS For easy care and wrinkle-resistant items. WARM / COLD WHITES For heavy to lightly soiled cotton, household linens, towels, work and play clothes. HOT / COLD Installation Instructions DELICATES For lingerie and delicate fabrics with light to normal soils. SPEED For one or two lightly soiled items WASH that are needed quickly. WARM / COLD CUSTOM Manually selected options of water temperature, load size, and wash options saved for future uses. WARM / COLD ULTRA Maximizes detergent efficiency by adding CLEAN water in steps and slowly diluting the detergent to the standard level.

COLD / COLD WARM / COLD

TEMP WASH/RINSE

Troubleshooting Tips Select the water temperature for the wash and rinse cycles. Always follow fabric manufacturer’s care label or instructions when laundering. NOTE FOR PORTABLE MODELS: When using a one-faucet connection, adjust the water flow mix and water temperature at the faucet.

START/PAUSE Press the START/PAUSE button to start the wash cycle.

EST. MINUTES REMAINING

Displays the time remaining in the wash cycle. It will also display Status Indicators. See Troubleshooting Tips. Consumer Support NOTE: When the cycle is complete the control panel will turn off automatically.

Always follow fabric manufacturer’s care label when laundering. ge.com Sorting Wash Loads Colors Soil Fabric Lint Whites Heavy Delicates Lint Producers Lights Normal Easy Care Lint Collectors Darks Light Sturdy Cottons Operating Instructions Proper Use of Detergent Add detergent and fabric softener before adding clothes so that the detergent can work effectively. Using too little or too much detergent is a common cause of laundry problems. Use less detergent if you have soft water, a smaller load or a lightly soiled load. Safety Instructions Loading and using the washer. GE recommends the use of High Efficiency detergents. HE detergents are formulated to work with low water wash and rinse systems. HE detergents reduce the oversudsing problems commonly associated with regular detergents. Loading the Washer ■ Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.). ■ When the lid is up, a signal will sound and “Lo” will appear in the display. The washer will not agitate with the lid up. Wash Basket: Leave the lid open after washing to allow moisture to evaporate. If you want to clean the basket use a clean, soft cloth dampened with liquid detergent, then rinse. (Do not use harsh or gritty cleaners.) Fill Hoses: Hoses connecting washer to faucet should be replaced every 5 years. Troubleshooting Tips Care and Cleaning of the Washer Installation Instructions Load dry items loosely, no higher than the top row of holes in the washer tub. When loading wet items make sure you set the load/water level high enough to allow the items to move freely. Water level should just cover the clothes. To add items after washer has started, open the lid and add the additional items. Close the lid. Washer will start automatically. Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing. Exterior: Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects. Consumer Support

Fabric Care Labels Below are fabric care label “symbols” that affect the clothing you will be laundering. WASH LABELS Machine wash cycle Operating Instructions Safety Instructions Loading and using the washer. Water temperature Permanent Press/ wrinkle resistant Gentle/ delicate Hot (50°C/120°F) Warm (40°C/105°F) Permanent Press/ wrinkle resistant Gentle/ delicate High Medium Low No heat/air Do not tumble dry Do not dry (used with do not wash) Heat setting Special instructions Troubleshooting Tips Consumer Support Normal

Line dry/ hang to dry Drip dry Dry flat In the shade Installation Instructions Washers WSLP1500 and WSLS1500 If you have any questions, call 800.GE.CARES (800.432.2737) or visit our Website at: ge.com In Canada, call 1.800.561.3344 or visit GEAppliances.ca Read these instructions completely and carefully.

• WATER PRESSURE—Must be 10 p.s.i. minimum to 150 p.s.i. maximum dynamic pressure measured at faucet.
• WATER TEMPERATURE—Household water heater should be set to deliver water at 120° to 150°F (50° to 66°C) IN THE WASHER when HOT wash is selected.
• SHUT-OFF VALVES—Both hot and cold shut-off valves (faucets) should be supplied.
• DRAIN—Water may be drained into a standpipe or set tub. The discharge height MUST NOT BE LESS THAN 30" nor more than 8' above the base of the washer. The standpipe must be 11⁄ 2" minimum inside diameter and must be open to the atmosphere.

IMPORTANT – Save these instructions for local inspector’s use.

IMPORTANT – Observe all governing

Note to Installer – Be sure to leave these codes and ordinances.

instructions with the Consumer. Note to Consumer – Keep these instructions for future reference. Skill level – Installation of this appliance requires basic mechanical skills. Completion time – 1 hour Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Warranty. Note – This appliance must be properly grounded, and electrical service to the washer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70. RACK INSTALLATION

• Ensure washer is centered between the rack sides. PARTS SUPPLIED WASHER LOCATION Washer must be installed on firm flooring to minimize vibration during spin cycles. Concrete flooring is best, but wood base is sufficient providing floor support meets FHA standards. Washer should not be installed on rugs or exposed to the weather. Rubber Washers (4) Water Hoses (2) Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. Drain Hose ELECTRICAL This appliance must be supplied with the voltage and frequency indicated on the rating plate (located on the back of the washer) and connected to an individual, properly grounded branch circuit, protected by a 15- or 20-amp circuit breaker or time-delay fuse. If the washer is plugged into the dryer’s 115-volt outlet, then the dryer needs to be on a dedicated circuit. TOOLS REQUIRED Pliers

Installation Instructions CAUTION: Before plugging in washer, read the following electrical requirements. ELECTRICAL REQUIREMENTS CAUTION: For personal safety, do not use an extension cord or adapter plug with this appliance. Do not, under any circumstances, cut or remove the third grounding prong from the power cord. Follow National Electrical Codes or prevailing local codes and ordinances. This appliance must be supplied with the voltage and frequency indicated on the rating plate (located on the back of the washer) and connected to an individual, properly grounded branch circuit, protected by a

15- or 20-amp circuit breaker or time-delay fuse.

If the electric supply provided does not meet the above requirements, call a licensed electrician.

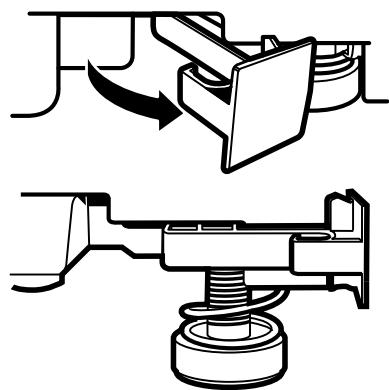

LEVELING THE WASHER—

STATIONARY MODELS Before connecting the hoses, the washer must be level. Leveling locks are located at the bottom front of the left and right sides of the washer. FINAL LOCATION

2 PULL OUT THE LEVELING LOCKS

This releases the spring loaded leveling feet. The washer will automatically level itself. Insure proper ground exists before use GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electrical current. This appliance is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER:

Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded. Do not modify plug with this appliance; if it will not fit the outlet installed, have a proper outlet installed by a qualified electrician.

Do not kick or step on the leveling locks. Installation Instructions

WASHER CONNECTIONS FOR STATIONARY MODEL WSLS1500

WARNING: Make sure the washer is unplugged.

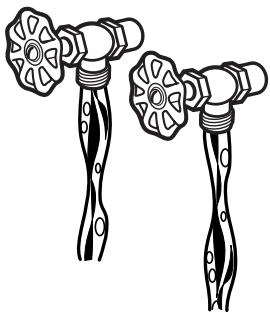

1 FLUSH WATER LINES

Run some water from the hot and cold faucets to flush the water lines and remove particles that might clog up the water valve screens.

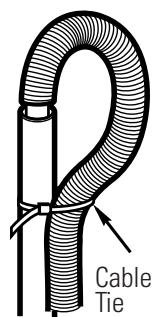

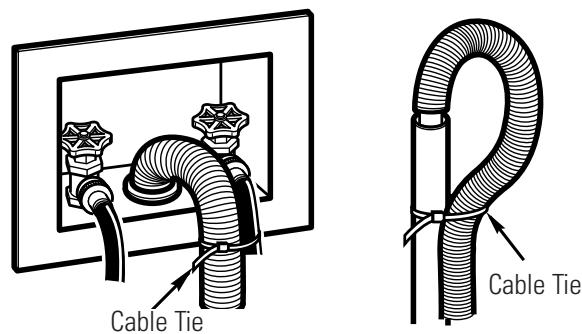

4 CONNECT DRAIN HOSE

Form a U shape on the end of the drain hose with the hose pointed toward the drain. Place the hose in a laundry tub or stand pipe and secure it with a cable tie (not included). NOTE: If the drain hose is placed in a stand pipe without forming a U shape, a siphoning action could occur. There must be an air gap around the drain hose. A snug hose fit can also cause a siphoning action. Cable Tie

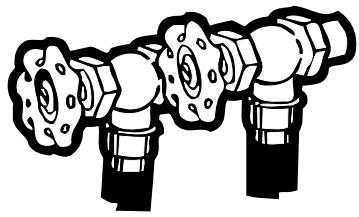

2 CONNECT TO WATER LINES

Connect the inlet hose ends to the HOT and COLD water faucets tightly by hand, then tighten another 2⁄ 3 turn with pliers. Turn the water on and check for leaks.

3 CAREFULLY MOVE THE WASHER TO

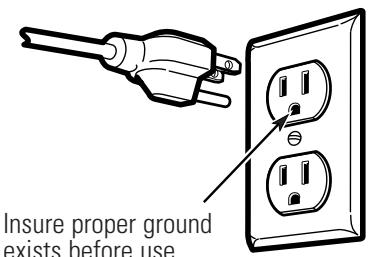

Cable Tie Cable Tie Stand Pipe Insure proper ground exists before use

Installation Instructions

WASHER CONNECTIONS FOR STATIONARY MODEL WSLS1500

6 INSTALLATION CHECKLIST Before starting the washer, check to make sure: ❏ Main power is turned on. ❏ The washer is plugged in. ❏ The water faucets are turned on. ❏ The unit is level. ❏ The drain hose is properly tied up. ❏ There are no leaks at the faucet, drain line or washer. 9 READ THE REST OF THIS OWNER’S

7 RUN THE WASHER THROUGH A

COMPLETE CYCLE MANUAL It contains valuable and helpful information that will save you time and money. Check for water leaks and proper operation. NOTE: If your washer does not operate, please review the Before You Call For Service section.

ALCOVE OR CLOSET INSTALLATION

If your washer is approved for installation in an alcove or closet, there will be a label on the back of the machine describing requirements.

• Minimum clearances between washer and adjacent walls or other surfaces are: 0" either side, 2" front, 3" rear.
• Minimum vertical space from floor to overhead shelves, cabinets, ceilings, etc. is 96".

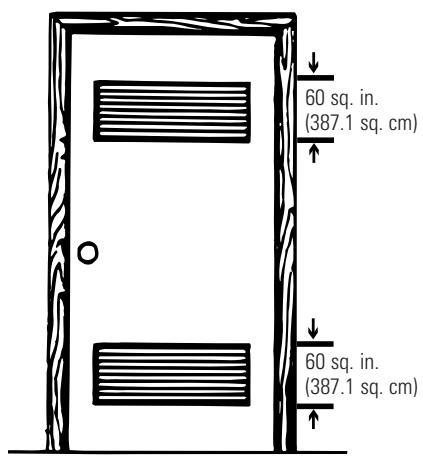

• Closet doors must be louvered or otherwise ventilated and have at least 60 square inches open area for washer only, or if the closet contains both a washer and dryer, doors must contain at least 120 square inches of open area equally distributed. NOTE: The clearances stated on this label are minimums. Consideration must be given to providing adequate clearances for installation and servicing.

60 sq. in. (387.1 sq. cm) 60 sq. in. (387.1 sq. cm) Closet door Installation Instructions

WASHER CONNECTIONS FOR PORTABLE MODEL WSLP1500—

ONE-FAUCET CONNECTIONS Use the hose connector provided with the washer for a one-faucet connection. TO CONNECT THE WASHER:

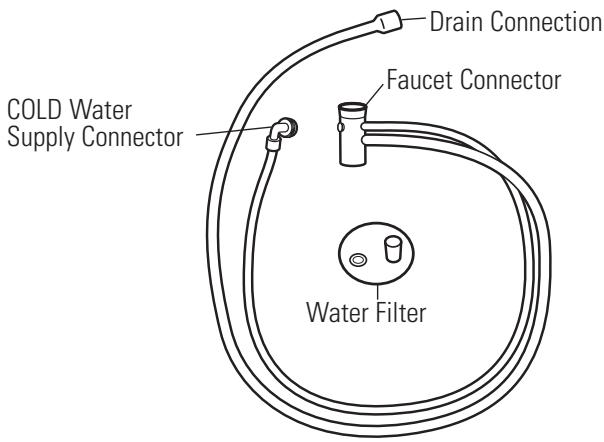

1 REMOVE THE UNI-COUPLE® HOSE

3 CONNECT TO VALVE INLET

Attach the COLD water supply connector to the COLD water valve inlet (color BLUE). Make sure the washer is inside the connector before tightening.

FROM INSIDE THE WASHER BASKET

Drain Connection Faucet Connector COLD Water Supply Connector Tighten the connector, ensuring the threads are aligned properly for tightest fit. Inspect for kinks or binding of the hose. NOTE: Do not remove the plastic cap from the HOT water inlet for uni-coupler connections as leakage may occur. Uni-Coupler Hose Plastic Cap

2 CONNECT TO WATER LINE

Attach the hose connector to the faucet adapter by pulling down on the locking collar while lifting up on the connector until it snaps into place. Make sure the water filter provided is in place. Locking Collar

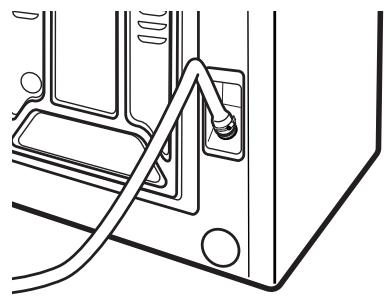

5 CONNECT DRAIN HOSE

Attach the drain hose to the rear of the washer. Install the clamp on the drain hose and tighten to prevent leakage of water. Hose Connector

Installation Instructions

WASHER CONNECTIONS FOR PORTABLE MODEL WSLP1500—

ONE-FAUCET CONNECTIONS (CONT.)

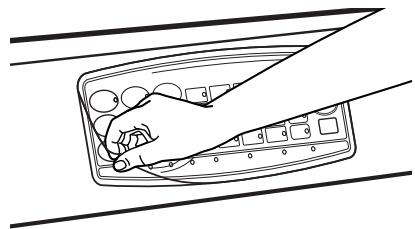

6 MAKE SURE THE TEMPERATURE

SELECTOR IS SET AT COLD/COLD

10 INSTALLATION CHECKLIST Before starting the washer, check to make sure: ❏ Main power is turned on. ❏ The washer is plugged in. ❏ The water faucets are turned on. ❏ The unit is level. ❏ There are no leaks at the faucet, drain line or washer.

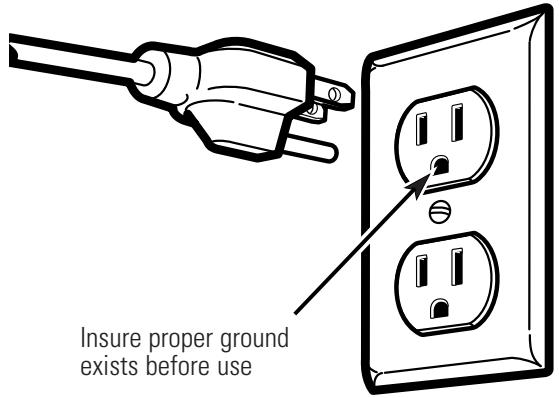

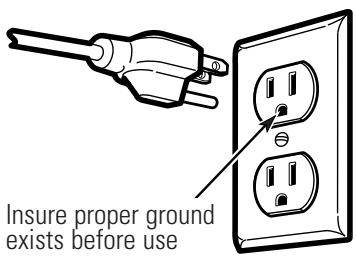

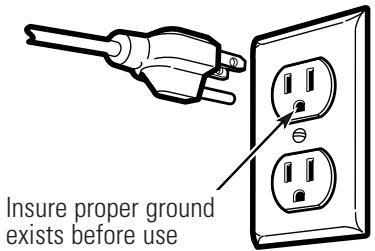

3-PRONG GROUNDED OUTLET

The electrical power cord is on the back of the washer. Insure proper ground exists before use

Installation Instructions TO DISCONNECT THE WASHER:

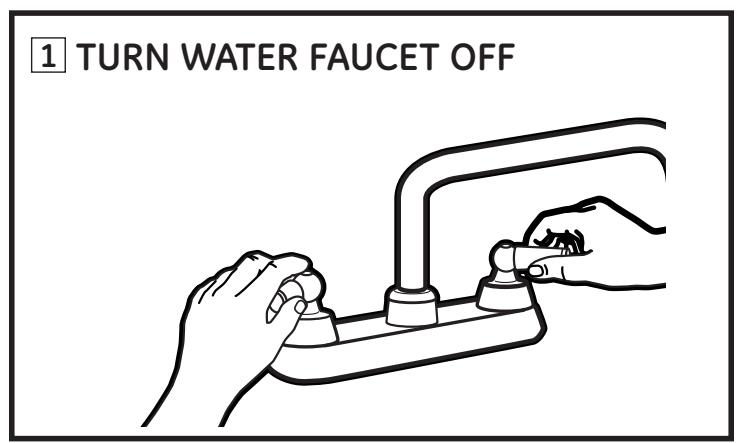

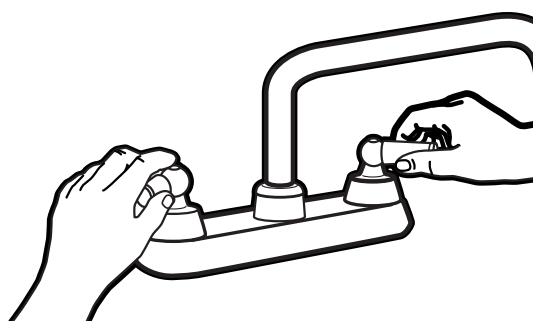

1 TURN WATER FAUCET OFF

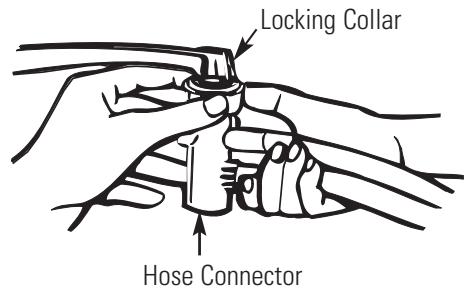

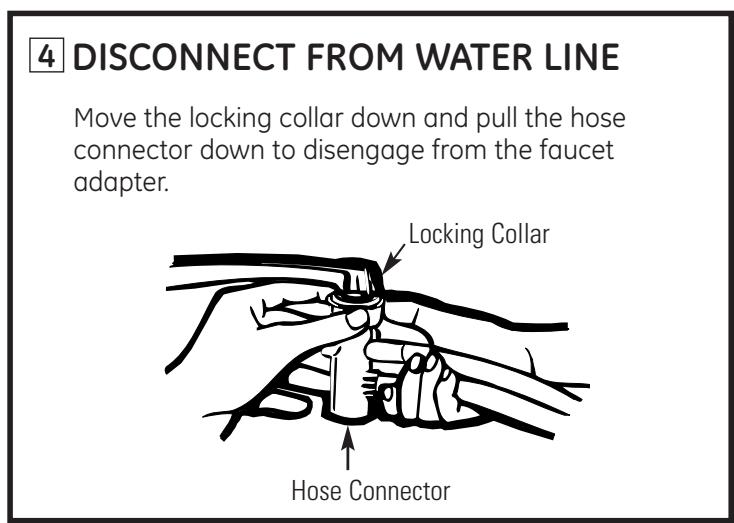

4 DISCONNECT FROM WATER LINE

Move the locking collar down and pull the hose connector down to disengage from the faucet adapter. Locking Collar

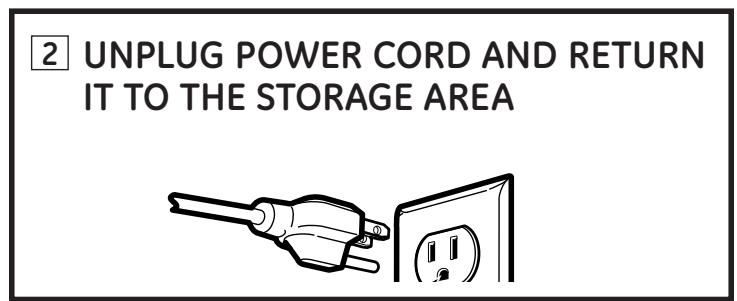

IT TO THE STORAGE AREA

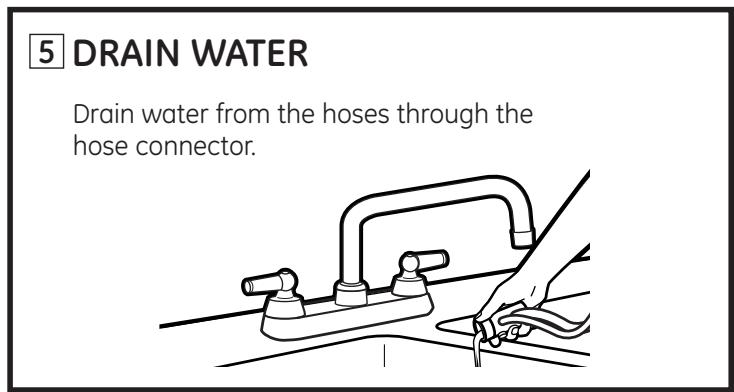

Hose Connector 5 DRAIN WATER Drain water from the hoses through the hose connector.

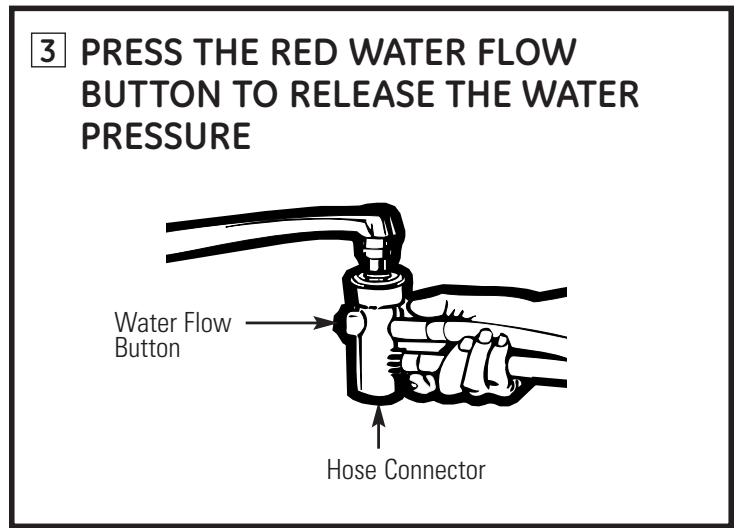

3 PRESS THE RED WATER FLOW

BUTTON TO RELEASE THE WATER

PRESSURE Water Flow Button Hose Connector

Installation Instructions

WASHER CONNECTIONS FOR PORTABLE MODEL WSLP1500—

TWO-FAUCET CONNECTIONS If you have two separate water connections, your washer can be connected to both the hot and cold water faucets. This kit can be purchased from your dealer or from Parts and Accessories. In the United States, call 800.626.2002. In Canada, consult the yellow pages for your local Camco number. TO CONNECT THE WASHER:

1 CONNECT TO WATER LINE

Connect HOT and COLD water inlet hoses to the HOT and COLD faucets. Insure proper ground exists before use 4 INSTALLATION CHECKLIST Before starting the washer, check to make sure: ❏ Main power is turned on. ❏ The washer is plugged in. ❏ The water faucets are turned on. ❏ The unit is level.

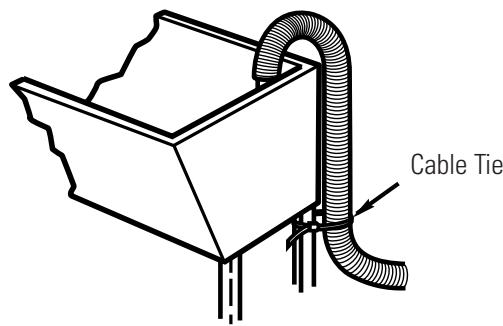

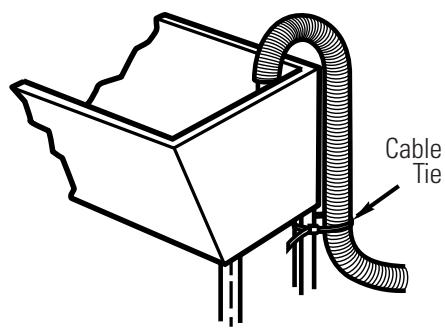

2 CONNECT DRAIN HOSE

❏ The drain hose is properly tied up. Secure the drain hose to the sink or stand pipe. ❏ There are no leaks at the faucet, drain line or washer. TO DISCONNECT THE WASHER: Cable Tie

1 TURN WATER FAUCETS OFF

Cable Tie Sink Stand Pipe

IT TO THE STORAGE AREA

3 DISCONNECT THE DRAIN AND WATER

SUPPLY HOSES Hang them on the storage rack.

ge.com Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. Status Indicators Safety Instructions Before you call for service… ■ Press POWER ON/OFF and call service. Operating Instructions

■ Indicates water has not drained from washer. Ensure the drain hose is not kinked or connected improperly. Installation Instructions

■ Indicates washer failed to fill. Ensure wall faucets are on and fill hose is not clogged or kinked. ■ Indicates the laundry load is unbalanced. Reposition laundry evenly in basket, and ensure washer is level. Troubleshooting Tips ■ Indicates the lid is open. Close the lid.

■ Indicates washer has leakage. Check the drain hose connection.

Consumer Support ■ Indicates water has overflowed. Restart after spinning. Safety Instructions Operating Instructions Installation Instructions Troubleshooting Tips Consumer Support Before you call for service… Troubleshooting Tips WATER POSSIBLE CAUSES

WHAT TO DO

Too many suds Type of detergent

• Switch to HE Very soft water

• Try less detergent. Too much detergent

• Measure your detergent carefully. Use less soap if you have soft water, a smaller load or a lightly soiled load. Fill hoses or drain hose is improperly connected

• Make sure hose connections are tight at faucets and the washing machine. Make sure the end of the drain hose is correctly inserted and secured to the drain. Household drain may be clogged

• Check household plumbing. You may need to call a plumber. Constant water pressure to the fill hoses at the water source

• Tighten hoses at the faucets and turn the water off after each use.
• Check condition of the fill hoses; they may need replacement after 5 years. Using too much detergent in washer

• Use less detergent. Use less soap if you have soft water, a smaller load or a lightly soiled load. Water supply is turned off or improperly connected

• Turn both hot and cold faucets fully on and make sure hoses are connected to correct faucets. Water valve screens are stopped up

• Turn off the water source and remove the water connection hoses from the upper back of the washer. Remove screens and use a brush or toothpick to clean the screens in the machine. Reinstall screens, reconnect the hoses and turn the water back on. House water heater is not set properly

• Make sure house water heater is delivering water at 120°F–140°F (48°C–60°C). Drain hose is kinked or improperly connected

• Straighten drain hose and make sure washer is not sitting on it. Water leaks Water temperature is incorrect

• Top of drain outlet should be less than 8 ft. above floor.

WHAT TO DO

Washer pauses in cycle The washer normally pauses between washing steps Washer won’t operate Washer is unplugged

• Make sure cord is plugged securely into a working outlet. Water supply is turned off

• Turn both hot and cold faucets fully on. Controls are not set properly

• Make sure all selections have been made. Lid is open Circuit breaker/fuse is tripped/blown

• Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have separate outlet. Washer has not been turned on Incorrect use of fabric softener

• Check fabric softener package for instructions and follow directions for using dispenser. Installation Instructions POSSIBLE CAUSES

• Pretreat stain and rewash. Grayed or yellowed clothes Dye transfer

• Sort whites or lightly colored items from dark colors. Not enough detergent

• Use more detergent (especially with larger loads). Hard water

• Use a water conditioner like Calgon brand or install a water softener. Water is not hot enough

• Make sure water heater is delivering water at 120°F–140°F (48°C–60°C). Washer is overloaded

• Select load size to match clothes load. Dye transfer

• Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated. Clothes are air or line dried

• If you do not dry your clothes with a clothes dryer, your clothes may retain more lint. Incorrect sorting

• Separate lint producers from lint collectors. Washing too long

• Wash small loads for a shorter time than larger loads. Overloading

• Load clothes no higher than the top row of holes in the washer tub. Troubleshooting Tips Lint or residue on clothes Operating Instructions OPERATION Safety Instructions ge.com

• Make sure load size selector matches clothes load size.
• Check fabric softener package for instructions and follow directions for using dispenser. Result of normal wear on poly-cotton blends and fuzzy fabrics

• While this is not caused by the washer, you can slow the pilling process by washing garments inside out.

Consumer Support Pilling Incorrect use of fabric softener Troubleshooting Tips PERFORMANCE (cont.) POSSIBLE CAUSES Snags, holes, tears, rips Pins, snaps, hooks, sharp or excessive wear buttons, belt buckles, zippers, and sharp objects left in pockets Operating Instructions Safety Instructions Before you call for service… Wrinkling

WHAT TO DO

• Fasten snaps, hooks, buttons and zippers.
• Remove loose items like pins, objects in pockets and sharp buttons.
• Turn knits (which snag easily) inside out. Undiluted chlorine bleach

• Check bleach package instructions for proper amount.
• Never add undiluted bleach to wash or allow clothes to come in contact with undiluted bleach. Chemicals like hair bleach or dye, permanent wave solution

• Rinse items that may have chemicals on them before washing. Improper sorting

• Avoid mixing heavy items (like work clothes) with light items (like blouses). Consumer Support Troubleshooting Tips Installation Instructions

• Try a fabric softener. Overloading or incorrect water level

• Load your washer so clothes have enough room to move freely. Repeated washing in water that is too hot

• Wash in warm or cold water. NOISE POSSIBLE CAUSES

WHAT TO DO

Washer is noisy Washer is uneven

• Level the washer. See Leveling the Washer. Washer load is unbalanced

• Press the START/PAUSE button to stop the washer, open the lid and redistribute the load evenly. Close the lid and restart. Washer is sitting too close to wall (causes knocking during cycle)

• Pull washer away from the wall; about 4" is needed. Dragging noise prior to water filling in the tub When using the LOAD SENSING feature, the agitator rotates before water fills in the tub

• This is normal. OTHER POSSIBLE CAUSES

WHAT TO DO

Labels on the exterior of the washer will not peel off cleanly Occasionally the adhesive used on the labels does not release cleanly

• Use a hair dryer set at the lowest heat setting, directing the air at the label for a short amount of time. This will release the adhesive easily, without damaging the surface of the washer.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, visit us at ge.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service. Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. Safety Instructions GE Washer Warranty. (For customers in the U.S.A.) For The Period Of: We Will Replace: Any part of the washer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and related service costs to replace the defective part. What Is Not Covered (in the United States): ■ Service trips to your home to teach you how to use ■ Replacement of house fuses or resetting of circuit the product. ■ Improper installation, delivery or maintenance. ■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. ■ Damage after delivery. breakers. ■ Damage to the product caused by accident, fire, floods or acts of God. ■ Incidental or consequential damage caused by possible defects with this appliance. ■ Product not accessible to provide required service. Operating Instructions One Year From the date of the original purchase Installation Instructions EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 Consumer Support

Troubleshooting Tips This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Safety Instructions Operating Instructions All warranty service provided by our Factory Service Centres or an authorized technician. For service, call 1.800.561.3344. Please have serial number and model number available when calling for service. For The Period Of: We Will Replace: One Year From the date of the original purchase Consumer Support Any part of the washer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labour and related service costs to replace the defective part. What Is Not Covered (in Canada): ■ Service trips to your home to teach you how to use the product. ■ Improper installation, delivery or maintenance. ■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. ■ Damage after delivery. ■ Replacement of house fuses or resetting of circuit breakers. ■ Damage to the product caused by accident, fire, floods or acts of God. ■ Incidental or consequential damage caused by possible defects with this appliance. ■ Product not accessible to provide required service. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide. WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES. Troubleshooting Tips Installation Instructions GE Washer Warranty. (For customers in Canada) Warrantor: MABE CANADA INC.

LOAD SENSING COLORS WHITES DELICATES SPEED WASH CUSTOM CYCLE SOAK WASH

HOLD 3 SECS TO

LOCK/UNLOCK DELAY WURAS

1 to 18 HO CONTROLS CYCLES OPTIONS Fonctionnement SPEED WASH (Lavage rapide)

Do not dry Normal Normal

EMPLACEMENT FINAL AVEC

9 LISEZ LE RESTE DE CE MANUEL

D’UTILISATION Tuyau Uni-Couple

D’ALIMENTATION ET REPLACEZ-LE

DANS SON LOGEMENT

D’ALIMENTATION ET REPLACEZ-LE

DANS SON LOGEMENT

LE GARANT N’EST PAS RESPONSABLE DES DOMMAGES INDIRECTS.

HOLD 3 SECS TO

LOCK/UNLOCK DELAY WURAS

1 to 18 HO CONTROLS CYCLES OPTIONS LOAD SENSING COLORS WHITES DELICATES SPEED WASH CUSTOM CYCLE SOAK WASH Mucha Normal Poca Do not dry (used with secar do not wash)

3 CON CUIDADO TRASLADE LA

Tubería vertical Garante: General Electric Company. Louisville, KY 40225
