USER MANUAL FM2-A55M-E33 MSI

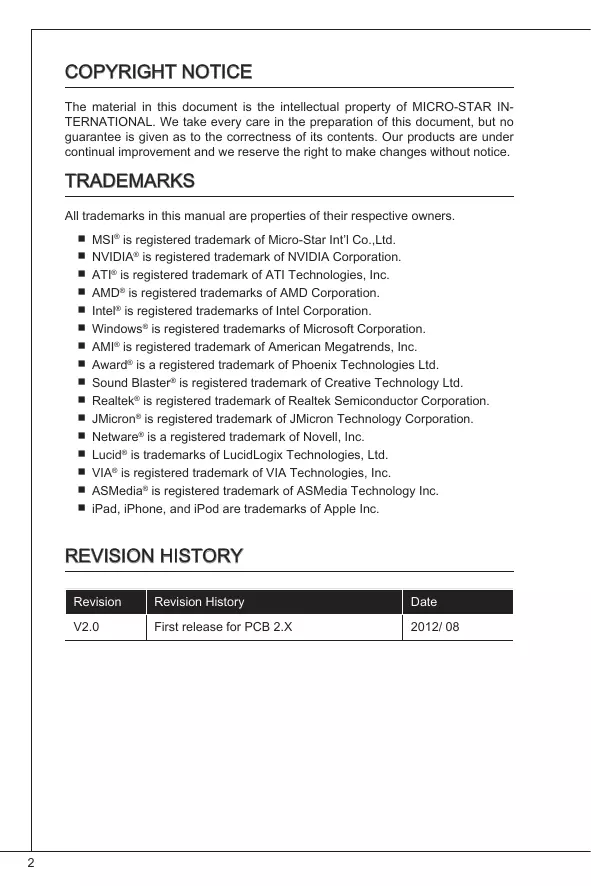

Copyright Notice The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice. Trademarks All trademarks in this manual are properties of their respective owners.

MSI® is registered trademark of Micro-Star Int’l Co.,Ltd. NVIDIA® is registered trademark of NVIDIA Corporation. ATI® is registered trademark of ATI Technologies, Inc. AMD® is registered trademarks of AMD Corporation. Intel® is registered trademarks of Intel Corporation. Windows® is registered trademarks of Microsoft Corporation. AMI® is registered trademark of American Megatrends, Inc. Award® is a registered trademark of Phoenix Technologies Ltd. Sound Blaster® is registered trademark of Creative Technology Ltd. Realtek® is registered trademark of Realtek Semiconductor Corporation. JMicron® is registered trademark of JMicron Technology Corporation. Netware® is a registered trademark of Novell, Inc. Lucid® is trademarks of LucidLogix Technologies, Ltd. VIA® is registered trademark of VIA Technologies, Inc. ASMedia® is registered trademark of ASMedia Technology Inc. iPad, iPhone, and iPod are trademarks of Apple Inc. Revision History

Always read the safety instructions carefully. Keep this User Manual for future reference. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not cover the openings. Make sure the voltage of the power source is at 110/220V before connecting. Place the power cord such a way that people can not step on it. Do not place anything over the power cord. Always Unplug the Power Cord before inserting any add-on card or module. All cautions and warnings on the equipment should be noted. Never pour any liquid into the opening that can cause damage or cause electrical shock. If any of the following situations arises, get the equipment checked by service personnel: ○ The power cord or plug is damaged. ○ Liquid has penetrated into the equipment. ○ The equipment has been exposed to moisture. ○ The equipment does not work well or you can not get it work according to User Manual. ○ The equipment has been dropped and damaged. ○ The equipment has obvious sign of breakage. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60°C (140°F), IT MAY DAMAGE THE EQUIPMENT. Technical Support If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/service/download Contact our technical staff at: http://support.msi.com

FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ television technician for help. Notice 1 The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Notice 2 Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits. VOIR LA NOTICE D’NSTALLATION AVANT DE RACCORDER AU RESEAU. Micro-Star International MS-7721 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CE Conformity Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

Battery Information European Union: Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations. Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal. California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Chemical Substances Information In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at: http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

(Processor and Heatsink)

MS-7721 Form Factor ■ Micro-ATX (22.6 cm X 17.3 cm) Mounting Screw Holes ■ 6x mounting holes Dual-Graphics ■ Supports AMD® Dual Graphics Technology ‑ Please visit the AMD official website to find the supported Dual Graphics combinations of APU and discrete GPU for achieving this technology. For the latest information about CPU, please visit http://www.msi.com/service/cpu-support For more information on compatible components, please visit http://www.msi.com/service/test-report If you need to purchase accessories and request the part numbers, you could search the product web page and find details on our web address below http://www.msi.com/index.php

REAR PANEL The rear panel provides the following connectors: LAN PS/2 mouse USB 2.0 ports Line-Out HDMI port PS/2 keyboard VGA port Line-In MIC USB 2.0 ports Important

• To reach the 8-channel sound effect, the 7th and 8th channels must be output from front panel.
• The VGA & HDMI ports only work with Integrated Graphics Processor. HARDWARE SETUP APU & Cooler Installation for FM2 When you are installing the APU, make sure the APU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on APU before installing the heat sink/cooler fan for better heat dispersion. Introduction to the FM2 APU The surface of the FM2 APU has a gold triangle to assist in correctly lining up the CPU for mainboard placement. The gold triangle is the Pin 1 indicator. Gold triangle

MS-7721 Follow the steps below to install the APU & cooler correctly. Wrong installation will cause the damage of your APU & mainboard.

Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree angle.

Look for the gold triangle of the APU. The gold triangle should point as shown in the picture. The APU can only fit in the correct orientation.

If the APU is correctly installed, the pins should be completely embedded into the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your mainboard.

Press the APU down firmly into the socket and close the lever. As the APU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the APU to make sure the APU is properly and completely embedded into the socket.

Position the cooling set onto the retention mechanism. Hook one end of the clip to hook first.

Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism. Locate the Fix Lever and lift up it .

Attach the APU Fan cable to the APU fan connector on the mainboard. Important

• While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly.
• Confirm that the APU cooler has formed a tight seal with the APU before booting your system.
• Please refer to the documentation in the APU cooler package for more details about APU cooler installation.

The I/O ports should be facing toward the rear of the computer case. They should line up with the holes on the I/O backplate. Mounting Screw Holes When installing the mainboard, first install the necessary mounting stands required for a mainboard on the mounting plate in your computer case. If there is an I/O back plate that came with the computer case, please replace it with the I/O backplate that came with the mainboard package. The I/O backplate should snap easily into the computer case without the need for any screws. Align the mounting plate’s mounting stands with the screw holes on the mainboard and secure the mainboard with the screws provided with your computer case. The locations of the screw holes on the mainboard are shown below. For more information, please refer to the manual that came with the computer case. Important

• Install the mainboard on a flat surface free from unnecessary debris.
• To prevent damage to the mainboard, any contact between the mainboard circuitry and the computer case, except for the mounting stands, is prohibited.
• Please make sure there are no loose metal components on the mainboard or within the computer case that may cause a short circuit of the mainboard.

MS-7721 Installing Memory Modules . Unlock the DIMM slot by pushing the mounting clips to the side. Vertically insert the memory module into the DIMM slot. The memory module has an off-center notch on the bottom that will only allow it to fit one way into the DIMM slot.

Push the memory module deep into the DIMM slot. The plastic clips at each side of the DIMM slot will automatically close when the memory module is properly seat and an audible click should be heard.

Manually check if the memory module has been locked in place by the DIMM slot’s side clips. Volt Notch Important

• To ensure system stability, memory modules must be of the same type and density in Dual-Channel mode.
• Due to the hardware limitation, you should follow the installing procedures: first memory modules, then graphics card. While uninstalling, remove graphics card first if necessary.

JPWR1: ATX 24-Pin Power Connector This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, align the power supply cable with the connector and firmly press the cable into the connector. If done correctly, the clip on the power cable should be hooked on the mainboard’s power connector.

JPWR2: ATX 4-Pin Power Connector This connector provides 12V power to the CPU.

Important Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the mainboard. CPUFAN1, SYSFAN1: Fan Power Connectors The fan power connectors support system cooling fans with +12V. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with a speed sensor to take advantage of the CPU fan control. Remember to connect all system fans. Some system fans may not connect to the mainboard and will instead connect to the power supply directly. A system fan can be plugged into any available system fan connector. CPUFAN1

SYSFAN1 MS-7721 SATA1~4: SATA Connector This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device. Serial ATA devices include disk drives (HD), solid state drives (SSD), and optical drives (CD/ DVD/ Blu-Ray). Important

• Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.
• SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the mainboard for space saving purposes. JFP1, JFP2: Front Panel Connectors These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

JFP1 JCOM1: Serial Port Connector This connector is a 16550A high speed communication port that sends/receives 16 bytes FIFOs. You can attach a serial device.

JUSB1, JUSB2: USB 2.0 Expansion Connectors This connector is designed for connecting high-speed USB peripherals such as USB HD s, digital cameras, MP3 players, printers, modems, and many others.

JAUD1 : Front Panel Audio Connector This connector allows you to connect the front audio panel located on your computer case. This connector is compliant with the Intel® Front Panel I/O Connectivity Design Guide.

JCI1: Chassis Intrusion Connector This connector connects to the chassis intrusion switch cable. If the computer case is opened, the chassis intrusion mechanism will be activated. The system will record this intrusion and a warning message will flash on screen. To clear the warning, you must enter the BIOS utility and clear the record.

MS-7721 JTPM1: TPM Module Connector This connector connects to a optional TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.

JBAT1: Clear CMOS Jumper There is CMOS RAM onboard that is external powered from a battery located on the mainboard to save system configuration data. With the CMOS RAM, the system can automatically boot into the operating system (OS) every time it is turned on. If you want to clear the system configuration, set the jumper to clear the CMOS RAM. Clear Data Important You can clear the CMOS RAM by shorting this jumper while the system is off. Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on because it will damage the mainboard.

JUSB_PW1, JUSB_PW2: USB power Jumper The USB ports on the rear IO panel are controled by JUSB_PW2. The JUSB1 and JUSB2 are controled by JUSB_PW1. These jumpers allow you to enable/ disable the “wakeup from S3/S4/S5 by USB and PS/2 device” function JUSB_PW1 (for on-board USB connectors)

Disabled Enabled JUSB_PW2 (for rear USB

Enabled Important If you set the jumper to Enabled, the power supply must be able to provide +5VSB and at least 2A currents.

MS-7721 PCIe Slot The PCIe slot supports the PCIe interface expansion card. The PCIe 2.0 x16 slot The PCIe 2.0 x1 slot PCI Slot The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications. Important Make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration. PCI Interrupt Request Routing When adding or removing expansion cards, make the IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus pins as follows: Order Slot PCI 1

BIOS Setup Entering Power on the computer and the system will start the Power On Self Test (POST) process. When the message below appears on the screen, please <DEL> key to enter CLICK BIOS II: Press DEL key to enter Setup Menu, F11 to enter Boot Menu If the message disappears before you respond and you still need to enter CLICK BIOS II, restart the system by turning the computer OFF then back ON or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. Important The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only. Overview After entering Click BIOS II, the following screen is displayed. Language Temperature monitor Mode selection System information Boot menu Boot device priority bar BIOS menu selection BIOS menu selection Menu display Important The pictures in this guide are for reference only and may vary from the product you purchased. Please refer to the actual screens of your system for detailed information. Temperature monitor This block shows the temperature of the processor and the mainboard.

MS-7721 System information This block shows the time, date, CPU name, CPU frequency, DRAM frequency, DRAM capacity and the BIOS version. BIOS menu selection The following options are available: SETTINGS - Use this menu to specify your settings for chipset features and boot devices. OC - This menu contains items of the frequency and voltage adjustments. Increasing the frequency can get better performance, however high frequency and heat can cause instability, we do not recommend general users to overclock. ECO - This menu is related to energy-saving settings. BROWSER - This feature is used to enter the MSI Winki web browser. UTILITIES - This menu contains utilities for backup and update. SECURITY - The security menu is used to keep unauthorized people from making any changes to the settings. You can use these security features to protect your system. Boot device priority bar You can move the device icons to change the boot priority. Boot menu This button is used to open a boot menu. Click the item to boot the system from the device instantly. Mode selection This feature allows you to load presets of energy saving or overclocking. Menu display This area provides BIOS settings and information to be configured. Language This allows you to select the language of the BIOS setting. Boot device priority bar This bar shows the priority of the boot devices. The lighted icons indicate that the devices are available. High priority Low priority Click and draw the icon to left or right to specify the boot priority.

• Overclocking your PC manually is only recommended for advanced users.
• Overclocking is not guaranteed, and if done improperly, can void your warranty or severely damage your hardware.
• If you are unfamiliar with overclocking, we advise you to use OC Genie for easy overclocking. Current CPU / DRAM Frequency These items show the current clocks of CPU and Memory speed. Read-only. Adjust CPU Ratio Controls the multiplier that is used to determine internal clock speed of the processor. This feature can only be changed if the processor supports this function. Adjusted CPU Frequency It shows the adjusted CPU frequency. Read-only. Adjust CPU-NB Ratio This item is used to adjust CPU-NB clock ratio. Adjusted CPU-NB Frequency It shows the adjusted CPU-NB frequency. Read-only. CPU Core Control This item is used to control number of CPU cores. When set to [Auto], the CPU will operate under the default number of cores. When set to [Manual], you will be able to enable/disable the specific CPU core.

MS-7721 AMD Turbo Core Technology This technology automatically increases the frequency of active CPU cores to improve performance. Adjust Max Turbo Core Ratio This item is used to adjust Max Turbo Core ratio Adjusted Max Turbo Core Frequency It shows the adjusted Max Turbo Core frequency. Read-only. Adjust Turbo Core Ratio This item is used to adjust Turbo Core ratio. Adjusted Turbo Core Frequency It shows the adjusted Turbo Core frequency. Read-only. Adjust GPU Engine Frequency This item is used to adjust the GPU engine frequency. Adjusted GPU Engine Frequency It shows the adjusted GPU engine frequency. Read-only. DRAM Frequency This item allows you to adjust the DRAM frequency. Please note the overclocking behavior is not guaranteed. Adjusted DRAM Frequency It shows the adjusted DRAM frequency. Read-only. Intel Extreme Memory Profile (XMP) Choose to apply an Intel Extreme Memory Profile (XMP) to increase system performance. When the Intel Extreme Memory Profile (XMP) is enabled, the AMD Memory Profile (AMP) will be forced to be disabled. AMD Memory Profile (AMP) Choose to apply an AMD Memory Profile (AMP) to increase system performance. When AMD Memory Profile (AMP) is enabled, the Intel Extreme Memory Profile (XMP) will be forced to be disabled. DRAM Timing Mode Select whether DRAM timing is controlled by the SPD (Serial Presence Detect) EEPROM on the DRAM module. Setting to [Auto] enables DRAM timings and the following “Advanced DRAM Configuration” sub-menu to be determined by BIOS based on the configurations on the SPD. Selecting [Link] or [Unlink] allows users to configure the DRAM timings for each channel and the following related “Advanced DRAM Configuration” sub-menu manually. Advanced DRAM Configuration Press <Enter> to enter the sub-menu. Command Rate This setting controls the DRAM command rate. tCL Controls CAS latency which determines the timing delay (in clock cycles) of starting a read command after receiving data.

tRCD Determines the timing of the transition from RAS (row address strobe) to CAS (column address strobe). The less clock cycles, the faster the DRAM performance. tRP Controls number of cycles for RAS (row address strobe) to be allowed to precharge. If insufficient time is allowed for RAS to accumulate before DRAM refresh, the DRAM may fail to retain data. This item applies only when synchronous DRAM is installed in the system. tRAS Determines the time RAS (row address strobe) takes to read from and write to memory cell. tRFC This setting determines the time RFC takes to read from and write to a memory cell. tWR Determines minimum time interval between end of write data burst and the start of a pre-charge command. Allows sense amplifiers to restore data to cell. tWTR Determines minimum time interval between the end of write data burst and the start of a column-read command; allows I/O gating to overdrive sense amplifies before read command starts. tRRD Specifies the active-to-active delay of different banks. tRTP Time interval between a read and a precharge command. tFAW This item is used to set the tFAW (four activate window delay) timing. tWCL This item is used to set the tWCL (Write CAS Latency) timing. tCKE This item is used to set the Pulse Width for DRAM module. tRTL This item is used to set Round Trip Latency settings. Advanced Channel 1/ 2 Timing Configuration Press <Enter> to enter the sub-menu. And you can set the advanced memory timing for each channel. DRAM Voltage This item is used to adjust the voltage of Memory. Spread Spectrum This function reduces the EMI (Electromagnetic Interference) generated by modulating clock generator pulses.

• If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.
• The greater the Spread Spectrum value is, the greater the EMI is reduced, and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.
• Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up. Overclocking Profiles Press <Enter> to enter the sub-menu. Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Press <Enter> to enter the sub-menu. Set Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Give a name by typing in this item. Save Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Save the current overclocking settings to ROM for selected profile. Load/ Clear Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Load/ Clear the stored profile settings from ROM. OC Profile Save to USB Save the current overclocking settings to USB drive. OC Profile Load from USB Load the stored settings from USB drive. CPU Specifications Press <Enter> to enter the sub-menu. This sub-menu highlights all the key features of your CPU. The information will vary by model and is read-only. You can also access this information at any time by pressing [F4]. Press <Enter> to enter the sub-menu. CPU Technology Support Press <Enter> to enter the sub-menu. The sub-menu shows the installed CPU technologies. Read only. MEMORY-Z Press <Enter> to enter the sub-menu. This sub-menu highlights all the settings and timings of your DIMMs. This information will vary by model and is read-only. You can also access this information at any time by pressing [F5]. Press <Enter> to enter the sub-menu. DIMM1~2 Memory SPD Press <Enter> to enter the sub-menu. The sub-menu displays the informations of installed memory.

CPU Features Press <Enter> to enter the sub-menu. AMD Cool’n’Quiet The Cool’n’Quiet technology can effectively and dynamically lower CPU speed and power consumption. Important

• To ensure that Cool’n’Quiet function is activated and will be working properly, it is required to double confirm that:
• Run BIOS Setup, select OC Menu and find CPU Feature > AMD Cool’n’Quiet, and set this item to “Enabled”.
• Enter Windows, and select [Start]->[Settings]->[Control Panel]->[Power Options]. Enter Power Options Properties tag, and select Minimal Power Management under Power schemes. SVM Mode This item allows you to enable/disable the AMD SVM (Secure Virtual Machine) Mode. Core C6 State This item allows you to enable/ dsiable C6 state support. When the CPU enters C6 state, all cores will save architectural state and reduce core voltages to zero volts. Wake up the CPU from C6 state will take a lot longer.

MS-7721 Save & Exit Go to SETTINGS and click Save & Exit item. Discard Changes and Exit Use this item to abandon all changes and exit setup. Save Changes and Reboot Use this item to save changes and reset the system. Save Changes Use this item to save changes. Discard Changes Use this item to abandon all changes. Restore Defaults Use this item to load the optimized default values set by the BIOS vendor. == Boot Override == The installed storage devices will appear on this menu, you can select one of them be a boot device. Built-in EFI Shell Use this item to enter the EFI Shell.

Install Windows XP Notes This section describes how to install Windows XP with IDE or AHCI mode. Installing Windows XP with IDE Mode You will fail and encounter a blue screen while installing Windows XP, because it is not natively supported to be installed in the storage device with AHCI mode. If you still prefer to install Windows XP as the operating system, please change the BIOS item as below.

Refer to BIOS SETUP chapter to access BIOS.

Go to SETTINGS → Integrated Peripherals → SATA Mode.

Go to SETTINGS → Save & Exit → Save changes and reboot.

Install the Windows XP operating system. Installing Windows XP with AHCI Mode If you prefer to install Windows XP as the operating system with AHCI mode, please prepare AHCI drivers for Windows XP in advanced. Creating an AHCI Driver Disc Please follow the instruction below to make an “AHCI Driver” for yourself.

Insert the MSI DVD into the DVD-ROM drive.

Click the “Browse CD” on the Setup screen.

The driver diskette is done. MS-7721 Installing the Windows XP Operating System: Please follow the below steps:

Access BIOS, set SATA Mode to AHCI mode, save, exit and reboot.

Ensure the USB Floppy Disk Drive is connected to the computer.

Install Windows XP. When Windows Setup screen appears a message “Press F6 if you need to install a third party SCSI or RAID driver....”, press “F6” key.

Insert the floppy disk containing the AHCI drivers into the floppy disk drive.

When the next screen appears, press the “S” key to specify an additional device.

Follow the on-screen instructions to complete the installation.

http://www.msi.com/service/cpu-support
