USER MANUAL PSS 250AE BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

1609 929 N15 (2007.11) O / 100

PSS

190 AC | 200 A | 200 AC | 250 AE

BOSCH

de Originalbetriebsanleitung
en Original instructions
fr Notice originale
es Manual original
pt Manual original
it Istruzioni originali
nl Oorspronkelijke
gebruksaanwijzing
da Original brugsanvisning
sv Bruksanvisning i original
no Original driftsinstruks
fi Alkuperäiset ohjeet

el Pnpotuno oBnyiw xphonc
tr Original isletmet talimati

Deutsch. 5

English. Page 13

Francais.. Page 20

Espanol . 28

Portugues . Pagina 36

Italiano 44

Nederlands.. 52

Dansk . 60

Svenska. 66

Norsk. 72

Suomi . 78

Eληνικά Σελδα 84

Türkce Sayfa 92

PSS 250 AE

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

ppa. Maee i.v. Nogcu

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

General Power Tool SafetyWarnings

WARNING Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Machine-specific SafetyWarnings

Use the machine only for dry sanding. Penetration of water into the machine increases the risk of an electric shock.
- Caution, fire hazard! Avoid overheating the object being sanded as well as the sander. Always empty the dust collector before taking breaks. In unfavourable conditions, e.g., when sparks emit from sanding metals, sanding debris in the dust bag, micro filter or paper sack (or in the filter sack or filter of the vacuum cleaner) can self-ignite. Particularly when mixed with remainders of varnish, polyurethane or other chemical materials and when the sanding debris is hot after long periods of working.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
- Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
- Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock.

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for dry sanding of wood, plastic, filler and coated surfaces.

Product Features

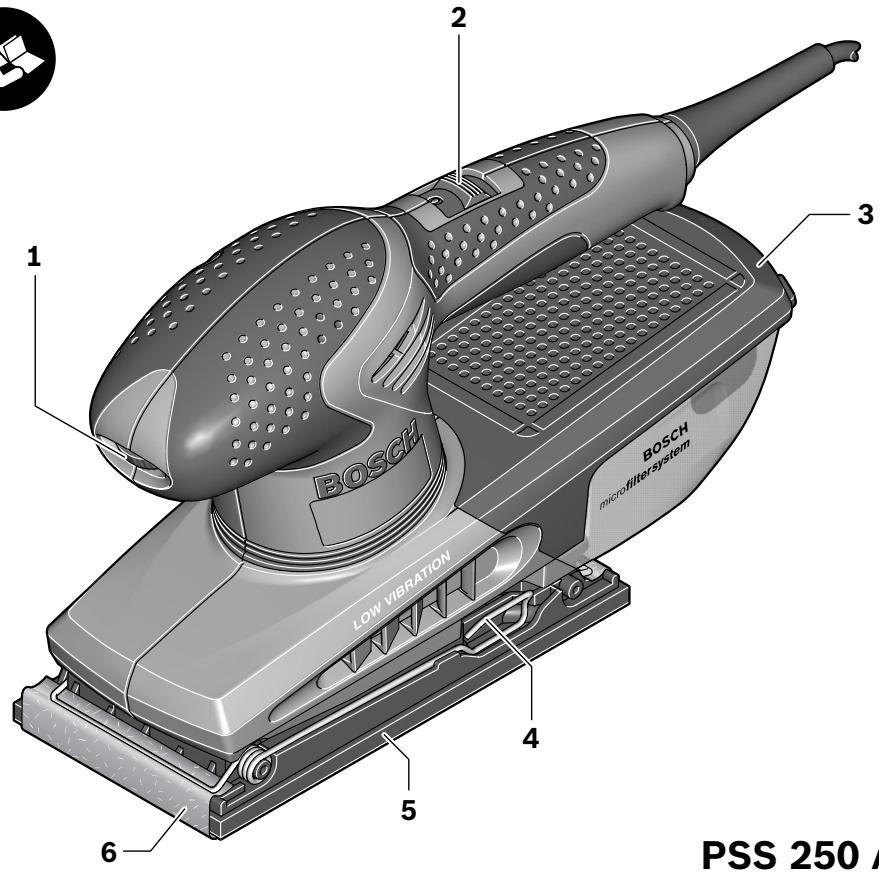

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Thumbwheel for orbit frequency preselection (PSS 250 AE)

2 On/Off switch
3 Dust box, complete (micro filtersystem)
4 Sanding-sheet clamp
5 Sanding plate
6 Sanding sheet
7 Extraction outlet
8 Filter element (micro filtersystem)
9 Vacuum hose
10 Perforating tool

*The accessories illustrated or described are not included as standard delivery.

Technical Data

Orbital sander		PSS 190 AC	PSS 200 A	PSS 200 AC	PSS 250 AE
Article number	3 603 ...	C40 1..	C40 0..	C40 1..	C40 2..
Rated power input	W	190	200	200	250
Preselection of orbital stroke rate		-	-	-	●
No-load speed	rpm	12000	12000	12000	7000 - 12000
Orbital stroke rate	opm	24000	24000	24000	14000 - 24000
Orbit diameter	mm	2.0	2.0	2.0	2.0
Sanding sheet dimensions - Adhesion via Velcro backing	mm	-	93 x 185	-	93 x 185
- Attachment via clamping	mm	93 x 230	-	93 x 230	93 x 230
Weight according to EPTA-Procedure 01/2003	kg	1.6	1.6	1.6	1.6
Protection class		☐/II	☐/II	☐/II	☐/II

The values given are valid for nominal voltages [U] of 230/240 V. For lower voltage and models for specific countries, these values can vary.
Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

Noise/Vibration Information

Measured values determined according to EN 60745.

Typically the A-weighted noise levels of the product are: Sound pressure level 82 dB(A); Sound power level 93 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

Vibration total values (triax vector sum) determined according to EN 60745:

Vibration emission value a_h = 5.5m / s^2 Uncertainty K<1.5 m/s2.

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Declaration of Conformity C

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents: EN 60745 according to the provisions of the directives 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).

Technical file at: Robert Bosch GmbH, PT/ESC, D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Before any work on the machine itself, pull the mains plug.

Dust/Chip Extraction

Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

• Use dust extraction whenever possible.
• Provide for good ventilation of the working place.
• It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

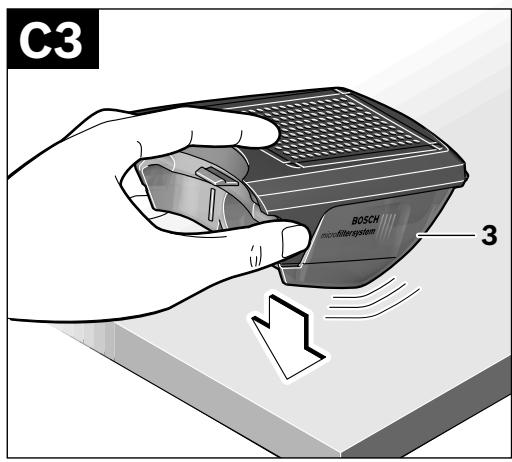

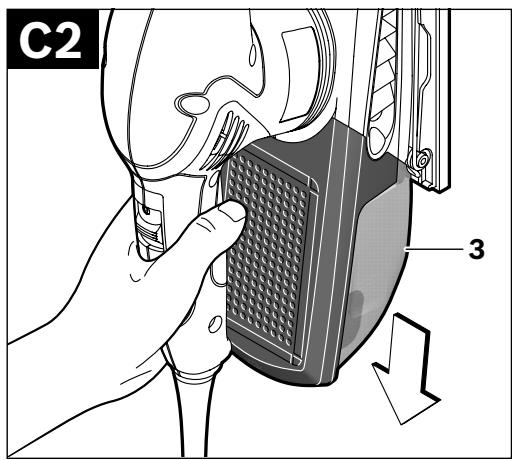

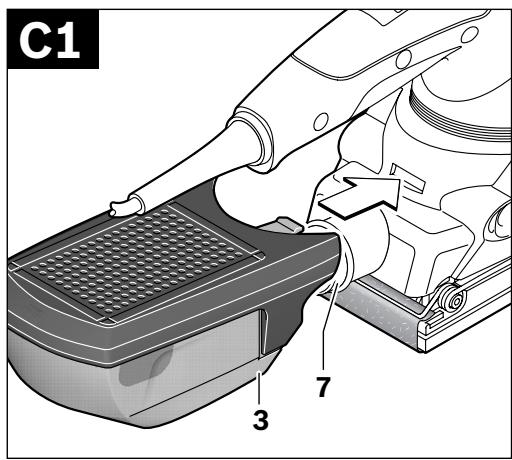

Integrated Dust Extraction with Dust Box (see figures C1-C4)

Attach the dust box 3 onto the extraction outlet 7 until it latches.

To empty the dust box 3, pull off the dust box downward.

Before opening the dust box 3, it is recommended to loosen the dust from the filter element by gently striking it against a firm support (as shown in the figure).

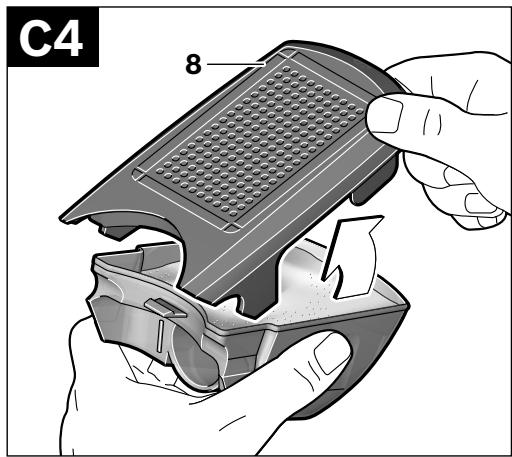

Grasp the dust box 3 by the recessed grip, fold the filter element 8 upward and empty the dust box. Clean the thin plates of the filter element 8 with a soft brush.

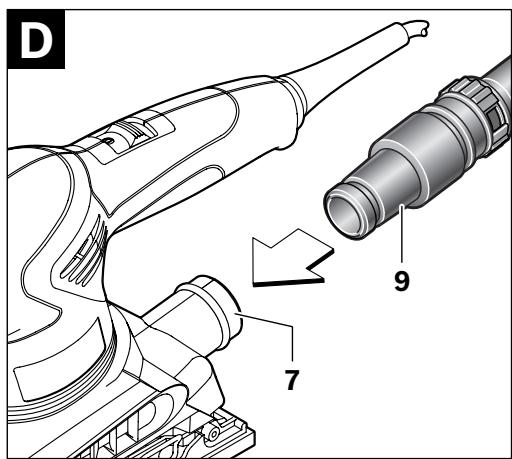

External Dust Extraction (see figure D)

Insert a vacuum hose 9 onto the extraction outlet 7. Connect the vacuum hose 9 to a vacuum cleaner. See the overview for connecting to various vacuum cleaners at the end of these operating instructions.

The vacuum cleaner must be suitable for the material being worked.

When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.

Replacing the Sanding Sheet

When attaching a new sanding sheet, remove any dust or debris from the sanding plate 5 (e. g. with a brush).

To ensure optimum dust extraction, pay attention that the punched holes in the sanding sheet match with the holes in the sanding plate.

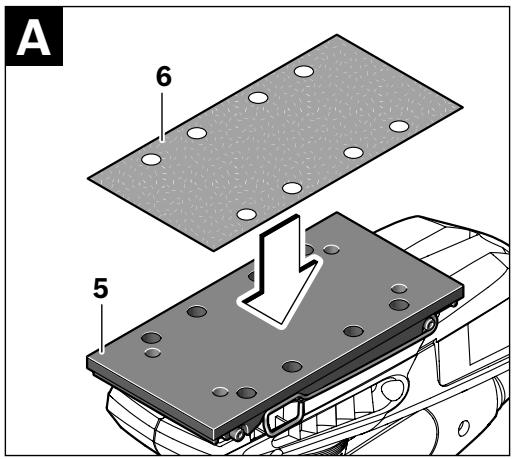

Sanding Sheets with Velcro Backing (PSS 200 A/PSS 250 AE) (see figure A)

The sanding plate 5 is fitted with Velcro backing for quick and easy fastening of sanding sheets with Velcro adhesion.

Before attaching the sanding sheet 6, free the Velcro backing of the sanding plate 5 from any debris by tapping against it in order to enable optimum adhesion.

Position the sanding sheet 6 flush alongside one edge of the sanding plate 5, then lay the sanding sheet onto the sanding plate and press it against it with a light turning motion in clockwise direction.

To remove the sanding sheet 6, grasp it at one of the tips and pull it off from the sanding plate 5.

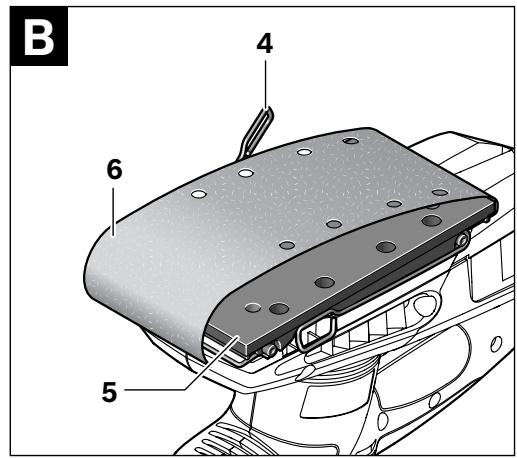

Sanding Sheets without Velcro Backing (PSS 190 AC/PSS 200 AC/PSS 250 AE) (see figure B)

Lightly lift and unlatch the sanding-sheet clamp 4.

Guide the sanding sheet 6 under the opened rear sanding-sheet clamp 4 to the stop and clamp the sanding sheet by reinserting the sanding-sheet clamp 4.

Fold the sanding sheet 6 firmly around the sand-ing plate. Guide the other end of the sanding sheet 6 under the front sanding-sheet clamp 4 and clamp the sanding sheet by reinserting the sanding-sheet clamp 4.

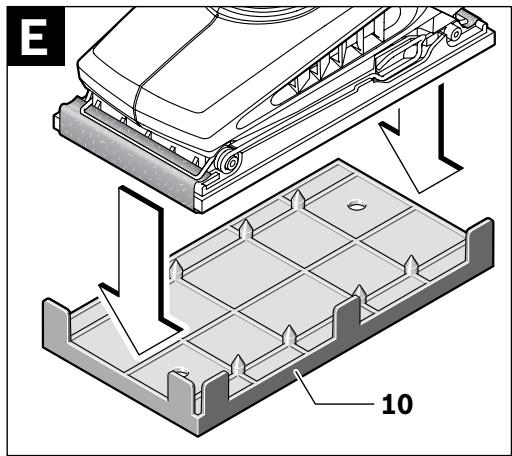

Sanding sheets without holes, e. g. from rolls or by the meter, can be punctured with the perforating tool 10 for use with dust extraction. For this, press the machine with the mounted sanding sheet onto the perforating tool (see figure E).

To remove the sanding sheet 6, unlatch the sand-ing-sheet clamp 4 and pull out the sanding sheet.

Selecting the Sanding Sheet

Depending on the material to be worked and the required rate of material removal, different sanding sheets are available:

Grain size
Red Wood		40-240
For the working of all wooden materials
For coarse-sanding, e. g. of rough, un- planed beams and boards	coarse	40, 60
For face sanding and planing small irregularities	medium	80, 100, 120
For finish and fine sanding of hard woods	fine	180, 240
White Paint		40-320
For the working of paint/enamel coats or primers and fillers
For sanding off paint	coarse	40, 60
For sanding primer	medium	80, 100, 120
For final sanding of primers before coating	fine	180, 240, 320

Operation

Starting Operation

Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230V can also be operated with 220V .

Switching On and Off

To start the machine, push the On/Off switch 2 towards the front to "l".

To switch off the machine, push the On/Off switch 2 towards the rear to "0".

Preselecting the Orbital Stroke Rate (PSS 250 AE)

With the thumbwheel for preselection of the orbital stroke rate 1, you can preselect the required orbital stroke rate, even during operation.

The required stroke rate depends on the material and the working conditions and can be determined through practical testing.

Working Advice

Wait until the machine has come to a standstill before placing it down.

The removal capacity during sanding is mainly determined by the selection of the sanding sheet as well as the preselected orbital stroke rate (PSS 250 AE).

Only flawless sanding sheets achieve good sand-ing capacity and extend the service life of the machine.

Pay attention to apply uniform sanding pressure; this increases the working life of the sanding sheets.

Intensifying the sanding pressure does not lead to an increase of the sanding capacity, but to increased wear of the machine and the sanding sheet.

A sanding sheet that has been used for metal should not be used for other materials.

Use only original Bosch sanding accessories.

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine itself, pull the mains plug.
For safe and proper working, always keep the machine and ventilation slots clean.

If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

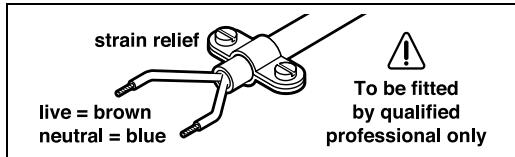

WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.

The wires in the cable are coloured according to the following code:

Do not connect the blue or brown wire to the earth terminal of the plug.

Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely.

After-sales service and customer assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools into household waste!

According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right,

power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Robert Bosch (France) S.A.S.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montaje

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montagem

• Antes de todoseworkos na ferramenta electricadeferapeuxaraficha de rede da to-mada.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montaggio

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montering

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

ppa. /mu: i.v. nuoycu

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Dra stickproppen ur nätuttaget innan arbeiten utfors på elverktyget.

Damm-/spanutsugning

Endast for EU-lander:

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. /maee i.v. nuoycu

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montering

För alle arbeider på elektroverktøyet utføres违法犯罪.

Stov-/sponavsuging

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Asennus

AiaβaTe oλeTic npo- eIbOonuTikEc unObeiEic.

Aeiec kata nTv thponTsw npoeboonoiTikwv unodeiEewu npopei va npokaéouv nektpoanlqia, kivduvo npkayiac n/ka oapouc tpaumatioouc.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Euvaopoloyon

ByaTeTo ano Tnv npia npiv ano onoi- 6hnote epyaia oTo nLektpko epyaleio.

Avappoqnon oKovnc/porakviδwv

H oKovn ano opiaeva uliká. n.x. ano moLuβ-δouxcε μnoiyec, ano εpiKa eibn Eulou, ano opukta ulika kal ano metaλλa mnopei va eivav avOuyieivn. H enapn n tN oKovn /kai n 10vOn Tnc mnopei va npokaloei aAlepYikc avTbpaoic n/kai aOhevieic twv avanveu-otikw odov tou xPnOtn n TuXov napeupioko-mevvw atoWv.

Opioue i0n oKovn, n.x. 0kovn ano Eul0
BeIavIOIac n Oxiac 0ewpuovtaa av Kapkivoyova, 1iaItepa oe ouvduaouo me diapopa
ouanpomegaata kauiknou npaiopoiouovta
OTNV KATEpyaia Eluw (evwoecxpwoiou,
EluonpoatauteiKa eaa). H KATEpyaia
auiavTOxWv uIKWv eITpPentai mvo oe
eiDka eknaTsemu.

Tnpoume to 6ikaiwa aalayov.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen
Head of Product Certification

15.10.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montaj

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Müsteri Danismani: [phone]

Müsteri Servis Hatti: [phone]

Tasfiye
