USER MANUAL CT636LES1 SIEMENS

Register your product online

de	Deutsch	2
en	English	31
fr	François	57
nl	Nederland	86

Included in delivery (see page 31)

80^ Gruntee

90^ Schwarztee

Max Fruchtetee

Füllmerge

Included in delivery. 31

Congratulations 32

Safety instructions 33

Overview 35

Controls 35

Initial use 36

Display 37

Preparing drinks 38

Preparation using coffee beans. 40

Preparation using milk. 40

Preparation using ground coffee 41

Dispensing hot water 42

Personalised drinks 42

Two cups at once. 43

Adjusting the grind setting 43

Childproof lock. 44

Menu. 44

Care and daily cleaning. 46

Service programmes 49

Tips on energy saving 51

Frost protection. 52

Storing accessories 52

Accessories 52

Disposal. 52

Guarantee. 52

Simple troubleshooting. 53

Technical specifications 56

Included in delivery

(Figure A on the fold-out pages)

Fully automatic coffee machine
Instruction manual
Filter instructions
Installation instructions
Connecting cable
Assembly bracket
9 Spacer
5 fastening screws (silver)
2 fastening screws (long/black)
1 2 fastening screws (short/black)
1 sleeve (black)
2 sleeves (white)
Quick reference guide
Measuring spoon
Water hardness testing strip
Milk tube (set)
Milk container
Suction pipe

Congratulations …

... on purchasing this fully automatic coffee machine! You have now acquired a high-quality and modern kitchen appliance. It combines innovative technology with a range of functions and is easy to use. It will enable you to prepare a variety of delicious hot drinks quickly and simply – whether you're in the mood for an invigorating espresso, a creamy cappuccino, a smooth latte macchiato or white coffee, or a traditional cup of coffee. At the same time the appliance offers you a wide range of options for adapting it to your individual taste. To ensure that you can use this fully automatic coffee machine with all its functions and features reliably and safely, we would like you to familiarize yourself with its components, functions, displays and controls. These instructions are designed to help you. So please take the time to read them before you switch on the appliance.

How to use these instructions

You can open up the front cover of this instruction manual. There you will find illustrations of the appliance with each part numbered. These numbers will be referred to throughout the text.

Example: brewing unit (15)

These instructions also show display texts and symbols in a special way. These enable you to clearly see where we refer to texts or symbols that are marked or displayed on the appliance.

Display indicators:

"Espresso"

Buttons and controls on the display:

[ start/stop ]

The appliance comes with a quick reference guide where you can find the most important functions at a glance. It can be stored in the accessory drawer of the appliance.

Safety instructions

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

Danger of electric shock!

The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed. Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs must only be carried out by our customer service personnel. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Never immerse the appliance or mains cable in water. Use only if power cord and appliance show no signs of damage. Should a fault occur, pull the plug or disconnect from the mains immediately.

The appliance contains permanent magnets that may influence electronic implants such as pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10cm from the front of the appliance and from the following parts upon removal: milk container, milk system, water tank and brewing unit.

Risk of suffocation!

Do not allow children to play with packaging material. Store small parts safely as they can be easily swallowed.

Risk of injury!

Do not reach into the grinding unit. Be careful not to jam your fingers when closing the door. A misuse of the appliance can potentially lead to injury.

Risk of burns!

The beverage outlet gets very hot. After use, allow to cool down first before touching.

Overview

(Figures B to E on the fold-out pages)

1 Appliance door

a Recessed grip (for opening the door)
b Drip plate

2 Display
3 Controls
4 Outlet system (coffee, milk, hot water), height-adjustable

a Cover

5 Milk system

a Snap lever
b Beverage outlet (upper part, lower part)
c Milk tube (2 pieces)
d Connecting element, metal (for magnet holder)

6 Mains switch [O / I] (power supply)

7 Accessory drawer (for quick reference guide and accessories)

a Quick reference guide
b Measuring spoon
c Water hardness strip
d Milk tube (set)

8 Removable water tank
a Lid for water tank
9 Removable bean container
a Lid for bean container
10 Slide regulator for grinding degree setting
11 Magnet holder (for connecting element)
12 Removable drawer (for ground coffee/cleaning tablet)
13 Holder (for milk tube)
14 Protective cover (for brewing unit)
15 Brewing unit

a Locking mechanism
b Cover

16 Eject lever
17 Removable drip tray

a Drip tray cover
b Coffee grounds container

18 Collecting tray
19 Holder (for long suction pipe)

a Suction pipe

20 Rating plate (E number, FD)

21 Storage shelf with sensor (for milk container)

22 Milk container

a Stainless steel container
b Lower part of the lid
c Upper part of the lid

Further information about the appliance, such as how to change the opening angle of the door, can be found in the assembly instructions.

Controls

The appliance features user-friendly menu navigation to ensure that operation is as easy as possible while at the same time offering a wide range of functions. That means a range of options can be selected with just a few operating steps.

Mains switch [O/1]

Use the mains switch [O/I] (to do so open the door) to switch on the appliance, or to switch it off fully (power supply off).

i Important: Do not press the mains switch while the appliance is in use. Switch off the appliance only when it is in energy saving mode, so that it can rinse automatically.

Button [on/off]

Press button [on/off] to switch on the appliance or change it to energy saving mode. The appliance is rinsed automatically.

The appliance does not rinse if:

• if it is still warm when switched on, or
• if no coffee was dispensed before it was switched off.

The appliance is ready for use as soon as the symbols for the drinks selection appear on the display.

Button [menu]

Press button [menu] to open the menu. Settings can be made and information called up (see the section "Menu").

Button [clean]

Press button [clean] to open the selection of service programmes. Run the desired programme as described in the section "Service programmes".

Button [my]

Press button [my] to open the selection of "Personalised beverage preparation". Personal settings for coffee drinks can be saved and called up (see the section "Personalised drinks").

Button [ ]

Press button [ ] after selecting a drink to prepare two cups simultaneously (see the section "Two cups at once").

Press [menu], [clean], [my] or [ ] again to exit the respective menu.

Button [start/stop]

Press [ start/stop ] to either begin preparing a drink or launch a service programme. Press [ start/stop ] again while the drink is being prepared to prematurely halt dispensing.

Rotary selector

Turn the rotary selector to navigate in the display or to change parameters.

Display (Touchscreen)

Information is shown on the display, or settings can be made by touching the touchscreen (see the section "Display").

Initial use

General

Fill the appropriate container using only pure, cold, uncarbonated water and solely roasted beans. Do not use coffee beans that have been glazed, caramelised or treated with other additives containing sugar, since they will block the brewing unit.

Before the appliance can be switched on and used, it must be assembled and connected according to the enclosed assembly instructions.

Setting up the appliance

Remove any protective plastic film.

Important: Only use the appliance in a frost-free room. If it has been transported or stored at temperatures below 0^ , wait at least 3 hours before initial use.

Take hold of the appliance door by the recessed grip and open.
- Remove the water tank, rinse it and fill it with fresh water up to the "max" mark.
- Replace the water tank and click into place.
- Remove the bean container, fill with coffee beans and replace.
- Set the mains switch to I and close the appliance door.

The appliance heats up and is rinsed.

The display is activated.

"Select language" appears.

• Turn the rotary selector to select the desired language and touch [Continue] in the display.

"Set water hardness" appears.

It is important to set the water hardness correctly to enable the appliance to accurately indicate when the descending programme should be run. The preset water hardness is level 4. If a water softener is installed in the house, please set the water hardness to level 3. You can also check the water hardness by asking your local water supplier.

• Use the enclosed test strip to determine the water hardness. Briefly dip the test strip in water and check the result after one minute.

Level	Water hardness
	German (°dH)	French (°fH)
1	1-7	1-13
2	8-14	14-25
3	15-21	26-38
4	22-30	39-54

Turn the rotary selector to set the water hardness determined.
- Touch [Continue]. "Complete set-up?" appears.
- Touch [Apply]. The settings are saved.
The appliance is ready to use when the drink symbols are shown on the display.

The integrated fan switches on each time a drink is dispensed and switches off again after a few minutes.

When the appliance is used for the first time after running a service program, or if it has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed.

When the fully automatic coffee machine is first used, a suitably thick and stable "crema" is only achieved after the first few cups have been dispensed.

Switch off appliance

Press the [on/off] button.

The appliance rinses and switches to energy saving mode.

Exception: If only hot water is dispensed, the appliance switches off without rinsing.

To switch the appliance off completely, open the appliance door and set the mains switch to [O].

i Important: Do not press the mains switch while the appliance is in use. Switch off the appliance only when it is in energy saving mode, so it can rinse automatically.

The factory settings of the fully automatic coffee machine are programmed for optimal performance. The appliances switches automatically to the energy saving mode after a configured time and rinses (duration can be set, see "Switch off after" in the section "Menu").

The appliance is equipped with a sensor. If there is a milk container, this will be correspondingly shown on the display when switching to the energy saving mode. If there is milk in the container, please keep in the fridge.

Display

Information is shown on the display, or settings can be made by touching the touchscreen.

Display

The display shows the selected drinks, settings and setting options, as well as messages about the appliance's operating status.

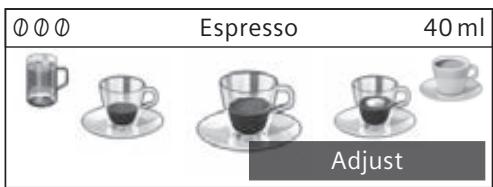

Examples: Drink selected

Information

Information disappears after pressing the button or after a short time.

Water tank almost empty

Instead of text, a small symbol appears in the lower left area of the display.

Bean container almost empty

Water tank almost empty

Change water filter

Cleaning programme required

Dscaling programme required

calc'nClean programme required

Prompts to take action

Fill water tank

If the action required was carried out, e.g. filling the water tank, the corresponding message and symbol will disappear.

Operation

Touch texts or symbols combined with turning the rotary selector to navigate within the display (for an example, see section "Drink adjustment").

An audible signal is heard when touching the display. These audible signals can be switched on or off (see the section "Menu - Key tones").

Preparing drinks

This fully automatic coffee machine can be operated using coffee beans or ground coffee (but not instant coffee).

If using coffee beans, they will be freshly ground for each brewing. For optimum quality, store the beans in a cool place in sealed containers.

Important: Fill the water tank with fresh, uncarbonated, cold water every day. The tank should always contain sufficient water for operating the appliance.

Tip: Cups should be prewarmed, e.g. with hot water. This applies particularly to small thick-walled espresso cups.

For some settings, coffee is prepared in two stages (see the section "aromaDouble Shot" and "Two cups at once"). Please wait until the process is completely finished.

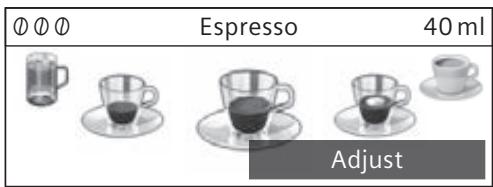

Drink selection

Turn the rotary selector to select different drinks:

The symbol for the drink selected is shown in the middle. The name of the drink and the values currently set, e.g. for the strength and volume are shown in upper row.

The following drinks can be selected:

Ristretto

Espresso

Espresso Macchiato

Coffee

Cappuccino

Latte Macchiato

Caffe Latte

Milk froth

Warm milk

Hot water

The drink selected can be directly prepared with the pre-set values or first adjusted to individual taste.

Drink adjustment

Touch [Adjust] on the display and different fields will appear, depending on the drink, for adjustment.

The field where the value can be changed has a dark background.

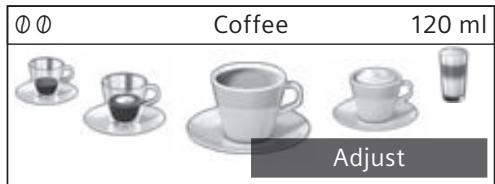

An example:

The values for a cup of coffee can be changed as follows:

Use the rotary selector to select "Coffee".

Touch [Adjust].

The fields containing the preset values appear. The active field, e.g. [0] has a dark background.

Coffee
∅∅	120 ml
normal	Back

Turn the rotary selector to set the strength of coffee desired, e.g. "0000" (strong).

• Touch the field [日]

Coffee
∅ 0∅ 0∅	120 ml
normal	Back

Turn the rotary selector to set the required amount of coffee, e.g. "160 ml".
Touch the field [ ]

Coffee
∅ 0∅ 0∅	160 ml
normal	Back

Turn the rotary selector to set the desired temperature, e.g. "high".

Coffee
∅ 0∅ 0∅	160 ml
high	Back

• Save the settings by touching [Back] or by starting to dispense the drink.

There are different setting options depending on the type of drink. For coffee drinks, for example, the strength, temperature and quantity can be set, for milk only the volume.

The following settings are possible: Coffee strength

① Very mild

Mild

000 Regular

Strong

Very strong

2x① aromaDouble Shot strong

2x00 aromaDouble Shot strong+

2xOoO aromaDouble Shot strong++

aromaDouble Shot

The longer the coffee is brewed, the more bitter substances and undesired aromas are released. This has a negative effect on the taste and makes the coffee less easily digestible. So for extra strong coffee, the appliance has a special aromaDouble Shot function. When half the quantity has been prepared, it grinds and brews fresh coffee beans so that only the pleasant, aromatic scents are released.

The aromaDouble Shot function is not available for ristretto, espresso macchiato, and when ground coffee is used.

Drink temperature

Values for coffee drinks:

normal

high

very high

Values for hot water:

70^ White tea

80^ Green tea

90^ Black tea

Max Fruit tea

Volume

The volume differs depending on the type of drink and can be set in ml steps.

The volume dispensed can fluctuate depending on the quality of the milk.

If no controls are activated for approx. 30 seconds, the appliance will automatically exit the settings mode. The settings made will be automatically stored.

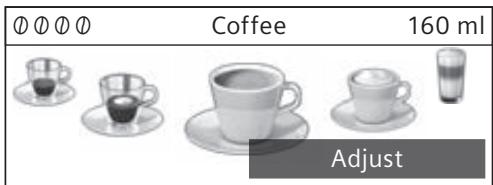

Preparation using coffee beans

The appliance must be ready for use.

• Place a cup underneath the beverage outlet.
  Use the rotary selector to select

"Ristretto", "Espresso" or "Coffee".

The display shows the selected drink along with the preset values for the strength of the coffee and the amount for this drink.

The settings can be changed as described in the section

"Drink adjustment".

Press [start/stop] to start dispensing. The coffee is brewed and then dispensed into the cup.

Press button [start/stop] again to stop dispensing prematurely.

Preparation using milk

This fully automatic coffee machine has an integrated beverage outlet. This can be used to prepare coffee drinks with milk or also milk froth and warm milk.

Risk of burns!

The beverage outlet gets very hot. After use, always let it cool down before you touch it.

Milk container

The milk container has been designed especially for use together with this fully automatic coffee machine. It is intended solely for use in the household and for storing milk in the refrigerator. The insulated container keeps milk cool for a number of hours.

i Important: Remove cups or glasses before opening the door in case they fall.

Connecting the milk container or a milk carton:

• Open the appliance door.
• Remove the cover of the beverage outlet towards the front.
  Connect and fix the milk tubes and connecting elements as illustrated.

• Attach the cover firmly from the front on to the beverage outlet.
• Attach the suction pipe and insert into the milk container or a milk carton.

• Close the appliance door.

Dried milk residues are difficult to remove, therefore always clean (see the section "Cleaning the milk system").

Coffee drinks with milk

• Place a cup or glass underneath the beverage outlet.
• Select "Espresso Macchiato", "Cappuccino", "Latte Macchiato" or "Caffe Latte" with the rotary selector. The display shows the selected drink along with the preset values for the strength of the coffee and the amount for this drink.

The settings can be changed as described in the section "Drink adjustment".

Press [start/stop] to start dispensing. The milk is dispensed into the cup or glass first. Then the coffee is brewed and runs into the cup or glass.

Press button [start/stop] again to stop the current step of the process prematurely.

Milk froth or warm milk

• Place a cup or glass underneath the beverage outlet.
• Select "Milk froth" or "Warm milk" with the rotary selector.

The settings can be changed as described in the section "Drink adjustment".
Press [start/stop] to start dispensing. Milk froth or warm milk is dispensed from the beverage outlet.
Press button [start/stop] again to stop the current step of the process prematurely.

Preparation using ground coffee

i When using ground coffee, the setting for the strength of the coffee and dispensing two cups at once is not available. Important: Remove cups or glasses before opening the door in case they fall.

The appliance must be ready for use.

• Open the appliance door.
• Remove the ground coffee drawer. The removable drawer must be dry.
  Put in coffee powder (maximum 2 level measuring spoons); do not press firmly.

Caution!

Do not use whole beans or instant coffee.

Replace the ground coffee drawer.
- Close the appliance door, ≈ will appear on the display.

If coffee is not dispensed within 90 seconds, the brewing chamber empties automatically to avoid an overflow. The appliance is then rinsed.

• Place a cup underneath the beverage outlet.
  Using the rotary selector, select a coffee drink or a coffee drink with milk. The display shows the selected drink along with the preset values for this drink.

The settings can be changed as described in the section "Drink adjustment".

For coffee drinks with milk, please observe the instructions in the section "Preparation using milk".

Press [start/stop] to start dispensing. The coffee is brewed and then dispensed into the cup. When selecting coffee drinks with milk, the milk is first dispensed and then the coffee brewed.

i For another drink with ground coffee, repeat the procedure.

Dispensing hot water

Risk of burns!

The beverage outlet gets very hot. After use, always let it cool down before you touch it.

The appliance must be ready for use.

• Remove the milk tube from the milk container.
• Remove any milk or coffee residue from the outlet.
• Place a cup or glass underneath the beverage outlet.
• Select "Hot water" with the rotary selector.

The settings can be changed as described in the section "Drink adjustment".

Press [start/stop] to start dispensing.
The message appears "Milk tube removed from milk container?"

If still connected, remove the milk tube and touch [Yes] on the display. Hot water flows out of the beverage outlet. Press button [start/stop] again to stop the procedure prematurely.

Personalised drinks

Press [my] to open the selection for personalised drinks. Up to 8 storage spaces can be used. Save your favourite drinks that are frequently dispensed here with all their settings.

Press [my] to exit the menu without saving at any time.

Entering or changing drinks

Press [my]. The selection of memory locations appears.

myCoffee 1

Create beverage

Using the rotary selector, choose an empty memory location (empty cup) to make a new entry, or an occupied memory location to change or delete a favourite drink.
At an empty memory location [Create beverage] or an occupied memory location [Change beverage].

If [Delete beverage] is selected, the settings for the memory location are deleted and it is again empty.

The menu for adjusting the drinks opens. The last drink dispensed is shown with the last settings selected.

If you do not wish to save last drink dispensed, select another drink with the rotary selector.
- Touch each setting to be changed and adjust the values as desired with the rotary selector.

Other setting options appear depending on the selection.

• Touch [Continue] to make other settings.
  For milk drinks, the mixing ratio of coffee and milk can be set.
• The settings can be stored under an individual name. Touch [Save name]. The mask for entering the name opens.

3456789`<ABCDEFGHIJK
<	A___________	✓
Cancel		Save

Using the rotary selector, select a letter or a symbol in the upper row.
- Touch [√] to confirm the letter selected on [< ] to delete it.
- Select other letters or symbols and confirm.
- Touch [Cancel] to exit the entry without any modification and open the drinks menu.
- With [Save] the entry is adopted. The selection menu opens.
Press [my] to exit the menu.

Select a personalised drink and dispense

Press [my].

The selection of memory locations opens.

Use the rotary selector to select the desired memory location.
- Place a cup or glass underneath the beverage outlet.
Press [start/stop] to start dispensing.

Two cups at once

Press [ ] to prepare two cups of the selected drink simultaneously. The setting is shown by a second cup symbol and as text, e.g. "2 x Espresso".

Use the rotary selector to select the desired drink.
Press [ ]
- Place two cups left and right underneath the beverage outlet.
Press [start/stop] to start dispensing.

The selected drink is prepared and then dispensed into both cups.

The drink is prepared in two stages (two grinding operations). Please wait until the process is completely finished.

Two cups at once cannot be dispensed for the settings "aromaDouble Shot" or "ground coffee".

Adjusting the grind setting

This fully automatic coffee machine has an adjustable grinding unit. This enables the grinding level of the coffee to be individually changed.

• Open the appliance door.
• Slide the regulator to select the grinding degree setting between finely ground coffee ... and coarsely ground coffee ...

• Close the appliance door again.

For dark roast coffee beans, choose a finer grind, for lighter beans a coarser grind.

Tip: Only make small changes to the grinding degree setting.

The new setting will not become apparent until after the second cup of coffee.

If the display shows the message "Select a coarser degree of grinding", this means that the beans are being ground too finely. Adjust the grinding level to a coarser setting.

Childproof lock

The appliance can be locked to protect children against scalding and burns.

Press and hold the [menu] button for at least 4 seconds.
"Childproof lock activated" briefly appears on the display.
No further operation is now possible; only [on/off] can be pressed.
To deactivate the child lock, press and hold the [menu] button for at least 4 seconds.
"Childproof lock deactivated" briefly appears on the display.

Menu

The menu is used for changing individual settings, accessing information and launching processes.

Press [menu] to open the menu.

The different setting options will appear.

Navigating through the menu:

Press [< ] and [>] to select the various setting options, e.g. "Language".

Turn the selector to set, e.g. "English".

Settings	1/12
< Language	>
English

For example:

Set the appliance at 15 minutes to switch off automatically:

Press button [menu]. The menu opens.
- Touch [>] repeatedly until the display shows "Switch off after".
Turn the rotary selector and select "0h 15min".
Press button [menu]. "Save changes?" appears.
- Touch [ Save ]. The setting is saved.
The drink selection appears on the display.

Press [menu] to exit the menu at any time. If no entry is made within approx. 30 seconds, the menu closes automatically and the settings are not saved.

The following settings can be made:

Language

Set the desired language to show the display texts.

Water hardness

Set this to the local water hardness.

Level "1 (soft)" to "4 (very hard)" can be selected. The preset water hardness is "4 (very hard)".

It is important to set the water hardness correctly to enable the appliance to accurately indicate when the descending programme should be run.

You can check the water hardness using the enclosed test strip or by asking your local water supplier. If a water softening system is installed in the house, please select the "Softening device" setting.

Water filter

If a water filter is inserted, renewed or removed, the setting "Insert", "Replace" or "Remove" must be made in the menu.

A water filter lessens limescale deposits, reduces impurities in water and improves the coffee taste. Water filters are available from retail outlets or from customer services (see the section "Accessories").

Inserting or renewing a water filter:

A new water filter must be rinsed before it can be used.

• Select either "Insert" or "Replace" with the rotary selector.

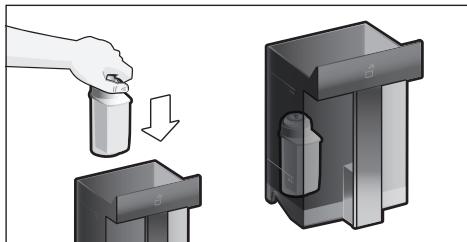

Press the water filter firmly into the opening of the water tank.

• Fill the water tank with water up to the "max" mark.
• Remove the milk tube from the milk container and close the door.

Caution: Do not jam the tube when closing the door.

• Place a container with a capacity of 0.5 litre under the outlet.
• Press button [start/stop]. Water will now flow through the filter to rinse it.
• Then empty the container.
  The appliance is ready for use again.

Rinsing the filter simultaneously activates the setting for the change filter display.

The filter is no longer effective when the "Replace water filter" display appears, or at the latest after two months. It needs to be replaced for reasons of hygiene and to prevent a build-up of limescale (which could damage the appliance).

If a new filter is not inserted, select the setting "Remove" and press button [start/stop].

The message "Remove filter, reinsert water tank, close door" appears.

If the appliance has not been used for a prolonged period (for example, while you are on holiday), the existing filter should be rinsed before the first time the appliance is used again. To do this, simply dispense a cup of hot water.

Detailed information about the water filter can be found in the manual supplied with the filter.

Switch off after

To set how long the appliance should wait after the last drink was prepared before it automatically rinses and switches itself off. You can specify values from 15 minutes to 8 hours. The factory setting is 30 minutes.

Illumination

Setting the illumination of the beverage outlet. "On", "When in use" or "Off" can be selected.

Brightness illumination

Setting the illumination lightness of the beverage outlet. "Level 1" to "Level 10" can be selected.

Brightness display

Setting the illumination lightness of display.

Key tones

Switch the signal tones on or off.

Clock display

Display option for time and date "Off" or "Digital" (on). The settings for this can be changed in the next menu options.

If the appliance is switched off at the mains or there is a power failure, the settings for the time and date will be lost.

Clock

Setting for the current time.

Date-day

Setting for the current day.

Date-month

Setting for the current month.

Date-year

Setting for the current year.

Frost protection

Service programme to prevent frost damage during transportation and storage.

This programme completely empties the appliance.

• Touch [Start] to begin running the programme.
  Empty the water tank and reinsert.

If available remove the milk container and close the door.
The appliance automatically empties all its pipes.
Empty the drip tray and re-insert.

Beverage info

Display shows how many drinks have been prepared since its initial use.
- Touch [Display] to show the information.

Factory settings

Resets your own settings to the condition when delivered.

• Select "Reset" with the rotary selector. The message "Are you sure?" appears.
• Touch [Reset] or [Cancel] to either confirm or interrupt.

Care and daily cleaning

Risk of electric shock!

Never immerse the appliance in water. Do not steam-clean the appliance.

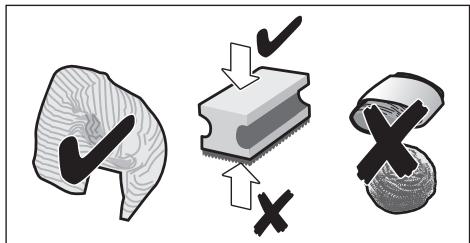

Wipe the outside of the appliance with a soft, damp cloth.
Clean the display using a micro-fibre cloth.
- Do not use any cleaning agents containing alcohol or spirits.
- Do not use abrasive cloths or cleaning agents.

Always remove any limescale, residues of coffee or milk, cleaning or descending solution immediately. It is possible for corrosion to form underneath such deposits.

New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use.

• Open the door and pull the drip tray out forwards.
• Remove drip tray cover and coffee grounds container.
  Empty, clean and dry individual parts.

Important: The drip tray and coffee grounds container should be emptied and cleaned every day in order to prevent deposits.

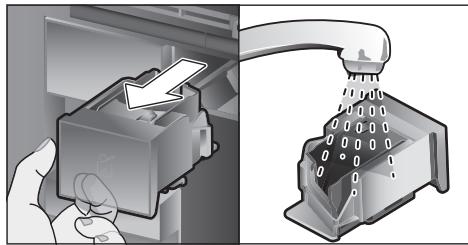

• Remove the ground coffee drawer, clean under running water and dry well.

Wipe and dry the inside of the appliance (support, drip tray and the ground coffee drawer) and collecting tray.
- Replace the dried parts, e.g. the ground coffee drawer.

Do not put the following parts in the dishwasher:

Accessory drawer, water tank, lid of the water tank, beverage outlet cover, bean container, lid of the bean container, metal connecting element, ground coffee drawer, protective cover of the brewing unit and the milk container.

The following parts may be cleaned in the dishwasher:

Drip plate, collecting tray, drip tray, drip tray cover, coffee grounds container, milk tubes, suction pipes, individual parts of the beverage outlet, measuring spoon and individual parts of the milk container lid.

If the appliance is cold when switched on, or if it is switched off after dispensing coffee, it rinses automatically. The system is therefore self-cleaning.

i Important: If the appliance is not used for a lengthy period (e.g. while you are on holiday), clean the entire appliance thoroughly, including the milk system, the ground coffee drawer and the brewing unit before use.

Cleaning the milk system

The milk system is automatically cleaned with a short jet of steam directly after preparing a milk drink.

Tip: For particularly thorough cleaning, the milk system can be additionally rinsed with water (see the section "Rinsing the milk system").

Important: Clean the milk system manually every week and, if required, also more often (see the section "Cleaning the milk system manually").

Risk of burns!

The beverage outlet gets very hot. After use, always let it cool down before you touch it.

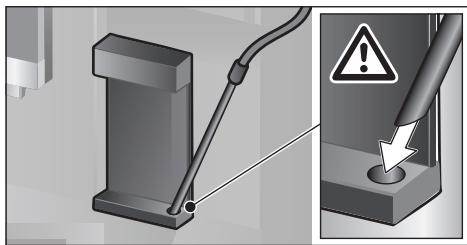

Rinsing the milk system

Press button [clean] and select "Rinse milk system" with the rotary selector.
Press [start/stop] to start the programme.
- Open door and remove suction pipe from the milk tube.
Wipe the suction pipe and insert the end of the suction pipe into the hole on the coffee grounds container.

• Close the door. Be careful not to jam the milk tube.

• Place an empty glass underneath the beverage outlet.
  Press button [start/stop].

The milk system is rinsed with water.

Then empty the glass.
Press [clean] to exit the program.

Cleaning the milk system manually Take the milk system apart to clean it:

• Push the beverage outlet down completely and pull the cover forward to remove.

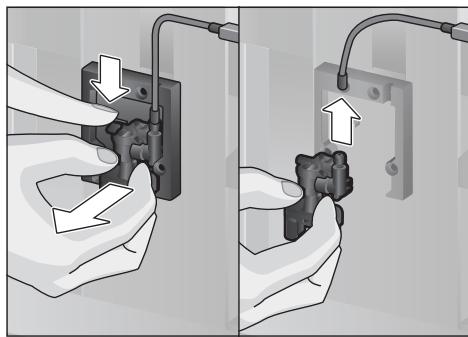

  Press the snap lever to the left of the beverage outlet downwards and pull the beverage outlet forward.

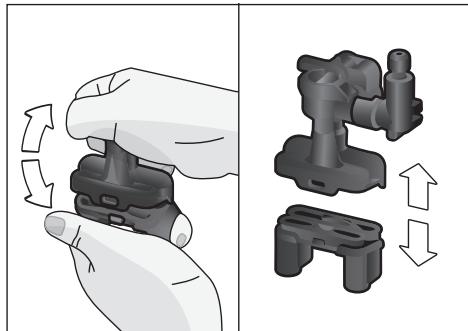

• Remove the milk tube. Dismantle the top and bottom sections of the beverage outlet.

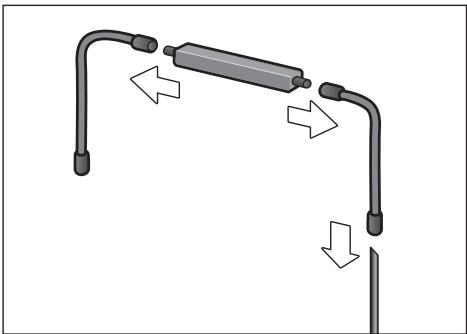

• Separate the milk tubes, connecting element and suction pipe.

Clean the individual parts with a detergent solution and a soft cloth.
- Rinse all parts with clean water and dry them.

All parts of the milk system can also be put in the dishwasher.

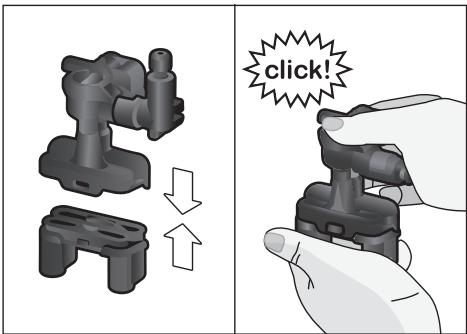

Put the individual parts back together again (see also the quick reference guide).

• Attach the beverage outlet directly from the front firmly to the three connections.
  Replace the cover.

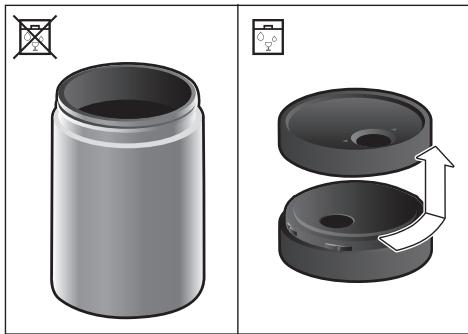

Cleaning the milk container

For reasons of hygiene, the milk container should be cleaned regularly. Only the individual parts of the lid are suitable for being cleaned in the dishwasher.

Clean the stainless steel milk container by hand with a mild detergent.

Cleaning the brewing unit

(see also the Quick reference guide) In addition to the automatic cleaning programme, the brewing unit should be removed regularly for cleaning.

• Open the appliance door.
• Use the mains switch [O/I] to switch off the appliance completely.
• Remove the protective cover of the brewing unit.
• Remove the coffee grounds container.
• Slide the red latch on the brewing unit all the way to the left.
  Press the eject lever right down. The brewing unit will be released.
  Take hold of the brewing unit by the recessed grips and carefully remove it.

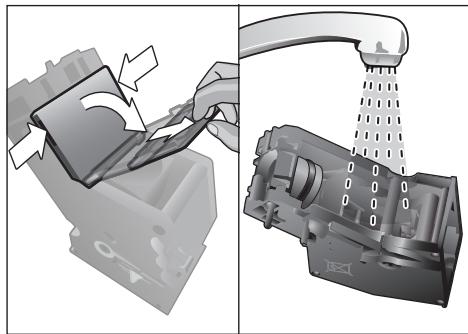

• Remove the cover of the brewing unit and clean thoroughly under running water.

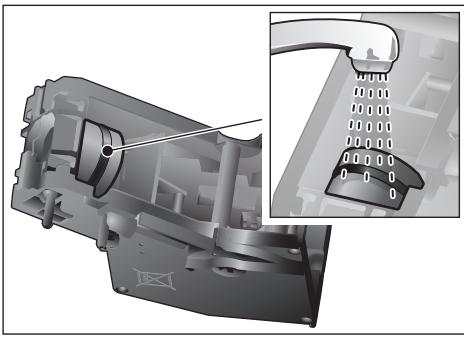

Clean the strainer of the brewing unit thoroughly under the water jet.

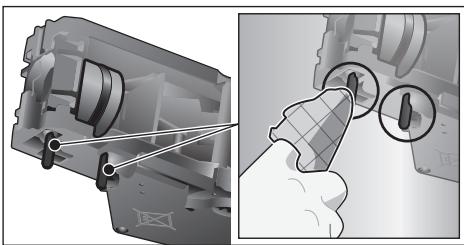

Thoroughly clean the connecting nozzles of the brewing unit.

Important: Clean it without using washing-up liquid and do not put it in the dishwasher.

Clean the inside of the appliance thoroughly with a moist cloth, removing any coffee residues.
- Leave the brewing unit and the inside of the appliance to dry.
Place the cover back on the brewing unit.
- Push the brewing unit all the way into the appliance and press on the middle until it audibly clicks into place.

Important: The red latch must be right over at the left at before replacing (see diagram E).

Press the eject lever right up and push the red latch right over to the right to 品
Insert the coffee grounds container.
Replace the protective cover.
- Close the appliance door.

Service programmes

(see also the Quick reference guide) The following messages will appear on the display at certain intervals, either "Descalng programme urgently required!" or "Cleaning programme urgently required!" or "calc'nClean programme urgently required!". The unit should immediately be cleaned or descaled using the appropriate programme. Alternatively, the two processes Descale and Clean can be carried out together using the calc'nClean function (see the section "calc'nClean"). Failure to carry out the service programme according to the instructions may damage the appliance.

Important: If the appliance is not descaled when it is supposed to be, the message "Descaling programme is overdue. Device will shortly be locked." will appear. Immediately perform the descending process in accordance with the instructions. If the appliance is locked, it can only be operated again once the descending process has been carried out.

To display how many beverages can still be prepared before one of the service programmes needs to be run, proceed as follows:

Press button [clean]
Turn the rotary selector to select "Service info".
- Touch [Display] to call up the information.

Warning!

For each of the service programmes, use descaling and cleaning agents as described in the instructions and observe the (relevant) safety information.

Never interrupt a service programme. Do not drink liquids! Never use vinegar, citric acid or any vinegar-based or citric acid-based agents. Never place descending tablets or other descending materials in the ground coffee drawer!

Important:

Before starting each service program (Descale, Clean or calc'nClean) remove the brewing unit, clean as instructed and replace it.

Be careful not to jam the milk tube when closing the door.

After completion of each service programme, wipe the appliance immediately with a soft, damp cloth to remove any residues from the descaling and cleaning solution. It is possible for corrosion to form underneath such deposits.

New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use. Clean the beverage outlet, milk tubes and connecting piece thoroughly.

Specially developed, suitable.
descaling and cleaning tablets are
available from retail outlets or from
customer services (see the section
"Accessories").

Dscaling

Takes about 21 minutes.

Press button [clean].
Turn the rotary selector to select "Descale".
Press button [start/stop]. Display indicates progress of the programme.
Empty drip trays and replace.
- Remove water filter(if there is one) and press [start/stop].
Pour lukewarm water into the empty water tank up to the "0.5 l" mark and then dissolve one Siemens descaling tablet TZ80002 in it. For the TZ60002 you should always dissolve two tablets.

If there is not enough descending solution in the water tank, you will be asked to do the following. Refill using uncarbonated water and press [start/stop] again.

• Remove the suction pipe from milk container, wipe it and insert the end of the suction pipe into the hole on the coffee grounds container.
• Close the appliance door.
• Place a container with a capacity of 0.5 litre under the beverage outlet.
  Press button [start/stop]. The descending programme will now run for about 19 minutes.
  Remove the container and press [start/stop].
• Rinse the water tank and (if removed) replace the water filter.
• Fill the tank with fresh water up to the "max" indicator.
• Replace the water tank and close the door.
• Place the container underneath the beverage outlet again.
  Press button [start/stop]. The descending programme will now run for about 2 minutes and rinse the appliance.
• Remove the container, empty the drip trays, replace and close the appliance door.
  Press [start/stop]. The appliance has finished descending and is ready for use again.
  Press [clean] to exit the program.

Cleaning

Takes about 5 minutes.

Press button [clean].
Turn the rotary selector to select "Clean".
Press button [start/stop].Display indicates progress of the programme.
Clean the beverage outlet and replace, empty the drip trays and replace.
- Open the ground coffee drawer, drop in a cleaning tablet and close the coffee drawer again.
- Close the appliance door.
- Place a container with a capacity of 0.5 litre under the beverage outlet.
Press button [start/stop]. The cleaning programme will now run for about 5 minutes.

• Remove the container, empty the drip trays, replace and close the appliance door.
  Press [start/stop]. The appliance has finished cleaning and is ready for use again.
  Press [clean] to exit the program.

calc'nClean

Takes about 26 minutes.

calc'nClean combines the functions Descale and Clean. If both programmes are due to be carried out close together, the fully automatic coffee machine will automatically suggest this service programme.

Press button [clean].
Turn the rotary selector to select "calc'nClean".
Press button [start/stop]. The display indicates the progress of the programme.
Clean the beverage outlet and replace, empty the drip trays and replace.
- Open the ground coffee drawer, drop in a cleaning tablet and close the coffee drawer again.
Remove the water filter (if there is one) and press [start/stop]
Pour lukewarm water into the empty water tank up to the "0.5 l" mark and then dissolve one Siemens descending tablet TZ80002 in it. For the TZ60002 you should always dissolve two tablets.

If there is not enough descending solution in the water tank, you will be asked to do the following. Refill using uncarbonated water and press [start/stop] again.

• Remove the suction pipe from milk container, wipe it and insert the end of the suction pipe into the hole on the coffee grounds container.
• Close the appliance door.

• Place a container with a capacity of 0.5 litre under the beverage outlet.
  Press button [start/stop]. The programme will now run for about 19 minutes.

• Remove the container and press [start/stop].

• Rinse the water tank and (if removed) replace the water filter.
• Fill the tank with fresh water up to the "max" indicator.
• Replace the water tank and close the door.
• Place the container underneath the beverage outlet again.
  Press button [start/stop]. The programme will now run for about 7 minutes and rinse the appliance.
• Remove the container, empty the drip trays, replace and close the appliance door.
  Press [start/stop]. The appliance is descaled, cleaned and ready for use again.
  Press [clean] to exit the program.

Special rinsing

Important: If any of the service programmes is ever interrupted, for instance by a power failure, please proceed according to the information on the display:

• Rinse the water tank and refill it with fresh water up to the "max" mark.
  Press button [start/stop]. The programme will now run for about 2 minutes and rinse the appliance.
• Empty the drip trays, replace and close the appliance door. The appliance is ready for use again.
  Press [clean] to exit the program.

Tips on energy saving

Press button [on/off] to switch the appliance to "energy saving mode". The appliances use very little power when in "energy saving mode", but monitors all safety-relevant functions so as to avoid damage.
In the menu under "Switch off after", set the automatic switch off period to 15 minutes.

• Reduce the brightness of the display and the illumination in the menu to save energy.
  If possible, do not interrupt the dispensing of coffee or milk froth. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.
• Descale the appliance regularly to avoid a build-up of limescale. Limescale residues cause higher energy consumption.

Frost protection

To prevent frost damage during transport and storage, completely empty the appliance beforehand (see the section "Menu - Frost protection").

Storing accessories

The fully automatic coffee machine has a special accessory drawer for storing the Quick reference guide and the accessories in the appliance.

Put the measuring spoon and the water filter into the accessory drawer.
Put the Quick Reference Guide into the special support at the front of the accessory drawer.
The long suction pipe can be stored in the holder on the inside of the door.
The connecting element can be fixed to the magnetic holder above the ground coffee drawer.

Accessories

The following accessories are available from retailers or from customer service:

Accessories	Order number Retail / Customer service
Cleaning tablets	TZ80001 / 00311807
Descaling tablets	TZ80002 / 00576693
Water filter	TZ70003 / 00575491
Care set	TZ80004 / 00576330
Milk container with “freshLock” lid	TZ80009N / 00576166
Restrictors for opening angle 92°	00636455

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Simple troubleshooting

Problem	Cause	Solution
Strongly fluctuating coffee or milk froth quality (e.g. fluctuation in quantity or milk froth spraying).	Build-up of limescale in the appliance.	Descale the appliance accord- ing to the instructions, see the section “Service programmes”.
	The suction pipe is blocked.	Clean the suction pipe.
Drinks cannot be dispensed.	Beverage outlet or one of the 3 connections are blocked.	Clean the beverage outlet and the connections.
The drink runs out at the entire outlet during dispensing.	Lower part of the beverage outlet is missing.	Attach the lower part, see the section “Cleaning the milk system”.
Too little milk froth, none at all, or the milk system is not taking in any milk.	Build-up of limescale in the appliance.	Descale the appliance accord- ing to the instructions, see the section “Service programmes”.
	Beverage outlet or one of the 3 connections are blocked.	Clean the beverage outlet and the connections.
	Milk not suitable for foaming.	Do not use milk that has already been boiled. Use cold milk with a fat content of at least 1.5%.
	Beverage outlet or the milk tubes are not correctly assembled.	Moisten the individual parts and put them together again.
	The suction pipe is blocked.	Clean the suction pipe.
The personally selected volume is not reached. Coffee dispensing slows to a trickle or stops completely.	Coffee is ground too finely. Preground coffee is too fine.	Adjust the grinding level to a coarser setting. Use a coarser ground coffee.
	Heavy build-up of limescale in the appliance.	Descale the appliance accord- ing to the instructions, see the section “Service programmes”.
	The brewing unit is soiled.	Clean brewing unit, see chapter “Cleaning the brewing unit”.
Hot water milky or tastes of coffee.	Milk tube has not been removed.	Remove the milk tube from the milk container.
	Milk or coffee residue in the beverage outlet.	Clean the beverage outlet.
Coffee has no “crema”.	Unsuitable type of coffee.	Use a type of coffee with a higher proportion of robusta beans.
	The beans are no longer fresh.	Use fresh beans.
	The grinding level is not suitable for the beans.	Adjust the grinding unit to a finer setting.
Coffee is too “acidic”.	The grinding level is too coarse. Preground coffee is too coarse.	Adjust the grinding unit to a finer setting. Use a finer ground coffee.
	Unsuitable type of coffee.	Change the type of coffee.
Coffee is too “bitter”.	Coffee is ground too finely. Preground coffee is too fine.	Adjust the grinding level to a coarser setting. Use a coarser ground coffee.
	Unsuitable type of coffee.	Change the type of coffee.
Coffee tastes burnt.	The brewing temperature is too high.	Reduce the temperature, see the section “Drink adjustment”.
	Coffee is ground too finely. Preground coffee is too fine.	Adjust the grinding level to a coarser setting. Use a coarser ground coffee.
	Unsuitable type of coffee.	Change the type of coffee.
Coffee is too “weak”.	Coffee strength selected is too weak.	Raise the strength of the coffee, see the section “Drink adjustment”.
	Ground coffee jammed in the coffee drawer.	Remove the ground coffee drawer, clean and dry thoroughly.
Ground coffee sticks in the coffee drawer.	Ground coffee sticks together.	Do not press the ground coffee firmly into the coffee drawer.
	Coffee drawer is damp.	Remove the ground coffee drawer, clean and dry thoroughly.
The water filter does not stay in position in the water tank.	The water filter is not mounted correctly.	Firmly press the water filter straight down into the tank connection.
Bean container sticks when inserting.	There are beans in the housing.	Remove the beans.
The coffee grounds are not compact and are too wet.	The grinding setting is too fine or too coarse, or not enough ground coffee has been used.	Adjust the grinding unit to a coarser or finer setting, or use 2 level measuring spoons of ground coffee.
Grinding level adjustment is stiff.	Too many beans in the grinding unit.	Dispensing a drink from coffee beans. Only make any subsequent changes to the grinding level in small steps.
Brewing unit cannot be inserted.	Brewing unit is in the wrong position.	Insert the brewing unit according to the instructions, see the section “Cleaning the brewing unit”.
	Brewing unit is locked.	Unlock the brewing unit, see the section “Cleaning the brewing unit”.
Protective cover of the brewing unit cannot be properly attached.	Brewing unit is not locked.	Lock the brewing unit, see the section “Cleaning the brewing unit”.
There is water under the drip tray.	This water is condensed.	Do not insert drip tray without cover.
Display shows “12:00”	Power failure or appliance switched off at mains.	Re-enter values; do not switch the appliance off at the mains or select the “Off” option in the Clock display menu.
Display shows “Milk container connected?” despite connected milk container.	Container is outside the range of the sensor.	Position the container at the right edge.
	Material e.g. milk carton is not recognised.	Confirm the display request with “Yes” or use the enclosed milk container.
Display shows “Overvoltage or undervoltage”	Voltage too high or too low.	Contact electricity or grid provider. Have the power supply checked by an expert.
Display shows “Leave device to cool”	Appliance is too hot.	Switch off appliance for 30 minutes.
Display shows, for example: “Fault: E0510”	The appliance has a fault.	Proceed according to the display screen.
Display shows “Fill bean container” although the container is already full, or the grinder is not grinding any beans.	Beans are not falling into the grinding unit (beans too oily).	Gently tap the bean container. Possibly change the type of coffee. When the bean container is empty, wipe it with a dry cloth.
Display shows “Clean brewing unit”	Brewing unit is soiled.	Clean the brewing unit.
	Too much ground coffee in the brewing unit.	Clean the brewing unit. Do not place more than two level measuring spoons of ground coffee in the drawer.
	The mechanism of the brewing unit is stiff.	Clean the brewing unit, see the section “Care and daily cleaning”.
Display shows "Refill with still water or remove filter"	Water tank wrongly inserted	Insert water tank correctly
	Carbonated water in the water tank.	Fill the water tank with fresh tap water.
	Float is stuck in the water tank.	Remove the tank and clean thoroughly.
	New water filter not rinsed according to instructions, or water filter used or defective.	Rinse the water filter according to the instructions and then switch on, or use a new water filter
	Air in the water filter.	Dip the water filter into water until no more air bubbles escape, replace the filter.
Display shows "Empty drip trays" despite them being empty.	Drip tray is soiled and wet.	Clean and dry the drip tray thoroughly.
	Emptying is not detected when the appliance is switched off.	When the appliance is switched on, remove and re-insert the drip tray.
Display shows "Insert drip trays" even though drip tray in use.	Inside of appliance (tray holder) dirty.	Clean the inside.
	The coffee grounds container is not fully inserted.	Push the coffee grounds container all the way in.
Water dripped onto the inner floor of the appliance when the drip tray was removed.	Drip tray was removed too soon.	Wait a few seconds after the last drink was dispensed before removing the drip tray.
Display shows "Please open door, switch off with power switch and then back on after 30 sec!"	Appliance is too warm.	Leave the appliance to cool down.
	Dirty brewing unit.	Clean the brewing unit.

If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.

Technical specifications

Power connection (voltage – frequency)	220-240 V – 50/60 Hz
Heater wattage	1600 W
Maximum static pump pressure	19 bar
Maximum water tank capacity (without filter)	2.4 l
Maximum capacity of the coffee bean container	500 g
Length of power cable	1.7 m
Dimensions (H x B x D)	455 x 495 x 375 mm
Weight, empty	19-20 kg
Type of grinding unit	Ceramic

Sommaire

Display (touchscreen)

AE United Arab Emirates,

BSH Home Appliances FZE

Round About 13,

Plot Nr MO-0532A

Jebel Ali Free Zone - Dubai

Tel.:[phone]

mailto:[e-mail]

www.siemens-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k

Rr: "Ferit Xhajklo" Ish Markata Tirana

Tel.: [phone], -131

Fax: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

BE Belgique, Belgie, Belgium

BSH Home Appliances S.A.

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

newsletter:informacia.servis-bg@

bshg.com

www.siemens-home.bg

BH Bahrain,

Khalaifat Est

P.O.Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

Werkskundendienst

für Hausgeräte

Fahrweidstrasse 80

8954 Geroldswil

+7snt/min (alv 24%

To arrange an engineer visit,

to order spare parts or

accessories or for product

advice please visit

www.siemens-home.co.uk or call

Tel.:[phone]*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Eλας

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

PavEeAInvio TnEΦwvo: 181 82

(AotikxPewon)

www.siemens-home.gr

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:siemens.hk.service@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kučni urežaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.siemens-home.com/hr

www.siemens-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]*

Fax: [phone]

www.siemens-home.com/ie

*0.03 € per minute at peak.

Off peak 0.0088 € per minute.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.co.il

IN India, Bharat,

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12

MIDC, Andheri East

Mumbai 400 093

Tel.: [phone]

www siemens-home.com/in

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.com/it

KZ Kazakhstan, Ka3akCTAH

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon,

Tehaco s.a.r.l

Boulevard Dora 4043 Beyrouth

P.O.Box 90449

Jdeideh 1202 2040

Tel.:[phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

www.balticcontinent.It

LU Luxembourg

www.siemens-home.com/lu

LV Latvija, Latvia

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.:[phone]

mailto:[e-mail]

MD Moldova

S.R.L. "Rialto-Studio"

yn. 98

2012 KIshinHeB

TeJ./ΦaKc:022 23 81 80

MK Macedonia, MaKeDoHnJa

GORENEC

Jane Sandanski 69 lok.3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederlande, Netherlands

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

PL Polska, Poland

www.siemens-home.com/pt

RO Romania, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect.1

13682 Bucuresti

Tel.: [phone]

Fax:[phone]

mailto:service.romania@

bshg.com

www.siemens-home.com/ro

RU Russia, Poccn

OOO"BCXБытоваяТхнika"

CepBnC OT pOn3BOuNTeTnA

Manay Kanyukka 19/1

119071 MockBa

TeJ.: 495 737 2962

mailto:[e-mail]

www.siemens-home.com

SE Sverige, Sweden

BSH Home Appliances AB

Landsvagen 32

169 29 Solna

Tel.:[phone] local rate

mailto:Siemens-Service-SE@

bshg.com

www.siemens-home.se

SG Singapore, 新加坡

BSH Home Appliances Pte. Ltd.

TECHPLACE I and

Mo Kio Avenue 10

Block 4012 #01-01

569628 Singapore

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.:[phone]

Fax:[phone]

www.siemens-home.com/sk

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/tr

gama-electronics.com

XS Srbija, Serbia

BSH Kučni aparati d.o.o.

Milutina Milankovića 11^a

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.siemens-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand - Johannesburg

Tel.:[phone]

Fax:[phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

Call rates depend on the network used

CZ 0251095546

DE 091170440044

DK 44898985

EE 06278730

ES 902118821

FI 0207510700

Lankapuhelimitsa 8,28 snt/puhelu + 7 snt/min (alv 24%)

Calls charged at local or mobile rate

GR 18 182 (aotri xpeo)

HR 013028226

HU 014895461

IE 014502655

IL 089777222

IS 05203000

IT 800 018 346 (Line Verde)

LI 052741788

LU 26349300

LV 067425232

ME 050432575

MK 022454600

NL 0884244020

NO 22660600

PL 801 191 534

PT 214250720

RO 021 203 9748

RU 88002002962

SE 0771 11 22 77 (local rate)

SK 0244452041

SL 012007017

TR 4446688

Cagri merkezini sabit hatlardan aramanin bedeli跟他 ici
üctrellindre, Cep Telefonlarndan ise kullanilan tarifeye gore
degiskenlik göstermetekdir

US 8664474363

XK 044172309

XS 0112139552
