Product type	Digital single-lens reflex camera
Brand	PENTAX
Model	K-50
Dimensions (W × H × D)	Approx. 129.0 mm × 96.5 mm × 70.0 mm (without accessories)
Weight	Approx. 590 g (body only), approx. 650 g (with battery and memory card)
Power supply	Rechargeable lithium-ion battery D-LI109 (supplied); battery holder D-BH109 (optional) for 4 AA batteries (lithium, rechargeable Ni-MH or alkaline); AC adapter K-AC128 (optional)
Sensor	16 megapixels CMOS (4928 × 3264 max pixels)
Compatible lenses	DA, DA L, D FA, FA J lenses and lenses with A position on the aperture ring
Image stabilization	Shake Reduction (sensor shift); Movie SR for video
Built-in flash	Pop-up flash with modes: auto, red-eye reduction, slow sync, rear-curtain sync, forced flash, etc.
Viewfinder	Optical reflex viewfinder with diopter adjustment
Screen	3.0-inch color LCD screen (approx. 921,000 dots)
Storage	SD, SDHC or SDXC memory card
Image formats	JPEG (3 quality levels), RAW (DNG), RAW+JPEG
Video recording	Full HD (1920×1080) at 30 fps, H.264; interval video
Shooting mode	Auto Picture (automatic scene), Scene modes (Portrait, Landscape, Macro, etc.), exposure modes: P, Av, Tv, M, B, Sv, TAv
Connectivity	USB 2.0 (MSC/PTP), AV output (NTSC/PAL), remote release terminal
Special features	HDR, digital filters, intervalometer, double exposure, exposure bracketing, lens correction, button customization
Maintenance and cleaning	Dust-proof system with integrated sensor cleaning; professional cleaning recommended periodically
Safety	Detailed instructions in the manual: do not disassemble, avoid shocks, use only specified accessories, observe operating temperatures (0–40 °C)
Spare parts and repairability	Battery D-LI109, charger D-BC109, battery holder D-BH109, AC adapter K-AC128, interchangeable lenses, eyecup, strap; repair by authorized PENTAX service centers

Frequently Asked Questions - K50 PENTAX

What types of lenses are compatible with the Pentax K-50?

The Pentax K-50 accepts lenses from the DA, DA L, D FA, FA J series as well as lenses with an A position on the aperture ring. Some functions may be limited with other lenses.

How many photos can be taken with a fully charged battery?

With the lithium-ion battery D-LI109, the number of recordable images is approximately 480 without flash and 410 with 50% flash usage (CIPA standard).

How to use the built-in flash of the K-50?

Press the flash pop-up button to raise it. You can choose from several modes: auto, red-eye reduction, slow sync, rear-curtain sync, etc. The flash settings are adjusted via the navigation button or the menu.

Can AA batteries be used in the Pentax K-50?

Yes, with the optional AA battery holder D-BH109. You can use four AA batteries (lithium, rechargeable Ni-MH or alkaline). Before use, set the battery type in the Preferences 3 menu.

How to perform manual focus?

Set the focus mode selector to MF. Then turn the focus ring of the lens while monitoring the image in the viewfinder or on the Live View screen. The camera confirms focus with an indicator light.

Does the Pentax K-50 have image stabilization?

Yes, it has the Shake Reduction system (sensor shift) that compensates for vibrations. For video, Movie SR is available. You can enable or disable stabilization via the menu.

What photo file formats are available?

The K-50 offers JPEG (with three quality levels: ★★★, ★★, ★) and RAW in DNG format. You can also save in RAW+JPEG simultaneously.

How to clean the CMOS sensor?

The camera has a vibration cleaning system for the sensor accessible via the menu. For deep cleaning, use a blower or send the camera to a PENTAX service center (fee-based service).

Is remote release possible?

Yes, you can use an optional remote control (such as the PENTAX Remote Control). The receiver is located on the front of the camera. The release mode must be set to Self-timer (2s) or Remote.

How to transfer photos to a computer?

Connect the camera to the computer via the supplied USB cable (in MSC or PTP mode as needed). You can also remove the SD memory card and use a card reader. The SILKYPIX Developer Studio software is provided on CD-ROM for RAW development.

USER MANUAL K50 PENTAX

Batterie lithium-ion rechargeable D-L1109

① Bouton (Correction IL)

① Bouton (Correction IL)

14 Sur-impression (p.138)

Increments IL	Valeur de correction de l'exposition
1/3 IL	±0,3; ±0,7; ±1,0; ±1,3; ±1,7; ±2,0; ±2,3; ±2,7; ±3,0; ±3,3; ±3,7; ±4,0; ±4,3; ±4,7; ±5,0
1/2 IL	±0,5; ±1,0; ±1,5; ±2,0; ±2,5; ±3,0; ±3,5; ±4,0; ±4,5; ±5,0

Affichage 4/9/16/36/81 imagettes

Amplification des tons

Assistance AF 19, 70, 112

AUTO (Image auto.),

mode 68,90

rechargeables Ni-MH .... 52

( ) 22, 24, 41, 80

Bouton vert 21, 179

INFO (Bouton INFO) .... 21, 24, 25, 31, 200

Info/optionsprograme 243

(Bouton Lecture) ..21, 24, 76

MENU (Bouton
MENU) 22, 24, 44

Mer & Neige 92

OK (Bouton OK) ....22, 24, 114

Portrait nocturne 90, 91

RAW/Fx, bouton 21, 182

Réglages capture image ....154

Réglages capture video 141

Réglages plaque dynamiq ....164

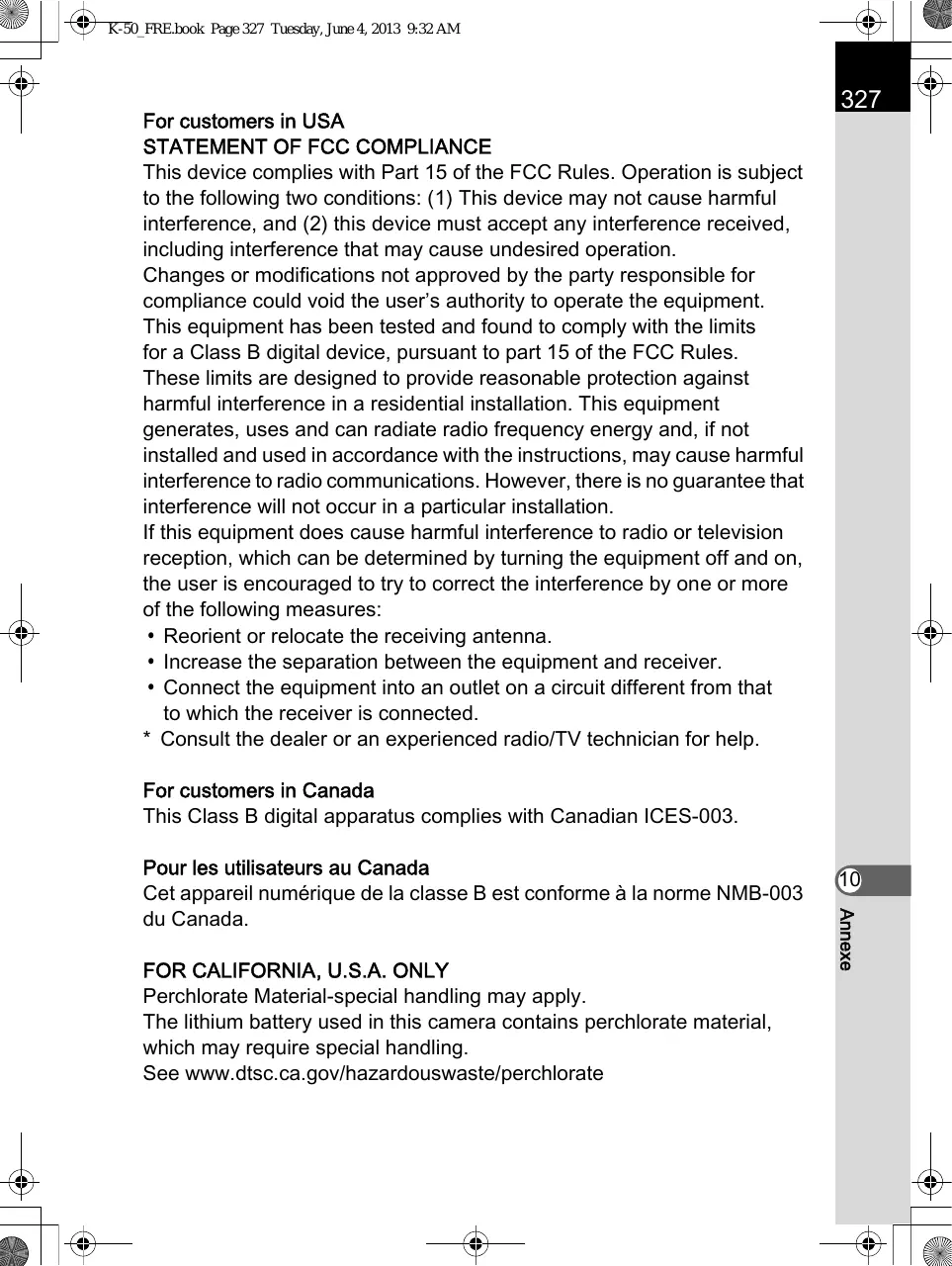

For customers in USA STATEMENT OF FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Perchlorate Material-special handling may apply.

The lithium battery used in this camera contains perchlorate material, which may require special handling.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We: PENTAX RICOH IMAGING AMERICAS CORPORATION

Located at: 633 17th Street, Suite 2600 Denver, Colorado 80202 U.S.A. Phone: [phone] FAX: [phone]

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name: Digital Camera

Model Number: K-50

Contact person: Customer Service Manager

Date and Place: May, 2013, Colorado

PENTAX RICOH IMAGING FRANCE S.A.S. (European Headquarters)

112 Quai de Bezons, B.P. 204, 95106 Argenteuil Cedex, FRANCE
(HQ - http://www.pentax.eu)
(France - http://www.pentax.fr)

PENTAX RICOH IMAGING
DEUTSCHLAND GmbH

Am Kaiserkai 1, 20457 Hamburg,
GERMANY
(http://www.pentax.de)

PENTAX RICOH IMAGING UK LTD.

PENTAX House, Heron Drive, Langley, Slough, Berks SL3 8PN, U.K. (http://www.pentax.co.uk)

PENTAX RICOH IMAGING AMERICAS CORPORATION

633 17th Street, Suite 2600, Denver, Colorado 80202, U.S.A.
(http://www.pentaximaging.com)

PENTAX RICOH IMAGING CANADA INC.

1770 Argentina Road Mississauga, Ontario L5N 3S7, CANADA (http://www.pentax.ca)

PENTAX RICOH IMAGING CHINA CO., LTD.

23D, Jun Yao International Plaza, 789 Zhaojiabang Road, Xu Hui District, Shanghai, 200032, CHINA (http://www.pentax.com.cn)
