Product type	Digital SLR camera
Brand	PENTAX
Model	K-50
Sensor type	CMOS
Effective resolution	16.3 megapixels (4928×3264)
Lens mount	K mount (compatible DA, DA L, D FA, FA J lenses and lenses with aperture ring position A)
Exposure modes	Program AE, Shutter priority, Aperture priority, Manual, Scene mode, etc.
Built-in stabilization	Shake Reduction (sensor shift)
Viewfinder	Reflex with diopter adjustment
Screen	LCD with shooting info display and Live View
Main power supply	Rechargeable lithium-ion battery D-LI109
Alternative power supply	4 AA batteries (with optional D-BH109 battery tray) or AC adapter K-AC128
Built-in flash	Yes (auto flash, red-eye reduction, slow sync, etc.)
Storage	SD, SDHC, or SDXC memory card
Video recording	Yes (settings available in video menu, duration depends on card)
Connectivity	USB, video output, remote shutter release terminal
Main functions	Scene modes, HDR, digital filters, intervalometer, bracketing, etc.
Sensor cleaning	Built-in dust removal system, professional cleaning recommended by service center
Safety instructions	Do not disassemble, avoid looking at the sun through the lens, use only genuine accessories
Warranty	12 months (parts and labor) subject to terms and conditions
Included software	SILKYPIX Developer Studio 3.0 LE

Frequently Asked Questions - K50 PENTAX

How to charge the D-LI109 battery?

Use the supplied D-BC109 charger. Connect the power cord, insert the battery into the charger with the ▲ mark facing up. The indicator lights up during charging and turns off when the battery is fully charged (approximately 240 minutes).

What type of lens can I use with the K-50?

You can use DA, DA L, D FA, FA J lenses and lenses with an A position on the aperture ring. For other lenses, some functions may be limited (see pages 59 and 290 of the manual).

How to insert an SD memory card?

Make sure the camera is turned off. Open the card slot cover, insert the card with the label facing the screen until it clicks, then close the cover. To remove, press the card once.

What to do if the camera does not turn on?

Check that the battery is charged and properly inserted, and that the memory card slot cover is closed (the camera will not turn on if it is open). If the problem persists, contact a PENTAX repair center.

How to use the built-in flash?

Press the flash pop-up button (▼) to raise it. You can set the flash mode using direct buttons or the menu. Available modes include auto, forced, red-eye reduction, slow sync, etc.

Can I use AA batteries with this camera?

Yes, with the optional D-BH109 AA battery tray. Use four lithium AA, rechargeable Ni-MH, or alkaline AA batteries. Set the battery type in the menu [Preferences 3] > [AA Battery Type] before use.

How to clean the CMOS sensor?

The camera has a dust removal system. For thorough cleaning, use the [Sensor Cleaning] function in the menu. If dirt persists, contact a PENTAX repair center for professional cleaning (fee charged). Do not use aerosol.

What is the battery life?

With a fully charged D-LI109 battery, you can take approximately 480 shots under normal conditions (at 23°C) according to CIPA standards. With AA lithium batteries, up to 1250 shots. Results vary depending on usage.

How to transfer photos to a computer?

Use the supplied USB cable (I-USB7). Set the USB connection mode in the [Preferences] menu to [MSC] or [PTP]. Connect the camera to the computer; it will be recognized as a storage device. You can also use a card reader.

What to do in case of an error message on the screen?

Refer to the [Error Messages] section of the manual (page 302). Common solutions include formatting the memory card, replacing the battery, or removing and reinserting the card. If the problem persists, contact customer service.

USER MANUAL K50 PENTAX

Line drawing of a Pentax DSLR camera with lens and control knobs (no text or symbols on body)

Line drawing of a mechanical component with a rectangular housing and curved side (no text or symbols)

Simple line drawing of a circular ring or washer (no text or symbols)

Line drawing of a mechanical clamp or grip with two bands and a dotted band (no text or symbols)

Courroie O-ST132

Batterie lithium-ion rechargeable D-LI109

Line drawing of a rectangular electronic device casing with internal components and mounting holes (no text or symbols)

Line drawing of a black cable with two terminal plugs (no text or symbols)

Line drawing of a coiled electrical cable with connectors (no text or symbols)

Câble USB I-USB7

⑮ Bouton ▶ (Lecture)

Bascule en mode lecture. (p.76)

⑯ Bouton OK

⑧ Bouton ▶ (Lecture)

Black-and-white beach scene with palm trees, a tower, and ocean (no visible text or symbols)

Page 2

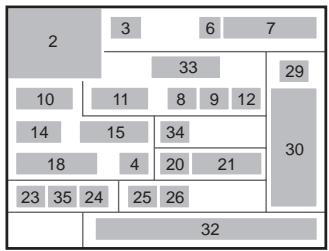

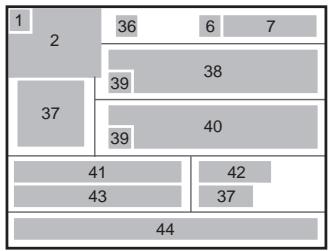

1 Information rotation (p.203)

2 Photo prise

27 Correction distorsion (p.167)

14 Sur-impression (p.138)

Line drawings of two DSLR camera modules shown from front and side views (no text or symbols)

De niveau (à 0°)

Pure electrical circuit lines without any symbols

Line drawing of a DSLR camera with screen and keypad (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of a digital camera with display screen and control panel (no text or symbols)

Abstract graphic with vertical bars and a plus sign, no readable text or symbols

Diagram of a rope knot being tied with a cable, showing rope routing and angle changes (no text or symbols)

Mechanical assembly diagram showing a component with a downward arrow and numbered parts (no text or symbols)

3 Fermez la trappe de protection.

Diagram of battery charging mechanism showing charge distribution and circuit connections (no text or labels)

Mechanical assembly diagram showing a component with labeled parts (no text or symbols present)

4 Fermez la trappe de protection.

Diagram of a camera interior showing internal components with arrows indicating direction (no text or symbols)

Illustration of a Pentax DSLR camera with no visible text or symbols on the lens or body

Diagram of a camera aperture with an arrow indicating the component, no text or symbols present

Diagram of a camera interior showing the left side of the main frame with a battery and control panel (no text or symbols)

Black-and-white photo of a coastal landscape with palm trees and hills, framed by a rectangular frame (no text or symbols visible)

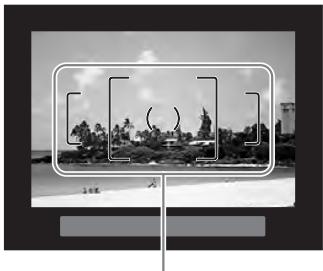

Mire AF

Line drawing of a person using a DSLR camera, no text or symbols present

Black-and-white photo of a wooden pier at dusk with a small inset image of a building on the water (no readable text or symbols)

Mire AF

2 Prenez une photo.

Black-and-white photo of a wooden pier with a gabled pavilion on calm water, captured in an outdoor setting (no text or symbols visible)

Diagram of a kitchen appliance showing a handle, pan, and side panel with a directional arrow (no text or symbols)

Black-and-white photo of a wooden pier at dusk with a clear sky and no visible text or symbols.

Black-and-white landscape illustration featuring a winding river, hills, and scattered trees under a cloudy sky (no text or symbols)

Exposition standard

Black-and-white illustration of a winding river through a mountainous landscape with scattered trees (no text or symbols)

Sous-exposition

Simple line drawing of a rural landscape with hills, trees, and a winding path (no text or symbols)

Surexposition

Black-and-white photo of a sleeping cat on a surface with a grid overlay and OK/OK buttons (no readable text or symbols)

Black-and-white photo of a wooden pier with a gabled pavilion on calm water, no visible text or symbols

Line drawing of a person using a GNTAX DSLR camera (no text or symbols)

Line drawing of a Pentax DSLR camera with lens and frame (no text or symbols)

Black-and-white photo of a wooden pier with a gabled pavilion on calm water, no visible text or symbols

Black-and-white photo of a wooden pier extending over calm water, with no visible text or symbols.

Line drawing of a PENTAI DSLR camera with no text or symbols on the body

Black-and-white photo of a person riding a bicycle against a cloudy sky (no text or symbols visible)

Black-and-white photo of a person riding a bicycle against a sky background (no text or symbols visible)

Pure grid pattern with no text, numbers, or symbols

Distorsion en coussinet

Pure grid pattern with no text, numbers, or symbols

Distorsion en barillet

Pure optical ray diagram showing lens intersecting a screen (no text or labels)

Black-and-white photo of a wooden pier with a gabled pavilion on calm water, no visible text or symbols

Grid of black-and-white photos showing coastal scenes including tropical beach, city skyline, and waterfront (no text or symbols)

Grid of six grayscale images showing various scenes including a city skyline, airplane, and landscape (no text or symbols)

Affichage 4/9/16/36/81 imagettes

Grid of black-and-white photos showing coastal scenes including beach, city skyline, and waterfront (no text or symbols)

Four-panel black-and-white photo sequence showing a person performing pull-ups on outdoor equipment, with no visible text or symbols.

Four-panel black-and-white photo collage showing beach scenes, a whale leaping out of water, and a coastal cityscape (no text or symbols)

Black-and-white photo of a wooden pier with a gabled pavilion by the water, no visible text or symbols.

Line drawing of a DSLR camera connected to a computer monitor via cable (no text or symbols)

Diagram showing a DSLR camera connected to a computer tower via cable (no text or symbols present)

$$ L 1 = 1 7 \div 5, 6 = \text { environ } 3 (m) $$

$$ \mathrm{L} 2 = 3 \div 5 = \text { environ } 0, 6 (\mathrm{m}) $$

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols visible.

(Bouton Lecture) 21, 24, 76

◎ (Bouton vert) 21

(Correction IL), bouton 21, 23, 100

😊 Standard 90

Portrait 90, 91

▲ Paysage 90, 91

Macro 90, 91

Assistance AF ...... 19, 70, 112

AUTO (Image auto.), mode 68, 90

Batteries rechargeables Ni-MH ..... 52

☑ (Correction IL), bouton .....21, 23, 100

INFO (Bouton INFO) .... 21, 24, 25, 31, 200

Info/options programe ...... 243

▶ (Bouton Lecture) ..21, 24, 76

OK (Bouton OK) .....22, 24, 114

Options interface ......224, 262

Ordinateur 259

P

Portrait nocturne 90, 91

RAW/Fx, bouton .....21, 182

Réglages capture image .....154

Superposer zone AF 38

Suppression 77, 205

For customers in USA

STATEMENT OF FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  * Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Perchlorate Material-special handling may apply.

The lithium battery used in this camera contains perchlorate material, which may require special handling.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We: PENTAX RICOH IMAGING AMERICAS CORPORATION

Located at: 633 17th Street, Suite 2600 Denver, Colorado 80202 U.S.A. Phone: [phone] FAX: [phone]

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name: Digital Camera

Model Number: K-50

Contact person: Customer Service Manager

Date and Place: May, 2013, Colorado
