USER MANUAL SC 4100C KARCHER

Description of the Appliance . EN 6

Safety instructions EN 6

Operation EN8

How to Use the Accessories . EN 9

Maintenance and care EN11

Troubleshooting EN13

Technical specifications EN 14

Special accessories EN14

General information

Dear Customer,

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Proper use

Only use the steam cleaner for private household applications. The unit is meant for steam cleaning and can be used with appropriate accessories as described in these operating instructions. Especially mind the safety instructions during use.

Symbols in the operating instructions

Danger

Immediate danger that can cause severe injury or even death.

Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Symbols on the machine

Steam

CAUTION - Danger of scalding

Environmental protection

The packaging material can be recycled. Please do not place the package to the ordinary refuse for disposal, but go for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection sys

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Quick Reference

Illustrations on Page 2

1 Fill the water reservoir up to the "MAX" marking.
2 Insert the steam plug into the appliance connector.
3 Plug in the main plug.

Turn on the appliance.

4 Indicator lamp "Heating on" is blinking (green)

Wait until the indicator lamp (heater) lights up permanently.

5 Connect the accessories to the steam gun.

The steam cleaner is ready to use.

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

Illustrations on fold-out page!

A1 Appliance connector with cover
A2 Water reservoir
A3 Locking door for water reservoir
A4 Switch - ON/OFF
A5 Indicator lamp - heating (GREEN)
A6 Indicator lamp "water shortage" (RED)
A7 Carrying handle
A8 Holder for accessories
A9 Accessory compartment mit locking door
A10 Maintenance lock
A11 Storage for mains connection cable
A12 Parking holder
A13 Mains cable with mains plug
A14 Transport wheel (2x)
A15 Steering roller
B1 Steam gun
B2 Steam lever
B3 Unlocking button
B4 Selector switch for the steam volume (with child protection)
B5 Steam hose
B6 Steam plug
C1 Detail nozzle
C2 Round brush
C3 Power nozzle
D1 Hand nozzle
D2 Terry cloth cover
E1 Extension tubes (two tubes)
E2 Unlocking button
F1 Floor nozzle
F2 Retaining clip
F3 Floor cleaning cloth
G1 Window wiper

Option

H1 Steam iron
H2 Upper steam button
H3 Indicator lamp - steam iron heating
H4 Lower steam button
H5 Steam lock
H6 Temperature controller
H7 Steam plug

Safety instructions

Danger

The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas the corresponding safety provisions must be observed.
- Never use the appliance in pools containing water.
The device should not be used to clean electrical appliances such as oven, exhaust, micro-wave, televisions, lamps, hair-dryer, electrical heating systems, etc.
Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the maintenance lock, and the steam hose.
If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
Please arrange for the immediate exchange of a damaged steam hose. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number).
- Never touch the mains plug and the socket with wet hands.
- Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
- Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds).
The maintenance lock must not be opened during operation.

Warning

The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.

In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter.
- Unsuitable extension cables can be hazardous. Only use a splashproof extension cable with a minimum section of 3 × 1 mm^2 .
The connection between power cord and extension cable must not lie in water.
If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured.
The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Never leave the appliance unattended when it is in operation.
- Be very careful while cleaning tiled walls with sockets.

Caution

Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
- Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance.
The appliance must not be carried during cleaning.

The appliance must provide of a stable ground.
Use and store the unit only in accordance with the specifications in the description and/or figure.
The steam switch must not be locked during the operation.
- Protect the appliance from rain. Do not store outside.

Safety Devices

Caution

Safety devices protect the user and must not be modified or bypassed.

Pressure controller

The pressure controller keeps the boiler pressure during the operation as constant as possible. The heating is turned off if the maximum operating pressure of 4 bar is reached in the boiler and is reactivated in case of a pressure drop in the boiler due to steam tapping.

Boiler thermostat

If there is no water in the boiler the temperature in the boiler rises. The boiler thermostat turns off the heating. The heating is prevented from being turned on again until the boiler has been filled.

Safety thermostat

If the boiler thermostat fails and the appliance overheats, then the safety thermostat turns off the appliance.

Please contact your local KÄRCHER customer service to arrange for the reset of the safety thermostat.

Maintenance lock

The maintenance lock acts as a pressure control valve at the same time. It seals the boiler against the steam pressure that builds up in the boiler.

If the pressure controller is defect and the steam pressure in the boiler rises, the pressure control valve, and steam is emitted through the maintenance lock to the outside.

Please contact your local Kärcher customer service before you put the appliance into operation again.

Operation

Illustrations on fold-out page!

Attaching the Accessories

Open the cover of the appliance socket.
Tightly insert the steam plug into the appliance connector. The plug must click into place audibly.

To disconnect: Press the cover of the appliance connector down and disconnect the steam plug from the appliance connector.

Illustration A-B

Connect the required accessories (see Chapter "Using accessories) to the steam gun. Insert the open end of the accessory on the steam gun and push onto the steam gun until the unlocking button of the steam gun locks into place.

Illustration

Use the extension pieces if necessary. To do so, connect one or both extension pieces to the steam gun. Insert the required accessories on the free end of the extension piece.

Removing the Accessories

Danger

Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalding!

Move the selector switch for the steam volume back (steam lever locked).
Illustration D

To detach the accessory parts, press the unlocking button and pull the items apart.

Filling the Water Reservoir

The water reservoir may be refilled at any time.

Caution

Do not use condensation water from the drier!

Do not fill in detergents or other additives!
Illustration 1

You can remove the water reservoir to fill it or you can fill it directly on the appliance.

Take off water reservoir.

Pull the water reservoir straight up.
Fill the water reservoir up to the "MAX" marking while positioned vertically under the water tap.
Insert the water reservoir and press downwards until it arrests.

Directly on the appliance

Pour water from a container into the funnel inlet. Fill up to the "MAX" marking.

Turning on the Appliance

Place the unit securely on a firm surface.
Insert the mains plug into a socket.
Press the ON/OFFswitch to turn on the appliance. Indicator lamp "Heating on" is blinking (green)

Note: If there is no or not enough water in the steam boiler, the water pump starts and supplies water from the reservoir into the steam boiler. The filling process may take several minutes.

Wait until the indicator lamp (heater) lights up permanently.

The steam cleaner is ready to use.

Note: The appliance closes the valve every 60 seconds. This prevents the calcifying of the appliance. There will be a slight audible click. The steam delivery is not impaired by this.

Refilling Water

In case of water shortage, the indicator lamp "water shortage" glows red in the water reservoir and a signal can be heard.

Note: Every time there is not enough water in the steam boiler, the pump automatically supplies water from the water reservoir into the steam boiler. If the water reservoir is empty, the water pump is not able to fill the steam boiler and the steam tapping is blocked.

Fill the water reservoir up to the "MAX" marking.

Note: The water pump tries to fill the steam boiler in short intervals. If the filling is successful, the steam tapping is release immediately, and the red indicator lamp goes out.

Adjusting the Steam Quantity

Use the selector switch for the steam volume to regulate the discharged steam. The selector switch has three positions:

Maximum steam volume

Reduced steam volume

No steam - child protection Note: In this lever position, the steam lever cannot be used.

Set selector switch to the required steam volume.
While operating the steam switch, always direct the steam gun at a separate piece of cloth until the steam is emitted evenly.

Note: The heating of the steam cleaner is turned on in regular intervals during the operation of the appliance in order to maintain the pressure in the boiler at a constant level. Then the indicator lamp (heater) blinks green.

Turning Off the Appliance

Press the ON/OFFswitch to turn off the appliance.
Disconnect the mains plug from the socket.
Press the cover of the appliance connector to the bottom and disconnect the steam plug from the appliance connector.
Empty the residual water from the water reservoir.

Storing the Appliance

Illustration F - G

Store the power nozzle and the round brush in the accessory compartment.
Insert the manual nozzle and detail nozzle onto each extension pipe.
Put the extension pipes into the large accessory compartments.
Hook the floor nozzle into the parking position.
Wrap the steam hose around the extension pipes and insert the steam pistol into the floor nozzle.
Stow away the mains cable in the accessory holder for the mains cable.

How to Use the Accessories

Important application instructions

Cleaning of Textiles

Prior to treatment with the steam cleaner, always check the reaction of the textiles in an inconspicuous location: Steam heavily at first, then let dry and then check for colour or shape changes.

Cleaning of Coated or Lacquered Surfaces

Be careful when you clean kitchen and living room furniture, doors, parquet, lacquered or plastic-coated surfaces. The wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. Therefore, always clean these surfaces with a steamed cloth only.

Caution

Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on unsealed wooden or parquet floors.

Cleaning of Glass

In case of low outside temperatures, especially in the winter, warm up the window pane by slightly steaming the entire glass surface. This will prevent tensions on the surface which might lead to glass breakage.

Caution

Do not direct steam onto the sealed locations of the window frame to prevent damage.

Steam gun

You can use the steam gun without any additional accessories, e.g.:

• to remove odours and wrinkles from hanging clothes by steaming them at a distance of 10 to 20~cm .
  to remove dust from plants. Here, keep a distance of 20-40 cm.
• for moist dusting, by briefly steaming the cloth and wiping the furniture with it.

Detail nozzle

The closer this nozzle is to the contaminated area, the higher the cleaning effect, as the temperature and the steam are highest at the nozzle output. Especially suited for cleaning difficult access locations, joints, fittings, drains, sinks, toilets, blinds and heaters. Heavy limescale can be drenched in vinegar prior to steam-cleaning. Let the vinegar penetrate for about 5 minutes.

Round brush

The round brush can be installed onto the detail nozzle as an accessory. Attached brushes can therefore be used to remove heavy soiling.

Caution

Not suited for the cleaning of sensitive surfaces.

Illustration B

Attach the round brush to the detail nozzle.

Power nozzle

The power nozzle can be installed onto the detail nozzle as an accessory.

The power nozzle increases the emission speed of the steam. Therefore, it is well-suited for cleaning very tough dirt, blowing out corners, grooves, etc.

Illustration B

Attach the power nozzle to the detail nozzle according to the round brush.

Hand nozzle

Pull the terry cloth cover over the hand nozzle. Especially well-suited for small washable areas, shower stalls, mirrors or furniture cloth material.

Floor nozzle

Suited for all washable wall and floor coverings, e.g. stone floors, tiles and PVC floors. Work slowly on very dirty surfaces to allow the steam to act on the dirt for a longer period of time.

Note:Detergent residue or care emulsions that are still present on the surfaces to be cleaned, can lead to smears when steam

cleaned. However, these will disappear with repeated cleaning procedures.

Illustration E

Attach the floor cloth to the floor nozzle.

1 Fold the floor cloth the long way and place the floor nozzle on top of it.
2 Open holding clamps.
3 Place the cloth ends into the openings.
4 Close the holding clamps.

Caution

Do not insert fingers between the clamps.

Parking the floor nozzle

Illustration F

During work breaks, hook the floor nozzle into the parking holder.

Window wiper

Application:

• Windows, mirrors
  Glass surfaces on showers
• other smooth surfaces
  Perform a fat dissolving basic cleaning using the hand nozzle and a terry cloth cover before using the window wiper.
  Apply steam to the glass surface from a distance of approximately 20~cm until the surface is moistened evenly.
  Strip the glass surface in straight lines from the top to the bottom using the rubber lip of the window wiper. Wipe the rubber lip and the bottom edge of the window dry after each strip.

Steam iron

Danger

The steam iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
Hot steam iron and hot steam escaping! Point out to other people the possible risk of being scalded or burned. Never direct the steam jet at people or animals (risk of scalding). Do not touch any electrical leads or combustible objects with the hot steam iron.

Warning

• Keep the steam iron and its cord out of reach of children less than 8 years of

age when it is energized or cooling down.

The steam iron must be used and rested on a stable surface.

Note: We recommend using the Kärcher ironing table with active steam extraction (2.884-933.0). This ironing table has been designed to match your new steam cleaner. It facilitates and, thus, accelerates the ironing process substantially. In any case, you should use an ironing table which is covered with a mesh-type underlay allowing the steam to pass through.

Tightly insert the steam plug of the iron into the appliance connector. The plug must click into place audibly.
Make sure that there is fresh tap water in the boiler of the steam cleaner.
Start-up the steam cleaner according to the description.
Wait until the steam cleaner is ready to use.

Steam ironing

All fabrics can be steam ironed. Delicate imprints or fabrics should be ironed on the reverse or according to the manufacturer's specifications.

Note:For these sensitive textiles, we recommend using the KARCHER non-stick ironing sole BE 6006 (Bestell-Nr.2.860-142.0).

Adjust the temperature control of the steam iron within the notched range (***/MAX).
As soon as the indicator lamp of the heater of the iron switches off, you can start ironing.

Note: The sole plate must be hot to prevent the steam from condensing on the sole plate and dripping onto the garment to be ironed.

Use the top or bottom steam switch.
- Steaming at intervals: Press the steam switch. Steam will be emitted while the switch is pressed.
Continuous steaming: Pull the latch for the steam switch toward the rear until it locks in. Steam will escape continuously. To unlock, push the lock forward.
Direct the first burst of steam at the start of the ironing process or after ironing

breaks at a separate piece of cloth until the steam is emitted evenly.

You can hold the iron in an upright position to apply steam to curtains, dresses, etc.

Dry ironing

Note:Even if you iron without steam, there must be water in the boiler.
Adjust the temperature of the iron according to the garment you want to iron.

•	Synthetics
••	Wool, silk
•••	Cotton, linen

Note:Please observe the ironing and washing instructions in your garment.

As soon as the indicator lamp of the heater of the iron switches off, you can start ironing.

Maintenance and care

Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Rinsing the steam boiler

Rinse the steam cleaner boiler at the latest after 10 boiler fillings.

Disconnect the mains plug from the socket.
Allow the steam cleaner to cool down.
Empty the water reservoir.
Remove the accessories from the accessory compartments.

Illustration H

Open the locking door of the accessory compartment.
Remove the accessories from the accessory compartment.
Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
Fill the boiler with water and shake it strongly. This dissolves lime scaling residing on the boiler bottom.
Completely empty the steam boiler to remove existing water (see Fig. 1).

Dscaling the Steam Boiler

As limescale builds up on the boiler walls, we recommend to descale the boiler in the following intervals (RF=reservoir fillings):

Degree of hardness		° dH	mmol/l	RF
I	soft	0-7	0-1,3	100
II	medium	7-14	1,3-2,5	90
III	hard	14-21	2,5-3,8	75
IV	very hard	>21	>3,8	50

Note: Please contact your Conservancy Board or the local water supply company to inquire about the hardness of your water.

Disconnect the mains plug from the socket.
Allow the steam cleaner to cool down.
Empty the water reservoir.
Remove the accessories from the accessory compartments.

Illustration H

Open the locking door of the accessory compartment.
Remove the accessories from the accessory compartment.
Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
Completely empty the steam boiler to remove existing water (see Fig. 1).

Warning

Only use products approved by KÄRCHER to exclude any damages of the appliance.
User the KÄRCHER decalcifier sticks (order no. 6.295-047) to decalcify the water. Please follow the dosing instructions on the packaging while using the decalcifying solution.

Caution

Use caution when filling and emptying the steam cleaner. The descending solution can have an aggressive effect on delicate surfaces.
Pour the descending solution into the boiler and allow it to react for approximately 8 hours.

Warning

Do not screw the maintenance lock onto the appliance during the decalcifying. Do not use the steam cleaner as long as there is decalcifying agent in the boiler.

Completely empty the descending solution after 8 hours. A small amount of the solution will remain in the boiler. Therefore, you should rinse the boiler two to three times with cold water to remove any residues of the descaler.
Completely empty the steam boiler to remove existing water (see Fig. 1).
Allow the storage compartment for the mains cable to dry.
Screw the maintenance lock in using the extension pipe.
Fill water reservoir (see page 8).
The steam cleaner is ready to use.

Care of the Accessories

Note: The floorcloth and the terry cloth cover have been pre-washed and can be used immediately for working with the steam cleaner.

You can wash dirty floorcloths and terry cloth covers in the washing machine at 60^ . Do not use a liquid softener as this would affect the ability of the cloths to pick up dirt. You may tumble dry the cloths.

Troubleshooting

Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service.

Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Repair works may only be performed by the authorized customer service.

Long heating-up time

Steam boiler is decalcified.

Descale the steam boiler.

No steam

Indicator lamp - "water shortage" blinks red and signal sounds.

No water in the water reservoir.

Fill the water reservoir up to the "MAX" marking.

Indicator lamp "water shortage" glows red.

No water in the steam boiler. Overheating protection of the pump was triggered.

Turn off the appliance.
Filling the Water Reservoir
Turn on the appliance.

Water reservoir has not been inserted properly or is calcified.

Remove the water reservoir and rinse it.
Insert the water reservoir and press downwards until it arrests.

Steam lever cannot be pressed anymore

Steam switch is secured with the lock / child-proof lock.
Move the selector switch for the steam volume to the front.

Steam iron "spits out" water!

Set the thermostat to level ...
Rinse or decalcify the steam boiler.

After breaks during ironing, water drops will come out of the steam iron.

During longer breaks from ironing, the steam in the steam line can condense.

Direct the first burst of steam at a separate piece of cloth.

High water output

Steam boiler is decalcified.
Descale the steam boiler.

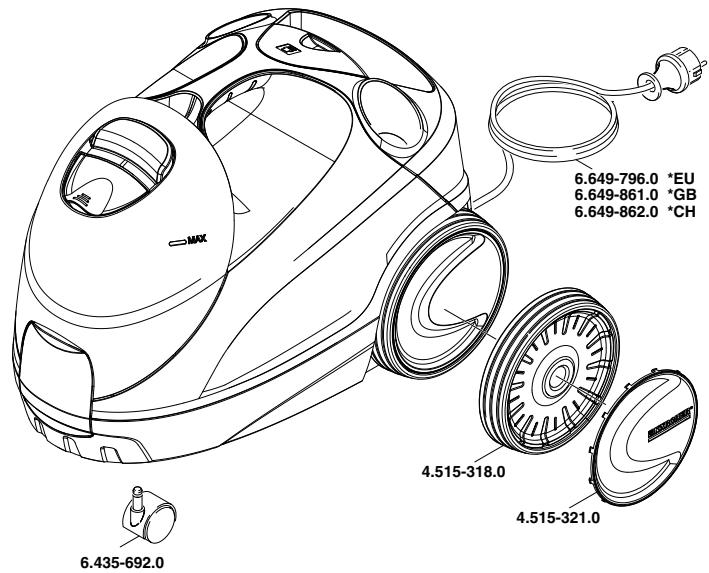

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.

Please submit the proof of purchase.

(See address on the reverse)

Technical specifications

Electrical connection
Voltage	220-240 V
	1~50/60 Hz
Protective class	I
Protection class	IPX4
Performance data
Heating output	1800 W
Heating output steam iron	700 W
Operating pressure max.	0,35 MPa
Heating time	3 Minutes
Max. steam quantity	40 g/min
Filling quantity
Water reservoir	1,0 l
Boiler capacity	0,5 l
Dimensions
Weight (without accesso-ries)	4,2 kg
Length	384 mm
Width	241 mm
Height	275 mm

Subject to technical modifications!

Special accessories

Order number

Micro-fibre cloth set, bath	2.863-171
2 soft floor cloths made of plush velour, 1 abrasive cover for the hand nozzle, 1 polishing cloth for the mirrors and fixtures	2.863-172
Micro-fibre cloth set, kitchen	2.863-172
2 soft floor cloths made of plush velour, 1 soft cover made of plush velour, 1 cloth for the streak-free cleaning of stainless steel surfaces	2.863-172
Micro-fibre cloth set, floor	2.863-172
2 soft floor cloths made of plush velour	2.863-174
Micro-fibre cloth set, soft cover	2.863-174
2 soft covers made of plush velour	2.863-174
Terry-cloth rags	6.369-357
5 floor cloths made of cotton
Terry-cloth covers	6.370-990
5 covers made of cotton
Textile care nozzle	4.130-390
For freshening up clothes and textiles.
Round brush kit	2.863-058
4 round brushes for the detail nozzle
Turbo steam brush	2.863-159
For cleaning tasks where you would usually have to scrub
Decalcifier sticks	6.295-047
Steam iron	2.863-209
Non-stick ironing sole	2.860-142
Suitable for ironing sensitive materials.
Active ironing board AB 1000	2.884-993
For excellent ironing results with substantial time-saving (only for 230 V)

Contenu

Contenu FR 5

Consignes generales FR 5

Still valgbryteren for dampmengden for-over.

Dampstrykejernet "spyter" vann!

Still temperaturregulatoren til trinn …
Skylll erler avkalk dampgeneratoren

Avkalker-sticks 6.295-047

Damp-strykejern 2.863-209

Antihete strykejernsåle 2.860-142

KpaTkoe pyKOBoIDCTBO

I3o6paXeHnI np6opacm. Ha cTp.2

1 3anonHnTb pe3epByap IJRA BObl DO OTMeTKN MAX".
2 BctaBbTe 1TKepe npaun npa B pa3beM np60pa.
3 BCTaBbTe 1IeNcEJIbHyIO BUNKy B 3JIeKTPoP03eTKy. Aeeep÷eOa iOeAio
4 KonmpoIbHaJa lamna "Haapee" - Muaem 3eIeHbIM uIeMOM. IIOJoxdA Tb noka KOHTpOlbHa J lamna "Ha rpeB" IOnHOCTbU NOtuyxHET.
5ПоДКПЮЧЕНЕ РИРHAДЛЕХНOCTeКnapOBOMYпICTОЛETу.Прибордя чИСТКИ napOM rOTOB K pa6Ote.

OnscaHne npn6opa

B daHOM pyKOBOCTBE NO 3KcIpyATAuIN DaHO ONICAHNE npi6opa C MaKcIMaJIbHOJ KOMPnEKTaUne. KOMnEKTALIy OTNIHaETCR B 3aBcIMoCTN OT MoeJIN (CM.yIaKOBky).

1306pa9eHnCm.Ha pa3BpOte!

A1 Po3etka npi6opa c KpbIshkoJ
A2 Pe3epByap IЯ ВОдbl
A3 3amok pe3epByapa nla BOdbI
A4 BbIKIIOUaTeB-BKIN/BbIKN
A5 KontrpoIbHaJ lamna - "HarpeB" (3EJIeHbI LJBET)
A6 KoHTpOJIbHaJIaMnJa "HeIOCTaTOK BOIbI" (KPACHOΓΟ LJBETA)
A7 RykotkaДян HOSEHnIpybopa
A8 DepeKaTeB IpyIpaHaIeXHocTeI
A9 OTeKdIgPnHaDJIeXHcOteN C3aMKOM
A10 Ipo6kaДЯг TeXHnueckOro O6cIyKmBaHnIa
A11 MecTo xpaHEnr cTeBOrO uHypa
A12 NapkoBouHoe KpeJIeHne
A13 CeteBoi KaBeIb co StTencIeIbHO BnIKoI
A14 TpaHcnpTHe KOleco (2 Wt.)
A15 HaprablaJouoi pOJIrk
B1 Napobov nuctolet
B2 Pbyar noaun npa
B3 KhoNka de6JOKnpOBKn
B4 Пе配电列化电列书列电击打拉（c3a- 卢托ONOTBKNHOUeHINNeTbMn）
B5 Ⅲnahr noaun npap
B6 Ⅲtekep noaun npap
C1 Φόρсύнka tούηνησι Κτρυη
C2 Kpyrnaa 电
C3 BbICOKPOn3BODInTeJIbHaJΦOpCyHka
D1 Puyhna fopcyHka
D2 Yexon n3 maxpoBoTkaHn
E1 YdnnHnTeNbHbIe Tpy6kn (2 st.)
E2 KhoNka de6JoknpoBkn
F1 ΦopcyHka dIy nCTkn nona
F2 3axmm
F3 TkaHbДЯMbITbЯ nOla
G1 HacaIka IJIa MOIKN OKOH
Napametp
H1 YTHor
H2 BbIKnIOuATEnb npa (HNKnI)
H3 KoHTpObHaJ lamna -HarpeB yTOra
H4 BbiknIOuateJIb npa (BepxHnI)
H5 BnokinpobKa BbIKIOUaTeI npa
H6 PerynTop Tempepatybl
H7 Ⅲtekep noaun npap

Yka3aHnI NO TexHnKe 6e3ONaCHOCTN

Onachocmb

3KcnIyamaua npubopa 60 83pbIeOonac-HbIX 3oHax 3anpeuaemc.
Ipu ucnolb3o6aHuu npubopa 6 onacbix 30hax cneyem cobliodamb coombeemc-meyouue npabuna mexnku be3oanachocmu.
3KcnIyamaua npubopa 8baccseHne, co-depkaaem body, zanpeeta.
Ipyubop HeJIb3a uCnOJIb3oBAmb dIyUcMku 3NeKmpueeckux ycmpoucme, HAnpumep,dyXoeok, bIIMJHbIX HaEco8,MukpoeON-Hobix neeu, meJeu3Opoe, lamn, fehoe, 3NeKmpueeckux oboapeeameneu u m.d.
Ipepeucnoh3o8aHuemnpoepe meucnpa8nocmb npubopa unpuhaednxHoCme. Ecnu cospomHue He nemc6beynpeHybIM,uxucnoh3o8aHue He pa3pewaemc. OcoebHo muaemelho npoebpme Ka-bb cemebo0 numanu, np6ky dnermexHuueckoO o6cnykuaHua u npoppoBdhui wnaHa.
IoepejdeHbI kAbb cemeo0numaHua doJxhen 6bimb HezamEdnmeJbHO 3aMeHen ynoHomoueHHou cnyxboU cepuucHOO o6cnyxueaHUR/cneuaunucMOM-3NeKmpukom.
IoepekdeHbI wlahe nodaunapa nodexum He3amednumelbHo 3aeme. Pa3pewaemc uonlbo3oaeahue molko Wlan2o8 nodaunapa, pekomehdoeaHHbx U3eomobumenem (Homep dny 3aka3a CM. e cnucke 3anaChbix yacmeu).
He npukacmbc K cemeoou u po-3emKe MOKpbIMu pykAmU.
He yucmumb npom npedMemb, codepaaue eueecma, epehble dna 3doopobra (Haepumep, acbecm).
Hu e koem cnyae He kacaumecb cmpyu npapa pykou c 6bluzko2o paccmou Hua He npapaaIyme ee Ha IIOdeu Jxubomhbx (onacnocmb oKOoe napom).
Ipo6ka dny mexhueckoo o6cnykuhaHn He doJnxHa omKpbIaMbc8 0ePm3Kc- nnyamau.

IpeynpexdeHue

Ipu6op moKHO noDkHouaMb moJIbKO 3JemeHmy 3eKmpoNodKnUoyehu,UCnONHeHHOMy 3eKmpomOHmepom 6 coom-Emcmeuu co smaHapmom MekdynapoHou 3eKmpomexHuueckou Komuccuu (M3K) IEC 60364.
I npubop cneodyem eknouamb moIbko 8 cemb nepemehnoo moka. HanpJxHeue doJxHo coomoeemcmoeaMb yka3aHuaM 8 3aodocku maBnUcKe npubopa.
B cbipyix nomuehenyx, Hanpumep, 6 aHbIx KOMhamax, ekIouaume npubop monko 6 pozemku c npedeknoyehhIM npedoxpaHumeNbHbIM ebIKIyameJem muna FI.
Henodxoaue ydunhumenu moaym npedcmaaemb onachocmb. IcnoIb3yume molkbO 6pbI3o3auuueHHbI ydunumelbcceHuem npo0da He Mehee 3x1 MM2.
CoedunHeue cemeoB uJku u ydunHume- nHe doJxHo Jekamb e oode.
Ipu 3aemehe coeunumelbHbix 3neMeHmoe Ha kabene cemeo0 numahua unu yduuHume oonka obecneueambc6pbizao-3aumua mexanueeckra npouhocmb.
I PnIb3o6aemeB doJIxH uCnIb3o6aMb npubop e coombeemcmeu c hA3NaeHuEM. Oh doJIxH yUmbam MeMhIe ocO6eH Hocmu u obpaam b EHumane npu paBo me c npubopom Ha dpyeux luu, Haxodyauxcxra noBnuzocmu.
Danhbl npubop pa3pewaemc ucnolb3o- bamb demy mcbapwe 8 lem u luqam c oapauHueHHbIMU fuuuchekumu, ceHCOPbIMU Unu yMcmeeHHbIMU 603MOXHOcMmu, amkxe luqam, He obnaadouwm Heo6xodMbim Onbimom U 3HaHnruM, ecnu OHU 6y-dym haxodmbc nod npucmompom luua, omeeauoese 3a ux 6e3onacnoBt, u noIyam om Heo npedeapumelhbIe pa3b rchenur omHocumelbo 6e3onacno 3Kcnnyamauu npubopa. He pa3pewaime demy uapamb c ycmpoucmeBOM. He pa3pewaime demy npoeodmb ouucmky u ocnykauehne npubopa 6e3 npucmopma.
3aepaaemc oemaenpbapomaouu npubop 6e npucmoppa.
CobioaB ocmopoxHocmb npu yucmke KaefbHbIX cmeh c3neKmpueeCKmu po 3emkamu.

BhumaHue!

Heo6xodumcneodum3a mem,ymo6bI cemeoohynp u ydunhumenu He bInu nopejdehny nymem nepee3da ueep3 hux, cdabnueanur, paccmxeHn ur m.n. CemeBle uhybclneoyem 3auuamb om e03- deumj xapbl, macna, a maKke om nopekxdnur ocmpbIMu kpaMn.
Hu e Koem cnuyae He ucnolb3yume pa-cmeopumenu, kudokcmu, codepkauee paameopumenu unu Hepa3baennhe KUC-nombl (Hap., moouue cpeodmea, beshun, pa3baumenu kpacok u auemoh) u He 3a-uaume ux 6bak dny b0db, nockoIbky OHU aapeccuBHO 803deUcmyHom Ha mapeuabI, ucnolb3yembie e npubope.
Ipehenoc npubopa 6o epempa6om no ouucmke 3aepueen.
Ipu6op Heo6xodumo pa3Meaamb Ha ycmouubom ochoeaHuu.
3knnyamupoeambu xpaHmb np60p moIbKO e coomemcmuu c onucahEm u pucyHKamu!
Bo epempaabomhe pa3pewaemc6nokupo8ka pbyaa noda npa.
3auiuaime npubop om doxj. He xpaunme noo omkpmbim Hebom.

3aunthbyeyctpoiCtBa

BhumaHue!

3aumhhe ycmpoecma cnjxam dna 3aumbnoIb30aeme ne. Budou3meHene 3aumhbx ycmpoecme un npene6pexeHue um He donyckaemcra.

Pernytop dablenia

PeryIaTOp DaBJIeHn yIepKINBaet DaBJIeHne B npAOBOM KOTNe BO BpeMra6Otbl NO BO3MOXHOCTn Ha noCToAHmUPOBHe. PpN DoCTnKeHn MaKcIMaNbHorO pa6OerO daBJIeHn B na POBOM KOTNe pOOrPeB OTKnIOuaETc N CHOBA BKNoOaETCn PpN PaJeHN DaBJIeHn B KOTNe B pe3yIbTaTe ydaJIeHn napa.

Tepmoctat Kotla

EcInB KOTNe OTCyTCTByET BOda,To B KOTNe NOBbIshaeTc TEmnepaTpa.TepMoCTat KOJIa OTKIIouaet HArpeB. IOBTOphoe BKNIOUeHHe HArpeBa He DOnyCKaEtCdo ToTex NOp, NOKa KOTEn He 6yDen3aONHEn 3aHOBO.

AbarinHbI TepMoCTaT

B clyuae BbixoJa n3 cTpo rpeyIaTopa daBJeHnHa n nepeIpeBa npIbOpa abApNbIy TepMoCTa TbIKJIouHaeT npIbOp.

Дязамени abapинHoro Tepmoctata cneуet 武paTITbCBA yOnHOMOeHHy Ocnykby cep BnCHORO 06cnykBaHЯ Фирмь"KARCHER".

PpO6Ka IJIaTexHnueckoro 06cIyXnBaHn

Ipo6ka Ipn TeXHnueCKoro OBCnyKbAHnRA BJIaETcB TO JKe BpEmr N peDyKUHOHHbIM KlaNa HOM. OHa 3aIIpaet KOTeN OT CO3dAIOeOcre DaBHeHnna npa.

Ecnn HeincnpaBEN perynIop daBneHn, n daBLeHne npa B KOTNe NOBbIaEaTcN, OTKpbIbAeTcpeDyKuONHHbKnIpaHn nap BblXoNt HapJy Chepe3 PpO6Ky IpnTe XhNueckoro 06 CnyKbBaHn.

IpeepnOBtOpHbIM BBOOM npnbopaB 3Kcnpny-atauIO o6paTntecb By yNOJIHOMOeHHyO cnyx 6y cepBnCHOrO 6CnyXnBaHnI qnPmbl "Karcher".

3Kcnpnyatauia

1306paXeHnCm. Ha pa3BOpoTe!

YcTaHOBka npHaJnxHocTei

→ OTKpbItb KpbIuKy pa3bEma npn6opa.

→ Haedxho yctaHOBITE wTekep noaun npap B pa3bem npnbopa. Pn 3OM wTekep dJIKeH 3aФNKcPOBaTbC So eIeKOM.

→Дя OTCoEинEHЯ: HaxaTb Ha KpbIshky pa3bema npi6opa И n3BNeueb ITeKepe noda cnnapa n3 pa3bema npi6opa.

PncyHOK A-B

CoeHnHtB Heo6xOIMbIe npHaJnxKHOCTN (CM. pa3dEIN "UcNoIb3OBAHne npHaJdxKHOCTe") C npAOBbIM NCTOJeTOM.ДЯ 3TOrO OTKpbITbI KpaI npHaJnxKHOCTu HaDeTB Ha npAOBII NCTOJIET NaDHNHYb HA npAOBII NCTOJIET HAcTObKO, YTObI KHOJa pa3bLOkIPOBKn npAOBOrI NCTOJIeTa 3aФHKcIpOBaJacb.

PncyHOK C

IpiH Heo6xOJIMOCt NcNoJb3OBaTb ydNHNHTeNbHbIe Tpy6Kn. Jnra 3TOrO CoeJHHbTCnapOBbIM NcSTOnet Ody nIN DBe ydNHNHTeNbHbIX Tpy6Kn.HaDbNHyTb Heo6xOJIMbIepnHaJnEJXHOCTNa CBO6OJHbI KpaYdJIHNHTeNbHO Tpy6Kn.

CnTne npnaIaNExKHOCTe

Onachocmb

Ipu cnmau npunaednexhocmeu u3 npubopa mokem bimekamb oopraa eoda! He chuma-me hacaek eo epem nodau npa - yap03a obeupuaHua!

Ппеклочатель колчecтва napа установит b внжhem поожеви (Pbivar noDAч napа 3abIoKupOBaH).
PncyHOK D

Дя сгтуя пинадпекстунхмite ha KHOKNy pa36LOKINOBKN I OTDEJIITE DeTaI IN dpyr ot dpyra.

HanoJIHnITb 6ak IJN BODbl

Pe3epByap dIa BOdbI MOKeT 6bITb HAnOpHEn BJIIO6OIMoMeHT.

BhumaHue!

He ucnonb3yume cKoHoeHcupObaHHyo eody u3 cyuunbHOu MaunHb!

He dobaenme moouue cpedcma uu npyue doabku!

PucyHok 1

Pe3epByap IЯя BOdI MoXHO ChTb IЯЯ HANOJIHHeNIA IYI HANOJIHEn HeIOcpeDCTBeHHO Ha npibope.

ChraTb pe3epByap nla BObl

→ BbITaHTb pe3epByap IJRA BOJb BEpTnKaJIb-HO BBepX.
→ 3anolHnTB pe3epByap dIJI BObI IOD BOIO-npOBOhBIM KpaHOM BepTnKaJbHO DO OT MeTKN "MAX".
YctaHOBtbp3epeByapIINBAOblnnpdaBaTb Bn13doUeNka.

HenocpeDCTBeHNO Ha npnbope

→Bovu n3 emKocTn 3aInTb B 3aInBHyo BOpoHky.3aOnJInTb Do OTMeTKN ,MAX"

BkIIOueHne npu6opa

→ YctaHOBITE npi6op Ha TBepyUIOBepxHOCtB.
BCTaBBTe 1TENCeIbHyIO BUNIKy 3JIeKTPoPiTaHnRA B 3JIeKTPopo3EtKy.
→ HaxMMTe BbIKNIOaTeIb DnB BKIOueHnra npi-6opa.

KoHmpoIbHaJ lamna "Haapee" - Muaem 3eneHbIM ueemOM.

Yka3aHue: Ecnu 6oBb 6 napobom Komne 3aIumo cnluKOM mano unu Oha omcymeym, mo cpa6oMaem 6o8HO Hacoc u 6yOem Haehemmb 6oOyU3 pe3epByapa dny 6oBb 6 napobou Komen. Ipouecc HanoJIHeHua MoKem dIumbcra HeckonbKO MuHym.

IpoJoxdTaB noka KOHTpOJbHaJ lamna "Ha-rpeB" nonHOCTbIO NOTyXHET.

Прибор дя чистки napom ratob ka paBOTe.

Yka3aHue: Ppu6op kKaDbie 60 cekyhd nepeKpbIeam Klanan. 3mo npedomepaamObI3BeCmBeneHue npubopa. Ppu 3mom MoKHOycblwamb muxu uenqok. BInyck napa 8bu-dy 3mo2o He bdyem Hapyuhen.

ДоЛиВ ВОДы

Пи HEXВаТКЕ BОДы В pe3eрБуаpe ДЯ BОды MИraet Красная кОТрьная пamna "HeDoCTaTOK BОДы", a TAKKe 3ByuHT 3ByKOBoI CnHaN.

Yka3aHue:Bce2da, npu HeocmamoyHom KoIunuecmbe 60dbI e napoBOM komJIe, Hacoc aomamuueecku nodaem body c 60dHaOo pe3ep8yapa e napoBou komen. Ppu nycmom pe3ep8yape dna 60dbI, 60dHaou hacoc 60nbue He moKem numamb napoBou komen u npoucxo dum 6nokupoBka nodaqu napa.

→ 3anonHnITb pe3epByap IINI BObl DO OTMeTKN,MAX".

Yka3aHue:Yepe3 KopomKue unHmepeBbl eOoJHO hacoc nonbimaemcCHOea 3anoHumb npo8ou komen. Ecnu 3anoHene npoWNo ycneHo, mo noadau npa cHOEA 03OBHeJemc, Kpachna KOHmpoBHaJaamna eachem.

PerynnpOBka kOJIuYeCTBa npa

C nOMOUbOp epyIyTopa KOJIHyeCTBa npa BbIIOJIHReTcpeYIuPOBka IOnaBaEMOro KOJIHyeCTBa npa.PeryIyTop IMeet TpI NOJoxHeNIA:

MaKcImaJIbHoE KOJIuYeCTBO npa

OrpahuueHHe KOJIueCTBO npap

OTcyTCTBnE npa (3aunTa OT BkIoueHnA DeTbMn)

Yka3aHue: B 3mOM noIoxKeHH pIyaa nodaHu npa He6O3MoxHo npueecMu e deucmeue.

→ Pbyar noa npa yctaHObntb Ha Tpe6yEmoe KOJIueCTBO npa.
→ Haxmnte Ha pbyar noaun npa, npn 3tOM ChauJaHa npabJra npoBOH nCTOnet Ha TkaHb, POKa nap He 6yJeT BbIXOAnTb paBHOpMepHO.

Yka3aHue:Haapee napocenapamopa 6o epem eao uCnoIb3ObaHua nocmoHHo ekluyaemcdoI noDepkauHra daJeHue e komne. Ipu 3om Muaaem 3elenha konmpolbna JAmna -"Haapee".

BbiknoueHne np6opa

→ Haxmnte BbIKIouaTeIb IJIy BbIKIIOueHn npibopa.
→ BbItalIte wTeNceJIbHyIO BNkU 13 po3eTkn.
→ Haxmnte Ha KpbIuKy pa3bema npi60pa I BItaIe Ttekep noaun npa n3 pa3bema npi60pa.
→ YdaanTb octaTOK BObl n3 pe3epByapa IINB OBLbl.

XpaenHe np6bopa

PucyHok F-G

→ Pa3mecNTb BbICOKPON3BODHTeJIbHyO φopcyHky IN KpyrIyU ΜεTky B OTCeKe Дпг npHaДлжHocteY.
→ΠΟMECTHTbpyHHyΦoPCyHkyIΦoPCyHkyTOeHHOCTpyHaYdINHHTeBHyO Tpy6Ky.
BCTaBtB ydHnHInTeIbHyIO Tpy6ky B dePkaTeIb DnI npHaadJeXHoCTe 6oIbWoOrpa3Mepa.
BCTaBnTbΦopcyHkyIpyIPOHaBnapKOBOu-HoeKpeJIeHne.
O6MToTaB ⅢJAnHr NODaHn npa BOKpy yDINHHTeJIbHbIX Tpy60K INOMeCTNTb npo BOI NICTOJeT BΦOpCyHKy DnI NOJa.
→ CeteBOI uHyp yIOXnTb B MeCTe dIy xpa-HeHna CeteBOrO uHypa.

IcnoJIb3OBAHne npHaJdlexHoCTeN

Baxhblye yka3aHnno nCNoIb3ObaHnO

YnctKa TeKCTnJIbHbIX n3dEIn

Ipeed npoBeHnem obpaBoTkn C nOMouBIO npiBopAp dIy NCTKn napom CneJeYet BcERda npOBepaYctOuHBOCTb TEKCTUlbHbIX N3DeIeN K Bo3deIcTBnIO npa. IpexKeB cEero, CneJeYet XopoIo oboAboTaTb napom N3dEIne, 3aTeM npocUuNTb erO i, HakoHeU, npOBepuTb yCTOuHBOCTb OkpaCKn HaJIuYe deOpMaun.

UncTa NOBepXHOCTe C NOKpbITnMaM IN JaKupoBaHHbIX NOBepXHOCTe

Причске кухоннoi Mebeии Mebeидя KBaPtnpbl,Дbere，并KpeTа，лaknpOBaHHbIX IOBepxHocTei NII NOBepxHocTeC NOKpbITN EM,BOCK,MebeJbHЯ NIOINtypa,NCKycCTBeHNHO NOKpbITNe IIN Kpacka MOrYT pactBOpNTcR IINMOrYT Bo3NHKnHyTB PnTHA NOTOMY TAKNE IOBepxHocTN MoXHo O6pa6aTbIBaTb TOJIbKO npONHTAHNO napOM caIqfeTKo.

BhumaHue!

He nappaenlmae nap ha npukneeHbte kpmku, nockoIbky obknaOka moKem omKneumbcra. He ucnol3yume npubop dnyucmku depeEHHbix unu napkeMhix nonoe 63 noKpbimura.

UcTka CTeKna

Прии Изкinx BHeшнix Temпepатурах,прждь BCERO,ЗИМОД,прогейte OKOHoe CTeKNo.Бla-roДаря 3TOMy Bbl CMOKeTe NERKO O6pa6OtaTb napom BCIO NOBepxHocTh CTeKNa.TakIM O6pa3OM yDacTcR n36eKaTa HnPraJKeHnI NOBepx-HOCTHI,KOTOpOE MoKET npINBeCTN K 6BO TcEKnA.

BhumaHue!

Iap He Hanaepaenom Ha yynnomHenHbte yacmku 0e3ne OKOHNo paMbI dny npedompaueHnaee noepexdeHua.

NapoboBnHCTOJET

3aKpeNtB TKAHb IJI MaITbI NOnI Ha HAnoJIbHOfOpcyHke.

1 Cnoxntb TkaHb IJMaBtBnIa BIOJIb INomecntHa Hee fOpcyHKy IJnI na.
2 OTKpbItb 3aXIMbl.
3 IOMeCTnTb KOHcIy TKAHN B OTBepCTnIa.
4 3aKpbItb3axnMbl.

BHUMAHue!

He 3acoebeam naIbubI Mekdy 3axumamu.

YIor ,BbinneBbBaet " BODY!

YctaHOBtbperyIaTOpTeMnepaTybHa ^ C
→Прпоноакати Oчистп naporehepaTop OT HAKINN.

IocJIe nepepbIOB rnaKeHbKaJIIN BOdbl BbIXOaTn3 YrToRa.

PnI dIITeNbHbIX nay3ax rIaJxHeB np Moket KOHNcHpOBaTbC8 B napOpnpOBe.
→Первукструю па сеунетнанразитб на салфетky.

BbICOKN BbIXOa BOdBi

Bnapobom kotne 06pa3oBaanacb haknib.

→ YdaJIInTe HakInb n3 napOBoro KOTna.

3anachbte yactn

IcnoIb3yIte TOLbKO opuRnHaJIbHbIe 3aIacHbIe
Yactn fmpbl KARCHER. Onncahne 3aIacHbIX

YacTeH HaxoNTcB KOHc DaHHo INHCTpyKcIMI NO 3KcNpyTaCm.

Rapantn

B kajdoi ctpane DeiCTbyIOT COOTBeTCTBeHNO rapaHTnHbIe ycNOBn, n3dAnHbIe yNOnHOMOueHHoJ oprAHn3aUnei C6bIta HaWeJ npOdyK uIN B daHNoI cTpaHe. Bo3MOxHbIe HeNCnPabHOCTn npi6opa B TeueHne rapaHTnHoro cPokaMbI yCTpAnHREM beCnPaTHO, ecnI npuHaHa 3a- KJIouaETcB D eFekTaX MaTePnaIOB nII Ow6kax pnp iN3rTOBLeHmN. B cnyae BO3NHKHOBeHn IpeTeHnB TteHne rapaHTnHORO cPoka npoc5b6 a ObpaatbcR, Imer npn Ce6eOK O NOKyKe, B ToproByIO oprAHn3aUIO, npoDaBsyIO Bam npnbop nI IN B 6bnKaMHyU yNOnHOMOueHHyIO CnyK6y CEpbCHOrO 06cIy XNBaHH.

(Adpec yka3aHa Na o6oPoTe)

TexHHueckne daHHbIe

Ha6op KpyrIbIX 2.863-058

4 kpyrlbIx ⅢeTkn dIy foopcyHKn TOneHno CTpyN

CpeIcTbO dIyIaJIeHnI n3Bec- 6.295-047 Tn

Паровутог 2.863-209

ANTINPnrgapna noooba nla 2.860-142 yTjora

IOnxOHTIgrraxKeHbryBCTBnTeNbHbIX Tka-Hei.

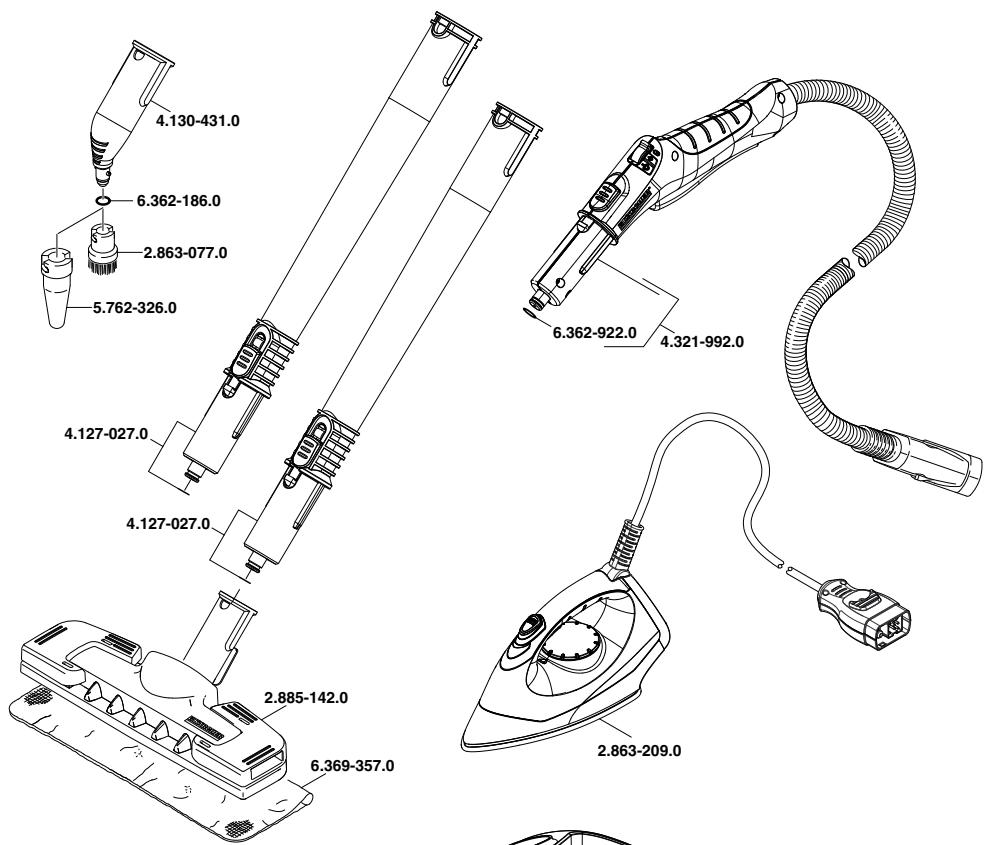

AknBbI rnaHbI cToI 2.884-993 AB1000

Дя Oчевхорошиpe3yЛьтАТОВгЯжЕньприз haHTeBJHOn 3KOHOMN BpemeHn(TOJIbKOдя230B)

Tartalom

A5 Jelzolampa-futes (ZOLD)

A6 Jelzolampa-vizhiany (PIROS)

A7 Fogantyu

A8 Tartozéktartója

Mult stimate client,

Poseban pribor. SR 14

Opste napomene

Poštovani kuple

H6 Regulator temperature

H7 Parni utikač

Sigurnosne napomene

Opasnost

A6 KoHTpOHa JAmna - HeIOCTnHa BOda (HEP- BEHA)

A7 1p8kka3aHOceHe

A8 IpbXka 3a npHaIeJxHocTn

A9 YeKMeDxke 3a npHaNdIeXHocTn c KaIaue

A10 PeBn3NoHNO kaNaYe

MOnTnpaHe Ha npHaIaNExXHocHTe

OToBopeTe KaNaKa Ha KOHTaKa TaHa ypeJa.
→ PapoctpyHnT ⅢeNcE nCe NocTabB KOnTakTa Ha ypeJa. PnTOBa Tp8Ba Da ce Yye FHKCuPaHeTo Ha igekepa.

→3a da pa3deneITE:HaTnCHete KaNaka Ha KOHTaKTA Ha ypeDa HADONY N 3BaTe Na-POCTpyHnA UENCEI OT KOHTaKTA.

→ Φύγρα A - B

CbpxKeTe HeoXoDMnTe PnHaJnEHXOCTN (BnK rnaBa ,N3non3BaHe Ha npHaJnEHXHOCTnTe"）c napoctpyHnI NICTOJeT.3aZeTTa OTbOpEnI KpaH naPnHaJnEHXOC-TTa ce nOCTABBbPxY napoctpyHnI NICToNETe H36yTBA,doKaTO ce pIKCnpaDe6bOKpauuHT 6yToH Na napoctpyHnI NICTOJEET.

→ Φιγρα

IpiH Heo6xOIMOCn 3nON3BaTe yNbJXnTeHNHe Tp6b.3a ceNTa CbPjKeTe c npaoCTpyHnna nctOnet eHaTapecn. DBeTe yBnKInTeHNn Tp6b.HeooXoImMaTApnHaNDekHocT Da Ce NoCTabN Ha CBO6OHNkai Ha yDblKnTeJIHATA Tp6b.a.

HamaJIeHO KOJINueCTBO Ha napaTa

6e3 npa 3aunta 3a deca

Yka3aHue:Bmoea noloxehue Iocmb 3a napama He moxe da 6bde 3adeucm- 6aH.

HacpoIte npekcbcya 3a n36op Ha Heo6-XOJIMOTO KOJIYueCTBO npap.
3aJenCTBaIte JIOCTa 3a napata, npn TOBa PbPBO HACOUBaTe NapoctpyHnI NcTO-Net KbM HkaKBA Kbpna, DOKATO napata 3a-NoUHe Da I3IN3a paBHomepHo.

Yka3aHue:HaepeaHemoHa napocmpuy Hua ypeo nepuoduHc eKnlo8a,3a da nooBpka nocmnoHHo HaJIyaHemo6 Komea. Ipu moea KOHmPoJHama lamna Ha 3aepeaHemo Muza 3eJeHo.

N3KJIIOUeTe ypeJa.

→HATINCHTe 6yToHa,3a Da nI3KInOHTe ypeJa.
→ ɪəbædte έŋeɪncεla OT KOHTaKaTa.
→ HatncheTe kanaka Ha KOHTaHa ypeda HADONY n3BaTe napoctpyHnIe Ieencen OT KOHTaTa.
I3neTe BOdaTa OT BOdHnpe3epBoap.

CbxpaheneHa ypeda

Φnrypa F-G

Пиберетe сиюваТДИЗА И TOHкOBаТСчИнадИЗБAВУЕКМЕДЖЕТО 3a Пинад-пекhoctN.
IocTaBeTe pUHaTaNIO3aNCTpyHnATAIIO3aBNOeHaYDbJnxTeNaTpb6a.
IocTaBeTe yIbJIxNITeJIHnIte TpB6n B rOJIeMITE HOCaU 3a npHaJdJIeXHoCTN.
3aKaYeTe IIO3aTa 3a NoB B Hocaua 3a napKIPAHe.
→ 3aBnTe Mapkya 3a npa OKoIOn yIbJnx-TeHNHTe Tpb6n I NOCTabete NICTOJIeta 3a npa B DIO3aTa 3a nOi.
→ПиберетахранвашияKa6eJВМЯСТОТЗасьхpaHEnHeHa3axpaHBaшяka6eJ.

Pomou npn HEn3npaBHOCTN

Mhoro yeTo npuHnHe 3a nobpeHa ca enemHTapHn n c NOMOHTa Ha cIeHNte yka3AHnMOKe camn Da rN OTcPAnHe. Ako He cTe cnpyrHn nn NobpeHnHe ca ONncAHn Tuk, ObbpHeTe CE KbM OTOpn3npaHn cepBn3.

Onachocm

ObcnjxbaHemO da ce u3bPwEA cAm npu u3- aeden uencenU oxlaen napocmpyen ypeD. PEmohmume deuHocmu no ypeDa da ce u3- bPweam eduHcmeHo om omopuzpaH cepu3.

YdIbIkaBaHe Ha BpeMeTo 3a 3arpaBaHe

NapoctpnyHnT KOTeI cBdpbKa BapOBNK.

KoMJIeKT KpbTn YetKn 2.863-058

4 KpbIIN YeTKn 3a TOUKObA tCTpyHa IIO3a

Парна Турбо Дюза 2.863-159

3a BvIOBe IOuNCTBaHe, pRi KOnTo e HuyXHO da ce TbPka

CTNKOBe 3a npemaxBaHe Ha Bapo-6.295-047 Bnka

ПарнаЮТnia 2.863-209

He3aJIenBa7a OCHOBA Ha IOTnIra2.860-142

Iopxoadja 3a rlaeHe Ha yBCTBntEnMa- terpaJI.

Lisavarustuse monteerimine

Aurupuhasti on tooks valmis.

CTapi npncTrooi MICTaTb ciHHi MaTepiAIn, LIO MOkyTb BKNOpNCTOByBaTnCra

noBtopHO.Tomy,6yNbIaCKa,yTnI3yIteCTapi npictpoi 3a DOnOMOrO CneuaIbHnxCnCTem 3bOpy CmTTT.

Ihctpykuii i3 3actocybaHHKOMnHOHTiB (REACH)

AkyaIbHi BiIDOMOCTI npo KOMHOENTn HabeJeHi Ha Be6-By3JI 3a aDpecoIO:

H1 Пpacka
H2 Bvmkau napn (hixhi)
H3 KoHTpOJIbHa JAmna - HarpIbaHnI npackn
H4 Bvmka napu (Bepxhi)

H5БLOkyBaHHBmMkaa napi
H6 PeryjIaTOp tempeIaTpIa
H7 Ⅲteke npoaui napn

Ppabnla 6e3neKn

06epexho!

Po6oma y e6byxohne3neuHX yMo8ax He 03e0jraemcb.
Ipu eukopucmaHHI npucmpoIO He63neuHux 3ohx cnid dompumyeamucB iOnobioHux npabun mexhiku 63neku.
Eknilnyamaia npucmpoio 6baceuHi, oMicmmby,3aboponeHa.
Ipucmpi He moXHa eukOpucmoeyamu dny uuuenHna enekmpuHuNX npucmpoie, HnpuKnad, dyXOBok, emxHnx Haeicie, MkpoxbloBux neeu, meeneizopie, lamn, fehie, enekmpuHux obiaipieaie mozo.
IpepeukopucmaHnmepeepime cnpaehicmb npucmpo ma akcecayapie. Kkuo obnaohnna 3haxodumbcy Hnebe3doaHomy cmani, u0e He moKHa buKOpucmoeybam.Ocbnue pemelho nepeipme kabeB mepexHoO xuEnnna np6ky dny mexHiHOO o6cnyoeyeaHnma shana h noaui napu.
Uwokjehu KaebIb Mepexh0zo XueHnnoBunH bymu HeaaHOn 3amHeHu yNo8HoaeKeHO clyx6o Cepeichoo oocnyooyeaHH/aphixueMe enekmpukom.
UykodxeHu wlaHa nodaHi napu nidnaa Heaui 3amH. Do3oIaembc8 uKOpucmaHn minbku wlaHae nodaHi napu, peKOMeHdoBaHux eupobHukom (Homep dny 3amOBeHnH duB. y cnuCKy 3anachux yacmuH).
Hikolu He mopkaimeb MepexHo0o omekepy ma po3emku eoiozumu pykamu.
He yucmum npoio npedmemu, uO Micmmb peoounu, ukioluei dny 3doop8' (Hapuknaad, a36ecm).
UyKOHOmy pa3i He mopkaUmeccmpymennapu pyko1o 3bni3koieidcmamiHa HnpaeJMa II Ha IIOeumameapun (He6e3neKa onikie napoi).
Ipo6ka drrmexhiHnoo o6cnye0ybaaHnHe Mae biokpuamucn iD qac ekcnlyamaui.

△Ponepeoehn

Ppucpiu moke bymu nio'edhaui nuue do eekmpuHoiMepexi,uo noeunHa 6ymu ecmahoeena eekpmomohempom 3eido 3 IEC 60364.
Ppucmpiu cni dEmukamu nuue do 3minnoo cmpyu. Hanpya noeunha eidnoeidamu kka3anum Ha fipmoei mabnuci npucmpoio daHUM oodo hnpya.
U cupux npumiueneHHx, HanpuKnaad, y eahnux kimhamax, ekniouaume npucmpiun bku e po3emku i3 nepeekuoyehum 3anobixkHM bumukayem muny FI.
HeiioBIOHn odoexyeaui moymb 6ymu Hebe3neHmu. BukOpucmoeyume mIbku 6pu3ko3axuehu nodoexyeau i3 nepemuHOM npoody He mehu 3x1MM^2
3'ehaHnHa MepeKhoBunku ma nodoxxyaHa He noBuHHe Jekamu y eodi.
Ipu 3amini cnojnyhux enemehmie Ha Ka6eJI mepexHo2o JkuEJenHnA 60 nooexyuea i noBuHnHa 3abe3neyeamuc 6pu3ko3axuueHHra ma MexaHnHa MiunHcMb.
Kopucmyaay noeunen eukopucmoeyamu npucmpiu y iidnoeiodocmi do incmpykuii. Bin noeunen epaxooyamu ymou Micueoymi ma 3eepmamu ybaay Ha mpemix oic ndac pobomu 3 npucmpoeM.
Leu npucmpiu do3eonrlemcbc bukopucmoeyamu dimm cmapwe 8 poki i ocobam 3 obmxeHmu pfiznHmu, cehcohpum a6o po3ymoobum moKlueoocmmu, amakox ocobam, uo He maomb nompio hoo dociody u 3naHb, kuo eohu 3haxodumumybcn iHaanrodom oc6u, uo biDnoeidae 3a ix 6e3neky, oompuaomb eid ii nonepedhi po3'rchenra eihocho 6e3neuHOj ekcnnyamaui npucmpo. He do3oJmae dimam apamu 3 npucmpoe.M He do3oJmae dimm npobodmu ouuueHna ma o6cnyoeyeaHn npucmpo 6e3 Haanry.
He MoxHa 3aIuWAm npucmpiu 6e3 Haanay niO yac pobomu.
ObepejNcMb npu yuueHn KaexIbHuX cmIn 3 eJeKmpuHmu po3emKaMu.

yeaza!

Cniokyuime 3a mum, uo6 mepejxhi kabeni abo noodoxyueayi He moKna 6yono noukoedmu hacmynuuehu Ha Hux, y pezylbmani nepeuzunahnra, po3ipbaHnra abo nodibho2o yukodxeHHra. 3axuzaume mepejxenu Ka6JIb bID kapu, macna ma oocpmux noeepxohb.
YxodHomy pa3i He eukopucmo8yume po3uHnku, pioHn, 0o Micmmb po3uHnku a6o Hepo3eedehi Kucnomu (hnp., MuHi 3acobu, 6eh3un, po3pIXyeaqui ap6 ma auemoh) i He 3anueaume ix y bak dny bodu, ockinbku BOH u apecueho ennuabomha MamepiAnu, eukopucmaH e npucmpoi.
Ipehenoc npucmpoio nd acp o6im 3 ouuueHnna 3aboponeHu.
IpucmpiH Heo6xio hO po3miuamu HMiCuH ochoei.
Eknnnyamyeamu ma 36epiaamu npucmpiu 3aioHo do onucy ma manIOHKie!
Iid yac pobomu He do3oJembc8 6nokyeaHna baxen npaui napu.
3axuzaume npucmpiu eid douy. He 3epeiaeme nid iokpumum He6om.

3axnchi npictpoi

y8aza!

3axuchi npucmpoi cnayyomb dna 3axucmy Kopucmyaue. Budo3miHa 3axuchux npucmpoie yu HexmybaHn Hmu He donyckaembcra.

Perjntop Tncky

PergyIaTOp TnCKy UTPMMyE MaKcMaJIbHO noCTiHm TnCK y pe3epByapi nID qac po60Tu npInaHy. HarpiBaHHaBIMKaAcTbCra pni DoCArHHeHHi MaKcMaJIbHO rO 3NaueHnro pOboHOro TnCKy U pe3epByapi, i npN naDiHHi TnCKy B pe3epByapi BHaCNIIOk BiD60py napn HarpiaHHa3HOby BMKaAcTbCra.

Tepmoctat Kotna

Ko y KOTn He Mae BoDn, TempepaTba HbOMyPiDbNuycBc. TepmoCTaKOTla BmNKaE HarpiB. NOBTOpHe BMKAHnHaRPiBy He BMkAeTbcI D0TI, NOKI KOTeJI He 6yJe HAnOBHeHO.

3axnchn TepmoCTaT

Ykso peryIaTOp BmIOB i3 naDy i npIcTpi I nepePribc,TO npIcTpi BIMNkaeTbc 3a DonOMoROU 3axnCHOrO TepMOCTaTy. 3BepHITbCDo BIDIny 3a6e3neueHHraXNCHMn TepMOCTaTamN B iDnOBiHi CNyK6i OBCnyroBaHnR KJIeHTIB KOMNaHII "KARCHER".

3MOHTyBaTHO6JIaHaHHa

Iapobn cenapaTop roTobn do pO60tn.

Bka3i6Ka: Ppuad 3akpueae Knaan H koxhi 60 cekyhd. Lepewkoodkac 3aanhyeahn npunady. Ppu bomy moxluo noyum muxe knaaHn. Bunyck npay yepe3 ue he 6yode npuyeho.

DolnbAHNBONDI

Pn HectaBoN B pe3epByapi DnB BoN 6JIIMae YepBOHa KOHTpOlbHa IaMna "HeDOniK BOIN", a TAKoX 3ByuHTb 3ByKObN CnHaN.

Bka3ieKa:KoKHO2O pa3y, KOJIu e napOeMy
komJI 3aJIu7aEmcbc 3aHaMo mJa KINbKicMb
eOdu, oOraHn Hacoc aMmAmuHNo nOdae
eOdy 3pe3epaydJn EoDu BnapOuB kOmEn.
JkUo pe3epaydJn EoDu npOxHi, mo
oOraHn Hacoc He MoKe HanoBHeBamu
napOuB kOmEn i bO6ip Napu bNOKyEmcbc.

→ HanoBnHTn pe3eRByap IJRA BOuI Do BIDmitKIN "MAX".

Bka3ieKa:Yepe3 Heeenuki npomixku yacy 6o8nH u Hacoc Hamaaaembca Hano8Humu npoBu komei. JaKo npouec Hano8HenHa npoxodumy ycniuho, opa3y J eidnoeimcbc e6ip napu i Chepeona KoHmpoIbHa lamna EUMUKaemcbc.

PeryIIOBaHH KJIbKocti nap

3a donomoroo nepemikau kijbkocti napnpereyloeTbcra Kijbkictb napu,ka npdaetbcra.Ipeemikau MaT prn noJoxehna:

MaKcImaJIbHa KJIbKiCTb napi

O6mexeHa KIIbKicTb napi

BiicyThiCt b nap - (3axnCT BiD BMKaHHa DiTbM)

Ipumimka:Buomy nooxenhi baxenl nodaqui napu He moxluo 3aiamu.

BCTaHOBtIepeMkaHHaHeo6xIDHy KInbKicTb napy.
→ HataChiTb Ha BaxiJIb noJaChi napi, npn CNoaTky HapabJIOuChi napOBni nictOJeHa TkaHInHy, noKn npa He bUe BxOJNTPiBHomipHO. PumimKa:Haepie napocenapamop a nd c EukOpucMaHHra nocmiHo EMukaembc dnn iDmpumku mucky e komI. Ppu cbomy 6nmae Zeleha KOHmPoJIbHa lamna - "Haepie".

BmKHeHH npuJaDy

→HATNCHTb nepemukau, 06 BmKHyTN npnad.
→ BntaHnItb MepexKmI uTekep 3i uTeencJIbHOI pO3eTKn.
→ PπntnchHtB KπuKU ΜτeNceHbHOi p03eTkn πpnaNy DoHn3y Ta BNTaHrHiTb ΜτeKepe nOdaHi npn 3i ΜτeNceHbHOi p03eTKn.
→ BvIHTu 3aJIuIbOK BoIepeBByapy IJIa BOI.

36epiratnpictpi

MaJIHOHOK F-G

→ P03TaUByTn BnCOKOpOyKtNBHa φopCyHky Ta KpyIy IiTkY y BiDciKy dIy akcecyapiB.
Помістіті ручну Форсунку та Форсунку TOчКOBOrO CTpyмЕня на пов BXуВальНу TPy6ky.
→ BCTaBttn IOIOBxByaJIbHy Tpy6ky U TpIMaU dIy npHAnExKHOCTeBENIKOro po3Mipy.
BCTaBttnΦopCyHkyIJIЯ nIJIIOrIN BnapKyBaIbHe KpInnEnHn.
O6MoTaTn ⅦaHr NpaU npA HABKOJIO NOOBKyBaJIbHnx Tpy60k Ta NOMICTNTn napOBni nicToIeY fOpcyHky IJIaIOrn.
MepexeBn Ka6eJIb yKlaCTn B MiCi I nIa 36epirAHnMa MepeXeBOrO Ka6eJIa.

3aTocyBaHnI npJnaDЯ

Baxnbi Bka3iBkn 0do 3actocybaHHa

OuHHe HnTKeCTnJIH

Ipepe npoBeeHnM obo6kn 3 doNOMOHO npinCTPOI DnY uHcHnHnaPaoIO cnI 3aBxDN npebiprTn CTiKicTB TeKCTnblHnx BnPo6IB Do BnNVb npa. Hacampepe, cnI dObe obo6ntn npao BnIb, Notim npocuHTn NOro Ta, HapeuTi, nepebpNTn CTiKicTB dp6yBaHHra Ta HaABHicTb deOpmaui.

OuichiHnI NOBepXOHb 3 NOKpTTaT aJaKOBaHnx NOBepXOHb

Причиши Кухоннх Me6nIB Ta Me6nIB nЯ KBapTnpi,Дверей,napKeTy,JaKOBaHnx NOBepxOHB a60 NOBepxOHB i3 NOKpTTAM, BICK, Me6JIeBa nolIpya, StTuHne NOKpTTA 60 φap6a MoKyTB pO3uHnITnC A60 MoKyTB BUNHKHyTN PIIaM. Tomy Taki NOBepXHi MOxHa 6bPb8nTn TiNbKn npOnapeHOU cEpBetKOIO.

yeaza!

He HanpaTnayme npay Ha npukneHki kpaKu, ockilku obkna doke moke eidKeimucr. He eukopucmoeyume npucmpi dny uuehenny depees'hux abo napkemhux ndno 6e3 nokpumm.

OuichiHnckna

Пи ИЗькИX 3OBHIshIX TempepaTpyax, HacampepeiD,y3IMKy，IporpiIe BIKOHne CKnO. 3aBdЯнцbOMy Bn 3MOxKeTe JERko O6pO6bTu npAO BCIO NOBepXHIO cKnA.Y TAKN Cnoci6 BDACTcR yHNKHyTn HAnpyrN NOBepXHi,Io MOxKe Ipn3BecTn Do p03bITTcckNa.

yeaza!

Napy He hanaeJomb ha yuinbnehi diHku 6iia biKoHoi paMu dny 3anobiaaHnHa ii ykoDxKeHH.

Iapobn nictolet

He 3acoeyeamu naIbui mixz amuckamu.

PapkyBaHHF opcsHKn dIy nIiJIoN

→ ManIOHOK

DorngT TaTexHicHe 06cnyrobyBaHHN

O6epexHo!

IpoeedeHn po6im 3 mexHiHoEO6cnyoeeyanHn do3oJMaBcmaIbKu npEuHmU mepexHi buni ma ocmuIomynpucmpoi dnyuueHHn napoi.

Baxinb noaapi np He moxha haTCHytn

Baxinb npaui napn 3aifikcobahnn 6IOKyBaHHm / 3axnCTOM BiD BKJIoueHHra DiTbMn.
→Перемпкай кльбости napу nepebeCTny y nepeDHne noJoxKeHHЯ.

aogclllaaaiyolllpckll

aagoo oJwJdRgRgRgRg

.qlall jjx jc0 x> y

11" aolc jgl 11j

"

aall aai lal 2

JAA

0>g jzj 1y JxJyA yE cdo>gY

a aal oJrJb jdo aJlaJ

jI 1

olall jzJdol

jglj

a gj jll Jklll 0o ool

wjoo

alwcllljg

jgl jclll jjj

Jawal

.aa

JlJIaIeJeIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeJIeLI

/1

a1 = 23,a2 = - 43

.

lo gio《j》Jol oSo

b>ggdsal osdl sllc 2

2k - 1 k N^x

b>gdo no taalall gjil

.

gog g. aalall aed oolw

Jc 1aaii o0gwsal Jgiaai all

9 1a a a a a

1. 4.5.6 g JUJGJIOLJ

oJgJl oJLJn JyJxJxj

1.((OJall)

#

10 22a//12aaa//SgWp2iwiY

jIJIJI JIKARCHER

golpdoawlaayjlly

J) KARCHER JJI aJI

wioeogic o>1.(0476.295

aJl oIe Jy Iy Jy Jy

.ogJJI lc aigJJI acJJI

:4w

a/b//jge> gai g/le Jo sic jid>

J 1

aWlu2//cbwU/1rJ/0//d//a

aJyIeI 1 aJyIeI I aJyIeI 1 0

Lj8 8dJg

m = 311

y a//u w//a//a/

jgl//1c aillaa030s/2b

lalb jllj lge pduu y

1/1j lo a///a//d//j/0slo j

.

aIuUJg uUJ

y/ 1jLcJy Jy Jy

JzJIaXe Jus

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1/1g/1g/1g/2w/1g/2x/1x//a>

y.（g）.（y）

yLg a/ no aia L// Jfo

JUwSU aLgclw/aju

oo 1gSgJbJbJb

p8c8nJJIJIJIJIJI

Jb/ 1

Jglio oO 1gS1w/9jI//050

J 10

1

lgeogg jololgso 1

j//o/so p/u/ow/

C. l1l2 交 k1k2 = 0

sll alglpwlw y

aIe//JI//baw aolj KARCHER

oi, SJI aIgIb wI. (2.884933.0)

1. 1/1jIgJ//go aIio aJb

wJ 1

s a/1b/ p/u/ow/ s/s lc

.4ksw Jkw JcJlloieio a

s o 0golaljll

gssgaaa.1k>1jgeJ

2.2.2.2

jE aXe G aXe oO g>g 25i

J

g jj 1j>

.

jll jll jg> 2

.012xuU|jolz

JJI

Jcawluw>llgwsiaillgaiaa

aaiial aegll lalss gall

awluu// 1gua//oip/ auiil:/a>

aogla/olgSall oxl9 pIzwiLcai

y

a 1y a0g

aagg gaae jaoe aee

.0000 0000

jglil aabaaLw

:JlaeWyI

1JgJgJgJ -

pLaxwll jks a>bljll bawll

sJyll aajj 2awj

a a a a a a a a a a

aabwusg yll aagolsw

.0gill a,bw a,bw pdsuwl

J 1

sglwllpww20Jg>laedaaq

Jsw 1>Jl2bawll

oJawJawI JclJaw

.9gill a,bw a,bw w a,bolb0JI a9IJI

a>Jg a.blaal a>Jl

jRJgJLJ 10

jLiaIogzuo

olsgaill

1j jolgso pduwuy L gaiagclal aI Igcbgcbaw

pUwU 2aun y.aosso

a/1g,2r8b2abaw 15j1jfo

.aa20 1g a20g

jLl lssg aiLw oS jLl olso

Jl 1

aalaaalalalalal

2g 4aog 1c aIall aog

alosolawgsJzll

gacw oJ j 1c aIbll g Jaa Jlal Wyl lai bll Ia Jai JlJI

JILIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

Boo

Gg aag gglgllgagg 0.

ii a@g

Jc

bawU oJ KwB AwsLio .llg 0g 1 ploaxyI g JwSsUaIlaIJIy

.

a+0y1 a0g9

alwlll alzabwllgo Jolao.

J 1

Jgbl 02J Jll

aie// 1uueo9 aia// 1go Ia:la

Suy. 1a/2abw/ Jc Jb//

buiuie gbljg 1

Sia//p/u2iW/10,aiy

国

aaiyiaaggaaawwau

20 p 1

gag a0jJ a0g

.2

LgWgJzIJIaAeJIJIaJIbI 3

s > l.

.4

#

0g>g0//p<2y//g0//go//1//1//a>g

g> y>

100

J

n 1

Jiaall Jsw jsc Jao

Jy -

JSo cje5 oRyddawll olwdrll

aJl jKw Jllg. JzJg

aill Jx 0n aolg y dssll

.

#

awlu//2bw/1cbw/awllo

Boo

29.140g, oJdUall olwJll p

J

oJLw aRjI a gg g g g

oJg>Jg>JgBjRj 0
a9 g9 jRjLl WdWg2gDdWd
.

J JI 100000000000000000000000000000000000000000

Jl|

aolpds

gaiial

Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

jglJl

JyI/JeJzJ12a0 Jc JbZjI 1JgJl

Jgulu ma no aksllw

jgljJgj jooa oclac Jc Jsol (6C) jLlJyJgJawJawJ1A

jLJI JUOgJUOoo

.1all jzj n o 1a aal lal lg y

jglj

G-0j

olalg aIbll aog 2000

Jzj 2g jag g Jg jg jy p .

ooJolgJl daiJll ooslo gio .aJdJlly aoljI

Ji 1sIg/ slo Jli 1sJpI Ij: abg>lo
OJI/ pU JI// AYc JcAII JIO AILJQAS
Jl cAII JIJIO JcAII JAIJIO
Oc JALI AILAC GJrJrJyLc
.

J 1000000000000000000000000000000000000000000000000

60 J5 pala// jLcJ, jge// pgo: abg2lo jge// gjz// wJ nn Jla/ iag. a// yg. abw oji cgo gaw // ic / jI// gjz aIaa/ jy// / s

cllll j 1 clll l 20000000000000000000000000000000000000000000000000000

a/ll a/ll cl/ll aas c/s lal5:abglo
cl/ll Jai c/ll a/azao pao jL/ll aylc 9
Juyj/ll aylc /ll c/ll jj/so
Iu29 Ie/ll c/ll o/so yu uy uicg jLJI
Jy/ll aylc s/ll a/ll a/so gubiu j
Jy/ll 29 s/ll ayac Jabi paaug
Jlill" ao/le /ll a/ ll jayp

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

jz-1j/llg scl/la/la/la/la/

（）aJlJI JI 1JJJbJ .

Dg

Jr j Jb2ol 1aJal 1jJ .Jn Jn Jn Jn Jn Jn Jn Jn Jn

cllljj

.

1yla/02o 0cfo clo p2iui y 1s/10g/l cabu sgo a/aieuy poY

1oog

jglj jgl jgl jgl jgl jgl jgl jgl jgl

aJz

sogac Jkui clll ujxu np

1211 1011 1111 1111 1111 1111 1111 1111 1111 1111 11

JgJl clJI JIy P 1

jgl j0oJooJg

.1Jall gao 1cog nol clal ypa .
Jll" aoc jol ljg Jp9
."

jglj

auii aioj ljc jgejI gogjU

Jg 1

Jy/1jzjzj 1

jIJI J

a0g 111111111

JlI Iaio no aIlaol aIxol glc

.2g>gall

go laiaol pao jlae 9 a

pao 20

a a

. aaiall aoo oos Jds no

aai jss c0ac aooj 1

jgljjw0laclj

J

!agball aaxall jbljgall

J

jIJI JUeooelbcG

J 1

Egaaog

jao elac jlc baiol:Jaell

JzUuWgUwUJawUJzU

jglj joo

B4-A-

Jzjbl) a0jUU Ua>duu Jg

Jll Jss ssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

jll JlJ Llc, lpaallg

Jlll Ww w 100000000000000000000000000000

JckyI I Jd j 4s

JJJgssuogaa

.

Coo

1g. aJL J 0

J 1

JALL 9 Jd

00000000000000000000000000000000000000

.2a

Jlalall

jbs

clll 1b9 j2j 1sall 0

JyI//Lla//d 1c

1/aijzjgjlgeJl Jauu paJalall

15gallglge//coglaal

!aI

y. Jjlllcl jlljllj 000

Jusul Jzll 2000

y.13jrglloo jglao

a>gaiJ S0JI auij

y1 = 12,y2 = 35,y3 = 47,y4 = 59

a>g2a//sjloy/ aji

b_1 = 2 - 32 + 3 = - 43,b_2 = 4 - 22 + 2 = 13,b_3 = 2 - 12 + 1 = 23

pua/laI 101011

g/1gLc 0xJ2j2j2gauo

1. gllg jc elizwyl

Iaioia pbiio

bdo jocjraowl bdoaol poio

JL

JJI JIJI IJI JIJI IJI JIJI IJI JIJI IJI

Sjooa aee

2j 1

J

aJlJI JIwOgO

gai jw ooll no aill ayxllo gki loxic

JiIgogg. aLl l JrJd

gaiy aol y

Joo

.

J

a>dojggbasialpbioJbaj all

aJlJnJLJIiIgOgOJrJgJgJgJgJgJg

jglJ J

aJgU 10

KARCHER 0

aillll aod

glln j 1 ailll aix

pogj . jll biaial plaw

/yy/1y/yl/1y/ai/1g

PQ = 1

aI aIb aIg jIgJgJgJg

jge//y. jssu Jj

Jy a/laIb a/0

J

ogssalljzjjzjj>

S. JUUGGJUJUaLg2g>gJGLJGJALJI

ogusalljzjjzjj

JU20g JU Lao 1g 2g>gol g 101

Jglllalw alog jy

aillgdllddlllgl

JgU LgGgLg

aag aLw. dJ aLw logj

gJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

Ae 1

g/1234567890

JU 1/1111111111111

a> 1.03 a4aw log/

y//g a//n d//

( x - 1) · x = 1

gai do slgoljlo jfo lgi gia

jblzllp0g00g jglz//p/2w/ a.s

eell JIabu 2auy y.aaball

aIae, poeill Jlabe Su Cauy y. jgeJIi

JIO) 4244, oio 190 1c sio

（w）

a

JkuKu a>gi d1s giagoo

aIyIyIyIyIyIyIyIyIyIyIyIyIy

jll jie gia (g)

4g>gi Uis gia9 29 1bluo

1111111111111111111

( 30^ + 20^ ) = 90^

eaiiiaaiaaaeooos

a29 03/1w g 9 y.jgJ J

jgl//Juswcl/ail

jLgSdwwyJgJyJy

aeg jg aaaai piaea

Jouy cauy Y.60364IEC Jusall

Jc Jaaaiy j.0gbsaaslll

clll 000000000000

1c²00 1x3 gbaa

JW/ JKwJ Saa//.

0jgbs aawlia//

a>20 120 dIw p/2xu/ Jc Jiaoy

2oo 1x3, ooc gbaoo /s clall

JyJc

jaiabjgljIy

a20g jjJ 10 jio auiy

jLlglg, gRgJalln g.

jLwJg, jwJlJx0g. JcJaaJg

jgl11p211y111.

JIO aIILgUo>U12

29 100

209.242a/1g jolilg, 89

.

aJJI JU 1

jol 1. .

pduy yI dIe aalw allJl

J 1

2 a 2a11
Jll" aIc jcll lJy p .1
. J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J

aale

Jss

Jl Jj 11111111111111111111111111111111111111111111111

aaleeilllalll

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

Jg

oJoo oJoo oJoo JI/120 11111111111111111111111111111

//s2gj 19gblzal/la//g2e;19 gj/gal/.olg//g/ aell,aa>

//s2g:19gblzal/1gez:19c9/gal
.4slojw/ gabuuy

jgljllc ooggall jgwrll

ggyy yIyIy

A

Alfred Kärcher Ges.m.b.H.

Lichtblaustrasse 7

1220 Wien

[phone]

AUS

Karcher Pty. Ltd.

40 Koornang Road

Scoresby VIC 3179

(03) 9765 - 2300

B/LUX

Kärcher N.V.

Industriebweg 12

2320 Hoogstraten

B:090010027

LUX:003290010027

BR

6975 Creditview Road Unit #2

Mississauga, Ontario L5N 8E9

1-800-465-4980

CH

Karcher AG

Industriestraße 16

8108 Dallikon

0844850863

CZ

Karcher spo r.o.

Modletice c.p. 141

251 01 Ricany u Prahy

0323606014

D

Karcher Cleaning Systems A.E.

31-33, Nikitara str. &

Konstantinoupoleos str.

13671 Acharnes

210-2316 153

H

Kärcher Hungária Kft

Tormasret ut 2.

2051 Biatorbágy

[phone]

HK

Karcher Limited

Unit 10, 17/F.

APEC Plaza

49 Hoi Yuen Road

Kwun Tong, Kowloon

[phone]

1

Karcher S.p.A.

Via A.Vespucci 19

21013 Gallarate (VA)

848-998877

IRL

Karcher Limited

12 Willow Business Park

Nangor Road

Clondalkin Dublin 12

[phone]

KOR

Karcher Co. Ltd. (South Korea)

Youngjae B/D, 50-1, 51-1

Sansoo-dong, Mapo-ku

Seoul 121-060

032-465-8000

MAL

Karcher Cleaning Systems Sdn. Bhd.

No. 8, Jalan Serindit 2

Bandar Puchong Jaya

47100 Puchong, Selangor

[phone]

MEX

Karcher Mexico, SA de CV

Av. Gustavo Baz No. 29-C

Col. Naucalpan Centro

Naucalpan, Edo. de Mexico

C.P. 53000 Mexico

018000241313

N

Karcher AS

Stanseveien 31

0976 Oslo

24177700

NL

Karcher BV

Postbus 474

4870 AL Etten-Leur

0900-3344433

NZ

Karcher Limited

12 Ron Driver Place

East Tamaki, Auckland

[phone]

P

Neoparts-Com.eInd.Automóvel, S.A.

Av. Infante D. Henrique, Lote 35

1800-218 Lisboa

218558300

PL

Karcher Sp. zo.o.

Ul. Stawowa 140

31-346 Krakow

[phone]

PRC

Kärcher Cleaning Systems Co., Ltd.

Part B, Building 30

No.390 Ai Du Road

Shanghai Waigaoquiao 200131

[phone]

RO

Karcher Romania s.r.l.

Sos.Odaii Nr.439

013606 Bucuresti

0372709001

RUS

OOO«Kepxep»

109147,MockBa

5 Toh Guan Road East

01-00 Freight Links

Express Distripark

Singapore 608831

6897-1811

SK

Karcher Slovakia, s.r.o.

Beniakova 2

94901 Nitra

0376555798

TR

Kärcher Servis Ticaret A.S.

9 Eylul Mahallesi

307 Sokak No. 6

Gaziemir / Izmir

[phone]

TWN

Karcher Limited

5F/6.No.7

Wu-Chuan 1st Rd

Wu-Ku Industrial Zone

Taipei County

[phone]

UA

Karcher Ukraine

Kilzeva doroga, 9

03191, Kyiv

(044) 594 75 75

UAE

Karcher FZE

Jebel Ali Free Zone

RA 8, XB 1, Jebel Ali, Dubai

[phone]

USA

Alfred Karcher, Inc

2170 Satellite Blvd

Suite 350

Duluth, GA 30097

678-935-4545; 877-527-2437

ZA

Kärcher (Pty.) Limited

144 Kuschke Street

Meadowdale

Edenvale 1614

[phone]

KARCHER

www.kaercher.com
