ICM15740 - Coffee maker DELONGHI - Free user manual and instructions

Product type	Drip coffee maker
Brand	DELONGHI
Model	ICM15740
Power consumption	1000 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Net weight	2.63 kg
Carafe type	Glass or thermal carafe (depending on model)
Maximum capacity	15 small cups (approx. 1.25 L)
Permanent filter	Yes, depending on model (also uses 1×4 paper filter)
AROMA function	Slow brew for optimized aromas
Delay timer	Yes, on models with electronic controls
Auto shut-off	Yes (40 minutes for glass carafe, end of brew for thermal)
Hot plate	Yes, for models with glass carafe
Safety	Hot surfaces, do not immerse, repair by authorized center
Food contact materials	Compliant with EC regulation 1935/2004
Maintenance	Clean with soft damp cloth; descale every 60 cycles
Supplied accessories	Measuring spoon, permanent filter (depending on model), carafe
Repairability	Original spare parts available at authorized center

Frequently Asked Questions - ICM15740 DELONGHI

How to prepare coffee with the DELONGHI ICM15740 coffee maker?

Open the front lid, pour fresh water into the reservoir using the carafe up to the desired level. Place a filter (permanent or paper) in the filter holder, add ground coffee using the measuring spoon. Close the lid, place the carafe on the hot plate. Press the ON/AUTO or ON/STAND-BY button depending on the model. Coffee starts flowing after a few seconds.

What is the AROMA function and how to use it?

The AROMA function activates a slower brew that extracts all the coffee aromas. To activate it, press the AROMA button (Q or L depending on the model): the indicator light turns on. It is recommended for small quantities of coffee.

How to set the brewing time?

On models with electronic controls, first set the clock using the SET CLOCK button. Then press and hold the SET TIMER button until the desired time. Release, the programmed time flashes then is memorized. To activate, press ON/AUTO/O twice: the indicator turns red and 'AUTO' is displayed.

What to do if coffee flows slowly?

This is often due to scale buildup. Perform a descaling of the machine using a special drip coffee descaler, according to the instructions in the manual. Perform at least 3 rinses with fresh water after descaling.

How to descale the coffee maker?

Dilute the descaling solution in the carafe, pour into the reservoir. Place the carafe on the hot plate, turn on the machine and let it run until about a cup, then turn off. Let it sit for 15 minutes. Repeat the operation, then let the entire reservoir run through. Rinse with 3 cycles of fresh water. On electronic models, the green AROMA indicator lights up to indicate descaling need; reset by pressing AROMA and SET CLOCK simultaneously.

Can I use a paper filter with the permanent filter?

If your model is equipped with a permanent filter, you can use it alone. Otherwise, use a 1×4 paper filter. The permanent filter is reusable, the paper filter is discarded after use.

How to clean the coffee maker?

Unplug the appliance and let it cool down. Clean the exterior with a soft damp cloth. Do not use solvents or abrasive detergents. Never immerse the appliance in water. The water reservoir filter (under the lid) can be removed and cleaned if necessary.

What to do if coffee tastes sour?

A sour taste can come from improper rinsing after descaling. Make sure you have performed at least 3 rinse cycles with fresh water after descaling to remove any product residue.

Can I leave the coffee maker on all the time?

It is advisable not to leave the appliance on unnecessarily. Turn off the main switch and unplug the plug when not in use. Models with glass carafe automatically shut off after 40 minutes; models with thermal carafe shut off at the end of brewing.

Where can I have my DELONGHI coffee maker repaired?

For any repairs, contact exclusively an Authorized Service Center approved by the manufacturer and insist on original spare parts. Failure to follow this instruction may compromise the safety of the appliance.

USER MANUAL ICM15740 DELONGHI

Instructions for use

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below. WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug. B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow:

Blue:

Brown:

Earth

Neutral

Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol ≡ or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

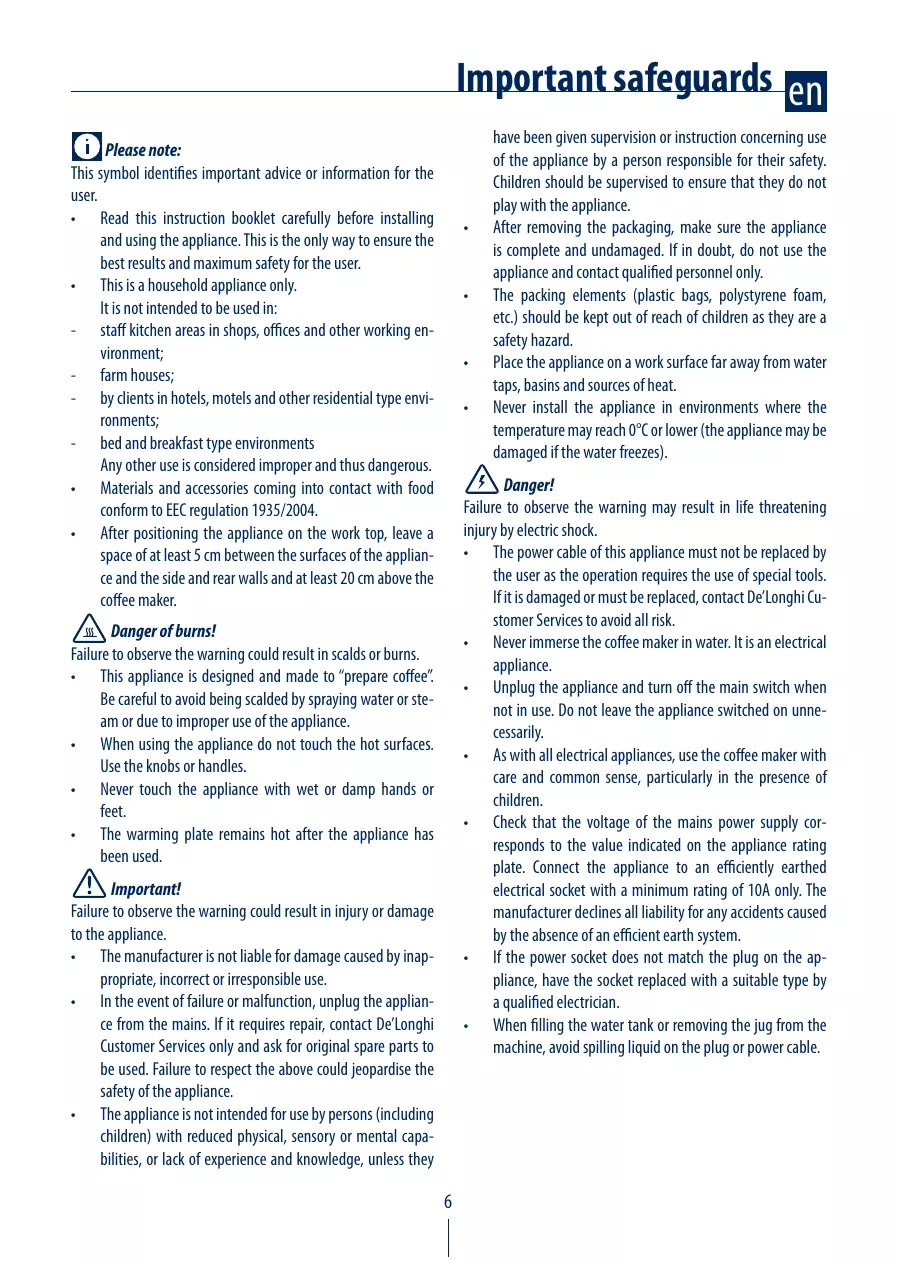

Please note:

This symbol identifies important advice or information for the user.

• Read this instruction booklet carefully before installing and using the appliance. This is the only way to ensure the best results and maximum safety for the user. This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments;
• farm houses; by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Any other use is considered improper and thus dangerous. Materials and accessories coming into contact with food conform to EEC regulation 1935/2004. After positioning the appliance on the work top, leave a space of at least 5 cm between the surfaces of the appliance and the side and rear walls and at least 20 cm above the coffee maker.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

This appliance is designed and made to "prepare coffee". Be careful to avoid being scalded by spraying water or steam or due to improper use of the appliance. - When using the appliance do not touch the hot surfaces. Use the knobs or handles. - Never touch the appliance with wet or damp hands or feet. - The warming plate remains hot after the appliance has been used.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

• The manufacturer is not liable for damage caused by inappropriate, incorrect or irresponsible use.
• In the event of failure or malfunction, unplug the appliance from the mains. If it requires repair, contact De'Longhi Customer Services only and ask for original spare parts to be used. Failure to respect the above could jeopardise the safety of the appliance. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

After removing the packaging, make sure the appliance is complete and undamaged. If in doubt, do not use the appliance and contact qualified personnel only. - The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach of children as they are a safety hazard. - Place the appliance on a work surface far away from water taps, basins and sources of heat. - Never install the appliance in environments where the temperature may reach 0°C or lower (the appliance may be damaged if the water freezes).

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• The power cable of this appliance must not be replaced by the user as the operation requires the use of special tools. If it is damaged or must be replaced, contact De'Longhi Customer Services to avoid all risk.
• Never immerse the coffee maker in water. It is an electrical appliance.
• Unplug the appliance and turn off the main switch when not in use. Do not leave the appliance switched on unnecessarily.
• As with all electrical appliances, use the coffee maker with care and common sense, particularly in the presence of children.
• Check that the voltage of the mains power supply corresponds to the value indicated on the appliance rating plate. Connect the appliance to an efficiently earthed electrical socket with a minimum rating of 10A only. The manufacturer declines all liability for any accidents caused by the absence of an efficient earth system. If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type by a qualified electrician.
• When filling the water tank or removing the jug from the machine, avoid spilling liquid on the plug or power cable.

Description of appliance

A. Glass jug (certain models only) B. Thermal jug (certain models only) C. Measure D. Water level indicator E. Open/extract filter holder handle F. Water fill compartment G. Filter holder for drip coffee H. Permanent filter (if provided) or paper filter I. Plate (hot in models with glass jug only)

Models with switch:

J. "ON/STAND-BY" button K. "ON/STAND-BY" light L. Aroma button M. Aroma light

Electronic models:

N. Display O. ON/AUTO button with light P. Set timer button Q. Aroma button with light R. Set clock button S. Water tank filter T. Inspection door

Setting the clock (certain models only)

Plug the appliance into the mains socket. The first time it comes on, "0:00" appears on the display. To set the exact time, press and hold the SET CLOCK button (R) (fig. 1) until the current time is displayed, then release. The time can be set at any moment.

How to make drip coffee

Please note: the first time the appliance is used, all accessories and the internal circuits must be washed through by making at least two jugs of coffee without using pre-ground coffee.

• Open the door at the front by pulling the handle (E) and use the jug to pour clean cold water into the water fill compartment (F) up to the level indicated for the number of cups of coffee you want to make. Check the level of water in the tank through the level window (D) (fig. 3). You are recommended to use the jug provided as a measure as the maximum capacity of the jug and the tank are the same. Position the permanent filter (H) (if present) in the filter

holder (G) (fig. 4). In versions without permanent filter, use the paper filter (size 1x4). - Place the pre-ground coffee in the filter using the measure (C) provided and level evenly (fig. 5). See the table for recommended quantities. Use good quality, medium pre-ground coffee for drip coffee makers.

Recommended quantities:

No. small cups ☐	No. large cups ☐	No. measures (*)
15	10	10
12	8	8
9	6	6
6	4	4
3	2	2

(^*) 1 level measure = 1 tablespoon (5g)

The quantities given in the table are indicative and should be adapted to your personal taste and the type of coffee. Never exceed the maximum quantity of 10 measures. The type of blend has a considerable influence on the coffee you make. You should therefore try various types of coffee to find the one best suited to your taste.

• Models with glass jug (A): close the door at the front of the appliance and place the closed jug on the plate (fig. 6).
• Models with thermal jug (B): before placing the jug on the plate, make sure the lid is closed (fig. 7).
• Models with electronic controls: press the ON/AUTO/ button (O) (fig. 8). The red light indicates that the coffee maker is operating and "BREW" appears on the display. The appliance emits a beep when delivery begins, then three beeps when it ends. The taste of the coffee can be optimised by pressing the AROMA button (Q). This function enables a process of percolation which releases the water in the filter more slowly. Filtering a little at a time improves the flavour and aroma of the coffee. To enable the function, press the aroma button (the light on the button comes on). To disable the function, press the button again. You are recommended to use the AROMA button when you do not want to make a full jug of coffee.
• Models with switch: Press the button (J) (fig. 9). The light (K) indicates that the coffee maker is operating. Coffee delivery will start after a few seconds. It is completely normal for the appliance to give off steam while the coffee is percolating. The coffee maker emits a beep when delivery begins, then three beeps when it ends. The taste of

The coffee can be optimised by pressing the AROMA button (Q). This function enables a process of percolation which releases the water in the filter more slowly. Filtering a little at a time improves the flavour and aroma of the coffee. To enable the function, press the aroma button (the light on the button comes on). To disable the function, press the button again. You are recommended to use the AROMA button when you do not want to make a full jug of coffee.

• In models with glass jug: if you leave the button pressed after percolation has finished, the plate will keep the coffee at the ideal temperature. The appliance goes off automatically 40 minutes after coffee delivery ends.
• Models with thermal jug: to pour the coffee, turn the lid to the position shown in fig. 10. To remove the lid completely, turn the lid to the position shown in fig. 11. After percolation has ended, the appliance goes off automatically.

Please note: removing the jug before all the coffee requested has been delivered does not interrupt coffee making, but merely blocks flow into the jug. If you want to pour out a little coffee immediately, you should do so as rapidly as possible in order to avoid the coffee overflowing.

Programming auto-start (models with electronic controls only)

Check that the time is set correctly.

To programme when you want the appliance to make coffee:

• Press the SET TIMER button (P) and hold it down until the time you want the coffee maker to come on is reached.
• Release the SET TIMER button. The time flashes briefly until the setting has been memorised, then the current time is displayed.

Activating the timer function

• Set the time you want the appliance to come on and go off as described in the above paragraph; Prepare the appliance to make coffee. Press the ON/AUTO/ button (0) (fig. 12) rapidly twice. The light becomes red to indicate that the appliance is operating and "AUTO" is displayed.

Cleaning and maintenance

Before maintenance or cleaning of the appliance, turn off, unplug from the mains socket and allow to cool.

• Do not use solvents or abrasive detergents to clean the coffee maker. Just wipe with a soft damp cloth.
• Never immerse the coffee maker in water. It is an electrical appliance.
• The water tank filter (S) can be reached through the inspection door (T). Clean when necessary.

Descaling

If the water in your area is hard, limescale builds up over time. These deposits may affect correct operation of the appliance. You are recommended to descale the coffee maker every 60 coffee making cycles.

Models with electronic controls only: When green light flashes on the aroma button (Q), (about every 60 cycles) you have to descale the appliance. To reset the descaling alarm press the two buttons aroma and set clock at the same time. The green light will be power off.

To descale, always use special commercially available descending products for drip coffee makers.

1. Dilute the product in the jug, following the instructions on the descaler pack;
2. Pour the solution into the water fill compartment;
3. Place the jug on the warming plate;
4. Press the ON/AUTO/ / (J) button, percolate the equivalent of one cup then turn the appliance off;
5. Leave the solution to work for 15 minutes, then repeat operations 4 and 5.
6. Turn the appliance on and deliver the water until the tank is completely empty.
7. Rinse by operating the appliance with water only at least 3 times (3 complete tanks of water).

Failure to clean as described above invalidates the guarantee.

Technical data

Mains voltage: 220-240V-50/60Hz

Absorbed power: 1000W

Weight: ICM15240 / ICM15250 2,3 kg

ICM15740/ICM15750 2,63kg

Disposing of the appliance

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

The appliance complies with the following EC directi

ves:

Low Voltage Directive 2006/95/EC and subsequent amendments; EMC Directive 2004/108/EC and subsequent amendments EC Regulation 1275/2008 for standby

Troubleshooting

Problem	Probable cause	Solution
The coffee takes longer to brew.	The coffee maker needs to be descaled.	Descale the machine as described in the section DE-SCALING.
The coffee has an acidic ta-ste.	Insufficient rinsing after descaling.	Rinse the machine as described in the section DE-SCALING.

i Nota Bene:

Setting the clock (only for

some models)

Plug into the socket; at first switch-on, the display will show the flashing digits "0:00". To set the correct time, press and hold the SET CLOCK button, fig.1, until the time value flashes, then release the button. The time can be changed at any moment.

How to prepare coffee through a filter

Note: on first use of the coffee maker, it is necessary to flush all internal systems by preparing at least two cups, without adding ground coffee.

Open the lid by pulling the handle E, and using the measuring cup, pour fresh cold water into the water tank F, fig. 2, up to the level required for the desired amount of coffee: check the water level in the tank using the special indicator D, fig. 3. In any case, for dosing, it is recommended to use the measuring cup, as the maximum capacity of the cup corresponds to the capacity of the tank. - Install the permanent filter H (if provided) or the paper filter G, fig. 4, in the filter holder; in models without a filter, use a paper filter (size 1x4). Pour ground coffee into the filter, using the measure C, and distribute it evenly, fig. 5. Pay attention to the table with recommended quantities. Use good quality ground coffee, medium grind, for preparing coffee in coffee makers with a filter.

Recommended quantities:

The warranty ceases to apply if the cleaning described above is not performed regularly.

Technical data

Voltage: 220-240V~50/60Hz

Power consumption: 1000W

Weight: ICM15240 / ICM15250 2.3 kg

ICM15740/ICM15750 2.63 kg

The product complies with the following regulations

EC:

- Low Voltage Directive 2006/95/EC and subsequent amendments. EMC Directive 2004/108/EC and subsequent amendments. - European regulation on standby mode 1275/2008

Troubleshooting

Filter coffee is ready

Before using the coffee machine for the first time, you must remove all accessories and rinse the internal circuits of the machine by running two cups of water through without adding coffee.

• Open the front door by pulling the handle (E) with the help of the funnel, and pour clean cold water into the reservoir (F) (Fig. 2) up to the level corresponding to the desired number of cups of coffee. Check the water level in the reservoir through the special indicator (D) (Fig. 3). It is recommended to use the funnel from the kit as a dispenser, as its maximum capacity corresponds to the capacity of the reservoir. Insert the permanent filter (H) (if provided) into the filter holder (G) (Fig. 4), and for versions not equipped with one, use paper filters (size 1x4). Add ground coffee to the filter, using the measuring spoon (C) from the kit, and level it evenly (Fig. 5). Refer to the table for recommended quantities. Use high-quality ground coffee, specially prepared for coffee machines with paper filters.

Recommended quantities:

Бр. малки чаши БP	Бр. rolемп чаши	Бр. мерітелни пъж. (*)
15	10	10
12	8	8
9	6	6
6	4	4
3	2	2

(*) One measuring spoon = 1 spoon (5 g)

The quantities in the table are approximate and should be adjusted to your personal taste preferences. Never add more than 10 measuring spoons. The type of coffee blend greatly affects the quality of the resulting coffee: we recommend trying different types of coffee to find the one best suited to your taste.

• Models with a funnel (A): Close the front door and place the funnel over the opening (Fig. 6).
• Models with a thermos (B): Before placing the thermos on the plate, make sure that the lid is closed (Fig. 7).

Control panel: Press the ON/AUTO/O button (0) (0) (0). The indicator light shows the operating mode, and the display shows the word 'BREW'. A sound signal (beep) is emitted at the start of brewing, and after that, a sound signal indicates the end. The taste of the coffee can be adjusted by pressing the AROMA button (Q). This function activates the pre-brewing process, during which the water is more slowly introduced into the filter; gradual infusion gives the coffee a more intense aroma. To activate the function, press the AROMA button: the indicator light on the button lights up; to deactivate the function, press the button again. The use of the AROMA button is recommended when brewing a cup of coffee. Models with a jug: press the button (J) (fig. 9). The indicator light (K) on the button shows the operating mode. The coffee will not start brewing until the jug is in place. It is normal for the machine to emit a little steam during the coffee brewing process. A sound signal (beep) is emitted at the start of brewing, and after that, a sound signal indicates the end. The taste of the coffee can be adjusted by pressing the AROMA button (Q). This function activates the pre-brewing process, during which the water is more slowly introduced into the filter; gradual infusion gives the coffee a more intense aroma. To activate the function, press the AROMA button: the indicator light lights up. To deactivate the function, press the button again. The use of the AROMA button is recommended when brewing a cup of coffee. Models with a thermal jug: if you keep the button (J) pressed after the coffee brewing, the hot plate maintains the ideal temperature of the hot coffee. It switches off automatically 40 minutes after the coffee is brewed. Thermal jug model: to pour coffee, open the jug to the position shown in fig. 10. To pour the remaining coffee from the jug, open the jug to the position shown in fig. 11. When the brewing is finished, the appliance switches off automatically.

Important: when removing the jug during the brewing of the desired amount of coffee, the brewing process does not stop, but the coffee continues to pour into the jug; if you want to pour

a little coffee, it is recommended to do it as quickly as possible to avoid unpleasant dripping.

Programmed switch-on (AUTO) (only for models with electronic control)

The warranty is not valid if the above-described cleaning is not carried out regularly.

Technical data

Rated voltage: 220-240V~50/60Hz

Rated power: 1000W

Weight: ICM15240 / ICM15250 2.3 kg

ICM15740/ICM15750 2.63 kg

Disposal of the appliance

According to the European Directive 2002/96/EC, the appliance must not be disposed of with household waste, but must be taken to a separate collection point for recycling.

This appliance complies with the following EU Directives:

- Low Voltage Directive 2006/95/EC and subsequent amendments; Electromagnetic Compatibility (EMC) Directive 2004/108/EC and subsequent amendments; - European Regulation Stand-by 1275/2008

Troubleshooting

Therefore {2j1,{0j1},{0j2}}

الله	الله الحرفicus	الله الحرفicus
عَزَلْفَنَهُ وَسَمِهُ لَبَعْدِهُ وَسَمِهُ لَبَعْدِهُ.اللهَسَمِهُ بَلَّتَهُ	اللهَجَعَلَةَ الحَلِيَلَةَ مَعَلَهِ وَسَمِهُ لَبَعْدِهُ.اللهَسَمِهُ بَلَّتَهُ	عَزَلْفَنَهُ لَبَعْدِهُ لَبَعْدِهُ.اللهَسَمِهُ بَلَّتَهُ
عَزَلْفَنَهُ وَسَمِهُ لَبَعْدِهُ.اللهَسَمِهُ بَلَّتَهُ	عَزَلْفَنَهُ لَبَعْدِهُ.اللهَسَمِهُ بَلَّتَهُ	عَزَلْfَعَلَةَ مَعَلَهِ لَبَعْدِهُ.اللهَسَمِهُ b丨لَّتَهُ

(baaa)aaa(aaaa)		A
(baaa)aaa(aaaa)		B
		C
		D
		E
		F
		G
		H

! =

a

J 10 J 10 J 10 J 10 J 10 J 10

a a

. 1

1 1

J 1

1935/2004

1 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5

y 1
