SECTION 2. FONCTIONS DIVERSES

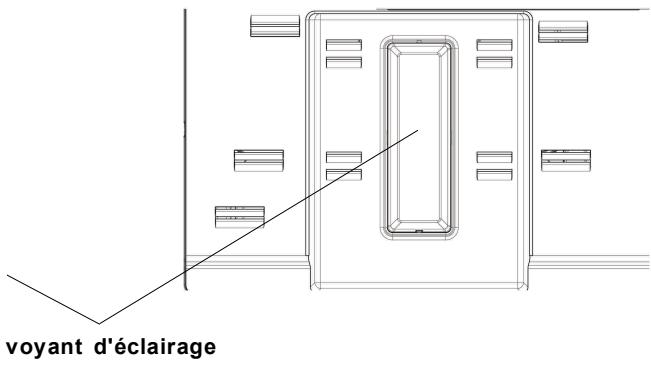

Mode Super congélation

05 minutes -> 1. barre;

10 minutes -> 2. barre;

15 minutes -> 3. barre;

20 minutes -> 4. barre;

25 minutes -> 5. barre;

30 minutes -> 6. barres clignotent;

F R D.COOI VACATION ECO ALARM Isr 5LV

F R D.COOI VACATION ECO ALARM !SR &LV

Technical diagram showing airflow or ventilation system with circular components and directional arrows indicating flow direction.

Line drawing of a person opening a rack with a handle, no text or symbols present

Architectural diagram of two stacked metal structures with no text or symbols

Figure -1-

Diagram of a multi-level mechanical or architectural structure with no visible text or symbols

Figure -2-

Architectural cross-section diagram of a multi-level building facade with no visible text or symbols

Figure -3-

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl, giving thumbs up (no text or symbols)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a bottle and a cup (no text or symbols)

Line drawing of an open refrigerator with red diagonal lines indicating diagonality (no text or symbols)

Cartoon illustration of a smiling bottle and two baby bottles beside a large box, with no text or symbols present.

Illustration of a hand holding a coiled cable or wire, no text or symbols present

Technical line drawing of a screwdriver inserted into a component, labeled A (no text or symbols on the diagram itself)

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

SECTION 5. TRANSPORT ET DEPLACEMENT

Simple line drawing of two children playing a game with a long banner (no text or symbols)

Old and out-of-order fridges....29

Safety warnings 29

Installing and operating your fridge 30

Before Using your Fridge....30

USAGE INFORMATION 31

Operating your Fridge 32

Super Freeze Mode 32

Super Cool Mode 33

Economy Mode 33

Holiday Mode 34

Drink Cool Mode 35

Function of Child Lock 35

Light Cancelling Mode 36

Screen Saver Mode 36

Cooler Temperature Settings 36

Freezer Temperature Settings ....37

Warnings about Temperature Adjustments 37

Accessories 38

Making Ice Cubes 38

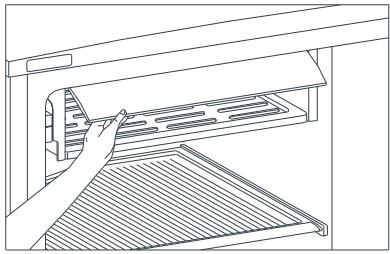

Fast Freezing Shelf 38

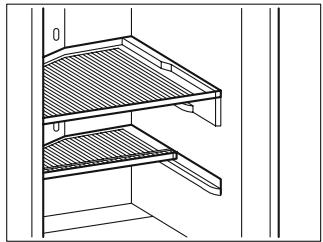

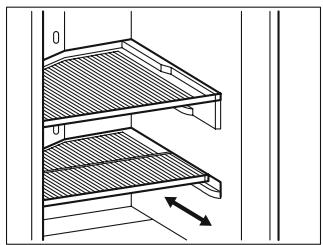

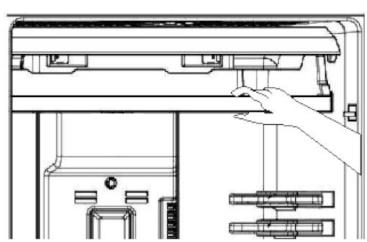

Chiller Shelves 38

Fresh dial 39

ARRANGING FOOD IN THE APPLIANCE 39

Refrigerator Compartment 39

Freezer Compartment 40

CLEANING AND MAINTENANCE 41

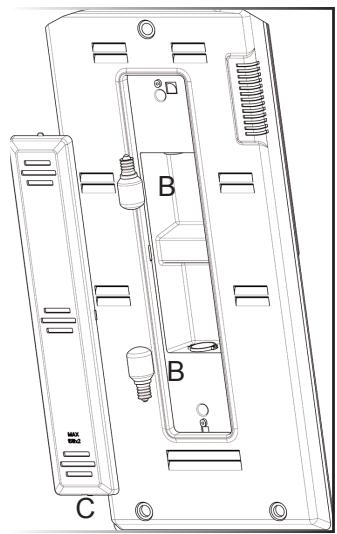

Replacing The Refrigerator and Freezer Light Bulb 42

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ....43

Repositioning the Door 43

BEFORE CALLING YOUR AFTER SALES SERVICE 43

Tips for saving energy....45

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 46

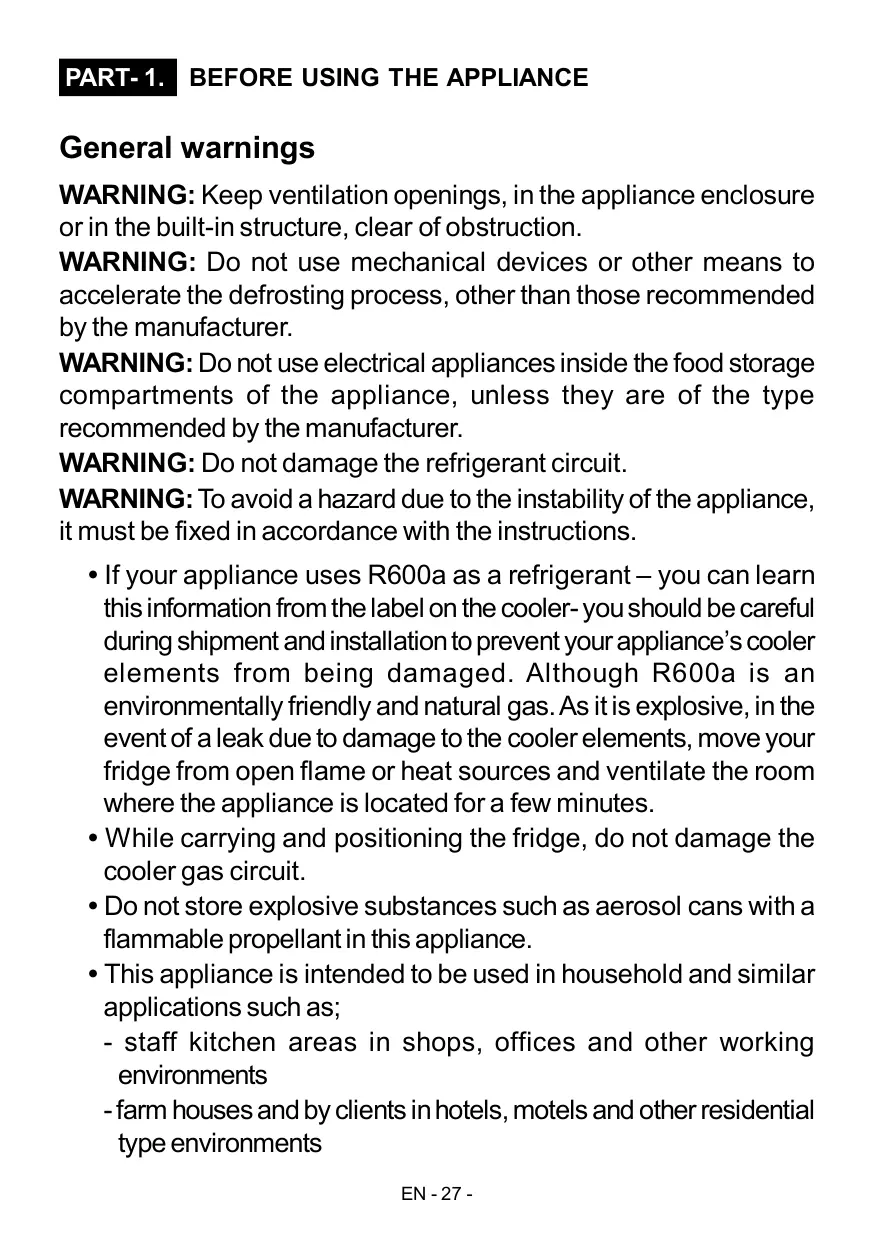

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working environments

- farm houses and by clients in hotels, motels and other residential type environments

- bed and breakfast type environments;

- catering and similar non-retail applications

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a manual tool manipulation (no text or symbols present)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!

Cartoon illustration of a person inside a door, holding their finger with arms outstretched (no text or symbols)

Illustration showing a hand holding a smiling emoji next to a crossed-out prohibition symbol and a block of hands.

Simple line drawing of a bottle and glass with explosion effects (no text or symbols)

• Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220-240 V at 50Hz.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• Your fridge should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.
• The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.
• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.
• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Cartoon illustration of a distressed refrigerator with arms and legs, showing facial expressions (no text or symbols)

Diagram showing two curved arrows indicating rotational motion between two rectangular objects on a grid-like structure (no text or symbols)

Before Using your Fridge

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

Simple line drawing of a smiling square character holding a hand (no text or symbols)

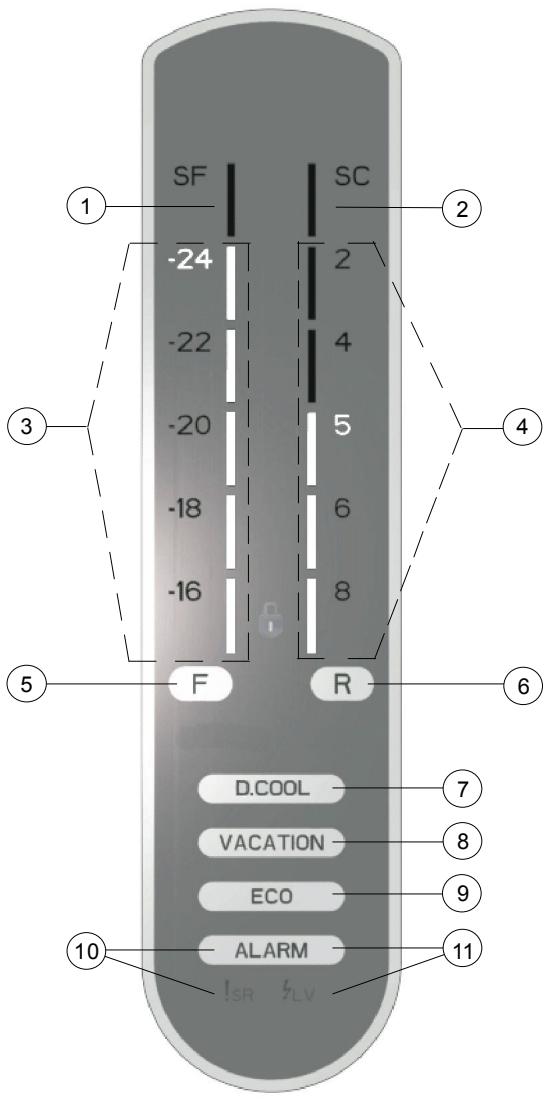

Display and control panel

SF -24 -22 -20 -18 -16 SF SC 2 4 5 6 8 F R 3 4 5 6 D.COOL VACATION ECO ALARM 10 11 1 SR 7 LV

Use of control panel

1. Indicator and bar of Super Freeze mode
2. Indicator and bar of Super Cool mode
3. Adjustment indicators and bars of freezer. The active setting value will be illuminated. All bars from minimum up to the relative setting value will be illuminated.
4. Adjustment indicators and bars of cooler. The active setting value will be illuminated. All bars from minimum up to the relative setting value will be illuminated.

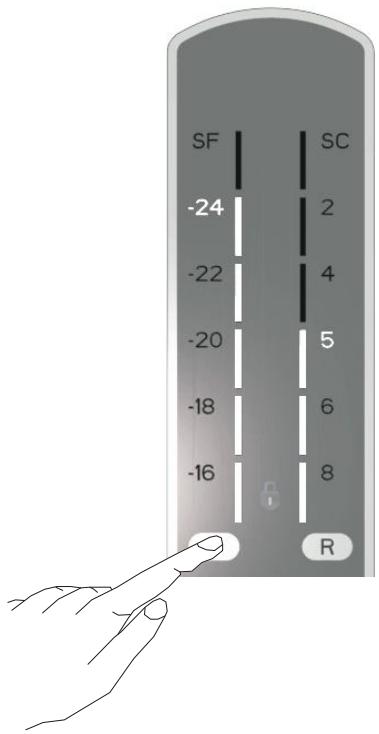

5. It enables the setting value of freezer to be modified and Super Freeze mode to be activated if desired.

Freezer may be set to -16, -18, -20, -22, -24 °C.

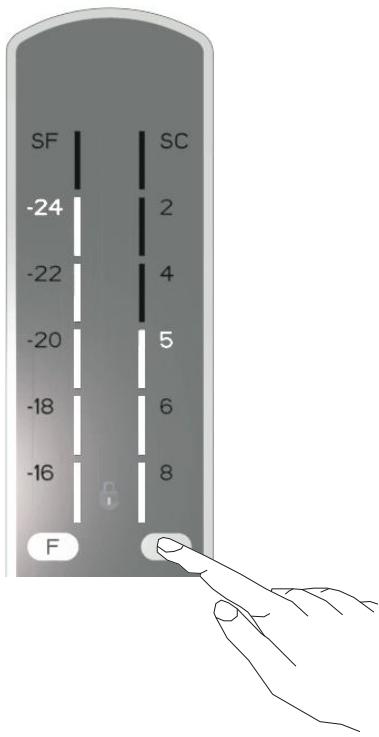

1. It enables the setting value of cooler to be modified and Super Cool mode to be activated if desired.

Cooler may be set to +2, +4, +5, +6, +8 °C.

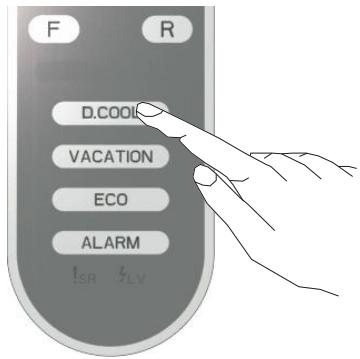

1. It activates Drink Cool mode. The expression will be illuminated when it is active.

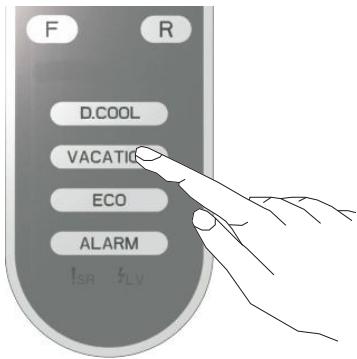

2. It activates holiday mode. The expression will be illuminated when it is active.

3. It activates economical mode. The expression will be illuminated when it is active.

4. Alarm and SR will light red and audible alarm will be released when any problem occurs in the fridge. Audible alarm will be deactivated when pressed on alarm button. Red warning lights will continue to light up until the problem is corrected/eliminated.

5. In case the mains voltage is low, Alarm and LV will light red and audible alarm is released. Audible alarm will be deactivated when pressed on alarm button. Red warning lights will go off when mains voltage raises the appropriate level.

Operating your Fridge

After the appliance is plugged, all symbols will appear for 2 seconds, and then the start-up values will appear as -18^ on freezer setting indicator and +5^ on cooler setting indicator.

All buttons on the control panel are touch-operated. (Only press to activate the button you want to operate.)

Super Freeze Mode

When would it be used?

• For freezing a large amount of food (too large to be fitted in the Super freezer).
• To freeze fast food.
  • To freeze food quickly.
• To store seasonal food for a long time.

How would it be used?

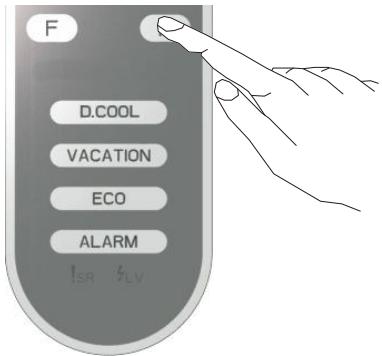

• Press button F until letters "SF" and relative bar graphic light up.
• If pressed on no button in 1 second, SF and bar graphics will flash 3 times and a beep sound will be released.
• SF and relative bar graphics will be displayed during this mode.

During this mode:

R D.COOL VACATION ECO ALARM ISR ISLV

• Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, set active SF mode 3 hours before placing fresh food in the freezer.
• 3 hours after being activated, your refrigerator starts giving signals. This signal tells that the quickfreezer compartment is ready for the foods to be placed in it. Your refrigerator will give intermittent beep sounds for 1 minute in every 5 minutes; provided that the doors are not opened, this signal giving will last 1 hour. When this sound is heard, foods to be frozen must be placed away from the already frozen ones. Whenthe door of the freezer or cooler is opened, this signal stops. When your foods are cooled enough, your refrigerator will automatically go out of the quick freezing mode.
• After a period of maximum 24 hours after the function is activated, the freezing process will be completed.
• Freezer may be adjusted, Super Freeze will be cancelled and the selected setting values will proceed.
• Temperature of super cool and cooler may be adjusted. In this case, super freeze mode continues.
• Economical and Holiday modes can be selected. Super Freeze Mode will be cancelled and the selected mode is enabled.
• When "Super Freeze" is active, SF can be re-selected and cancelled by pressing on button F.

Note: “Super Freeze” mode will be automatically cancelled after 24 hours or freezer sensor temperature is lower than -32 °C.

Super Cool Mode

When would it be used?

• To cool fast food before eating.
• To cool and store and lots of food.
• To cool drinks quickly.

How would it be used?

• Press button R until letters "SC" and relative bar graphic light up.
• If pressed on no button in 1 second, SC and bar graphics will flash 3 times and a beep sound will be released.

F D.COOL VACATION ECO ALARM ISR SLV

- SC and relative bar graphics will be displayed during this mode.

- When you use supercool mode, existing fresh food in refrigerator compartment can reach to much more cooling for a brief period. After this mode, the fresh food will turn back to normal temperature.

- And if needed you can use this mode again.

During this mode:

• Cooler may be adjusted, Super Cool will be cancelled and the selected setting values will proceed.
• Temperature of super freeze and freezer may be adjusted. In this case, super cool mode continues.
• Economical and Holiday modes can be selected. Super Cool Mode will be cancelled and the selected mode is enabled.
• When "Super Cool" is active, SC can be re-selected and cancelled by pressing on button R.

Note: “Super Cool” mode will be automatically cancelled after 12 hours or cooler sensor temperature is lower than 0^ C.

Economy Mode

Freezer and Cooler operate in the economical conditions that are determined in the control unit.

When would it be used?

- When you want your fridge to operate economically.

How would it be used?

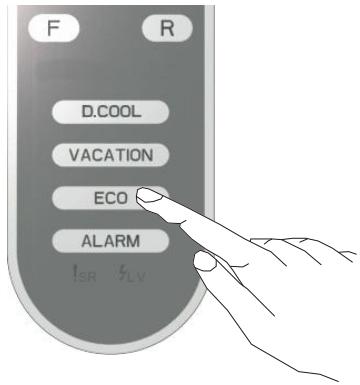

• Touch button ECO.
  • ECO will start flashing

• If pressed on no button in 1 second, the symbol will flash 3 times and a beep sound will be released.

• When this mode is active, ECO symbol stays on.

• -18 and relative graphic bar will be displayed on Freezer
• +4 and relative graphic bar will be displayed on Cooler

F R D.COOL VACATION ECO ALARM Isr sLV

During this mode:

• Freezer may be adjusted, Economical Mode will be cancelled and the selected setting values will proceed.
• Cooler may be adjusted, Economical Mode will be cancelled and the selected setting values will proceed.
• Super Cool and Super Freeze modes can be selected, Economical mode is automatically cancelled and the selected mode is activated.
• Holiday mode can be selected. Economical mode is automatically cancelled and the selected mode is activated.
• To cancel, you will just need to press on button ECO.

Holiday Mode

When would it be used?

- If you are going to a long vacation, and want to empty the cooler, you can use this mode.

How would it be used?

• Touch button VACATION.
  • VACATION will start flashing.
• If pressed on no button in 1 second, the symbol will flash 3 times and a beep sound will be released.
• When this mode is active, VACATION symbol stays on.
• Indicators and bar graphics of freezer and cooler will be off
• No adjustment can be carried out without cancelling Holiday Mode.

- To cancel, you will just need to press on button VACATION.

- Your fridge will continue to operate in the previous setting values.

F R D.COOL VACATIC ECO ALARM !SR LV

Drink Cool Mode

When would it be used?

- This mode is used to cool the drinks within adjustable time.

How to use?

• Press DCOOL button.
• Press DCOOL button to adjust the time

05 minutes -> 1. bars;

10 minutes -> 2. bars;

15 minutes -> 3. bars;

20 minutes -> 4. bars;

25 minutes -> 5. bars;

30 minutes -> 6. bars are lighting;

F R D.COOI VACATION ECO ALARM 1SR 3LV

• When you select the time the numbers will blink 3 times on screen and sound beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time every 5 minutes, 1 bar will disappear.
• At the end of adjusted time, display will give visual and voice alarm.
• To cancel this mode press D.COOL set button.

Note : You must adjust the time according the temperature of bottles before you put in .

• For example, at beginning you can adjust to "5 min". After this period if this cooling is not sufficient, you will can again 5 or 10 or etc minute.
• When you use this mode, you must check temperature of bottles regularly. And the temperature of bottles will reach to sufficient level, you must remove these bottles from your appliance.
• If you forget the bottles in quick drink, can explode.

Function of Child Lock

When would it be used?

- To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance.

Activating Child Lock

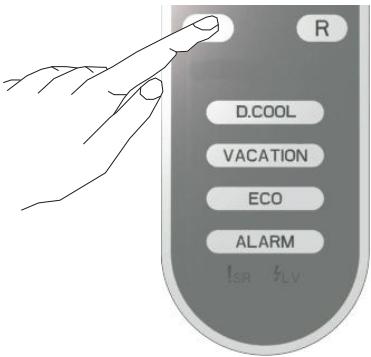

- Press on Freezer (F) and Cooler (R) buttons simultaneously for 5 seconds.

Deactivating Child Lock

- Press on Freezer (F) and Cooler (R) buttons simultaneously for 5 seconds.

Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

Light Cancelling Mode

When would it be used?

• If you want to cancel lights of cooler, you can select this mode.
• Press on Freezer (F) and Cooler (R) buttons simultaneously, and open and close the cooler door 3 times. The mode will be selected in this way. From now on, the lights will not come on when freezer and cooler doors are opened.
• If you want to cancel this mode, repeat the same process or the mode will automatically cancel itself after 24 hours.

Screen Saver Mode

• This mode can be selected for energy saving.
• Press D.COOL button for 3 seconds continuously.
  • After 3 seconds, the mode will be set and sound as beep beep.
• During screen saver mode, the lighting of display will be off.
• When we open door or press any button, the lighting of display will be on for 5 seconds, then it will be off again.
• Press D.COOL button for 3 seconds for cancelling this mode.

Cooler Temperature Settings

• Initial temperature value for the Cooler Indicator is +4^ .
• Press cooler (R) button once.
• When you first push this button, +2^ appears on the setting indicator of the cooler.
• Whenever you press on this button, one bar comes on cooler bar graphic indicator and lower temperature will be set. (+8°C, +6°C, 5°C, +4°C, +2°C)
• When you push the cooler button until +2°C (maximum cold) appears on the cooler setting indicator, and when you keep pushing, letters SC (Super Cool) will flash.
• If you continue to press, it will restart from +8^ C .
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economical Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

SF -24 -22 -20 -18 -16 F SC 2 4 5 6 8

Freezer Temperature Settings

• Initial temperature value for Freezer Setting Indicator is -18^ .
• Press freezer (F) button once.
• When you first push this button, -20°C appears on the setting indicator of the freezer.
• Whenever you press on this button, one bar comes on Freezer Bar Graphic Indicator and lower temperature will be set. (-16°C, -18°C, -20°C, -22°C, -24°C)
• When you push the freezer button until -24°C (maximum cold) appears on the Freezer Setting Indicator, and when you keep pushing, letters SF (Super Freeze) will flash.
• If you continue to press, it will restart from -16^ .
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economical Mode is activated will remain the same when the mode is over or cancelled. Your appliance will continue operating in this temperature value selected.

SF -24 -22 -20 -18 -16 SC 2 4 5 6 8 R

Warnings about Temperature Adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

- Do not pass to another adjustment before completing an adjustment.

- Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

- A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient
T	16 to 43 °C
ST	16 to 38 °C
N	16 to 32 °C
SN	10 to 32 °C

Note: If the temperature of the environment is higher than 38^ C, the freezer partition temperature cannot be adjusted to -22^ C and -24^ C. It can only be adjusted to the values of -16^ C, -18^ C, -20^ C.

Accessories

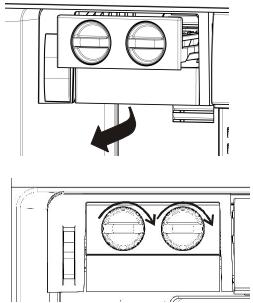

Making Ice Cubes (In some models)

Technical diagram showing airflow or ventilation system with circular components and directional arrows indicating flow direction.

• Take out the ice making tray
- Fill the water in level of line.
- Place the ice making tray in its original position
- When ice cubes are formed, twist the lever to drop off ice cubes into the icebox.

Do not fill the icebox with water in order to make ice. It can be broken.

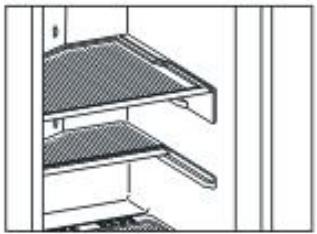

Fast Freezing Shelf

• Use the fast freezing shelf to freeze home cooking (and fresh foods which is wanted to freeze) more quickly because of the freezing room's greater freezing power.
• For opening the shelf pull the cover up, and slide it in to the shelf. You can close it in the same way

Line drawing of a person opening a refrigerator with a grating cover (no text or symbols)

Note that; be sure that the cover of fast freezing shelf is closed before closing the compartment door. If not, it can not show its fast freezing power.

Chiller Shelves

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Clack

Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water.

(Water freezes at 0^ C, but foods containing salt or sugar freeze at temperature lower than that)

Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc...

Do not put foods you want to freeze or ice trays in order to make ice.

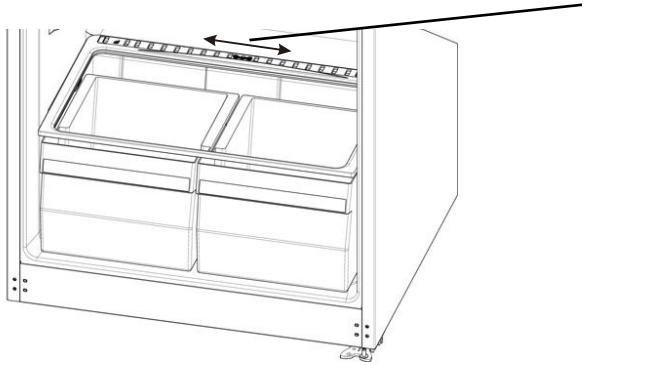

Technical line drawing of a refrigerator drawer with an arrow indicating a measurement or assembly point (no text or symbols present)

In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased.

If you see any condensation on glass shelf, you must open this klape which is on behind of shelf.

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

PART-3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator Compartment

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4^ will be enough.
• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Arrange the meat and cleaned fish (wrapped in packages or sheets of plastic) which you will use in 1-2 days.
• You can put the fruits and vegetables into crisper without packing.

Freezer Compartment

- For normal operating conditions, adjusting the temperature value of the freezer partition of the fridge to -18^ will be enough.

- The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.

- Do not put fresh and warm foods to the freezer door shelves to be frozen. Only use for storage of frozen foods.

- Do not put fresh and warm food with frozen food side by side as it can thaw the frozen food.

- Use the fast freezing shelf to freeze home cooking (and the foods which is wanted to freeze) more quickly because of the freezing room's greater freezing power.

- While freezing fresh foods (i.e. meat, fish and mincemeat) divide them in parts you will use in one time.

- While freezing fresh foods; Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

- For optimum appliance performance to reach maximum freezing capacity, turn the freezer thermostat knob to position max 24 hours before placing fresh food inthe freezer.

- After placing fresh food in the freezer, 24 hours on max position is generally sufficient, After 24 hours, don not need to set the feezer thermostat knob to position max.

- Attention; In order to save energy, When freezing small amounts of food, don not need to set the freezer thermostat knob to position max.

- For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

- When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.

- Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.

- If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

- The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

PART-4. CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water.
• You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

- Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.
• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.
• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a bottle and a cup (no text or symbols)

Diagram of a multi-tiered refrigerator with red crosshair lines indicating internal structure (no text or symbols)

Cartoon illustration of a smiling bottle and two baby bottles with expressive faces (no text or symbols)

Illustration of a hand holding a coiled cable or wire, no text or symbols present

Make sure that your fridge is unplugged while cleaning.

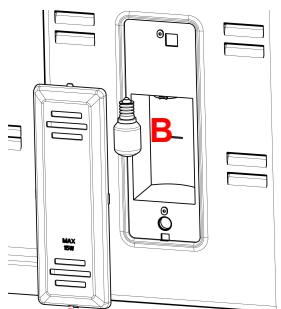

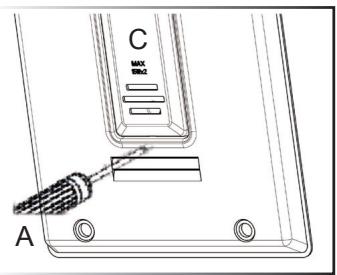

Replacing The Refrigerator and Freezer Light Bulb

1. Unplug the unit from the power supply,
2. Remove the refrigerator light cover with a minus screw driver, and take out the cover.(A)
3. Change the present light bulb with a new one of not more than 15 W.(B)
4. Replace the light cover and after waiting 5 minutes plug the unit.(C)

Technical line drawing of a door panel with a bulb labeled B and a side-mounted device (no text or symbols present)

C
Freezer compartment lamp

B C

Fridge compartment lamp

Technical line drawing of a screwdriver inserted into a component, labeled A (no text or symbols on the diagram itself)

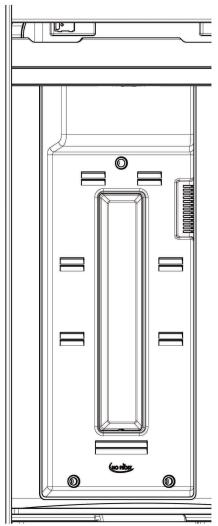

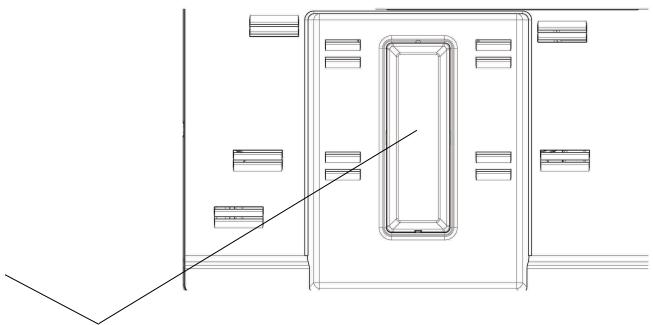

Replacing The Light Led (If the illumination is occurred via LED strip)

Please call the service man.

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Technical line drawing of a door frame with internal compartments and support fixtures (no text or symbols)

Led light

PART- 5.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

- Carry your fridge in the upright positio.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Repositioning the Door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorized Service to have the opening direction changed.

PART-6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

Check Warnings;

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators.

ERROR CODE	MEANING	CAUSE	ACTIONS TO BE TAKEN
SR	Fault warnings	It appears when one or several parts of the fridge fail or a problem occurs on the cooling system.	Contact the nearest authorized technical service as soon as possible.
LV	Low voltage	Fridge switches to stand-by condition when the voltage supply is lower than 170 Volts.	This feature prevents damage to the compressor due to low voltage. Fridge will start operating automatically when the supply voltage reaches the desired level.

What to do if your refrigerator does not operate;

Check that;

• There is no power,
• The general switch in your home is disconnected,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly;

Check that;

• You have not overloaded the appliance,
• The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If your fridge is operating too loudly;

Normal Noises

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).
- Heard when the thermostat switches the compressor on/off.

Compressor noise

• Normal motor noise. This noise means that the compressor operates normally
• Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash:

- This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise:

- Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blow Noise:

- Normal fan noise. This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

f the edges of the refrigerator cabin contacted by the door seal are hot;

- Especially in summer months (in hot weathers), there might be heating on the surfaces contacted by the seal on the refrigerator when the compressor is operating and this is quite normal.

If there is humidification in the inner parts of your refrigerator;

• Has the food been properly packaged? Have the cups been well dried before they were put into the refrigerator?
• Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidification.

- It is normal to have water drops formed on the back wall following the automatic defrosting process. (In Static Models)

If the doors are not being properly opened and closed:

• Are the food packages preventing the doors from being closed?
• Have the door compartments, shelves and drawers been properly placed?
• Have the door seals been defective or torn?
• Is your refrigerator standing on an even ground?

IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell
• If the problem persists after you have followed all the instructions above, please consult to the nearest service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• The lifetime of your appliance stated and declared by the Department of the Industry is 10 years (the period for retaining parts required for the proper functioning of the appliance).

Conformity Information

• This appliance is designed for use at an ambient temperature within the 16^ - 43^ range.
• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Tips for saving energy

1- Install the appliance in a coll, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

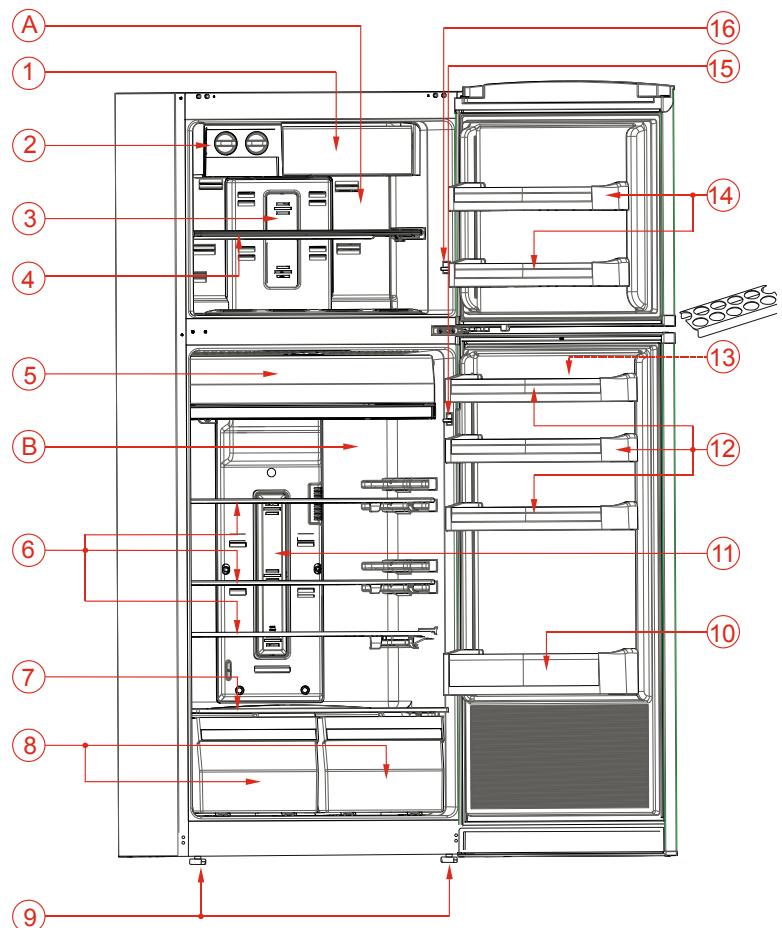

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Technical diagram of a refrigerator internal compartments with numbered labels and red directional arrows indicating flow or movement.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Freezer compartment
B) Fridge compartment
1) Fast freezing shelf
2) Ice matic
3) Freezer lamp box / cover
4) Freezer shelf
5) Chiller shelves
6) Refrigerator shelves
7) Crisper cover

8) Crispers
9) Leveling feet
10) Bottle shelf
11) Refrigerator lamp box / cover
12) Door shelves
13) Egg holder
14) Freezer door shelf
15) Fridge com. lamp button
16) Freezer comp. lamp button

Technical diagram of a refrigerator internal compartments with numbered labels and red arrows indicating flow or movement.

(7) غطاء #: Manufacturer

(8) رف #: Manufacturer

(9) القدم الثالثة

(10) رف zij Managers

(A) حجرة الجمد

(В) حجرةesthesia

Simple line drawing of two children playing a large block (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components (no readable text or symbols)

C

B B C

C MAX 8002 A

Should the President

Cartoon illustration of a hand using a tool to clean or store items from a refrigerator (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding a tool, accompanied by a bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by two smaller figures (no text or symbols)

Illustration of a hand holding a coiled cable or wire, no text or symbols present

Technical line drawing of two stacked storage compartments with no text or symbols

Technical line drawing of a two-tiered shelving unit with a directional arrow indicating movement (no text or symbols)

Technical line drawing of a two-tiered shelving unit (no text or symbols)

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols visible)

Diagram of a ventilation system with two circular fans and airflow arrows (no text or labels)

Diagram of a device with two circular components and an arrow indicating rotation (no text or symbols)

Line drawing of a door opening with a rack and ventilation system (no text or symbols)

رف التجميد السريع

• ا功效DLCOOL لل Expected Voluntary

Cartoon illustration of a distressed container with arms and legs, holding a paper labeled 'KG' (no text or symbols beyond the label)

Simple line drawing of a smiling square character holding a hand (no text or symbols)

قبل استخدام眺 Jurة

Cartoon illustration of a plug with an angry face and a lightning bolt, no text or symbols present

Illustration of three hands performing a manual cable manipulation technique (no text or symbols present)

Cartoon illustration of a person inside a door, showing arms and legs (no text or symbols)
