USER MANUAL KDL42W650 SONY

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Manufactured under license from Dolby Laboratories.

"BRAVIA" and BRAVIA are trademarks of Sony Corporation.

TrackID is a trademark or registered trademark of Sony Mobile Communications AB.

Music and video recognition technology and related data are provided by Gracenote. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000-present Gracenote. Gracenote Software, copyright © 2000-present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a non-exhaustive list of applicable Gracenote patents.

Gracenote, MusicID, VideoID, Video Explore, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

Opera® Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are marks or registered marks of the Wi-Fi Alliance.

"Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.

"Sony Entertainment Network logo" and "Sony Entertainment Network" are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

Manufactured under license from DTS Licensing Limited. For U.S. and worldwide patent and trademark information, see www.dts.com/patents/legacy.aspx. (c) DTS Licensing Limited and DTS, Inc. 2012.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

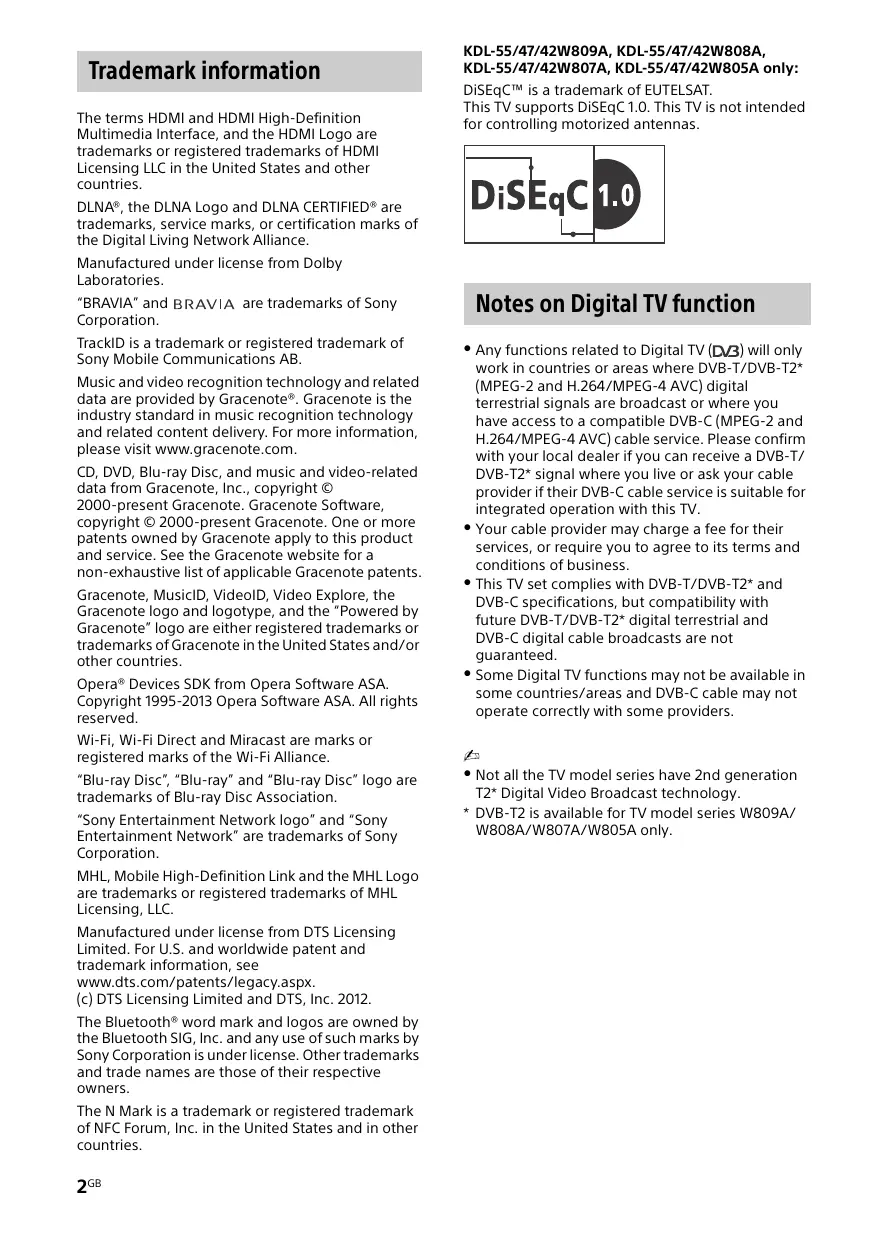

KDL-55/47/42W809A, KDL-55/47/42W808A, KDL-55/47/42W807A, KDL-55/47/42W805A only:

DiSEqCTM is a trademark of EUTELSAT.

This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

Notes on Digital TV function

• Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG-2 and H.264/MPEG-4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T/ DVB-T2 signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this TV.
• Your cable provider may charge a fee for their services, or require you to agree to its terms and conditions of business.
• This TV set complies with DVB-T/DVB-T2 and DVB-C specifications, but compatibility with future DVB-T/DVB-T2 digital terrestrial and DVB-C digital cable broadcasts are not guaranteed.
• Some Digital TV functions may not be available in some countries/areas and DVB-C cable may not operate correctly with some providers.

• Not all the TV model series have 2nd generation T2* Digital Video Broadcast technology.
• DVB-T2 is available for TV model series W809A/W808A/W807A/W805A only.

Troubleshooting

When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds).

Press I/O on the TV to turn it off, disconnect the AC power cord (mains lead), and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When the illumination LED is not flashing, check the items in the tables as follows.

Also refer to "Troubleshooting" in the i-Manual. If the problem persists, have your TV serviced by qualified service personnel.

There is no picture (screen is dark) and no sound.

• Check the antenna (aerial)/cable connection.
• Connect the TV to the AC power (mains), and press I/O on the TV or remote.

Some programmes cannot be tuned.

• Check the antenna (aerial) or dish.

For satellite models only:

• The satellite cable might be short-circuited or there might be connection problems of the cable. Check the cable connection and then turn the TV off with the Mains power On/Off switch, and turn it on again.
• The frequency that you entered is out of range. Consult the received satellite broadcasting company.

There is no Cable TV services (programmes) found.

• Check the cable connection or tuning configuration.
• Attempt the "Digital Auto Tuning" by selecting "Antenna" instead of "Cable".

The remote does not function.

• Replace the batteries.
• Your TV may be in SYNC mode.

Press SYNC MENU, select "TV Control" and then select "Home (Menu)" or "Options" to control the TV.

The "Parental Lock" password has been forgotten.

• Enter 9999 for the PIN code. (PIN code 9999 is always accepted.)

The TV surrounds become warm.

• When the TV is used for an extended period, the TV surrounds become warm.

You may feel hot when touching there by the hand.

- Frozen audio or video, a blank screen, or the TV does not respond to TV or remote buttons.

• Perform a simple reset of the TV by unplugging the AC power cord for two minutes, then plug it in again.

The CH + / - , + / - , / / / , , and HOME buttons cannot be located on the TV.

See below illustration for location of the buttons on the TV.

The illumination LED is turned on.

If you do not wish to light up the illumination LED, you can turn it off.

Press HOME, then select "Settings" "System Settings" "General Set-up" "Illumination LED" "Off". You can also press OPTIONS, then select "Illumination LED" "Off".

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel

TV system

Analogue: Depending on your country/area selection: B/G/H, D/K, L, I, M

Digital: DVB-T/DVB-C
DVB-T2 (except KDL-55/47/42W802A)

Satellite: DVB-S/DVB-S2 (except KDL-55/47/ 42W802A)

Colour/video system

Analogue: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: Refer to the i-Manual.

Channel coverage

Analogue: UHF/VHF/Cable, Depending on your country/area selection.

Digital: UHF/VHF/Cable, Depending on your country/area selection.

Satellite: IF Frequency 950-2150 MHz (except KDL-55/47/42W802A)

Sound output

10W+10W

Input/Output jacks

Antenna (aerial) cable

75 ohm external terminal for VHF/UHF

Satellite antenna (except KDL-55/47/42W802A)

Female F-Type Connector IEC169-24, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single Cable Distribution EN50494.

→/AV1

21-pin scart connector (CENELEC standard) including audio/video input, RGB input and TV audio/video output.

COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Audio input (phono jacks)

AV2

Video input (common phono pin with Y input)

HDMI IN 1,2,3,4

Video (2D): 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats

Video (3D):

Frame Packing 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side-by-Side 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (HDMI IN 1 only)

MHL (Common with HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Video (3D):

Side-by-Side 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital)

AUDIO OUT/

Audio output (stereo minijack)

Headphones jack

1 (HDD Rec), 2, 3

USB HDD device port (1 1 only), USB port

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Others

Supplied accessories

Refer to "What's in the box" in Quick Start Guide.

Optional accessories

Camera and Microphone Unit: CMU-BR200/CMU-BR100

USB Wireless LAN Adapter: UWA-BR100

Passive 3D Glasses: TDG-500P

SimulViewTM Passive Glasses: TDG-SV5P

Operating temperature

0^ - 40^

Operating humidity

10% - 80% RH (non-condensing)

Power and others

Power requirement

220V-240VAC,50Hz

Energy Efficiency Class

KDL-55W80xA: A+

KDL-47W80xA: A+

KDL-42W80xA: A

Screen size (measured diagonally) (Approx.)

KDL-55W80xA: 138.8 cm / 55 inches

KDL-47W80xA: 119.3 cm / 47 inches

KDL-42W80xA: 106.7 cm / 42 inches

Power consumption

in "Home"/"Standard" mode

KDL-55W80xA:79.0 W

KDL-47W80xA: 66.0 W

KDL-42W80xA: 61.0 W

in "Shop"/"Vivid" mode

KDL-55W80xA: 157 W

KDL-47W80xA:139 W

KDL-42W80xA: 127 W

Average annual energy consumption*1

KDL-55W80xA: 110 kWh

KDL-47W80xA: 92 kWh

KDL-42W80xA: 85 kWh

Standby power consumption*2

0.25 W (15 W in software/EPG update mode)

Display resolution

1,920 dots (horizontal) × 1,080 lines (vertical)

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KDL-55W80xA: 125.3 × 76.8 × 29.8 cm

KDL-47W80xA: 108.3 × 67.2 × 29.8 cm

KDL-42W80xA: 97.1 × 60.9 × 29.8 cm

without Table-Top Stand

KDL-55W80xA: 125.3 × 73.5 × 6.4 cm

KDL-47W80xA: 108.3 × 63.9 × 6.4 cm

KDL-42W80xA: 97.1 × 57.7 × 6.3 cm

Mass (Approx.)

with Table-Top Stand

KDL-55W80xA: 20.7 kg

KDL-47W80xA: 16.7 kg

KDL-42W80xA: 14.4 kg

without Table-Top Stand

KDL-55W80xA:18.4kg

KDL-47W80xA: 14.6 kg

KDL-42W80xA: 12.3 kg

*1 Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*2 Specified standby power is reached after the TV finishes necessary internal processes.

• The "x" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.
• Do not remove the dummy card from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.
• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
