USER MANUAL SRU-5110 PHILIPS

Register your product and get support at www.philips.com/welcome

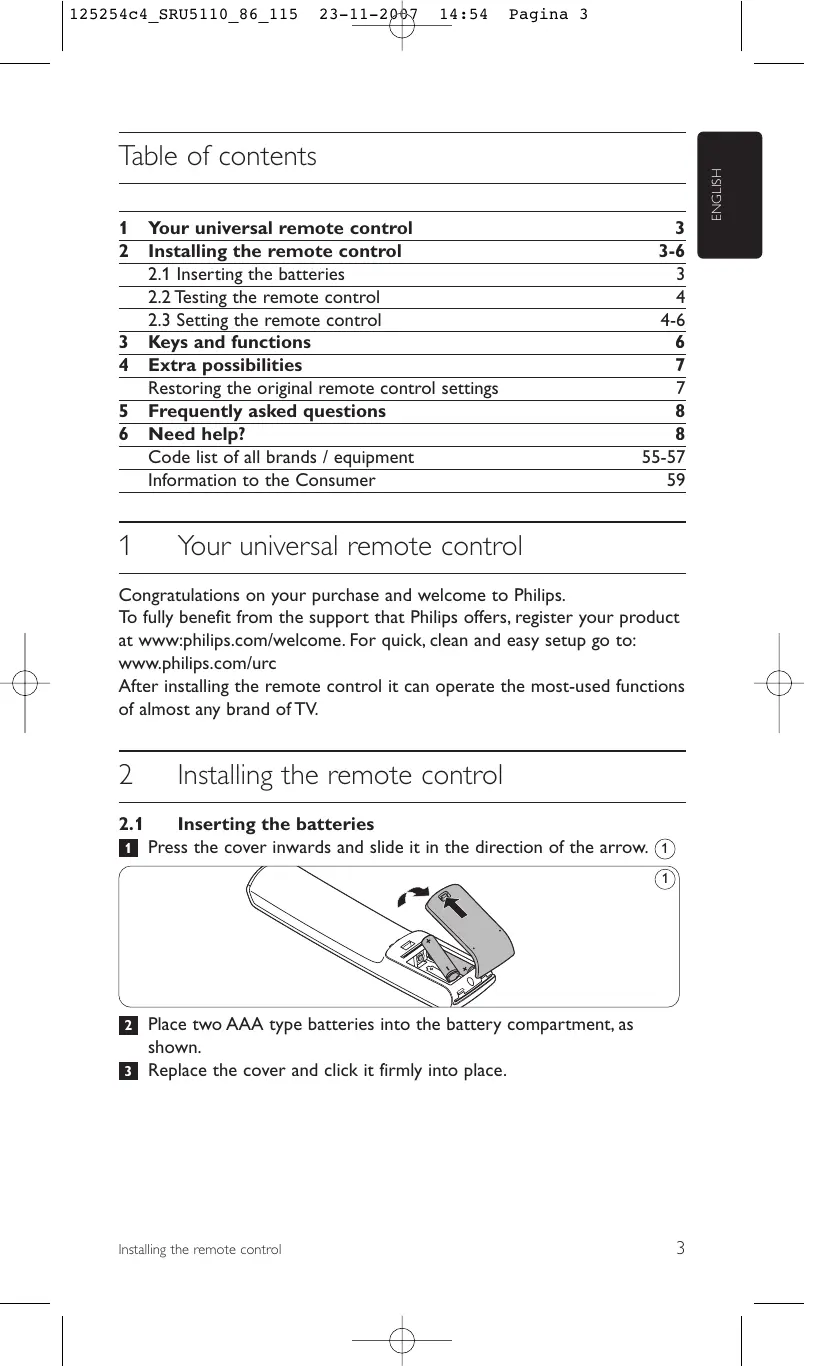

Table of contents 1 2

Your universal remote control Installing the remote control 2.1 Inserting the batteries 2.2 Testing the remote control 2.3 Setting the remote control Keys and functions Extra possibilities Restoring the original remote control settings Frequently asked questions Need help? Code list of all brands / equipment Information to the Consumer

3 3-6 3 4 4-6 6 7 7 8 8 55-57 59

Your universal remote control

Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register your product at www:philips.com/welcome. For quick, clean and easy setup go to: www.philips.com/urc After installing the remote control it can operate the most-used functions of almost any brand of TV.

Installing the remote control Inserting the batteries Press the cover inwards and slide it in the direction of the arrow.

Place two AAA type batteries into the battery compartment, as shown. Replace the cover and click it firmly into place.

Installing the remote control

2.2 Testing the remote control The remote control has been programmed to operate the most-used functions of almost any brand of TV. Because the SRU 5110 may use different signals for each brand and even for different models of the same brand, it is advisable to test whether your device responds to the SRU 5110. The example below instructs you how to do this. 1 2

Turn your TV on manually or use the original remote control. Tune to channel 1. Check whether all the keys are working. 2 For an overview of the keys and their functions see ‘3. Keys and functions’. • If the TV responds as it should to all of the key commands the SRU 5110 is ready for use. 2

Tip If the TV does not respond at all or not to all of the key commands, follow the instructions under ‘2.3 Setting the remote control’, or for online setup go to: www.philips.com/urc. 2.3 Setting the remote control This is only necessary if your TV does not respond to the SRU 5110. If that is the case, the SRU 5110 does not recognize the brand and/or model of your TV and you need to program the remote control to do so. 1 2

Turn on the TV manually or use the original remote control.Tune in to channel 1. Look up the brand of your TV in the code list at the back of this manual. A four-figure code is shown for each brand. Note the code for your brand. 3 3

Installing the remote control

Press the SET UP key until the LED flashes twice and then remains lit. 4

Then enter the code noted in step 2 using the numeric keys.

• The LED now flashes twice. • If the LED flashes once for an extended period, the code has not been entered properly or the wrong code has been entered. Start again from step 2. Press and hold the Standby key of the SRU 5110 until your TV switches off (standby). 6 Then release the key immediately. 6 SRU 51 10

• The SRU 5110 is now set to operate your TV. Check if you can operate all functions on your TV with the SRU 5110. • If a key does not function properly, keep it pressed until it works. Then release the key immediately. Repeat this for every key that does not work. • If the TV responds to all of the key commands, the SRU 5110 is ready for use. Do not forget to note your code. Keep the SET UP key pressed for 5 seconds to exit setup mode. 7 • When no key is pressed for 2 minutes or more the remote control will exit setup mode automatically. 7 SRU 51 10

Installing the remote control

ENGLISH ENGLISH Full search setup If your code does not work or if the brand of your device is not mentioned in the code list, you can try setting the remote control with full search setup. 1

Press the SET UP key until the LED flashes twice and then remains lit. 8 8 SRU 51 10

Press and hold the Standby key of the SRU 5110 until your TV switches off (standby). 9 Then release the key immediately. 9 SRU 51 10

• The SRU 5110 is now set to operate your TV. Full search setup takes about 5 minutes.

The illustration on page 2 gives an overview of all keys and their functions. 1 2

enters setup mode. Text TV on/off. Electronic Program Guide. Wide screen TV. Text TV off. Text TV color keys. Used in text mode and in some on-screen menus. turns the menu on and off. cursor up, down, left, right in a menu. displays on-screen channel information. mutes the TV sound. adjusts the TV volume. direct choice of channels and other functions. switches between external inputs of your equipment. Keys and functions

changes picture / screen settings. changes audio settings. enlarges Text TV picture. shows subtitle text. activates / deactivates sleep timer. holds current Text TV page. selects between one- and two-figure channel numbers. selects previous programme / channel selects a previous or following channel. confirms your selection. jumps back one level in the menu or turns off the menu. switches TV on or off. • blinks in setup mode. • lights up when a remote control command is sent.

Note If the device does not respond at all, or not to all of the key commands, follow the instructions under ‘2.3 Setting the remote control.

Restoring the original functions of your remote control 1 Keep keys 1 and 6 on the SRU 5110 pressed simultaneously for three seconds, until the LED flashes twice and then remains lit. 10 10

Press keys 9, 8 and 1, in that order.

• The LED flashes twice. All original functions have now been restored and any extra functions have been deleted.

Frequently asked questions

In this chapter you find answers to the most frequently asked questions about your universal remote control. The TV does not respond and the LED key does not flash when I press a key. Replace the old batteries with two new AAA batteries. The TV does not respond but the SET UP key does flash when a key is pressed. Point the SRU 5110 at the TV and make sure that there are no obstructions between the SRU 5110 and the TV. The SRU 5110 does not respond properly to commands. Try programming the SRU 5110 again. If the TV still does not respond, call our helpline. The Text TV keys do not work. • Find out whether your TV is equipped with Text TV. • Maybe the SRU 5110 has to be adapted to the model of the device. Call our helpline for details.

If you have any questions about the SRU 5110, you can always contact us. You will find our contact details after the code list at the back of this manual. Read this manual carefully before you make a call. You can solve most of the problems yourself. If you cannot find any answers to your problems, write down the details of your device in the code list at the back of this manual. This will help our operators to assist you better and more quickly. Look up the numbers of the models in the instructions accompanying the device or on the back of your device.When you call our helpline, make sure the device is to hand so that our operators can help you determine whether your remote control is working properly. The model number of your Philips universal remote control is SRU 5110/86. Date of purchase:

EN Information to the consumer Disposal of your old product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 1902/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste.The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

FR Information pour le consommateur

Mise au rebut des produits en fin de vie. Ce produit a été conçu et fabriqué avec des matériaux et composants recyclables de haute qualité. Le symbole d'une poubelle barrée apposé sur un produit signifie que ce dernier répond aux exigences de la directive européenne 1902/96/EC. Informez-vous auprès des instances locales sur le système de collecte des produits électriques et électroniques en fin de vie. Conformez-vous à la législation en vigueur et ne jetez pas vos produits avec les déchets ménagers. Seule une mise au rebut adéquate des produits peut empêcher la contamination de l'environnement et ses effets nocifs sur la santé.

Information to the consumer

Information to the consumer

Information to the consumer

Information to the consumer

© 2007 Koninklijke Philips Electronics N.V. All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.The information presented in this document does not form part of any quotation or contract,is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication there of does not convey nor imply any license under patent- or other industrial or intellectual property rights. Document order number: 3128 145 2189 November 2007 www.philips.com Printed in Portugal
