USER MANUAL EPURE V2 SWISSVOICE

swissvoice ePure Cordless analogue telephone (DECT) User manual

ePure_GB_140311_DTP direkt 14.0: ePure Welcome to Swissvoice The ePure is a cordless telephone designed for connection to an analog telephone network. Intemational DECT (GAP)-standard digital technology offers excellent voice quality. You can register up to 5 handsets to your base and make intemal calls free of charge. Please read these operating instructions carefully to familiarise yourself with and take full advantage of the benefits of your new ePure ePure

ePure_GB_140311_DTP direkt 14.03-k846; 9 Seite 1 Contents keys Display symbols Range / Location Battery advice Insert the battery Connecting the phone Set date and time Set language Telephoning Keypad lock Redial PBX operation Paging — Locate mislaid handsets Phonebook Direct memory Calls list Extending the ePure Telephoning with several call pariners Personal settings Advanced settings Appendix ePure ePure

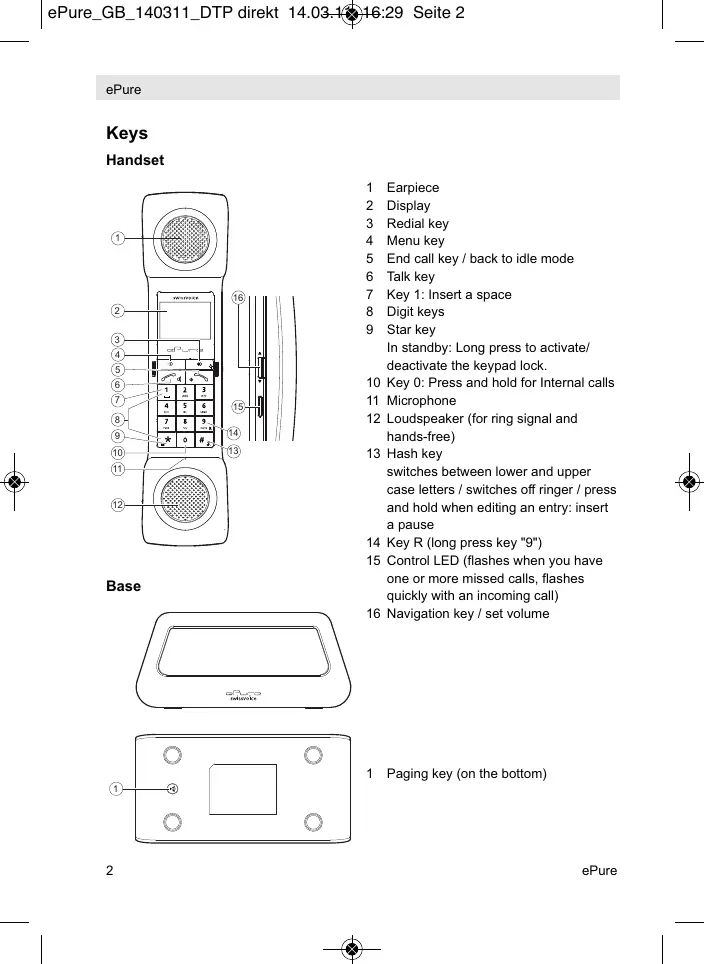

ePure_GB_140311_DTP direkt 14.03-k846; 9 Seite 2 ePure Keys Handset Base Earpiece Display Redial key Menu key End call key / back to idle mode Talk key Key 1: Insert a space Digit keys Star key In standby: Long press to activate/ deactivate the keypad lock. 10 Key 0: Press and hold for Internal calls 11 Microphone 12 Loudspeaker (for ring signal and vosonswn hands-free) 13 Hash key Switches between lower and upper FN case letters / switches off ringer / press 24 and hold when editing an entry: insert a pause 14 Key R (long press key "9") 15 Control LED (flashes when you have one or more missed call, flashes quickly with an incoming call) 16 Navigation key / set volume 1 Paging key (on the bottom) ePure

ePure_GB_140311_DTP direkt 14.0: ePure Display symbols 5 Steady on: batterie's charge level. Flashing: batteries have to be charged. 1203 Time. € Cal in progress v Steady on : the callers list is open. Flashing : new call in the callers list L] The phonebook is open. YA Scroll up/douninalistor a menu ok Confirmation x Ringer off. « Handsfree active. e Alarm is set. ŸY Steady on, when the handset is near the base. Flashes, if out of range or FN not registered. s Range / Location ‘To obtain the best possible range, we recommend positioning the telephone in a location central to your sphere of activity. Avoid positioning the telephone in niches, recesses and behind steel doors. ‘The maximum range between base station and handset is approximately 300 meters outdoors. Depending on the surrounding conditions as well as spatial and structural factors, the range may be smaller. Silent zones can occur due to the digital transmis- Sion in the frequency range used — even within the range, depending on the structural environment, In this case the transmission quality may be reduced through the increased incidence of short breaks in transmission. Normal call quality can be restored if you move slighty out of the silent zone. the range is exceeded, the call will be disconnected unless you move back into range within ten seconds. ePure 3

ePure_GB_140311_DTP direkt 14.0: ePure Battery advice Use only the original battery (Li-lon 3.7 V / 550 mAh) as well as the original power sup- ply (7.5 VDC, 300mA). The handset operating times (standby 150 hours/active 10 hours) and charging times apply only if the battery is charged to the defined minimum capacity. Charging is electronically controlled to ensure optimal charging and care of battery in different charge states. Full capacity is achieved only after several charging cycles. Note: Using other rechargeable battery or non-rechargeable batteryprimary cells can be dangerous and cause malfunctions or damage to the telephone. Do not short-ciruit the battery (danger). In particular, avoid inadvertent short- circuits during storage and transport e.g. bunch of keys, metal panels or lar objects, and make sure the battery do not come into contact with greasy materials. When not in the handset, therefore, battery should be stored only in insulating packaging. Ensure also that the contacts do not touch greasy parts. Rechargeable battery can become warm while rechar( occurrence and is not dangerous. a normal Insert the battery ‘The battery compartment is situated in the handset Open the handset cover. Insert the battery in the battery compart- ment Replace the handset cover. Make sure you install the battery pack and fit the cover the right way round: - position the 3 metal contacts of the battery pack against the 3 blade contacts, ign the green dot on the handset with the one on the cover. 4 ePure

ePure_GB_140311_DTP direkt 14.0: ePure Connecting the phone Mains power socket Telephone line socket Before you can start using your telephone you must plug in the telephone connector cable and the mains cable. When the phone is delivered, the battery is not yet charged! To charge the battery, insert the handset in the base station. The battery will take around 6 hours to fully charge (initial charge) Set date and time & After setting up the telephone first, date and time are not set ; select Clock/Alarn with the navigation key Tina and press OK. + Enter date and press OK. + Enter the time and press OK. and press OK. Set language + The language of the display texts can be changed in the menu: Personal set/Language ePure 5

ePure_GB_140311_DTP direkt 14.0: ePure Telephoning + Dial the desired number using the keypad. + Press the Talk key (77 à End the call Press the End call key. Accepting a call + Incoming call are signalled by a ring tone and a quick flashing of the control LED on the handset + Press the Talk key (774) and conduct your conversation. End the call Press the End call key. Calis cannot be made if the battery out of range of the base station. almost discharged or the handset is Switch ringer off & When a call is coming in, press and hold the (Æ_z) key for approx. 3 seconds. The ringer is switched off for this call. Set speaker/loudspeaker volume You can adjust the speakerloudspeaker volume during a conversation. Setthe desired volume using the navigation key A/V Switch handset off + Press and hold the End call key (approx. 5 sec). + Press and hold again the End call key to reactivate the handset Set alarm + Press (& ), select Clock/Alarti using the navigation key A/V and press ok. + Select Set alarm using the navigation key A/Y and press OK. + Selectthe desired alarm function (e.g. On once), enter the alarm time and press ok. 6 ePure

ePure_GB_140311_DTP direkt 14.0: ePure Set alarm tone ; select Clock/Alart using the navigation key A/Y_ and press + Select Alarm tone using the navigation key A/V and press OK + Selectthe desired alarm melody and press OK. The activated alarm is displayed in standby mode by Æ2 The alarm sounds for 60 seconds or can be deactivated immediately by pressing any key. Redial À The Redial list contains up to 10 entries. + Press (®_#) and select the desired entry using the navigation key À. + Press the Taik key. Edit redial list + Open the Redial list, press OK You have the following options: S: Add number to the phonebook. Delete the entry. &te A11 - Delete the entire redial list

PBX operation Your telephone is designed for use in the analogue telephone network and can be operated on a PBX that supports DTMF dialling and flash signalling. To enter the R key (e.g. needed to establish a connection) press and hold key 9. You can adjust the flash/recall time for key R (see chapter “Advanced settings") ePure 7

ePure_GB_140311_DTP direkt 14.0: ePure Paging — Locate mislaid handsets Al registered handsets ring for one minute, when the Paging key on the base is pressed. To stop the ring press the End call key on the handset or the Paging key on the base: Phonebook You can store up to 100 names and numbers in the phonebook on each handset. Digits / Characters Different characters are printed on each key. The entries in the phonebook are sorted alphabetically. Key# Change from upper case to lower case letters (ABC/abc) Press and hold key to insert a pause inside a phone number (‘P” appears). Key1 Insert a space. Add new entries in the phonebook select Fhonebcok and press OK. + Select Heu entry and press OK. + Enter the desired name and press the navigation key A / options. Press OK to save the entry, for further input Edit phonebook select Fhonebook and press OK. + Select Uieu entry and press OK. + Select the desired entry using the navigation key A/Y or enter the fist letter of the name. + Press the Talk key (7) to call the number. In the phonebook menu you have the following options: = Neu entry — View entry - Delete all — Direct mer - Call a programmed direct memory number. —_ PE Transfer — Copy phonebook to another handset. 8 ePure

ePure_GB_140311_DTP direkt 14.0: ePure Direct memory Phone numbers from the phone book can be assigned to numerical keys 1 to 9. Programming direct memory keys + Press ; select Phonebcck and press OK. + Select Direct mer and press OK. + Selectthe desired memory key and press OK twice. + Select Aékd and press OK. + Selectthe desired entry from the phonebook using the navigation key A/Y and press OK. Calling a direct memory number To cal a direct memory number, press the corresponding key for approx. 3 seconds. The programed number is called. Calls list The control LED on the side of the handset flashes when you have one or more FN missed calls. The calls list can contain up to 50 entries. To use this function, the caller's number must be transmitted (CLIP). Contact your network operator for further information. Call a number from the calls lists Open the cals list by pressing the navigation key À . Selectthe desired entry using the navigation key A / Press the Talk key (7 :) to call the number.

press OK and select a function from the list suppressed, only iit#h214 Ifthe caller's number i isplayed. The call is not entered ePure 9

ePure_GB_140311_DTP direkt 14.0: ePure Edit calls list + Open the call list. You have the following options: — Edit entry ir — Store number in the phonebook. #4 - Delete single entries. — Delete all entries. g the ePure The delivered handset is already registered on to base station. In standby the internal number of the handset is displayed. You can register up to 5 handsets to your base station. H you register your ePure handset with a “third party" base station or a “third party" handset on your ePure base station (GAP), you may not be able to use some functions or only to a limited extent Register new handsets Registering an additional handset with the main base station (the base station you Le} have connected to the telephone network):

1. Before registering an additional handset, you first need to unregister i from its

original base station + Press (© ), select dvanced set and press OK. + Selectirregister and press OK + The ePure may now ask for the PIN. 0, enter the PIN (default 0000) and press ok. Press OK again to confirm. Your handset is now no longer registered with any base station.

Preparing the main base station (base you have connected to the telephone network) for registering additional handsets: + On the base station you want to use as the main base station, press and hold don the Paging key for around 10 seconds (the Paging key is on the underside of the base station).

3. Regi additional handset

ePure_GB_140311_DTP direkt 14.0: ePure + Base 1 2 3 4 is displayed on the handset. Select the main base station (default 1) +. After a few seconds you will be asked to enter the PIN. + Enter the PIN (default 0000) and press OK. + Ifregistration is successful you will hear the dialling tone when you press the Talk key (77 q}, and after one minute the handset will go to standby mode. Repeat this procedure for every additional handset. the registration is not successful: + _Interrupt power supply of base and handset (disconnect power adapter/remove battery). + Repeat the registration procedure. Telephoning with several call partners During a call you can make a second intemal call (enquiry call), switch between call partners (brokering) or simultaneously converse (3-way conference call) without the need for to telephone lines. Internal conversation / Internal call + Long press key 0 and enter the desired intemal party. I only two handsets are 24 registered, long press key 0 will automatically call the other handset I you receive an external call while you are on the phone to an internal call partner, you will hear an incoming call alert. End the internal call by pressing the End call key, Press the Talk key. You are connected to the external party. Call transfer to another handset You are conducting an extemal call and you want to transfer it to another handset: + Long press Key 0. + Enter the desired number. + When the internal party responds press the End call key to transfer the call to the other party. Brokering / Conference You are conducting an external call + Call another internal party (see above), + The intemal party answers. ePure 1

ePure_GB_140311_DTP direkt 14.0: ePure Long press key 0 to start a conference call. If one of the handsets presses the End call key, the other handset will be connected to the external call Personal settings Pres: select Personal set and press OK. Select a function from the list using the navigation key AY and press OK. - Handset tone — Ring volune — Ring melodu — Group nelody — Key tons - Every time a key is pressed, a brief beep is heard. —_ First ring - This handset doesn't ring until the second ring (the fist one is withheld) - Handset nane - To better distinguish between handsets, you can give each handset a name. = Auto pick-up - Just pick up the handset from the base to answer a call (without pressing any key) = Auto hang-up - Just hang up the handset to end a call Language a = Roon monitor - You need io handset to use this function. Place one of the handsets in the room you wish to monitor. Enable the function at that handset You can then establish a connection to this handset from a second handset and monitor the room acousticall. Dialling the internal phone number of the handset placed in the room staris room monitoring. Room monitoring is stopped again by either putting the phone down or pressing the Talk key. Advanced settings select Advanced set and press OK. Select a function from the list using the na n key AY and press OK. - Recall Time — Select the recall time (flash time) for the analogue network functionaliies in your country. - Dial Mode — Tone: Normal dialling procedure on analog lines. Pulse: May be required for connecting older telephone systems. Please refer to the relevant documentation. - Ca11 barring — Use this function to ban certain phone numbers from being dialled. The call barring numbers must be entered separately for each handset You can specify bar calls to up to 4 numbers each comprising up to 4 digits. All ePure

ePure_GB_140311_DTP direkt 14.0: ePure phone numbers whose first digits match the specified numbers will be barred - Baby ca11 — Use this function to store a set phone number that will be dilled automatically when any key (except the End cal key) is pressed. You must enter the desired call number. - Registration - Accessory handsets must be registered to the base station. - Unregistér — Select the handset you want to deregister. - PIN — You can modify the PIN code (0000 on delivery). - Reset unit = Prefix — Detect digit - the first digits of a number you are calling are identical to the digits stored, they will be suppressed. — Prefix nur. - The prefix number can be 5 digits long. The stored digits are added in front of the phone number when dilling (with a dialling pause). -_Intrusion - Enabling this function allows you to link in handsets to the call made with another handset. - ECO Mode — When ECO Mode is set to ON, the handset's power transmission is. regulated and a radiation reduction is achieved when it is near the base station. - Zero Enit - Multi handset ECO Mode. Appendix & Using Internet/cable telephone adapters on an analog port When using an analog telephone on the analog connection of an Internet or cable telephone adapter, not all the described features (in particular calling line display) may function in the same way as with a standard analog telephone line. This does not cause the ePure to malfunction. Several factors can cause a failure of specific features to function: + The Intemet/cable telephony provider may not provide the function on its Intemecable telephony connection. + The adapter used to convert Internet/cable telephony to analog telephony (usually supplied by the provider) may not forward the functions to connected telephones or may fonward them in a non-analog format. Wthis happens, please check the ePure on an analog fixed line and/or contact your Intemebcable telephony provider. ePure 13

ePure_GB_140311_DTP direkt 14.0: ePure Care Your telephone is a sophisticated product in terms of design and construction, and should therefore be handied with care. To clean the telephone, wipe first with an antistatic cloth or a damp, soft leather cloth and then dry using a dry cloth. Recycling (environmental protection) Atthe end of the products life cycle, the telephone must not be disposed of in x normal domestic waste. Please take it to a collection point for processing = electrical and electronic equipment: see symbol on the product, in the user manual and/or packaging Some materials used in this product can be recycled if you take it to a recycling depot By recycling parts or raw materials from used products you will be making an important contribution to environmental protection. Please contact your local authority if you require information about collection points in your neighbourhood. isposing of the rechargeable battery 4 By law, al used batteries and accumulators must be recycled and not disposed of in domestic waste. Please dispose of them according to the official regulations. Take them to a recycling depot. The batteries/accumulators will be recycled since they may, for example, contain lithium (Li), nickel cadmium (Ni - Cd), lead (Pb), cadmium (Cd) or mercury (Hg). The batteries and accumulators are labelled with symbols and information on their contents, rime LD X Mon Nema Warranty conditions Your telephone is subject to a guarantee from the date of purchase in accordance with the legal provisions of the country in which the telephone was purchased. As evidence ofthe date of purchase, please keep the receipt or the warranty card completed by the retailer. Al defects attributable to material and manufacturing fault will be corrected free of charge within the warranty period, either by repairing or replacing the defective equipment. 14 ePure

ePure_GB_140311_DTP direkt 14.0: ePure ‘The warranty does not cover expendable materials (battery cells), defects which affect the value or use of the equipment only insignificantiy, and damage caused by incorrect use, ordinary wear and tear, or manipulation by third parties. This warranty does not cover consequential damage caused by the use, failure or defectiveness of the product. In particular, no liabiliy whatsoever is accepted for damage to property and pecuniary loss. To claim under this warranty, please contact the retailer where you purchased your telephone. Warranty information for Germany Ithe good evinces a defect due to manufacturing or materials faults within 24 months of purchase, please send the entire product including accessories and sales receipt to Swissvoice Service Center Im Frauental 14 92224 Amberg. The Swissvoice Service Center will replace it with and equivalent good or perform a repair. In the case of components subject to wear (e. g. batteries) this period lasts for 6 months from the date of purchase Technical Support telephone number (Germany) For Hotine, repairs, spare parts, technical support and warranty From Monday to Friday from 09:00 AM to 06:00 PM Please call 0180 55 82 888 (Euro 0,14 / Minute) E-mail: support-de@swissvoice.net Approval and conformity This analog telephone DECT complies with the basic requirements contained in the R&TTE Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and is suitable for connection and operation in the member state indicated on the base station and/or packaging The declaration of conformity may be viewed at: www.swissvoice.net The CE symbol confirms the conformity of the telephone with the above CE re ePure 15

Internet: www.swissvoice.net © Swissvoice SA 2011 20405864en_ba_e0 SV 20405864 Photo may differ from the actual product,
