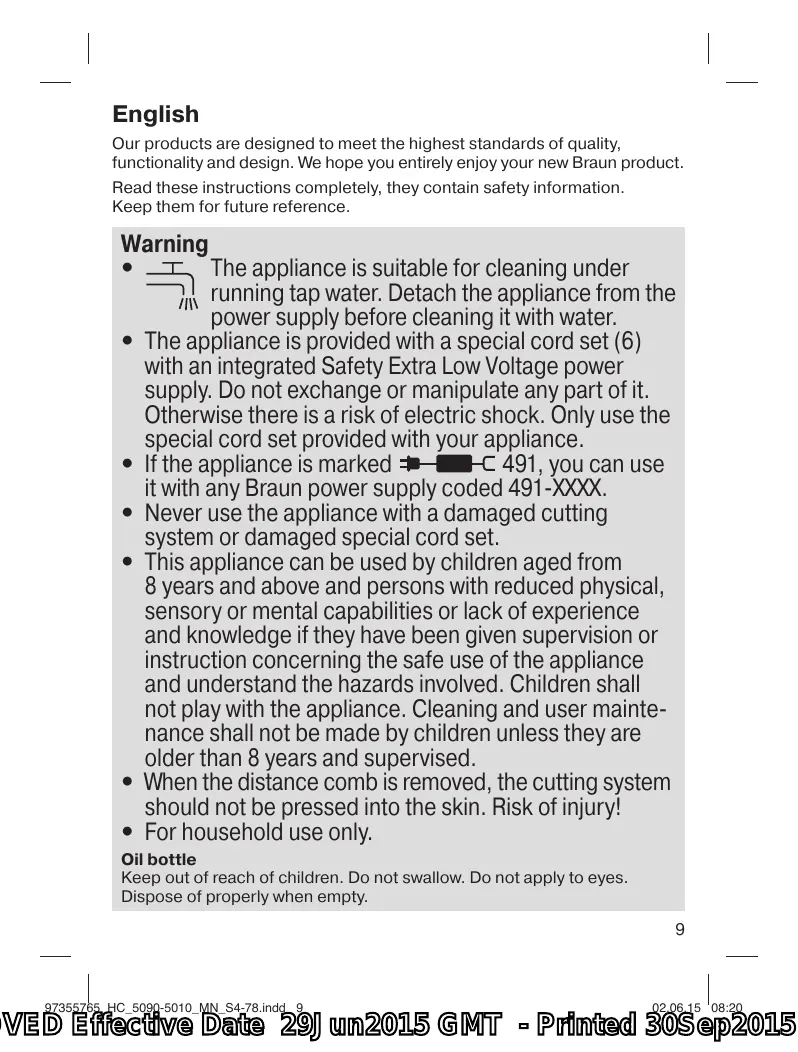

Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun product. Read these instructions completely, they contain safety information. Keep them for future reference.
• The appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water. • The appliance is provided with a special cord set (6) with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock. Only use the special cord set provided with your appliance. • If the appliance is marked 491, you can use it with any Braun power supply coded 491-XXXX. • Never use the appliance with a damaged cutting system or damaged special cord set. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. • When the distance comb is removed, the cutting system should not be pressed into the skin. Risk of injury! • For household use only. Oil bottle Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty. 9
97355765_HC_5090-5010_MN_S4-78.indd 9
OVED Effective Date 29Jun2015 GMT - Printed 30Sep2015
Long hair clipping comb 14 – 35 mm*
Short hair clipping comb 3 – 24 mm Cutting system Length selector On/off switch with charge indicator Cord socket Special cord set (design can differ) Charging stand*
* not with all models
The best environmental temperature for charging is between 15 °C and 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time. • Using the special cord set (6) or the charging stand (7), connect the appliance to an electrical outlet with the motor switched off. • When charging for the first time or when the appliance is not used for a few months, leave the appliance to charge continuously for at least 4 hours (HC5050/5030/5010: 8 hours). • Once the appliance is completely charged, discharge it (until empty) through normal use. Then recharge to full capacity. Maximum capacity will only be reached after several charging/discharging cycles. • A full charge provides at least 40 minutes of cordless operating time. This may vary depending on the hair you are trimming. • If the rechargeable batteries are discharged, you may also use the appliance by connecting to an electrical outlet via the special cord set. Charge indicator HC 5090 • The charge indicator integrated in the on/off switch (4) shows the battery status. • The charge indicator blinks green when the appliance is being charged. When the battery is fully charged, the charge indicator shines permanently green provided the appliance is connected to an electrical outlet. • During cordless use the charge indicator blinks green. 10
97355765_HC_5090-5010_MN_S4-78.indd 10
VED Effective Date 29Jun2015 GMT - Printed 30Sep2015 P
• The charge indicator flashes red when the battery is running low.
You should be able to finish your current trimming sequence. HC5050/5030/5010 • The charge indicator (4) shows that the appliance is being charged. When the battery is fully charged, the charge indicator turns off.
General hair cutting information
• The hair should be clean, well combed, tangle-free and dry. • If you are not used to clipping hair, begin with a higher setting and then reduce the setting to avoid cutting more hair than desired. • Use a slow and controlled movement. Do not force the clipper through the hair faster than the clipper can cut it. • In between, shake or blow off the hair from the clipper. If too much hair is caught in the distance comb, remove it. • To control your progress during clipping, regularly comb the hair in the style desired.
Hair cutting with hair clipping comb • Place the hair clipping comb (1a/1b) on the appliance with the appliance turned off. • Press the length selector (3) and slide the hair comb up to your desired hair length. Possible length settings (mm): Long hair clipping comb (1a) = 14 / 17 / 20 / 23 / 26 / 29 / 32 / 35 Short hair clipping comb (1b) = 3 / 6 / 9 / 12 / 15 / 18 / 21 / 24 • Turn the appliance on by pressing the on/off switch (4) and cut hair to the desired length. Hair cutting without hair clipping comb • Remove the clipping comb. • To start clipping, turn the appliance on by pressing the on/off switch (4). • Move the cutting system only in a parallel position to the skin (A, cutting hair). Slowly and carefully move the appliance against the direction of hair growth. • Only when trimming contours the cutting system should be positioned vertically (B, trimming). • Make sure you do not tilt the appliance while it is touching the skin (C). • Avoid jerky movements while cutting. 11
97355765_HC_5090-5010_MN_S4-78.indd 11
VED Effective Date 29Jun2015 GMT - Printed 30Sep2015 P Cleaning
Regular cleaning ensures better trimming performance. Cleaning with the brush • Switch off the appliance. Open the cutting system by pressing with the thumb against the trimmer from the front side. It opens by ca. 45°. • Using the brush clean the trimmers and the space behind the trimmer (inside the housing). Cleaning with water • Switch off the appliance and rinse the head and the trimmer under warm running water until all residues have been removed. You can also rinse the opened cutting system.
Keeping your appliance in top shape
To keep the cutting system working properly, oil it with light machine oil (D) after each use, especially when cleaning under running water. Preserving the batteries In order to maintain the optimum capacity of the rechargeable batteries, the appliance has to be fully discharged (by operating) every 6 months approximately. Then recharge the appliance to full capacity.
Environmental notice
Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country. Subject to change without notice. For electric specifications, see printing on the special cord set.
97355765_HC_5090-5010_MN_S4-78.indd 12
VED Effective Date 29Jun2015 GMT - Printed 30Sep2015 P Guarantee
We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).
This guarantee in no way affects your rights under statutory law.
For Australia & New Zealand only:
Warranty In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given by this warranty are in addition to other rights and remedies of the consumer law. For Claims in Australia please contact: Procter & Gamble Australia Pty Ltd 1 Innovation Road, Macquarie Park NSW 2113 Telephone: +612 8864 5000 Facsimile: +612 8864 5574 Email: gillette@au.pgconsumers.com 13
97355765_HC_5090-5010_MN_S4-78.indd 13
VED Effective Date 29Jun2015 GMT - Printed 30Sep2015 P For claims in New Zealand please contact:
Procter & Gamble Distributing New Zealand Limited Unit 3, Building I, 5 Orbit Drive Rosedale, North Shore City 0632 Auckland, New Zealand Telephone: +649 477 6400 Facsimile: +649 477 6399 Email: gillette@nz.pgconsumers.com Our Warranty This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty). Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations. Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase. Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance. Our Warranty does not cover: A. Damage arising from improper use or operation on incorrect voltages. B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. 14
97355765_HC_5090-5010_MN_S4-78.indd 14
VED Effective Date 29Jun2015 GMT - Printed 30Sep2015 P If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.
To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute. Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers). If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us. Repairs and service If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details. Australian Consumer Service (free call): 1 800 641 820 New Zealand Consumer Service (free call): 0 800 108 909
97355765_HC_5090-5010_MN_S4-78.indd 15
VED Effective Date 29Jun2015 GMT - Printed 30Sep2015 P Australian & New Zealand Service Agents
VICTORIA & TASMANIA SOUTH AUSTRALIA & NT Statewide Services Pty Ltd trading as J A Appliances
17-19 Hossack Avenue Coburg North, VIC 3058 Tel. (03) 8371 9100 Fax. (03) 9355 8644 Email: jaappliances@ statewideservices.com.au
Adelaide Service Centre
Shop B2, Parkholme Shopping Centre 319 Oaklands Road, Parkholme Adelaide, SA 5043 Tel. (08) 8357 5800 Fax. (08) 8357 5833 Email: ascpkh@adam.com.au
QUEENSLAND Walters Import trading as Brisbane
Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. (07) 3277 0360 Fax. (07) 3274 2909 Email: basc@waltersimport.com.au WESTERN AUSTRALIA Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104 Tel. (08) 9475 0911 Fax. (08) 9475 0922 Email: mark1app@iinet.net.au
NEW ZEALAND Key Service Ltd
7D Echelon Place East Tamaki Manukau City Auckland New Zealand (PO Box 38569, Howick, Auckland, New Zealand) Tel. (09) 916 0960 Fax. (09) 916 0970 Email: key-service-ltd@xtra.co.nz
NEW SOUTH WALES & ACT Faulder Appliance Services Pty Ltd
Shop 4, 9 Evans Road, Rooty Hill, NSW 2766 Tel. (02) 9625 3064 Fax. (02) 9625 3037 Email: fas16@bigpond.com 16
