USER MANUAL SERIES 7 799CC-7 WET&DRY BRAUN

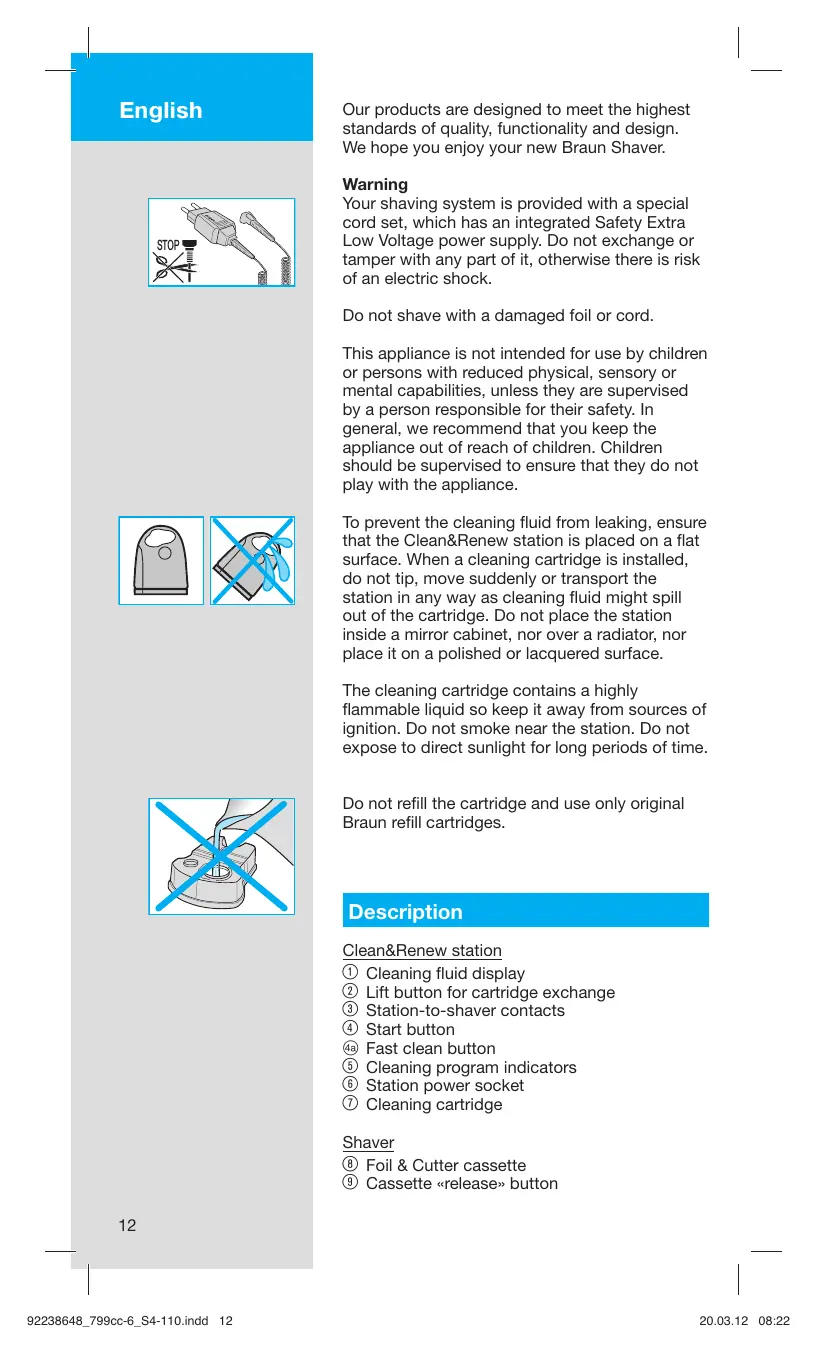

English STOP Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver. Warning Your shaving system is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Do not shave with a damaged foil or cord. This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance. To prevent the cleaning fluid from leaking, ensure that the Clean&Renew station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor over a radiator, nor place it on a polished or lacquered surface. The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not smoke near the station. Do not expose to direct sunlight for long periods of time. Do not refill the cartridge and use only original Braun refill cartridges. Description Clean&Renew station 1 Cleaning fluid display 2 Lift button for cartridge exchange 3 Station-to-shaver contacts 4 Start button D Fast clean button 5 Cleaning program indicators 6 Station power socket 7 Cleaning cartridge Shaver Foil & Cutter cassette Cassette «release» button

Shaver head «lock» switch Pop-out long hair trimmer On/off switch (–) setting button (sensitive) (+) setting button (intensive) Reset button Shaver display Shaver-to-station contacts Shaver power socket Travel case Special cord set Before shaving Prior to first use you must connect the shaver to an electrical outlet using the special cord set p or alternatively proceed as below. Installing the Clean&Renew station

• Using the special cord set p, connect the station power socket 6 to an electrical outlet.
• Press the lift button 2 to open the housing.
• Hold the cleaning cartridge 7 down on a flat, stable surface (e.g. table).

• Carefully remove the lid from the cartridge. new

• Slide the cartridge into the base of the station as far as it will go.
• Slowly close the housing by pushing it down until it locks. fast clean fast clean The cleaning fluid display 1 will show how much fluid is in the cartridge: up to 30 cleaning cycles available up to 7 cleaning cycles remaining new cartridge required

Charging and cleaning the shaver Insert the shaver head down into the cleaning station. (The contacts u on the back of the shaver will align with the contacts 3 in the cleaning station.) Important: The shaver needs to be dry and free from any foam or soap residue! If required, the Clean&Renew station will automatically charge the shaver. The hygiene status of the shaver will also be analyzed and one of the following cleaning program indicators 5 will light up:

shaver is clean short economical cleaning required normal level of cleaning required » high intensive cleaning required If the station selects one of the required cleaning programs, it will not start unless you press the start button 4. For best shaving results, we recommend cleaning after each shave. Whilst cleaning is in progress, the respective cleaning program indicator will blink. Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head and a heat drying process dries the shaver. Depending on the program selected the total cleaning time will range from 32 to 43 minutes. The cleaning programs should not be interrupted. Please note that whilst the shaver is drying, the shaver head may be hot and wet. When the program is finished, the blue « » indicator will light up. Your shaver is now clean and ready for use. Fast cleaning Push the fast clean button D to activate the fast clean program without drying. This program takes about 25 seconds only and is recommended when you do not have time to wait for one of the automatic cleaning programs. If you remove the shaver just after the program has finished, wipe off the shaver head with a tissue to avoid dripping. Stand-by mode 10 minutes after completing the charging or cleaning session, the Clean&Renew station switches to the stand-by mode: The indicators of the Clean&Renew station turn off. gie h y ne battery Shaver display The shaver display z shows the charge status of the battery on the left, and the hygiene status on the right. (6 dark segments are shown on each side when the battery is fully charged and the shaver is hygienically clean).

battery ien hyg e Hygiene segments: All 6 hygiene segments will appear after the shaver has been cleaned in the Clean&Renew station. When the shaver is being used, the hygiene segments will gradually disappear. Once the shaver is returned to the station, the system will automatically select the appropriate cleaning program and restore the segments to maximum hygiene. Given that rinsing the shaver under tap water is not as hygienic as the cleaning station, the hygiene segments will only restore themselves when the shaver has been cleaned in the Clean&Renew station. ien hyg e Low charge indicator: The low charge indicator provided with a red frame blinks to indicate that the charge has dropped below 20%. The remaining battery capacity is sufficient for 2 to 3 shaves. battery Battery segments: During charging or when using the shaver, the respective battery segments will blink. When fully charged all 6 segments are shown. With decreasing charge the segments gradually disappear. Charging information

• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth.
• The best environmental temperature for charging is between 5 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time. Personalizing your shaver Personalizing your shaver With the (–) e and (+) r buttons you can choose the best setting for shaving different areas of your face and as per your specific needs. The different settings are indicated by the pilot light incorporated in the on/off switch w:
• dark blue (powerful shave)

• white (for a thorough comfortable shave in sensitive areas of your face such as neck)

For a thorough and fast shave we recommend the (+) setting. When switching on next time, the last used setting will be activated. Tips for the perfect shave release For best shaving results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at right angles

3. Stretch your skin and shave against the

direction of your beard growth.

How to use Press the on/off switch w to operate the shaver:

• The pivoting shaver head and floating foils automatically adjust to every contour of your face.

• To shave hard to reach areas (e.g. under the nose) slide the shaver head «lock» switch 0 to the back position to lock the pivoting head at an angle. lock

• To trim sideburns, moustache or beard, slide the pop-out long hair trimmer upwards. lock This appliance is suitable for use in a bath or shower. For safety reasons this appliance can only be operated cordlessly. Cleaning trimmer Automatic cleaning After each shave, return the shaver to the Clean&Renew station and proceed as described above in the section «Before shaving». All charging and cleaning needs are then automatically taken care of. With daily use, a cleaning cartridge should be sufficient for about 30 cleaning cycles. The hygienic cleaning cartridge contains alcohol, which once opened will naturally evaporate slowly into the surrounding air. Each cartridge, if not used daily, should be replaced after approximately 8 weeks. The cleaning cartridge also contains lubricants, which may leave residual marks on the outer foil frame after cleaning. However, these marks can

be removed easily by wiping gently with a cloth or soft tissue paper.

trim Manual cleaning Rinsing the shaving head under running water is an alternative way to keep the shaver clean, especially when travelling:

• Switch the shaver on (cordless) and rinse the shaving head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds. Series Series release

• Next, switch off the shaver, press the «release» button 9 to remove the Foil & Cutter cassette 8 and let it dry. oil Series 7 release click! Series 7 release trimmer

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette. Alternatively, you may clean the shaver using the brush provided: Series 7

• Switch off the shaver. Remove the Foil & Cutter cassette 8 and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. However, do not clean the cassette with the brush as this may damage it. Cleaning the housing From time to time clean the housing of the shaver and the Clean&Renew station with a damp cloth, especially inside the cleaning chamber where the shaver rests. release Series 7 release release Replacing the cleaning cartridge After having pressed the lift button 2 to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution. new old

gie h y ne Replacing the Foil & Cutter cassette / reset To maintain 100% shaving performance, replace the Foil & Cutter cassette 8, when the replacement symbol lights up on the shaver display z (after about 18 months) or when cassette is worn. batte Keeping your shaver in top shape

The replacement symbol will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset the display. Series 7 70S mer rle ase After you have replaced the Foil & Cutter cassette, use a ball-pen to push the reset button t for at least 3 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time. Accessories 70S Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette 70S
• Cleaning cartridge Clean&Renew CCR Environmental notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. The cleaning cartridge can be disposed with regular household waste. Subject to change without notice. For electric specifications, see printing on the special cord set.

Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com). For UK only: This guarantee in no way affects your rights under statutory law.

release Series 7 release click! trimmer
