A3 PREMIUM - Laminator GEHA - Free user manual and instructions

Product Type	Laminator
Brand	GEHA
Model	A3 PREMIUM
Maximum Format	A3 (297 x 420 mm)
Film Thickness	75 to 150 microns
Maximum Document Thickness	0.6 mm
Laminating Speed	350 mm/min
Preheating Time	3 to 5 minutes
Number of Rollers	4
Laminating Modes	Hot and Cold
Temperature Control	Continuous adjustment (selector)
Anti-Jam System	ABS Lever
Indicator Lights	Power, Ready
Power Supply	220-240 V, 50/60 Hz
Power Consumption	450 W max
Current	2.0 A
Weight	3.49 kg
Warranty	24 months
Cleaning	Soft cloth, do not immerse
Safety	Do not use with damaged cord, unplug before cleaning
Repairability	Repairs by qualified personnel only
Usage	Indoor only

Frequently Asked Questions - A3 PREMIUM GEHA

How to laminate an A3 document?

Place the document centered in a laminating pouch (75-150 microns), sealed edge first. Insert the pouch straight into the entry slot of the laminator and retrieve the laminated document from the rear.

Can I laminate thick objects like cardboard?

No, the maximum document thickness is 0.6 mm. Thicker objects may jam and damage the device.

What to do if the document gets stuck?

Pull the anti-jam system lever (ABS) backward to release pressure, then manually extract the jammed document.

How to clean the laminator?

Let the device cool completely, then clean it with a dry or slightly damp soft cloth. Never immerse the device in water and do not use abrasive products.

What is the preheating time?

Preheating takes about 3 to 5 minutes. The Ready (green) light turns on when operating temperature is reached.

Can I use pouches without a carrier?

Yes, this laminator is designed to work without a carrier. Insert the laminating pouch directly.

Can the laminator do cold lamination?

Yes, set the temperature selector to the Cold position. If the device is hot, wait about 30 minutes for it to cool before using cold mode.

What types of films are compatible?

Use laminating films with thickness between 75 and 150 microns. Films that are too thin or too thick may damage the device.

Why does my laminated document look cloudy?

Some paper qualities may give a cloudy or opaque result. Pass the document through the laminator a second time to improve the appearance.

Is the warranty 2 years?

Yes, the warranty period is 24 months from the date of purchase. Keep the proof of purchase and original packaging.

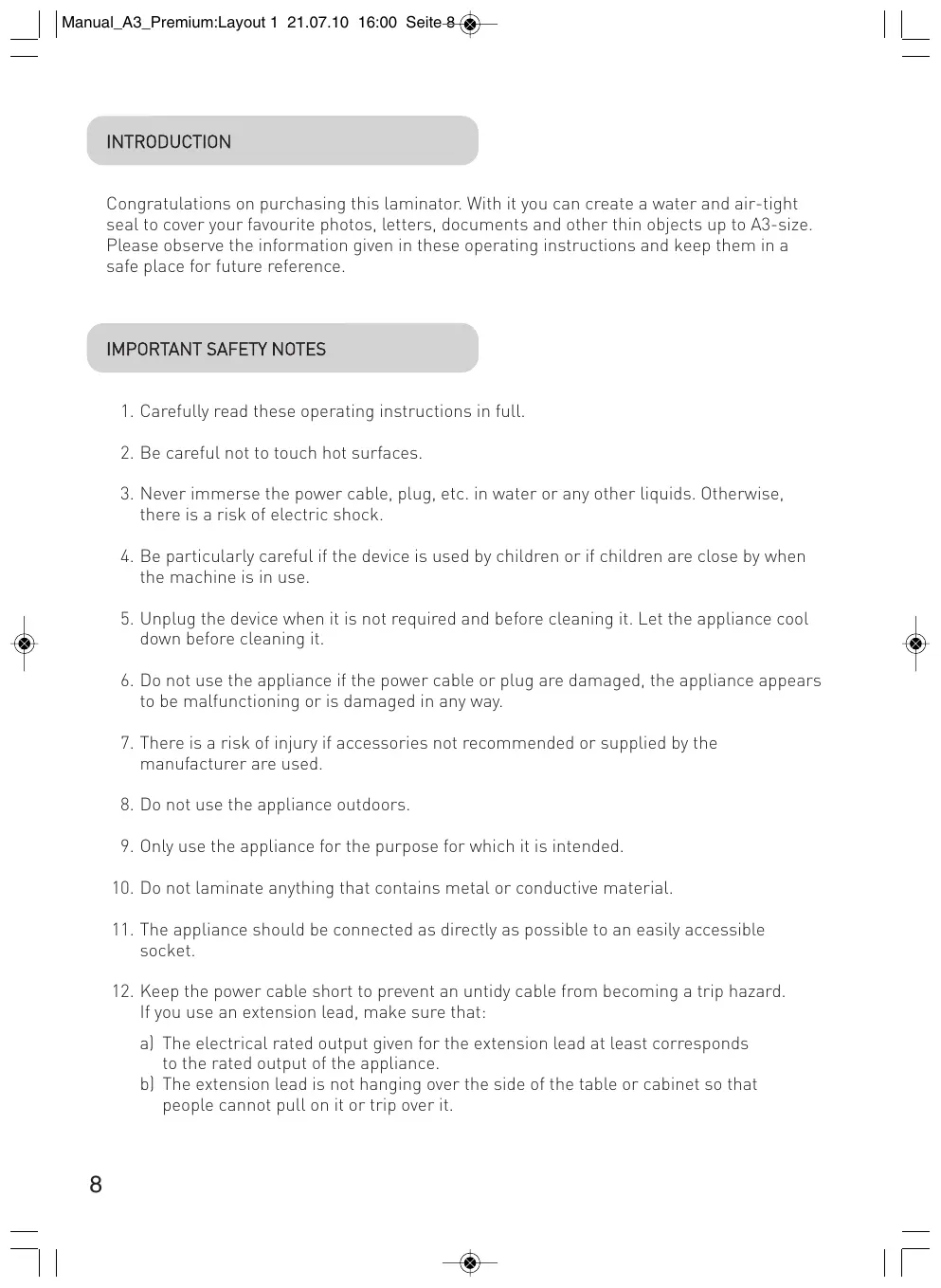

USER MANUAL A3 PREMIUM GEHA

Congratulations on purchasing this laminator. With it you can create a water and air-tight seal to cover your favourite photos, letters, documents and other thin objects up to A3-size. Please observe the information given in these operating instructions and keep them in a safe place for future reference.

IMPORTANT SAFETY NOTES

1. Carefully read these operating instructions in full.

2. Be careful not to touch hot surfaces.

3. Never immerse the power cable, plug, etc. in water or any other liquids. Otherwise, there is a risk of electric shock.

4. Be particularly careful if the device is used by children or if children are close by when the machine is in use.

5. Unplug the device when it is not required and before cleaning it. Let the appliance cool down before cleaning it.

6. Do not use the appliance if the power cable or plug are damaged, the appliance appears to be malfunctioning or is damaged in any way.

7. There is a risk of injury if accessories not recommended or supplied by the manufacturer are used.

8. Do not use the appliance outdoors.

9. Only use the appliance for the purpose for which it is intended.

10. Do not laminate anything that contains metal or conductive material.

11. The appliance should be connected as directly as possible to an easily accessible socket.

12. Keep the power cable short to prevent an untidy cable from becoming a trip hazard. If you use an extension lead, make sure that:

a) The electrical rated output given for the extension lead at least corresponds to the rated output of the appliance.
b) The extension lead is not hanging over the side of the table or cabinet so that people cannot pull on it or trip over it.

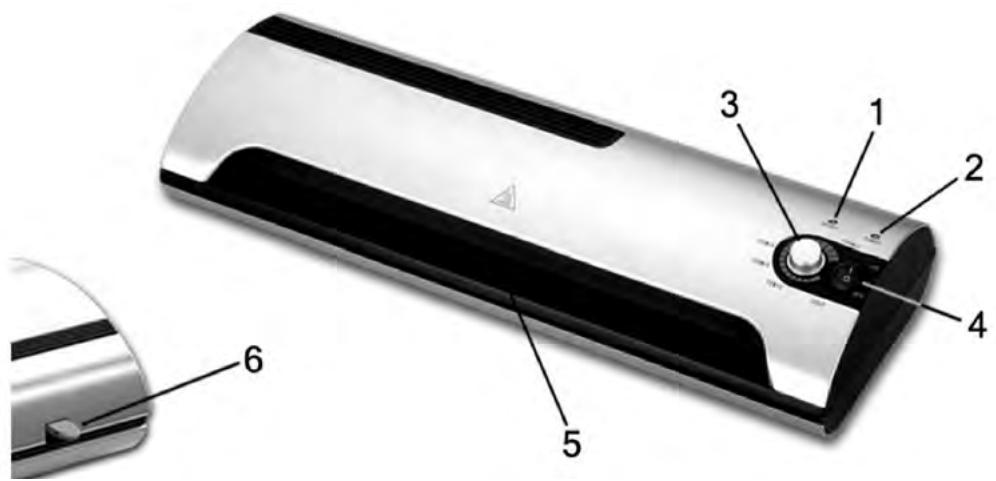

1 'Ready' light
2 'Power' light
3 Limitless temperature selection (temperature switch)
4 ON/OFF switch
5 Insertion slot for laminating pouches
6 Anti-blocking system (ABS) lever

• We advise against laminating photos you have developed yourself.
• Photos must be dry before being laminated.
• Do not laminate any thick or heavy documents as these might get stuck in the laminator.
• The laminator permanently connects the laminating film with the item being laminated. The laminating film cannot be removed later.

• We advise against laminating collector items which you might want to later remove from the laminating film. It is not permitted to laminate coins and thicker objects with this appliance.

• Select the desired setting using the temperature switch.

• Switch on the appliance by pressing the ON/OFF switch.

• a) If you have selected hot lamination (75-150 mic.), the device is operational as soon as the green LED lights up. The laminator requires about 3-5 minutes to warm up.
  b) If you have selected cold lamination (Cold), the green 'Ready' LED lights up as soon as the appliance has been switched on. If you want to cold-laminate when the laminator is hot, turn the temperature switch to 'Cold' and wait about half an hour until the appliance has cooled down.

• Centre the item to be laminated inside the laminating pouch (thickness of 75 - 150 m - Make sure that the document or picture is as close as possible to the sealed edge.

The use of a carrier is not required for this laminator.

1. Guide the sealed edge of the laminating pouch into the middle of the insertion slot keeping it as straight as possible.
2. Remove the laminated item from the back of the appliance after lamination.
3. Certain types of paper are not laminated uniformly and seem slightly dull or cloudy. In such cases you can improve the quality of the lamination by putting the laminated document through the laminator a second time.
4. If the item being laminated has jammed in the machine, push back the ABS lever and pull the item out manually.

CLEANING AND CARE

• Keep you hands and the power cable away from hot parts during and after lamination. Let the appliance completely cool down before cleaning it.
• Never immerse the appliance in water.
• Only use a soft cloth to clean the appliance.
• Never clean the appliance with abrasive powder, scrapers or wire combs.
• Never open the appliance yourself. Otherwise, there is a risk of fire and electric shock. There are no parts in the appliance that can be maintained by the user. Repairs must always be carried out by trained specialists.

TECHNICAL DATA

Voltage: 220-240 V, 50/60 Hz

Current: 2,0 A

Power consumption: max. 450 W

Film thickness: 75-150 micrometres

Max. document size: A3

Warm-up time: approx. 3-5 minutes

Lamination speed: approx. 350~mm / min

Max. document thickness: 0,6 mm

Weight: 3,49 kg

Laminating rollers: 4

DISPOSAL

The symbol with the crossed-out rubbish bin means that electrical appliances may not be disposed of in normal household waste.

Please take this appliance to an approved collection station for environmentally friendly disposal.

GUARANTEE

Your appliance comes with a 24-month guarantee.

Make sure you keep the sales receipt and original packaging.

If you encounter any problems with your appliance, please contact your dealer.
