USER MANUAL INC 602 HECO
At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

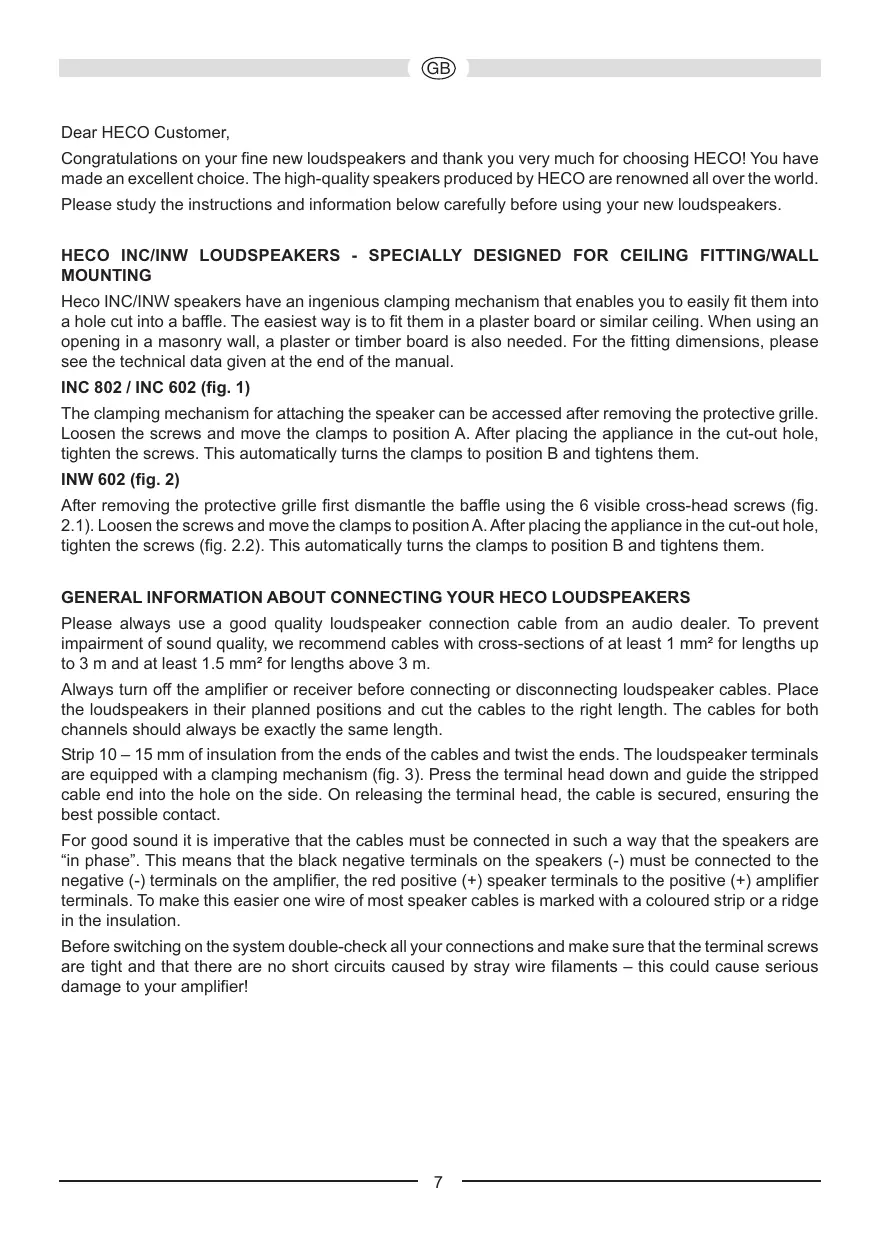

Congratulations on your fine new loudspeakers and thank you very much for choosing HECO! You have made an excellent choice. The high-quality speakers produced by HECO are renowned all over the world.
Please study the instructions and information below carefully before using your new loudspeakers.
HECO INC/INW LOUDSPEAKERS - SPECIALLY DESIGNED FOR CEILING FITTING/WALL MOUNTING
Heco INC/INW speakers have an ingenious clamping mechanism that enables you to easily fit them into a hole cut into a baffle. The easiest way is to fit them in a plaster board or similar ceiling. When using an opening in a masonry wall, a plaster or timber board is also needed. For the fitting dimensions, please see the technical data given at the end of the manual.
INC 802 / INC 602 (fig.1)
The clamping mechanism for attaching the speaker can be accessed after removing the protective grille. Loosen the screws and move the clamps to position A. After placing the appliance in the cut-out hole, tighten the screws. This automatically turns the clamps to position B and tightens them.
INW 602 (fig. 2)
After removing the protective grille first dismantle the baffle using the 6 visible cross-head screws (fig. 2.1). Loosen the screws and move the clamps to position A. After placing the appliance in the cut-out hole, tighten the screws (fig. 2.2). This automatically turns the clamps to position B and tightens them.
GENERAL INFORMATION ABOUT CONNECTING YOUR HECO LOUDSPEAKERS
Please always use a good quality loudspeaker connection cable from an audio dealer. To prevent impairment of sound quality, we recommend cables with cross-sections of at least 1mm^2 for lengths up to 3 m and at least 1.5mm^2 for lengths above 3 m.
Always turn off the amplifier or receiver before connecting or disconnecting loudspeaker cables. Place the loudspeakers in their planned positions and cut the cables to the right length. The cables for both channels should always be exactly the same length.
Strip 10 - 15 mm of insulation from the ends of the cables and twist the ends. The loudspeaker terminals are equipped with a clamping mechanism (fig. 3). Press the terminal head down and guide the stripped cable end into the hole on the side. On releasing the terminal head, the cable is secured, ensuring the best possible contact.
For good sound it is imperative that the cables must be connected in such a way that the speakers are "in phase". This means that the black negative terminals on the speakers (-) must be connected to the negative (-) terminals on the amplifier, the red positive (+) speaker terminals to the positive (+) amplifier terminals. To make this easier one wire of most speaker cables is marked with a coloured strip or a ridge in the insulation.
Before switching on the system double-check all your connections and make sure that the terminal screws are tight and that there are no short circuits caused by stray wire filaments – this could cause serious damage to your amplifier!
ACOUSTIC ADAPTATION
The crossover facilitates individual sound adjustment of the speaker system via high-quality jumpers:
- Tweeter level adjustment (treble) (fig. 4A)
- Mid-range adjustment (midrange) (fig. 4B)
It is advisable to conduct the optimum setting according to your own personal listening preferences. We recommend the following switch positions as a basic setting for various listening areas:
| Listening area | Example | Switch position „treble“ | Switch position „midrange“ |
| Low sound-absorbing setup | Wet rooms, hard reflective surfaces, tiles, large glass areas, rooms with minimal furniture | -3dB | -3dB |
| Normal sound-absorbing setup | Carpets, glass surfaces with curtains, leather objects, rooms with a normal amount of furniture | 0dB | 0dB |
| High sound-absorbing setup | Carpets, upholstered objects, heavy curtains, rooms with lots of furniture | +3dB | 0dB |
The tweeters "swivel" technology allows it to be pivoted by up to 35 degrees, thereby enabling ideal sound dispersion and perfect alignment to the listening area:
CONNECTING A STEREO AMPLIFIER
Fig. 5 shows the loudspeakers connected to a stereo amplifier in conjunction with a subwoofer (option).
HOW TO AVOID DAMAGE TO YOUR VALUABLE SPEAKERS
All HECO loudspeakers are designed and built for optimum sound reproduction with the tone controls in the central position - i.e. with "linear" amplifier output. Turning up the bass and treble controls too far delivers more power to the woofers and/or tweeters, and at high volumes this can actually destroy the speaker units!
If the output of your amplifier is significantly higher than the rated power handling capacity of your speakers extremely high volumes can physically destroy your speakers. This doesn't actually happen often but you should be aware that it is possible.
Weak amplifiers with low output ratings can actually be more dangerous for your speakers at medium volumes because weak amplifiers may overload much faster than powerful ones and this causes measurable and audible distortion, which is extremely dangerous to your loudspeakers.
Always turn the volume down immediately as soon as you hear distortion! If you like listening to loud music, make sure that your amplifier can deliver at least as much power as the speakers' power-handling rating.
Amplifiers, tuners and CD/DVD players can all produce inaudible high-frequency signals – and this doesn't only apply to cheap products. If your tweeters fail at low or medium volumes you should have a qualified technician check your system components for dangerous inaudible signals.
SPECIFICATIONS
| INC 802 | INC 602 | |
| Power-handling capacity: | 120 / 200 W | 100 / 180 W |
| Impedance: | 4 - 8 ohms | 4 - 8 ohms |
| Crossover frequency: | 3,500 Hz | 3,500 Hz |
| Frequency response: | 32 - 32,000 Hz | 35 - 32,000 Hz |
| Recommended amplifier output: | 30 - 180 W | 30 - 140 W |
| Efficiency (1W/1m): | 91 dB | 90 dB |
| External dimensions Ø: | 272 mm | 231 mm |
| Hole cut-out Ø: | 242 mm | 198 mm |
| Mounting depth: | 112 mm | 98 mm |
| INW 602 | |
| Power-handling capacity: | 100 / 180 W |
| Impedance: | 4 - 8 ohms |
| Crossover frequency: | 3,500 Hz |
| Frequency response: | 38 - 32,000 Hz |
| Recommended amplifier output: | 30 - 160 W |
| Efficiency (1W/1m): | 90 dB |
| External dimensions (w x h): | 219 x 306 mm |
| Hole cut-out (w x h): | 188 x 274 mm |
| Mounting depth: | 75 mm |
Subject to technical change.
