USER MANUAL METAS 300 HECO

@ 10 © © [© 10 10 |@ |0

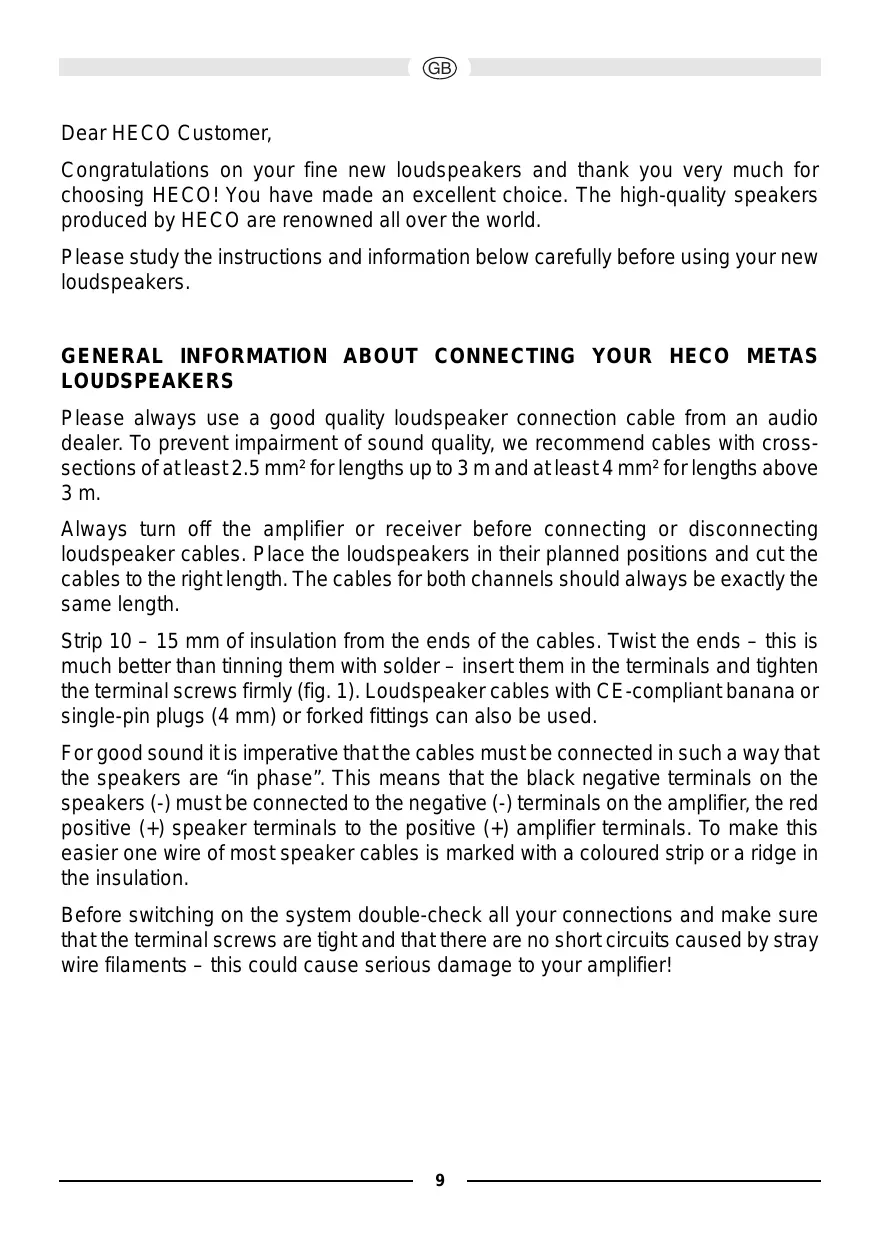

Dear HECO Customer, Congratulations on your fine new loudspeakers and thank you very much for choosing HECO! You have made an excellent choice. The high-quality speakers produced by HECO are renowned all over the world. Please study the instructions and information below carefully before using your new loudspeakers. GENERAL INFORMATION ABOUT CONNECTING YOUR HECO METAS LOUDSPEAKERS Please always use a good quality loudspeaker connection cable from an audio dealer. To prevent impairment of sound quality, we recommend cables with cross- sections of atleast 2.5 mm? for lengths up to 3 m and atleast4 mm? for lengths above 3m. Always turn off the amplifier or receiver before connecting or disconnecting loudspeaker cables. Place the loudspeakers in their planned positions and cut the cables to the right length. The cables for both channels should always be exactly the same length. Strip 10 - 15 mm of insulation from the ends of the cables. Twist the ends - this is much better than tinning them with solder - insert them in the terminals and tighten the terminal screws firmly (fig. 1). Loudspeaker cables with CE-compliant banana or single-pin plugs (4 mm) or forked fittings can also be used. For good sounditis imperative thatthe cables must be connected in such a way that the speakers are “in phase”. This means that the black negative terminals on the speakers (-) must be connected to the negative (-) terminals on the amplifier, the red positive (+) speaker terminals to the positive (+) amplifier terminals. To make this easier one wire of most speaker cables is marked with a coloured strip or a ridge in the insulation. Before switching on the system double-check all your connections and make sure thatthe terminal screws are tight and that there are no short circuits caused by stray wire filaments - this could cause serious damage to your amplifier!

Connector panel on the Heco Metas loudspeakers: The connector panels on the Metas speakers are equipped with 5 terminal screws, enabling bi-wiring/bi-amping in addition to conventional connection to an amplifier. The upper terminals are connected to the treble and mid-treble side ofthe crossover and the lower terminals to the bass side. An additional connector terminal enables a 2 dB treble boost option. Bi-wiring means using separate cables to carry the high and low audio frequencies. Bi-amping takes this idea one step further and uses separate power amplifiers as well as separate cables for high and low frequencies. Bi-amping in particular produces an additional improvement in sound reproduction quality. For conventional connections, metal bridges are installed as standard to make the +2 dB treble adjustment active. The bridge can be switched to the linear setting by unscrewing the corresponding terminals. (Fig. 2) The terminals have to be removed for bi-wiring and bi-amping mode. Fig. 3 and fig. 4 show the connection to the amplifier(s). The right treble setting depends on the room, the positioning of the speakers and, of course, personal taste. The +2 dB setting is recommended for rooms with heavy upholstered furniture and curtains, for example, which have a muffling effect. THE HECO METAS 300, 500 AND 700 IN STEREO MODE In the ideal configuration the speakers and the listening position should form an equilateral triangle. When the left and right speakers are the same distance from the listening position their sound arrives at the same time, resulting in a harmonious, natural music reproduction. There should be a clear line of sight between the loudspeakers and the listening position. Any sound-absorbing or reflecting obstacles in the path will distort the sound. When you install the loudspeakers the following distances should be maintained': Metas 500, 700: at least 20 cm away from the rear wall and at least 30 cm from the side walls. This will prevent excessive emphasis of the bass range. Metas 300: shelf loudspeakers should also be as free-standing as possible, the distance to the sides and rear to walls and items should be at least 10 cm, the tweeters should be located at ear height.

You should use the supplied spikes when setting the speakers up. This isolates them from the supporting surface, preventing unpleasant resonance effects. You can choose between metal and hard rubber spikes forthe standing speakers, while the enclosed hard rubber spikes are used for the shelf speakers. The spikes are screwed into the threaded bushes on the bottom of the speaker. The HECO Metas loudspeakers are ideal for use with the Metas Sub 30A active subwoofer. Fig. 5 shows à method of connection. Please also refer to the subwoofer's and your amplifier's operating instructions. HECO METAS 300, 500 AND 700 AS A FRONT OR REAR LOUDSPEAKER The front loudspeakers are positioned atear heighton the leftand right as equidistant from the television as possible. The rear loudspeakers are placed at ear height or a little above on the left and right besides or better behind the listening position. Metas 300: if possible, the cross-over frequency for the front and rear channels should be adjusted to approximately 80 Hz in the AV receiver's set-up. Otherwise all the recommendations made in the previous chapter also apply.

The Metas Center 2 loudspeaker visually and acoustically ideally matches the other Metas models. The loudspeakeris placed immediately on or under the television set. Otherwise please adhere to the general recommendations outlined in the previous chapters.

The Metas Sub 30A active subwoofer visually and acoustically ideally matches the other loudspeakers in the Metas series. Please refer to the separate operating instructions supplied with this product.

CONNECTING TO AN AV RECEIVER

Figs. 6 and 7 show two different methods of connecting to AV receivers. Fig. 6: AV receiver without subwoofer output. Fig. 7: AV receiver with subwoofer output.

HOW TO AVOID DAMAGE TO YOUR VALUABLE SPEAKERS AITHECO loudspeakers are designed and built for optimum sound reproduction with the tone controls in the central position - i.e. with “linear” amplifier output. Turning up the bass and treble controls too far delivers more power to the woofers and/or tweeters, and at high volumes this can actually destroy the speaker units! If the output of your amplifier is significantly higher than the rated power handling capacity of your speakers extremely high volumes can physically destroy your speakers. This doesn't actually happen often but you should be aware that it is possible. Weak amplifiers with low output ratings can actually be more dangerous for your speakers at medium volumes because weak amplifiers may overload much faster than powerful ones and this causes measurable and audible distortion, which is extremely dangerous to your loudspeakers. Always turn the volume down immediately as soon as you hear distortion! If you like listening to loud music make sure that your amplifier can deliver at least as much power as the speakers’ power-handling rating. THE SOUND YOU CAN'T HEAR... Amplifiers, tuners and CD players can all produce inaudible high-frequency signals - andthis doesn'tonly apply to cheap products. If your tweeters fail atlow or medium volumes you should have à qualified technician check your system components for dangerous inaudible signals. SPECIFICATIONS Metas 700 Metas 500 Configuration: 3-way bass reflex 2 1/2-way bass reflex Power-handling capacity: 180 / 300 W 160 / 280 W Impedance: 4-80ohms 4-80ohms Frequency response: 25 - 42000 Hz 26 - 42000 Hz Recommended amplifier output: 30 - 300 W 30 - 280 W Efficiency (1W/1m): 91 dB 91 dB Dimensions (WxHxD): 230 x 1100 x 340 mm 230 x 1000 x 340 mm ACCessory: metal spikes metal spikes

Metas 300 Configuration: 2-way bass reflex Power-handling capacity: 90/150W Impedance: 4-80ohms Frequency response: 32- 42000 Hz Recommended amplifier output: 30 - 150 W Efficiency (1W/1m): 90 dB Dimensions (WxHxD): 228 x 350 x 315 mm SUBJECT TO TECHNICAL CHANGE. Metas Center 2 2-way bass reflex 100/160W

CHAN PA PR 2476 RS TESUTCLUE

AN AN (À) (B) (e] [eo] Oo (e) Le] oO pans — ge — 49 papes — ge — à9 (C < 7 EN = -©) ©) © -(G ©) © __ HE | | HEO £ AN \ -© ©Q- @ © os À mms © o a (e] o a \ 7— = À N À = PT \ À \ n \ u. Amplifier \ Amplifier \

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.

2. During the guarantee period we will rectfy any defects due to faulty material or workmanship by replacing or repairing the defective part atour discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequential damages, are excluded. The guarantee period is not altered by the factthat we have carried out guarantee work.

3. Unauthorized tampering with the equipment wil invalidate this guarantee.
