SYSTEM FEATURES Features of the Jensen MSR7007 Marine radio include:

Waterproof Face/Control Panel (IPX5)

AM/FM US/EURO Tuner with 30 Presets (12 AM, 18 FM) RBDS (Radio Broadcast Data Service)

Single In-Dash CD Player

MP3/WMA Playback Capable

Weatherband Tuner with Weather Alert

Pre-set Equalizer - 5 settings (Flat, Rock, Pop, Classical, Off) Electronic Bass, Treble, Balance and Fader Controis Output Power 5OW x 4

Low Vehicle Battery Warning

Wired Marine Remote Control Ready

4-Channel Pre-amp Line Level Outputs

2-Wire Power OR Non-Volatile Memory and Interior Power Clock/Time Support

Auxiliary Audio Input

SAFETY INFORMATION When Boating

Keep the volume level low enough to be aware of your surroundings.

Do not submerge the product directly in water, as this can cause electrical shorts, fire or other

Protect from High Temperatures

Exposure to direct sunlight for an extended period of time can produce very high temperatures

inside your vessel. Give the unit time to cool down before starting playback.

Do not mount radio within close proximity of engine compartment.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC negative ground battery system.

Protect the Disc Mechanism

Avoid inserting any foreign objects into the disc slot. Misuse may cause malfunction or

permanent damage due to the precise mechanism of this unit. Do not keep the CD door open

for long periods of time. EXPOSING THE UNIT TO WATER WITH THE CD DOOR OPEN WILL CAUSE DAMAGE OR MALFUNCTION.

THIS MOBILE CD PLAYER IS A CLASS I LASER PRODUCT. THIS UNIT USES A VISIBLE/

USE OF CONTROLS OR ADJ USTMENTS OR PERFORMANCE OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF. PLEASE REFER SERVICING TO A QUALIFIED TECHNICIAN.

. DO NOT OPEN, DISASSEMBLE OR ALTER THE UNIT IN ANY WAY. Doing so may result in fire, electric shock or product damage.

. USE THE CORRECT AMPERE RATING WHEN REPLACING FUSE. Failure to do so may result in fire, electric shock or product damage.

. DO NOT INSTALL IN LOCATIONS THAT MIGHT HINDER VESSEL OPERATION. Doing 50 may obstruct vision or hamper movement which can result in a serious accident.

. INSTALL THE WIRING SO THAT IT IS NOT CRIMPED OR PINCHED BY SCREWS OR SHARP METAL EDGES. Route the cables away from moving parts or sharp pointed edges. This will prevent crimping and damage to the wiring. Ifthe wiring must pass through a metal hole, be sure to use a rubber grommet to prevent the wire's insulation from being cut by the metal edge of the hole. Itis also recommended to apply sealing caulk to any opening that may potentially allow water to enter.

+ Be sure to choose a location thatis flat and has clearance above the unit to prevent any damage, as well as allow for ventilation.

+ Before drilling any holes, carefully inspect the area undemeath and behind the mounting surface where the devices will be mounted to make sure it will not interfere with existing wires, fuel lines, the fuel tank or any other objects that could be damaged.

+ Always disconnectthe vessel negative battery terminal to prevent accidental shorting during installation.

DISC NOTES Depending on the recording status, conditions of the disc, and the equipment used for recording, some CD-Rs/CD-RWSs may not play on this unit For more reliable playback, please adhere to the following recommendations:

+ Use CD-RW with speed 1x to 4x and write with speed 1x to 2x.

+ Use CD-Rs with speed 1x to 8x and write with speed 1x to 2x.

+ Do notplay a CD-RW which has been written more than 5 times.

Compatible Disc Types

NOTE: CD-R and CD-RW discs will not play unless the recording session is closed and the CD is finalized,

+ A dirty or defective disc may cause sound dropouts while playing. Before playing, wipe the disc using a clean cloth, working from the center hole towards the outside edge. Never use benzene, thinners, cleaning fluids, anti-static liquids or any other solvent.

Insert label Wipe clean from side up. the center to the edge.

+ Be sure to use only round CDs for this unit and do not use any special shape CDs. Use of special shape CDS may cause the unitto malfunction.

+ Do notstick paper or tape on the disc. Do not use CDs with labels or stickers attached or that have sticky residue from removed stickers.

+ Do not expose discs to direct sunlight or heat sources.

NOTE: À disc may become scratched (aithough not enough to make it unusable) depending on how you handle it and other conditions in the usage environment. These scratches are not an indication of a problem with the player.

INSTALLATION This unitis designed for installation in vessels with an existing standard size DIN radio opening.

Before you begin, always disconnect the battery negative terminal.

Remove Transport Screw

Please remove the shipping screw before installation. Ifthe screw is left in place, the CD mechanism will not operate.

Before final installation, test the wiring connections to make sure the unit is connected propery and the system works.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the driling of holes or other modifications to your vessel.

Install the unit where it does not interfere with driving and cannot injure passengers if there is a sudden or emergency stop.

Avoid installing the unit where it will be subject to high temperatures from direct sunlight, hot air, or from a heater, or where it would be subject to excessive dust, dirt or vibration. Install the unit within 30° of the horizontal plane.

Check the dashboard opening size by sliding the radio into it. If the opening is not large enough, carefully cut or file as necessary until the radio easily slides into the opening. Check that there will be sufficient space behind the dashboard for the radio chassis. Use the included drilling template to prepare the opening on a new mounting surface.

Place the radio in front of the dashboard opening so the wiring can be brought through the DIN opening.

Follow the wiring diagram carefully and make certain all connections are secure and insulated with crimp connectors or electrical tape to ensure proper operation.

After completing the wiring connections, tum the unit on to confirm operation (vehicle accessory switch must be on). Ifthe unit does not operate, recheck all wiring until the problem is corrected. Once proper operation is achieved, tum the accessory switch off and proceed with final mounting of the chassis.

Carefully slide the radio into the dashboard making sure it is right-side-up.

Atach one end of the Perforated Support Strap (supplied) to the Rear Support Stud on the rear of the chassis using the M5 Mounting Nut provided. Fasten the other end of the perforated strap to a secure part of the dashboard either above or below the radio using the screw and plain washer provided. Bend the strap, as necessary, to position it. CAUTION: The perforated rear support strap must be used in the installation of the radio. Installation without the strap may result in damage to the radio or the mounting surface and void the manufacturer’s warranty.

Install the six #6 Stainless Steel Mounting Screws through the front of the radio into the dashboard.

CAUTION: Radio must be secured using all 6 mounting points. Failure to do so may result in damage to the radio or dashboard.

8. Test radio operation by referring to the operating instructions for the unit.

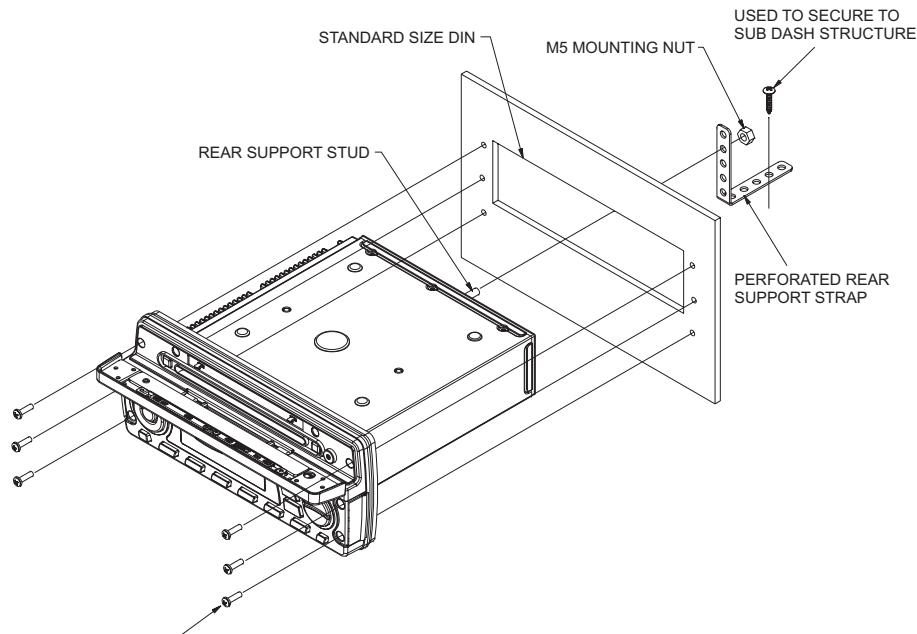

STANDARD SIZE DIN REAR SUPPORT STUD |

#6 ROUND HEAD STAINLESS STEEL MOUNTING SCREW (6-PLCS.) MINIMUM SGREW LENGTH 1 1/2"

Reconnect Battery When wiring is complete, reconnect the battery negative terminal.

USED TO SECURE TO SUB DASH STRUCTURE

PERFORATED REAR SUPPORT STRAP

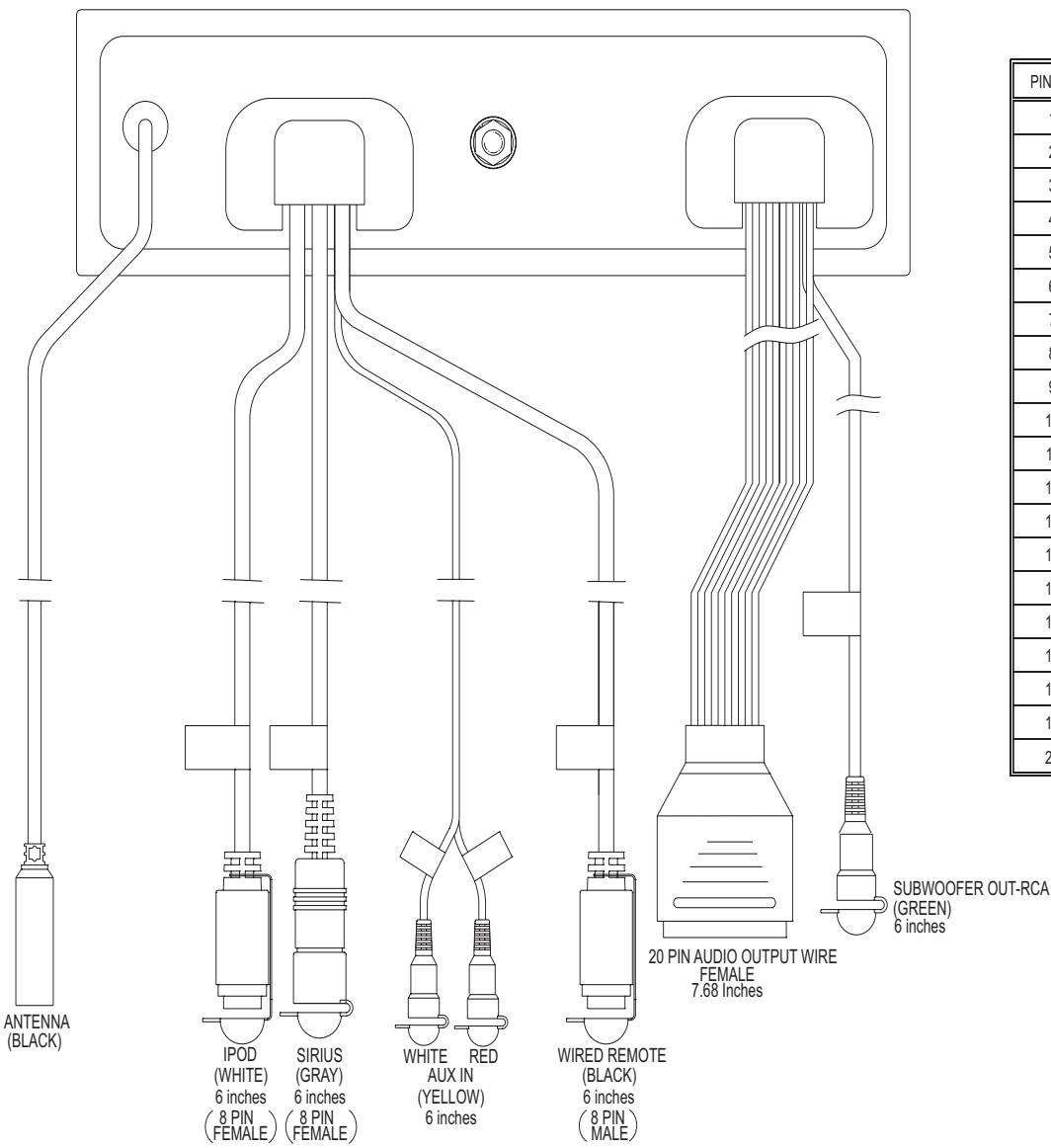

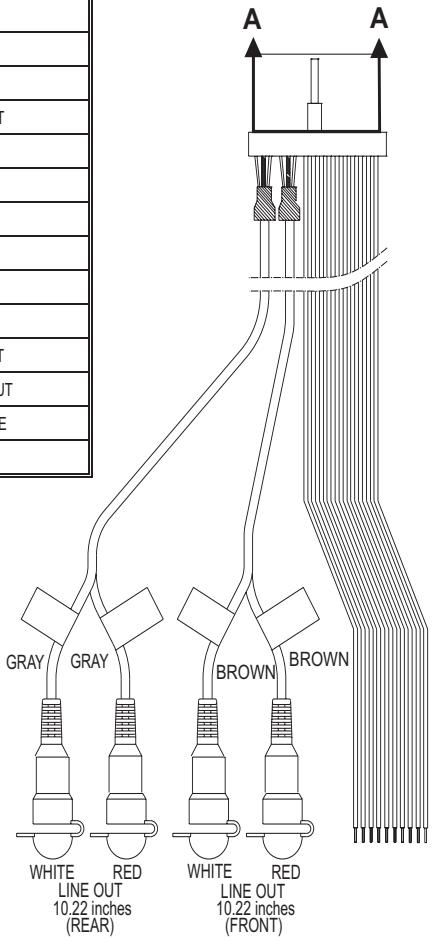

nn wire to the battery. This wire AK ANTENNA (BLACK)

(APN) (BPN (FÉMALE ) (FEUALE )

MUST be connected to a +12 volts switched power source.

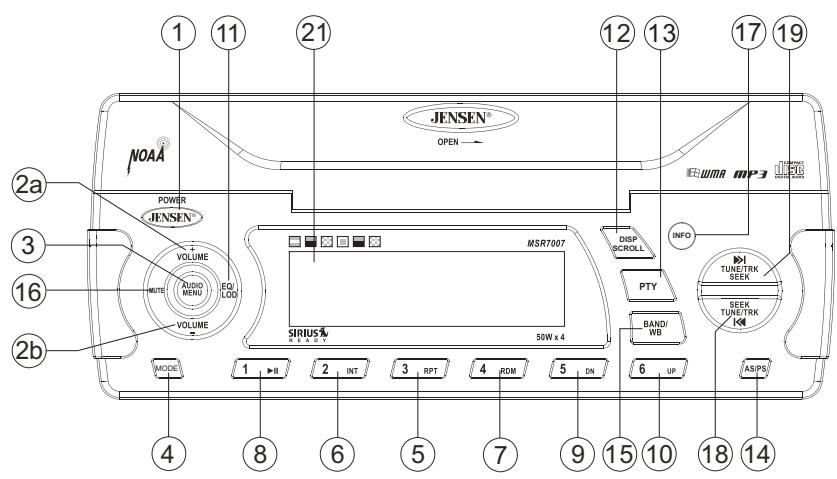

Press the POWER button (1) to tum the unit on or off. The unit will resume at the last mode selected (Tuner, Aux, etc.).

To increase the volume, press the VOLUME + button (2a). To decrease the volume, press the VOLUME - button (2b). While adjusting the volume, the LCD displays a bar graph and numerical representation of the level. The maximum volume setting is 40.

Press the MUTE button (16) on the control panel to mute the audio output. Press MUTE again to restore the audio output to the previous level.

Press the MODE button (4) on the control panel to select a different mode of operation, as indicated on the display panel. Available modes include Tuner (AM/FM), SAT Radio, CD, iPod and AUX In (optional Auxiliary Input).

NOTE: CD, iPod, or SIRIUS mode will be skipped if the module is not installed.

NOTE: SIRIUS Radio mode will be skipped when the Region menu option is set to “EURO”.

Use a ball point pen or similar object to press the RESET button (23). The RESET button should be activated for the following reasons:

+ initial installation of the unit when all wiring is completed

+ function buttons do not operate

+ errorsymbol onthe display

Press the AUDIO/MENU button (3) on the control panel to access the audio menu. You can navigate through the audio menu items by pressing the AUDIO/MENU button repeatedly. Once the desired menu item appears on the display, adjust that option by pressing the VOLUME buttons (2) within 5 seconds. The unit will automatically exit the audio menu after five seconds of inactivity. The following menu items can be adjusted.

Use the VOLUME buttons (2) to adjust the Bass level range from “ Treble Level

Use the VOLUME buttons to adjust the Treble level range from “-6” to “+6”.

Use the VOLUME buttons to adjustthe Balance between the left and right speakers from “12L" full left) to “12R” (full righb.

Use the VOLUME buttons to adjust the Fader between the rear and front speakers from “12R” full rear) to “12F” (full front).

+ Always operate the unit with the front panel door closed.

+ When closing the front panel door, do not apply pressure to the OPEN slide button.

+ Do not force front panel door operation when opening or closing.

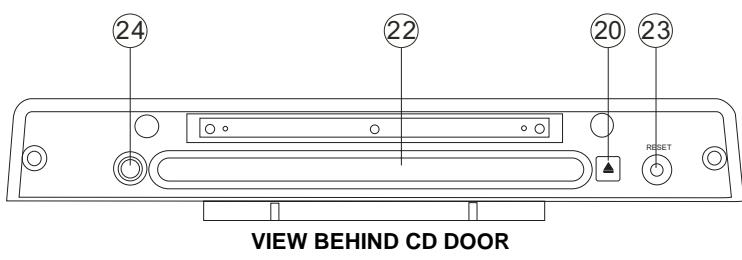

. Do not touch the door open detection switch (24).

Front Panel Door Alarm

To prevent damage to the unit by entry of water or debris through the CD opening, the front panel door should only be opened for a short period of time during CD loading or ejecting. Ifthe front panel door is left open for longer than 30 seconds, the current playback audio will mute and a beep tone will sound. Close the door to resume normal playback.

1. Press and hold the AUDIO/MENU button (3) for more than 2 seconds to enter the system menu. The first menu item, “Beep Tone”, will appear on the display.

2. Press the AUDIO/MENU button repeatedly to navigate the system menu and select the desired item.

3. Use the VOLUME buïtons (2) to adjust the selected menu item.

The following items can be adjusted:

+ Beep Tone (ON/OFF): Tum the audible beep ON/OFF (heard when functions/buttons are selected).

+ Region (USA/ÆEURO): Set frequency spacing for various regions.

+ Time Zone: Setthe local time zone (used only for Sirius satellite mode).

+ DST (Observed/Not Observed): Set for Daylight Savings Time.

+ Clock (12Hr/24Hr): Select 12 or 24 hour display mode.

+ Brightness (Low/Mid/High): Adjust LCD brighiness.

+ Contrast (Low/Mid/High): Adjust LCD contrast.

+ PwrOn Vol (0 - 40): Select an automatic tum-on volume.

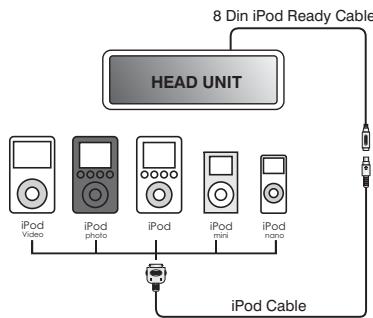

+ iPod Auto (ON/OFF): Choose "ON" to automatically detect and playback iPod when connected or “OFF "to use the MODE button to select the iPod source.

+ WB Alert (ON/OFF): Choose “ON” to switch to Weatherband mode when NOAA weather alerts are issued. (See “NOAA Weather Alert” on page 8.)

. Alert PWR (AUTO/OFF): Select “Auto” to turn on the radio when NOAA alerts are issued. This function only works when the #12V switched is on.

. Low Battery Alarm (ON/OFF): Monitor voltage on +12 volts switched line.

+ Default Set (NO/YES): Choose ‘YES" to retum the EEPROM to factory default set up values.

LOW BATTERY Operation

If LOW BATT is setto “ON, a alarm will sound (8 beeps every 30 sec) when the voltage drops t 10.8V (#- 0.03V). À visual waming (LOW BATT) will appear flashing (8 flashes every 30 sec) in the lower left comer of the LCD display.

NOTE: “OFF” is the default setting for LOW BATT. If the audio is muted or the volume is setto 0, the audible beep will not be heard.

Press the EQ/LOD button (11) to choose one of the following pre-defined bass and treble curves: OFF >FLAT >ROCK >POP >CLAS(SIC).

Press and hold the EQ/LOD button (11) toggle loudness onvoff. When listening to music at low volumes, this feature will boostthe bass and treble ranges to compensate for the characteristics of human hearing.

Auxiliary Input To access an auxiliary device:

1. Connectthe portable audio player to the AUX IN cables on the back of the radio.

2. Press the MODE button (4) to select AUX mode. 3. Press MODE again to cancel AUX mode and go to the next available playback mode.

Liquid Crystal Display (LCD)

The current frequency and activated functions are shown on the LCD panel (21).

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slighty. The LCD display will retum to normal when the temperature increases to a normal range.

To setthe clock to display the current time, tum the vehicle ignition on and tum the radio off. Press and hold the DISP/SCROLL button (12) for more than one second, and the time will flash in the display. Press the TUNE/TRK |<<button (19) to adjust the hours or the TUNE/TRK >> button (18) to adjustthe minutes. “AM” or “PM” will appear on the display to indicate AM or PM. When no adjustment is made for five seconds, the time will become set and normal operation will resume.

When the information is too long to be displayed on the LCD, press and hold the DISP/ SCROLL button (12) to view the entire title. The information will scroll twice and then retum to abbreviated text.

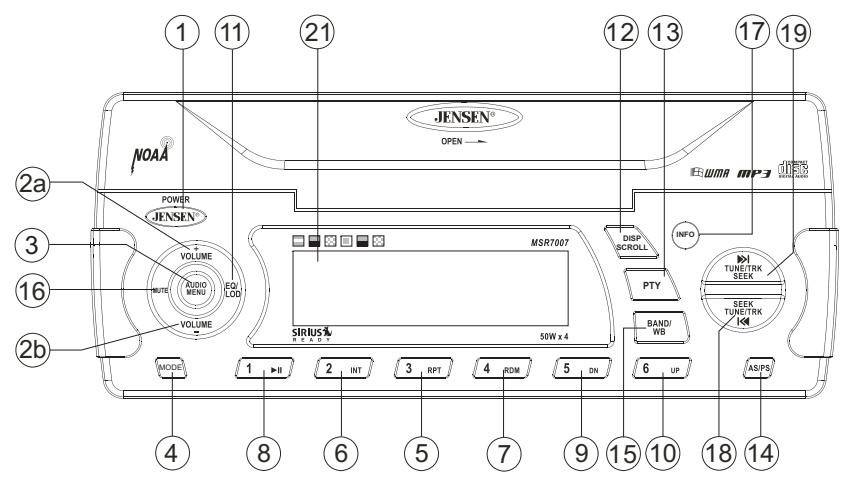

TUNER OPERATION S4540 48 44

Press the BAND button (15) to change between three FM bands and two AM (MW) bands. Press and hold the BAND button to access the Weatherband (WB).

Manual Tuning Press the TUNE/TRK > or |<<buttons (19, 18) to seek stations up/down step by step.

Press and hold the TUNE/TRK > or |<<buttons (19, 18) to automatically seek the next or previous strong station.

NOTE: Seek tuning is not available for weather band channels. Use the up or doun tuning buttons to manually select any of the seven available band channels.

Automatically Store / Preset Scan (AS/ PS) Automatically Store

Select an AM or FM band. Press and hold the AS/PS (14) button for more than 2 seconds to automatically select six strong stations and store them in the current band. The new stations replace any stations already stored in that band.

Preset Scan Select a band. Press AS/PS (14) to scan stations stored in the current band. The unit will

pause for 5 seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached.

This unit is equipped to display RBDS (Radio Broadcast Data Service) information when broadcast by the radio station. The following LCD indicators appear when data is received: . RBDS: The current radio station is broadcasting RBDS data.

+ PTY: Program Type data is being received. When flashing, PTY search is in progress.

NOTE: Radio stations broadcasting RBDS may not be available in your listening area.

In FM radio mode, press the PTY button (13) to list the following search options: ANY / News /

Information / Sports / Talk / Rock / Classic Rock / Adult Hits / Soft Rock / Top 40 / Country /

Oldies / Soft / Nostalgia / J azz / Classical / Rhythm and Blues / Soft R&B / Language /

Religious Music / Religious Talk / Personality / Public / College / Weather / Emergency Test /

To search for stations in a PTY category:

1. Press the PTY button (13) to view the current PTY category.

2. Use the VOLUME buttons (2) to move through the list of available categories and select the program type you wish to search.

3. After selecting the desired PTY, press and hold the TUNE/TRK >> or |<<button (19, 18) to search the band for broadcasts of this type.

Six numbered preset buttons store and recall stations for each band.

Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two seconds. The preset number will appear on the LCD.

Select a band (if needed). Press a preset button (5-10) to select the corresponding stored station.

NOTE: Preset buttons will not function in weather band mode.

NOTE: Performing a PTY search on “ANY” will Seek Tune and stop on any station broadcasting RBDS, regardiess of the program type.

What is the NOAA Weather Radio/Weatheradio Canada?

This is a nationwide system that broadcasts local weather emergency information 24 hours a day. The U.S. network has more than 530 stations covering the 50 states as well as the adjacent costal waters, Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific Territories. Each local area has its own transmitting station and there are a total of seven broadcasting frequencies used. A similar system is available in Canada under the Weatheradio Canada service administered by Environment Canada.

Tuning to Weatherband

Press and hold the BAND/WB button (15) to access the Weatherband. The indication "WB" will appear on the display panel, along with the current number and channel indication: "CHO1", CHO2" "CH06" or "CHO7". Use the TUNE/TRK >> or |<< buttons (19, 18) to tune to each of the seven channels until you find the weatherband station broadcasting in your area.

How many stations can | expect to receive?

Since the broadcasts are local weather and information, the transmission power is usually very low (much less than standard AM or FM stations) so you will usually receive only one station unless you are on the edge of two or more broadcast signals. The most you will receive will be two orthree, and that is rare.

is it possible 1 won't receive any stations?

Depending on where you are located, there is a possibility you will receive only a very weak signal or none at all. Also, similar to AM and FM signals, weatherband signals are subject to surrounding conditions, weather, obstructions of the signal by hills or mountains, etc.

The Weather Alert function adds an additional level of user safety by automatically switching from any of the available function modes (Tuner, SAT, CD, iPod, AUX) to weather band for a minimum of 60 seconds if a NOAA waming tone (1050 Hz) is received/detected. If no additional waming tone is received for 60 seconds, the unit will switch back to the last known function mode. See ‘System Menu” on page 6 to leam how to tum the WB Alert feature on.

Inserting and Ejecting a Disc Insert a disc, label-side up, into the disc slot (22). The unit will automatically draw the disc in and play the first track on the disc, whether the power was turned on or not.

Press the eject A button (20) to stop disc play and ejectthe disc. The unit does not have to be on to ejectthe disc.

Controlling Disc Playback

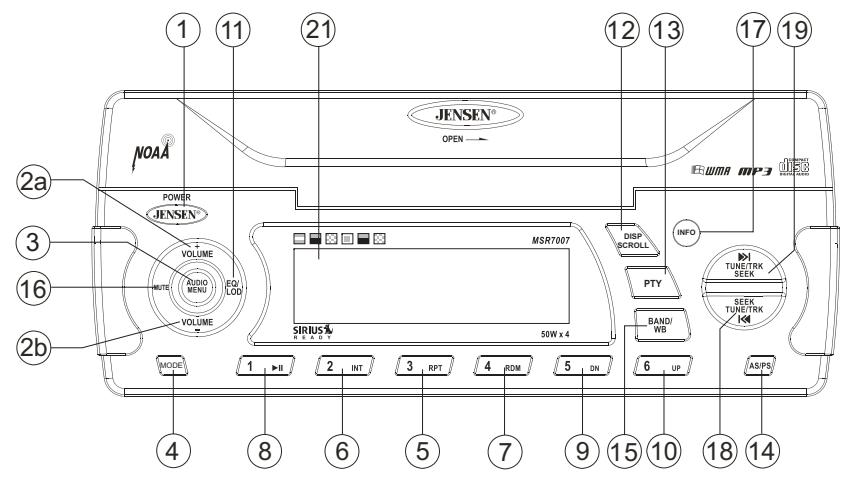

Press the TUNE/TRK >>} (19) or TUNE/TRK |<< button (18) to advance to the next track on the disc. The selected track number will appear on the display. Press and hold the TUNE/TRK >> or |<< button to fast forward or fast reverse through the disc. Disc play starts when the button is released.

Play/Pause Disc Playback

Press the 1/>|| button (8) to suspend disc play. Press the 1/>| button again to resume disc Play.

Press the 2/INT button (6) to play the first 10 seconds of each track sequentially. Press 2ANT again to stop Intro Scan and resume normal play at the current track.

+ Press the 3/RPT button (5) during disc play to repeat play the current track.

+ Press and hold the 3/RPT button to repeat the current folder.

+ Press 3/RPT again to stop repeat play.

+ Press the 4/RDM button (7) during disc play to play all tracks in random, shuffled order. + Press and hold the 4/RDM button to randomiy play all files in the current folder. + Press 4/RDM again to stop random play.

Folder Navigation (MP3 Only)

Press the 5/DN button (9) to select folder down.

Press the &/UP button (10) to select folder up.

Notes on MP3 Playback

+ Any directory that does not include an MP3 file is skipped

+ Maximum number of folders: 512 (including skipped directories)

+ Maximum number of folder levels: 12

+ Maximum number of MP3 files: 999

+ Maximumnumber of characters for MP 3 file name

+ 1D3 Tag version 1.0: 32 + ID3 Tag version 2.x: 32

When selected for play, files and folders (Folder (7

Search, File Search or Folder Select) are accessed in ts

the order they were written by the CD writer. As a Je result, the order in which they are expected to be Level 1 Level 3

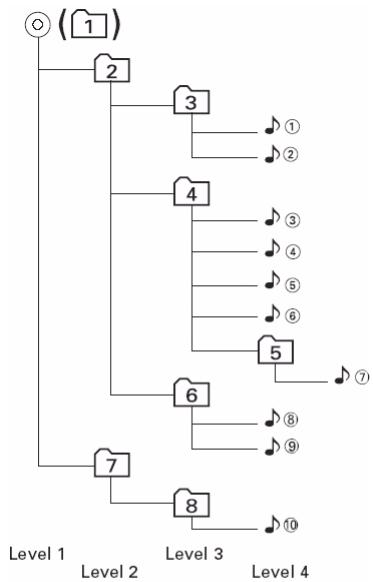

played may not match the order in which they are Level 2 Level 4

actually played. You may be able to set the order in which MP3/WMA are to be played by writing them onto à medium such as a CD-R with their file names beginning with play sequence numbers such as "O1" to "99".

For example, a medium with the folder/file hierarchy illustrated on the right is subject to Folder Search, File Search and playback order.

(1 Folder À Fe @ Root

Accessing your RADIO ID To display your radio ID, use the TUNE/TRK |<< button (18) to tune to channel “000”. The screen will display “Sirius ID” on the top bar with the SID displayed in the middle of the LCD screen. The Sirius Radio ID is 12 characters long.

In Sirius mode, press the BAND button (15) to access the Sirius user-preset channel groups in the following order: SR-1, SR-2, SR-3.

1 Press the INFO button (17) to access Category mode.

2. While the category is flashing, press TUNE/TRK |<</ >> buttons (18, 19) to choose à category.

3. Press the INFO button to confirm category selection and tune to the first channel in the selected category. The category icon will stop flashing.

4. Press the TUNE/TRK |<</ >>} buttons (18, 19) to choose desired channels in that category. (The lowest channel number within the chosen category will always be the default first channel tuned.)

5. Press and hold the INFO button to retum to channel tuning mode.

Channel Up/ Down Tuning

Press the TUNE/TRK |<</ >>} buttons (18, 19) to search for a channel. Press and hold the TUNE/TRK buttons to fast search.

Storing Preset Channels

The preset buttons (5-10) can be used to store 6 channels, allowing convenient access to your favorite channels.

Programming Channels

1. Selectthe channel you want to store in memory.

2. Press and hold a preset button (5-10) until the corresponding preset button number

appears. 3. Repeat steps 1 and 2 to program additional channels. Quick Tuning

Press one of the six preset buttons (5-10) to select a preset channel directiy. Preset Scan

Select a band. Press AS/PS (14) to scan stations stored in the current band. The unit will pause for 10 seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached.

Press and hold the AS/PS button (14) to access Preset Tuning Mode. In Preset Tuning Mode, you can use the TUNE/TRK |<</ >> buttons (18, 19) to access all 18 preset stations in sequential order. Press and hold the AS/PS button again to deactivate Preset Tuning Mode.

Alternate Display Mode

Press the DISP/SCROLL button (12) to change the display information between single and dual line text display. In dual line mode, both artist and title are available for viewing.

Press and hold the DISP/SCROLL button while in single line text display to start scrolling of Artist/Song Title information.

Satellite Signal Strength The display will indicate satellite reception strength as shown below.

Signal Strength Strength Display No Signal Vx Weak Y, Good Va Excellent Val

While tuned to the channel to be locked, press and hold the MODE button (4) to access the Channel Lock function. “Enter Code”is displayed on the LCD. Using the 1-6 digit buttons, enter your 4-digit code (the default code is 1111). “Channel Locked” appears on the LCD, confimming thatthe channel has been locked. The next time the channel is sequentially accessed, the “Channel Locked” message will appear, followed by “Enter Code”. To retrieve the locked channel, enter your 4-digit code. To change the channel lock code, press and hold the PTY button (13). Enter Current Code > New Code >Confirm. The LCD will display “New Code Stored”.

iPod OPERATION This unitis equipped with an iPod ready function that will allow you to control your iPod (if compatible) using the control panel control buttons. The following iPod versions are supported: + iPod 3G (firmware version 2.2 only)

NOTE: iPod and iPod Cable sold separately.

The unit will automatically switch to iPod mode when an iPod is plugged into the iPod cable.

8 Din iPod Ready Cable

To return to the iPod menu from any other source, press the MODE button (4) on the control panel or. remote control until Pod” appears on the display.

Turning the iPod On/ Off

The iPod power tums on automatically when an iPod is connected to 30-pin iPod cable, as long as the vessel ignition is tumed on. You can tum the iPod off by disconnecting it from the cable or by tuming the ignition off. When the +12 volts switched power source is tumed of, the iPod will pause and then enter sleep mode after 2 minutes. While the iPod is connected, the power cannot be tumed on or off from the iPod itself.

Selecting Tracks During playback, press the TUNE/TRK |<</ >> button (18, 19) to play the previous or next track in the current category. Press the TUNE/TRK |<<button (18) once to play the song from the start position or press TUNE/TRK |<<twice to play the previous track.

Press and hold the TUNE/TRK |<</ >>} button (18, 19) to fast reverse/forward the song.

NOTE: f you press and hold the TUNE/TRK |<</ >>| button to change the current song to the previous/next song, you will exit fast reverse/forward mode.

NOTE: The iPod will continuously recharge when connected to the unit, as long as the vessel +12 volts switched power source is tumed on.

Controlling Playback

During playback, press the 1/#] button (8) to pause the iPod player. “Pause” will appear on the LCD. Press 1/#| again to resume playback.

During playback, press the 3/RPT button (5) to repeat the current song. “Repeat” will appear on the LCD. Press again to select ‘“Repeat All”. Press 3/RPT again to stop repeat playback. Random Play

During playback, press the 4/RDM button (7) to play all songs in the current category in random order. Random play will begin once the current song has finished playing. “Shuffle” will appear on the LCD. Press 4/RDM again to stop random playback.

Playlist Selection Press the INFO button (17) to access Playlist selection mode.

. Press the 5/DN button (9) to select list down. . Press the 6/UP button (10) to select list Up. + Press the 1/>| button (8) to select and start playback.

Alternate Display Mode

Press the DISP/SCROLL button (12) to change the display information between single and double line text display.

CARE AND MAINTENANCE

+ Ifliquids (coffee, soda, etc.) are spilled on the radio, wipe it dry immediately. Some liquids contain minerals that can corrode the electronic circuits.

+ Keep the product away from dust and dirt, which can cause premature wear of parts.

+ Handle the product gentiÿ and carefully. Dropping it can damage circuit boards and cases, and can cause the product to work improperiy.

+ Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the product.

+ Use and store the product only in normal temperature environments. High temperature can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts.

The most common source of noise in reception is the ignition system. This is a result of the radio being placed close to the ignition system (engine). This type of noise can be easily detected because it will vary in intensity of pitch with the speed of the engine.

Usually, the ignition noise can be suppressed considerably by using a radio suppression type high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ this wire and resistor but it may be necessary to check them for correct operation.) Another method of suppression is the use of additional noise suppressors. These can be obtained from most professional mobile electronics retailers.

Radio reception in a moving environment is very different from reception in a stationary environment (home). It is very important to understand the difference.

AM reception will deteriorate when passing under a bridge or when passing under high voltage lines. Although AM is subject to environmental noise, it has the ability to received at great distance. This is because broadcasting signals follow the curvature of the earth and are reflected back by the upper atmosphere.

TROUBLESHOOTING Symptom

The vessel's +12V switched power source is not on

If the radio power supply is prop- ery connected to the vessel's #12V switched power source ter- minal, switch to “on” position

Disc cannot be loaded or

Presence of CD disc inside

Remove the disc in the player and

ejected the player insert the new one If disc will not eject, press the RESET button Inserting the disc in reverse | Insert the compact disc with the direction label facing upward Compact disc is extremely | Clean the disc ortry to play a new dirty or disc is defective one Condensation Leave the player off for an hour or so, then try again No sound Volume is too low or system | Adjust volume to audible level

Wiring is not properly con- nected

Check wiring connections

The operation keys do

Front panel not propery

more than 30 degrees

not work closed The built-in microcomputer | Press the RESET button is not operating properly due to noise Sound skips The installation angle is Adjust the installation angle to

less than 30 degrees

The disc is dirty or defec- tive.

Clean the disc and ty to play again or use new disc

Cannot tune to radio sta- tion, auto-seek does not work

The antenna cable is not connected

The signals are too weak

Select a station manually

cp Signal to Noise Ratio. 275 dB Channel Separation .… : More than 50 dB Frequency Response 20 Hz - 20 kHz FM Radio

Frequency Coverage (USA) Frequency Coverage (Europe) .

87.5 to 107.9 MHz 87.5 to 108 MHz

Sensitivity (S/N=30dB) . 2. AV Image Rejection >45 dB Stereo Separation . . 225 dB AMMW Frequency Range (USA). . . 530-1710 kHz Frequency Range (Europe). ossi . 522-1620 kHz Sensitivity (S/N=20dB) 36 dB General Operating Voltage Grounding System . Speaker Impedance Tone Controls:

Treble (at 10 kHz). Power Output Current Drain. . Idie/Standby Current Dimensions

mecs DC 12 Volts .….. Negative Ground 4-8 ohms per channel

- 80 (W) x 183 (D) x 58 (H)

+ initial installation of the unit when all wiring is completed

. RBDS: The current radio station is broadcasting RBDS data.

(1 Folder À Fe @ Root

To return to the iPod menu from any other source, press the MODE button (4) on the control panel or. remote control until Pod” appears on the display.

(1 Folder À Fe @ Root
