USER MANUAL DYNABASS 800H TRAYNOR
B A S S G U T A R A M P L I F I E R
IMPORTANT SAFETY INSTRUCTIONS
This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the ccompanying the appliance.
Instructions pertaining to a risk of fire, electric shock, or injury to a person
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Read Instructions: The Owner's Manual should be read and understood before operation of your unit. Please, save these instructions for future reference and heed all warnings.
Clean only with dry cloth.
Packaging: Keep the box and packaging materials, in case the unit needs to be returned for service.
Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water!
Warning: When using electric products, basic precautions should always be followed, including the following:
Power Sources
Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated.
Hazards
Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer.
The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.
Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.
Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Power Cord
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. If the AC supply cord is damaged DO NOT OPERATE THE UNIT.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Service
The unit should be serviced only by qualified service personnel.
SUIVEZ TOUTES LES INSTRUCTIONS
The Traynor DynaBass 800H has been designed with the needs of professional bass guitar players in mind. We believe you will find your Traynor DynaBass 800H to be dependable and versatile for years to come.
When you need the extras, they're all here
- Selectable Solid-State or Tube input gain
- Inputs for either Passive (0 dB) or Active basses (-6 dB).
- A tube preamp for warmth, and a solid-state output stage for definition.
- Gain and Distortion controls let you dial-in the perfect amount of warmth and even overdrive.
- The Distortion circuit can be activated by using the switch on the front panel or by using an optional footswitch.
- The Distortion Mix control lets you blend-in the amount of tube distortion.
- The Scoop control lets you tailor your sound precisely and uniquely by emphasizing lows and highs while reducing the midrange.
The Resonance control allows you to tweak the bass tone from tight to loose. - Five-band, active tone shaping controls (including a fine-tunable Parametric Mid control).
- Footswitchable external effects patching with an Effects Return level control and footswitch jack.
An easy-to-use Compressor circuit provides even more detailed control of your bass dynamics. - A separate, selectable Limiter circuit helps prevent output-stage clipping-distortion.
- A Tuner Out jack lets you keep your tuner connected without affecting your signal path so it's always available for quick reference and adjustments. The Mute button ensures that the audience doesn't hear you tuning!
Balanced 1 / 4 -inch TRS and XLR line outs selectable between Pre-EQ (real D.I.) or Post-EQ. - Speakon™ and 1/4 -inch speaker outputs (all jacks are in parallel, min 2-ohm load).
Please take a little time to read the following instructions; then plug in, switch on, and unleash your musical creativity!
Traynor

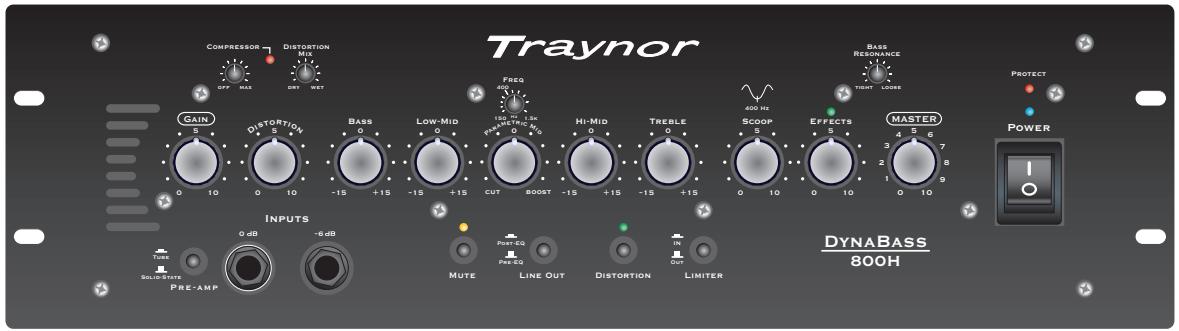

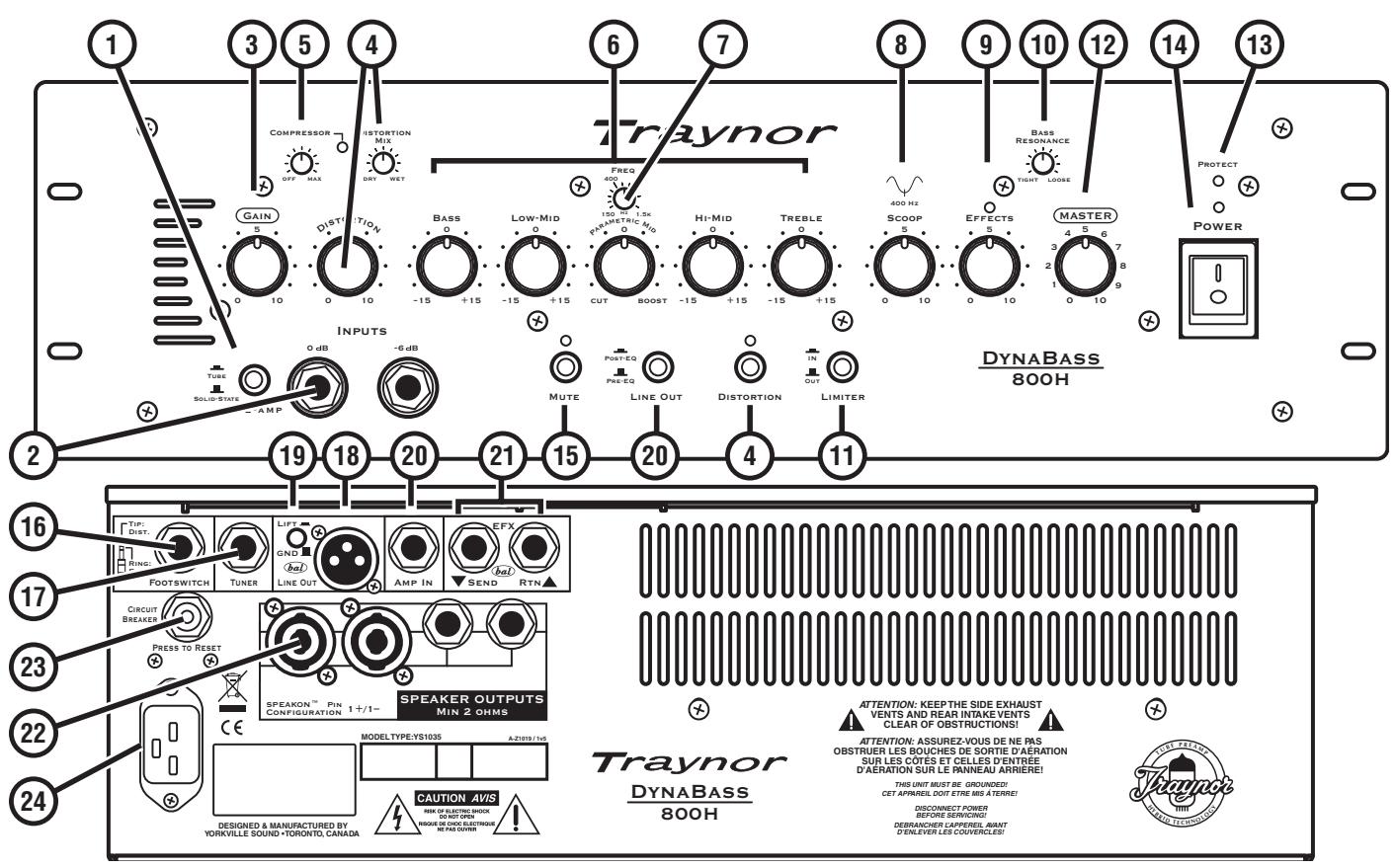

① Tube and Solid-State Pre-Amp mode switch
② 0dB / Passive and -6dB / Active Input Jacks – 1/4 -inch phone jacks.
③ Gain control
④ Distortion Switch, Mix and control
⑤ Adjustable Compressor
^6 Tone Controls – Bass, Low-Mid, Hi-Mid and Treble.
⑦ Semi-Parametric Mid tone control
⑥ Scoop control.
Effects Return control and LED
Bass Resonance control
Switchable Limiter
12 Master control
Protect LED
14 Power LED and Power switch
Mute switch
Distortion and Effects Return Footswitch - 1 / 4 -inch TRS phone jack
Tuner out - 1 / 4 -inch phone jack
Line Out XLR Jack and Selector Switch - Switch between Pre-EQ and Post-EQ settings
Ground Lift switch
20 Amp In Jack
EFX Send and EFX Return Jacks – 1/4 -inch TRS phone jacks
22 Speaker Output jacks - 14 -inch and Speakon™ connectors
② Circuit Breaker
24 AC Power connector
1. Preamp Mode Switch
Depending on your preference, choose either solid-state or tube gain input for the preamp.
2. 0dB / Passive and -6dB / Active Input Jacks
We suggest the following: use the 0dB/Passive input for bass guitars with passive electronics, like single-coil and humbucking pickups; use the -6dB/Active input for active pickups (or extremely 'hot' pickups). However, you may prefer to run your active pickup bass guitar into the 0dB/Passive input for an intentional aggressive sound – you are in control.
User Tip: Don't use both inputs at the same time as they're not intended for connecting more than one instrument at a time.
3. Gain Control
The Gain control is a volume adjustment for the preamp, which is selectable - using either solid-state or tube circuitry. The tube circuitry features a single 12AX7A (dual-triode) preamp tube. The Gain control should normally be set around the middle, which should be the position for most basses. If your bass has an unusually low output, increase the Gain control to the desired level, conversely for higher output basses use a lower setting. Increasing the Gain control also affects the level of distortion when the Distortion feature is engaged.
4. Distortion Switch, Mix and Control
The Distortion feature controls the amount of tube distortion (saturation) in the signal. The tube distortion is powered by a 12AX7A, dual-triode preamp tube. Activate the circuit by depressing the Distortion mode switch or using an optional footswitch (AFS-2). The red LED, above the Distortion switch, will illuminate indicating Distortion mode is active. To achieve higher levels of overdrive, increase the Gain control at the preamp stage. If you want your distortion level to go beyond the usual threshold into modern lead-style distortion, increase the Distortion control fully clockwise. Naturally, there will be some extra noise coming out of the amplifier at this high setting. This is a normal compromise when achieving so much overdrive.
User Tip: Many unique sounds can be obtained by changing some controls in conjunction with the Distortion control. Some bassists prefer minimal distortion with a lot of Scoop, some may prefer massive overdrive (and lots of midrange growl) and others may go for that deep dry bass. These sounds can be achieved easily by adjusting the Scoop, the Distortion and the Distortion's Mix controls in conjunction with each other.
User Tip: The Distortion circuit can also be activated by an optional footswitch (AFS-2). A red LED, located directly above the Distortion switch, will illuminate. Some players find this useful as a boost for loud passages or soloing.
Note, when using the footswitch the front panel Distortion selection switch is deactivated.
The Distortion Mix control becomes active when the Distortion mode is activated. This control blends an underlying clean tone below the distorted tone. In the Dry counter-clockwise setting, clean signal is allowed to dominate the mix with no distortion. When rotated clockwise, into the Wet region, the distortion sound becomes more apparent. The Distortion overdrive will continue to increase until it is the dominant sound in the mix (fully Wet position). This helps you achieve a perfect Wet/Dry blend between a completely clean and completely saturated distortion tone. This is a handy feature that puts you in control of your distorted tone.
5. Compressor
To increase the consistency of your tone and further the performance of the power amplifier, we have provided an adjustable compressor. This compressor is fairly simple to use, with only a simple threshold control to make adjustments. The compression ratio is 2:1 and the attack/release-time is preset optimally.
Note: To use the Compressor, rotate the control clockwise until the desired threshold is reached. It will be apparent to you audibly as well as visually; a red LED (located to the right of the control) will illuminate as the compressor limits the signal. The LED will also indicate how much compression is being applied by its intensity and duration.
6. Tone Controls
Each tone control permits a wide range of adjustment. The five overlapping controls cover the entire audio spectrum. The Bass adjusts the level of the low frequency range, Low Mid the next range up, Hi Mid covers higher notes and middle harmonics and the Treble control regulates the upper harmonic range. Each tone control has a variable boost and/or cut of 15 db. The center position denotes a neutral or nominal setting. The Parametric Mid control is described in detail in section 7, below.
User Tip: It's a good idea, when starting out, to center all tone controls. While playing, adjust them until you achieve the desired sound. Remember, if the Parametric Mid control is set at 0, rotating the Frequency control will have no effect.
7. Parametric Mid Control
The Parametric Mid control enables adjustments to be centered on frequencies ranging from 150Hz - 15kHz .
User Tip: To use this control, set the position of the Parametric Mid level control to cut or boost. Rotate the Frequency control until the desired frequency range is found. Once the frequency range is chosen, adjust the Parametric Mid level until the desired cut or boost level is achieved.
User Tip: Try using the Parametric Mid in conjunction with the Scoop feature. When using the Parametric Mid, it's possible to enhance the Scoop's capabilities by letting the two tone-shaping controls work in tandem. If you like the added bottom of the Scoop but wish to soften the midrange at 1 kHz (but still maintain the higher frequencies); adjust the Parametric Mid Frequency control to 1.0 kHz and then use the Parametric Mid level control to cut as much as you need. The 400 Hz frequency has been conveniently marked on the Parametric Mid's Frequency control.
8. Scoop Control
The Scoop enhances the tone of the bass by shaping the mid frequencies around 400Hz . By shaping the bottom-end fundamentals and high frequency brilliance subtleties normally hidden are revealed. The Scoop shapes specific upper and lower frequencies while notching particular mid frequencies. It utilizes a variable tone curve that reacts differently depending on where it is set. The result is a greatly expanded tonal range and control. As shown on the front panel, the center frequency of the scoop is centered around 400Hz . If you desire more scoop, turn the parametric mid frequency control to 400Hz and set the gain counterclockwise to cut until the desired amount is reached.
User Tip: As with the tone controls, it's recommended to set the Scoop control initially at the mid point. Adjust it slowly, either way, until the desired tone is achieved.
Tip: Combine the Scoop, the Distortion and Distortion Mix for unparalleled levels of tonal control. Set the Distortion and the Distortion Mix to their maximums and play your bass while slowly rotating the Scoop from its off position to its MAX position, you'll find the variation in the effect to be quite dramatic and yet very musical at the same time.
9. Effects Return Blend Control
Use the Effects Send jack to send a dry, uneffectcd signal to an external effects unit. The externally processed signal then can return to the amplifier through the Effects Rtn jack. The Effects Rtn blend control regulates how much of the effected signal is blended with the dry signal (un-effectcd signal). This can range from totally dry (without effects) to very wet (effects applied).
User Tip: If a wetter signal is desired, set the output signal from the external effects processor to a high output.
10. Bass Resonance Control
The Bass Resonance control adjusts the amount of low frequency damping of the amplifier. Turning the control clockwise towards Loose reduces the damping factor and allows the resonance of the speaker cabinet to be more pronounced. Setting the control towards Tight increases the damping factor to achieve a punchier sound.
11. Selectable Limiter
In order to prevent hard clipping of the power amplifier, a selectable limiter is provided.
12 Master Volume Control
The Master volume control adjusts the overall signal level of the amplifier.
13. Protect LED
The red Protect LED displays the status of the internal protection circuitry. When the DynaBass 800H is initially powered up internal protection circuits are activated, no output will be heard until the red Protect LED automatically shuts off. In a rare case of amplifier shutdown or if the output is shorted, the amplifier will take approximately 15-20 seconds to reinitialize and obtain full power.
14. Power
The LED above the Power switch will illuminate when the unit is on
15. Mute Switch
The Mute switch disengages the preamp signal from the Line Out and power amplifier, disabling signals sent to the mixing console and speaker cabinets. The Tuner Out jack is still enabled (see Tuner Out in the Rear Panel section).
Rear Panel
16. Dual Footswitch Jack (Distortion and EFX-Return)
A dual footswitch jack can be used to switch the Distortion and the external Effects on and off.
The footswitch uses a standard TRS 14 -inch based dual footswitch (AFS-2). When either effect is activated, corresponding LED's on the amplifier will illuminate and off (and on the footswitch as well). The Effects are only switchable by the footswitch, but the Distortion can be enabled or disabled by either the footswitch or the switch located on the front panel. The footswitch control overrides the front panel switches.
17. Tuner
The Tuner out 14 -inch jack sends the signal from your bass guitar to an outboard instrument tuner. Simply connect one end of a 14 -inch shielded cable to the Tuner Out jack and the other to the instrument tuner. Pressing in the Mute button will mute the output to the speakers as well as to the line out, but not the Tuner out.
Tip: Leave your tuner connected to the Tuner Out jack and Mute the signal any time you wish to tune in silence. A very handy feature when onstage and the unpleasant sound of tuning is not something you wish the audience to hear amplified through your performance speakers or the sound system.
18. XLR Line Out Jack
This jack is used to connect directly to mixing consoles. You may prefer to use this when performing live or recording in the studio.
Selecting the Pre-EQ option in the Line Out mode selection switch (located on the front panel) makes the Line Out behave like a typical D.I. box: it provides a pre-EQ and pre-EFX signal. The Post-EQ option sends the signal post-EQ and post-EFX, which enables the output to drive another amplifier or the mixing console.
Note: When the Mute switch is engaged, a signal will not be sent to the mixing console through the XLR output.
19. Ground Lift Switch
The Ground Lift switch is located next to the balanced Line Out XLR on the rear panel. If hum is detected, when connecting from the balanced Line Out XLR to a mixing console (or any other audio device), lift the ground (pin 1) by pressing the Ground Lift switch in.

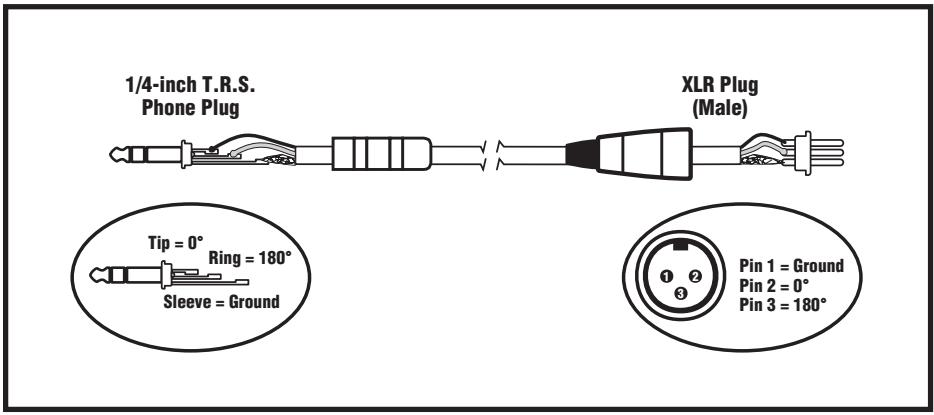

20. Amp In 1/4 -inch Jack
The balanced Amp In jack is located on the rear panel of the DynaBass 800H. The Amp In jack provides a direct path to the DynaBass 800H's power amplifier, bypassing the preamp. The Master control still controls the overall output level. Multiple DynaBass 800H's can be linked together by using the DynaBass 800H's balanced XLR Line Out to additional DynaBass 800H Amp In jacks.

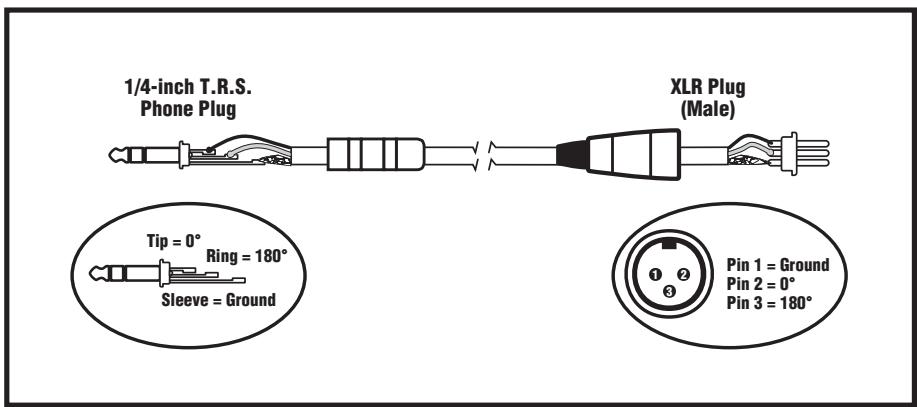

Balanced 1/4-inch T.R.S. to Balanced XLR
21. Effects Send and Return 14 -inch Jacks
External effects processors are provided with a balanced post-EQ signal from the Effect Send jack. The balanced Return jack is used to return effects (processed audio signals) back into the DynaBass 800H. The Effects Return control, located on the front panel, regulates the blend of effected and un-effected signal. This input can also be used as an auxiliary input for mixing in a secondary source of audio such as pre-recorded music.
User Note: The Effects Send jack can also be used as additional line out for sending signals to another power amplifier. The output of this jack is not muted when the Mute switch is enabled.
22. Output Jacks
The 1/4 -inch and Speakon™ jacks are used to connect extension speaker cabinets. All speaker output jacks are in connected in parallel; the minimum load impedance is 2-ohms (e.g. two 4-ohm or four 8-ohm cabinets).
23. Circuit Breaker
In the event the DynaBass 800H amplifier draws excessive electrical current from the wall receptacle, the circuit breaker will trip to cut power to the unit and prevent further damage from occurring. Once the amplifier has cooled, the breaker may be reset to re-enable operation. If the amplifier's circuit breaker continues to trip, please have the DynaBass 800H inspected by a qualified service technician.
24. AC Power Receptacle
The DynaBass 800H is equipped with a standard grounded IEC power receptacle. Only use the supplied removable power cord or one that uses a minimum of 16 gauge wire.
25. Cooling system
Two 3-inch fans cool the DynaBass 800H. The fans are run at low speed and the speed self-adjusts depending on how hard the amplifier is working. The air intake vents are located at the rear of the amplifier and on the top (near the back). The exhaust vents are located at the sides.
Caution: The rear vent must be kept clear in order for the air to enter into the amplifier. The side vents are used to allow warm air out of the unit. Allow at least an inch clearance for each side. Always keep the rear of the unit unobstructed. Rack-mounting the DynaBass 800H chassis will not affect intake/exhaust airflow as long as the rear of the rack casing is open during operation and 1 inch of clearance along the sides is unobstructed.

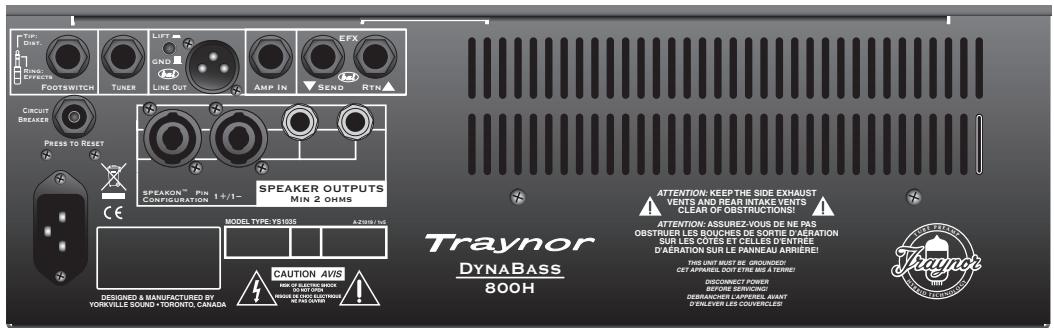

26. Preamp Tube Replacement
Use only Yorkville Sound part number "12AX7SORTED" when replacing preamplifier tubes as they have been specifically selected for this product. Please refer to the Service Manual for more information.
DynaBass 800H
Balanced 1/4-inch T.R.S. to Balanced XLR
| Frequency Response (Hz +/-3dB) | 20hz - 20khz |
| Hum and Noise (dB) | -90dB Unweighted / -94db A weighted |
| Input Channels | 1 |
| Channel 1 - inputs | 2x 1/4 inch, 0dB / -6dB |
| Channel 1 - controls | 5 Band EQ w/ parametric sweepable mid, Distortion |
| Channel 1 - switches | Limiter, Compressor, Distortion, Tuner Mute |
| Master Volume Control | Yes |
| Input Sensitivity (mV) | 80 |
| Master Outputs | Speakon™, 1/4-inch (x2) |
| Line Out (type / configuration) | Pre/Post EQ - XLR, Bal TRS |
| Line Out Sensitivity (Vrms) | 1 |
| Effects Loop / Location | Rear |
| Effects Footswitch / Function | Distortion / Effects Loop |
| Effects Return Sensitivity (Vrms) | 1 |
| LED Indicators | Power, Distortion, Compressor, Mute, EFX Rtn |
| Protection | Thermal, Short Circuit |
| Limiter / Switchable | Yes / Yes (Output Clip Limiter) |
| External speaker output / location | 2 x 1/4 inch, 2 x Speakon™ |
| Headphone Jack | No |
| Amp In (rear) | |
| Parametric Mid | |
| Blend level on EFX Return | |
| Other Features | Wet/Dry Control on Distortion mode |
| Adjustable Compressor | |
| Tuner mute switch and 1/4-inch tune out jack | |
| Bass Resonance | |
| Tube/Solid State input selector switch | |
| Dimensions (DWH, inches) | 13 x 19 x 5 |
| Dimensions (DWH, cm) | 33 x 84 x 13 |
| Weight (lbs / kg) | 27 / 12 |
Specifications
Sorite Ligne (type / configuration) Pré/Post EQ - XLR, Sym PBM
Alimentation, Distortion, Compressor, Mute, retour EFX
Thermale, Court Circuit
Traynor Two Year Warranty
Unlimited Warranty
Your Traynor two year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge.
Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. Warranty does not cover consumables such as vacuum tubes, bulbs or batteries beyond 90 days of original purchase. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States.
Garantie Illimitée
Voice: (905) 837-8481 Voice: (716) 297-2920
Fax: (905) 837-8746 Fax: (716) 297-3689
Yorkville
550 Granite Court 4625 Witmer Industrial Estate
Pickering, Ontario Niagara Falls, New York
L1W-3Y8 CANADA 14305 USA
WEB: www.yorkville.com
Niagara Falls, New York
14305 USA
Voice: (716) 297-2920
Fax: (716) 297-3689
Quality and Innovation Since 1963
Printed in Canada
Nov 20/2008 • Manual-Owners-DynaBass800H-00-2v2
