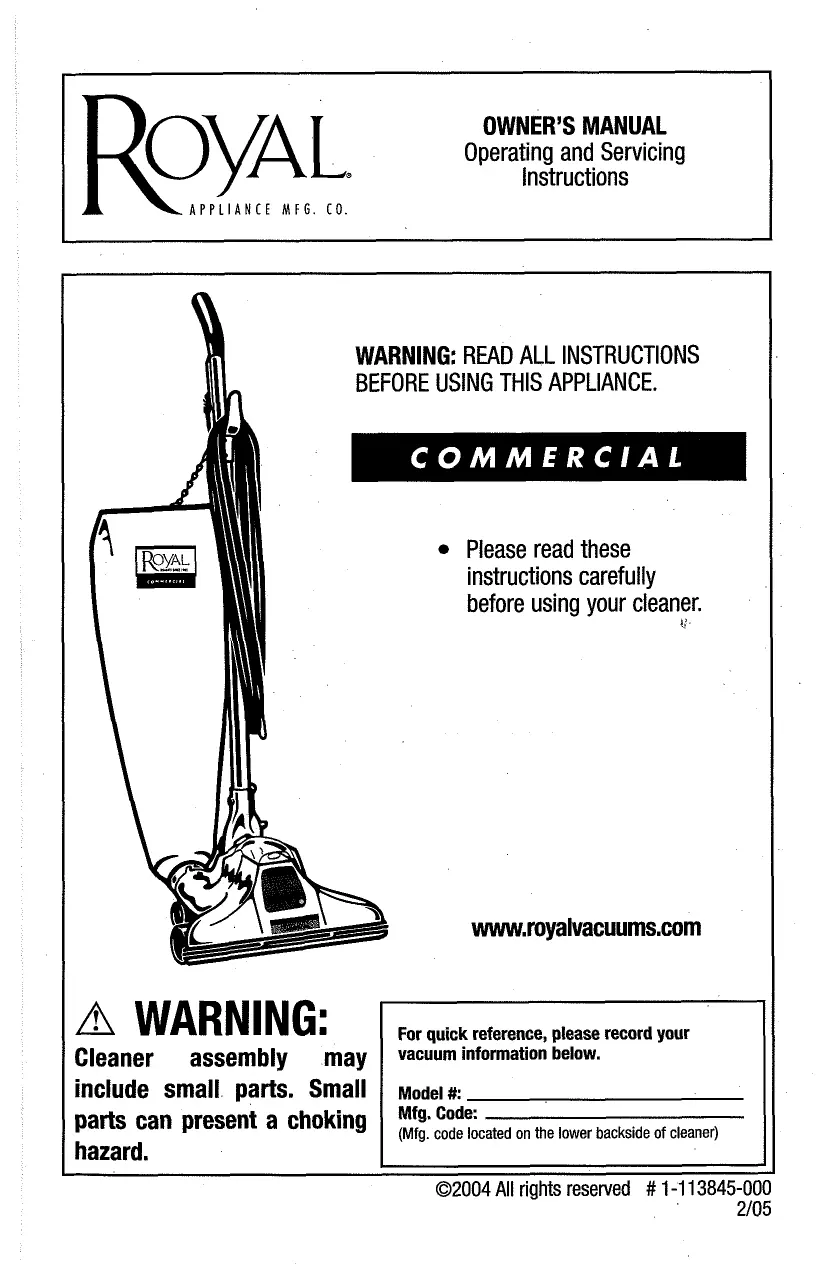

USER MANUAL M1018Z ROYAL

WARNING: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

COMMERCIAL

• Please read these instructions carefully before using your cleaner.

www.royalvacuums.com

WARNING:

Cleaner assembly may include small parts. Small parts can present a choking hazard.

For quick reference, please record your vacuum information below.

Model #:
Mfg. Code:

(Mfg. code located on the lower backside of cleaner)

THIS VACUUM CLEANER IS INTENDED FOR COMMERCIAL USE ONLY.

IMPORTANT SAFETY INSTRUCTIONS

When you use an appliance, basic precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
• ALWAYS FOLLOW THESE SAFETY INSTRUCTIONS.
• WARNING: THE CORDS, WIRES AND/OR CABLES SUPPLIED WITH THIS PRODUCT CONTAINS CHEMICALS, INCLUDING LEAD OR LEAD COMPOUNDS, KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER USING.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces. Electrical shock could occur.
• Do not allow to be used as a toy. Close attention is necessary when used by one near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Regularly examine the supply cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use; only replace the supply cord with the type specified in the instructions.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use an extension cord with this vacuum cleaner.

• Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping accidents.

• Look on your vacuum cleaner and follow all label and marking instructions.

• CAUTION: This appliance is not suitable for picking up hazardous dust.
• If the supply cord is damaged, it must be replaced by the manufacturer or its services agent or a similarly qualified person in order to avoid hazards.
• CAUTION: This appliance is for dry use only and is not to be used or stored outdoors in wet conditions.
• WARNING: Only use the brushes provided with the appliance or those specified in the instructions. The use of other brushes may impair safety.
• The appliance is to be disconnected from its power source during cleaning or maintenance and when replacing parts or converting the appliance to another function.
• This appliance is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.
• Do not allow the rotating brushes to come in contact with the supply cord.
• Only use the socket outlet on the appliance for purposes specified in the instructions.
  Sound power level is 95.2dBa.
• Remove the plug from the socket outlet before connecting or removing the hose.
• Using improper voltage may damage motor and injure user.
• Connect to a properly grounded outlet only.

SAVE THESE INSTRUCTIONS

WARNING:

Electrical shock could occur if used outdoors or on wet surfaces.

CONGRATULATIONS

You are now the proud owner of a Royal® Upright. We trust your new purchase will bring you many years of satisfaction.

Our company designed and developed this product with you in mind.

We are very proud of our products and hope that you are equally satisfied with their quality and performance.

Thank you for your support of Royal® products.

Visit our website at www.royalvacuums.com

TABLE OF CONTENTS

Safety Instructions. Page 2, 3

Features. Page 5

How to Assemble. Page 6

Attach Belt . Page 6

How To Operate. Page 7

Paper Bag: Removal & Replacement . Page 8

Belt or Brushroll: Removal & Replacement. Page 8

General Maintenance. Page 9

Accessories/0ptions. Page 9

Attachment Kit. Page 10

WARRANTY

To the consumer, Royal Appliance Mfg. Co. warrants this vacuum cleaner to be free of defects in material or workmanship. The period of the warranty is a LIFETIME on the housing (nozzle, fancase and motor housing) and a limited number of years (stated on original carton) on all other components, depending on model purchased. The warranty commences upon the date of original purchase and receipt of your warranty card.

If the vacuum cleaner should become defective within the warranty period, complete service (parts and labor) will be provided free of charge:

1. At the store where machine was purchased, if the store is an AUTHIZED DEALER and WARRANTY STATION.

In the event of a charge in the purchaser's residence of 50 or more miles from residence at time of purchase from an AUTHORIZED DEALER, such service will be provided by the nearest warranty station.

The warranty does not cover the following:

1. Parts that normally require replacement such as flat belts, bags, brushes and bulbs.
2. Failure, loss or deterioration due to ordinary wear and tear or from misuse or unauthorized repair.
3. Machines used for other than normal personal, family or household purposes. Commercial purposes are warranted for two years.
4. Costs of any transportation to and from any place of repair, all of which costs are to be paid by the owner.

This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.

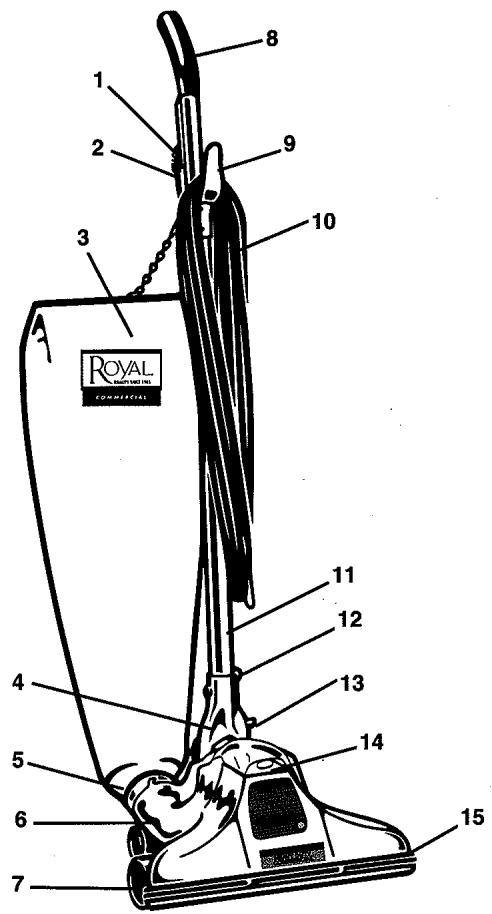

1. Fingertip Toggle Switch - conveniently located for quick control.
2. Eyelet of Upper Cord Hook
3. *Special Bag Assembly - Outer bag resists wear and has full length metal zipper for easy access to top-filling "Toss-Out" paper filter bag OR Cotton top-filling shake-out bag.
4. Handle Fork
5. Bag Coupling
6. Exhaust Couplet
7. *Wheel Arrangement
8. Heavy Duty Vinyl Comfort Grip - curved to fit your hand comfortably.
9. *Strong Metal Cord Hooks
10. Power Cord - permits wide range cleaning.
11. Adjustable Handle - made of chrome-plated tubular steel. Centered on motor housing for balance and maximum maneuverability.
12. Wing Nut
13. Handle Lock - holds handle securely in 3 positions.
14. *Headlight - hinged housing with protective vinyl bumper guard and exclusive deodorizing, demething, sanitizer chamber OR standard, brilliant headlight as shown.
15. Wrap Around Vinyl Nozzle Bumper - protects walls and furniture.

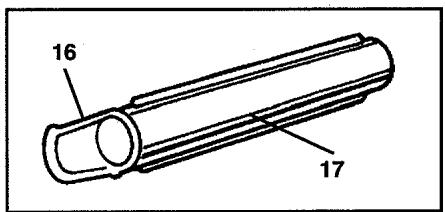

16. Belt Lifter Lip
17. Belt Lifter Base

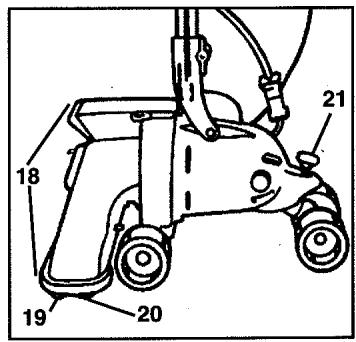

18. Cast Aluminum Nozzle, Fancase, and Motor Housing
19. Adjustable Revolving Brush, beater bar or double helical brush
20. Metal Rug Nozzle Guard
21. *Rite-Hite" Adjustor Knob - lets you set nozzle to exact height for carpet plushness.

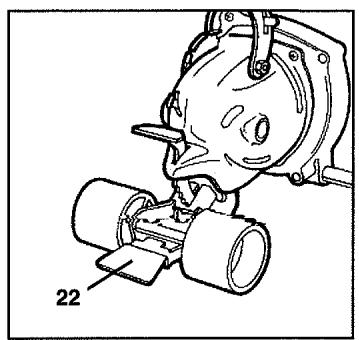

22. *Five Position Height Adjustor - lets you set the nozzle at five different carpet heights with the touch of your toe.

*Style of feature may differ according to model.

GET TO KNOW YOUR NEW VACUUM CLEANER

Your new upright has many special features. All were designed for effortless cleaning because suction alone does not make a vacuum cleaner clean. There must be "air movement" to have cleaning power. That's why the nozzle has deep, wide air vents at both ends. These vents permit air to circulate between the nozzle and carpet at all times; the result... our special self-propelling Cushionaire Cleaning. Your new upright also has exclusive curved fan blades which create more air volume per minute at less motor speed than straight blades. This means more efficient carpet cleaning and less electricity consumption; thus you save time and money.

HOW TO ASSEMBLE

NOTE: Do not connect cleaner to electrical outlet until it is assembled.

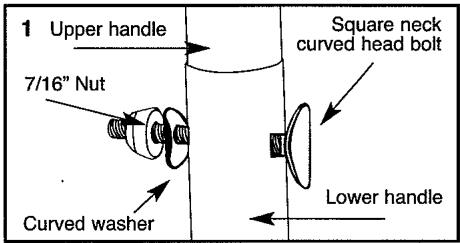

Assemble the Handle (Diagram 1)

1. Slide the upper and lower handle sections together, aligning the square or round holes on both handle sections.
2. From the literature pack, get the square neck curved head bolt, curved washer and 7/16" nut.
3. Insert square neck curved head bolt through square aligned hole opening, until curved head is flush with handle.

WARNING: DO NOT FORCE HANDLE BOLT. MAY SEVER CORD, COULD CREATE SHOCK.

1. Place curved washer over threaded end of bolt and tighten 7/16" nut with appropriate tool (tool not included). All except models below: Remove wing nut and bolt from fork completely. Insert handle and power cord into the fork. Tighten.
   Models with a pigtail: Loosen the large wing nut on the handle fork located on the motor unit. Inset the handle into the fork and tighten the large wing nut.
2. Connect the cords at the handle bottom and the motor unit. Wind the extra-long electrical cord over the cord hooks when cleaner is not being used. The electrical cord is permanently attached to the upper part of the handle and a short connector plug is at the other end.

Check to be sure the belt is in place.

If not, follow these easy steps:

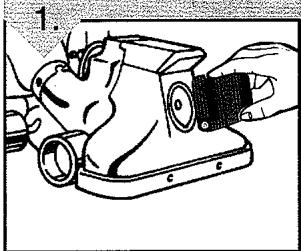

ATTACH BELT

Pry belt cover from front of cleaner with screwdriver to remove or rotate the grey rubber nozzle cover* (Diagram 1).

*Feature may differ according to model

Insert belt lifter tool through belt loop, being sure to hook belt around the lip of the belt lifter tool from the left (Diagram 2). Using the tool as a pry bar, slip the belt onto the motor shaft until the belt lifter base meets the shaft. Gently turn the tool to the right (clockwise) to insure proper belt placement. Remove tool.

The front of the belt will be to your right when installed properly (Diagram 3). Snap belt cover or rotate the grey rubber nozzle cover over the belt access opening.

ATTACH THE BAG

Place the bag coupling over the exhaust outlet of the machine. Slide it on and twist to the right to lock. Attach the top of the bag by snapping the hook on the bag chain into the eyelet on the upper cord hook.

HOW TO OPERATE

Plug the electrical cord into your most convenient outlet, making sure the voltage indicated on the serial number plate of your cleaner is the same as your electrical source.

SET THE NOZZLE HEIGHT

Infinite Height Settings: Lets you clean every type of carpet. Your new upright will glide easily over your carpets and rugs, "air-lifting" them as it vacuums.

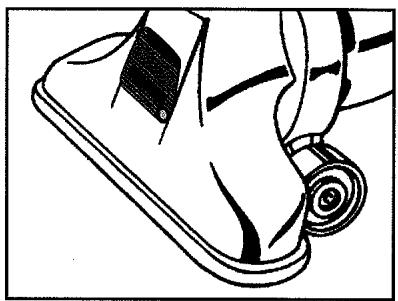

To adjust the nozzle on models with an "Adjustor Knob":

1. Turn the "Rite-Hite" knob (located above rear wheels) counter-clockwise to raise the nozzle off the carpeting.
2. Turn on the vacuum cleaner. Use the finger switch conveniently located on the handle. Push down to start - up to stop.
3. Now, gradually turn the "Rite-Hite" knob clockwise to lower the nozzle to the carpet.

FIVE POSITION HEIGHT SETTINGS*

RELEASE THE CORD

Adjust carpet settings for floor surface to be cleaned. Set the nozzle at five different carpet heights with the touch of your toe. The illustrations show the height adjustor in the lowest (Diagram 1) and highest (Diagram 2) positions. The setting should be low enough for effective cleaning, yet high enough that the cleaner is not difficult to push.

NOTE: If cleaner is difficult to push, adjust to a higher carpet setting height.

On models equipped with a quick cord release (Diagram 3), simply push the quick release cord hook forward or backward until it is upside down. The cord will slide off easily. Return quick release cord hook to its upright position so it is ready to store the cord when you complete your cleaning tasks.

TILT NOZZLE

To clean throw rugs and carpets with fringed edges, push handle down below normal operating position thereby raising the nozzle (so fringe or binding will not catch). Throw rugs should be cleaned by working from the center toward and over the fringe, tilting the nozzle upward and over the edge of the carpet.

LOWER HANDLE

To clean carpeted stairways and under low furniture and beds, start with handle back in tilting position. Then lift handle lock lever (located where handle meets motor housing) with your toe and lower handle to floor. For stairways, depress handle lock lever so cleaner can be held in a horizontal position. To raise handle, release handle lock lever.

*Style of feature may differ according to model.

PAPER BAG: REMOVAL & REPLACEMENT

NOTE: Disconnect machine from electrical outlet prior to performing any maintenance function.

"TYPE B" PAPER BAGS

1. Pull cardboard connector of paper bag away from top-fill tube and dispose of used paper bag.
2. Place new paper bag into cloth bag. Keep cardboard connector facing top-fill tube.
3. Tuck paper bag down into cloth bag as far as possible.
4. Push cardboard connector over top-fill tube opening as far as possible.
5. Close outer bag.

If your cleaner has the wide-opening cloth "shake-out" bag, follow these directions when dirt reaches the half-full point:

1. Unhook bag at the top and remove from cleaner by turning inlet copling counter-clockwise.
2. Turn bag upside down and shake vigorously until dirt settles at bag clamp end.
3. Slide off bag clamp and empty dirt on papers spread on floor or in suitable waste container.

NOTE: Regardless of type of bag, empty frequently for maximum cleaning efficiency and machine life.

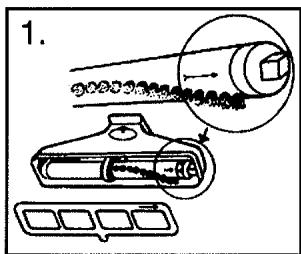

BELT OR BRUSHROLL: REMOVAL & REPLACEMENT

WARNING: TO REDUCE RISK OF PERSONAL INJURY - UNPLUG CLEANER BEFORE SERVICING

If you have occasion to remove the revolving brush, either for making adjustments or for replacing belt:

1. Pry the belt cover with a screwdriver or rotate the grey rubber nozzle cover on the front of the nozzle.
2. Lift the belt off the drive shaft with belt lifter tool (reverse directions for attaching belt shown on page 6).
3. Remove the metal guard on the bottom of the nozzle. Remove the belt and brush.
4. To adjust the height of the brushroll or to change the brush, pull the brush out of the nozzle. Slip the belt over the revolving brush before brush is put into the new position. Align the arrow on the brushroll with the direction of the arrow on the nozzle guard as shown in (Diagram 1).
5. The belt is then placed over the motor drive shaft as described in "Attach Belt" on page 6. Place the belt so that the right hand side of the belt is nearest to you. If the belt dislodges when you turn the unit "on", the belt is on "backwards". Reverse the belt, twist and place over motor drive shaft. Replace round nozzle name plate or grey rubber nozzle cover.

For ALL brushrolls, arrows on brushroll and nozzle guard must match (Diagram 1).

CAUTION: Never place any fingers, tools, etc. in nozzle or belt area while the unit is operating. The nozzle name plate or grey rubber nozzle cover must be securely installed whenever operating the unit without attachments.

*Feature may differ according to model

GENERAL MAINTENANCE

TO REPLACE LIGHT BULB: Press bulb in and turn counter-clockwise to remove. Insert new bulb, press in and turn clockwise until it is in place.

TO USE DEODORIZING UNIT: If your vacuum cleaner is equipped with a deodorizing, demething unit under the headlight, use the sanitizing crystals to eliminate musty odors or repel moths by following the directions printed on the container.

BRUSH BRISTLES: Rinse in soapy water, then in clear water. Dry thoroughly before using. The Round Dusting Brush bristles, 10" Floor Brush Bristles and 6" nozzle insert are removable for washing.

TO USE YOUR CLEANER FOR BLOWING

Sometimes only a powerful blast of air will do the cleaning job needed. You may wish to blow-clean open bookcases, stereos, piano interior, refrigerator or freezer coils. When blowing, be conscious of where you will be blowing the dust. Our suggestion is to always blow it toward a dampened towel which will trap the dust and not scatter it in the air to settle on other furniture. When you are finished, just toss the "dusty" towel into your washer.

TO BLOW: Unplug cleaner. Detach outer cloth bag coupling from exhaust outlet. Attach metal end of hose in its place. Insert crevice tool at opposite end of hose. Plug in cleaner. Place dampened towel behind object to be cleaned and direct air so that it blow the dust against the towel. When you are finished, turn off and unplug the cleaner; remove the hose. Twist and lock the cloth bag to its usual cleaning position.

ACCESSORIES/OPTIONS

ACCESSORIES/OPTIONS (available from participating dealers)

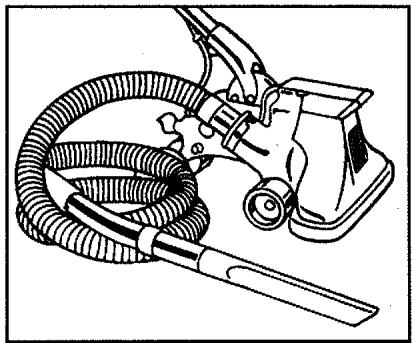

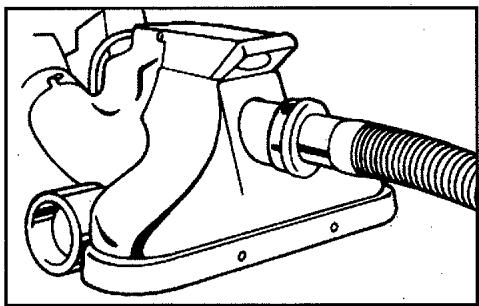

ABOVE THE FLOOR CLEANING IS EASY:

1. Disconnect the cleaner from the electrical outlet, remove the belt cover * or rotate grey rubber nozzle cover* and disengage the belt.
2. Snap in the hose connector adaptor by sliding spring into nozzle slot. It will stay firmly in place without twisting or turning.
3. Twist and lock the end of the hose to the adaptor. Add either the extension wands or the cleaning tool you plan to use. Plug in the cleaner, flip the switch and you're ready to go.

*Feature may differ according to model

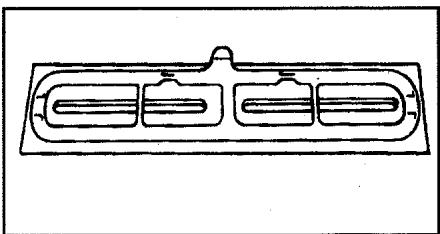

USING THE FELT POLISHER PAD:

The convenient accessory makes light work of dusting and polishing hardwood, linoleum, and other hard surface floors. Made of special felt composition, the Pad loosens dirt and surface film without scratching.

When you want to use the Felt Polisher Pad, exchange it for the metal Rug Nozzle Guard. Adjust the Pad to the hard surface floor as you would for a rug or carpet, until the button pops IN. At this point, the cleaner's front wheels will be "floating" slightly so that the Pad makes full contact with the floor.

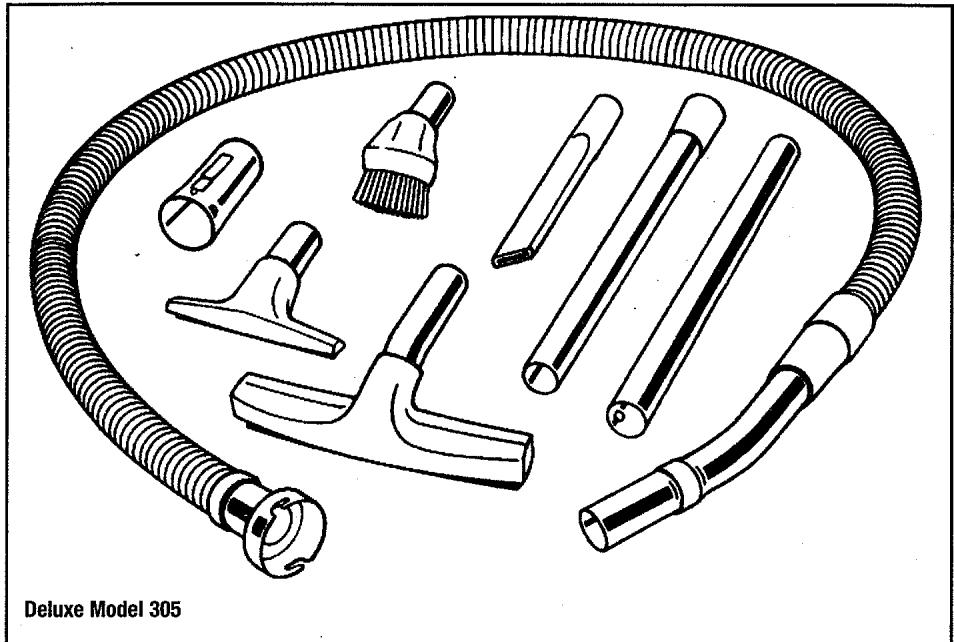

1. Extension Wands - Lightweight steel or plastic wands extend your reach and give you firm control while cleaning high and low places.
2. 7-foot Twist-0-Flex Hose - Light, pliable, durable vinyl for long hard service.
3. Floor and Wall Brush - 10" brush has soft bristles for cleaning paper or painted walls and ceiling, linoleum, tile bare wood or unpainted concrete floors.
4. Round Dusting Brush - Long, soft bristles for dusting drapes, lampshades, picture frames, bookcases, screens, clothing.
5. Upholstery Nozzle - 6" tool with ribbed bottom plate lifts deeply embedded dirt from furniture, curtains, stairways, bedding, clothing, car upholstery.
6. Crevice Tool - Narrow nozzle for hard-to-reach places like deep furniture crevices, behind the refrigerator and range, baseboard corners, dresser drawers, and more.
7. Hose Connector Adapter - The connecting link between your upright and accessory hose.
