| Product Type | Active subwoofer speaker |
| Brand | YORKVILLE |
| Model | PULSE PS110P |
| Amplifier power | 200 Watts |
| Frequency response | 50 Hz to 110 Hz |
| Input impedance | 80 kohms |
| Speaker | 10 inches, 2 ohms, 200 Watts |
| Inputs | 1 x 1/4" balanced (combo jack) |
| Outputs | 1 x 1/4" (parallel) |
| Power supply | 117 VAC 60 Hz (North America) or 230 VAC 50 Hz (Europe), 260 Watts max |
| Weight | 53 lb (24 kg) |
| Dimensions (W x D x H) | 17.5 x 27 x 14 inches (44.5 x 68.6 x 35.6 cm) |
| Power switch | Yes, on/off |
| Power LED | Yes, lights up when on |
| Input level selector | Speaker level or Line level |
| Level control | Adjustable, from -∞ to +12 dB (0 dB = reference) |
| Ground lift | Yes, GND/GND LIFT switch |
| Protections | Built-in limiter and thermal protection |
| Recommended use | Enhance low frequencies of a full-range system |
| Optional accessory | PS110P pole mount adapter (for E160 speakers) |
| Safety | Do not expose to water, do not place on unstable support, unplug if damaged |
| Maintenance | Clean with a dry cloth, avoid liquids |
Frequently Asked Questions - PULSE PS110P YORKVILLE
User questions about PULSE PS110P YORKVILLE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Active speaker in PDF format for free! Find your manual PULSE PS110P - YORKVILLE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PULSE PS110P by YORKVILLE.
USER MANUAL PULSE PS110P YORKVILLE
IMPORTANT SAFETY INSTRUCTIONS
CAUTION AVIS
RISK OF ELECTRIC SHOCK DO NOT OPEN
MISQUE DE GHOC ELECTRIGE NE PAS DUVIN
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
INSTRUCTIONS RELATIVES AU RISQUE DE FEU, CHOC ÉLECTRIQUE, OU BLESSURES AUX PERSONNES.
AVIS:
AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE,
N'ENLEVEZ PAS LE COUVERT (OU LE PANNEAU
ARRIERE). NE CONTIENT AUCUNE PIECE REPARABLE
PAR L'UTILISATEUR.
CONSULTZ UN TECHNICIEN QUALIFIE
POUR L'ENTRETIENT.
Read Instructions:
The Owner's Manual should be read and understood before operation of your unit. Please, save these instructions for future reference.
Packaging:
Keep the box and packaging materials, in case the unit needs to be returned for service.
Warning:
When using electric products, basic precautions should always be followed, including the following:
Power Sources:
Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated.
Hazards:
Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer.
The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.
Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Power Cord:
The AC supply cord should be routed so that it is unlikely that it will be damaged. If the AC supply cord is damaged DO NOT
OPERATE THE UNIT.
Service:
The unit should be serviced only by qualified service personnel.

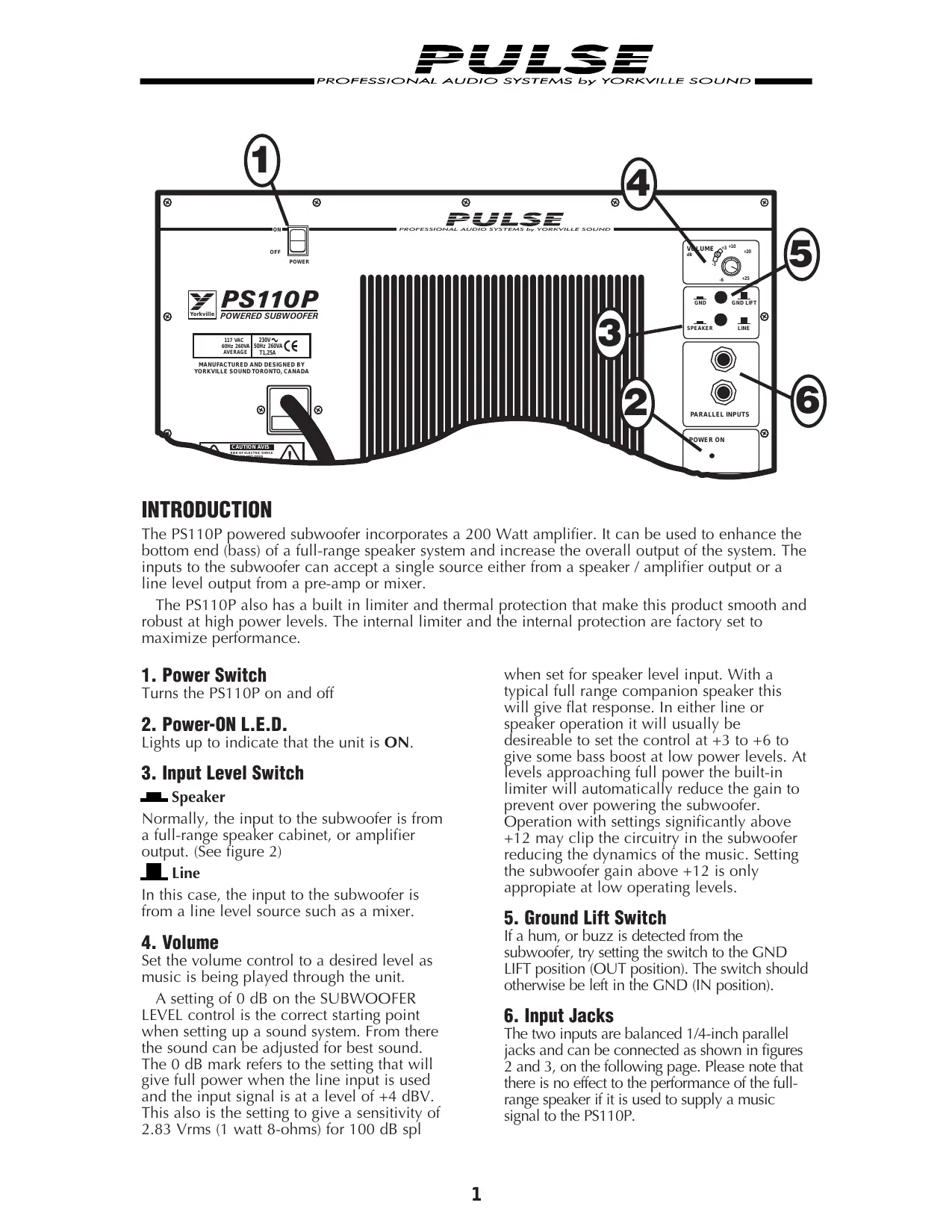

The PS110P powered subwoofer incorporates a 200 Watt amplifier. It can be used to enhance the bottom end (bass) of a full-range speaker system and increase the overall output of the system. The inputs to the subwoofer can accept a single source either from a speaker / amplifier output or a line level output from a pre-amp or mixer.
The PS110P also has a built in limiter and thermal protection that make this product smooth and robust at high power levels. The internal limiter and the internal protection are factory set to maximize performance.

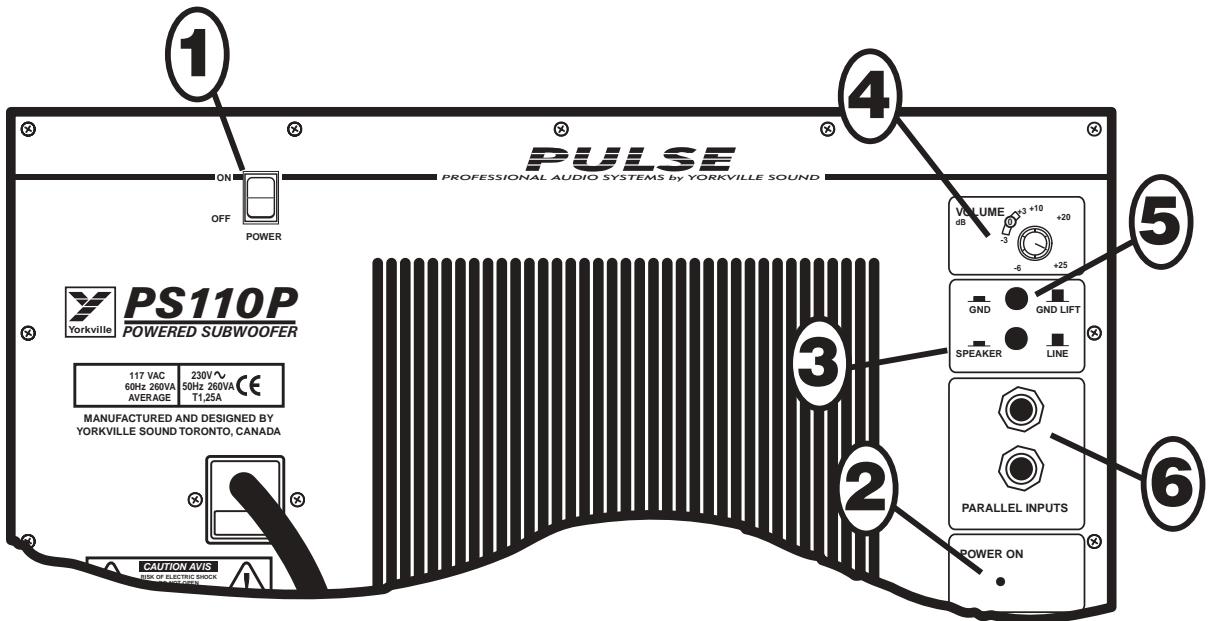

1. Power Switch
Turns the PS110P on and off
2. Power-ON L.E.D.
Lights up to indicate that the unit is ON.
3. Input Level Switch
Speaker
Normally, the input to the subwoofer is from a full-range speaker cabinet, or amplifier output. (See figure 2)
Line
In this case, the input to the subwoofer is from a line level source such as a mixer.
4. Volume
Set the volume control to a desired level as music is being played through the unit.
A setting of 0 dB on the SUBWOOFER LEVEL control is the correct starting point when setting up a sound system. From there the sound can be adjusted for best sound. The 0 dB mark refers to the setting that will give full power when the line input is used and the input signal is at a level of +4 dBV. This also is the setting to give a sensitivity of 2.83 Vrms (1 watt 8-ohms) for 100 dB spl
when set for speaker level input. With a typical full range companion speaker this will give flat response. In either line or speaker operation it will usually be desirable to set the control at +3 to +6 to give some bass boost at low power levels. At levels approaching full power the built-in limiter will automatically reduce the gain to prevent over powering the subwoofer. Operation with settings significantly above +12 may clip the circuitry in the subwoofer reducing the dynamics of the music. Setting the subwoofer gain above +12 is only appropriate at low operating levels.
5. Ground Lift Switch
If a hum, or buzz is detected from the subwoofer, try setting the switch to the GND LIFT position (OUT position). The switch should otherwise be left in the GND (IN position).
6. Input Jacks
The two inputs are balanced 1/4-inch parallel jacks and can be connected as shown in figures 2 and 3, on the following page. Please note that there is no effect to the performance of the full-range speaker if it is used to supply a music signal to the PS110P.
MULTIPLE PS110P's
As well as accommodating the full-range speakers, the parallel input jacks allow many PS110P's to be connected in a string. There is no practical limit to the number of PS110P's that may be connected together.
figure 2
figure 3
USER NOTE
For normal operation connect the PS110P just like any ordinary speaker along with the full-range speakers. The input level switch should be set to speaker. If the audio source does not have a U ground (a ground pin on the AC cord), the ground lift switch must be set to gnd. The PS110P may be wired before or after the full-range speakers. The PS110P does not alter the signal to the full-range speakers. The PS110P will not draw any power from the amplifier driving the full-range speakers. Please note that an external crossover is not necessary.
PS110P
POWERED SUBWOOFER
Note: The PS110P built-in stand mounting adapter can be used with Yorkville SW-Teletube accessory to support our E160 cabinets. The support tube can be adjusted up to it's full 5^4^ extension safely as long as the PS110P is not inclined more than 10^ .
WARNING: Larger/heavier cabinets should not be used with the stand mount!
Specifications
Power Requirements
North American: 117VAC 60 Hz
260 Watts Maximum
European: 230VAC 50 Hz
260 Watts Maximum
Power Amplifier
Power (Internal Amp): 200 Watts
Input Impedance: 80 kohms
Speaker
10"driver, 2-ohm, 200 Watts
Performance
Maximum SPL: 125 dB
Frequency response: 50 ~Hz to 110 ~Hz
Input Connections
Input: 1 x 1/4-inch, Output: 1 x 1/4-inch
Tip: Positive, Ring: Negative, Sleeve: Optional
Grounding
The sleeves of the input are not grounded except when the input ground switch is set to GND. Grounding is done through a 10-ohm protection device in order to prevent damage due to miswiring.
Limiting
Clipping, Average voice coil current, Thermal
Weight
53 lb. (24 kg)
Dimensions
(HxWxD): 14.0" x 17.5" x 27.1"
35.6 x 44.5 x 68.9 cm
