Product type	Infrared ear thermometer
Brand	KAZ
Model	IRT 4520
Power supply	2 AA (LR06) 1.5 V batteries
Battery life	2 years or 1000 readings
Measurement range	34.0 - 42.2 °C (93.2 - 108 °F)
Measurement accuracy	± 0.2 °C between 35.5 and 42 °C ; ± 0.3 °C outside
Display resolution	0.1 °C or °F
Operating temperature	10 °C to 40 °C (50 °F to 104 °F)
Storage conditions	-20 °C to 50 °C, humidity < 95 % RH
Display	Digital screen
Memory	Up to 8 readings (IRT 4520)
Main features	ExacTemp indicator, auto-off (60 s), °C/°F switching, tip ejection
Disposable tips	Braun ThermoScan LF40 (use a new tip for each measurement)
Usage	Home use (not professional medical)
Warranty	2 years
Standards	DIN EN 60601-1, DIN EN 12470-5, Directive 93/42/EEC
Cleaning	Lens: cotton swab with alcohol; exterior: soft dry cloth
Spare parts	Disposable tips LF40 (available in stores)
Repairability	Repairs by Braun authorized center; no user repair

Frequently Asked Questions - IRT 4520 KAZ

How to use the IRT 4520 thermometer?

Turn on the device by pressing the I/O button. Wait for the audible and visual signal. Make sure a clean disposable tip is installed. Gently insert the tip into the ear canal and press the start button. A long beep indicates the end of the measurement. The result is displayed.

What does the error message <b>POS</b> mean?

The POS error indicates incorrect positioning of the probe in the ear (or movement during measurement). Clear the display by pressing the I/O button, then reposition the thermometer correctly in the ear and hold it steady until the beep.

How to switch from °C to °F?

Turn off the thermometer. Press and hold the I/O button (or the reading button for IRT 4020) for about 3 seconds. The display alternately shows °C, SET, °F, SET. Release when the desired scale appears. A short beep confirms the change.

What to do if the device does not turn on?

Check the batteries. Open the battery compartment and replace used batteries with two new AA (LR06) 1.5 V batteries, respecting polarity. If the problem persists, contact Braun service.

How to clean the thermometer lens?

The lens is fragile. If it has been used without a tip, clean it very gently with a cotton swab or soft cloth moistened with alcohol. Let dry completely before installing a new tip. Never use abrasive products.

What is the accuracy of the thermometer?

The accuracy is ±0.2 °C in the range 35.5-42 °C and ±0.3 °C outside. Clinical reproducibility is ±0.14 °C. These performances are guaranteed if the device is used correctly.

Can I use the thermometer without a disposable tip?

No, it is mandatory to use a Braun ThermoScan LF40 disposable tip for each measurement. Without a tip, the lens can become soiled and measurements may be inaccurate. Using without a tip can damage the device.

What do the messages <b>HI</b> or <b>LO</b> mean?

HI means the measured temperature is above 42.2 °C (108 °F) and LO means it is below 34 °C (93.2 °F). Check that the tip is clean and properly inserted, then take another measurement. If the message persists, the device may be defective.

What are normal temperatures for an adult with this thermometer?

The normal range for an adult (11-65 years) with ThermoScan is 35.9 to 37.6 °C (96.6-99.7 °F). Values vary by age and individual. It is recommended to determine your own reference range by measuring regularly when in good health.

How to store the thermometer?

Store it in a dry place, protected from dust and sunlight. Use the provided protective case. Avoid extreme temperatures (below -20 °C or above 50 °C). Keep disposable tips out of reach of children.

USER MANUAL IRT 4520 KAZ

Mexico: 018005085800

Argentina: 0800 44 44 55 3

Chile: 02 288 25 18

P 808200033

Manufactured by:
Braun GmbH
Frankfurter Str. 145
61476 Kronberg / Germany

IRT 4520

IRT 4020

The Braun ThermoScan thermometer has been carefully developed for accurate, safe and fast temperature measurements in the ear. The shape of the thermometer prevents it from being inserted too far into the ear canal to hurt the eardrum.

However, as with any thermometer, proper technique is critical to obtaining accurate temperatures. Therefore, read the use instructions carefully and thoroughly.

Important

• The operating ambient temperature range for this thermometer is 10 - 40^ (50-104 F).
• Do not expose the thermometer to temperature extremes (below -20^ / -4^ or over 50^ / 122^ ) nor excessive humidity ( >95% RH).
• This thermometer must only be used with genuine Braun ThermoScan Lens Filters (LF 40). Never use this thermometer without a new, clean lens filter attached.
• Keep lens filters out of reach of children.
• This thermometer is intended for household use only.
• Use of this thermometer is not intended as a substitute for consultation with your physician.

How does Braun ThermoScan work?

Braun ThermoScan measures the infrared heat generated by the eardrum and surrounding tissues. To avoid gross temperature differences, the sensor itself is brought to a temperature close to that of the human body. When the Braun ThermoScan is placed in the ear, it continuously monitors the infrared radiation. The measurement will be finished and the result is displayed, when an accurate reading can be assured.

Why measure in the ear?

The goal of thermometry is to measure core body temperature which is the temperature of the vital organs. Ear temperatures accurately reflect core body temperature, since the eardrum shares blood supply with the temperature control center in the brain, the hypothalamus. Therefore, changes in body temperature are reflected sooner and more accurately in the ear than at other sites.

• Axillary temperatures only measure skin temperature and therefore, are not a reliable indicator of core body temperature.
• Oral temperatures are influenced by drinking, eating and breathing.
• Rectal temperatures lag behind changes in core body temperature and there is a risk of cross-contamination.

Body temperature

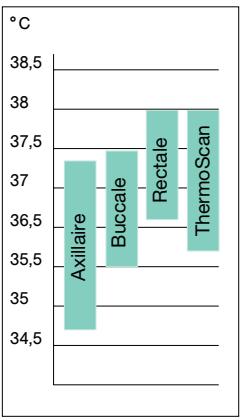

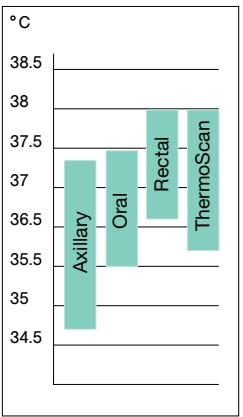

Normal body temperature is a range. The following table shows that this normal range also varies by site. Therefore, readings from different sites should not be directly compared.

Normal ranges by site:

Axillary: 34.7 - 37.3 °C 94.5 - 99.1 °F

Oral: 35.5 - 37.5 °C 95.9 - 99.5 °F

Rectal: 36.6 - 38.0 °C 97.9 - 100.4 °F

ThermoScan: 35.8 - 38.0 °C 96.4 - 100.4 °F

• As well, a person's normal temperature range tends to decrease with age. The following table shows normal ThermoScan ranges by age.

Normal ThermoScan ranges by age:

0-2 years 36.4-38.0°C 97.5-100.4°F

3-10 years 36.1-37.8°C 97.0-100.0°F

11-65 years 35.9-37.6°C 96.6-99.7°F

65 years 35.8-37.5°C 96.4-99.5°F

However, the range of normal also varies from person to person and fluctuates throughout the day. It is therefore important to determine your normal temperature range. This is easily done using Braun ThermoScan. Practice taking temperatures on yourself and healthy family members to determine their normal temperature ranges.

Note: When consulting your physician, communicate that the ThermoScan temperature is a temperature measured in the ear and if possible, note the individual's normal ThermoScan temperature range as additional reference.

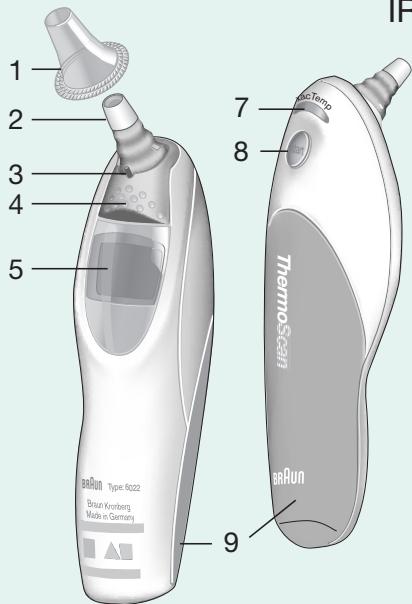

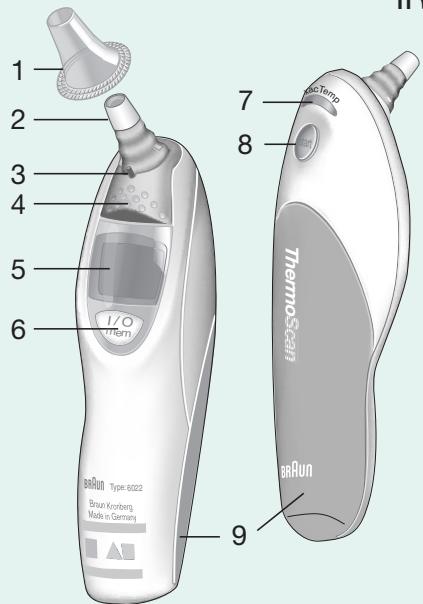

Product description

1. Lens filter
2. Probe
3. Lens filter detector
4. Lens filter ejector
5. Display
6. «I/O» button (On/memory function - IRT 4520 only)
7. «ExacTemp» light
8. «start» button
9. Battery door

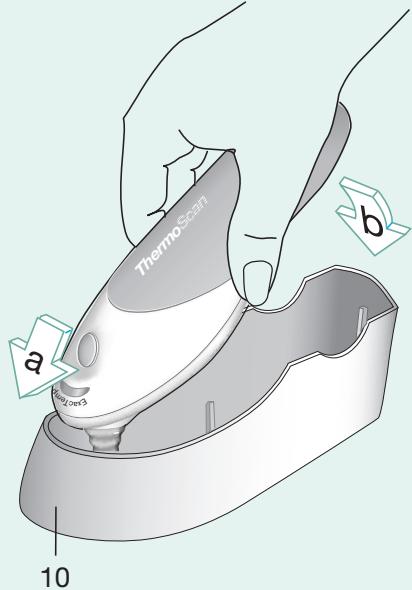

10. Protective cover (IRT 4520)

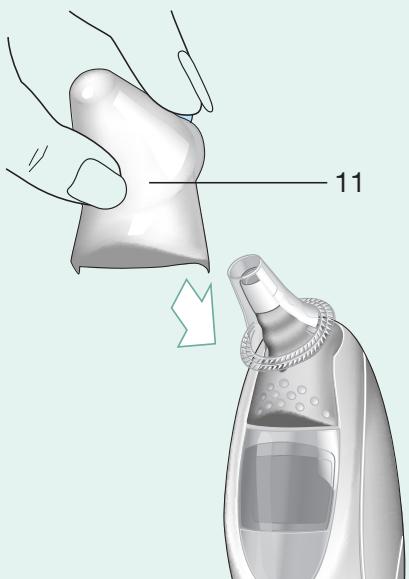

11. Cap (IRT 4020)

How to use your Braun ThermoScan?

1. To achieve accurate readings, make sure a new, clean lens filter (1) is in place before each measurement.
2. IRT 4020: Push the «start» button (8).
   IRT 4520: Push the «I/O» button (6).

During an internal self-check, the display shows all segments. Then the last temperature taken will be displayed together with «MEM».

Wait for the ready signal beep and the ready symbol in the display.

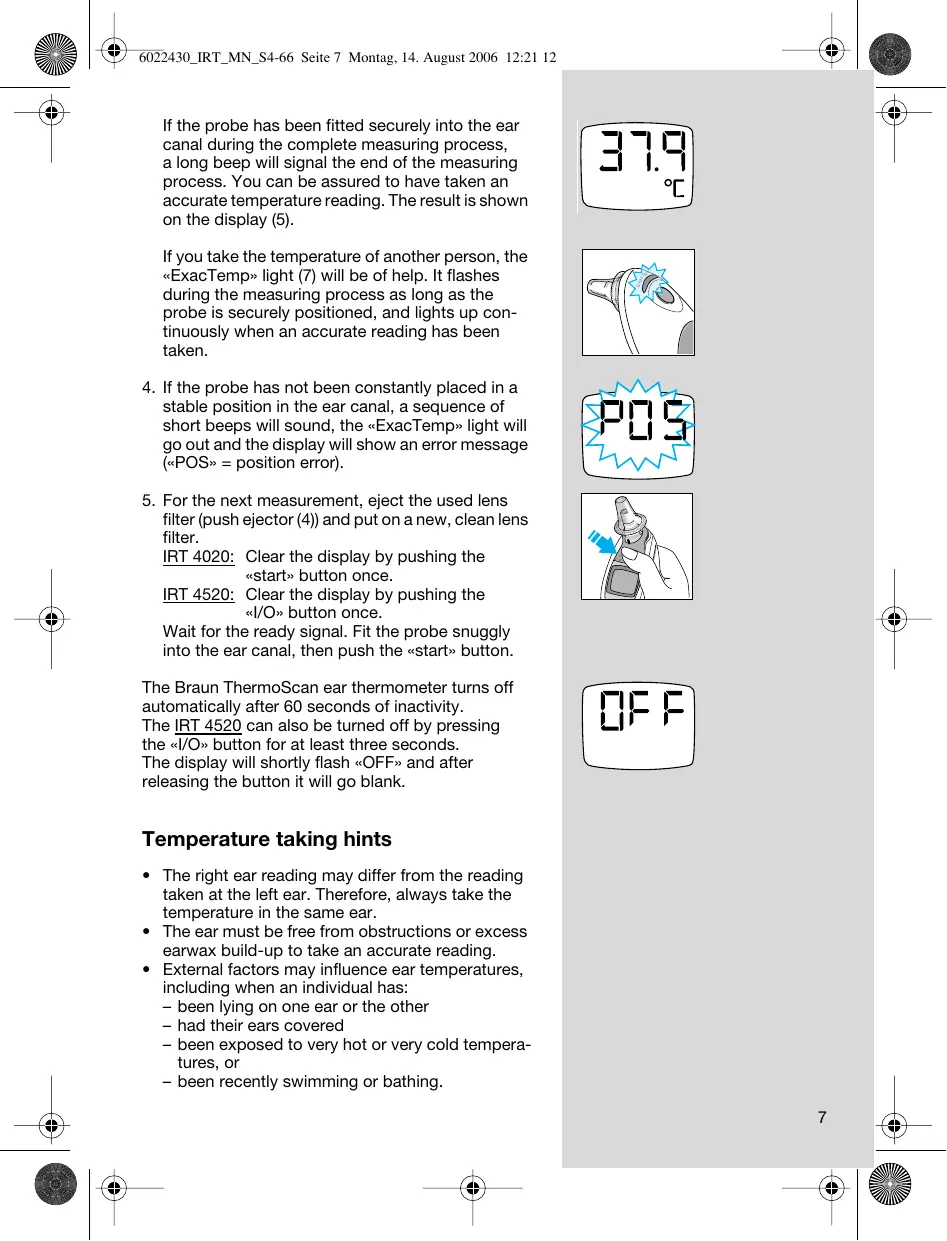

1. Fit the probe snuggly into the ear canal, then push the «start» button (8).

If the probe has been fitted securely into the ear canal during the complete measuring process, a long beep will signal the end of the measuring process. You can be assured to have taken an accurate temperature reading. The result is shown on the display (5).

If you take the temperature of another person, the «ExacTemp» light (7) will be of help. It flashes during the measuring process as long as the probe is securely positioned, and lights up continuously when an accurate reading has been taken.

1. If the probe has not been constantly placed in a stable position in the ear canal, a sequence of short beeps will sound, the «ExacTemp» light will go out and the display will show an error message («POS» = position error).
2. For the next measurement, eject the used lens filter (push ejector (4)) and put on a new, clean lens filter.

IRT 4020: Clear the display by pushing the «start» button once.

IRT 4520: Clear the display by pushing the «I/O» button once.

Wait for the ready signal. Fit the probe snuggly into the ear canal, then push the «start» button.

The Braun ThermoScan ear thermometer turns off automatically after 60 seconds of inactivity.

The IRT 4520 can also be turned off by pressing the «I/O» button for at least three seconds.

The display will shortly flash «OFF» and after releasing the button it will go blank.

Temperature taking hints

• The right ear reading may differ from the reading taken at the left ear. Therefore, always take the temperature in the same ear.
• The ear must be free from obstructions or excess earwax build-up to take an accurate reading.

• External factors may influence ear temperatures, including when an individual has:

• been lying on one ear or the other

• had their ears covered
• been exposed to very hot or very cold temperatures, or
• been recently swimming or bathing.

37.9

DFF

In these cases, remove the individual from the situation and wait 20 minutes prior to taking a temperature.

• Use the untreated ear if prescription ear drops or other ear medications have been placed in the ear canal.

Memory mode

The last temperature taken is stored in its memory and will be automatically displayed when it is turned on again. The display will show «MEM».

IRT 4520:

This model stores the last 8 temperature readings. To display the stored readings, the thermometer must be turned on. Then press the «I/O» button for at least 1 second. The display shows the memory number (e.g. MEM 1), and when releasing the «I/O» button, the stored temperature for that memory number is displayed, together with «MEM».

If «I/O» button is pressed too long, the thermometer will be switched off. Each further pressing of the «I/O» button displays the remaining memory numbers (up to MEM 8).

MEM 1 is the latest reading, MEM 8 would be the oldest.

The memory mode is left automatically after displaying the oldest reading, or after pressing the «I/O» button for at least 1 second.

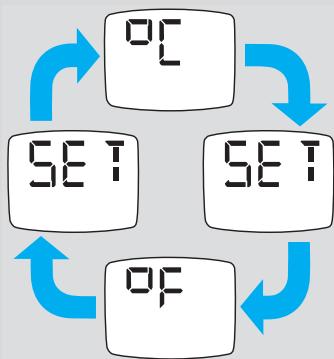

Changing the temperature scale

Your Braun ThermoScan is shipped with the Celsius (^) temperature scale activated. If you whish to switch to Fahrenheit (^) and/or back from Fahrenheit to Celsius, proceed as follows:

(1) Make sure the thermometer is turned off.
(2) Press and hold down the «start» button (IRT 4020) or the «I/O» button (IRT 4520). After about 3 seconds the display will show this sequence: «°C»/«SET»/«°F»/«SET» ...
(3) Release the «start» button / «I/O» button when the desired temperature scale is shown. There will be a short beep to confirm the new setting, then the thermometer is turned off automatically.

Care and cleaning

The probe tip is the most delicate part of the thermometer.

It has to be clean and intact to ensure accurate readings.

If the thermometer is ever accidentally used without a lens filter, clean the probe tip as follows:

Very gently wipe the surface with a cotton swab or soft cloth moistened with alcohol. After the alcohol has completely dried out, you can put a new lens filter on and measure.

If the probe tip is damaged, contact Braun.

Use a soft, dry cloth to clean the thermometer display and exterior.

Do not use abrasive cleaners. Never submerge this thermometer in water or any other liquid.

Store thermometer and lens filters in a dry location free from dust and contamination and away from direct sunlight.

Additional lens filters (LF 40) are available at most stores carrying Braun ThermoScan or at Braun Service Centers.

Error message

Trouble-shooting

Situation

Solution

No lens filter is attached.	Attach new, clean lens filter.
The thermometer cannot identify a secure position of the probe. An accurate measurement was not possible.	IRT 4020: Clear the display by pushing the «start» button once. IRT 4520: Clear the display by pushing the «I/O» button once.
POS = position error	Take care that the positioning of the probe is correct and remains stable.
Ambient temperature is not within the allowed operating range (10 - 40 °C or 50 - 104 °F).	Allow the thermometer to remain in a room for 30 minutes where the temperature is between 10 and 40 °C or 50 and 104 °F.
Temperature taken is not within typical human temperature range (34 - 42.2 °C or 93.2 - 108 °F). HI = too high LO = too low	Make sure a new, clean lens filter is attached and thermometer is properly inserted. Then, take a new temperature.
System error – self-check display flashes continuously and will not be followed by the ready beep and the ready symbol.	Wait 1 minute until the thermometer turns off automatically, then turn on again.
If error persists,	... reset the thermometer by removing the batteries and putting them back in.
If error still persists,	... have the thermometer checked at a Braun Customer Service Center.

Error message
Trouble-shooting

Error message	Situation	Solution
	Battery is low, but thermometer will still operate correctly.	Insert new batteries.
	Battery is too low to take correct temperature readings.	Insert new batteries.
	Do you have any further questions?	Call Braun Infoline, please see page 2.

Replacing the batteries

The thermometer is supplied with two 1.5 V type AA (LR 06). For best performance, we recommend Duracell® alkaline batteries.

Insert new batteries when the battery symbol appears on the display.

Open the battery compartment. Remove the batteries and replace with new batteries, making sure the poles are in the right direction.

Slide battery door back until it snaps in place.

To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites according to national or local regulations.

Calibration

The thermometer is initially calibrated at the time of manufacture. If this thermometer is used according to the use instructions, periodic re-adjustment is not required. If at any time you question the accuracy of measurement, please contact Braun Infoline, phone (see page 2).

Manufacturing date is given by the LOT number located in the battery compartment. The first number after LOT represents the last digit of the year of manufacture.

The next three digits give the day of the year of manufacture.

An example: LOT 0116 xx xx – this product has been manufactured on the 116th day of the year 2000.

Product specifications

Displayed temperature range: 34-42.2 °C (93.2-108 °F)

Operating ambient temperature range: 10-40 °C (50-104 °F)

Display resolution: 0.1 °C or °F

Accuracy for displayed temperature range: ± 0.2 °C (35.5–42 °C) (95.9–107.6 °F)

± 0.3^ (outside this temperature range)

Clinical repeatability: ± 0.14^(± 0.26^)

Battery life: 2 years / 1000 measurements

Type BF equipment

Subject to change without notice.

This appliance conforms to the following standards:

DIN EN 60601-1: 3/96 «Medical electrical equipment» -

Part 1: General requirements for safety

DIN EN 12470-5: 2003 «Clinical thermometers« -

Part 5: Performance of infrared ear thermometers (with maximum device)

This product conforms to the provisions of the EC directive 93/42/EEC (Medical Device Directive).

MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC. For detailed description of EMC requirements please contact the Braun Infoline (see page 2).

Portable and mobile RF communications equipment can affect MEDICAL ELECTRICAL EQUIPMENT.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

• (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a)

.（）LJ 10U Ll UU）“General requirements for safety”：J

DIN EN 12470-5: 2003 «Clinical thermometers - part 5: Performance of infrared

ear thermometers (with maximum device)»

a

.（a）aJdUusuallueagadlaealjglj

0297

93/42/EEC a 1

Medical Device Directive) 93/42/EEC

Medical electrical Equipment (J)

gblioaggl gyllll bllb1 yaaill aogll lgld. gblioaggl

.

（）

Medical electrical Equipment

Jol

jll l 1 j

y

jdy jie piai i

A

J 1

Jl 10k Jg JIy I Jg

yj 1000

. www.braun.com

1 1111111111111111

jlaal ylo e jg Jy gaiw .alil

11 11 11 11 11 11

1111 1111

gall Juaanai jia jia jia jia Juaanai

J 1

y

. 1000

LOT.

.

LOT 6216 xx xx : J

1. 17 pL 117

i 1

（1）-1·-9r） 24

（20 1·-0）

（）：

：a

S角 = ( 2r - 20,0) S ① = r · ± : z1z_2

（）±：a

（）.

1 1

BF

aagall JssLgRdAeRbLg

J 1.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15

:dllll jyjy jyjy jyjy jyj

^ / ^ / ^ / ^

1/0" start" j

1 1

.

a b c d e f g h i j k l

an + 1 = 2( an + 1) ( an + 2) > 2( an + 1) ( an + 3) - 2( an + 1) ( a_n + 4)

aLgS 10 Sall aee eel g

L

1 1

:

aabg jblln aaba bbl 1

J 1 J 1

J 1 J

.

a 1 aal alal alal alal alal

1

1 1

.

jKo 3 Lgogg aal gol j

J 1

LJU 1 (LF 40)

.

a

( x - 2) ( y - 2) = 0

a

（8）jz bai jn nn dai jy bbl y 1-4
JN Jn nn jy kui nnn jy 12
Jyab auiu uyn jiau ybaa uuiu uauu
eal n no auiu uyn uuiu uuiu.aaal auiy
auiu le aaii iur juy gug.aydu uubci
.(5)

J 7. JcL (7) ExacTemp> L
G
J 15 16
J 16
J 16
J 16

1234567890 1000000000000000000000000000000000000000000000000000000000000000000000000000000000

sill aedall gio nolg j 0
gio g o [4) dall g bai] aolal p
. jj y jy dall
bai l jrall aai jc loglall j:IRT 4020
. jdgl j

[1 - \left( {\frac{2}{3} + \frac{4}{3} - 1}\right) + \cdots + \left( {\frac{\pi }{3} - 1}\right) ]

$$ \omega^ {1} - 2 $$

aal 3

aoll 4

25-5

(I/O) 6-6

IRT 4520 -S/On

ExacTemp> 7

-8

1-9

(IRT 4520) 10

(IRT 4020) - 11

Kgogogoljn jnn plss

（1）a#

.8.111111111:IRT4020-

.6)I/O>jj:IRT4520

J 1

:1Kg

	###	###
1···2-9V30	RJ···RJ2	### 1···
1···2-9V3·	RVJ·-RJ1	### 1···
99V-97J	RVJ·-RJ9	### 70-11
99,0-97,8	RVJ·0-RJ1	### 70

a aall 1

Kgws

a 1

.

J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1

Body temperature

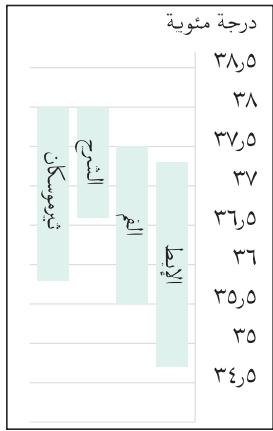

• Normal body temperature is a range. The following table shows that this normal range also varies by site. Therefore, readings from different sites should not be directly compared.

Normal ranges by site:

Axillary1:	34.7 °C – 37.3 °C	94.5 – 99.1 °F
Oral1:	35.5 °C – 37.5 °C	95.9 – 99.5 °F
Rectal1:	36.6 °C – 38.0 °C	97.9 – 100.4 °F
ThermoScan2:	35.8 °C – 38.0 °C	96.4 – 100.4 °F

• However, the range of normal also varies from person to person and fluctuates throughout the day. It is therefore important to determine your and your family members' normal temperature ranges. This is easily done using Braun ThermoScan. Practise taking temperatures on yourself and healthy family members to determine their normal temperature ranges.

Family Member
Date
8:00 h
12:00 h
16:00 h

Note: When consulting your physician, communicate that the ThermoScan temperature is a temperature measured in the ear and if possible, note the individual's normal ThermoScan temperature range as an additional reference.

In case of questions, call Braun Infoline.

1 Chamberlain, J. M. Terndrup, T. E., New Light on Thermometer Readings, Contemporary Pediatrics, March 1994.
2 Chamberlain, J. M., et al., Determination of Normal Ear Temperature with an Infrared Emission Detection Thermometer; Annals of Emergency Medicine, January 1995.

How to use Braun ThermoScan

1.

To achieve accurate readings, make sure a new, clean lens filter is in place before each measurement.

2.

IRT 4020: Push the «start» button.
IRT 4520: Push the «I/O» button.

Then wait for the ready signal beep and the ready symbol in the display.

3.

Fit the probe snuggly into the ear canal, then push the «start» button.

4.

If the probe has been positioned securely into the ear canal during the complete measuring process, a long beep will signal the end of the measuring process. You can be assured to have taken an accurate temperature reading. The result is shown on the display.

If you take the temperature of another person, the «ExacTemp» light will be of help. It flashes during the measuring process as long as the probe is securely positioned, and lights up continuously when an accurate reading has been taken.

1 Chamberlain, J. M. Terndrup, T. E., New Light on Thermometer Readings, Contemporary Pediatrics, March 1994.
2 Chamberlain, J. M., et al., Determination of Normal Ear Temperature with an Infrared Emission Detection Thermometer; Annals of Emergency Medicine, January 1995.

1 Chamberlain, J. M. Terndrup, T. E., New Light on Thermometer Readings, Contemporary Pediatrics, March 1994.
2 Chamberlain, J. M., et al., Determination of Normal Ear Temperature with an Infrared Emission Detection Thermometer; Annals of Emergency Medicine, January 1995.

1.

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

：g

· = 0

中

99,1 - 9 ≤ 0

RV-

[ : {}^{1}{b}_{2} = 1]

9,9,0 - 9.9,9

rvj0 - r0v_j0

1

1·s S2 - 9V2

r1r2 · r1r2

1

1. z = 97,z

x2 = -b - ^2 - 4ac2a,x2 = -b + ^2 - 4ac2a

:2

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

1 Chamberlain, J. M., Terndrup, T. E., New Light on Thermometer Readings, Contemporary Pediatrics, March 1994.
2 Chamberlain, J. M., et. al., Determination of Normal Ear Temperature with an Infrared Emission Detection Thermometer, Annals of Emergency Medicine, January 1995.

J 1

. 4020

100 1/IO> j5 4520

.

jLJ Jjw jJ 3 2

E

J 1

aalll ayly 1y yu

J 1

.

1 1

JL

aiks 1

a a 1
