USER MANUAL HZ-7200 KAZ

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HEATER. IF YOU DO NOT UNDERSTAND THESE INSTRUCTIONS OR PRODUCT LABELS DO NOT USE THIS PRODUCT AND CALL US AT [phone] FOR AN EXPLANATION.

WARNING - Failure to follow any of these safety instructions could result in fire, injury or death.

YOUR RESPONSIBILITIES

Electrical appliances may expose people to hazards that can cause severe injury as well as death. The use of electrical products may create hazards that include, but are not limited to, injury, fire, electrical shock and electrical system damage. These instructions are intended to provide you with the information you need to use the product and to avoid such hazards.

1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If, provided, use handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids, and whenever the heater is left operating and unattended.

1. Always unplug heater when not in use.
2. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
3. Do not use outdoors.
4. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
5. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area where it will not be tripped over.
6. CAUTION - THIS APPLIANCE HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER). TO REDUCE THE RISK OF SHOCK, THIS PLUG IS INTENDED TO FIT ONLY ONE WAY IN A POLARIZED OUTLET. IF THE PLUG DOES NOT FIT SECURELY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN. DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.
7. This heater draws 12.5 amps during operation. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.
8. It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
9. To disconnect the heater, first turn off the product, then grip the plug and pull it from the wall outlet. Never pull by the cord.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, or where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside.

Do not use it in the areas where gasoline, paint or flammable liquids are used or stored.

1. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
2. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you have to use an extension cord, the cord shall be No. 14 AWG minimum size and rated not less than 1875 watts.
3. Never tamper with this product or attempt to fix it. Any tampering with, or modification of, this product can result in serious injury, death, or fire. Risk of electric shock. Do not open, no user serviceable parts inside.

4. Do not remove product labels that contain warnings or safety instruction.

5. The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.

6. Before cleaning, or storage, or when not in use, turn the fan to the off position and unplug the heater from the electrical outlet.
7. Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away from any combustible materials. DO NOT use on an unstable surface such as bedding or deep carpeting. Be sure the heater is not in a position where it may be tripped over by small children or pets. The heater's rubber feet will hold it firmly in position.
8. SAVE THESE INSTRUCTIONS

OPERATION

• Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9 m) away from any combustible materials.
• Never leave an operating unit unattended.
• Plug the heater into an electrical wall outlet.

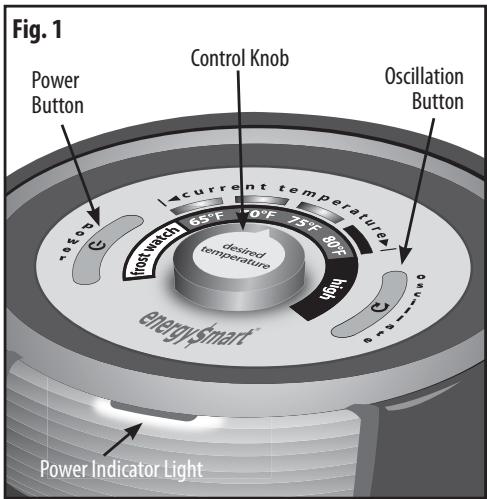

• Touch the power button (O) to turn the heater on. The power indicator light will illuminate. Fig. 1
• To save up to 35% in energy bills, turn the Energy SmartTM knob to your desired temperature. There are four distinct settings of 65^ / 18^, 70^ / 21^, 75^ / 23^ , and 80^ / 26^ . The Energy SmartTM heater will automatically select the appropriate power level to best accommodate your desired temperature. As the air temperature in the room approaches the set temp, the heater will automatically lower the power consumption and provide consistent warmth without wasting energy.
• The illuminated LED lights will indicate what the current room temperature is.
• This heater is equipped with a "frost watch" which automatically turns the unit on if the temperature drops below 55^ / 12^ degrees to help protect against freezing pipes or frost damage
• To override the Energy Smart™ feature and produce maximum heat, turn the knob fully clockwise to "High". This will produce 1500W of heat at all times.
• To turn on the oscillation feature, press the () button once. To turn it off, press the () button once more. Please note, the oscillation function will stop when the Energy SmartTM mode has reached the desired temperature and the heater is no longer blowing warm air. It will start back up when the heater starts blowing warm air again.

OTHER FEATURES

• This heater is equipped with a high temperature safety control and a thermal circuit breaker to help prevent overheating.
• This heater was crafted using a high quality safety plastic which allows for the "Cool-to-the-touch" exterior. If the heater grille is touched briefly, it will not cause a burn. For safe operation, do not continuously hold bare skin against the grille.
• This heater has a convenient carrying handle for ease of use.

TROUBLESHOOTING

If your heater shuts off unexpectedly or fails to operate, one of your heater safety features may have been activated to prevent overheating.

• Be sure it is plugged in and that the electrical outlet is working.
• Check your Thermostat setting. The unit may simply be off because you have reached your desired heat setting.
• Check for any obstructions. If you find an obstruction, turn the heater OFF and unplug it. Allow the heater to cool completely, then remove the obstruction. Wait at least 10 minutes, then re-plug the heater in and follow the OPERATION instructions.

CLEANING AND STORAGE

It is recommended that the heater be cleaned at least once a month. ALWAYS TURN THE POWER SELECTOR OFF AND UNPLUG THE HEATER BEFORE CLEANING.

Save the carton for off-season storage.

• Turn the heater OFF, unplug it and wait for the heater to cool.
• Use a dry cloth to clean only the external surfaces of the heater. DO NOT USE WATER, WAX OR POLISH.
• Wrap the cord around its cord wrap underneath the heater base. Pack the heater in its original carton and store it in a cool, dry place.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HEATER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY Void YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.

ELECTRICAL RATING

This product is rated 12.5 Amps (1500 watts) @ 120V, 60Hz.

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a 10 US/15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges. We suggest having tracking or delivery confirmation.

Send to:

In U.S.:

Kaz, Incorporated

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

A VERTISSEMENT

CONSIGNES DE SÉCURITÉ IMPORTANTES

LIZEZ CES CONSIGNES DE SECURITE AVANT D'UTILISER LE RADIATEUR ET GARDEZ-LES EN LIEU SÜR. SI VOUS NE COMPRENZ PAS LES INSTRUCTIONS OU LES ETIQUETTES, NE VOUS SERVEZ PAS DE L'APPAREIL AVANT DE NOUS APPELER AU [phone] POUR OBTENIR UNE EXPLICATION.
