USER MANUAL HZ-3750 KAZ

Intended for floor use only

Model HZ-370 Series

Intended for both table top and floor use

Model HZ-3750 Series

Intended for floor use only

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not continually let bare skin touch hot surfaces. If provided, use handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
6. Do not use outdoors.
7. This heater is rated at 1500W, 120 VAC. It is not to be used in wet or moist locations, such as bathrooms and laundry areas. Never locate heater where it may fall into a bathtub or other water container. Avoid the use of extension cord because the extension cord may overheat and cause a risk of fire. However, if an

SIGNATURE SERIES DIGITAL CERAMIC HEATERS

extension cord must be used, it must be 14 gauge or larger and rated no less than 1875 watts.

19. SAVE THESE INSTRUCTIONS

1. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area where it will not be tripped over.
2. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit securely in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
3. This heater draws 12.5 amps during operation when in the high setting. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.
4. It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
5. To disconnect the heater, first turn controls to the OFF position, then grip the plug and pull it from the wall outlet. Never pull by the cord.
6. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
7. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
8. A heater has hot and arcing or sparking parts inside. Do not use it in the areas where gasoline, paint, or flammable liquids are used or stored.
9. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
10. The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
11. This heater is intended for residential use only, and is not intended for commercial or industrial use.

The Honeywell trademark is used by Kaz, Inc. under license from Honeywell Intellectual Properties, Inc.

SET-UP

• Remove the heater from the box and remove all packaging materials
• Place the heater on a firm, level, open surface free from obstructions at least 3 feet (0.9m) way from any wall, furniture or combustible material.

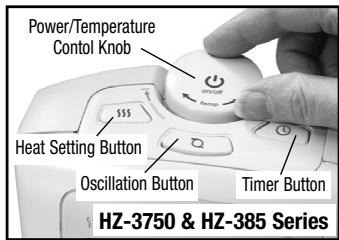

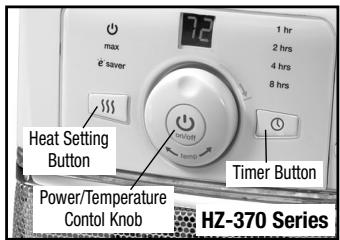

OPERATION

STEP 1: POWER

• Plug the unit into your wall outlet. When the unit is plugged in, it will beep.

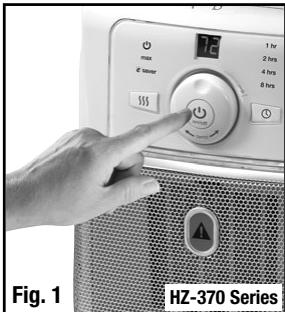

• Press the Power button (U) once to turn the heater on. The power indicator light (U) will illuminate. The heater will operate on high power, continuous operation (Fig. 1)
• Press the power button a second time to turn the heater off.

STEP 2: HEAT SETTINGS

• When the heater is turned on it will automatically operate on max heat, continuous run.

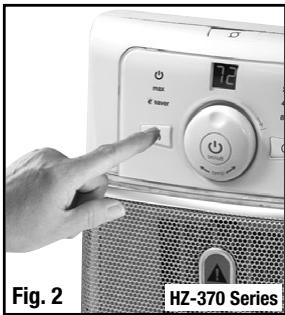

• Press the heat setting button (§§§) once to change the heat setting from max power to energy saver mode ( ^saver ). In this setting the heater will operate at 900 watts and run continuously. (Fig. 2)
• Press the heat setting button a second time to change the heat setting back to max power (1500 watts), continuous run.

NOTE: Unless the temperature set function is activated the heater will run continuously.

STEP 3: TEMPERATURE SET FUNCTION

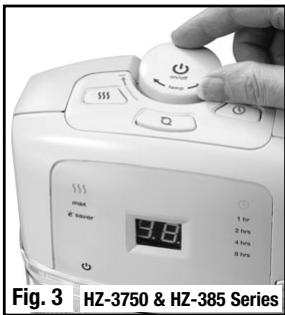

• To set the desired temperature, turn the temperature knob (temp), the temperature display will change from the current room temperature to display a default temperature of 75^ F (23.8^ C) (Fig. 3).
• The desired temperature can be set between 45^ (7.2^) and 80^ (26.6^) .
• Turn the temperature knob counterclockwise to decrease the desired temperature or clockwise to increase the desired temperature.
• Once the desired temperature is set the current room temperature will appear.
• The heater will turn off shortly after the Desired Temperature is reached and the Temperature Display will blink.
• The heater will turn back on when the room temperature drops below the Desired Temperature. The Temperature Display will then stop blinking and will display the current room temperature.

OPERATION (CONTINUED)

STEP 4: SET TIMER

NOTE: This function should only be set if you desire that the heater be automatically shut off after a certain period of time (1, 2, 4, or 8 hours from the time the function is set).

• Press the Timer button (①): (Fig. 4) once to set the timer for 1 hr auto shut-off. A light will illuminate next to the 1 hr icon. Twice to set the timer for 2 hr auto shut-off. A light will illuminate next to the 2 hr icon. Three times to set the timer for 4 hr auto-shut-off. A light will illuminate next to the 4 hr icon. Four times to set the timer for 8 hr auto shut-off. A light will illuminate next to the 8 hr icon.
• The heater will automatically turn off when time runs out.

NOTE: If the Desired Temperature was set prior to setting the Timer function, the heater will cycle on and off as per the selected Desired Temperature setting.

STEP 5: OSCILLATION

• Press the Oscillation button (O) to toggle this feature on and off (Fig. 5).

NOTE: This product is equipped with a SafeGuard™ Alert Heat Indicator Badge (Fig. 6). When the SafeGuard™ Alert Badge located on the front of the grille changes from black to red the grille is hot to the touch. Do not touch the grille until the unit has been turned off and the SafeGuard™ Alert Badge has turned back to black.

STEP 6: SAFETY AUTO-OFF SENSOR (HZ-385 Series Only)

• This heater is equipped with safety technology (Fig 7). If an object is placed too close to the heater, a light will blink warning you there is an obstruction. If the object is not removed, after a few seconds the sensor will disable the heater until such time as the object is removed. The heater will restart after a few seconds.
• To disable this function, press the button located to the right of the sensor. To reactivate this feature press the button a second time.

RECESSED HANDLE

Recessed handle on back of unit for carrying or transporting (Fig. 8).

Fig. 4 HZ-370 Series

Fig.5 HZ-370 Series

Fig. 6 All Models

Fig.7 HZ-385 Series Only

SAFETY FEATURES

This heater is equipped with several devices and features for added protection:

• A tip-over switch that disables the heater if accidentally tipped over.
• A SafeGuard™ Alert Heat Indicator Badge that indicates the grille is hot (turns from black to red) and should not be touched.
• A high temperature safety control prevents overheating (Hi-limit).
• A back-up thermal circuit breaker that will permanently shut down the heater should it operate at higher than normal temperatures.

TROUBLESHOOTING

If your heater shuts off unexpectedly, safety features may have been activated to prevent overheating. If this happens:

• Be sure the power cord is plugged into a working electrical outlet.
• Check your Desired Temperature setting. The unit may be off because you have reached your Desired Temperature setting.
• Check for any obstructions. If you find one, please remove it.
• Turn the heater OFF and unplug it, wait at least 10 minutes to allow the heater cool completely, and then plug in the heater and follow the OPERATION instructions.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-447-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST, RETURN THE HEATER TO THE ORIGINAL PLACE OF PURCHASE OR SEE YOUR WARRANTY. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HEATER OR PERSONAL INJURY.

CLEANING AND STORAGE

We recommend that the heater be cleaned at least once a month and before off-season storage.

• Turn the heater OFF and unplug it. Allow it to cool completely.
• Use only a dry cloth to clean the external surfaces of the heater. DO NOT USE WATER, WAX, POLISH, OR ANY CHEMICAL SOLUTION.
• Clean your heater using the above-mentioned steps, then pack the heater in its original container and store in a cool, dry place.
• This heater does not disassemble.

ELECTRICAL RATING

This product is rated 12.5 Amps (1500 watts) @ 120V, 60Hz.

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Kaz.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a 10 US/ 15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

In U.S.:

Kaz, Incorporated

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz, Incorporated

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada
