USER MANUAL HZ-339 KAZ

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not continually let bare skin touch hot surfaces. If provided, use handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
6. Do not use outdoors.
7. This heater is rated at 1500W, 120 VAC. It is intended for use on tabletops or desktops and floors. It is not to be used in wet or moist locations, such as bathrooms and laundry areas. If an extension cord must be used, it must be 14 gauge or larger and rated no less than 1875 watts.
8. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area where it will not be tripped over.
9. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of

DIGITAL CERAMIC HEATER

Model HZ-339 Series

Model HZ-341 Series

shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit securely in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

18. SAVE THESE INSTRUCTIONS

1. This heater draws 12.5 amps during operation when in the high setting. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.
2. It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
3. To disconnect the heater, first turn controls to the OFF position, then grip the plug and pull it from the wall outlet. Never pull by the cord.
4. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
5. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
6. A heater has hot and arcing or sparking parts inside. Do not use it in the areas where gasoline, paint, or flammable liquids are used or stored.
7. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
8. The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.

OPERATION

This heater is equipped with SureSet™ Digital Controls that provide the ability to set the temperature to the exact degree desired. To operate, simply follow these instructions.

STEP 1: POWER

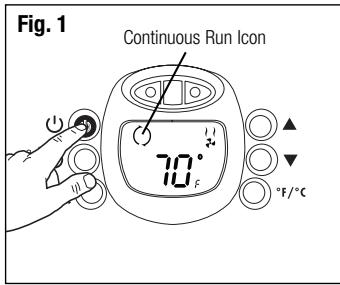

• Press the Power button ( ) once to start the heater on High Power ( ), Continuous Run ( ) (Fig. 1). If left at this setting, the unit will run continuously on High Power (1500 watts, 12.5 amps) and will not shut off until the unit is manually turned off.
• Press the Power button ( ) again to change to Low Power ( ), Continuous Run ( ). If left at this setting, the unit will run continuously on Low Power (900 watts, 7.5 amps) and will not shut off until the unit is manually turned off.
• Press the Power button ( ) a third time to turn the heater OFF.

NOTE: If operated at the Low setting, the heater will not provide as much heat output as in the High setting, however, the Low setting will not require as much electrical current to operate. To avoid overloading a circuit, do not plug the heater into a circuit that already has other appliances working.

STEP 2: SET TEMPERATURE

• Press the Temp/Timer button (↓|○) until the Temperature Icon (▲) blinks. The current room temperature will appear (Fig. 2).

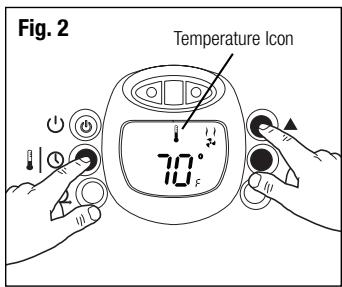

• Use the Up and Down arrow buttons ( ) to set the Desired Temperature (Fig. 2).
• The Temperature Icon ( ) will stop blinking and the current room temperature will reappear after the Desired Temperature is set.
• The heater will turn off shortly after the Desired Temperature is reached and the Temperature Display will blink.
• The heater will turn back on when the room temperature drops below the Desired Temperature. The Temperature Display will then stop blinking and will display the current room temperature.

STEP 3: SET TIMER

NOTE: This function should only be set if you desire that the heater be automatically shut off after a certain period of time (1 to 10 hours from the time the function is set). Always set the Desired Temperature prior to setting the Timer (see Step 2) so that the heater will shut off at the Desired Temperature setting and not run continuously.

• Press the Temp/Timer button (↓|○) until the Timer Icon (◇◇) blinks. The Hour Display will appear. The Auto Off icon will also appear (Fig. 3).

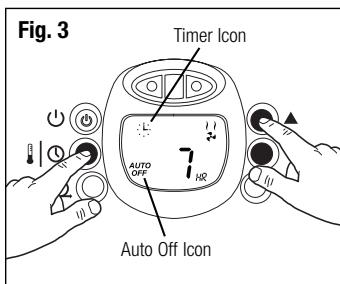

• Use the Up and Down arrow buttons ( ) to set the heater operation time between 1 and 10 hours (Fig. 3). Once the timer function is set the hour set will remain displayed until the time set runs out.
• The heater will automatically turn off when time runs out.

NOTE: If the Desired Temperature was set prior to setting the Timer function, the heater will cycle on and off as per the selected Desired Temperature setting. To return to the Continuous Run Mode (Fig. 1), press the Temp/Timer button ( | ) a third time.

OPERATION (CONTINUED)

STEP 4: FAHRENHEIT/CELSIUS FUNCTION

This heater offers the option to read the temperature setting in either Fahrenheit or Celsius.

• ^ F / ^ feature functions from only the Power or Set Temperature screens.

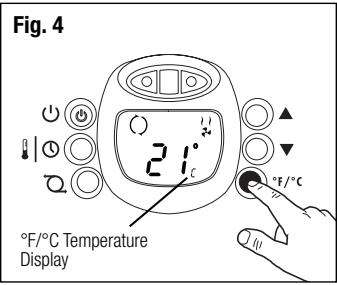

• Press ^ F / oC button to toggle between Fahrenheit and Celsius (Fig. 4).

STEP 5: OSCILLATION

• The Oscillation feature functions in all Power and Temp/Timer settings.

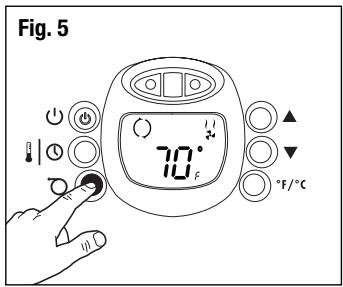

• Press the Oscillation button ( _· ) to toggle this feature on and off (Fig. 5).

NOTE: This product is equipped with a SafeGuard™ Alert Heat Indicator Badge (Fig 6). When the SafeGuard™ Alert Badge located on the top of the grill changes from black to red the grill is hot to the touch.

Do not touch the grille until the unit has been turned off and the SafeGuard™ Alert Badge has turned back to black.

REMOTE CONTROL OPERATION (MODEL HZ-341 SERIES ONLY)

Two (2) AAA batteries are included and are required to operate the Remote Control.

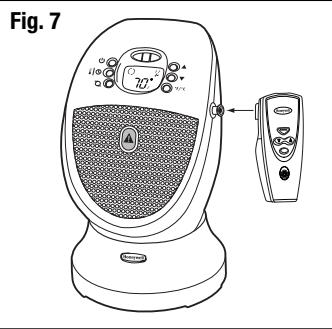

The Remote Control can be stored on the heater when not in use by hanging the remote on the hook located on the side of the heater (See Fig. 7).

The Remote Control works the same as the corresponding buttons on the Control Panel. The Control Panel display on the heater will show the appropriate icons when the various functions are activated.

STEP 1: POWER

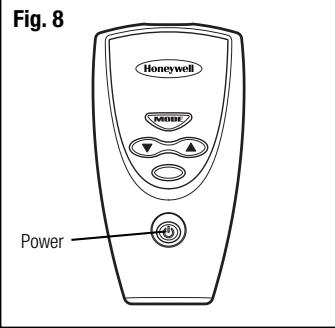

• Press the Power button ( ) once to start the heater on High Power ( ), Continuous Run ( ) (Fig. 8). If left at this setting, the unit will run continuously on High Power (1500 watts, 12.5 amps) and will not shut off until the unit is manually turned off.
• Press the Power button (U) again to change to Low Power (Z), Continuous Run (C). If left at this setting, the unit will run continuously on Low Power (900 watts, 7.5 amps) and will not shut off until the unit is manually turned off.
• Press the Power button ( ) a third time to turn the heater OFF.

REMOTE CONTROL OPERATION (CONTINUED)

NOTE: If operated at the Low setting, the heater will not provide as much heat output as in the High setting, however, the Low setting will not require as much electrical current to operate. To avoid overloading a circuit, do not plug the heater into a circuit that already has other appliances working.

STEP 2: SET TEMPERATURE

• Press the Mode button until the Temperature Icon ( 品 ) blinks. The current room temperature will appear (Fig. 9).

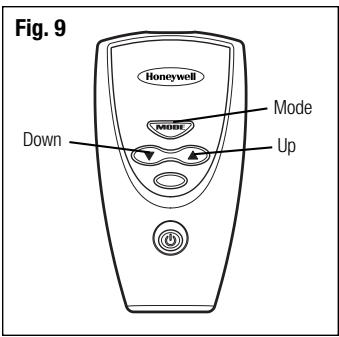

• Use the Up and Down arrow buttons ( ) to set the Desired Temperature (Fig. 9).
• The Temperature Icon ( ) will stop blinking and the current room temperature will reappear after the Desired Temperature is set.
• The heater will turn off shortly after the Desired Temperature is reached and the Temperature Display will blink.
• The heater will turn back on when the room temperature drops below the Desired Temperature. The Temperature Display will then stop blinking and will display the current room temperature.

STEP 3: SET TIMER

NOTE: This function should only be set if you desire that the heater be automatically shut off after a certain period of time (1 to 10 hours from the time the function is set). Always set the Desired Temperature prior to setting the Timer (see Step 2) so that the heater will shut off at the Desired Temperature setting and not run continuously.

• Press the Mode button until the Timer Icon ( 已 ) blinks. The Hour Display will appear. The Auto Off icon will also appear (Fig. 9).
• Use the Up and Down arrow buttons ( ) to set the heater operation time between 1 and 10 hours (Fig. 9). Once the timer function is set the hour set will remain displayed until the time set runs out.
• The heater will automatically turn off when time runs out.

NOTE: If the Desired Temperature was set prior to setting the Timer function, the heater will cycle on and off as per the selected Desired Temperature setting. To return to Continuous Run Mode (Fig. 1), press the Mode button a third time.

STEP 4: OSCILLATION

• The Oscillation feature functions in all Power and Temp/Timer settings.
• Press the Oscillation button to toggle this feature on and off (Fig. 10).

TROUBLESHOOTING

If your heater shuts off unexpectedly, safety features may have been activated to prevent overheating. If this happens:

• Be sure the power cord is plugged into a working electrical outlet.
• Check your Desired Temperature setting. The unit may be off because you have reached your Desired Temperature setting.
• Check for any obstructions. If you find one, turn the heater OFF and unplug it. Wait at least 10 minutes to allow the heater to cool completely before removing any obstruction. When done, plug in the heater and follow the OPERATION instructions.

CONSUMER RELATIONS

Mail questions or comments to:

Call us toll-free at: 1-800-332-1110

Kaz, Incorporated

E-mail: [e-mail]

Consumer Relations Dept.

Or visit our website at: www.kaz.com

250 Turnpike Road

Southborough, MA 01772

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST, RETURN THE HEATER TO THE ORIGINAL PLACE OF PURCHASE OR SEE YOUR WARRANTY. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HEATER OR PERSONAL INJURY.

CLEANING AND STORAGE

We recommend that the heater be cleaned at least once a month and before off-season storage.

• Turn the heater OFF and unplug it. Allow it to cool completely.
• Use only a dry cloth to clean the external surfaces of the heater. DO NOT USE WATER, WAX, POLISH, OR ANY CHEMICAL SOLUTION.
• Clean your heater using the above-mentioned steps, then pack the heater in its original container and store in a cool, dry place.
• This heater does not disassemble.

SAFETY FEATURES

This heater is equipped with several devices and features for added protection:

• A tip-over switch that disables the heater if accidentally tipped over (HZ-341BW only).
• A SafeGuard™ Alert Heat Indicator Badge that indicates the grille is hot and should not be touched - turns from black to red.
• A high temperature safety control prevents overheating (Hi-limit).
• A back-up thermal circuit breaker that will permanently shut down the heater should it operate at higher than normal temperatures.

ELECTRICAL RATING

This product is rated 12.5 Amps (1500 watts) @ 120V, 60Hz.

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Kaz.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a 10 US/ 15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

In U.S.:
Kaz, Incorporated
Attn: Returns Department
4755 Southpoint Drive
Memphis, TN 38118
USA
In Canada:
Kaz, Incorporated
Attn: Returns Department
510 Bronte Street South
Milton, ON L9T 2X6
Canada
