HCM-350 - Air Humidifier KAZ - Free user manual and instructions

Product Type	Cool Mist Humidifier
Brand	KAZ (Honeywell)
Model	HCM-350
Power Supply	120 V, 60 Hz
Humidification Rate	7.6 L per day (2 US gal)
Tank Capacity	3.8 L (1 US gal)
Fan Speeds	3 speeds: LOW, MED, HIGH
Purification Technology	UV Germicidal Lamp (destroys 99.9% of bacteria, fungi, mold and viruses)
Filter Type	ProTec Antimicrobial Wick Filter (ref. HAC-504AW)
UV Bulb Lifespan	3000 hours
Noise Level (Low Speed)	Quiet, ideal for night
Tank Material	Dishwasher-safe plastic (cap not)
Safety	Polarized plug; use on flat surface, out of reach of children
Cleaning and Descaling	Descaling with white vinegar, disinfection with bleach
Filter Replacement Frequency	Approximately every 30 days (depending on usage)
Available Replacement Parts	Filter (HAC-504AW), Tank (HCM-350-TANK or HCM-350B-TANK), UV Bulb (HCM-350-UV), Cap (HCM-350-CAP or HCM-350B-CAP)
Warranty	3-year limited (excluding filter and cartridge)
Customer Service	1-800-477-0457, [e-mail]

Frequently Asked Questions - HCM-350 KAZ

How do I know if the humidifier is working properly?

You should feel cool air coming out of the unit and notice a decrease in water level in the tank after 24 hours of operation. The humidifier does not produce visible mist.

Why don't I see any mist?

This model is a cool mist humidifier that disperses invisible, humidity-balanced air. It does not produce visible mist. If the water level drops, the unit is functioning normally.

The filter turned brown, should I replace it?

No, this simply indicates a mineral deposit. Soak the filter in fresh water to break up deposits. The discoloration does not affect performance.

What if I don't notice a drop in water level?

Check that the filter is wet. If dry, remove it and rinse under fresh water. Also ensure the ambient humidity is below 60%.

How do I clean the humidifier?

Unplug the unit, remove the filter, then descale with undiluted white vinegar. Rinse thoroughly. Then disinfect with a bleach solution (5 mL per 3.8 L of water) and rinse until odor is gone.

When should I replace the UV bulb?

The UV bulb has a lifespan of 3000 hours. The power indicator light changes from green to red when it needs replacement. Use an identical bulb (ref. HCM-350-UV).

What replacement parts are available?

Filter (HAC-504AW), Tank (HCM-350-TANK or HCM-350B-TANK), UV Bulb (HCM-350-UV), and Tank Cap (HCM-350-CAP or HCM-350B-CAP).

How do I descale and disinfect the unit?

First descale: wipe the tray, cap, and tank with a cloth soaked in undiluted white vinegar, then rinse. Then disinfect: pour 5 mL of bleach into 3.8 L of water, wipe the tray with this solution and rinse thoroughly.

What if there is an unpleasant odor?

It is probably time to replace the ProTec antimicrobial cartridge (if your model has one) and clean the unit. Replace the filter and follow cleaning instructions.

Where can I find customer service?

Contact Kaz at 1-800-477-0457 or by email at [e-mail]. For replacement parts, visit www.kaz.com.

USER MANUAL HCM-350 KAZ

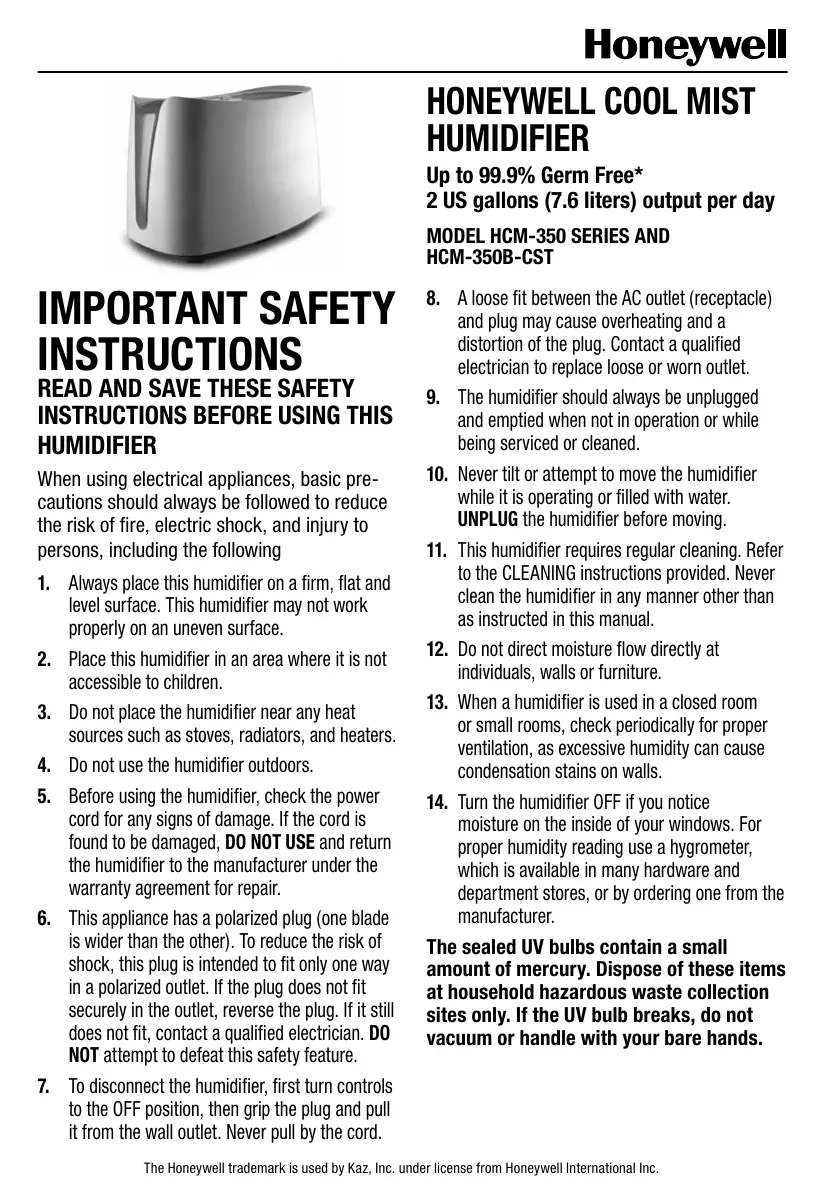

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HUMIDIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following

1. Always place this humidifier on a firm, flat and level surface. This humidifier may not work properly on an uneven surface.
2. Place this humidifier in an area where it is not accessible to children.
3. Do not place the humidifier near any heat sources such as stoves, radiators, and heaters.
4. Do not use the humidifier outdoors.
5. Before using the humidifier, check the power cord for any signs of damage. If the cord is found to be damaged, DO NOT USE and return the humidifier to the manufacturer under the warranty agreement for repair.
6. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit securely in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
7. To disconnect the humidifier, first turn controls to the OFF position, then grip the plug and pull it from the wall outlet. Never pull by the cord.

1. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
2. The humidifier should always be unplugged and emptied when not in operation or while being serviced or cleaned.
3. Never tilt or attempt to move the humidifier while it is operating or filled with water. UNPLUG the humidifier before moving.
4. This humidifier requires regular cleaning. Refer to the CLEANING instructions provided. Never clean the humidifier in any manner other than as instructed in this manual.
5. Do not direct moisture flow directly at individuals, walls or furniture.
6. When a humidifier is used in a closed room or small rooms, check periodically for proper ventilation, as excessive humidity can cause condensation stains on walls.
7. Turn the humidifier OFF if you notice moisture on the inside of your windows. For proper humidity reading use a hygrometer, which is available in many hardware and department stores, or by ordering one from the manufacturer.

The sealed UV bulbs contain a small amount of mercury. Dispose of these items at household hazardous waste collection sites only. If the UV bulb breaks, do not vacuum or handle with your bare hands.

HOW DOES IT WORK? GERM FREE COOL MIST SYSTEM

Once the filled water tank is in place, water is delivered to the UV and wicking systems. When the unit is on, the water moves very slowly past the UV system. This is ample time to destroy germs, fungus and mold that may be present in the water. The water is then delivered to the filter/wick. This saturated wick not only filters the air, but also provides moisture to the humidifier fan, which in turn, delivers germ free* moisture to the room.

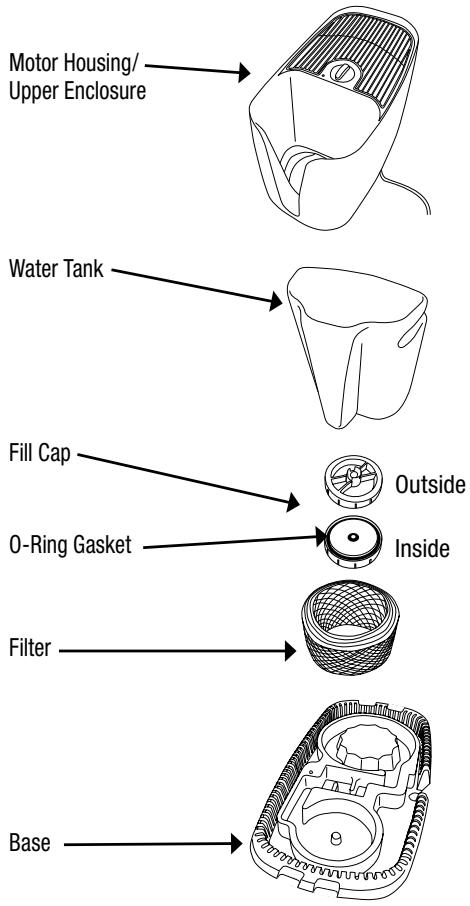

Your humidifier is made up of these parts:

* Based on independent testing, report 3175067COL-001. Results are based on microbial reduction rate testing performed using tap water in the water tray. The following listed microorganism growth reduction was maintained after 2 hours of continuous exposure to the ultraviolet light in the humidifier.

Bacteria: Escherichia Coli 99.9% Fungus: Penicillium Citrinum 99.9%

Mold: Aspergillus niger 99.9% Virus: MS2 99.9%

SETTING UP YOUR HUMIDIFIER AND PLACEMENT

Remove from box. Remove packaging material. Remove and set aside OM instructions. Recycle box and packaging materials or save box for end of season storage

Select a firm, level location at least 6" (15cm) from any walls and furniture for proper airflow. Place the humidifier on a water resistant surface, as water can damage furniture and some flooring.

Kaz will not accept responsibility for property damage caused by water spillage.

OPERATION

Remove tank and fill.

Lift off upper enclosure.

Remove filter and soak in cool water.

Replace wet filter into unit and reassemble.

Fill tank with water and replace filled tank.

Make sure unit is off.

Plug into polarized 120V outlet.

Set fan speed.

FAN SPEEDS

HIGH: For fast humidifying

MED: For everyday moisture control

LOW: For quiet operation (ideal for nighttime use)

CHANGING FILTER

Filter HAC-504AW.

Turn off and unplug unit.

Remove water tank.

Lift off upper enclosure.

Remove and discard used filter.

Soak new filter in cool water.

Do not wring or squeeze.

Place wet filter into unit.

Replace upper enclosure.

Replace water tank.

CHANGING UV BULB

The UV bulb will operate for an average output of 3,000 hours. To replace UV bulb contact 1-800-477-0457 or [e-mail].

Note: Power light will turn from Green to Red when UV light needs to be replaced.

Turn off and unplug unit.

Remove and empty water tank.

Lift off upper enclosure.

Turn enclosure over.

Locate UV Bulb cover.

Remove 4 screws with Phillips screw driver.

Remove bulb and bulb socket from holder.

Unscrew and discard old bulb.

Insert new bulb and bulb socket firmly into holder. Do not handle new bulb with bare hands as oils can reduce bulb life.

Replace cover and tighten 4 screws firmly. Re-assemble unit.

WARNING:

REPLACE UV GERMICIDAL BULB WITH ONE OF THE SAME TYPE (HCM-350-UV). BULB AVAILABLE FROM KAZ INC. SEE INSTRUCTIONS OR CONTACT KAZ CUSTOMER SERVICE.

NOTE: Discard the old UV bulb cartridge at a household hazardous waste collection site. Bulb and bulb housing are not intended for use with any other product or purpose. Lamp contains mercury. Manage in accordance with disposal laws.

See www.lamprecycle.org or call 1-800-895-8842.

CLEANING

Water tank is dishwasher safe and can be used for disinfecting. DO NOT PUT TANK CAP IN DISHWASHER.

Cleaning base and tank cap involves two steps, SCALE REMOVAL and DISINFECTING. Be sure to perform these in the proper order to avoid harmful chemical interactions.

NOTE: REMOVE FILTER BEFORE SCALE REMOVAL OR DISINFECTING.

Failure to remove filter during cleaning will destroy the filter.

SCALE REMOVAL

Turn off and unplug unit.

Remove and empty water tank.

Lift off upper enclosure.

Remove Filter.

Wipe base, tank cap and tank with undiluted vinegar.

Rinse thoroughly.

DISINFECTING if dishwasher is not available

Turn off and unplug unit.

Remove and empty water tank.

Lift off upper enclosure.

Remove filter.

CLEANING continued

Fill water tank with 1 tsp bleach and 1 gallon cool water.

Wipe base with same solution.

Rinse until smell of bleach is gone.

END-OF-SEASON CARE AND STORAGE

Clean and disinfect unit.

Do not store with used filter.

Make sure unit is dry.

Pack unit in original carton.

Clean and install new filter before next use.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Please be sure to specify model number.

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

TO ORDER REPLACEMENT PARTS

Replacement Filter Part # HAC-504AW

HCM-350:

Replacement part # HCM-350-TANK

Replacement part # HCM-350-UV

Replacement part # HCM-350-CAP

HCM-350B/HCM-350B-CST:

Replacement part # HCM-350B-TANK

Replacement part # HCM-350-UV

Replacement part # HCM-350B-CAP

ELECTRICAL RATINGS

The Honeywell HCM-350 Series models are rated at 120V, 60 Hz.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HUMIDIFIER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING OR TAMPER WITH INTERLOCK SWITCH YOURSELF, DOING SO MAY Void YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.

TROUBLESHOOTING

Q: I hear the fan turning, but I don't see any mist. Is my humidifier operating properly?

A: Dry air is pulled through the system and a fan disperses invisible, moisture balanced air. There is no "mist" emitted. When operating normally you will feel only cool air coming from the unit. Monitor the water level in your Tank/ Base. If you notice a decrease in the Water Tank over 24 hours then the unit is operating normally.
Q: My unit has been running for several hours. I hear the fan spinning, but I do not notice the water level in the tank decreasing.
A: First, check the filter to ensure it is wet. If the pad appears dry, remove it from the Base and gently rinse under cool water. Reposition wet filter in the Base. You may also want to note the current moisture level in your home. If the humidity level is over 60% the unit will not put out much moisture as your air is already saturated. Also verify the upper enclosure and water tank are properly seated.
Q: My filter has turned light brown and rust colored. Do I need a new filter?
A: Probably not. Since your filter has been made with Protec™ antimicrobial the change in color indicates only a mineral deposit. Soak filter in a sink full of cool water to help break up deposits. The discoloration may remain but will not affect the humidifier's performance.
Q: My humidifier doesn't appear to be as clean as when I first purchased and/or I'm smelling an unpleasant odor. What should I do?
A: You probably need to replace your Protec™ Antimicrobial Cartridge. This cartridge helps your humidifier stay cleaner, longer and helps freshen the mist. If you have been using your humidifier regularly for over 30 days replace the Protec™ cartridge and follow the cleaning instructions.

3 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. It also does not apply to the filter or Protec™ Antimicrobial Cartridge. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a 10 US/ 15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges. We suggest having tracking or delivery confirmation. Send to:

In U.S.A.:

Kaz, Incorporated

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

Please go to www.kaz.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.
