USER MANUAL NT 621 BARTSCHER

Pizza oven series NT

from page 17 to 30

GB/UK

Mode d'emploi

Keep this instruction manual ready to hand at the product!

1. General Information 18

1.1 Information about the instruction manual 18
1.2 Key to symbols 18
1.3 Liability and Warrantees 19
1.4 Copyright protection 19
1.5 Declaration of conformity 19

2. Safety 20

2.1 General information 20
2.2 Safety instructions for the commercial use of the device 20-21
2.3 Intended use 21

3.Delivery,packaging and storage 22

3.1 Delivery check 22
3.2 Packaging 22
3.3 Storage 22

4. Technical data 23

4.1 Technical specification 23
4.2 Overview of parts 24

5. Installation and operation 25

5.1 Safety instructions 25
5.2 Installation and connection 26
5.3 Operating 27-28

6. Cleaning and maintenance 28

6.1 Safety advice 28
6.2 Cleaning 28-29
6.3 Safety instructions for maintenance 29

7. Possible Malfunctions 29

8.Waste disposal 30

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

WARNING! Hot external surface!

This symbol is a warning that the unit surface is hot when in use. Ignoring this warning may result in burns!

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The unit is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the unit.
Children should be observed to ensure that they are not playing with the unit.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
The device is to be used indoors only.

2.3 Intended use

CAUTION!

This device has been designed and built for commercial use only and should be operated by qualified personnel only.

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The pizza oven is exclusively intended for pizza baking.

The pizza oven shall not be used for:

• Baking cake, bread, bread rolls and similar kinds of pastry;
  Preparing or warming up the food dishes.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
  In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

4.1 Technical specifications

Description:	Pizza oven
Item no.:	200.2017	200.2027	200.2087
Model:	NT 501	NT 502	NT 621
Temperature:	0℃ up to 400 ℃
Connection:	2 NAC 400 V	3 NAC 400 V	2 NAC 400 V
Power:	4 kW	6 kW	5 kW
Dimensions W x D x H (mm):	800 x 735 x 370	800 x 735 x 520	890 x 810 x 440
Dimensions Baking chamber W x D x H (mm):	500 x 500 x 100	500 x 500 x 100	620 x 620 x 140
Capacity:	4 Pizzas Ø 25 cm	2 x 4 Pizzas Ø 25 cm	4 Pizzas Ø 30 cm
Weight:	68 kg	85 kg	77 kg

Description:	Pizza oven
Item no.:	200.2097	200.2100	200.2120
Model:	NT 622	NT 901	NT 921
Temperature:	0℃ up to 400℃
Connection:	3 NAC 400 V
Power:	10 kW	6 kW	12 kW
Dimensions W x D x H (mm):	890 x 810 x 770	1190 x 860 x 440	1190 x 860 x 770
Dimensions Baking chamber W x D x H (mm):	620 x 620 x 140	920 x 620 x 140	920 x 620 x 140
Capacity:	2 x 4 Pizzas Ø 30 cm	6 Pizzas Ø 30 cm	2 x 6 Pizzas Ø 30 cm
Weight:	125 kg	110 kg	158 kg

Subject to technical changes and alterations!

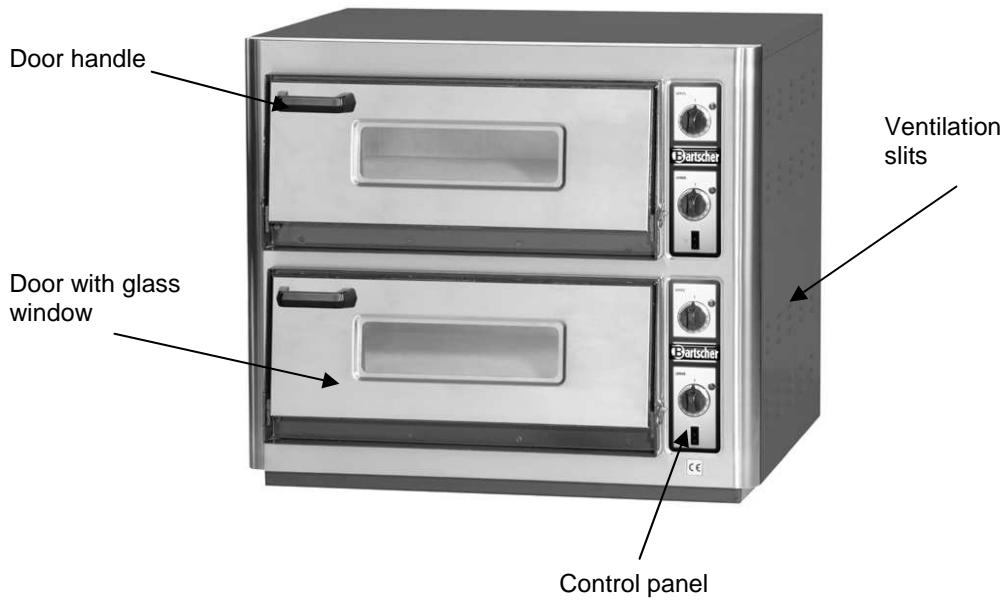

4.2 Overview of parts

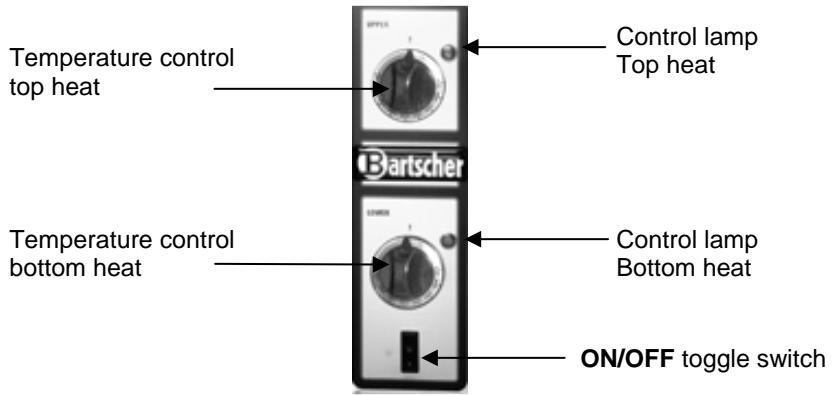

Control Panel

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

• See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.

WARNING! Hot external surface!

This symbol is a warning that the unit surface is hot when in use. Ignoring this warning may result in burns!

• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
• In the event of thunder storms (lightning etc.) immediately switch off the power supply. This will prevent damage to the device caused by strokes of lightning.
• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

CAUTION!

The installation and maintenance of the device should only be carried out by trained personnel!

• Discard the complete packing material after unpacking the device.
• Remove the protective foil from the device. Ensure that it has been completely removed.
• Place the device on top of an even and safe surface which supports the weight of the device and is not heat sensitive.
  Not at any time should you place the device on an inflammable surface.
• You must not position the device near open fireplaces, electric ovens/arc furnaces, furnaces/electric heaters or other heat sources.
• Keep a minimum safety distance of at least 20~cm to walls or other objects.

WARNING! Danger of fire!

Make sure that there are no flammable materials on and around the installation site. Keep a sufficient distance on all sides.

• Do not place inflammable acidic or alkaline materials or cloths close to the appliance since this may reduce the operational life of the device and may involve the danger of deflagration.

NOTE!

This device is not suitable for built-in use nor for being set up in multiple in-line series.

• Place the device in well-ventilated rooms.
• Arrange the device so that the power plug are easily accessible.
• The rear side of the device is fitted with an earthing pin. Please connect the earthing cable to a copper wire (minimum diameter 2mm^2 ) in accordance with the generally applicable safety regulations.

5.3 Operating

Prior to first use

• Keep the device turned on at the highest temperature for approx. 2 to 3 hours to remove the production residues. Then leave the device to cool down.
• Clean the pizza oven (see chapter 6.2 "Cleaning").

Putting the device into operation

• Connect the device to a grounded single outlet.
• Turn the device on with the ON/OFF toggle switch.
• The temperature is set individually for each baking chamber with the temperature control.
  Each baking chamber of the pizza ovens NT series (with the exception of 200.2027) has two heating elements. The one heating element is located below the pizza stone made of chamotte, the other heating element in the top part of the pizza oven. The heating elements are set via the temperature controls for top and bottom heat.

NOTE!

• The pizza oven 200.2027 has only one baking chamber, which is divided into two individual chambers by the chamotte pizza stone. This pizza oven has 3 heating elements and 3 temperature controls. The top temperature control serves to set the top heat, the bottom one to set the bottom heat. The heating element in the center of the pizza oven is located directly below the pizza stone. It therefore serves as top heat for the bottom part of the baking chamber and as bottom heat for the top part. The temperature control in the center serves to set the temperature in this section.
• Set the desired temperature. The control lamps for the top and bottom heat light up.
• The adjustable temperature range of the pizza oven is between 0^ - 400^ . The recommended temperature setting is between 300^ - 400^ .
• Once the set temperature has been reached, the control lamp goes off. When the temperature in the baking chamber sinks, the control lamp lights up again and the heating element heats up until it has reached the set temperature again.

NOTE!

Always preheat the pizza oven prior to baking pizzas!

• Once the desired temperature has been reached, open the door of the pizza oven using the handle.
• Place suitable pizzas into the baking chamber of the pizza oven and close the door.
• Do not leave the pizza oven unattended during operation.

• Observe the baking process through the window in the door.

• Once the baking process is finished, turn all temperature controls counter-clockwise up to the marking 0^ . Turn the device off with the toggle switch. Then open the door.

• Remove the baked pizzas from the oven.

WARNING! Risk of burns!

Some parts of the device get very hot during operation. Do not touch the device parts with bare hands or fingers. Wear protective gloves when removing the pizzas, which reach above the wrists and use kitchen utensils with long handles to prevent burns.

• Disconnect the device from the mains outlet if you are not going to use it any longer.

6. Cleaning and care

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

Clean the device at regular intervals.
Leave the device to cool down before cleaning it.
Clean the surface of the device with a soft, damp cloth and a mild detergent.
Clean the baking chambers with a soft, damp cloth and wipe them with a clean cloth to remove any cleaning agent residues.
○ Remove residues on the pizza stone with a natural hair or brass brush without using any water or cleaning agents.
For thorough cleaning at the end of the day, heat up the pizza oven for 30 minutes at the highest temperature (only use the temperature control for the bottom heat). Brush off the cold surface of the pizza stone on the following day.
o Do not use any caustic cleaning agents to clean the device.
The device should be cleaned regularly.

○ Use soft cloth only and make sure you never use any kind of abrasive agents or pads, which could scratch the surface.
After the cleaning procedure you should use a soft and dry cloth to wipe dry and polish the surface.
o Make sure the device has been cleaned properly before storing it in a dry place.

6.3 Safety instructions for maintenance

Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
In case of damage or malfunction, please contact your stockist or our customer service centre. Pay attention to the troubleshooting tips in pt. 7.
○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Possible Malfunctions

PROBLEM	CAUSE	SOLUTION
Mains plug is inserted, temperature is set, but the device does not heat up.	• Thermostat defective. • Heating element burnt out.	• Contact retailer • Contact retailer
Power on, temperature control set, temperature rises but cannot be regulated (selected).	• Temperature control defective	• Contact retailer
Mains plug is inserted, on/off switch is set to on, temperature is set, but the control lamp does not light up.	• Control lamp defective.	• Contact retailer
Power on, control lamp does not come on and the device does not heat up.	• Power supply not working properly, no voltage. • The fuse is blown.	• Check power supply and cable connection. • Contact retailer

The above description of faults (defects) shall merely serve as a guide. In the event of defects, disconnect the device from the power supply. Send the device to a qualified technician for check-up and repair.

8. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.1 Indications techniques

WAARSCHUWING! Brandgevaar!
