Brand	BEGLEC
Model	MINI LOGO
Product type	Advertising and architectural light projector
Use	Indoors only
Power supply	AC 230V, 50Hz
Fuse	250V 3.15A slow-blow (20mm glass)
Bulb	EFP 100W / 12V
Dimensions	254 × 182 × 131 mm
Weight	1.4 kg
Max ambient temperature	40°C
Minimum projection distance	1 meter
Gobo diameter	26.8 mm (image: 20 mm)
Gobo rotation	On/Off via switch
Focus	Manual
Ventilation	Cooling fan
Included accessories	4 gobos, mounting bracket + clamping lever, EFP 100W/12V lamp
Maintenance	Monthly cleaning of ventilation openings, annual internal cleaning by qualified personnel
Repairability	Replacement of bulb, gobo and fuse by user (after cooling down)
Cooling period before maintenance	10 minutes
Safety class	Earth connection mandatory
Approval	Compliant with national and European requirements
Warranty	Warranty not applicable in case of incorrect use

Frequently Asked Questions - MINI LOGO BEGLEC

How to replace the bulb of the MINI LOGO?

Unplug the device and wait 10 minutes for it to cool down. Unscrew the bulb compartment, remove the socket, take out the old bulb without touching the reflector. Insert a new EFP 100W/12V bulb (identical), then close the compartment.

How to change the gobo?

Unplug and let it cool for 10 min. Open the bulb compartment, unscrew the gobo holder screw, remove the holder. Remove the retaining ring with small pliers, replace the gobo (diameter 26.8 mm, image 20 mm). Replace the ring ensuring it is locked in the groove. Reassemble the holder and tighten the screw.

Can I use a dimmer with this projector?

No, never connect the unit to a dimmer. This could damage the device and pose a fire risk.

What is the safety distance from illuminated objects?

The minimum distance between the projector and the illuminated surface must be at least 1 meter to avoid any risk of overheating.

What to do if the device does not turn on?

First check the fuse (250V 3.15A slow-blow). If the fuse is intact, check the bulb. If problem persists, contact a qualified technician.

How to clean the device?

Unplug and let it cool. Clean the optical lenses with a soft cloth and glass cleaner. Ventilation openings should be cleaned monthly. For interior, call a professional once a year.

Is this projector suitable for outdoor use?

No, this projector is designed for indoor use only. Do not expose it to rain or moisture.

How to install the projector in height?

Installation at height must be carried out by qualified personnel. Use a suitable mounting bracket and a safety cable that can support 12 times the weight of the device. Make sure the area below is clear.

Why does the device emit an odor during first use?

This is normal: a new light effect may produce smoke and/or odor during the first minutes. This disappears after a few minutes of use.

How to control the gobo rotation?

Use the switch on the device: position 'stop' to stop rotation, position 'rotation' for fixed speed rotation.

USER MANUAL MINI LOGO BEGLEC

Copyright © 2006-2007 by BEGLEC cva.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

C

Version: 1.1

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

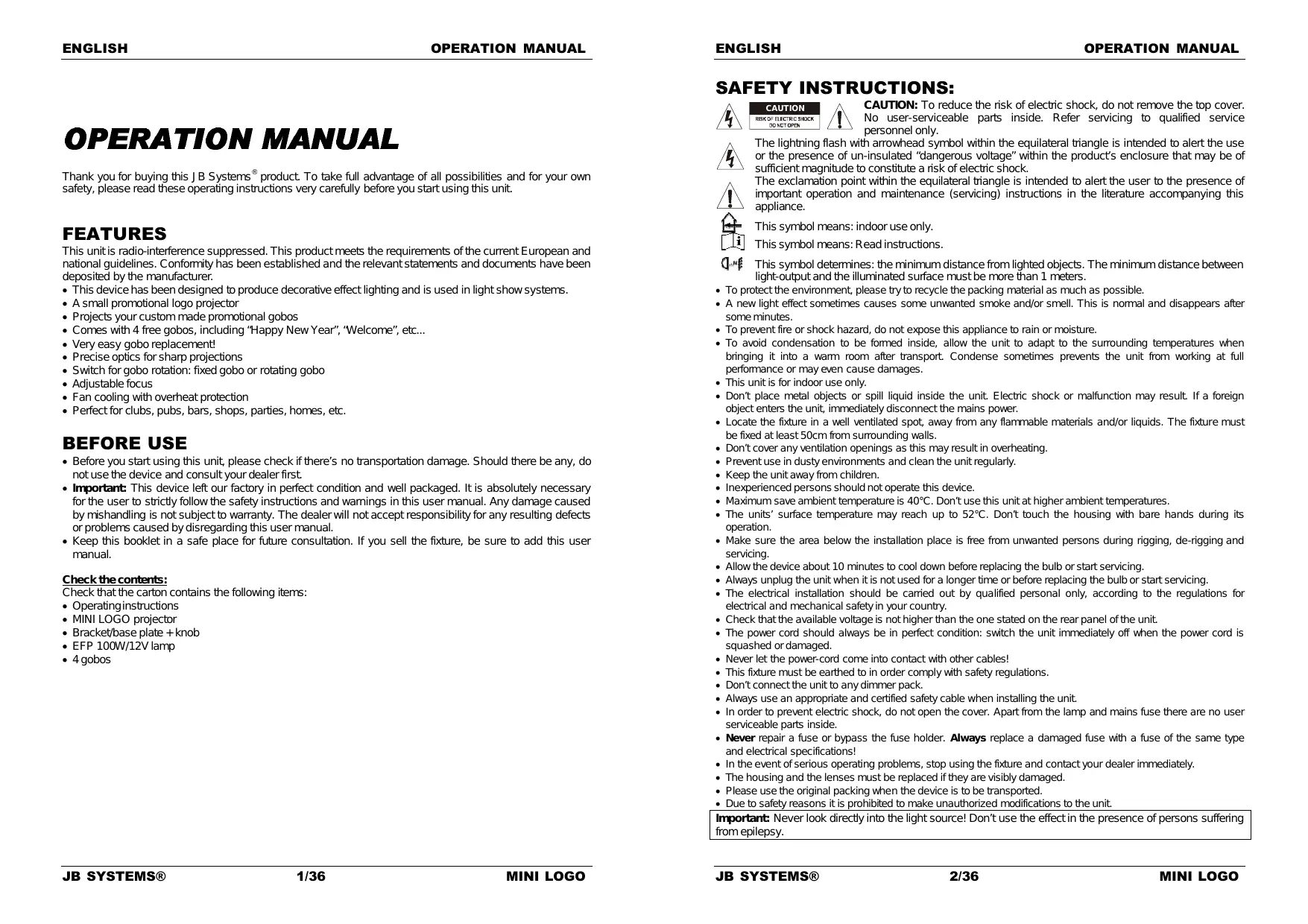

Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• This device has been designed to produce decorative effect lighting and is used in light show systems.
• A small promotional logo projector
• Projects your custom made promotional gobos
• Comes with 4 free gobos, including "Happy New Year", "Welcome", etc...
• Very easy gobo replacement!
• Precise optics for sharp projections
• Switch for gobo rotation: fixed gobo or rotating gobo
• Adjustable focus
  Fan cooling with overheat protection
• Perfect for clubs, pubs, bars, shops, parties, homes, etc.

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

• Operating instructions
  MINI LOGO projector
• Bracket/base plate + knob
• EFP 100W/12V lamp
• 4 gobos

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only.

This symbol means: Read instructions.

This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 1 meters.

• To protect the environment, please try to recycle the packing material as much as possible.
• A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears after some minutes.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• The units' surface temperature may reach up to 52^ . Don't touch the housing with bare hands during its operation.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Allow the device about 10 minutes to cool down before replacing the bulb or start servicing.
• Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed to in order comply with safety regulations.
• Don't connect the unit to any dimmer pack.
• Always use an appropriate and certified safety cable when installing the unit.
• In order to prevent electric shock, do not open the cover. Apart from the lamp and mains fuse there are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering from epilepsy.

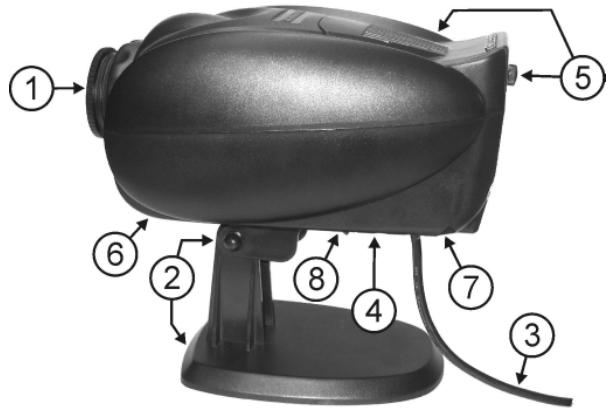

DESCRIPTION:

1. Optical lens with manual focus adjustment
2. Hanging bracket with 1 knob to fasten the unit and a mounting hole (M8) to fix a mounting hook like CR16/30.
3. Mains power cable
4. Fuse holder
5. Lamp compartment.
6. Internal microphone (not used)
7. Cooling fan
8. switch for rotating gobo.

LAMP (RE)PLACEMENT

In case of replacement of the lamp or maintenance, do not open the fixture within 10 minutes until the unit cools down after switching off. Always unplug the unit before servicing! Always use the same type of spare parts (bulbs, fuses, etc.) When replacing parts, please only genuine spare parts.

• Switch off the unit and unplug the mains cable.
• Wait for about 10 minutes until the unit has been cooled down.
• Unscrew the screw that closes the lamp compartment of the fixture.
• On the inside you will see the lamp socket. Tear the lamp socket gently out of the lamp compartment.
• Unplug the old lamp. Hold the lamp socket while unplugging the lamp instead of pulling the cable!
• Hold the lamp socket while pressing the new lamp gently in the socket. Attention! Check the label on the backside of the device or see the technical specifications in this manual to know which lamp should be used. Never install lamps with a higher wattage! Lamps with higher wattage generate temperatures the device was not designed for. If the device uses a lamp transformer, it will burn due to current overload.
• Don't touch the bulb inside the reflector of the lamp with bare hands! This drastically shortens the lifespan of the lamp. If you touched the lamp, clean it with a cloth and a little denatured alcohol. Wipe the lamp off before installing.
• Put the new lamp back inside the unit. Be sure that the wires don't touch the lamp.
• Close the lamp compartment with the screw.
• Done!

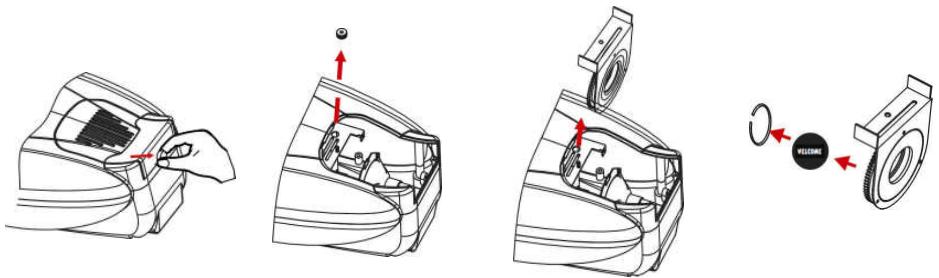

EXCHANGING A GOBO

The logo projector accepts metal gobos: D = 26,8 mm (image D = 20 mm )

• Switch off the main supply and unplug the unit.
• Wait for about 10 minutes until the unit has been cooled down.

Loosen the screw that closes the lamp compartment of the fixture

Remove the cover of the lamp compartment and gently loosen the screw that fixes the gobo holder

Remove the gobo holder

Remove the fixation ring of the gobo. You can do this easily with a small pincer. Take the gobo gently out of the holder.

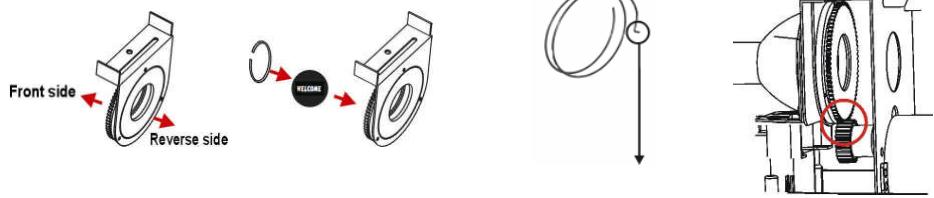

Put the new gobo in place. Make sure you can read the text on the gobo when you look from the reverse side otherwise your text will be mirrored.

Put the fixation ring gently back in place using a small pincer.

Make sure that the end of the fixation ring locks in the groove of the gobo holder.

Put the gobo holder back in place and tighten the screw firmly to keep the gobo holder in place. Important: make sure the gear wheel is well fixed!

• Put the cover of the lamp compartment back in place and tighten the screw.
• Done!

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where persons may walk by or be seated.

• Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.

• Always use a certified safety cable that can hold 12 times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.

• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

Placed on the ground

Mounted on truss

Fixed to the wall

OPERATING INSTRUCTIONS

• Once connected to the mains the device starts running.
• The switch (8) can be used to control the rotating gobo of the unit:

Switch set to "stop": no rotation
Switch set to "rotation": gobo slowly turns around

• Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use.

• Do not switch the unit on and off in short time intervals as this reduces the lamp life.

• Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering from epilepsy.

MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.

• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.

• Clean with a soft cloth using normal glass cleaning products.
  Always dry the parts carefully.

• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days.

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

SPECIFICATIONS

Mains Input:

AC 230V, 50Hz

Fuse:

250V 3,15A slow blow (20mm glass)

Lamp:

EFP 100W / 12V

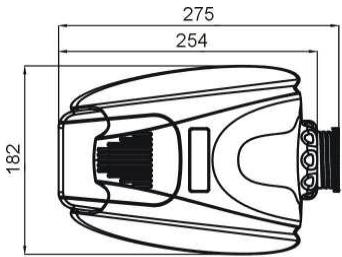

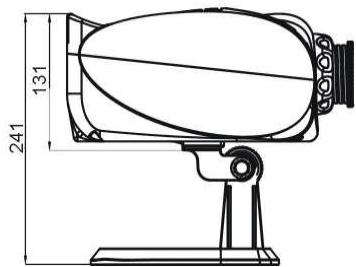

Size:

254 x 182 x 131mm

Weight:

1,4kg

Every information is subject to change without prior notice
You can download the latest version of this user manual on our website: www.beglec.com
