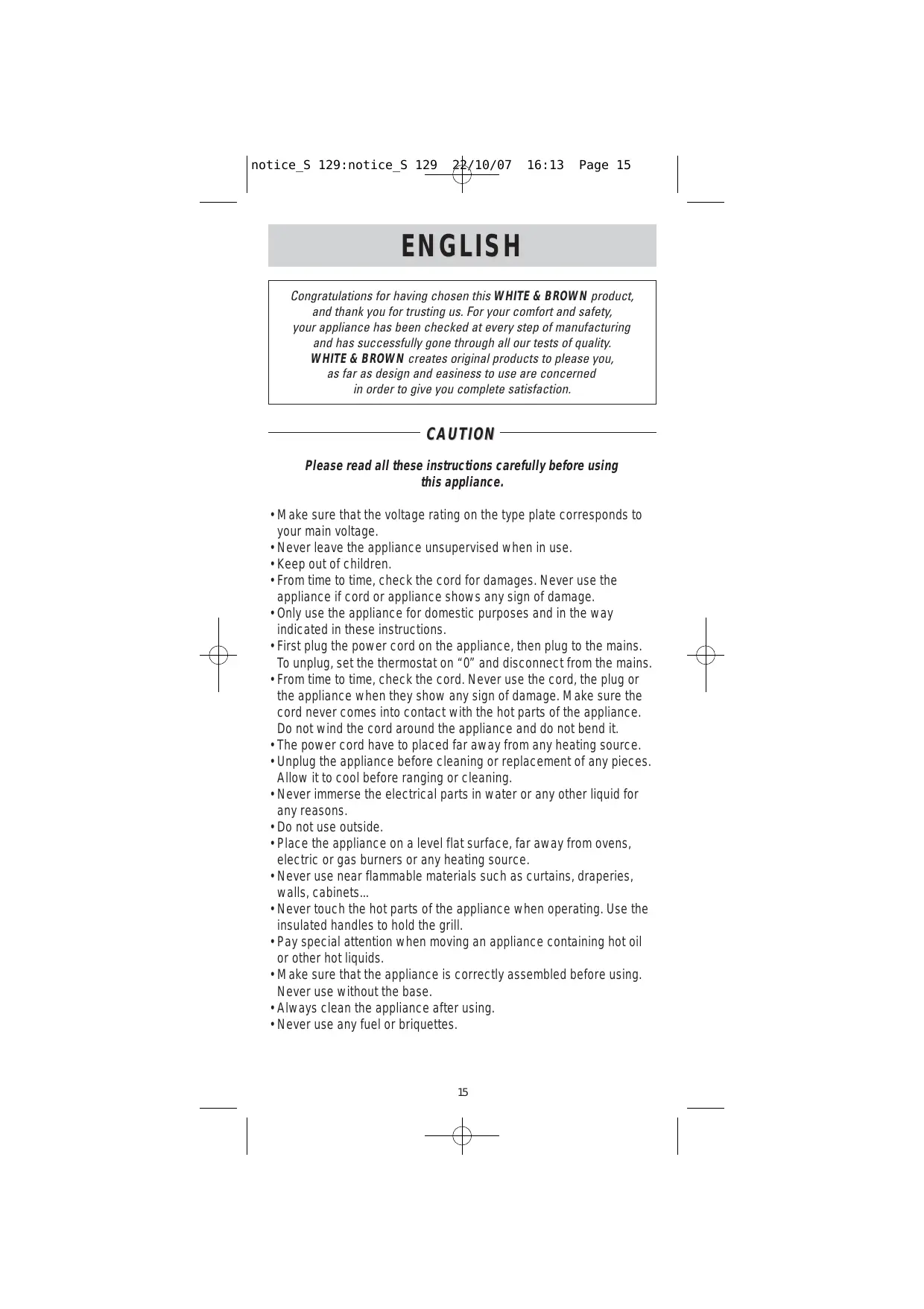

Congratulations for having chosen this WHITE & BROWN product, and thank you for trusting us. For your comfort and safety, your appliance has been checked at every step of manufacturing and has successfully gone through all our tests of quality. WHITE & BROWN creates original products to please you, as far as design and easiness to use are concerned in order to give you complete satisfaction.

CAUTION

Please read all these instructions carefully before using this appliance.

• Make sure that the voltage rating on the type plate corresponds to your main voltage.
• Never leave the appliance unsupervised when in use.
• Keep out of children.
• From time to time, check the cord for damages. Never use the appliance if cord or appliance shows any sign of damage.
• Only use the appliance for domestic purposes and in the way indicated in these instructions.
• First plug the power cord on the appliance, then plug to the mains. To unplug, set the thermostat on "0" and disconnect from the mains.
• From time to time, check the cord. Never use the cord, the plug or the appliance when they show any sign of damage. Make sure the cord never comes into contact with the hot parts of the appliance. Do not wind the cord around the appliance and do not bend it.
• The power cord have to be placed far away from any heating source.
• Unplug the appliance before cleaning or replacement of any pieces. Allow it to cool before ranging or cleaning.
• Never immerse the electrical parts in water or any other liquid for any reasons.
• Do not use outside.
• Place the appliance on a level flat surface, far away from ovens, electric or gas burners or any heating source.
• Never use near flammable materials such as curtains, draperies, walls, cabinets...
• Never touch the hot parts of the appliance when operating. Use the insulated handles to hold the grill.
• Pay special attention when moving an appliance containing hot oil or other hot liquids.
• Make sure that the appliance is correctly assembled before using. Never use without the base.
  Always clean the appliance after using.

• Never use any fuel or briquettes.

• All interventions made by a non-qualified person can be dangerous, in this case guarantee conditions would cancel. As all electrical products, a competent electrician must repair it.

THE MANUFACTURER WILL NOT ASSUME ANY RESPONSIBILITY IN CASE OF NON ADHERENCE TO THIS RECOMMENDATION.

SAVE THESE INSTRUCTIONS CAREFULLY

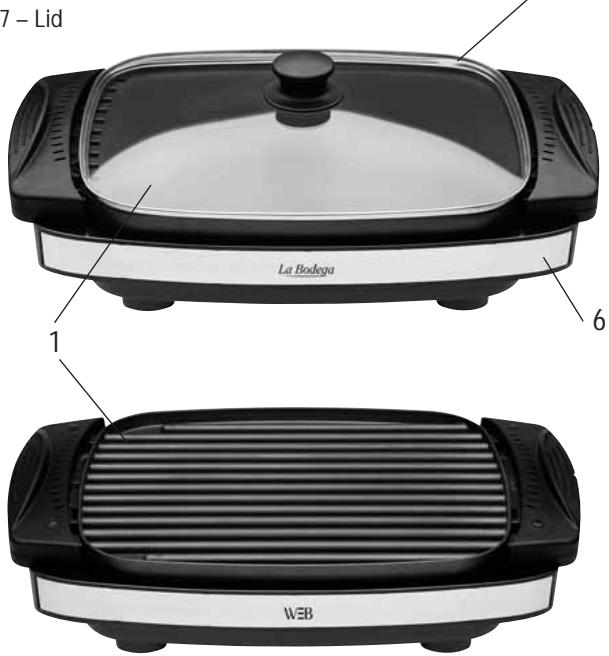

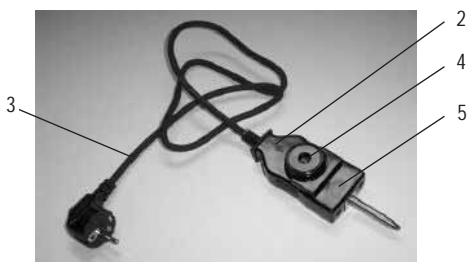

DESCRIPTION OF THE APPLIANCE

1-Reversible plate grill/plancha
2-Cord receptacle
3 - Power cord
4-Thermostat
5 - Light indicator
6-Base
7-Lid

Before the first use

Remove the appliance and all accessories from the packaging.

Clean the plate the lid and the base in warm, soapy water before use.

Rinse and dry thoroughly.

Do not immerse the power cord.

USE

• Set the plate (1) on the base (6) according to the side you wish to use.
• Plug the power cord onto the cord receptacle (2). Plug into the mains. The light indicator (5) is lighting on.
• Set the desired temperature using the thermostat (4).
• Preheat 7 to 14 minutes before cooking.
• When cooking is finished, set the thermostat on "0", unplug from the mains, disconnect from the appliance.

TO PREVENT ANY SMOKE AND SMELTS

To reduce any inconvenient smoke during cooking, pour one or two centimetres of fresh water into the tank of the base. During cooking, juice and fat drip from the heating plate to the water. This allows smoke reduction and helps for an easy cleaning.

USE OF THE LID

Any preparation can be cooked with or without lid. Food will cook faster with the lid, so that it needs a close supervision. Using the lid is recommended for :

• cooking any splashing food (meat, fish, sausage...)
• cooking cubes of vegetables or fruits : slow cooking with thermostat on the lowest position
• cooking faster until centre of food : thermostat on mid position, food will cook faster and result will be less crunchy.

Be careful not to touch the prongs in the cord receptacle when removing the plate from the base.

If the appliance seems not to heat enough during cooking, check the connection between power cord and cord receptacle, pushing the cord into the slot.

CLEANING

• Unplug and let the appliance cool completely before cleaning.
• Carefully remove any grease using a smooth absorbent cloth.
• Do not clean any part of the unit with abrasive cleaners e.g. souring powders, scouring pads, wire wool, washing soda or bleach.
• We recommend washing the base the lid and plate in hot water and washing-up liquid. Rinse and dry thoroughly. They also are safe for the dishwasher.
• Do not immerse power cord.

Note : Do not let the grill on to "burn off" any food or dripping remaining on the plate after cooking. It may cause unnecessary smoke, reduce the life of the non-stick coating and may present a fire hazard.

USEFUL HINT AND TIPS

LA BODEGA is a fun cooking appliance intended to give your guests an excellent meal with a very fast and easy preparation. You will cook simple and delicious meals, with typical or ethnic accents, sharing your friends presence.

• Use special utensils (plastic or wood) intended to preserve the non-stick coating of your appliance.
• Use ambient temperature ingredients. Take out foods of the fridge one hour before cooking.
• If cooking vegetables, fish or lean meat, lightly oil the plate with a smooth impregnated cloth. To cook meat with any amount of fat, or if the food has been marinated, there is no need to treat the plate.
• Dry carefully meats and fishes before cooking. Do not cook wet food.
• To keep all the juice in the meat, season with salt after cooking.
• Marinades with oil may produce some smokes. Place the appliance near an exhaust hood.
• Grilling foods quickly provides tastier results. We advise to set the thermostat on the maxi position, and reduce only if food is overheating or burning.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods of disposal. The materials are recyclable as mentioned in its marking. By recycling or others forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location.
