TA 667 - Toaster WHITE & BROWN - Free user manual and instructions

Product type	Toaster
Brand	WHITE & BROWN
Model	TA 667
Number of slots	2 wide slots
Functions	Toasting, defrosting, reheating, croissant warmer, auto shut-off, cancel button
Thermostat	Yes, adjustable
Crumb tray	Yes, removable
Dust cover	Yes, removable
Bread lowering lever	Yes, with automatic ejection
Power supply	220-240 V, 50/60 Hz (standard estimate)
Rated power	800-1000 W (standard estimate)
Usage	Domestic, dry indoor
Care	Clean with a soft damp cloth, empty crumb tray regularly
Safety	Do not immerse, do not insert metal objects, unplug before cleaning, do not use without crumb tray
Spare parts	Crumb tray (available from the manufacturer)
Repairability	Have repaired by an approved professional, do not open yourself
Dimensions (L x W x H)	Approx. 27 x 18 x 20 cm (standard estimate)
Weight	Approx. 1.2 kg (standard estimate)
Warranty	Manufacturer's warranty (void if incorrect connection or unauthorized repair)
Recycling	Do not dispose of with household waste, take to recycling center for recycling

Frequently Asked Questions - TA 667 WHITE & BROWN

How many slices of bread can I toast at once?

You can toast two slices of bread simultaneously thanks to the two wide slots of your toaster.

How do I adjust the toasting level?

Use the thermostat (reference 8) to choose the desired browning level before or during the cycle.

What should I do if bread gets stuck in the toaster?

Unplug the appliance and wait for it to cool completely before gently extracting the stuck bread. Never use a metal object.

How do I use the defrost function?

Place frozen bread, lower the lever, then press the defrost button (5). The indicator light turns on. To stop, press the button again.

Can I warm croissants with this toaster?

Yes, use the croissant warmer: lower the dedicated lever, place pastries on the slots, then lower the bread lever and set the thermostat.

Is it possible to toast bread and use the croissant warmer at the same time?

No, to avoid any risk of fire, never toast bread in the slots while using the croissant warmer.

How do I clean the toaster?

Turn off and unplug the appliance, wait for it to fully cool. Clean the exterior with a soft damp cloth, and empty the crumb tray regularly.

What should I do if the power cord is damaged?

Do not use the appliance and contact an authorized repairer to replace the cord. Never repair it yourself.

Can I use this toaster outdoors?

No, the appliance is intended for domestic use in a dry place. Never use it outdoors.

How do I dispose of this product at end of life?

Do not throw it away with household waste. Take it to a collection point for recycling of electrical and electronic appliances.

USER MANUAL TA 667 WHITE & BROWN

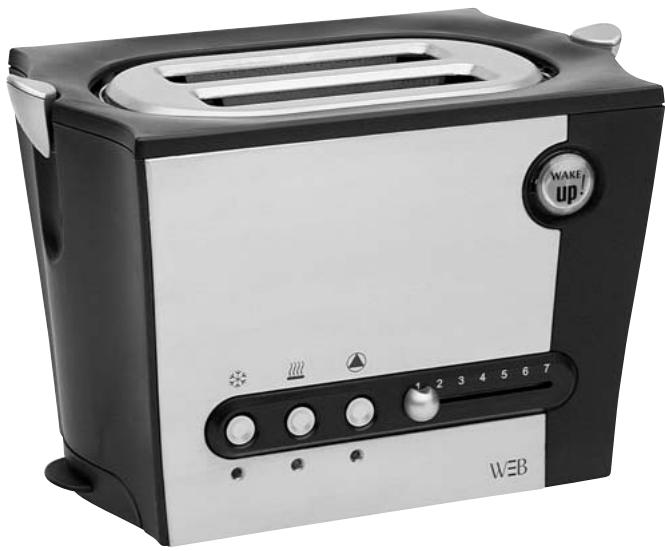

Large capacity toaster

TA 667 - WAKE UP !

TA 667

MODE D'EMPLOI

USER MANUAL

FRANÇAIS

Congratulations for having chosen this WHITE & BROWN product, and thank you for trusting us. For your comfort and safety, your appliance has been checked at every step of manufacturing and has successfully gone through all our tests of quality. WHITE & BROWN creates original products to please you, as far as design and easiness to use are concerned in order to give you complete satisfaction.

CAUTION

PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS APPLIANCE.

• Make sure the voltage rating on the type plate corresponds to your main voltage. Any error in connecting the appliance invalidates the guarantee.
• Never leave the appliance unsupervised when in use.
• Keep out of reach of children.
• Only use this appliance for domestic purposes and in the way indicated in these instructions. Never use for any other purposes.
• Never immerse the product in water or any other liquid for any reasons. Respect the instructions for cleaning.
• Do not use the appliance outside and always place it in a dry environment.
• Do not use if you have wet hands.
• Keep the appliance far from hot or electric sources.
• Never pull the cord to unplug or move the appliance.
• Unplug the appliance before cleaning or changing any parts of the appliance or when it's not in use.
• Always switch off the appliance before unplugging it.
• Do introduce neither sharp metallic objects nor fingers nor cloth inside the appliance.
• From time to time, check the cord. Never use the cord, the plug or the appliance itself when they show any sign of damage. Make sure the cord never comes into contact with the hot parts of the appliance. Do not wind the cord around the appliance and do not bend it.
• The cord length of this product has been selected to reduce the possibility of tangling in or tripping over a longer cord. If more cord length is needed, an extension cord may be used. Ensure not to let it drape over the working area or dangle where someone could accidentally pull or trip over it.
• If the cord or the plug is getting more and more hot, contact a qualified electrician.
• Never repair the appliance yourself. All interventions made by a non-qualified person can be dangerous; in this case guarantee conditions would cancel. As all electrical products, a competent electrician must repair it.

Special recommendations :

• Do not insert metal foil nor any object into the toaster.
• Do not toast runny-filled foods (like apple turnover).
• The inside part of the toaster can get high temperatures, do not touch hot surfaces as well as the crumb tray before the complete cooling.
• Pay attention bread may burn during browning. A close supervision is needed when the toaster is in use.
• Clean regularly the crumb tray to avoid crumbs from burning. Never use the appliance without the crumb tray in its correct position.
• Unplug the appliance to extract pieces of bread trapped inside the toaster.

THE MANUFACTURER WILL NOT ASSUME ANY RESPONSIBILITY IN CASE OF NON ADHERENCE TO THESE INSTRUCTIONS.

SAVE THIS USER MANUAL CAREFULLY.

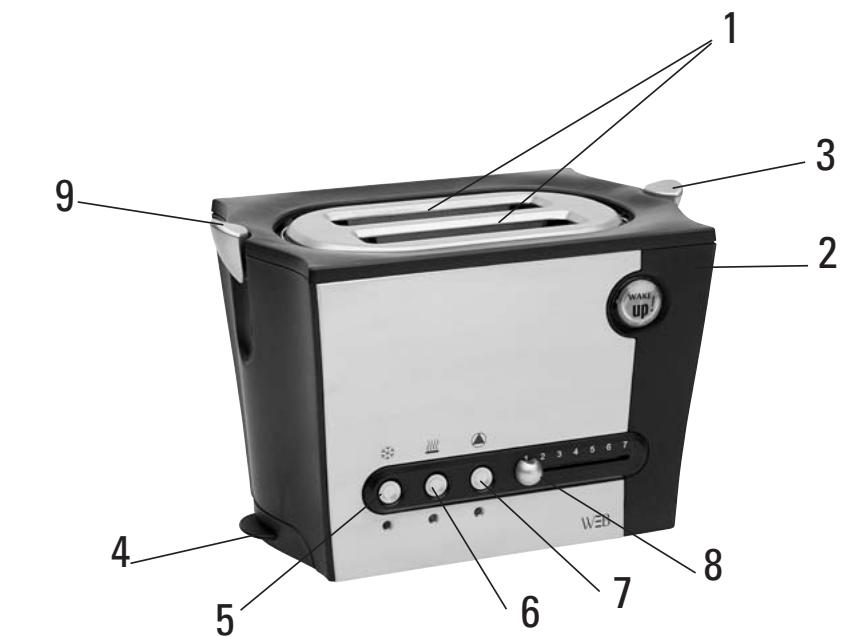

DESCRIPTION OF THE APPLIANCE

1-Slices.
2-Body.
3 - Toasting lever.
4-Crumb tray.
5-Defrost key.
6-Reheat key.
7 - Cancel key.
8-Thermostat.
9-Bun warmer lever.
10 - Anti dust removable lid.

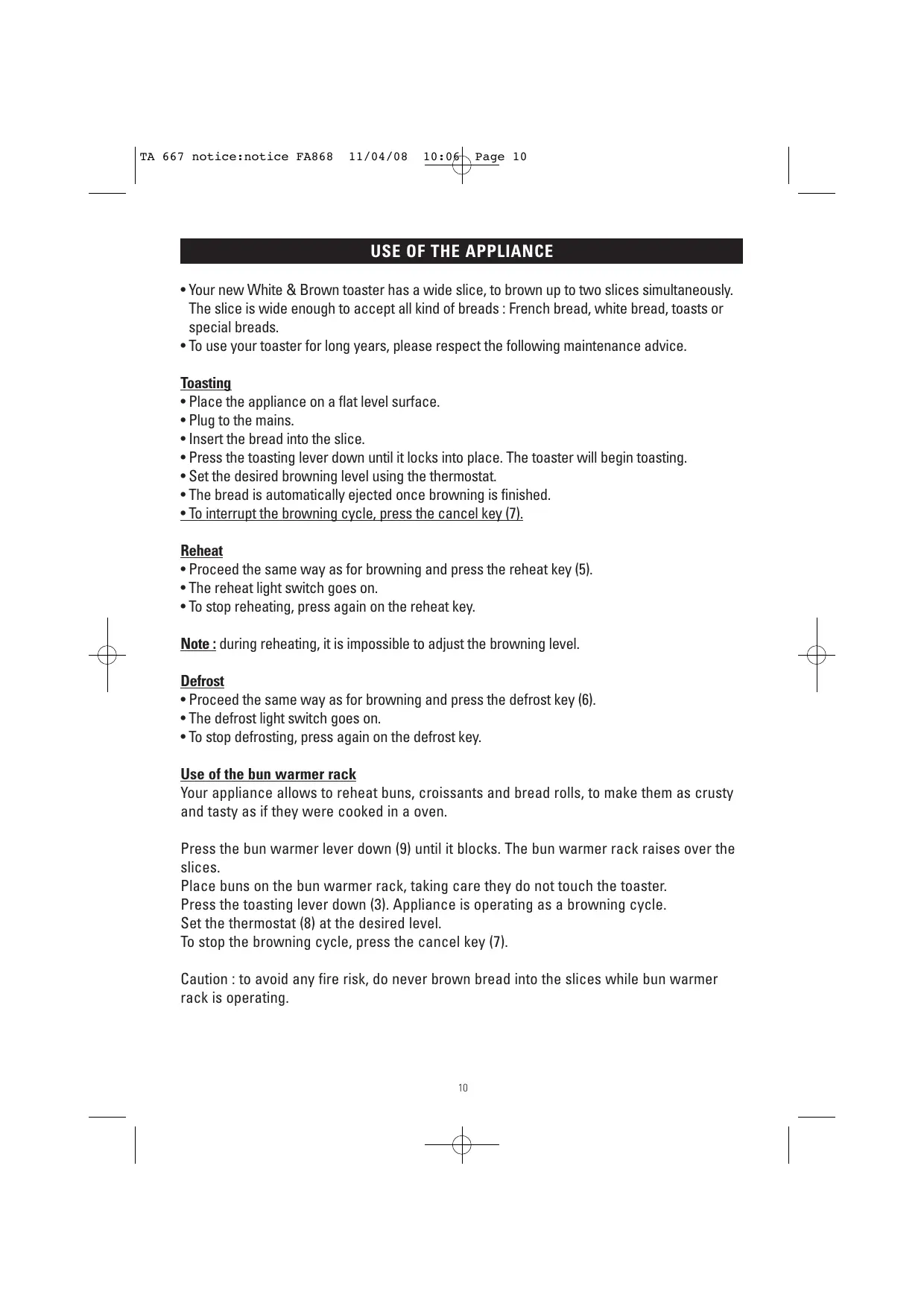

USE OF THE APPLIANCE

• Your new White & Brown toaster has a wide slice, to brown up to two slices simultaneously. The slice is wide enough to accept all kind of breads: French bread, white bread, toasts or special breads.
• To use your toaster for long years, please respect the following maintenance advice.

Toasting

• Place the appliance on a flat level surface.
• Plug to the mains.
• Insert the bread into the slice.
• Press the toasting lever down until it locks into place. The toaster will begin toasting.
• Set the desired browning level using the thermostat.
• The bread is automatically ejected once browning is finished.
• To interrupt the browning cycle, press the cancel key (7).

Reheat

• Proceed the same way as for browning and press the reheat key (5).
• The reheat light switch goes on.
• To stop reheating, press again on the reheat key.

Note : during reheating, it is impossible to adjust the browning level.

Defrost

• Proceed the same way as for browning and press the defrost key (6).
  The defrost light switch goes on.
• To stop defrosting, press again on the defrost key.

Use of the bun warmer rack

Your appliance allows to reheat buns, croissants and bread rolls, to make them as crusty and tasty as if they were cooked in a oven.

Press the bun warmer lever down (9) until it blocks. The bun warmer rack raises over the slices.

Place buns on the bun warmer rack, taking care they do not touch the toaster.

Press the toasting lever down (3). Appliance is operating as a browning cycle.

Set the thermostat (8) at the desired level.

To stop the browning cycle, press the cancel key (7).

Caution : to avoid any fire risk, do never brown bread into the slices while bun warmer rack is operating.

CLEANING AND MAINTENANCE

• Switch off the appliance, unplug and wait for complete cooling.
• Wipe the body of the toaster with a damp cloth. Dry thoroughly. Do not use abrasive cleansers.
• Pull out and empty the crumb trays regularly.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods of disposal.

The materials are recyclable as mentioned in its marking. By recycling or others forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.
