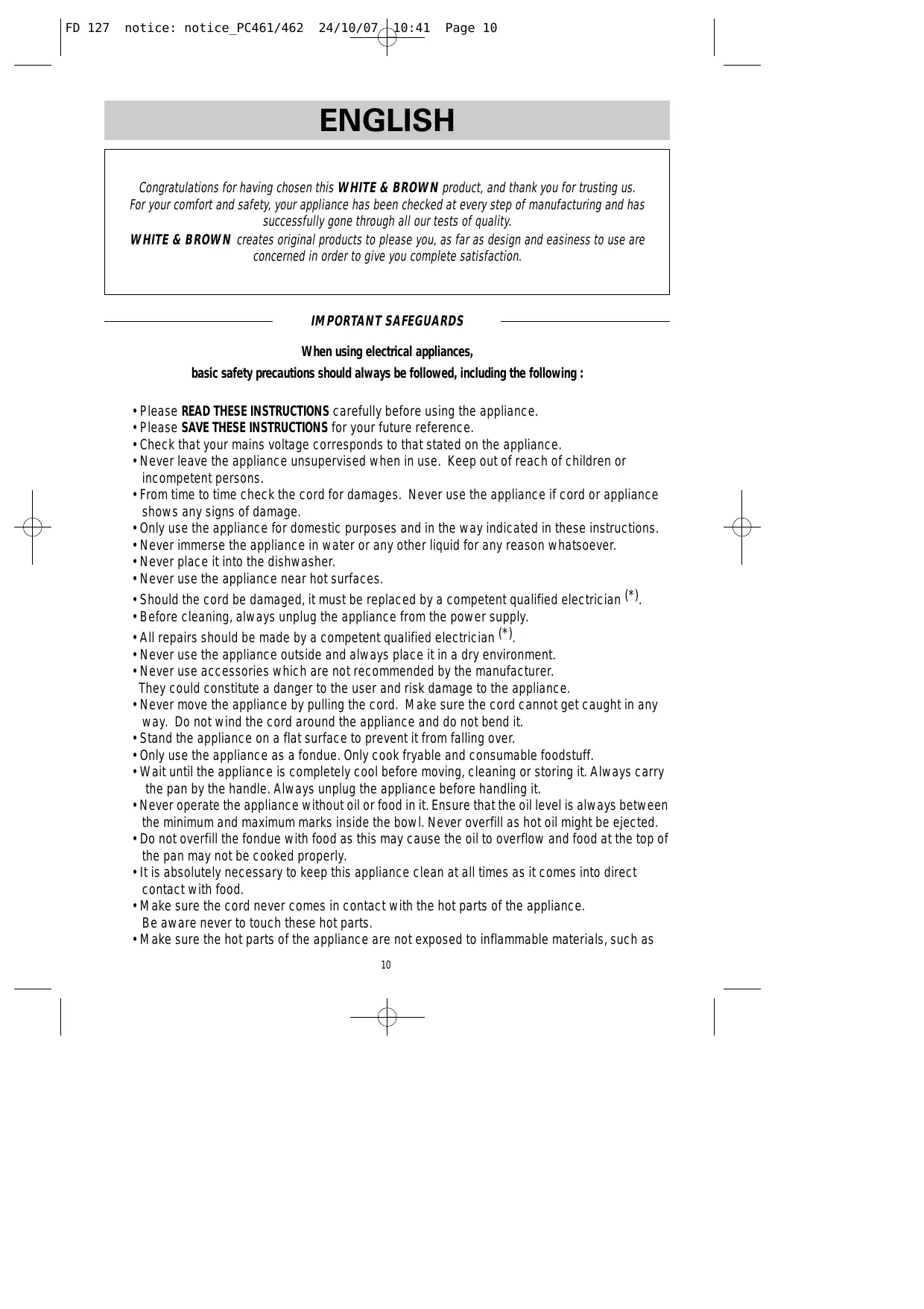

USER MANUAL FD 127 WHITE & BROWN

Congratulations for having chosen this WHITE & BROWN product, and thank you for trusting us. For your comfort and safety, your appliance has been checked at every step of manufacturing and has successfully gone through all our tests of quality.

WHITE & BROWN creates original products to please you, as far as design and easiness to use are concerned in order to give you complete satisfaction.

IMPORTANT SAFEGUARDS

When using electrical appliances,

basic safety precautions should always be followed, including the following :

• Please READ THESE INSTRUCTIONS carefully before using the appliance.
• Please SAVE THESE INSTRUCTIONS for your future reference.
• Check that your mains voltage corresponds to that stated on the appliance.
• Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
• From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
• Only use the appliance for domestic purposes and in the way indicated in these instructions.
• Never immerse the appliance in water or any other liquid for any reason whatsoever.
• Never place it into the dishwasher.
• Never use the appliance near hot surfaces.
• Should the cord be damaged, it must be replaced by a competent qualified electrician (^*) .
• Before cleaning, always unplug the appliance from the power supply.
• All repairs should be made by a competent qualified electrician (^*) .
• Never use the appliance outside and always place it in a dry environment.
• Never use accessories which are not recommended by the manufacturer. They could constitute a danger to the user and risk damage to the appliance
• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
• Stand the appliance on a flat surface to prevent it from falling over.
• Only use the appliance as a fondue. Only cook fryable and consumable foodstuff.
• Wait until the appliance is completely cool before moving, cleaning or storing it. Always carry the pan by the handle. Always unplug the appliance before handling it.
• Never operate the appliance without oil or food in it. Ensure that the oil level is always between the minimum and maximum marks inside the bowl. Never overfill as hot oil might be ejected.
• Do not overfill the fondue with food as this may cause the oil to overflow and food at the top of the pan may not be cooked properly.
• It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
• Make sure the cord never comes in contact with the hot parts of the appliance. Be aware never to touch these hot parts.
• Make sure the hot parts of the appliance are not exposed to inflammable materials, such as

curtains, tablecloth, as a fire might occur.

• Never cover the appliance with any kind of material.
• REMARK : the fondue and pan can reach high temperatures when in use. Oil and fat preparations might catch fire if overheated. Be extremely cautious never to leave your fondue in use for long periods. Do not forget to switch off the appliance (by unplugging it) once your preparation is ready and the fondue is no longer in use. Before pulling the mains plug, switch the temperature selector to the lowest position.
• Provide proper ventilation when using the appliance.
• Do not mix different types of cooking oil for use with this fondue.

(*) Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger.

SAVE THESE INSTRUCTIONS!

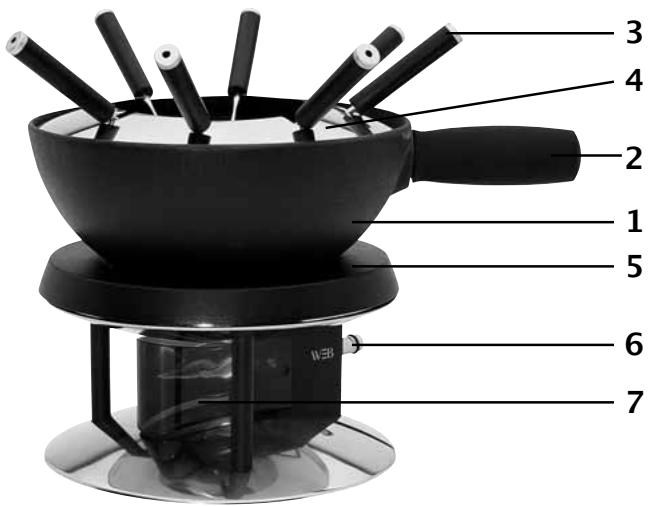

DESCRIPTION OF APPLIANCE

1-Cast iron pan
2- Handle
3 - Forks
4-Forks holder
5 - Heating plate
6-Thermostat
7 - Flickering ambience candle and power on indicator

BEFORE USE

Remove all packaging from the fondue and pan including the items inside the pan.

Before you use fondue for the first time, we recommend that you wipe the inner surface of the pan, fondue forks, outside of the fondue fryer with a slightly damp cloth.

Dry thoroughly -this will remove any residue from the manufacturing process.

Ensure the surface of the cooking plate is dry before use.

USING FOR THE FIRST TIME

When using oil add the required amount of oil to the bowl, ensuring that this level is between the min and max levels marked on the inside bowl. Always put the fork ring onto the pan before switching on.

We recommend that you use a liquid oil which is suitable for fondue frying.

Check the label on the bottle. Solid fat is not recommended for use with this fondue.

When using the fondue for heating cheese: add the cheese and other ingredients to the pan and place the fork ring onto the pan.

Place the pan onto the fondue cooking plate then plug in the appliance to the power supply.

Adjust the temperature control to the required setting.

When the fondue is switched on, the ambience light is on, acting as a "power on" indicator light. When the fondue is switched on the thermostat will cycle on and off during use to keep the food in the pan at an approximately constant temperature. You will hear a clicking sound as the thermostat switches on and off.

When using the fondue be careful when taking food out of the hot pan and check that all food is cooked thoroughly, in particular meat foods.

When you have finished using the fondue allow the pan and appliance to cool down before moving it.

Warning :

Ensure the food is thoroughly cooked inside and out.

Always unplug the fondue after use. Never leave the appliance switched plugged in after use.

Do not use this appliance as a room heater.

Never leave the appliance unattended when it is switched on.

The handle of the pan will get hot during use so always use a kitchen glove (gauntlet) if the pan must be moved in an emergency situation.

CLEANING

Before cleaning, unplug and wait until the appliance has cooled down.

Wipe the Fondue with a warm damp cloth ensuring no moisture, oil or grease gets inside the electrical appliance. Do not immerse the electrical appliance in any liquid!!

The Pan and Fondue Forks may be immersed in hot soapy water, we do not recommend dish washing these items.

Do not clean any of the appliance with any strong detergents, abrasive cleaners, pads or steel wool, as this will damage the surfaces.

Change the fondue oil regularly. Pour out the old cool oil from the pan carefully and dispose of it thoughtfully.

STORING

Wait until the fondue is completely cool before storing.

If the pan is stored with cold oil in it remember to place it in a safe place. It is a good idea to cover the oil to avoid contamination such as dust.

FOR BEST RESULTS

Do not add very 'wet' food into hot frying oil. Very 'wet' food can cause the oil to 'foam' and may overflow.

Food for fondue frying should be cut roughly of the same size to ensure the food cooks evenly and thoroughly.

Many types of food can be coated before fondue frying - typical coatings are batter or breadcrumbs.

Always wait until the fondue oil has reached the desired temperature before adding the food.

Do not overfill the pan.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods of disposal.

The materials are recyclable as mentioned in its marking.

By recycling or others forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

05/07
