S 135 - Electric cooking appliance WHITE & BROWN - Free user manual and instructions

Product type	Electric cooking appliance (raclette with grill)
Brand	WHITE & BROWN
Model	S 135
Power supply	Electric (mains) – check the installation voltage
Switch	Illuminated 0/1
Handles	Heat-insulated
Grill	Removable with non-stick coating
Small pans	Several small pans included (number not specified)
Spatulas	4 spatulas provided
Use	Domestic, for food only
Preheating	5 to 8 minutes before use
First use	Odor or smoke possible (normal)
Cleaning grill, small pans and spatulas	Warm soapy water or dishwasher
Cleaning base	Dry cloth, never immerse
Safety instructions	Do not leave unattended, out of reach of children, stable surface
Coating maintenance	Use only the provided spatulas to avoid damaging the non-stick coating

Frequently Asked Questions - S 135 WHITE & BROWN

How to use the WHITE & BROWN S 135 raclette appliance?

Place the grill and the small pans, plug in the appliance, set the switch to I. Let it preheat for 5 to 8 minutes. Put raclette cheese in the small pans and food on the grill. After use, set to 0 and unplug.

Can I wash the small pans and the grill in the dishwasher?

Yes, the small pans, grill and spatulas can be washed in the dishwasher. You can also wash them by hand with warm soapy water.

What to do if an odor or smoke is emitted during first use?

This is completely normal. During the first use, the appliance may emit an unpleasant odor and/or smoke. Ventilate the room and continue to use the appliance normally.

How long does it take to preheat the appliance?

The recommended preheating time is 5 to 8 minutes. The indicator light turns on when the appliance is heating.

Can I use metal utensils on the grill or the small pans?

No, to avoid damaging the non-stick coating, use only the provided spatulas or wooden/heat-resistant plastic utensils.

How to clean the base of the appliance?

Clean the base with a dry cloth. Never immerse the appliance in water or any other liquid, and do not use abrasive products.

What to do if the power cord is damaged?

Do not use the appliance. Changing the cord is dangerous and must be done by an authorized repairer. Contact customer service.

Can the appliance be used by children?

No, this appliance must not be used by persons (including children) with reduced capabilities without supervision. Children should be supervised to ensure they do not play with the appliance.

Where should I place the appliance during use?

Place it on a flat, stable, heat-resistant surface, with at least 15 cm of free space all around. Do not install it near a heat source.

How to store the appliance after use?

Make sure it is unplugged and completely cooled down. Clean the accessories, then store everything in a dry place. Never immerse the base in water.

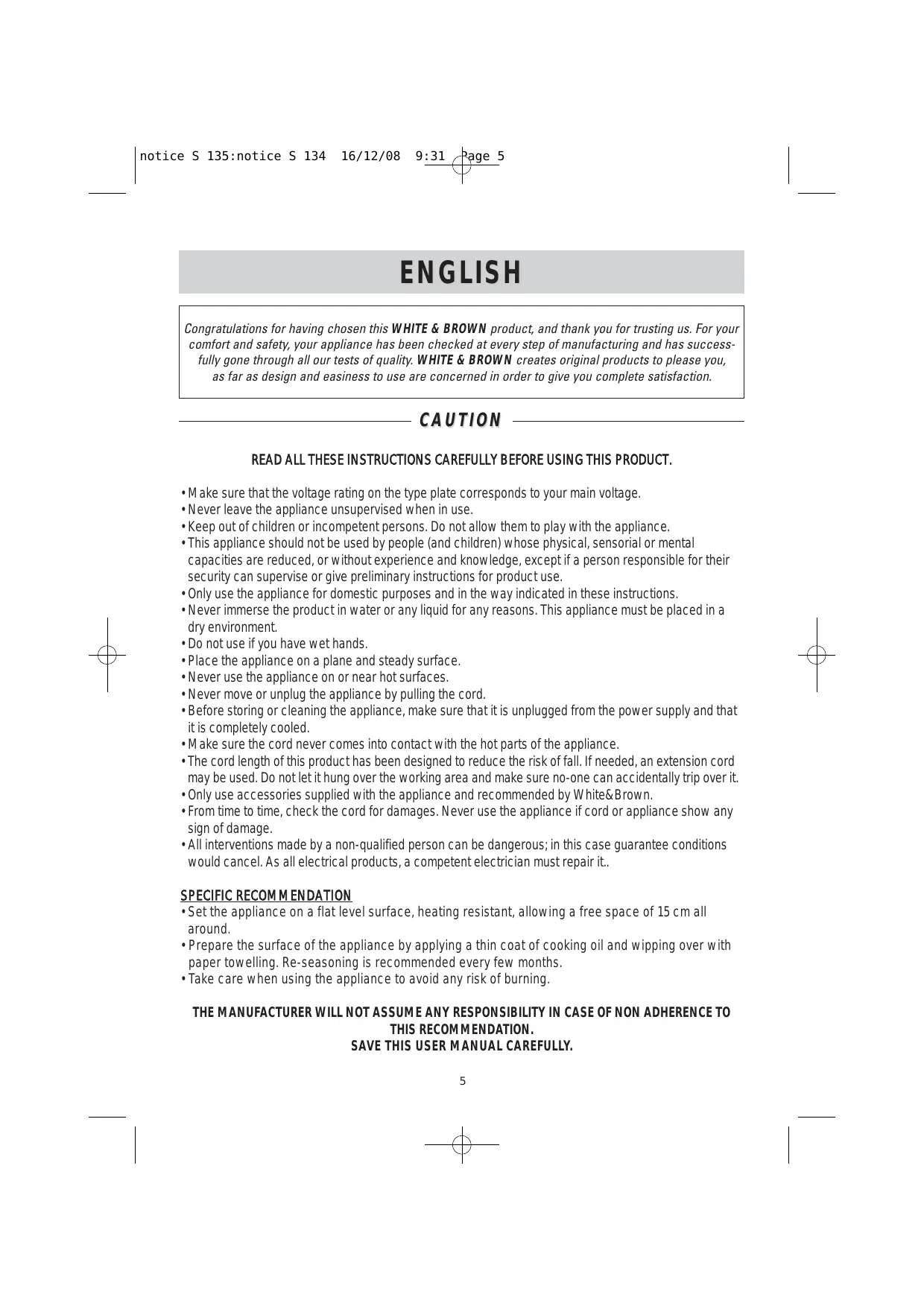

USER MANUAL S 135 WHITE & BROWN

Congratulations for having chosen this WHITE & BROWN product, and thank you for trusting us. For your comfort and safety, your appliance has been checked at every step of manufacturing and has successfully gone through all our tests of quality. WHITE & BROWN creates original products to please you, as far as design and easiness to use are concerned in order to give you complete satisfaction.

CAUTION

READ ALL THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.

• Make sure that the voltage rating on the type plate corresponds to your main voltage.
• Never leave the appliance unsupervised when in use.
• Keep out of children or incompetent persons. Do not allow them to play with the appliance.
• This appliance should not be used by people (and children) whose physical, sensorial or mental capacities are reduced, or without experience and knowledge, except if a person responsible for their security can supervise or give preliminary instructions for product use.
• Only use the appliance for domestic purposes and in the way indicated in these instructions.
• Never immerse the product in water or any liquid for any reasons. This appliance must be placed in a dry environment.
• Do not use if you have wet hands.
• Place the appliance on a plane and steady surface.
• Never use the appliance on or near hot surfaces.
• Never move or unplug the appliance by pulling the cord.
• Before storing or cleaning the appliance, make sure that it is unplugged from the power supply and that it is completely cooled.
• Make sure the cord never comes into contact with the hot parts of the appliance.
• The cord length of this product has been designed to reduce the risk of fall. If needed, an extension cord may be used. Do not let it hung over the working area and make sure no-one can accidentally trip over it.
• Only use accessories supplied with the appliance and recommended by White&Brown.
• From time to time, check the cord for damages. Never use the appliance if cord or appliance show any sign of damage.
• All interventions made by a non-qualified person can be dangerous; in this case guarantee conditions would cancel. As all electrical products, a competent electrician must repair it..

SPECIFIC RECOMMENDATION

• Set the appliance on a flat level surface, heating resistant, allowing a free space of 15 ~cm all around.
• Prepare the surface of the appliance by applying a thin coat of cooking oil and wipping over with paper towelling. Re-seasoning is recommended every few months.
• Take care when using the appliance to avoid any risk of burning.

THE MANUFACTURER WILL NOT ASSUME ANY RESPONSIBILITY IN CASE OF NON ADHERENCE TO THIS RECOMMENDATION.

SAVE THIS USER MANUAL CAREFULLY.

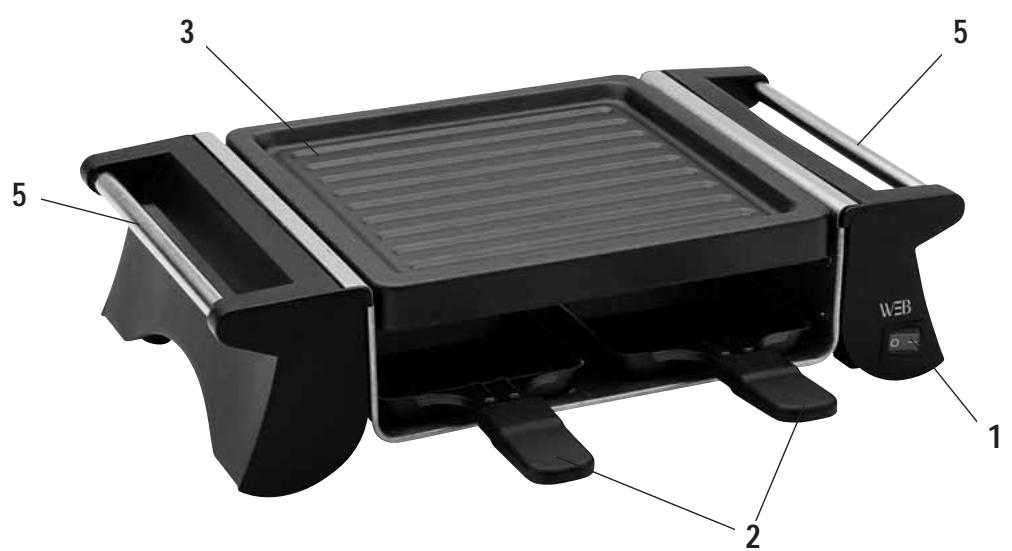

DESCRIPTION OF THE APPLIANCE

1 - On/off light switch
2-Pans
3 - Removable grill
4 - Spatulas
5 - Thermo insulated handles

BEFORE THE FIRST USE

• Remove the appliance and all accessories from the packaging.
• Clean the grill, the pans, and the spatulas in warm soapy water before use. Rinse and dry thoroughly.

USE

• Set the grill and the pans.
• Plug the power cord.
• Switch on the appliance pressing 0/I switch on I position. Light indicator lights on. The appliance starts heating.
• Let pre-heat for 5 to 8 minutes.
• When the appliance is ready, you can begin to cook small parts of raclette cheese in the pans.
• At the same time, you can broil pieces of meat, fish or vegetables on the grill, or reheating potatoes.
• Switch off the appliance (0/1 switch on 0 position). Light indicator switches off.
• Unplug the appliance.
• Let the appliance cooled down before removing it.

NOTES:

• Unpleasant smell or temporary smoke can occur during initial use. This is normal and it disappears a few minutes later.
• Please use the provided spatulas to serve from pans, in order to prevent any damage on the non-stick coating.

CLEANING

• Unplug and let the appliance cool completely.
• Carefully remove any grease using a smooth absorbent cloth.
• Do not clean any part of the unit with abrasive cleaners e.g. souring powders, scouring pads, wire wool, washing soda or bleach.
• Clean pans, grill and spatulas with soapy water. Rinse and dry thoroughly. They can be washed in dishwasher.
• Clean the base with a dry cloth.
• Do not immerse the appliance in water or other liquid.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods of disposal. The materials are recyclable as mentioned in its marking.

By recycling or others forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

WEB

12/08
