USB TO PARALLEL - USB to Parallel Adapter TARGUS - Free user manual and instructions

Product Type	USB to Parallel Adapter
Brand	Targus
Model	USB TO PARALLEL
Connectors	1 USB Type-A port (male) and 1 DB25 parallel port (female)
Power	Powered via USB port (bus-powered)
Supported Operating Systems	Windows 2000, XP, Vista (driverless); Windows 98, ME (with driver)
Minimum System Requirements	PC with Pentium processor, USB 1.1 port, CD-ROM drive
Main Functions	Connect a parallel printer or device to a computer via USB
Installation	Plug in the USB cable; install the driver from the CD for Windows 98/ME (before connecting)
Maintenance and Cleaning	Clean with a soft, dry cloth; do not use solvents
Safety	Compliant with FCC Regulations Part 15 (Class B)
Warranty	2 years against defects in materials and workmanship
Package Contents	USB to Parallel Adapter, Driver CD, User Guide
Technical Support	Targus website and phone numbers by country (see manual)
Recycling	Take to appropriate recycling center at end of life

Frequently Asked Questions - USB TO PARALLEL TARGUS

How to install the driver for Windows 98/ME?

Insert the driver CD into the drive. If installation does not start automatically, click Start, Run, type D:\Setup.exe and follow the instructions. Important: install the driver before connecting the adapter.

My parallel printer does not work after connection, what should I do?

First check that the adapter is properly connected. Then, ensure your printer driver is installed and that the selected port is USB001 (USB port). If necessary, redirect the port from the printer properties (see section 'Checking and redirecting port settings').

Is a driver required for Windows XP or Vista?

No, for Windows 2000, XP and Vista, the system automatically recognizes the adapter. Simply plug in the USB cable and use the device. No driver is needed.

How to check if the adapter is detected by the computer?

Open Device Manager (right-click My Computer > Properties > Hardware > Device Manager). Expand 'Universal Serial Bus controllers': you should see 'USB Printing Support' or a similar device.

What to do if 'Device not recognized' message appears?

Unplug and replug the adapter. If the problem persists, try another USB port. For Windows 98/ME, ensure the driver is installed before connecting the adapter.

How to select the correct port when installing the printer?

When installing the printer driver, choose the port USB001 (USB port). If this port does not appear, temporarily select LPT1, then redirect the port to USB001 in the printer properties (see manual).

My printer is recognized but does not print, why?

Check the printer port settings: go to Start > Settings > Printers, right-click the printer > Properties. Under the Details or Connections tab, ensure the port is set to USB001. If it is LPT1, change it to USB001.

Can I use this adapter with a parallel scanner?

Yes, the adapter is designed for any standard parallel device. Connect the device to the adapter's parallel port, then install its drivers as usual.

What is the cable length?

The manual does not specify the exact length, but it is a compact adapter with a USB cable about 15 to 30 cm, convenient for mobile use.

Where to find drivers if I lost the CD?

Visit the Targus support website: http://www.targus.com/fr/support.asp. You can download drivers for Windows 98/ME there. For Windows 2000/XP/Vista, no driver is needed.

USER MANUAL USB TO PARALLEL TARGUS

Visit our Website at www.targus.com

Features and specifications subject to change without notice.

© 2007 Targus Group International, Inc. and Targus Group (UK)

Ltd

PA096E / 410-0213-003B

N2953

USB to parallel printer cable

Targus

USERGUIDE

PMS Black

15%

PMS Black

100%

Table of Contents

English

Targus USB to Parallel Printer Cable. 3

Deutsch

Targus USB-zu-Parallel-Druckerkabel 12

Espanol

Cable impersona de paralelo USB de Targus. 21

Français

Cable d'imprimeur port USB/parallele Targus..... 30

Italiano

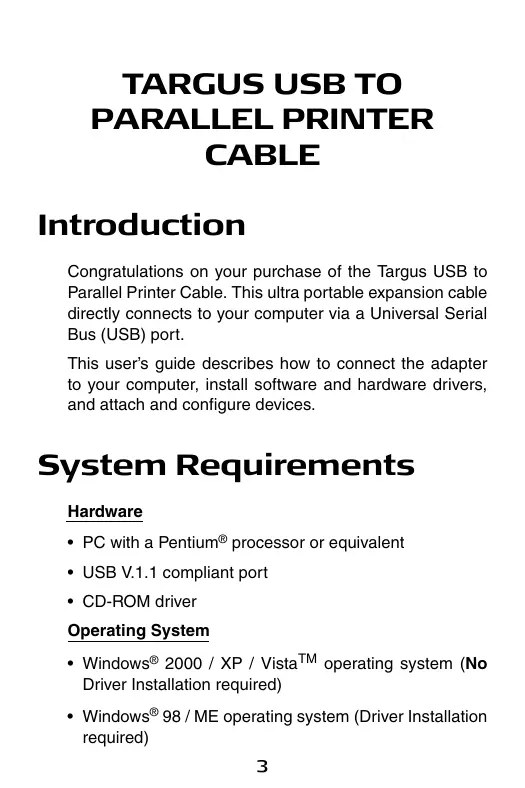

Congratulations on your purchase of the Targus USB to Parallel Printer Cable. This ultra portable expansion cable directly connects to your computer via a Universal Serial Bus (USB) port.

This user's guide describes how to connect the adapter to your computer, install software and hardware drivers, and attach and configure devices.

System Requirements

Hardware

PC with a Pentium processor or equivalent
- USB V.1.1 compliant port
- CD-ROM driver

Operating System

• Windows® 2000 / XP / Vista™ operating system (No Driver Installation required)
• Windows® 98 / ME operating system (Driver Installation required)

Installing the Device and Drivers

To use the parallel printer cable, you must first install its driver software onto your computer if it has Windows® 98 / ME as the operating system.

WARNING: YOU MUST INSTALL THE DRIVER SOFTWARE BEFORE CONNECTING THE ADAPTER TO YOUR COMPUTER. OTHERWISE, THE ADAPTER WILL NOT WORK PROPERLY.

Installing the Driver Software and Connecting the Adapter Cable to Your Computer

1 Insert the driver software CD into your computer's CD-ROM drive.
2 If setup does not begin automatically, click Start, Run, then enter D:\Setup.exe (where D: is the path of your CD-ROM drive) and then click OK.

The Welcome screen appears.

3 Click Next.
4 The Important Information screen appears. Click Next.

The Setup program begins installing the software drivers.

NOTE: IF YOU GET A WARNING SCREEN, PLEASE CLICK "CONTINUE ANYWAY"

The Setup Complete Screen appears.

5 You must restart your computer. A prompt will appear with the default setting to restart. Click Finish.

NOTE: IF YOU ARE RUNNING THE WINDOWS® 2000/XP/VISTA™ OPERATING SYSTEM, YOU ONLY NEED TO PLUG AND PLAY.

You can now connect the adapter to your computer. To do this, plug the standard USB end of the cable into an available USB port to your computer.

Connecting Devices to the Adapter Cable

You may be prompted to install one or more of the hardware drivers:

To install the drivers:

1 Select Install the software automatically (Recommended) and click Next.

The Found New Hardware Wizard program begins installing the hardware drivers.

2 Follow any on-screen instructions and repeat as needed for each device.
3 Restart your computer.

Parallel Port Adapter Cable

Connecting and Configuring a Printer for the First Time

To connect a parallel printer:

1 Plug the printer cable into the parallel port on the adapter.
2 Install the printer software driver according to the instructions that come with the device.
3 If prompted to select a port, choose USB001 (USB port). If this port does not appear in the list, choose the LPT1 port, complete the manufacturer's setup for your printer, and refer to the instructions below to redirect your printer.

Checking and Redirecting the Printer Port Settings

Follow these instructions to check the printer port settings and redirect your printer from the LPT 1 port to the USB001 (USB port) on the adapter.

1 With the printer connected to the adapter's parallel port, select Start, Settings, and then Printers.
2 Right-click the printer device you are reassigning and select Properties.
3 In the Printer Properties window, select Details or Connection for the Printer. (Section titles vary, so check your printer's user manual for specific instructions.)
4 Change the setting to USB001 (USB port) to redirect printing to the adapter.

Troubleshooting

Device Not Working

• Disconnect the adapter from your computer's USB port, then reconnect it.
• Check that your computer is turned on, that is charged (if running on a battery) and that the device is plugged in and turned on (if applicable).
• Make sure that the adapter is firmly connected to both your computer and the device.
• Disconnect the device from the adapter, then reconnect it and restart your computer.
• Verify that you ran the Setup or Install program for the device.
• Make sure that the device appears in Device Manager. For more information refer to the following instructions.

Verifying Devices are Installed

You can view the devices installed on your computer from the Device Manager Window in System Properties.

Right-click My Computer, then click Properties, Hardware tab, and the Device Manager button.

From the Device Manager window expands the Universal Serial Bus controllers - displays the USB printing support.

Printer Not Found

If your parallel printer is not working, refer to "Checking and Redirecting the Printer Port Settings" on page 6 for instructions on how to verify and change the port settings.

Technical Support

For technical questions, please visit:

Internet:

English http://www.targus.com/uk/support.asp

German http://www.targus.com/de/support.asp

Spanish http://www.targus.com/sp/support.asp

Italian http://www.targus.com/it/support.asp

Our knowledgeable staff are also available to answer your questions through one of the following telephone numbers.

Austria [phone]

Belgium [phone]

Denmark [phone]

Finland [phone]

France [phone]

Germany [phone]

Italy [phone]

Netherlands [phone]

Norway [phone]

Portugal [phone]

Spain [phone]

Sweden [phone]

Switzerland [phone]

United Kingdom [phone]

Eastern Europe & others [phone]

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. To register your Targus accessory, go to: http://www.targus.com/registration.asp

You will need to provide your full name, email address, phone number and company information (if applicable).

Warranty

Targus warrants this product to be free from defects in materials and workmanship for two years. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to a computer; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights.

Product Registration: http://www.targus.com/registration.asp

Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Statement

Tested to Comply

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and receiver;
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not authorized by the party responsible for compliance could void the user's authority to operate this product.

Targus Recycling Directive

At the end of this product's useful life please dispose at an appropriate recycling collection point provided in your country. Targus recycling policy is available for viewing at:

www.targus.com/recycling.

Features and specifications subject to change without notice. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. All rights reserved. © 2007, Targus Group International, Inc. and Targus (UK), Inc
