TRIAX 20 - Watch NIKE - Free user manual and instructions

Product Type	Digital sport watch
Brand	NIKE
Model	TRIAX 20
Display	Digital LCD screen
Main functions	Chronograph, alarm, timer, counter, training data, dual time zone
Power supply	Lithium button cell battery (type CR2032)
Battery life	Approximately 2 years under normal use
Water resistance	Splash resistant, not recommended for swimming
Case material	Durable plastic
Strap material	Rubber or synthetic resin
Case dimensions	Approximately 40 mm diameter, 12 mm thick
Weight	Approximately 45 grams (with battery and strap)
Time display	12/24 hour format, manual adjustment
Alarms	7 programmable alarms across 2 time zones
Stopwatch	Capture of intermediate times, laps, and total time, memory storage
Timer	Up to 5 timed training segments
Counter	Positive and negative counting (e.g., points, laps)
Data memory	View saved times
Maintenance and cleaning	Wipe with a soft, dry cloth; avoid solvents
Spare parts	Battery (CR2032), replacement strap
Repairability	Battery replacement by user; other repairs by a professional

Frequently Asked Questions - TRIAX 20 NIKE

How to set the time on the Nike Triax 20?

From TIME mode, hold down the adjust button until the time flashes. Use the navigation buttons to adjust hours, minutes, and other settings. Confirm with the adjust button.

How to use the stopwatch?

Switch to CHRONOGRAPH mode. Press the start button to start the stopwatch. Use the lap button to record intermediate times. Press stop to stop. You can then save or clear the time.

How to set an alarm?

In ALARM mode, select the desired alarm (1 to 7). Hold the adjust button to enter edit mode. Set the time and enable or disable the alarm. An alarm sounds for 20 seconds and stops when any button is pressed.

Is the watch waterproof?

The Nike Triax 20 is splash and rain resistant, but not designed for swimming or diving. Avoid submerging it in water.

How to change the battery of the Nike Triax 20?

Open the battery compartment on the back of the watch with a suitable screwdriver. Replace the old battery with a new CR2032 button cell, observing polarity. Close the compartment carefully.

How to clean the watch?

Use a slightly damp soft cloth to wipe the case and strap. Do not use chemical or abrasive cleaners. Dry it immediately afterwards.

How to use the multi-segment timer?

In TIMER mode, set segments SEG-1 to SEG-5. Start the countdown; at the end of each segment, the watch automatically proceeds to the next. You can stop or clear all segments.

How to view saved times?

Switch to DATA mode. Use the navigation buttons to browse through saved laps, intermediate, and total times from the stopwatch.

What to do if the screen is blank?

Check that the battery is installed correctly and not depleted. If needed, replace the battery. If the problem persists, contact a repair service.

How to switch between time zones?

In TIME mode, hold the Time Warp button for 1 second to switch between the two preset time zones. Alarms are independent for each zone.

USER MANUAL TRIAX 20 NIKE

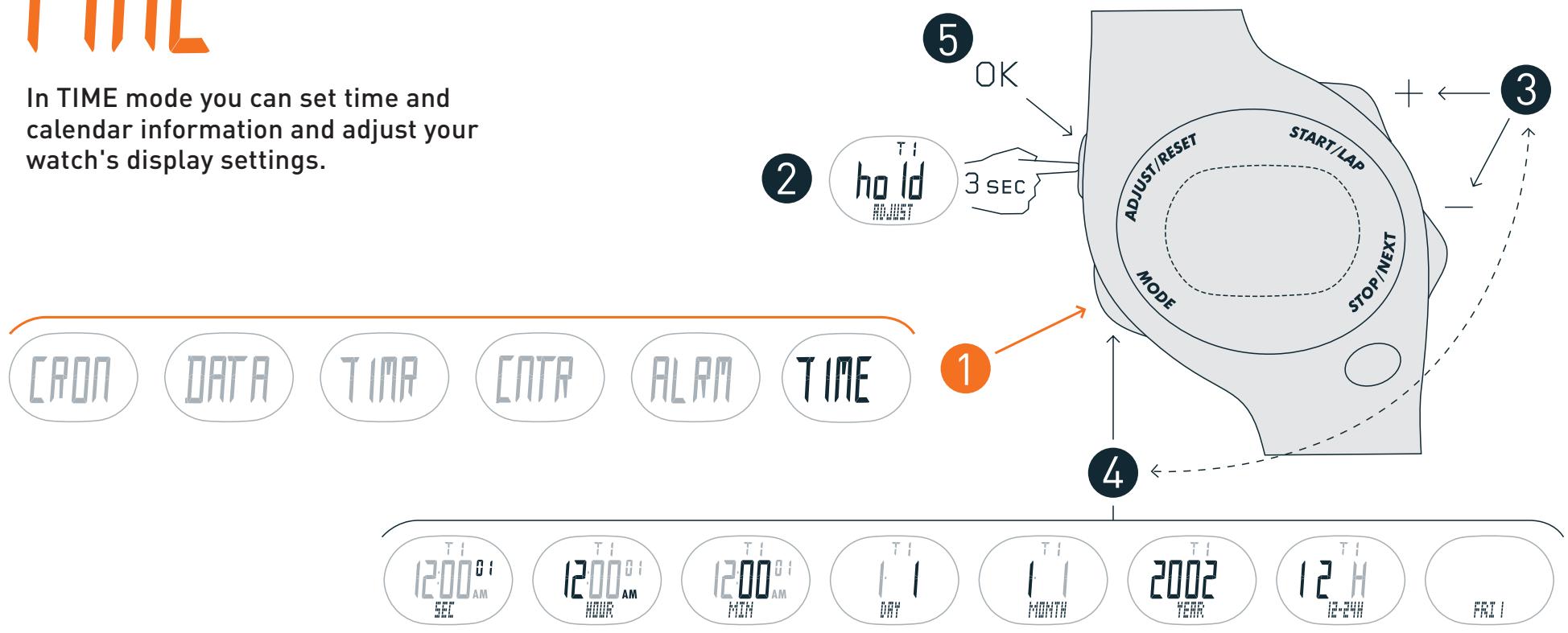

In TIME mode you can set time and calendar information and adjust your watch's display settings.

Time Warp

Hold for 1 second in any other mode to return to TIME.

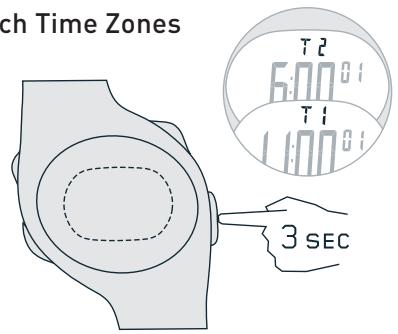

Switch Time Zones

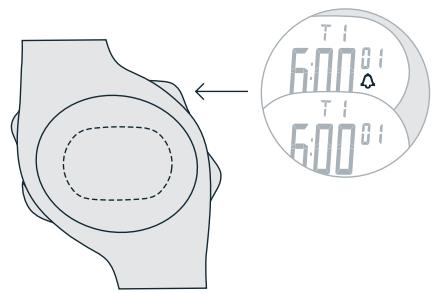

Chime ON/OFF

[FRON]

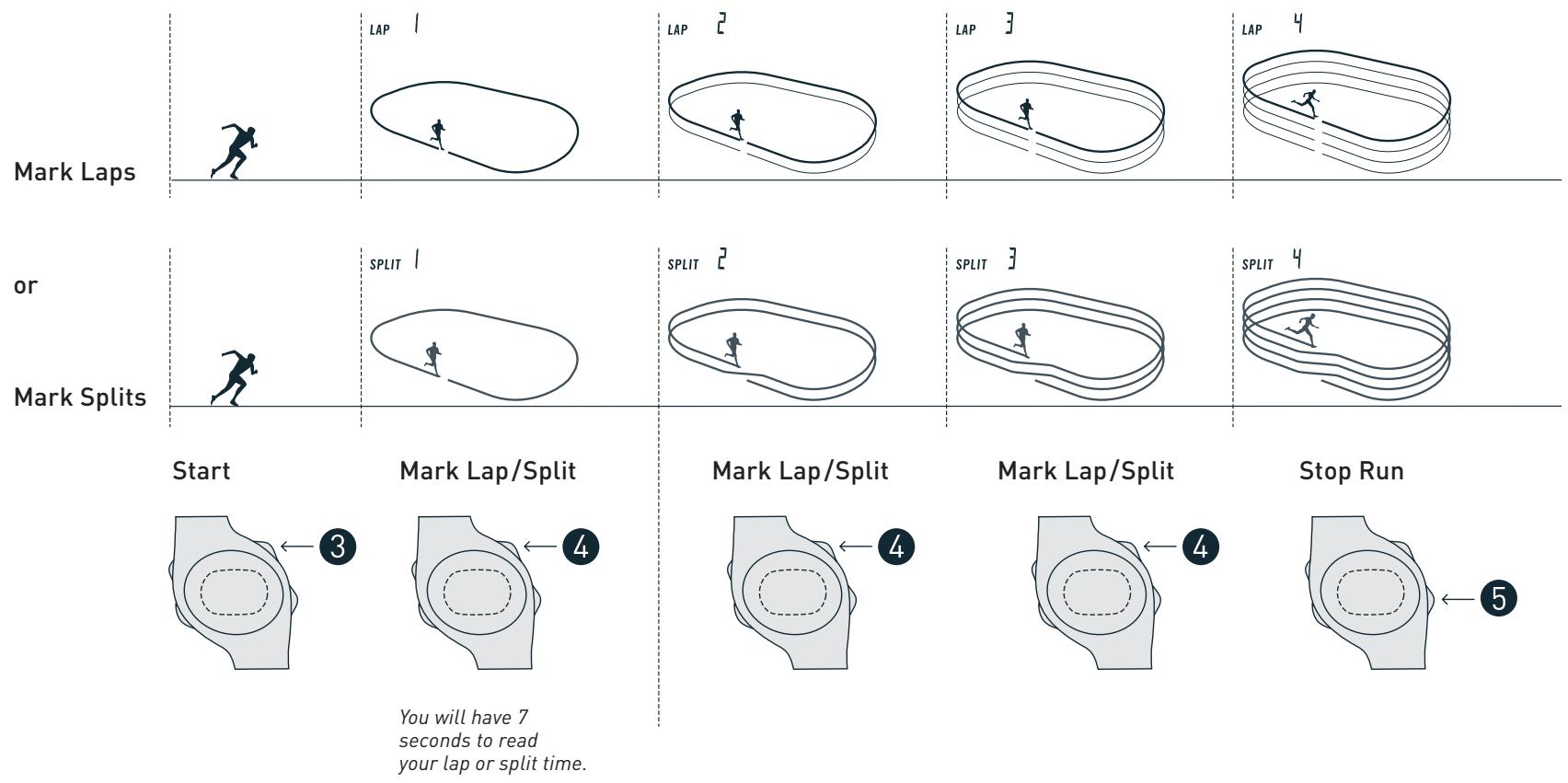

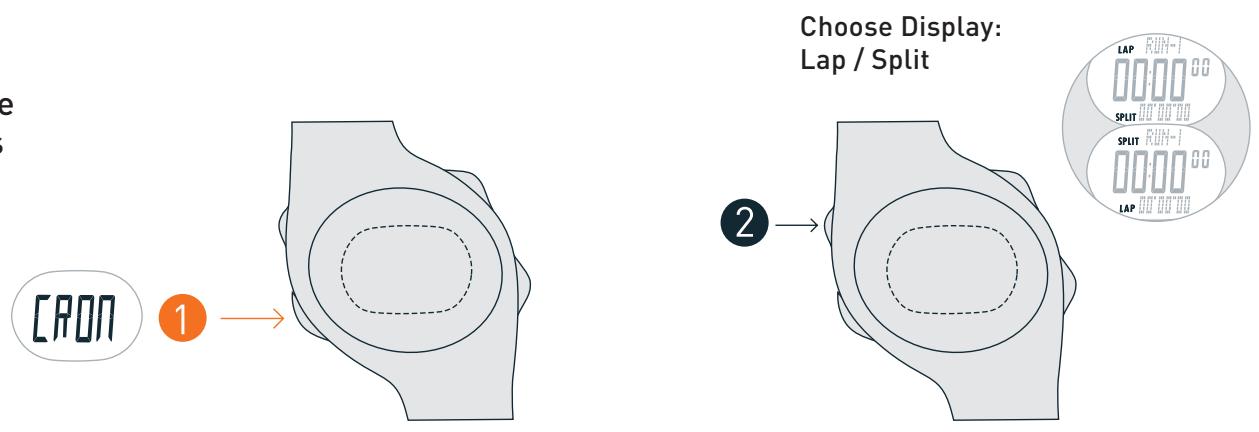

In CHRONOGRAPH mode you can capture lap, split and run times. Save your times for review in DATA mode.

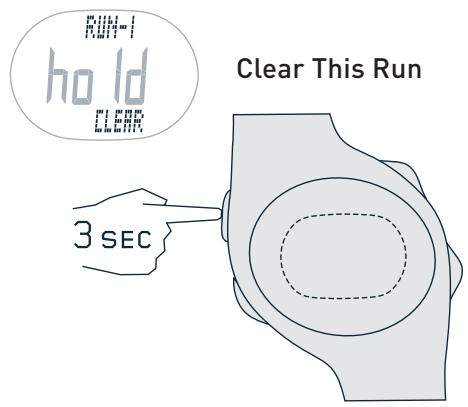

6 Choose Save Run or Clear Run

ALPM

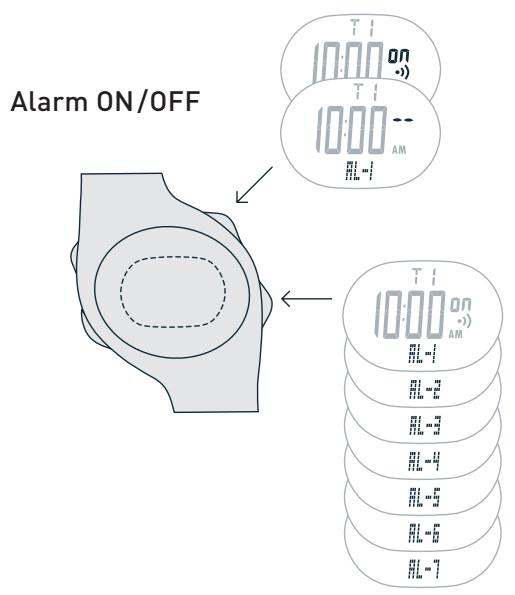

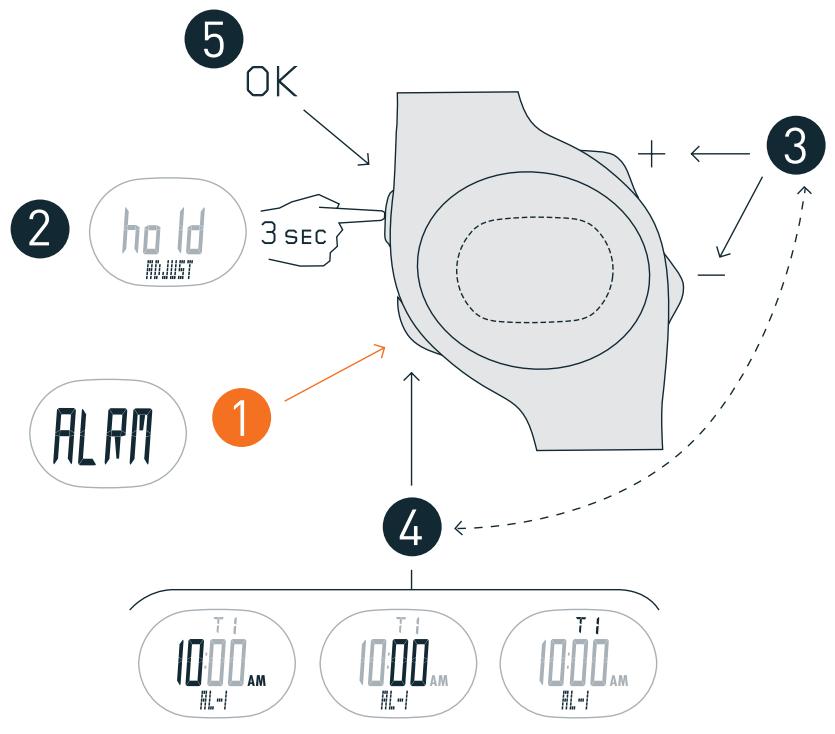

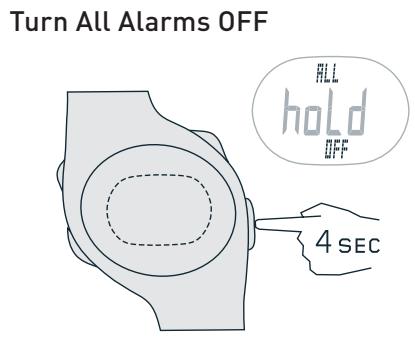

In ALARM mode you can set 7 alarms within 2 time zones. Press any button to stop alarm. Alarm will stop after 20 sec

[NTA

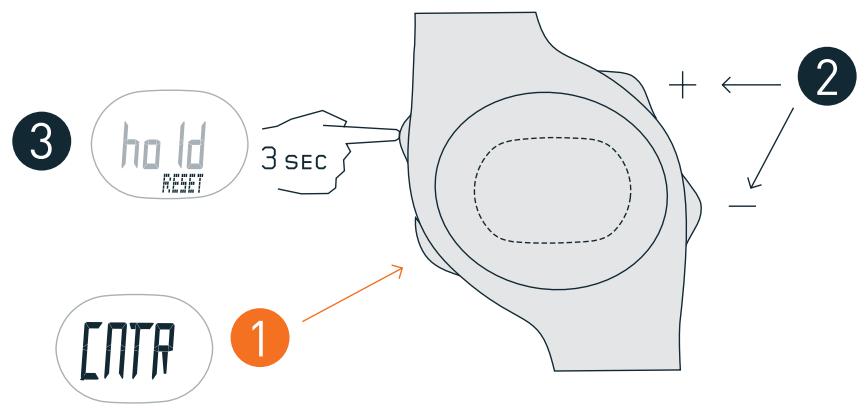

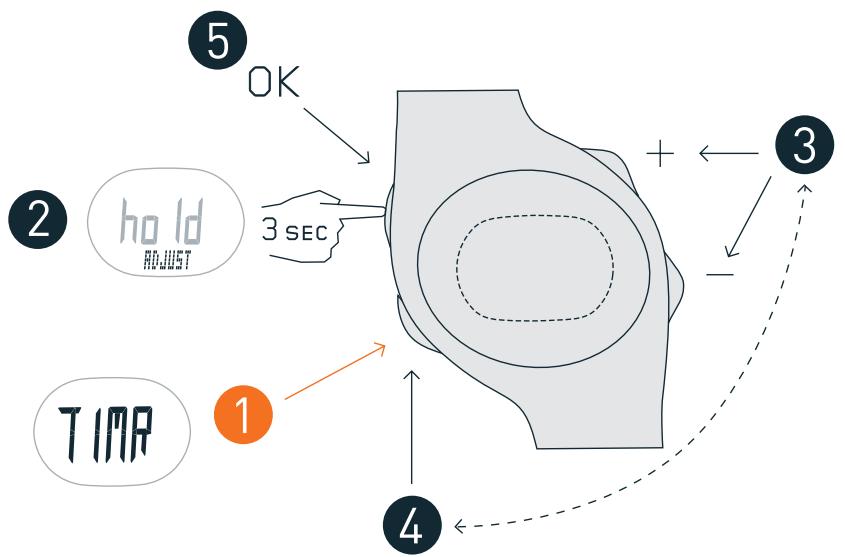

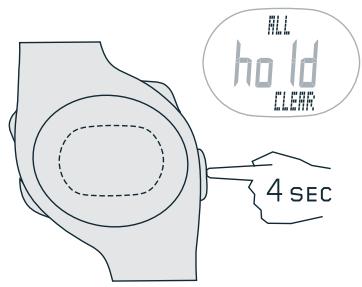

In COUNTER mode you can count in positive and negative increments. Use COUNTER to keep track of golf strokes, baseball innings, running miles or other.

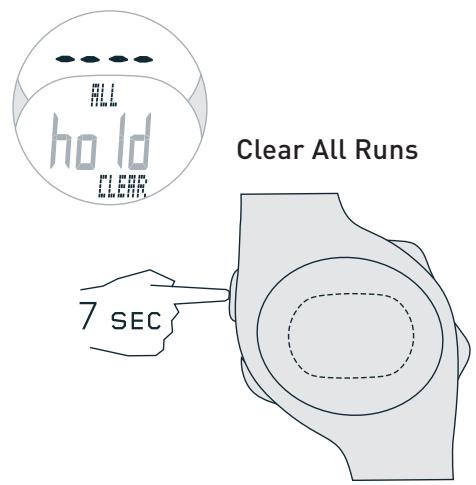

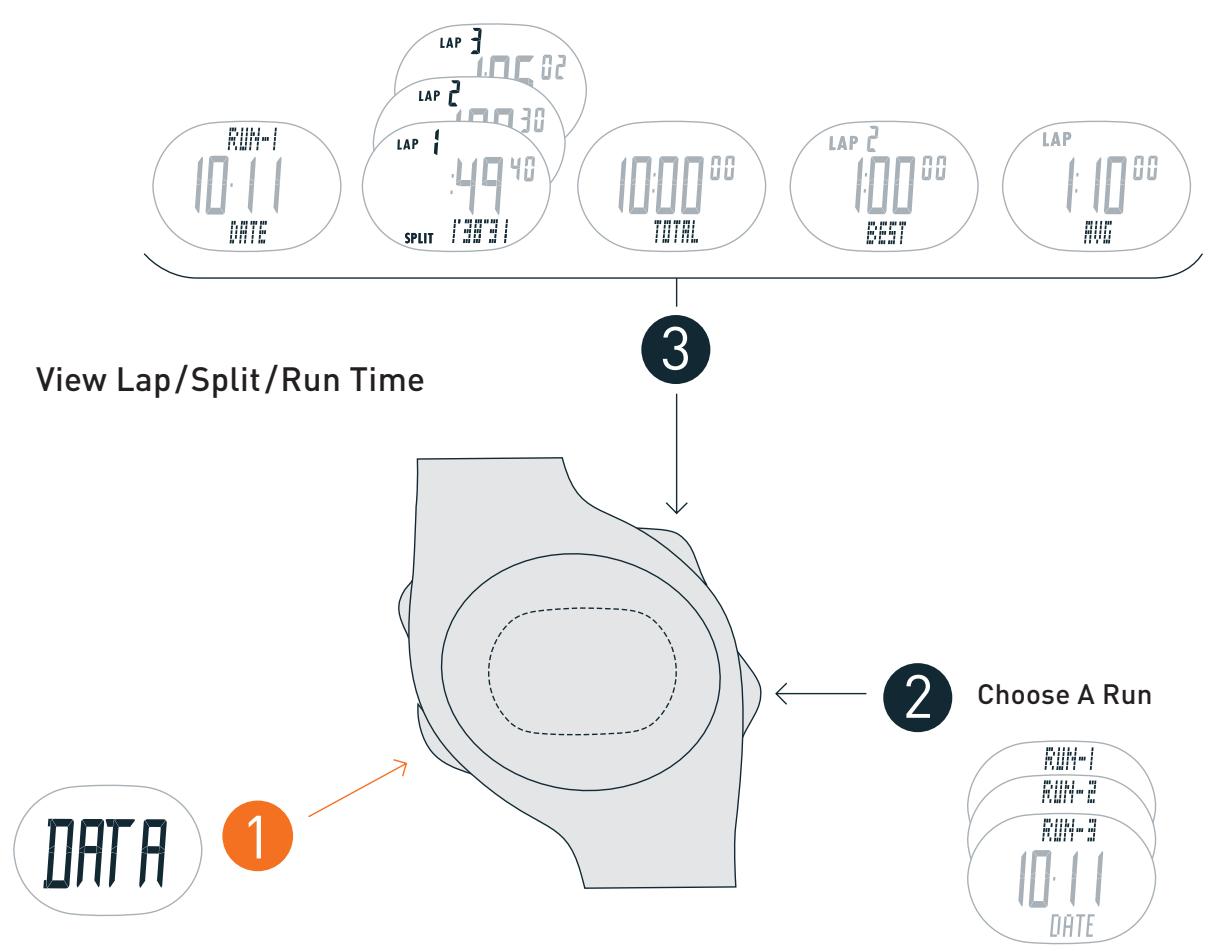

In DATA mode you can review lap, split and run times.

Record your times in CHRONOGRAPH mode.

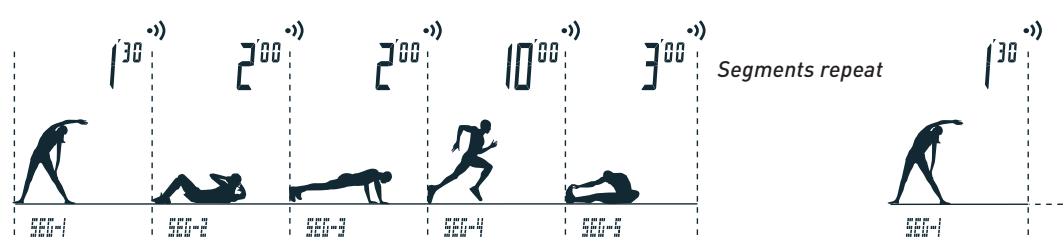

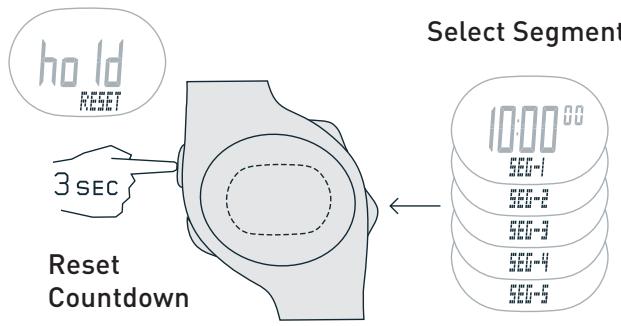

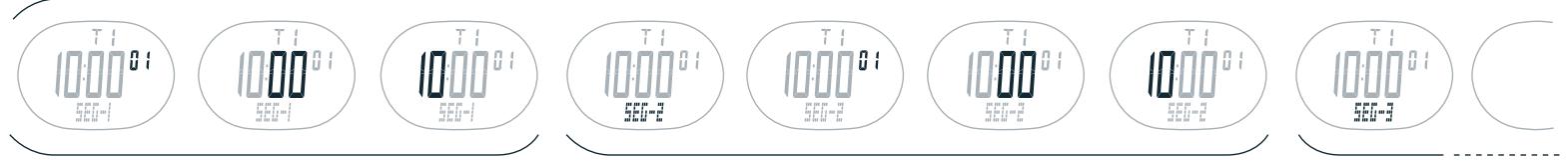

In TIMER mode you can set up to 5 timed training segments.

SEG-1
SEG-2
SEG-3

Start & Stop Countdown

Clear All Segments
